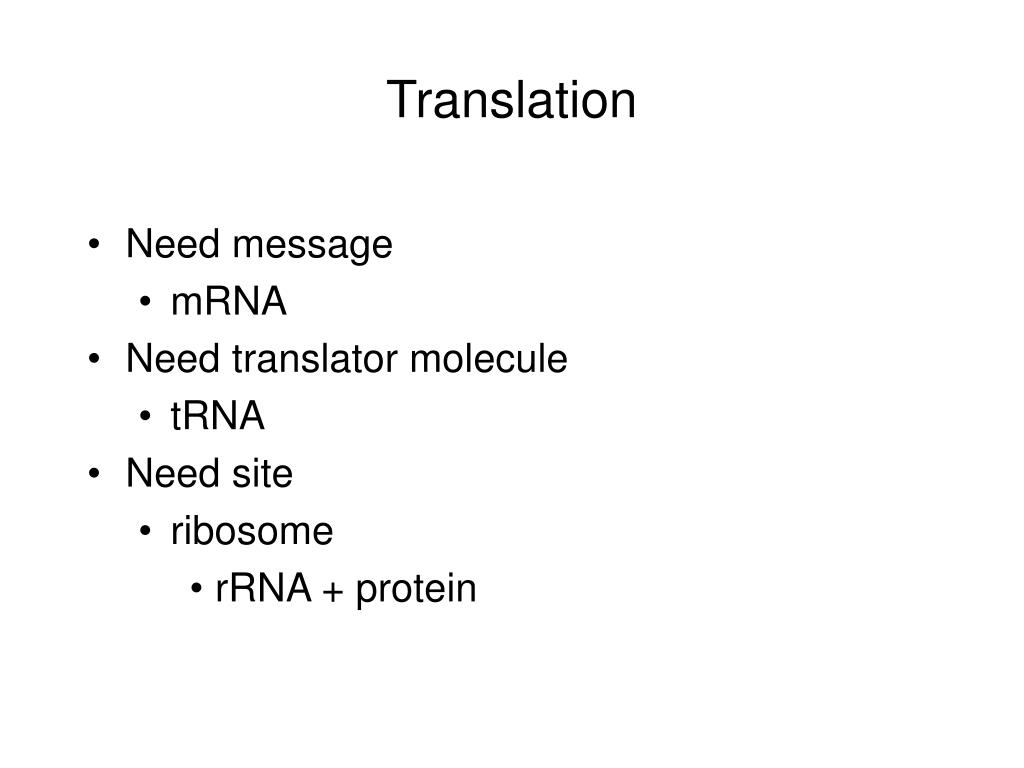

  1. Translation • Need message • mRNA • Need translator molecule • tRNA • Need site • ribosome • rRNA + protein

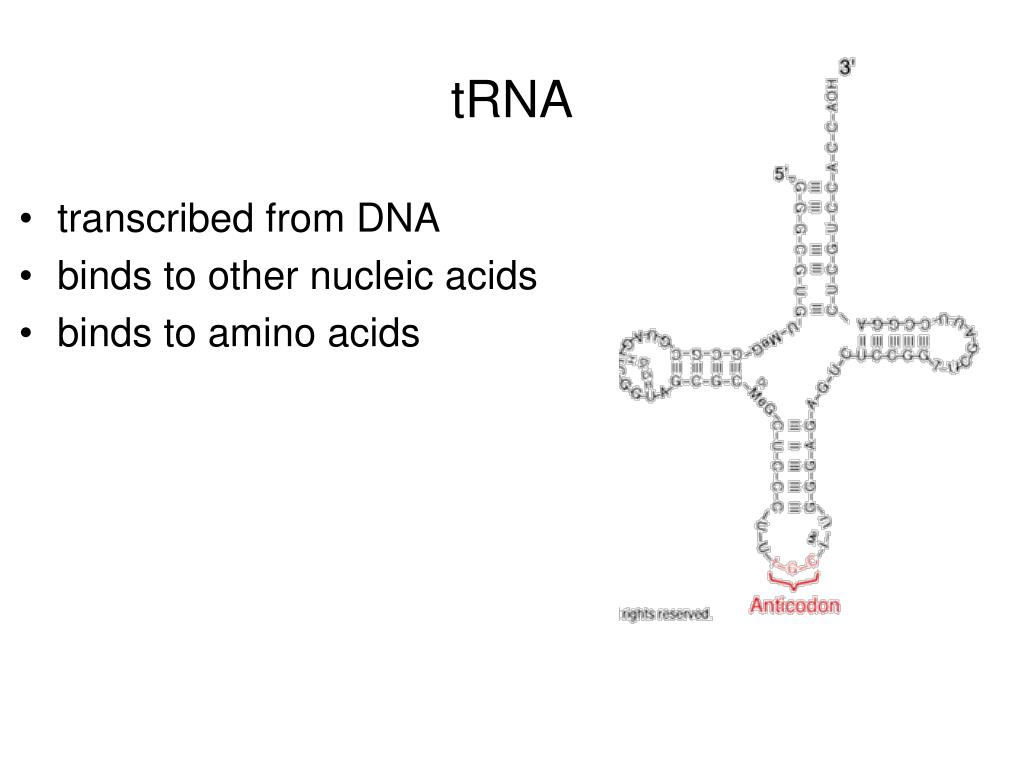

  2. tRNA • transcribed from DNA • binds to other nucleic acids • binds to amino acids

  3. Charging of tRNA • attaching amino acid to 3’ end • requires specific enzyme • requires energy aminoacyl tRNA:

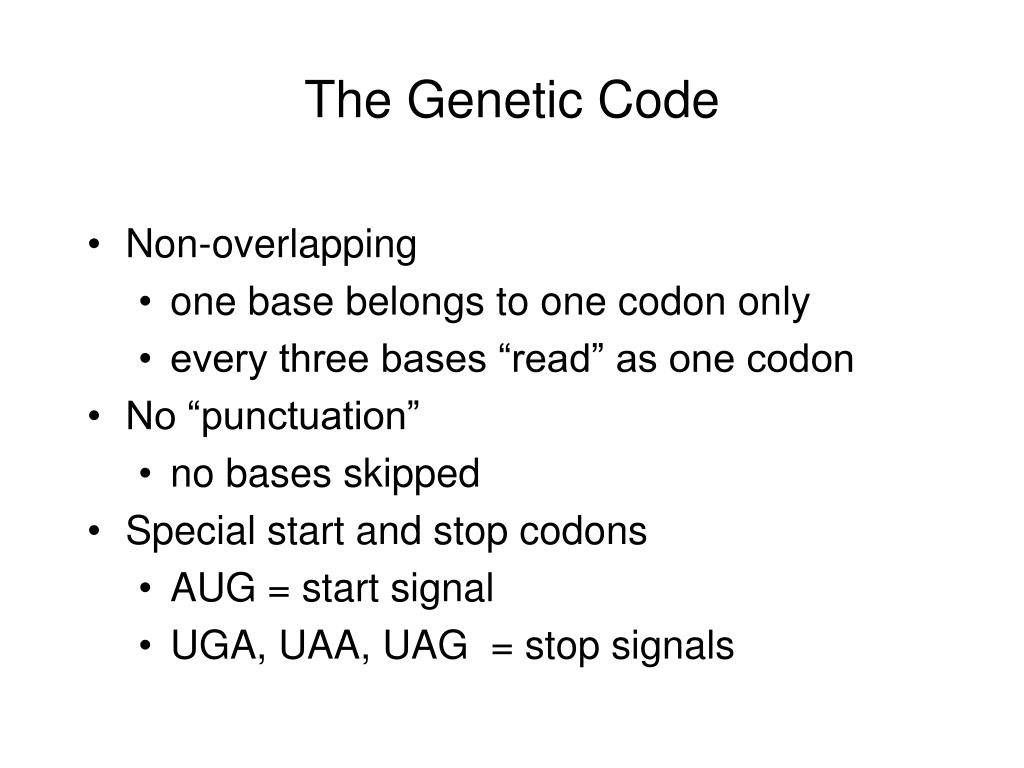

  4. The Genetic Code • Non-overlapping • one base belongs to one codon only • every three bases “read” as one codon • No “punctuation” • no bases skipped • Special start and stop codons • AUG = start signal • UGA, UAA, UAG = stop signals

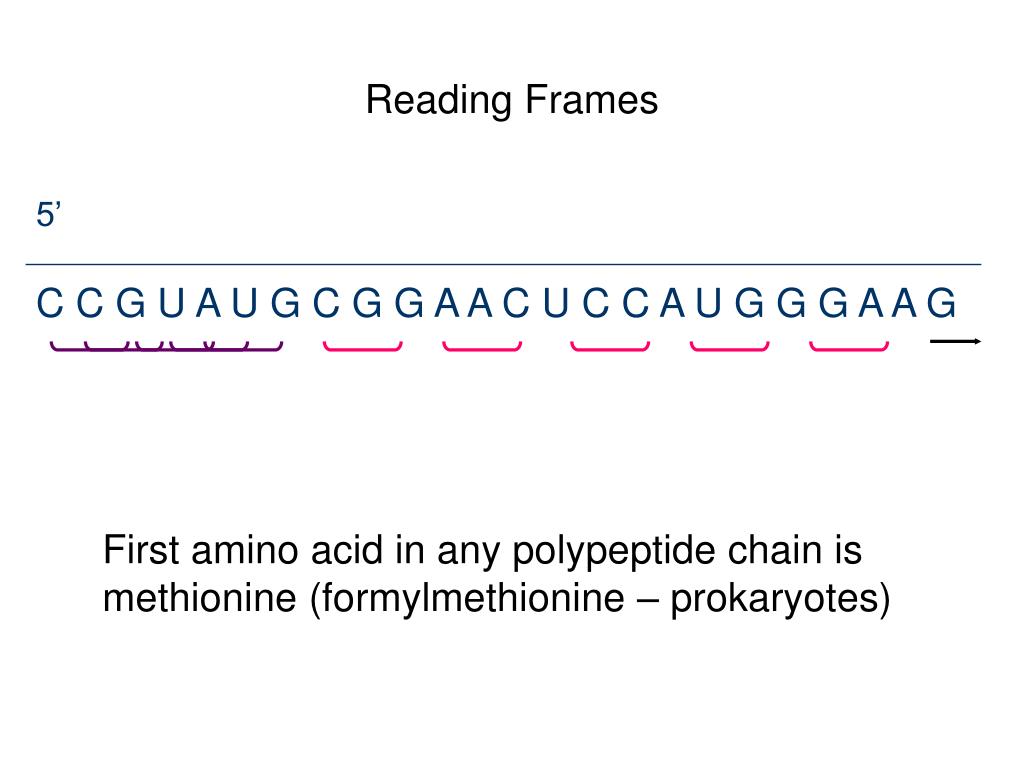

  5. Reading Frames 5’ C C G U A U G C G G A A C U C C A U G G G A A G First amino acid in any polypeptide chain is methionine (formylmethionine – prokaryotes)

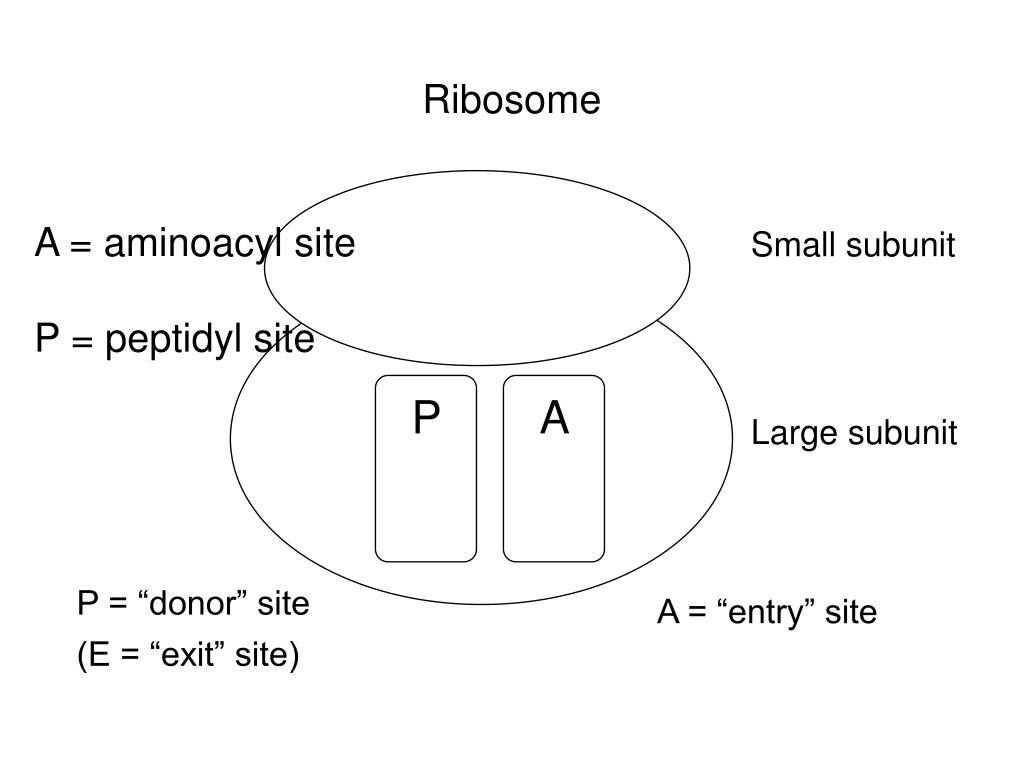

  6. Ribosome A = aminoacyl site P = peptidyl site Small subunit P A Large subunit P = “donor” site A = “entry” site (E = “exit” site)

  7. P A 5

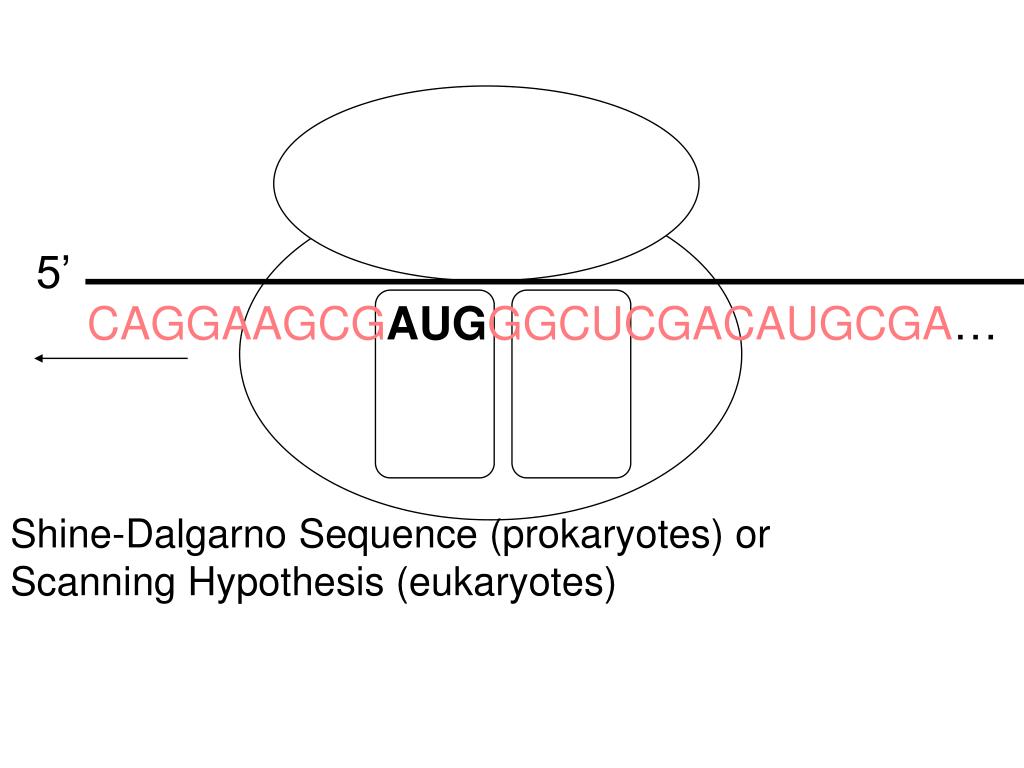

  8. 5’ CAGGAAGCGAUGGGCUCGACAUGCGA… Shine-Dalgarno Sequence (prokaryotes) or Scanning Hypothesis (eukaryotes)

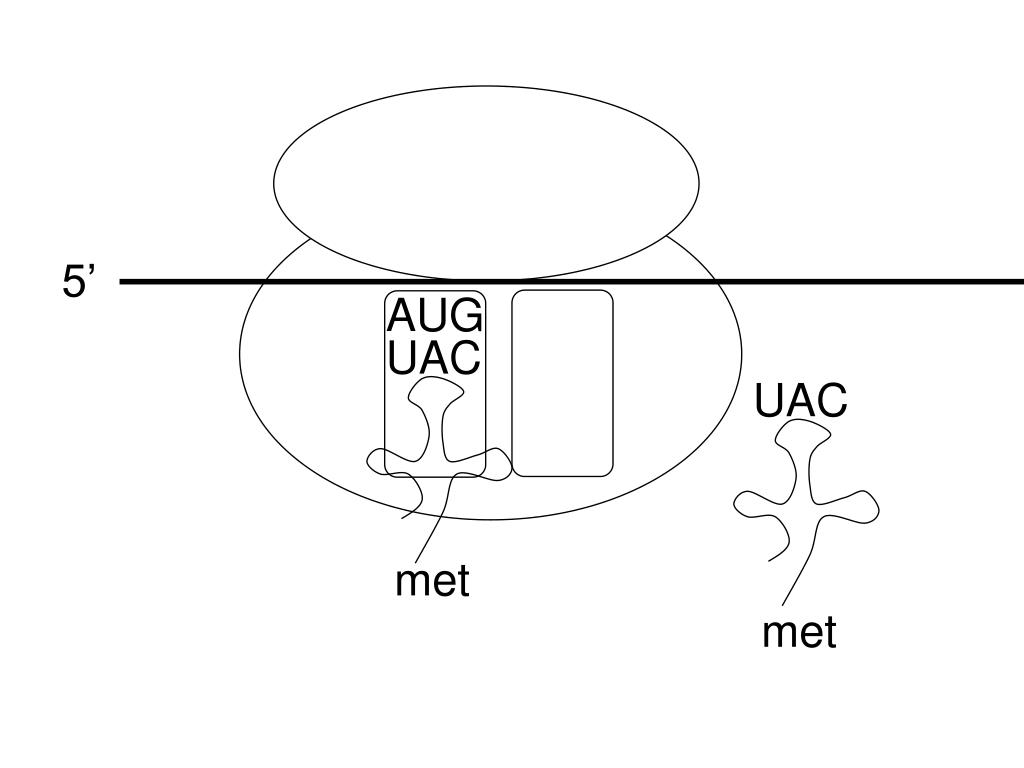

  9. UAC UAC met met 5’ AUG

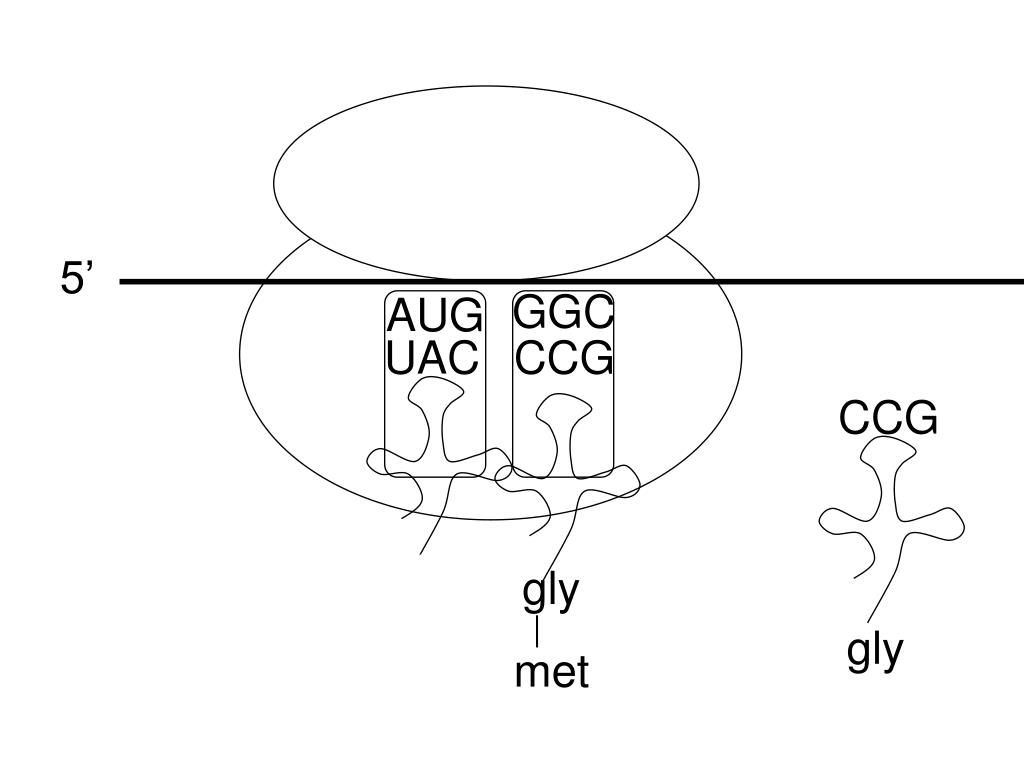

  10. CCG CCG gly gly 5’ GGC AUG UAC met | met

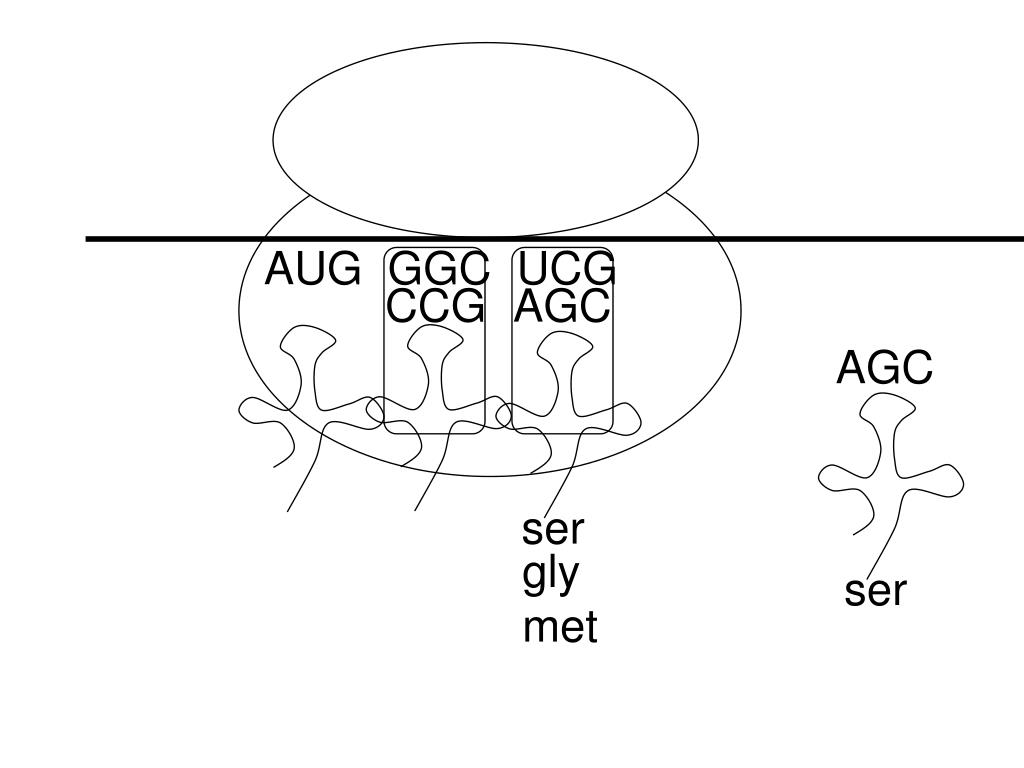

  11. AGC AGC ser ser AUG GGC UCG CCG gly met gly met

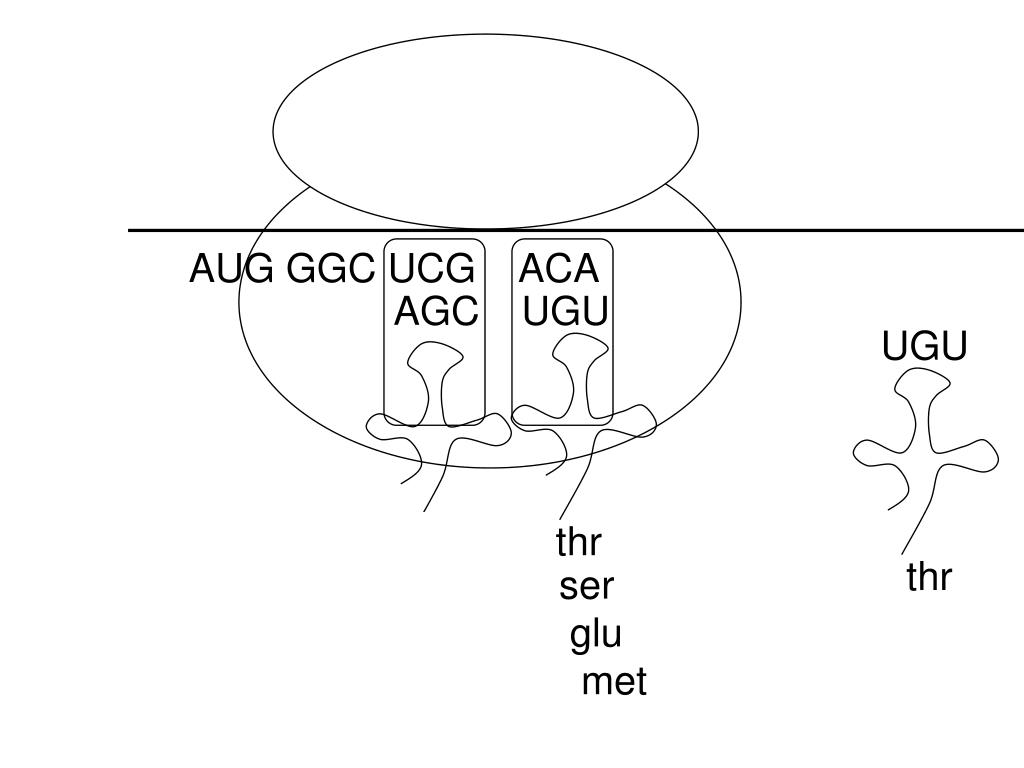

  12. UGU UGU thr thr AUG GGC UCG ACA AGC ser gly met ser glu met

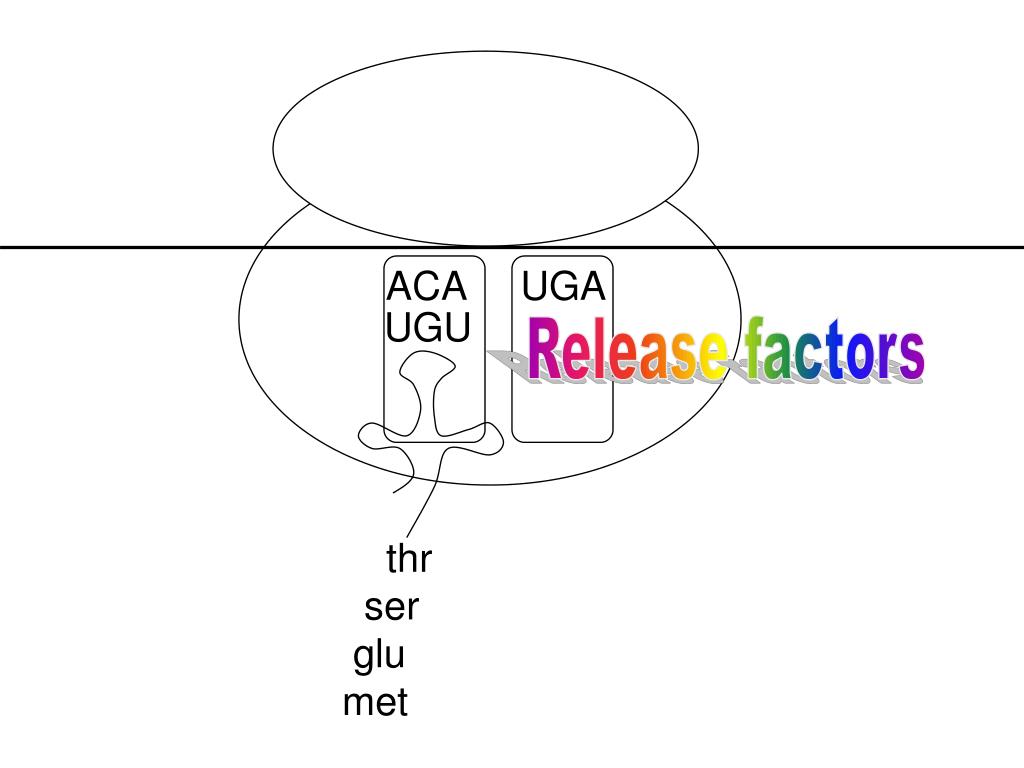

  13. ACA UGA UGU Release factors thr ser glu met

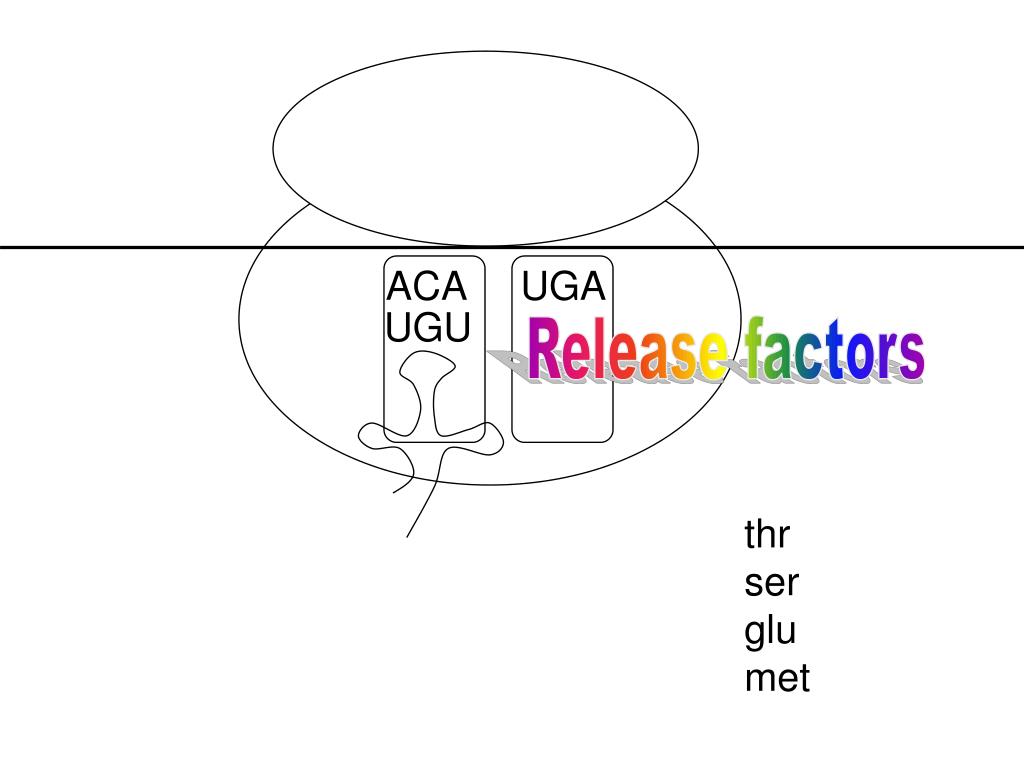

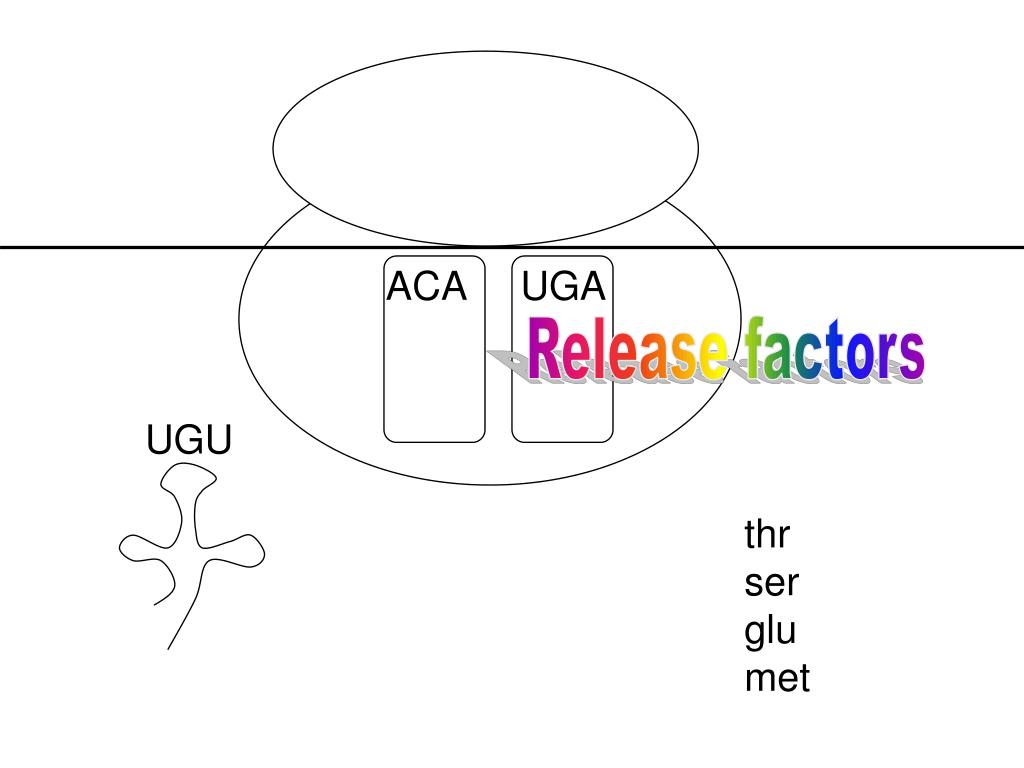

  14. ACA UGA UGU Release factors thr ser glu met

  15. ACA UGA Release factors UGU thr ser glu met

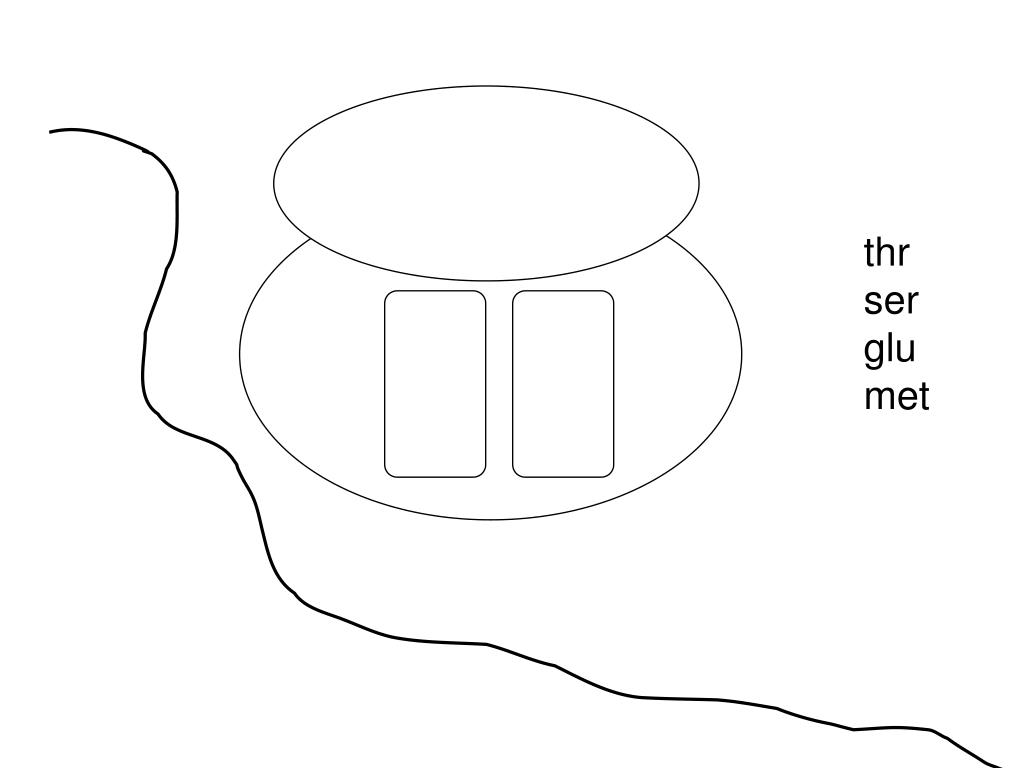

  16. thr ser glu met
