Translation - PowerPoint PPT Presentation

  • Uploaded on

Translation. mRNA exits the nucleus through the nuclear pores In the cytoplasm, it joins with the other key players to assemble a polypeptide. The other parts of the machinery are: t-RNAs and ribosomes.

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about 'Translation' - gayle

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

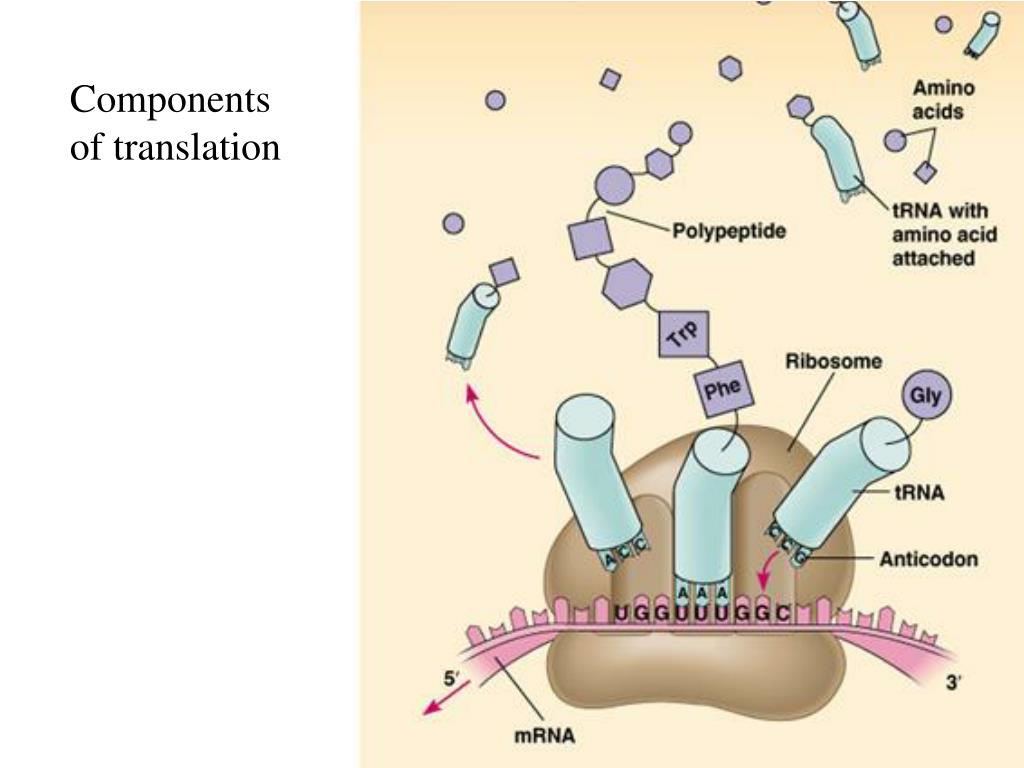

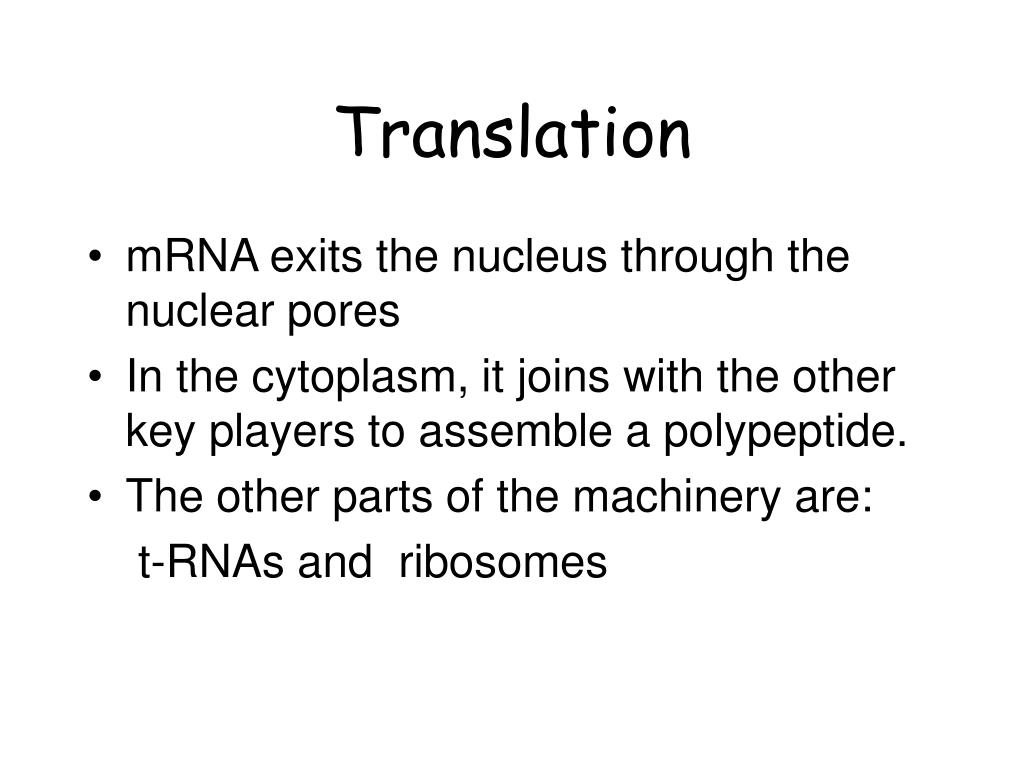

  • mRNA exits the nucleus through the nuclear pores
  • In the cytoplasm, it joins with the other key players to assemble a polypeptide.
  • The other parts of the machinery are:

t-RNAs and ribosomes


T-RNA: small, 80n, single strand with secondary structure (folding). Anticodon at end of loop.

function = picks up aa & transports it to ribosome


Sequence of 4 Steps in Translation...

  • ACTIVATION : Add an amino acid to tRNA
  • Requires enzyme and ATP Creates an aa-tRNA


assemble players

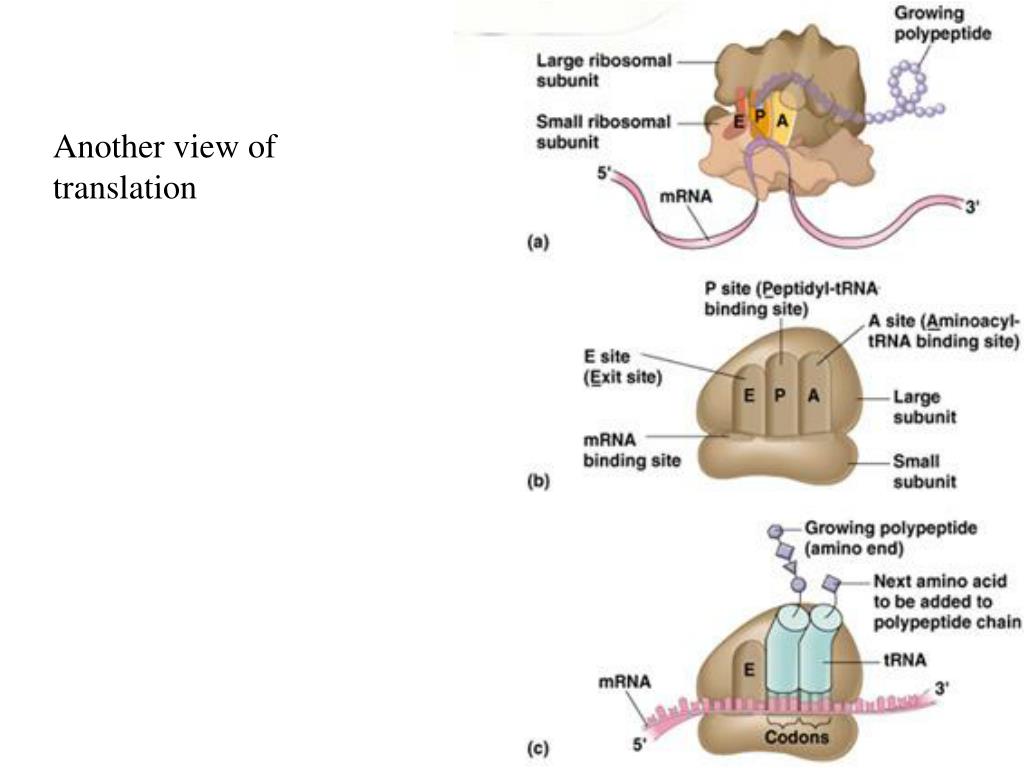

-Small ribosomal sub units binds to mRNA.

-Initiator tRNA binds to P site

-Large ribosomal unit binds to complex



  • The control in the DNA transcription process is very tight.
  • Cells are able to "turn on" or "turn off" genes when their products are not required in cell metabolism or control.
  • Regulation of gene expression is now only being to be fully understood and is a major area of research today.
gene regulation in prokaryotes
  • Genes for a particular metabolic pathway are usually in clusters, under the control of one promoter and one operator.
  • This cluster of genes, with its regulatory sites is called an operon
the lac operon
The lac operon
  • E. coli can use lactose as a source of energy
  • To use lactose, it must split the lactose into glucose and galactose. This means producing enzymes.
  • Only produces enzymes when lactose is present in the environment. WHY?
Three genes are involved:

1. LacZ: codes for B-galactosidase: degrades lactose

2. LacY: codes for B-galactosidase permease: causes lactose to enter the cell

3. LacA: codes for a transacetylase: function unknown!

The lacl gene codes for the lacl protein
  • This protein is always produced.
  • When lactose is NOT present in the environment, the lacl protein binds to the operator site.
  • This blocks RNA polymerase from attaching to the promoter site. Transcription is turned OFF

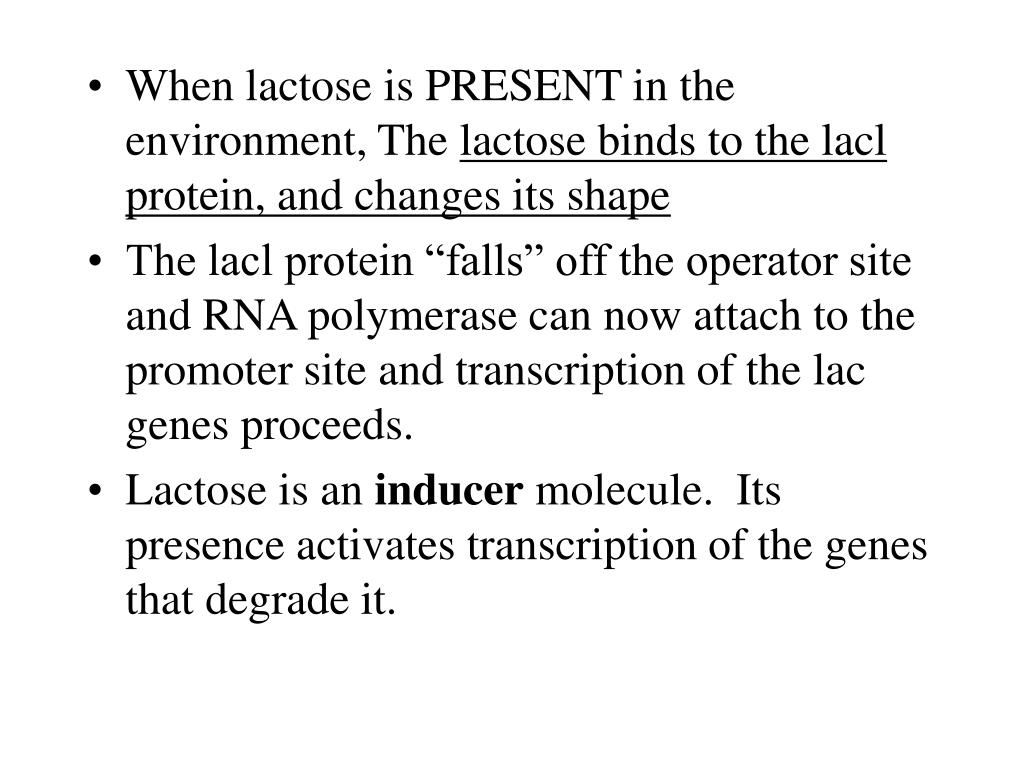

When lactose is PRESENT in the environment, The lactose binds to the lacl protein, and changes its shape
  • The lacl protein “falls” off the operator site and RNA polymerase can now attach to the promoter site and transcription of the lac genes proceeds.
  • Lactose is an inducer molecule. Its presence activates transcription of the genes that degrade it.
Often, both glucose and lactose are present in the environment.
  • E. coli uses glucose first, since the enzymes for its use are always present.
  • There is a mechanism to slow down the use of lactose even if it is present.
  • When all glucose is used, then transcription of lac genes will speed up.

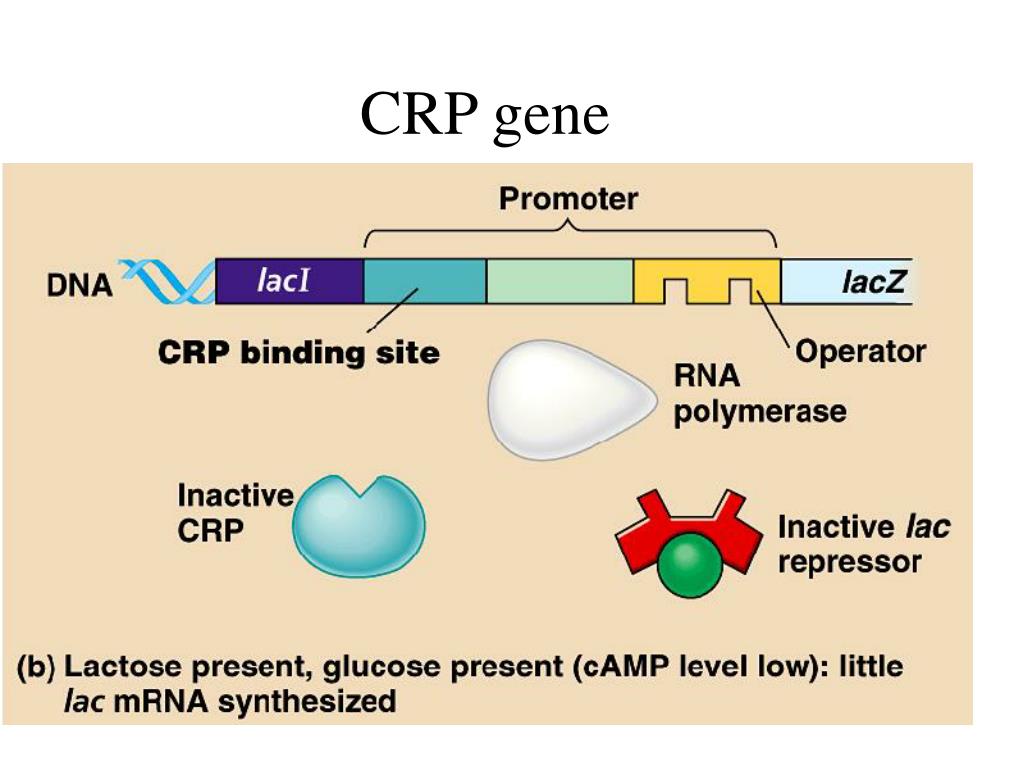

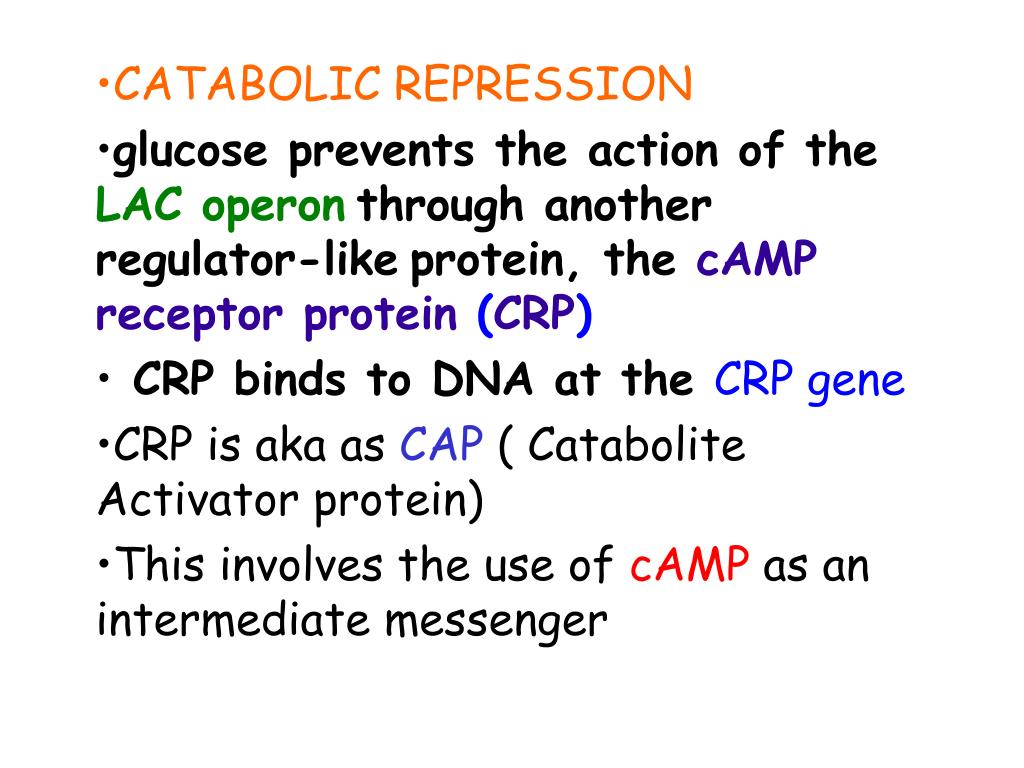

  • glucose prevents the action of the LAC operonthrough another regulator-likeprotein, the cAMP receptor protein (CRP)
  • CRP binds to DNA at the CRP gene
  • CRP is aka as CAP ( Catabolite Activator protein)
  • This involves the use of cAMP as an intermediate messenger
CRP (aka CAP) is an allosteric protein, regulated by cAMP
  • when glucose is high - lots of ATP & little cAMP
  • CRP-alone conformation doesn't bind to CRP DNA region - favors slow transcription of lac genes
  • when glucose is low - all the ATP is hydrolyzed favoring high cAMP amounts
  • cAMP-CRP conformation can bind to CRP DNA region -favors rapid transcription of lac genes
the trp operon
The TRP operon
  • This cluster of genes is responsible for the enzymes that synthesize Tryptophan, an essential amino acid.
  • They are always turned on EXCEPT when tryptophan is present in the environment.
  • The operon consist of five genes, an operator, a promoter and the trp repressor protein.
Tryptophan is needed to inactivate the trp operon—it is a corepressor.
  • This type of regulation is by repression because the effector molecule interacts with the repressor protein so that it can bind to the operator
