Background

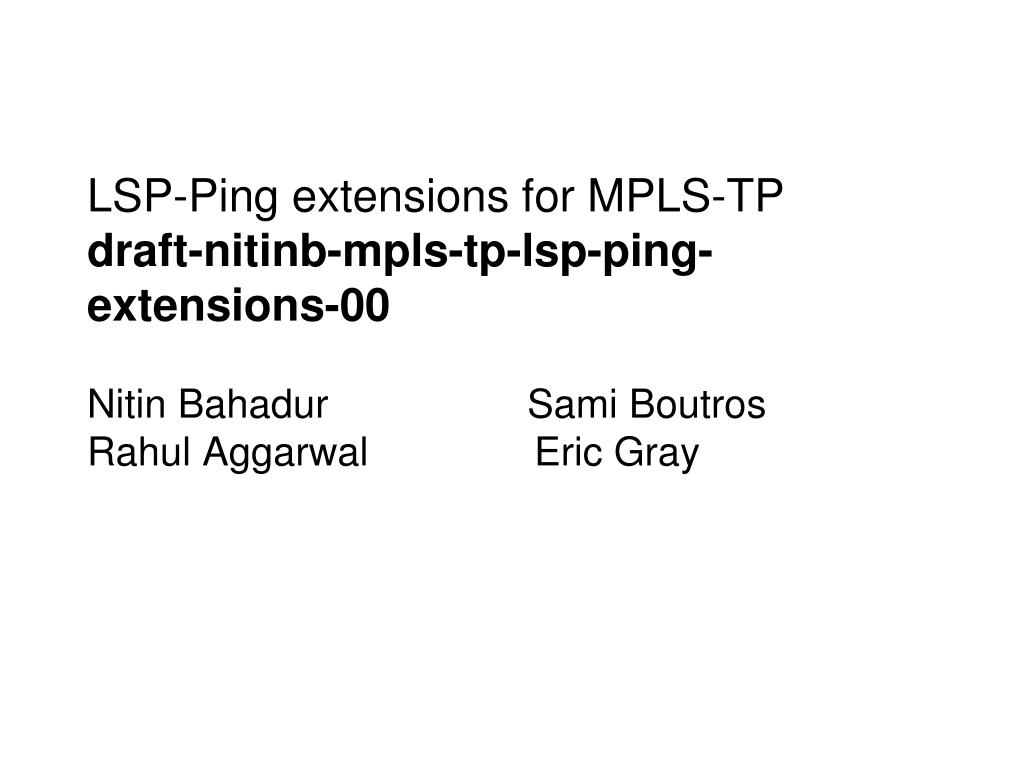

LSP-Ping extensions for MPLS-TP draft-nitinb-mpls-tp-lsp-ping-extensions-00Nitin Bahadur Sami Boutros Rahul Aggarwal Eric Gray


Background
Background

  • This draft specifies extensions to LSP-Ping so that LSP- Ping can be used to perform OAM on MPLS-TP LSPs in the absence of IP encapsulation.

  • LSP-Ping ping function meets the Connectivity Verification, Adjacency and Route Tracing requirements specified in [draft-ietf-mpls-tp-oam-requirements].


Background

LSP-Ping/trace-route for MPLS-TP LSPs.

  • Two modes of operations to run over Bidirectional MPLS-TP LSPs:-

  • 1- Using IP encapsulation.

    • Using IP/UDP header [RFC4379].

    • The Reply mode MUST be via application level control channel (4).

    • IP/UDP response message MUST be sent on the reverse path.

    • IP addresses are used for identification.

  • 2- Using non-IP encapsulation.

    • Using ACH channel type in [draft-nitinb-mpls-tp-lsp-ping-bfd-procedures].

    • The Reply mode MUST be via application level control channel (4).

    • Ingress node MAY attach a Source/destination Address TLVs for identification.

    • Reply message MUST be sent on the reverse path of the LSP using ACH.


Background

LSP-Ping/trace-route extensions

Define New address type for Downstream Mapping TLV [RFC4379]

Type # = 0

Address Type = N/A (In the absence of IP addressing).

K Octets = 8

- SHOULD only perform mpls label control-plane/data-plane consistency checks.

Applicable to Detailed Downstream Mapping TLV in [draft- mpls-lsp-ping-enhanced-dsmap].

*** Downstream Mapping TLV is used to get the downstream node information and to enable LSP verification along the transit nodes when performing traceroute. ***


Background

LSP-Ping/trace-route extensions without IP encapsulation

  • Source/Destination Address TLVs

  • Identify source/destination addresses as defined in [draft-ietf-mpls-tp-ach-tlv].

  • Only one Source Address TLV can exist in the packet.

  • One or more of Destination Address TLVs MAY be included.

  • MEP and MIP Identifier

  • Identify maintenance end point (MEP) and/or maintenance intermediate point (MIP) as defined in [draft-swallow-mpls-tp-identifiers].

  • Only one identifier (MEP or MIP) may be present in a packet.


P2mp considerations
P2MP Considerations

  • Follows [draft-ietf-mpls-p2mp-lsp-ping] when IP addressing is used.

  • Use ACH when IP addressing is not used.


Future enhancements
Future Enhancements

  • Define new Target FEC stack for MPLS-TP LSP, specifying src, dst, tun-id and LSP-ID.

  • Define new Target FEC stack for static PW.

  • Define new TLV to specify the sender # of hops to be able to send the inband reply with the correct TTL.

  • In LSP-Ping without IP encapsulation, close on sender/destination node addresses and ME-ID/MEP-ID/MIP-ID formats.


Next steps

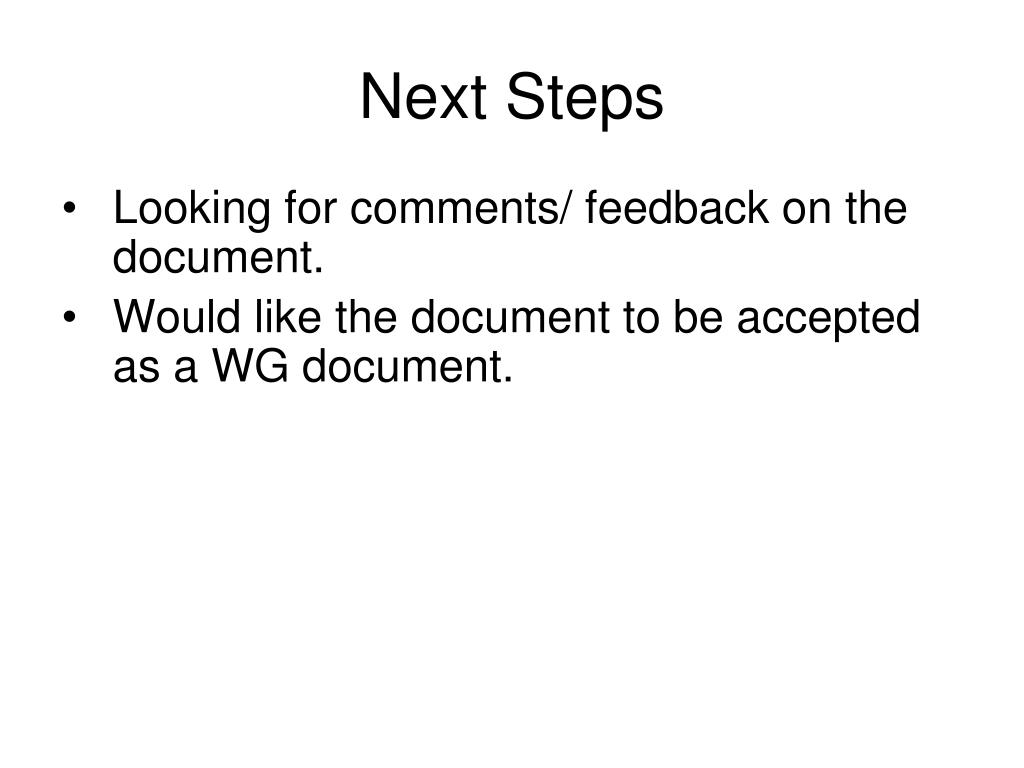

Next Steps

  • Looking for comments/ feedback on the document.

  • Would like the document to be accepted as a WG document.
