Presentation Transcript
slide1

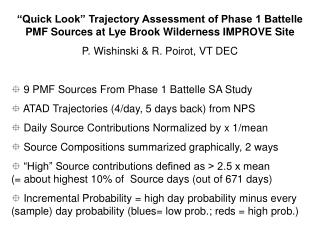

“Quick Look” Trajectory Assessment of Phase 1 Battelle PMF Sources at Lye Brook Wilderness IMPROVE Site

  • P. Wishinski & R. Poirot, VT DEC
  • 9 PMF Sources From Phase 1 Battelle SA Study
  • ATAD Trajectories (4/day, 5 days back) from NPS
  • Daily Source Contributions Normalized by x 1/mean
  • Source Compositions summarized graphically, 2 ways
  • “High” Source contributions defined as > 2.5 x mean (= about highest 10% of Source days (out of 671 days)
  • Incremental Probability = high day probability minus every (sample) day probability (blues= low prob.; reds = high prob.)
slide2

Lye Brook PMF Source 1

Average Mass = 0.35 ug/m3 = 4.8 % of Total Fine Mass, Increasing Trend

Bext: Minor on both Best 20% & Worst 20% Days, Winter Maxima

Major Mass Contributing Species of Source: EC, S

Major Species Contributed by Source: Se, Br

Battelle Guess: 2ndary Sulfate New Guess: Primary Coal

slide3

Lye Brook PMF Source 2

Average Mass = 0.46 ug/m3 = 6.0 % of Total Fine Mass, Decreasing Trend

Bext: Major on Best 20% days, Minor on Worst 20% Days, Winter Maxima

Major Mass Contributing Species of Source: OC, EC, S

Major Species Contributed by Source: Cu, Zn

Battelle Guess: Smelter? New Guess: MW Smelters, Metal Processing

slide4

Lye Brook PMF Source 3

Average Mass = 0.13 ug/m3 = 1.8 % of Total Fine Mass, Increasing Trend

Bext: Minor on both Best 20% & Worst 20% Days, Spring Maxima

Major Mass Contributing Species of Source: Si, S, OC, Ca, Fe, EC, K, Mg

Major Species Contributed by Source: Ca, Si, Fe

Battelle Guess: Crustal New Guess: Limestone Soil?, Cement Kiln? (maybe local or nearby NY)

slide5

Lye Brook PMF Source 4

Average Mass = 0.19 ug/m3 = 2.5 % of Total Fine Mass, Increasing Trend

Bext: Minor on both Best 20% & Worst 20% Days, Winter Maxima

Major Mass Contributing Species of Source: S, EC, Pb

Major Species Contributed by Source: Pb, Zn

Battelle Guess: Incinerator? New Guess: East Coast Incinerators

slide6

Lye Brook PMF Source 5

Average Mass = 2.42 ug/m3 = 32.0 % of Total Fine Mass, Increasing Trend

Bext: Major on Best 20% days, Minor on Worst 20% Days, Summer Maxima

Major Mass Contributing Species of Source: OC, EC, S, K

Major Species Contributed by Source: OC, Mn, V, K, EC

Battelle Guess: Veg. Burning New Guess: Veg. Burning (local & Can.)

slide7

Lye Brook PMF Source 6

Average Mass = 3.20 ug/m3 = 42.0 % of Total Fine Mass, No Trend

Bext: Major on both Best 20% & Worst 20% Days, Summer Maxima

Major Mass Contributing Species of Source: S, OC, EC, Na, Si

Major Species Contributed by Source: S, Ti, Na,

Battelle Guess: Secondary Sulfate New Guess: Secondary Coal

slide8

Lye Brook PMF Source 7

Average Mass = 0.37 ug/m3 = 4.8 % of Total Fine Mass, Decreasing Trend

Bext: Minor on both Best 20% & Worst 20% Days, Spring Maxima

Major Mass Contributing Species of Source: Al, Si, OC, Fe, Na

Major Species Contributed by Source: Al, Ti, Fe, Si,

STI Guess: Crustal? New Guess: Distant Soil (SW US, Sahara?)

slide9

Lye Brook PMF Source 8

Average Mass = 0.38 ug/m3 = 5.0 % of Total Fine Mass, No Trend

Bext: Minor on both Best 20% & Worst 20% Days, Winter Maxima

Major Mass Contributing Species of Source: OC, EC, S, Si, Ni, V, Fe, Mg

Major Species Contributed by Source: Ni, V

STI Guess: Secondary OC New Guess: East Coast Residual Oil

slide10

Lye Brook PMF Source 9

Average Mass = 0.07 ug/m3 = 0.9 % of Total Fine Mass, Increasing Trend

Bext: Minor on both Best 20% & Worst 20% Days, Spring Maxima

Major Mass Contributing Species of Source: Na, S, K, Mg, EC, Ca, Al, Si

Major Species Contributed by Source: Na, Mg, Br

Battelle Guess: Road Salt New Guess: Aged Sea Salt

slide11

Notes:

  • Sources 1 & 6 are very consistent with concepts of “Primary” & “Secondary” MW Coal identified by VT & Clarkson at both Underhill & Brigantine.
  • Source 3 has strong crustal component, but also high OC & S, and a very high Ca:Al ratio. Possibly from local calcarious soil, (or road dust from) or a relatively nearby cement plant / lime kiln. Absence of Al might be related to analytical artifact?
  • Source 4 is similar to unknown EC/Pb/Zn source at Brigantine.
  • Source 5 is similar to a wood smoke source at Underhill, with Canadian forest fire influence in summer. Local wood burning may not show up in winter at high elevation LYBR site.
  • Source 7 looks like windblown dust, but high Al & no Ca may indicate influence from Al analytical artifact.
  • Source 8 is very consistent with Residual Oil Source identified by VT & Clarkson at both Underhill & Brigantine, centered around greater NYC area.
  • Source 9, with elevated NA, Mg, K & Br, from Hudson’s Bay & SE Coast looks like sea salt, but also has relatively high crustal elements – Al & Si?
