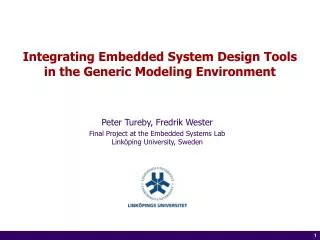

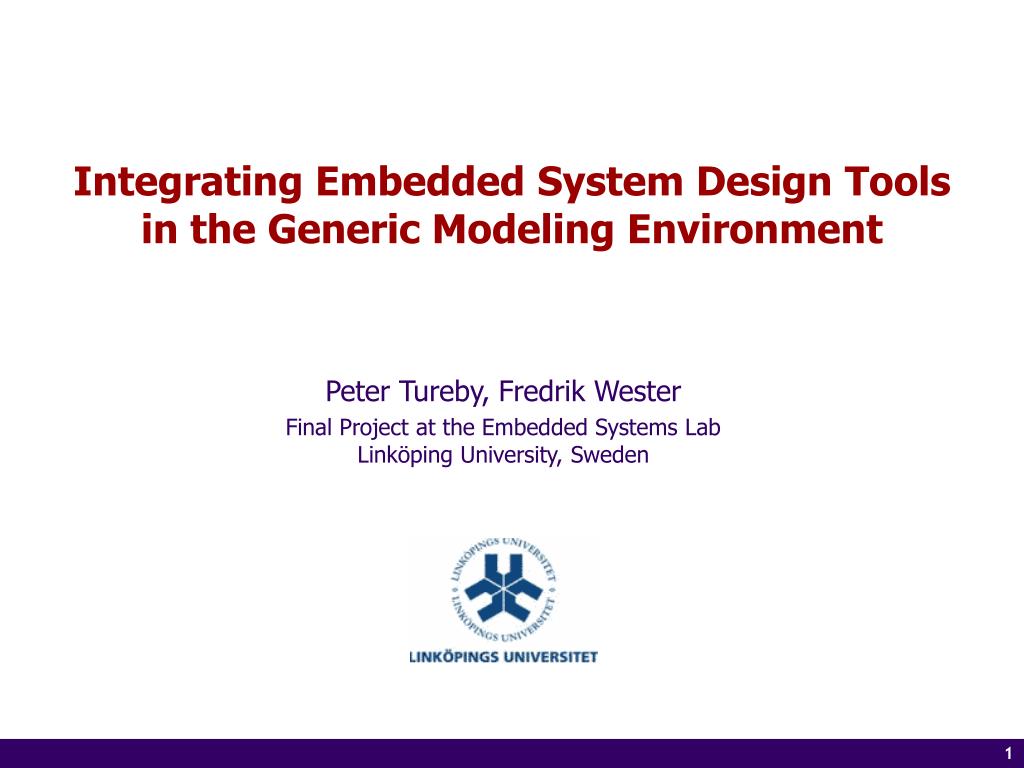

  1. Integrating Embedded System Design Tools in the Generic Modeling Environment Peter Tureby, Fredrik Wester Final Project at the Embedded Systems LabLinköping University, Sweden

  2. Work Packages • WP1: SymTA/S model • 2005-04-30 • WP2: Interface to holistic analysis • 2005-04-30 • WP3: Worst-case scenario visualization • 2005-04-30: Can it be done in GME? • WP4: Complex modeling • Model to be received from Paul: 2005-05-09 • 2005-06-06 • WP5: Interface to Traian’s analysis tool • 2005-06-17 • WP6: Documentation • Start latest on 2005-06-13

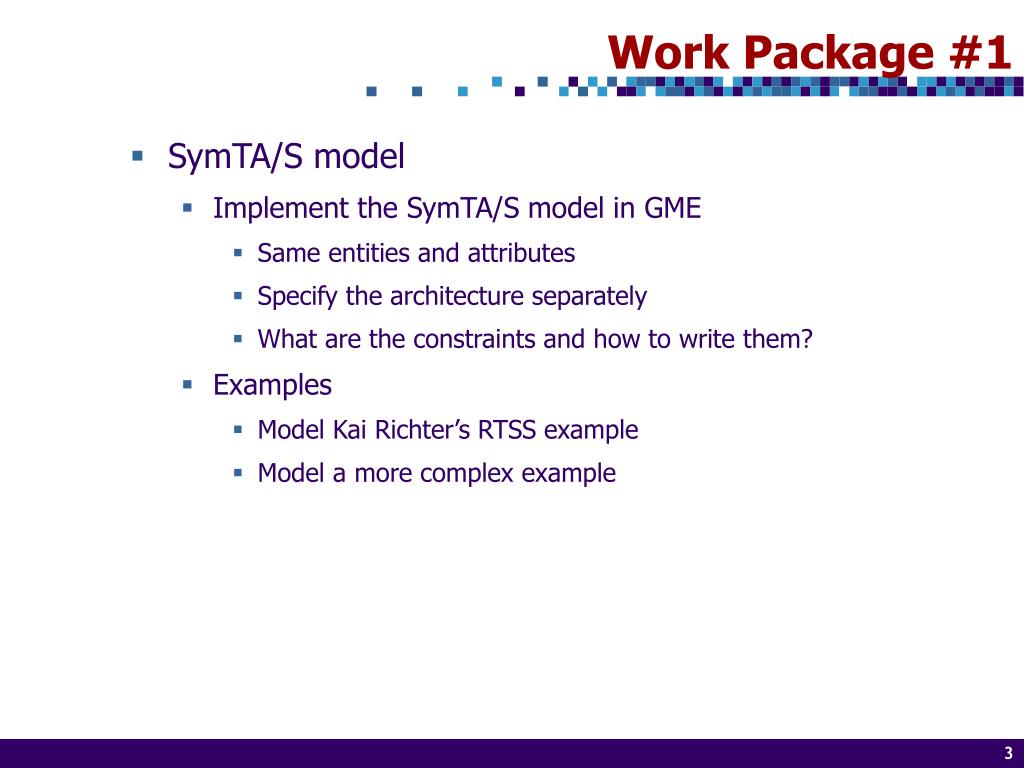

  3. Work Package #1 • SymTA/S model • Implement the SymTA/S model in GME • Same entities and attributes • Specify the architecture separately • What are the constraints and how to write them? • Examples • Model Kai Richter’s RTSS example • Model a more complex example

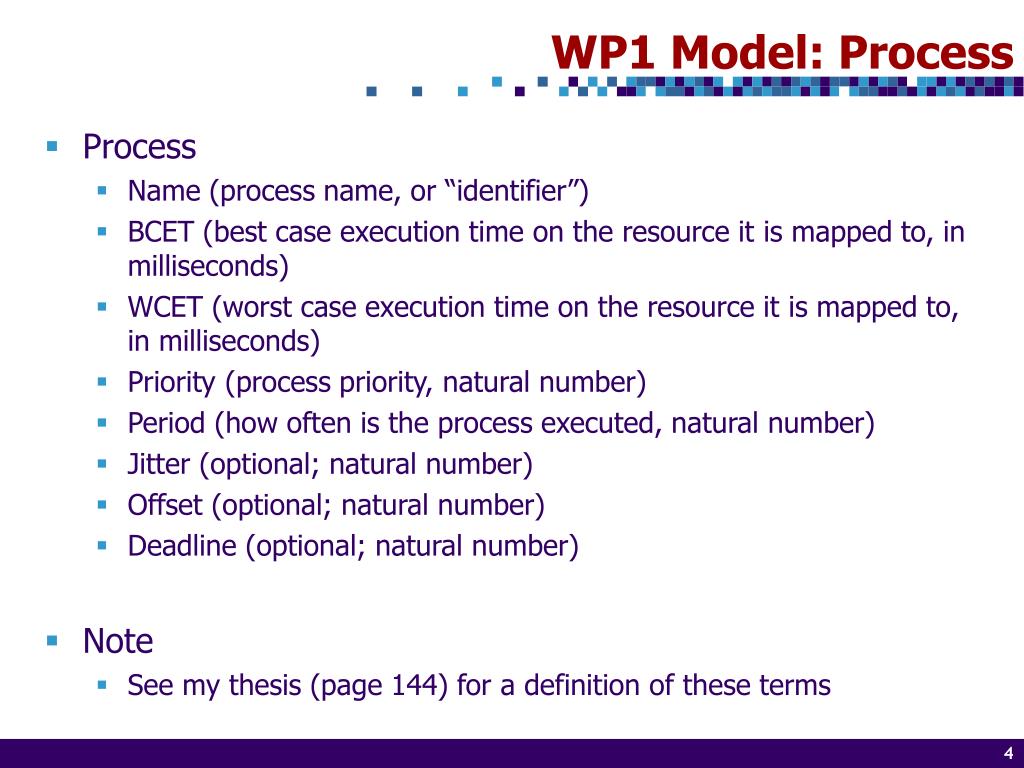

  4. WP1 Model: Process • Process • Name (process name, or “identifier”) • BCET (best case execution time on the resource it is mapped to, in milliseconds) • WCET (worst case execution time on the resource it is mapped to, in milliseconds) • Priority (process priority, natural number) • Period (how often is the process executed, natural number) • Jitter (optional; natural number) • Offset (optional; natural number) • Deadline (optional; natural number) • Note • See my thesis (page 144) for a definition of these terms

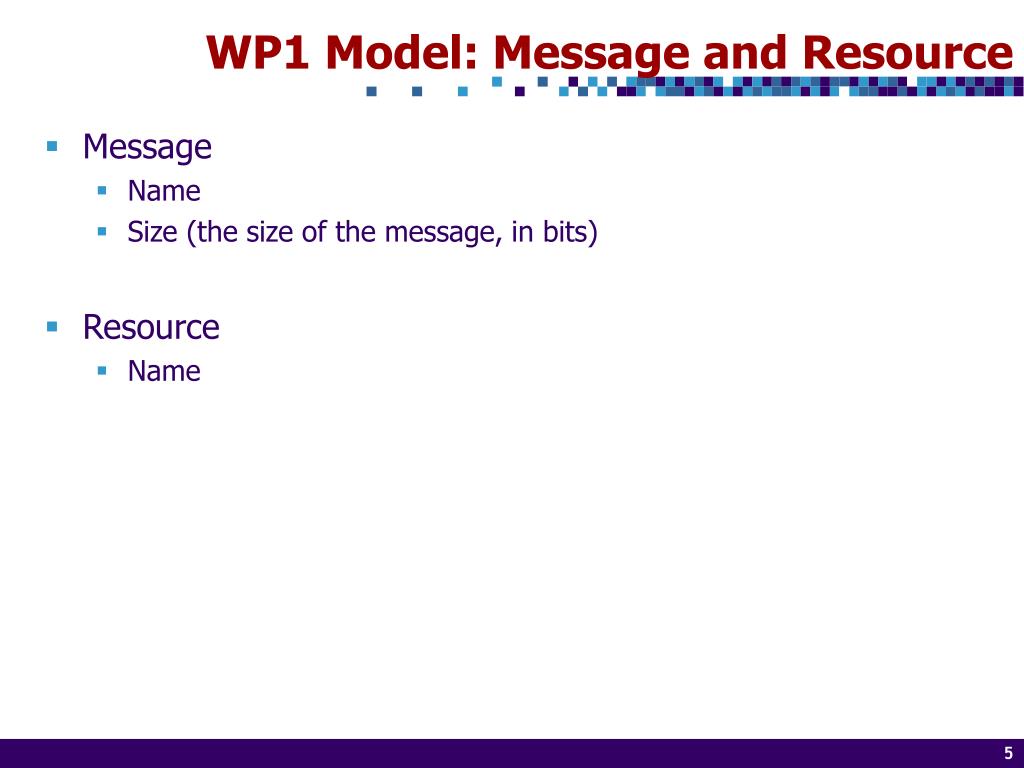

  5. WP1 Model: Message and Resource • Message • Name • Size (the size of the message, in bits) • Resource • Name

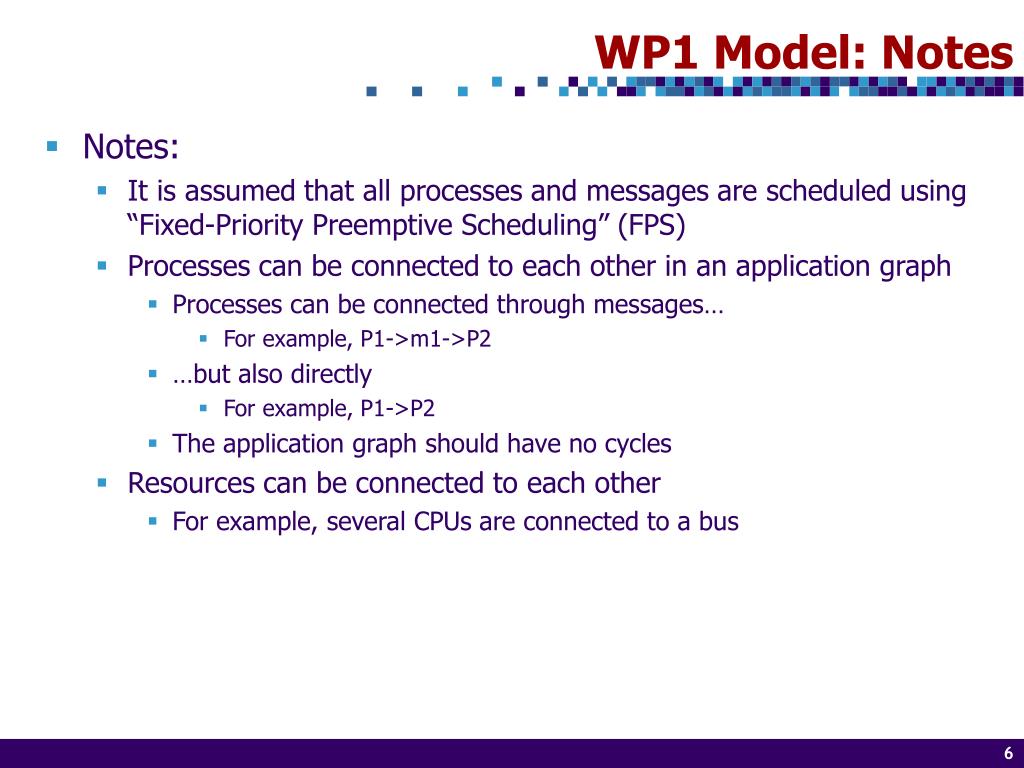

  6. WP1 Model: Notes • Notes: • It is assumed that all processes and messages are scheduled using “Fixed-Priority Preemptive Scheduling” (FPS) • Processes can be connected to each other in an application graph • Processes can be connected through messages… • For example, P1->m1->P2 • …but also directly • For example, P1->P2 • The application graph should have no cycles • Resources can be connected to each other • For example, several CPUs are connected to a bus

  7. Work Package #2 • Interface to holistic analysis • Holistic analysis implementation from MAST • Decide which implementation to use • Traian’s (C) • Sorin’s (C) • Integrate the analysis with WP1 • How to pass the model to the analysis tool? • How to send the results back to GME? • Analyze the two examples from WP1

  8. Work Package #3 • Worst-case scenario visualization • For a given process, visualize it’s worst-case scenario • How should a worst-case scenario be depicted? • See SymTA/S for an example • Is it possible to use GME for the visualization,or do you have to build an external tool? • Write by hand the worst-case scenario of a process in one of the examples from WP1 • The worst-case scenario is produced by the analysis tool • How to pass it to GME?

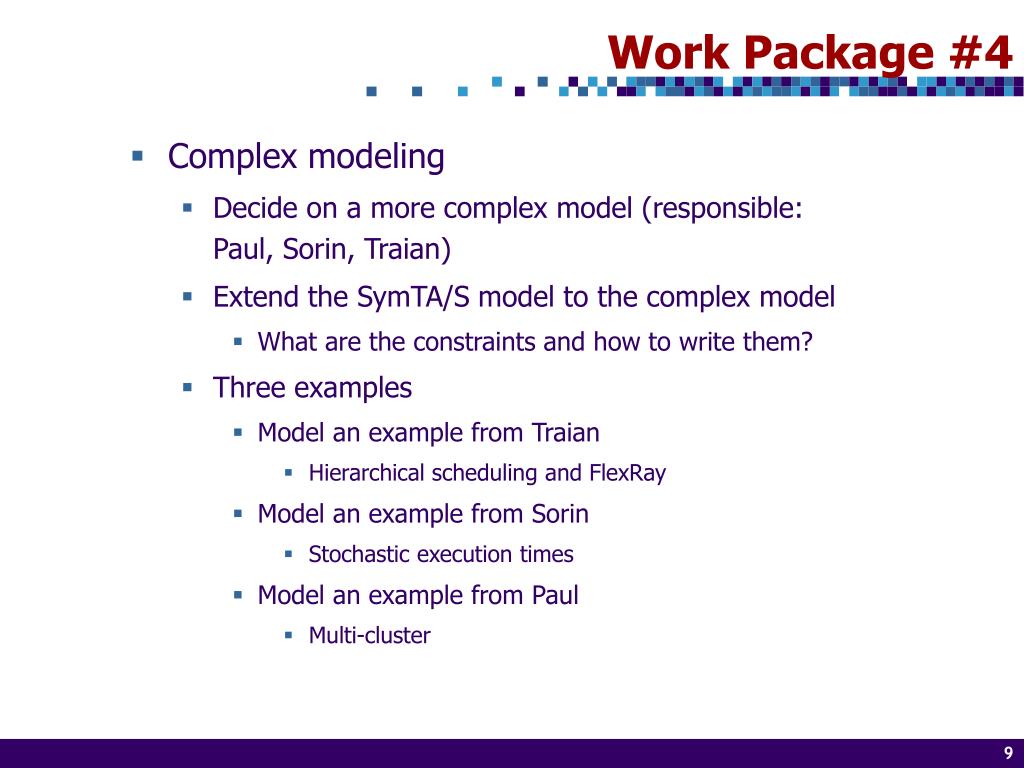

  9. Work Package #4 • Complex modeling • Decide on a more complex model (responsible: Paul, Sorin, Traian) • Extend the SymTA/S model to the complex model • What are the constraints and how to write them? • Three examples • Model an example from Traian • Hierarchical scheduling and FlexRay • Model an example from Sorin • Stochastic execution times • Model an example from Paul • Multi-cluster

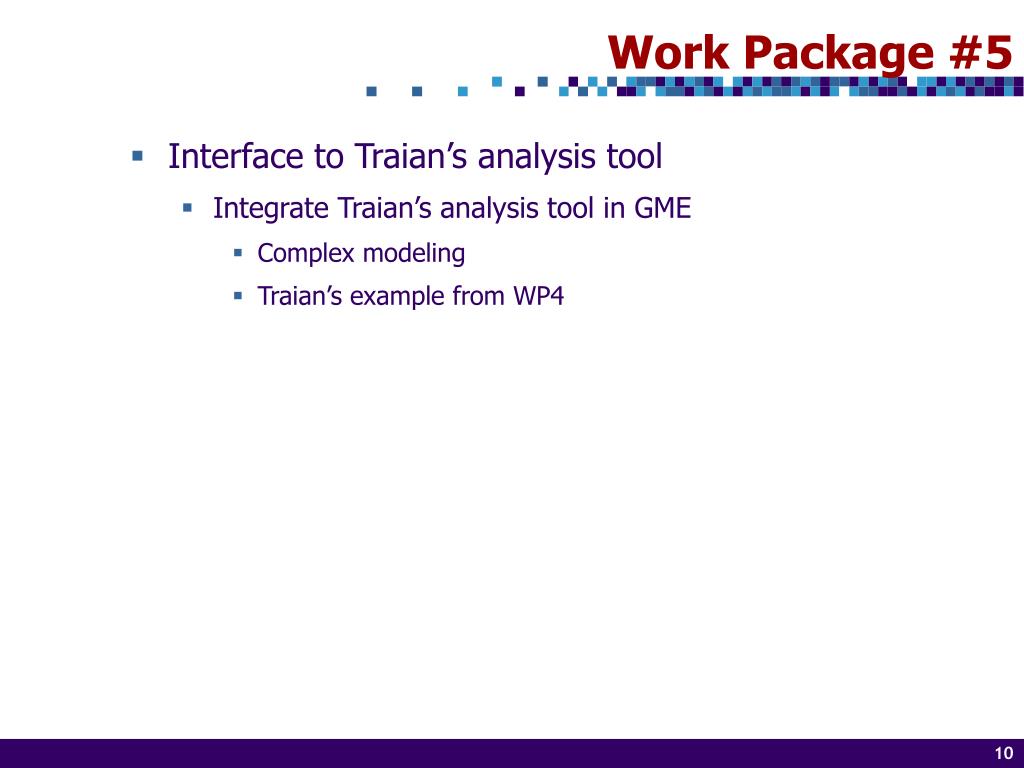

  10. Work Package #5 • Interface to Traian’s analysis tool • Integrate Traian’s analysis tool in GME • Complex modeling • Traian’s example from WP4

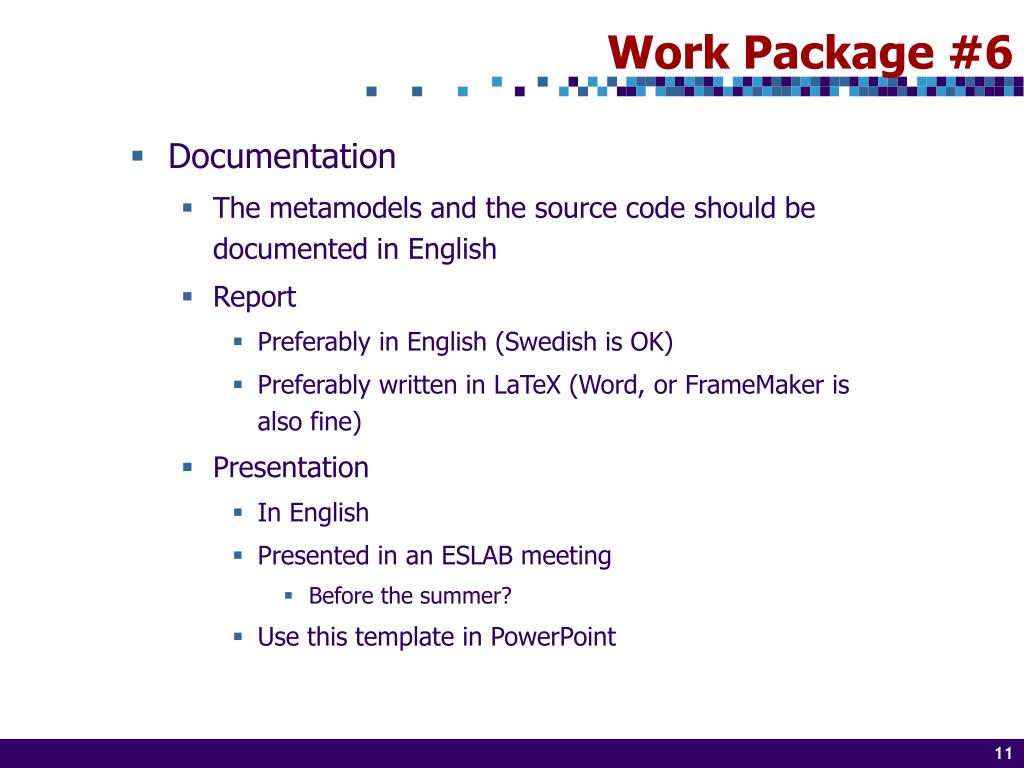

  11. Work Package #6 • Documentation • The metamodels and the source code should be documented in English • Report • Preferably in English (Swedish is OK) • Preferably written in LaTeX (Word, or FrameMaker is also fine) • Presentation • In English • Presented in an ESLAB meeting • Before the summer? • Use this template in PowerPoint

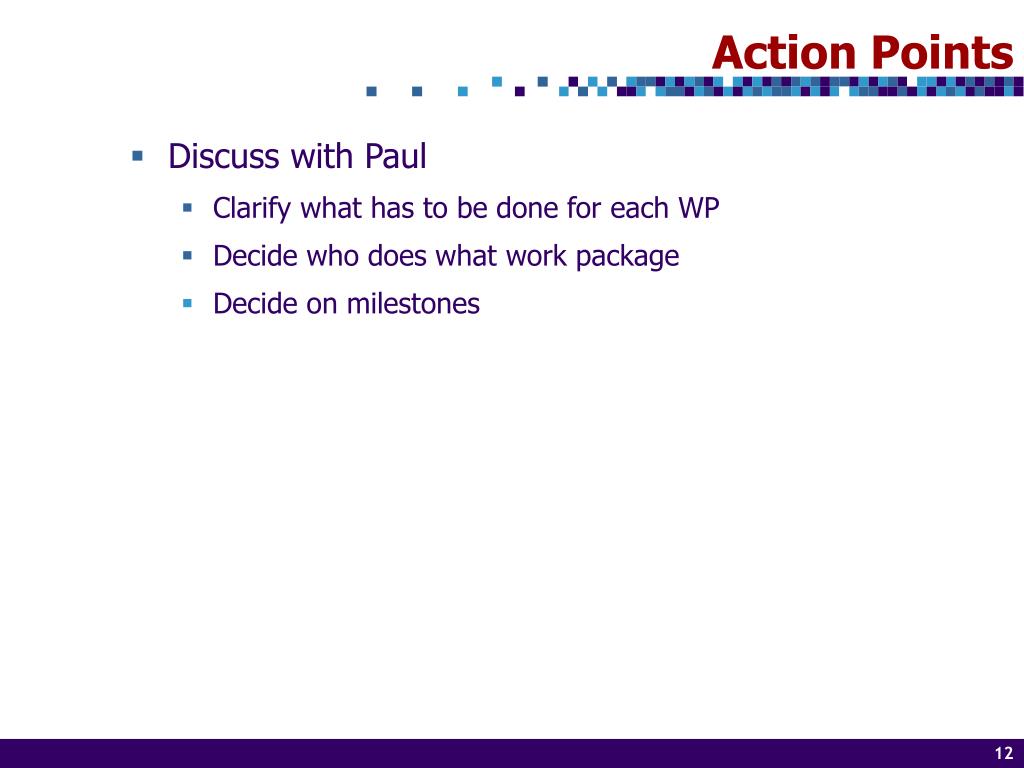

  12. Action Points • Discuss with Paul • Clarify what has to be done for each WP • Decide who does what work package • Decide on milestones

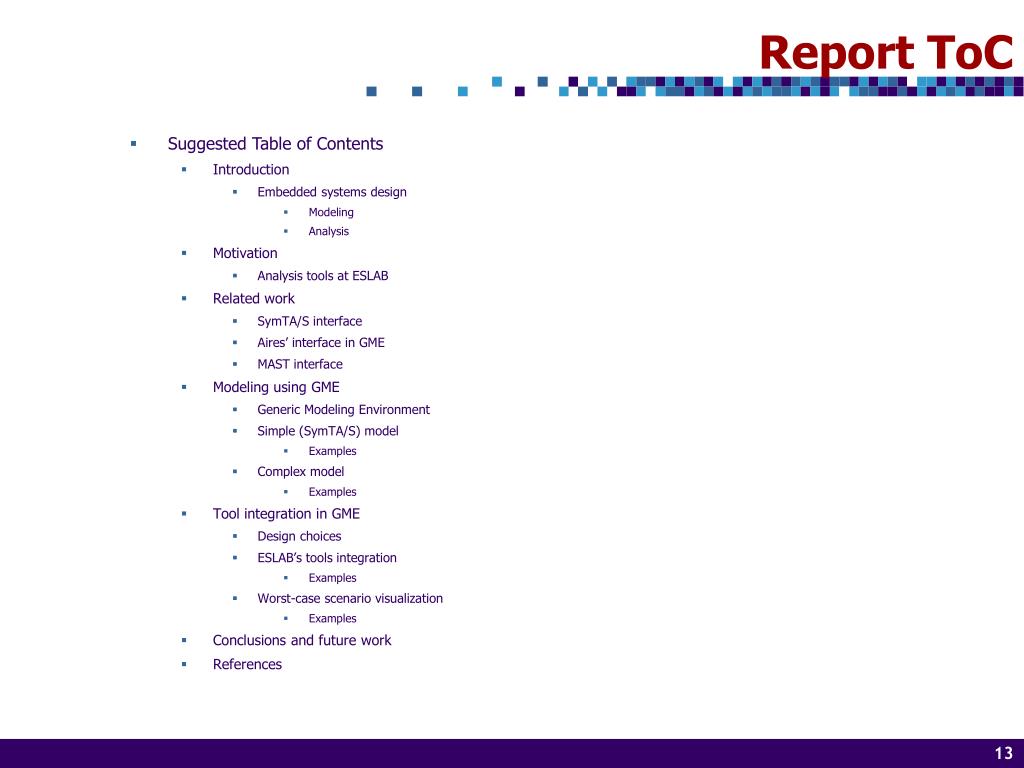

  13. Report ToC • Suggested Table of Contents • Introduction • Embedded systems design • Modeling • Analysis • Motivation • Analysis tools at ESLAB • Related work • SymTA/S interface • Aires’ interface in GME • MAST interface • Modeling using GME • Generic Modeling Environment • Simple (SymTA/S) model • Examples • Complex model • Examples • Tool integration in GME • Design choices • ESLAB’s tools integration • Examples • Worst-case scenario visualization • Examples • Conclusions and future work • References
