Exploring Lists, Backtracking, and Optimization in Prolog: A Comprehensive Guide

1. Logic Programming – Part 2 Lists Backtracking Optimization (via the cut operator) Meta-Circular Interpreters

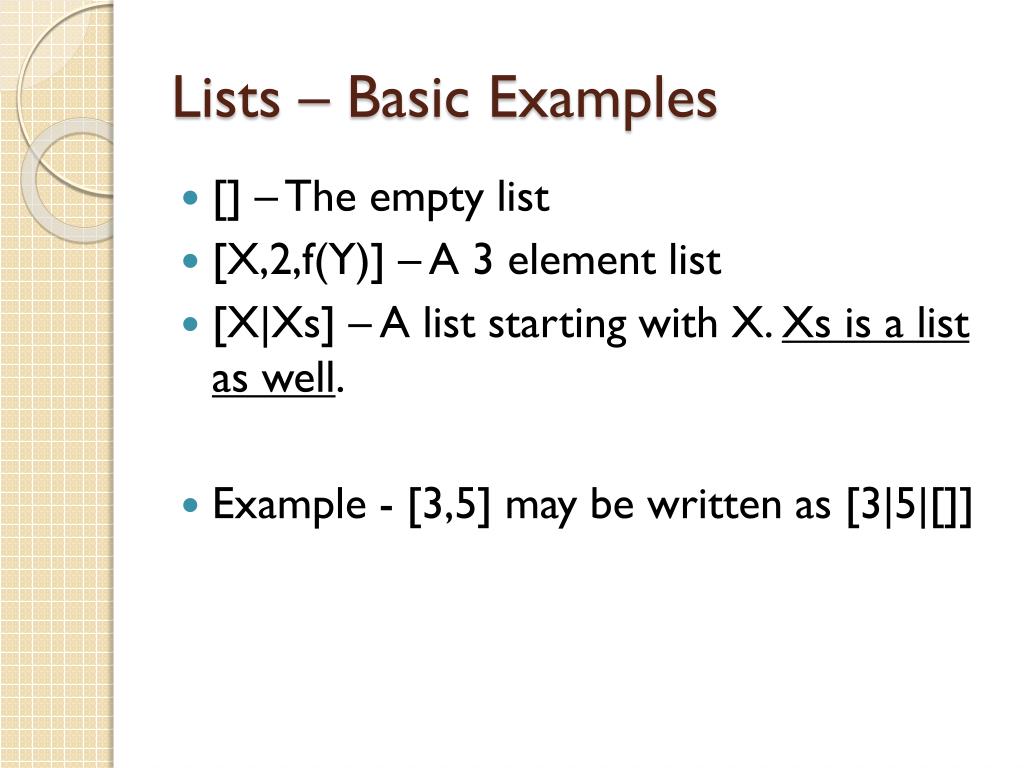

2. Lists – Basic Examples • [] – The empty list • [X,2,f(Y)] – A 3 element list • [X|Xs] – A list starting with X. Xs is a list as well. • Example - [3,5] may be written as [3|5|[]]

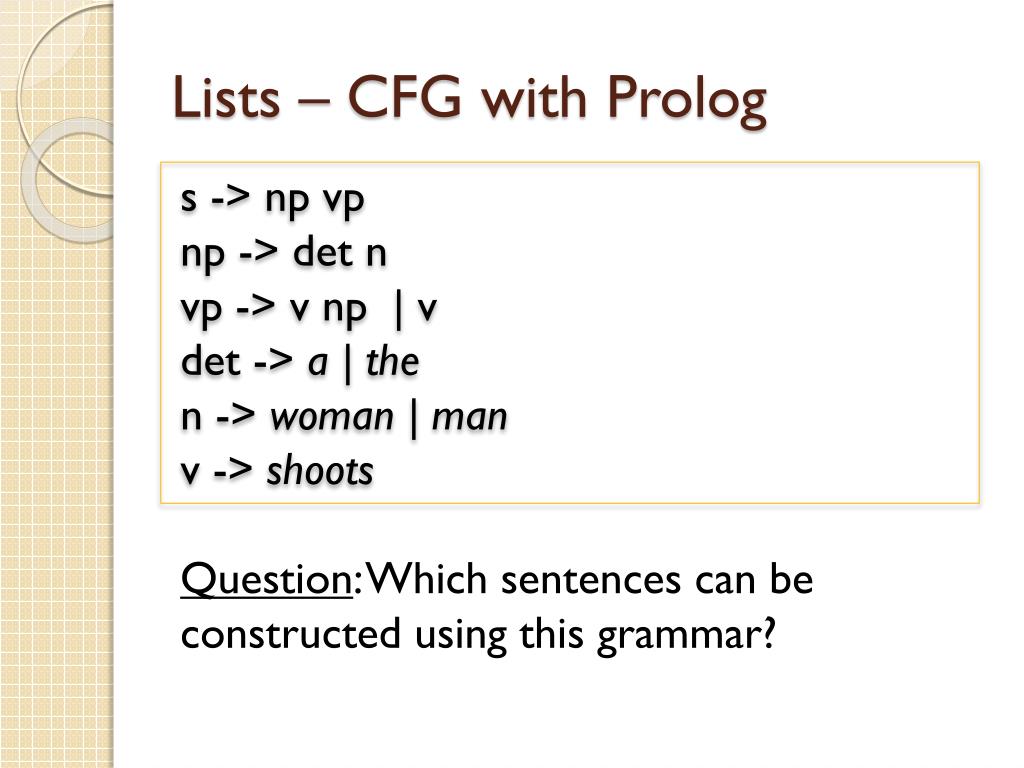

3. Lists – CFG with Prolog Question: Which sentences can be constructed using this grammar? s -> npvp np -> det n vp -> v np| v det -> a | the n -> woman | man v -> shoots

4. Lists – CFG with Prolog Lets make relations out of it: s(Z) :- np(X), vp(Y), append(X,Y,Z).np(Z) :- det(X), n(Y), append(X,Y,Z).vp(Z) :-  v(X), np(Y), append(X,Y,Z).vp(Z) :-  v(Z).det([the]).det([a]).n([woman]).n([man]).v([shoots]). s -> npvp np -> det n vp -> v np| v det -> a | the n -> woman | man v -> shoots

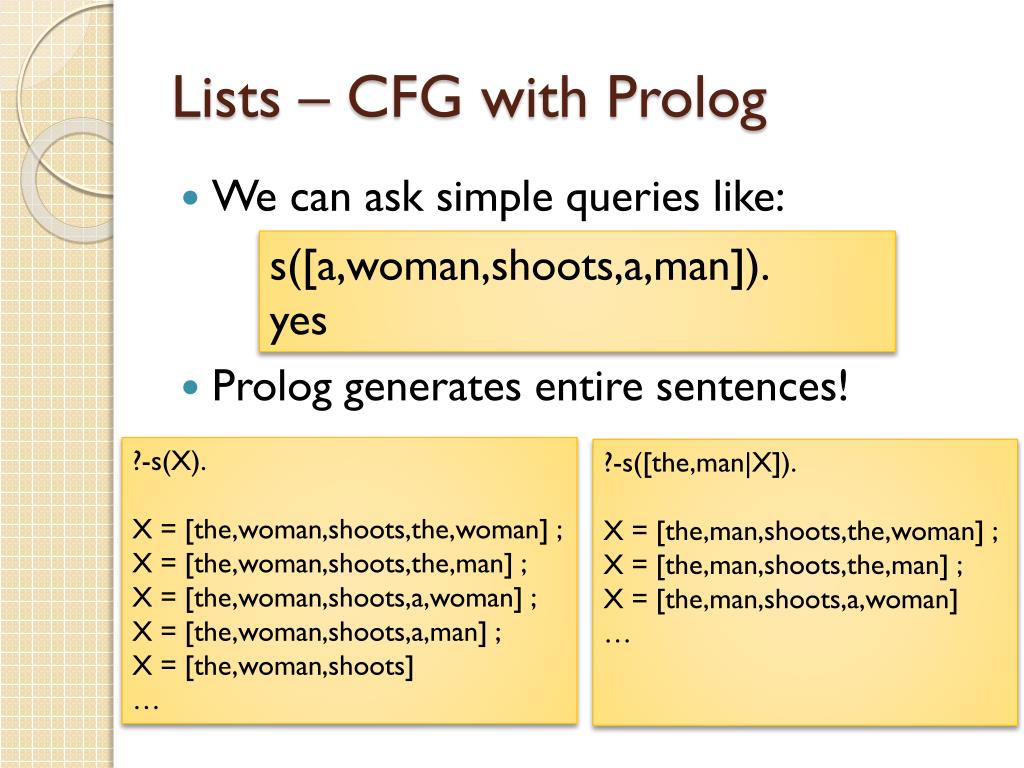

5. Lists – CFG with Prolog • We can ask simple queries like: • Prolog generates entire sentences! s([a,woman,shoots,a,man]).yes ?-s(X).X = [the,woman,shoots,the,woman] ; X = [the,woman,shoots,the,man] ;X = [the,woman,shoots,a,woman] ;X = [the,woman,shoots,a,man] ;X = [the,woman,shoots] … ?-s([the,man|X]). X = [the,man,shoots,the,woman] ;X = [the,man,shoots,the,man] ;X = [the,man,shoots,a,woman]  …

6. Lists – CFG with Prolog • Question: Add a few rules to the grammar What should we change in the code? • Answer: we add the following code s -> npvp np -> det n | detadj n vp -> v np| v det -> a | the n -> woman | man v -> shoots adj -> vicious | marvelous np(Z) :- det(X), adj(W), n(Y), append([X,W,Y],Z). adj([vicious]). adj([marvelous]).

7. Lists – The date Relation • In this example we’ll work with dates • We assume, for simplicity that a date comprises of a week day and an hour • We define the possible week days and hours with lists: week_day(['Sun', 'Mon', 'Tue','Wed','Thu','Fri','Sat']). hour([1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24]).

8. Lists – The date Relation • Question: How can we tell if hour 2 is before hour 9? • Answer: • We can only do so by checking precedence in the lists above • A < relation isn’t really possible to implement (There’s a more detailed answer in the PS document) week_day(['Sun', 'Mon', 'Tue','Wed','Thu','Fri','Sat']). hour([1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24]).

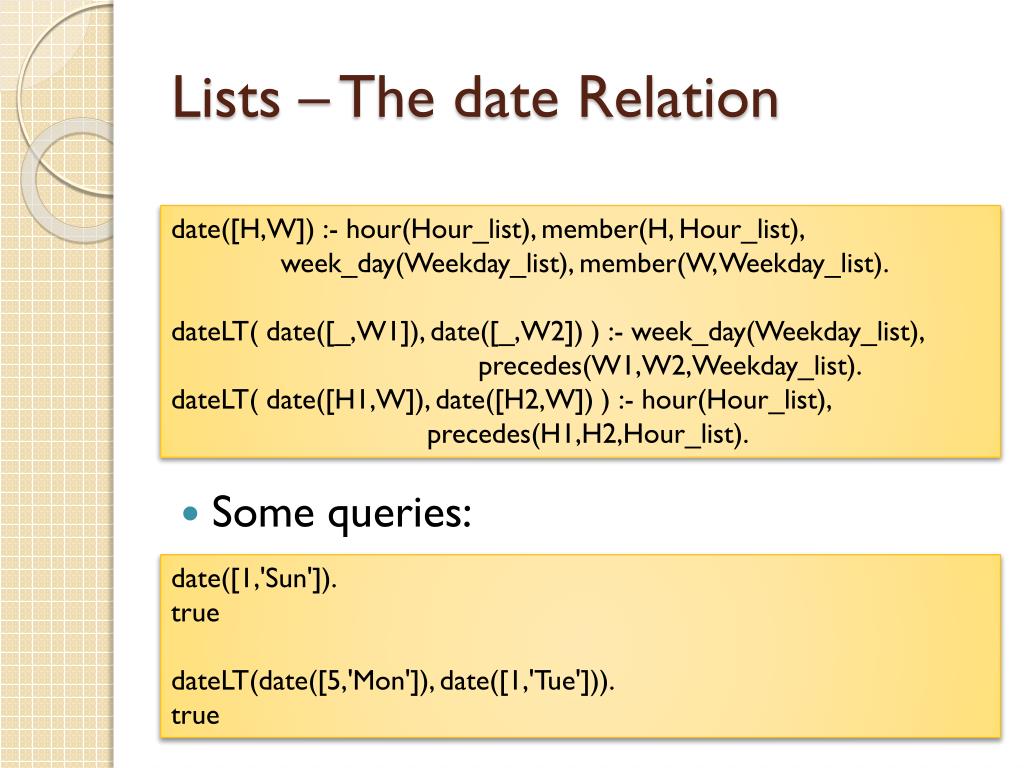

9. Lists – The date Relation • Some queries: date([H,W]) :- hour(Hour_list), member(H, Hour_list), week_day(Weekday_list), member(W, Weekday_list). dateLT( date([_,W1]), date([_,W2]) ) :- week_day(Weekday_list), precedes(W1,W2,Weekday_list). dateLT( date([H1,W]), date([H2,W]) ) :- hour(Hour_list), precedes(H1,H2,Hour_list). date([1,'Sun']). true dateLT(date([5,'Mon']), date([1,'Tue'])). true

10. Lists – The date Relation • precedes is defined using append /2 • Notice that the first argument is a list of lists • This version of append is a strong pattern matcher precedes(X,Y,Z) :- append( [_,[X],_,[Y],_] , Z).

11. Lists – Merging date Lists • Merge 2 ordered date-lists % Signature: merge(Xs, Ys, Zs)/3 % purpose: Zs is an ordered list of dates obtained % by merging the ordered lists of dates Xs and Ys. merge([X|Xs] , [Y|Ys] , [X|Zs]) :- dateLT(X,Y), merge(Xs, [Y|Ys] ,Zs). merge([X|Xs] , [X|Ys] , [X,X|Zs]) :- merge(Xs, Ys, Zs). merge([X|Xs],[Y|Ys],[Y|Zs]) :- dateLT(Y,X), merge( [X|Xs] ,Ys, Zs). merge(Xs,[ ], Xs). merge([ ],Ys, Ys). ?- merge( [date([5,'Sun']), date([5,'Mon'])], X, [date([2, 'Sun']), date([5,'Sun']), date([5, 'Mon'])]). X = [date([2, 'Sun'])]

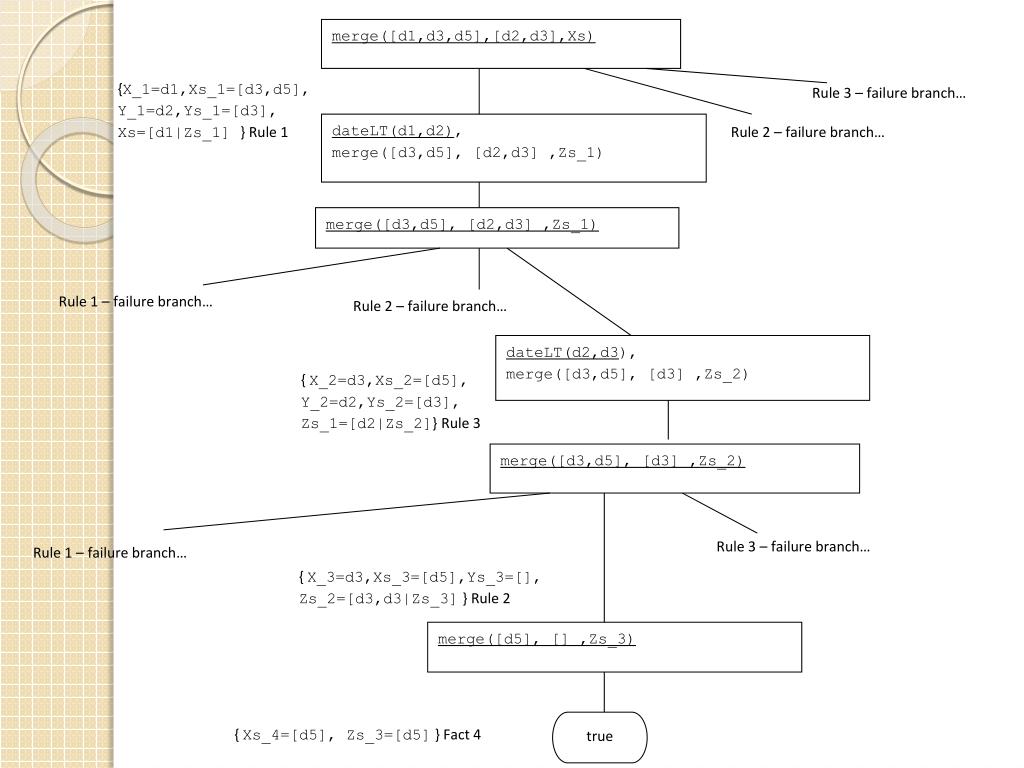

12. merge([d1,d3,d5],[d2,d3],Xs) {X_1=d1,Xs_1=[d3,d5], Y_1=d2,Ys_1=[d3],Xs=[d1|Zs_1] } Rule 1 dateLT(d1,d2), merge([d3,d5], [d2,d3] ,Zs_1) merge([d3,d5], [d2,d3] ,Zs_1) Rule 1 – failure branch… Rule 2 – failure branch… dateLT(d2,d3), merge([d3,d5], [d3] ,Zs_2) merge([d3,d5], [d3] ,Zs_2) Rule 1 – failure branch… { X_3=d3,Xs_3=[d5],Ys_3=[], Zs_2=[d3,d3|Zs_3] } Rule 2 merge([d5], [] ,Zs_3) true { Xs_4=[d5], Zs_3=[d5] } Fact 4 Rule 3 – failure branch… Rule 2 – failure branch… { X_2=d3,Xs_2=[d5], Y_2=d2,Ys_2=[d3], Zs_1=[d2|Zs_2]} Rule 3 Rule 3 – failure branch…

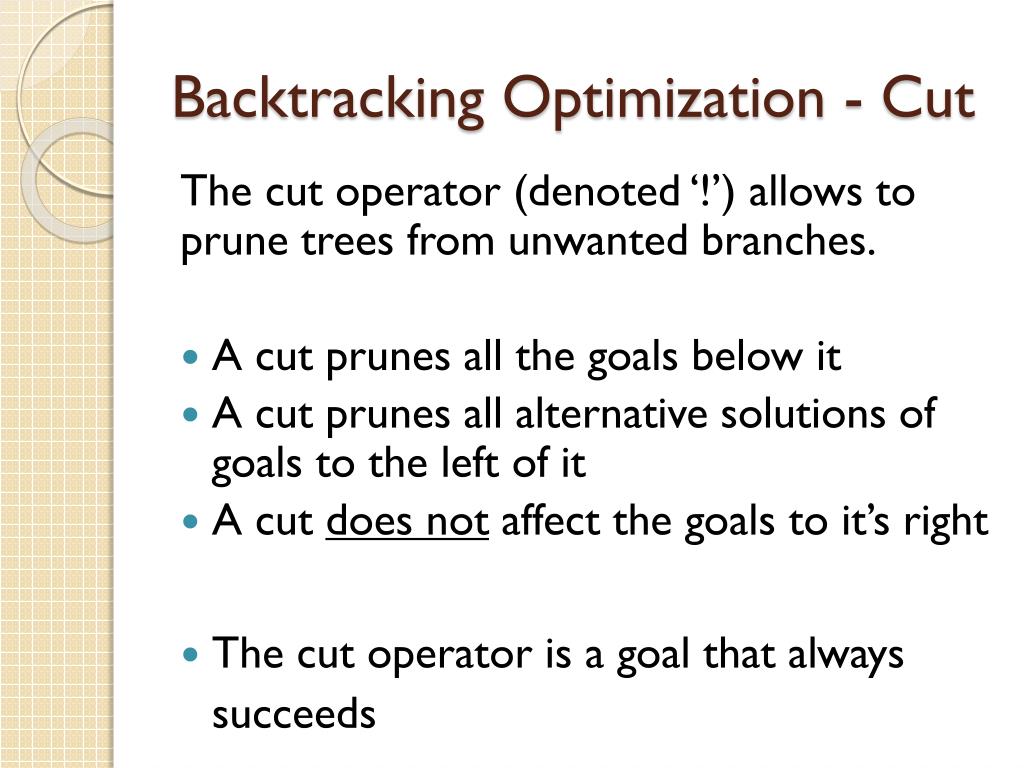

13. Backtracking Optimization - Cut The cut operator (denoted ‘!’) allows to prune trees from unwanted branches. • A cut prunes all the goals below it • A cut prunes all alternative solutions of goals to the left of it • A cut does not affect the goals to it’s right • The cut operator is a goal that always succeeds

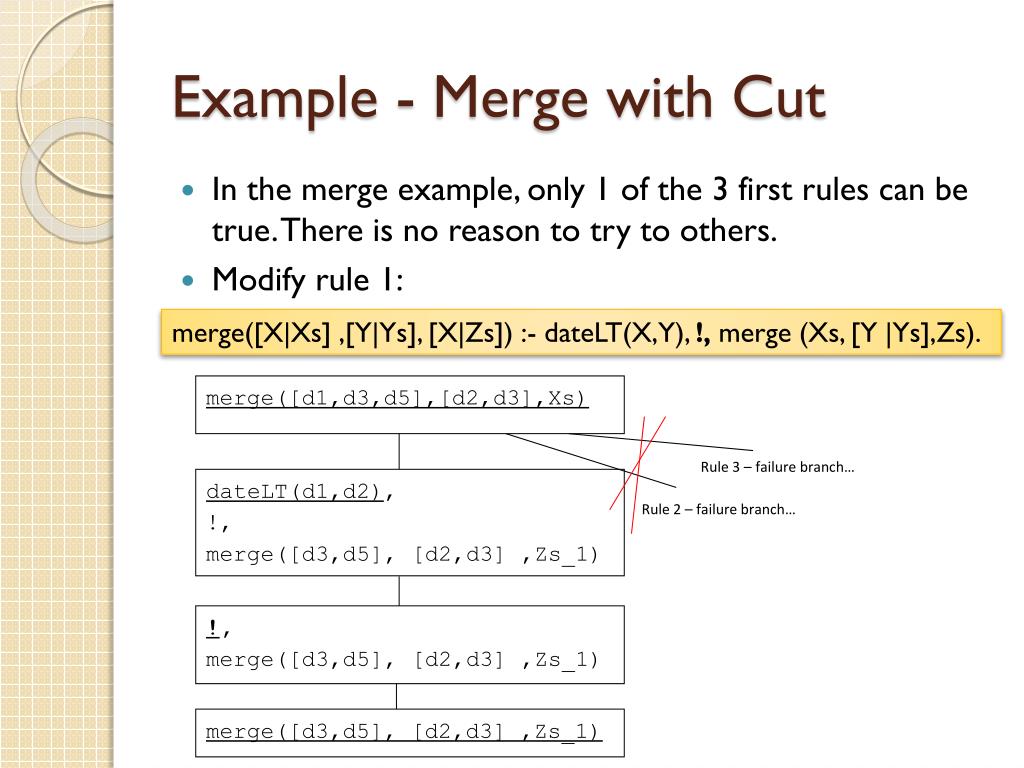

15. merge([d1,d3,d5],[d2,d3],Xs) Rule 3 – failure branch… dateLT(d1,d2), !, merge([d3,d5], [d2,d3] ,Zs_1) Rule 2 – failure branch… !, merge([d3,d5], [d2,d3] ,Zs_1) merge([d3,d5], [d2,d3] ,Zs_1) Example - Merge with Cut • In the merge example, only 1 of the 3 first rules can be true. There is no reason to try to others. • Modify rule 1: merge([X|Xs] ,[Y|Ys], [X|Zs]) :- dateLT(X,Y), !, merge (Xs, [Y |Ys],Zs).

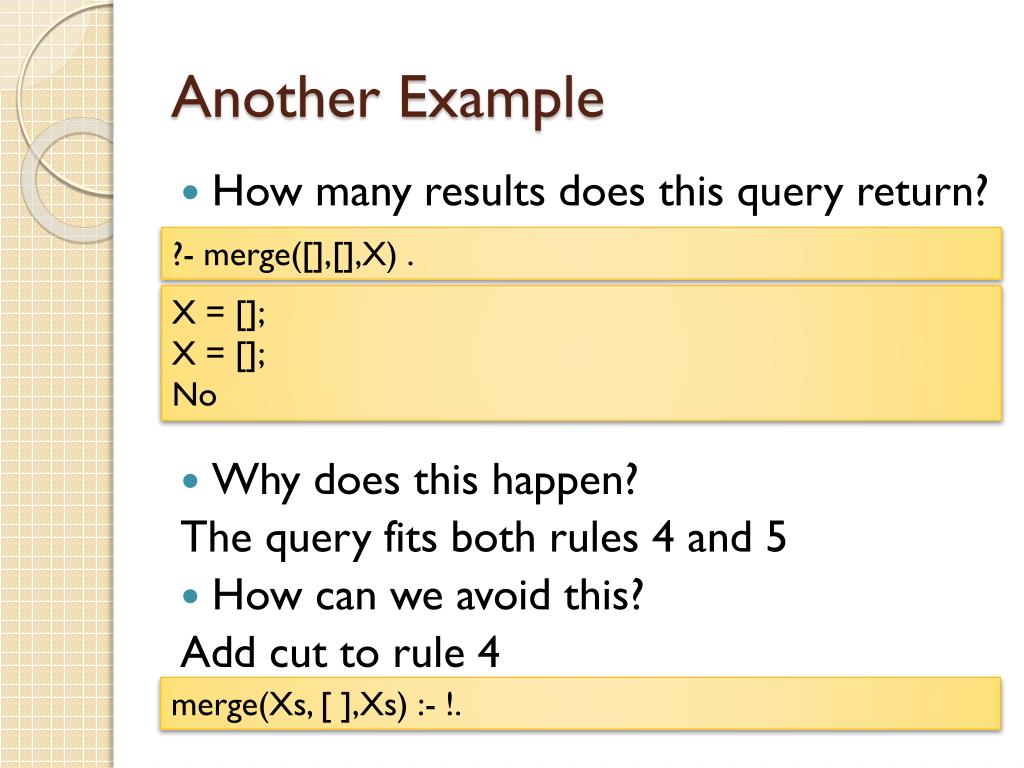

16. Another Example • How many results does this query return? • Why does this happen? The query fits both rules 4 and 5 • How can we avoid this? Add cut to rule 4 ?- merge([],[],X) . X = []; X = []; No merge(Xs, [ ],Xs) :- !.

17. Meta-Circular Interpreters • We have seen 3 different interpreters in class • Version 1 is trivial We can’t control the computation this way solve( A ) :- A.

18. Interpreter Version 2 clause finds the first rule unifying with A with body B • % Signature: solve(Goal)/1 • % Purpose: Goal is true if it is true when posed to the original program P. • solve(true). • solve( (A, B) ) :- solve(A), solve(B). • solve(A) :- A\=true, clause(A, B), solve(B). ?- clause( parent(X,isaac),Body). X = abraham Body = true ?- clause(ancestor(abraham, P),Body). P = Y, Body = parent(abraham, Y) ; P = Z, Body = parent(abraham, Y), ancestor(Y, Z)

19. solve(ancestor(abraham, P)) {<A_1 = ancestor(abraham, P)>} Rule 3 solve clause(ancestor(abraham, P), B_1), solve(B_1) { <B_1 = parent(abraham, P)>, <X_2 = abraham>, <Y_2 = P> } Rule 1 ancestor { <B_1 = parent(abraham,Y_2), ancestor(Y_2, P)> }Rule 2 ancestor solve(parent(abraham, P)) solve(parent(abraham,Y_2), ancestor(Y_2, P)) {<A_3 = parent(abraham,Y_2)> <B_3 = ancestor(Y_2, P>} Rule 2 solve {<A_3 = parent(abraham, P)>} Rule 3 solve solve( parent(abraham,Y_2)), solve(ancestor(Y_2, P)) clause(parent(abraham, P), B_3), solve(B_3). {<P = issac>, <B_3 =true>} Fact 1 parent {<A_4 = parent(abraham,Y_2)>} Rule 3 solve solve(true) clause(parent(abraham, Y_2), B_4), solve(B_4) solve(ancestor(Y_2, P)) Fact 1 solve true {<Y_2 = issac>, <B_4 =true>} Fact 1 parent solve(true) , solve(ancestor(issac, P)) {<P = issac>}

20. Interpreter Version 3 • In this version we control the goal selection order by using a stack of goals • Preprocessing – The given program is converted into a program with a single predicate rule • Queries are checked against the new program

21. Interpreter Version 3 % Signature: solve(Goal)/1% Purpose: Goal is true if it is true when posed to the original program P.1. solve(Goal) :- solve(Goal, []). % Signature: solve(Goal, Rest_of_goals)/21. solve([],[]).2. solve([],[G | Goals]):- solve(G, Goals).3. solve([A|B],Goals):- append(B, Goals, Goals1), solve(A, Goals1).4. solve( A, Goals) :- rule(A, B), solve(B, Goals). Sample converted program: %rule (Head, BodyList)/21. rule( member(X, [X|Xs] ), [] ).2. rule( member(X, [Y|Ys] ), [member(X, Ys)] ).

22. solve(member(X, [a, b, c])) {<Goal_1 = member(X, [a, b, c])>} Rule 1 solve solve(member(X, [a, b, c]), []) { <A_2 = member(X, [a, b, c]>, <Goals_1 = []> } Rule 4 solve rule(member(X, [a, b, c], B_2), solve(B_2, []) { <X_3=X>,<Y_3= a>,<Ys_3=[b, c]>,<B_2 = [member(X, [b,c])] > }Rule 2 rule { <X=a>,<X_3 = a>,<Xs_3=[b, c]>,<B_2 = []> } Rule 1 rule solve([],[]) solve([member(X, [b,c])], []) Rule 1 solve { <A_4= member(X, [b,c])>, <B_4=[]>, <Goals_4=[]> } Rule 3 rule true append([], [], Goals1_4), solve(member(X, [b,c]), Goals1_4). {<X=a>} { <Goals1_4=[]>} Rule of append solve(member(X, [b,c]), []). { <A_5=member(X,[b,c])>, <Goals_5=[]>} Rule 4 solve rule(member(X,[b,c]), B_5), solve(B_5, []) { <X=b>,<X_6 = b>, <Xs_6=[c]>,<B_5 = []> }Rule 1 rule solve([],[]) Rule 1 solve true {<X=b>}
