  1. Magicoe Real Proj Block Diagram2010 Nov.5th

  2. Honeywell L5000-GSMLVP Part number: LPC1763FBD100 EAU: 50,000 Competitor: ATMEL AT91SAM7X256 Status: Evaluation 24V SP7656 5V SPX3940 3.3V MCU LPC1763 Computer Computer SP3232 SP3232 L5000 Mother Board 232 232 GPIO 5V GSM GSM Uart GPS Uart 5V ADC Temp Sensor

  3. RAE Gas Detector Part number: LPC1768FBD100 EAU: 20,000 Competitor: None Status: PP Lead acid batteries Lead acid batteries 12V 12V 5V 5V SP7656 SP7656 SPX3940 SPX3940 3.3V 3.3V MCU LPC1768 MCU LPC1768 PCF8563 PCF8563 Computer Computer Computer Computer SP3232 SP3232 SP3232 SP3232 i2c i2c 232 232 232 232 GSM IRDA GSM IRDA Uart Uart Relay I/O control board Relay I/O control board GPIO GPIO Gas Sensor Gas Sensor Uart Uart ADC ADC Temp Sensor Temp Sensor

  4. RAE Gas Detector Part number: LPC2478FBD208 EAU: 20,000 Competitor: None Status: PP Lead acid batteries Lead acid batteries 12V 12V 5V Supervisor MAX6823RUK+ LM22675 SPX3940 LM1117 3.3V 3.3V i2c LM2664M6 Computer MCU LPC1768 MCU LPC2478 DS1337S+ MAX3221CAE 232 USB LCD LM3526-L TFT320*240-5.7 SDRAM CAN IS42S16160B*2 PCA82C250T Future DI NOR DAC M29W256G*2 LM7332 Future Opp ESD Opp: USB:MMBZ6V8ALT1*2 CAN:MMBZ6V8ALT1*1 RS232:MMBZ6V8ALT1*1

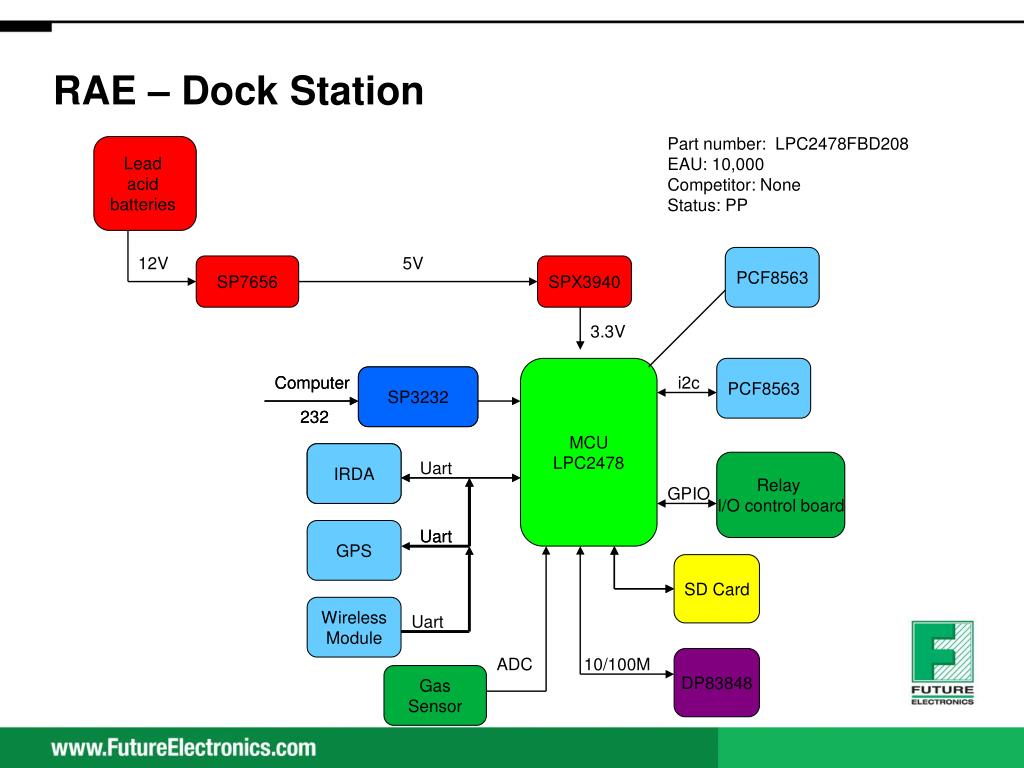

  5. RAE – Dock Station Part number: LPC2478FBD208 EAU: 10,000 Competitor: None Status: PP Lead acid batteries 12V 5V PCF8563 SP7656 SPX3940 3.3V MCU LPC2478 PCF8563 Computer Computer SP3232 SP3232 i2c 232 232 IRDA GSM Uart Relay I/O control board GPIO GPS Uart Uart SD Card Wireless Module Uart ADC 10/100M DP83848 Gas Sensor

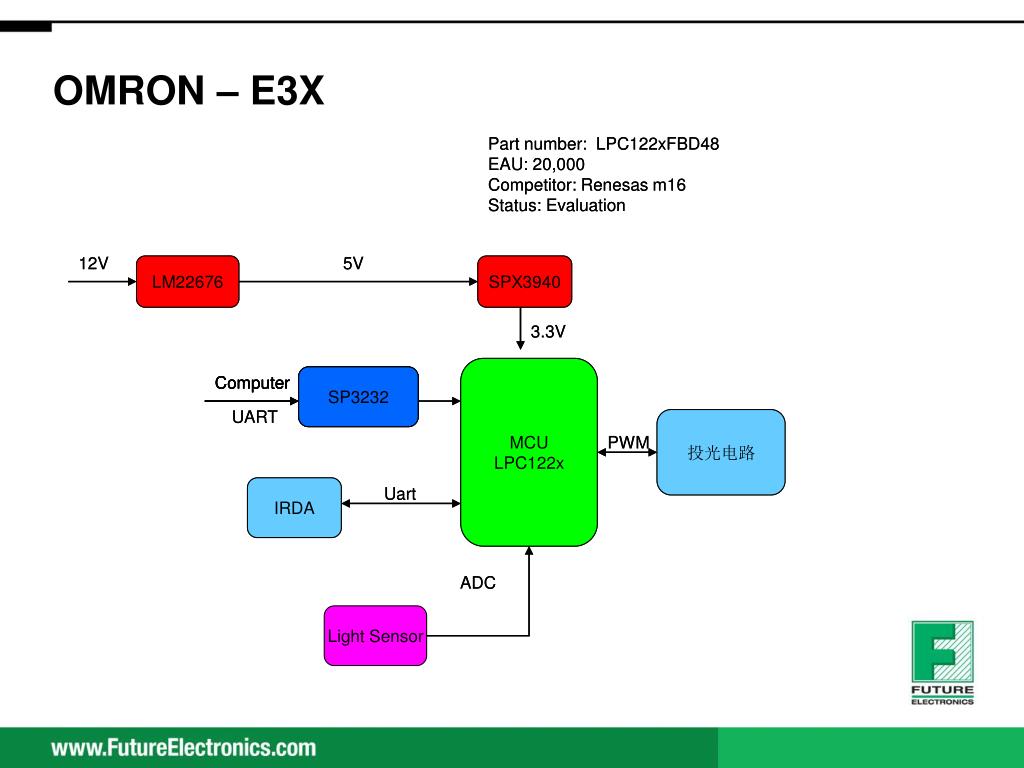

  6. OMRON – E3X Part number: LPC122xFBD48 EAU: 20,000 Competitor: Renesas m16 Status: Evaluation Part number: LPC122xFBD48 EAU: 20,000 Competitor: Renesas m16 Status: Evaluation 12V 12V 5V 5V LM22676 LM22676 SPX3940 SPX3940 3.3V 3.3V MCU LPC122x MCU LPC122x Computer Computer Computer Computer SP3232 SP3232 SP3232 SP3232 UART UART 投光电路 投光电路 PWM PWM IRDA IRDA Uart Uart ADC ADC Light Sensor

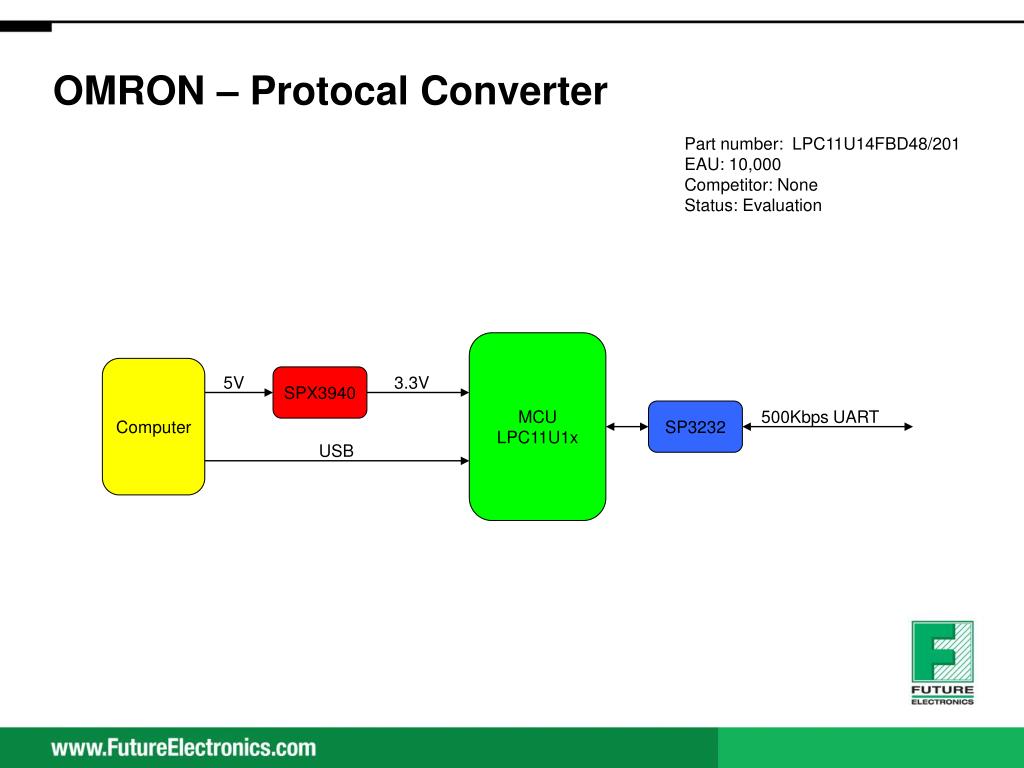

  7. OMRON – Protocal Converter Part number: LPC11U14FBD48/201 EAU: 10,000 Competitor: None Status: Evaluation MCU LPC11U1x Computer 5V SPX3940 3.3V SP3232 500Kbps UART USB

  8. Computer Computer USB USB Part number: LPC1765; IRFR5305 EAU: 100,000 Competitor: AMD x86; Status: Design now. 24V 5V SP7656 SPX3940 3.3V MCU LPC1765 Computer Computer SP3232 SP3232 MTS2916A Or MTS62C19A IRFR5305 232 232 Stepper ADC Temp Sensor

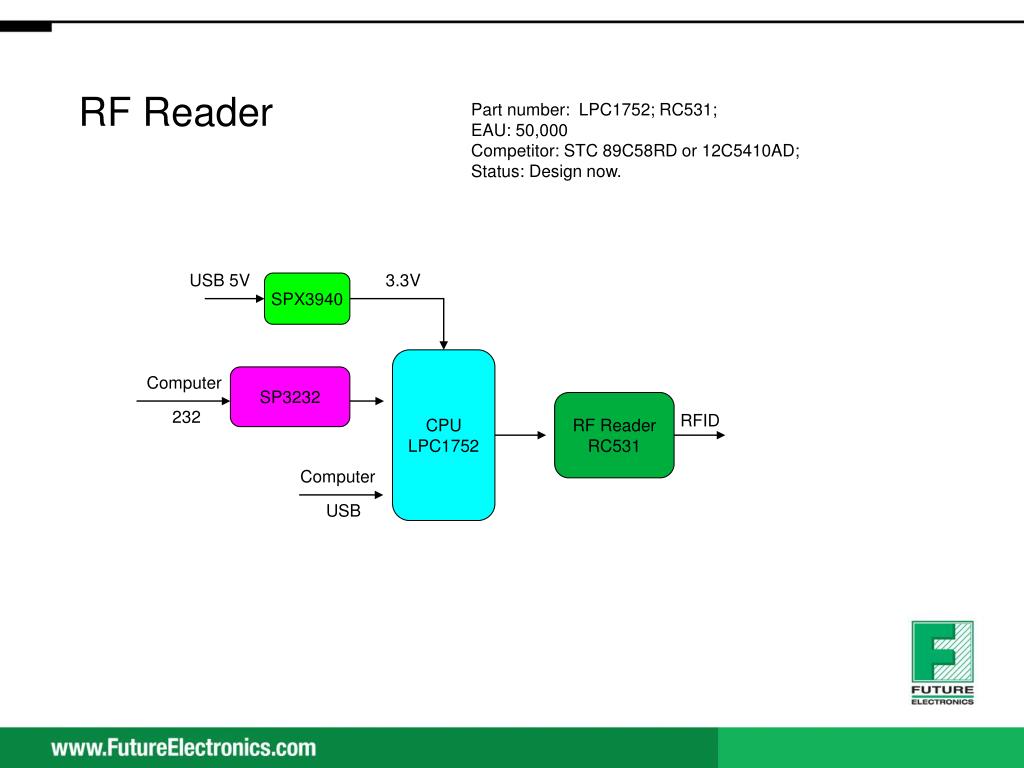

  9. Computer USB RF Reader Part number: LPC1752; RC531; EAU: 50,000 Competitor: STC 89C58RD or 12C5410AD; Status: Design now. USB 5V 3.3V SPX3940 CPU LPC1752 Computer SP3232 RF Reader RC531 232 RFID

  10. 12V Li-Ion control MCP73871 4.2V MCP1640 5V MCP1612 3.3V 1xLi-Ion Ethernet DM9000A Ethernet PH163539 RFID RC632 Or RC531 POS Another new department which Nantian merged one Chongqing company which focus on School POS.The customer Chongqing R&D originally used ATMEL AT91SAM9261,now the project transfer to Nantian KuiMing R&D and they found the project had bug,so we recommend them LPC1768,now the customer is evaluating on the resource. EAU: 50,000 Competitor: AT91SAM9261, Blushless Motor MTD6501 MTS2916A Or MTS62C19A stepper MCU LPC1768 USB Computer Computer SP3232 SP3232 232 232

  11. 3.3V Adapter 12V or Li-Ion 8.4V TPS62110 5V APW7101 Ethernet DM9000A Ethernet PH163539 POS(CQ) Part number:SP3232E; RC531; MCP73864 EAU: 50,000 Competitor: AT91SAM9261 Status: Design now. 8.4V RTC PT7C4337 Reset MAX809 12V MCP73864 2xLi-Ion MCU AT91SAM9261 LB1836M Motor 232 SP3232E RFID RC531 SDRAM H57V2562GTR NAND FLASH K9F1208U0C

  12. EFORE BFU for ErricssonBattery Fuse Unit +48V -48V Opto-Couple And BDD Driver CB Internal Power Supply UCC28C450 Battery Voltage Sense Short Curent & Larger Charger Current Comparator Current Sense System Voltage Sense Fast Reconnector Comparatpr PIC16F1939-I/PT Temperature Thermistor FAN FAN_PWM External temperature signal Temperature Sensor Connector Current to Voltage Converter RJ45 Connector LED

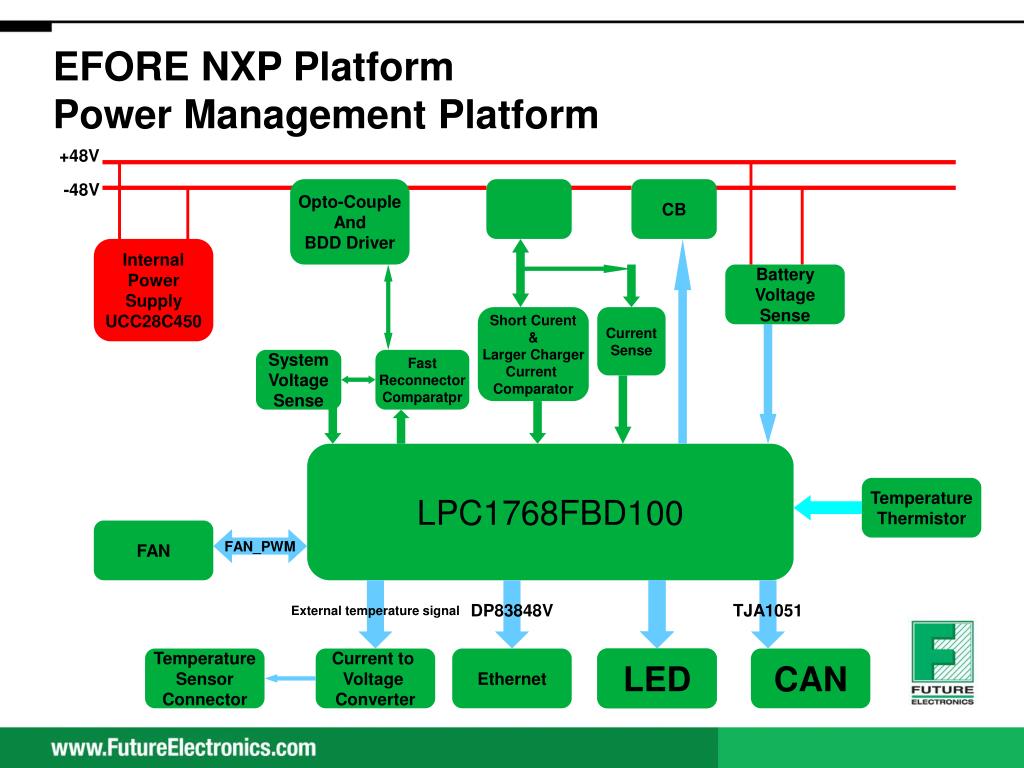

  13. EFORE NXP PlatformPower Management Platform +48V -48V Opto-Couple And BDD Driver CB Internal Power Supply UCC28C450 Battery Voltage Sense Short Curent & Larger Charger Current Comparator Current Sense System Voltage Sense Fast Reconnector Comparatpr LPC1768FBD100 Temperature Thermistor FAN FAN_PWM External temperature signal DP83848V TJA1051 Temperature Sensor Connector Current to Voltage Converter Ethernet LED LED CAN

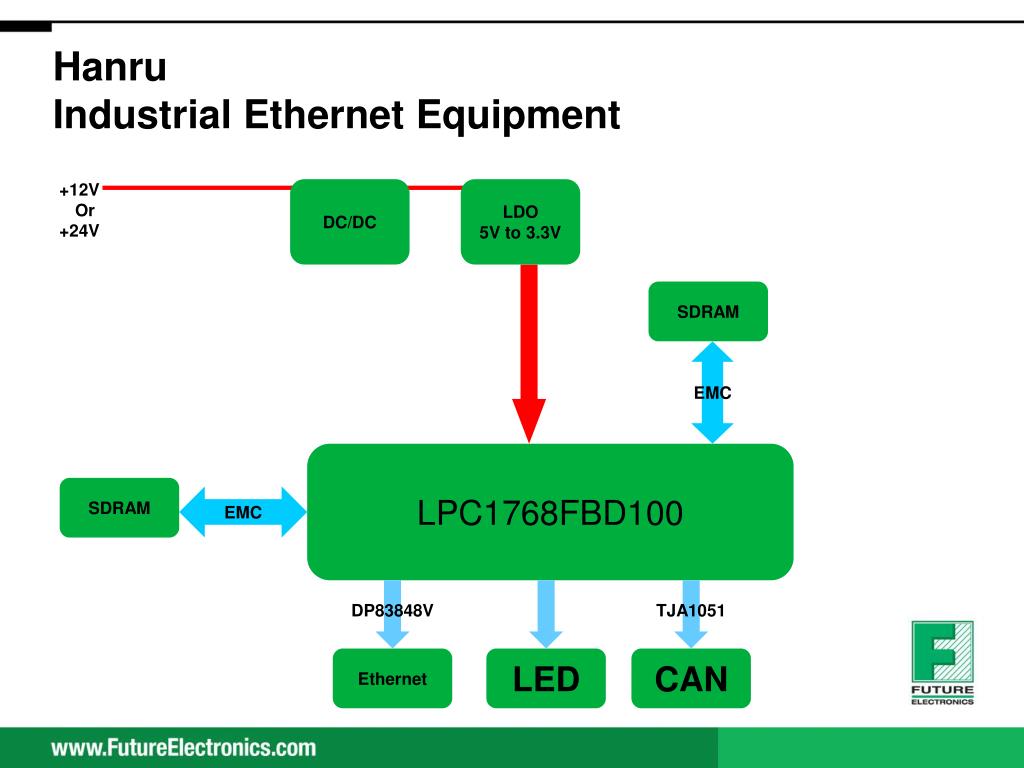

  14. HanruIndustrial Ethernet Equipment +12V Or +24V DC/DC LDO 5V to 3.3V SDRAM EMC LPC1768FBD100 SDRAM EMC DP83848V TJA1051 Ethernet LED CAN

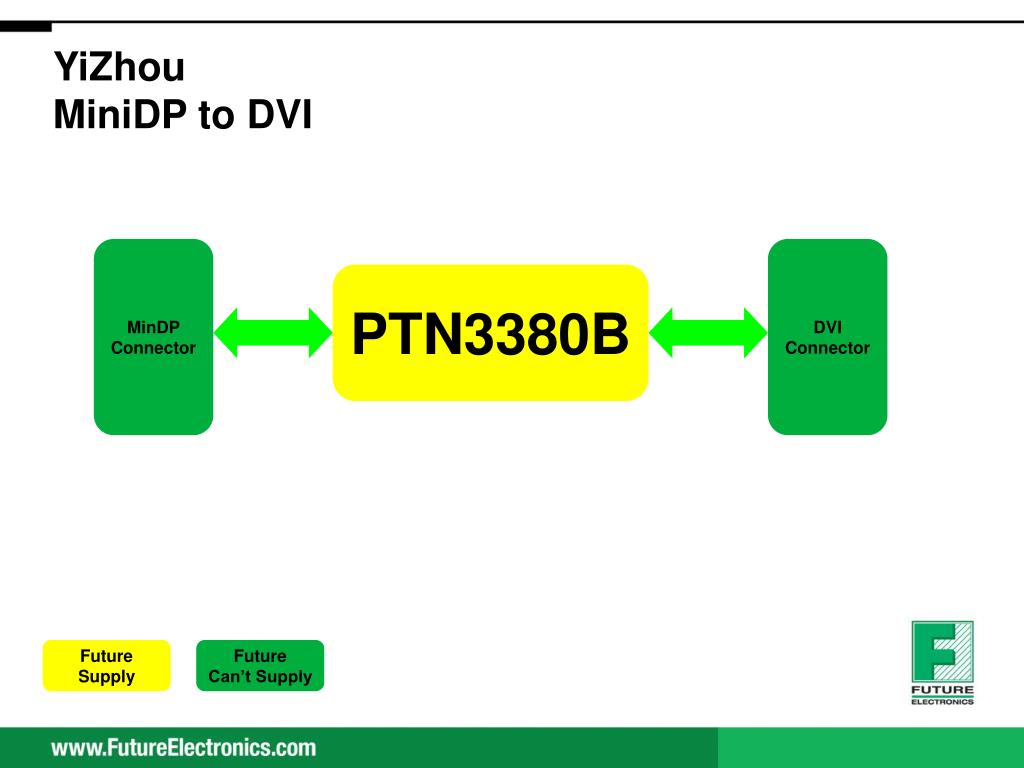

  15. YiZhouMiniDP to DVI MinDP Connector DVI Connector PTN3380B Future Supply Future Can’t Supply

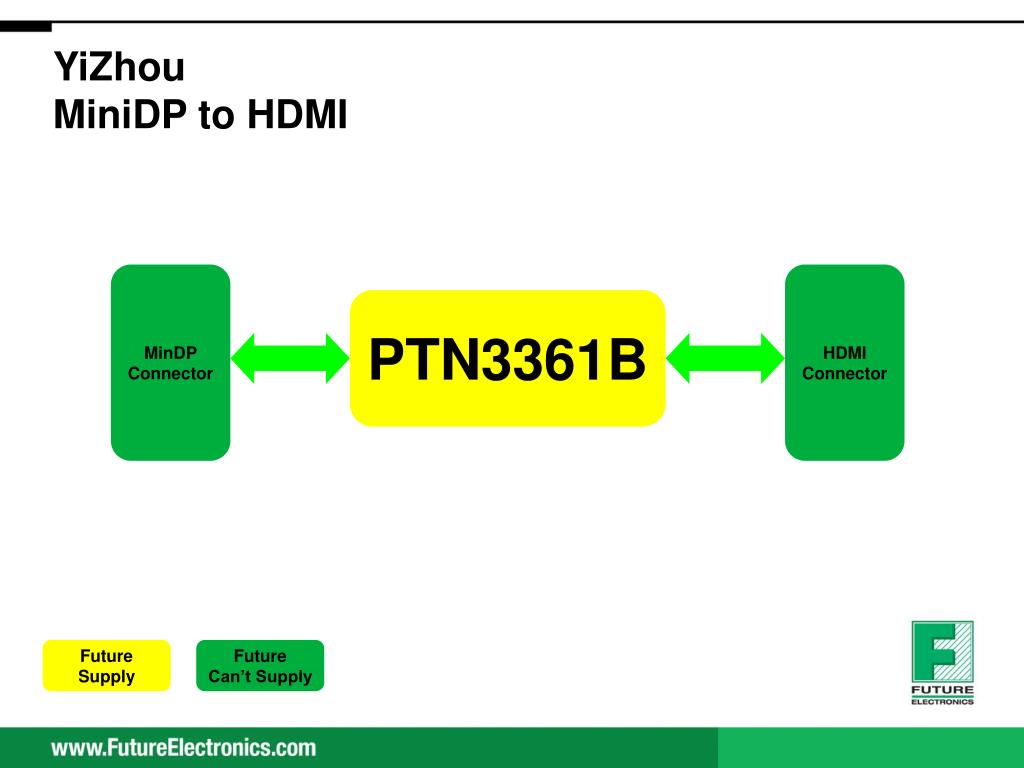

  16. YiZhouMiniDP to HDMI MinDP Connector HDMI Connector PTN3361B Future Supply Future Can’t Supply

  17. YiZhouMiniDP to VGA +3.3V +5V DC/DC MinDP Connector DVI Connector PTN3392B Future Supply Future Can’t Supply

  18. Advanced LeadingVehicle Light position controller Vehicle Battery 12V or 24V BZT03/C43 1N4005 TDA3629 Motor Future DI Mechanical Transmission Future Opp Capacitor Opp: 47uF/50V

  19. TooanElectronic Lock CTM:Tooan EAU:50K/Y Application:Electronic Lock Torex XC6221 NXP LPC931 NXP LPC1114FBD48/202 FMSH 1702(15RMB) NXP RC500 RC530 Matrix Keyboard 8Seg Digital Led Future Reg Future Opp TVS:NXP/VISHAY Relay or Optical Future NoReg

  20. Open Discussion……. Thanks
