Chair Armrest Durability Tester TZ-CADT100

Testoz Chair Armrest Durability Tester evaluates armrest strength under repeated use with adjustable force and test speed, making it ideal for various chair types. Featuring a touchscreen for easy operation, it complies with international standards for reliable results.

monroelillie
Download Presentation

Chair Armrest Durability Tester TZ-CADT100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

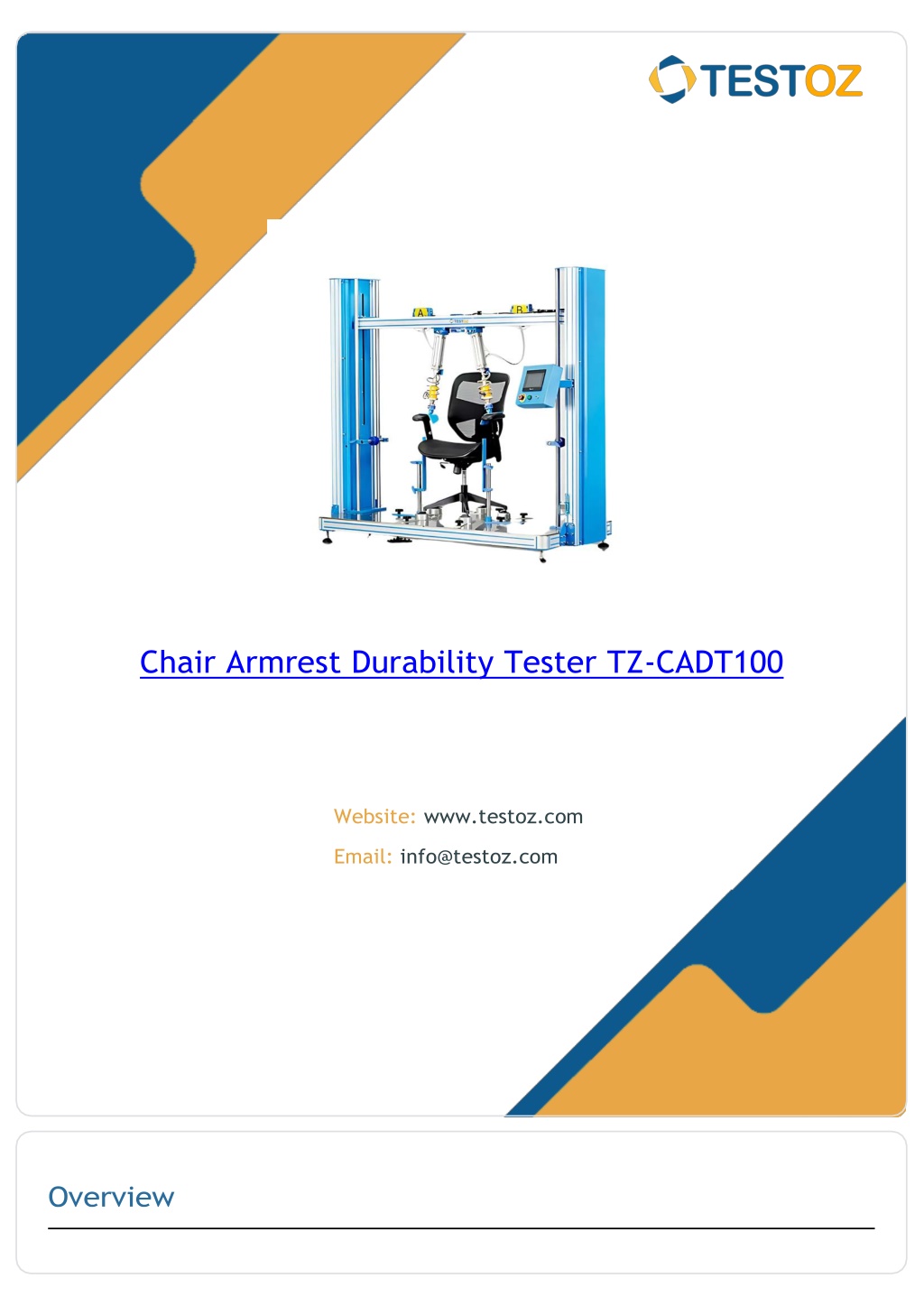

  1. Chair Armrest Durability Tester TZ-CADT100 Website: www.testoz.com Email: info@testoz.com

  2. ˇ ˇ ˇ ˇ Force Range 30 to 100 kgf Distance Between Pivots 400 to 800 mm Beam Height Above Platform 680 to 1380 mm Test Speed 10 to 25 cycles/min Cylinder Diameter 50 mm Stroke 250 mm

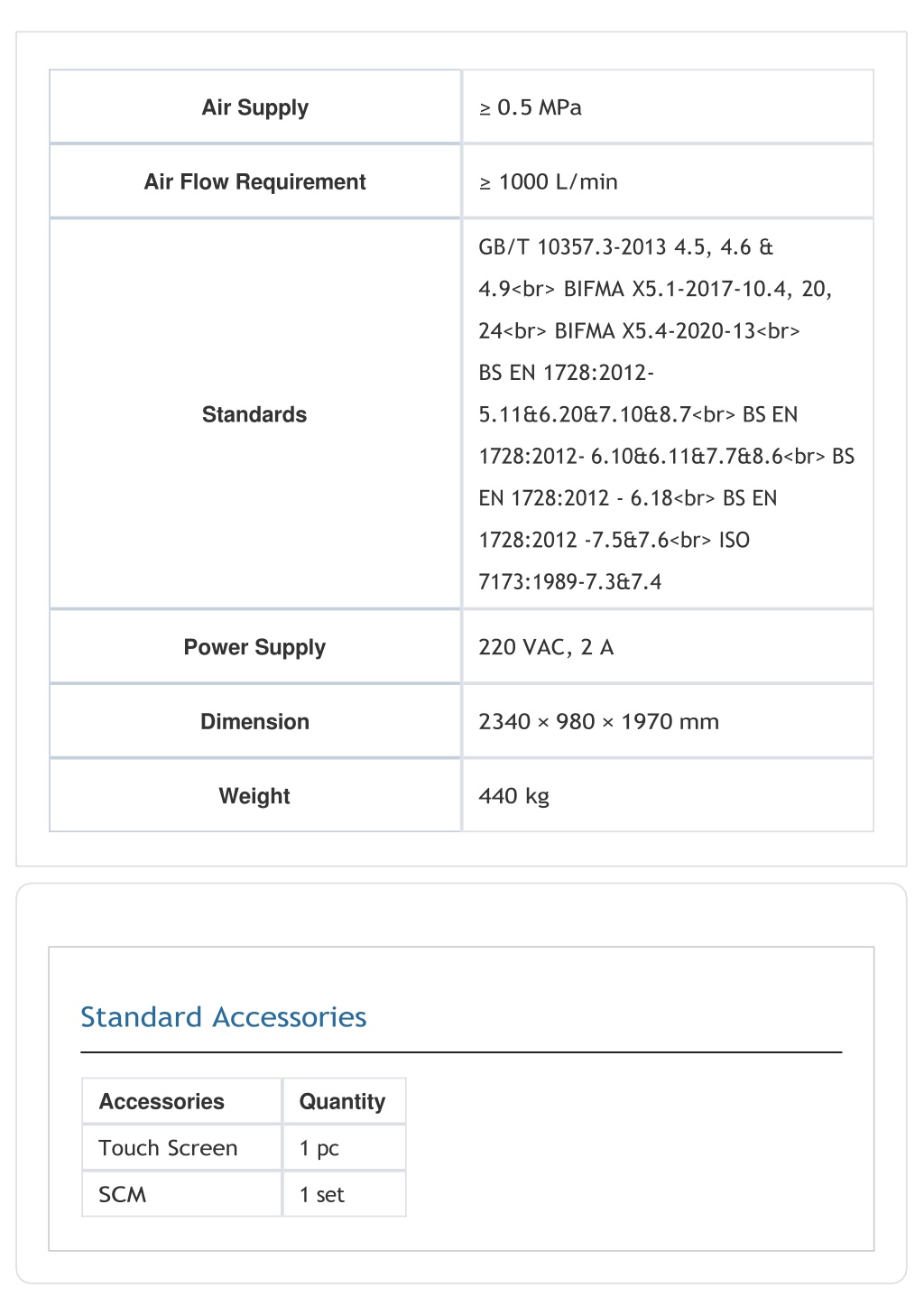

  3. Air Supply ≥ 0.5 MPa Air Flow Requirement ≥1000 L/min GB/T 10357.3-2013 4.5, 4.6 & 4.9<br> BIFMA X5.1-2017-10.4, 20, 24<br> BIFMA X5.4-2020-13<br> BS EN 1728:2012- Standards 5.11&6.20&7.10&8.7<br> BS EN 1728:2012- 6.10&6.11&7.7&8.6<br> BS EN 1728:2012 - 6.18<br> BS EN 1728:2012 -7.5&7.6<br> ISO 7173:1989-7.3&7.4 Power Supply 220 VAC, 2 A Dimension 2340 × 980 × 1970 mm Weight 440 kg Accessories Quantity Touch Screen 1 pc SCM 1 set

  4. EPV 2 pcs Tension Loadcell 2 pcs Signal Transmitter 2 pcs BIFMA Arm Loading device 2 pcs EN Arm Loading Device 2 pcs Small loading pad 2 pcs Anti-rotation stop 2 sets Applications development, certification testing, and customer assurance. Ł |
