Ohmi seadus

Ohmi seadus. Vool on vôrdeline pingega ja pöördvôrdeline takistusega. Ohmi seadus. Ohmi seadus. Lihtne sidu. V=?. 1mA. 2k Ω. 2k Ω. 5mA. V=0. + –. Lihtne sidu. V=?. 1mA. 2k Ω. 2k Ω. 4V. V=0. + –. + –. Lihtne sidu. 1mA. 4V. 2V. V=?. V=0. 1k Ω. Lihtne sidu. + _. I=?.

mona-joyner
Download Presentation

Ohmi seadus

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

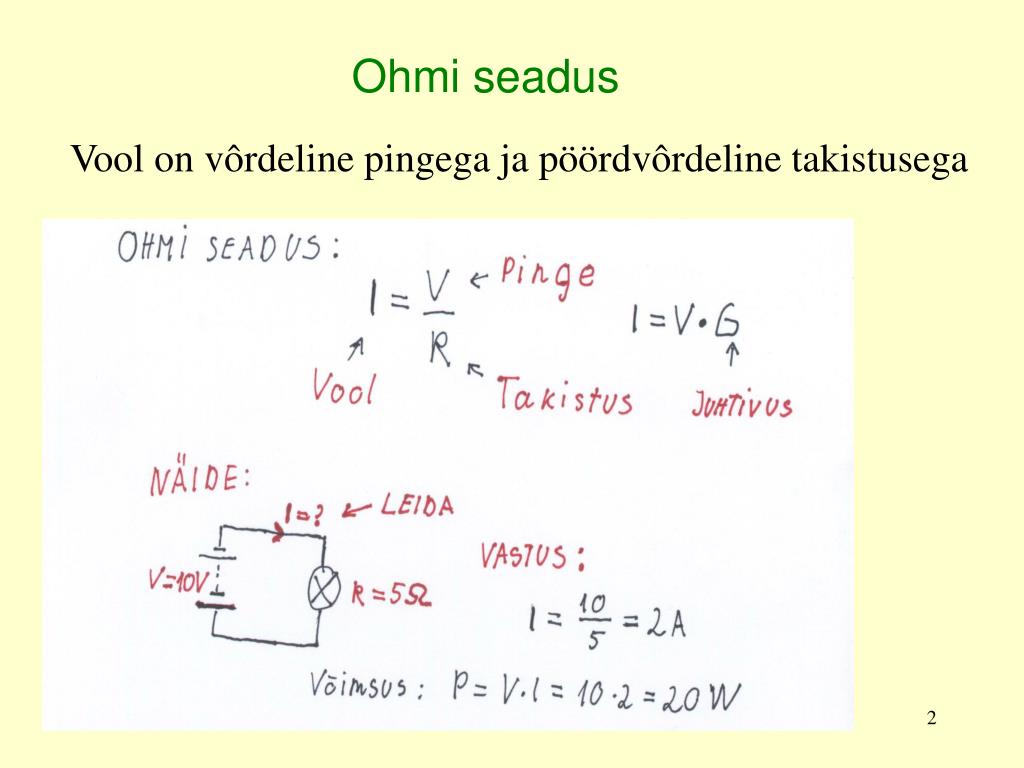

  1. Ohmi seadus Vool on vôrdeline pingega ja pöördvôrdeline takistusega

  2. Ohmi seadus

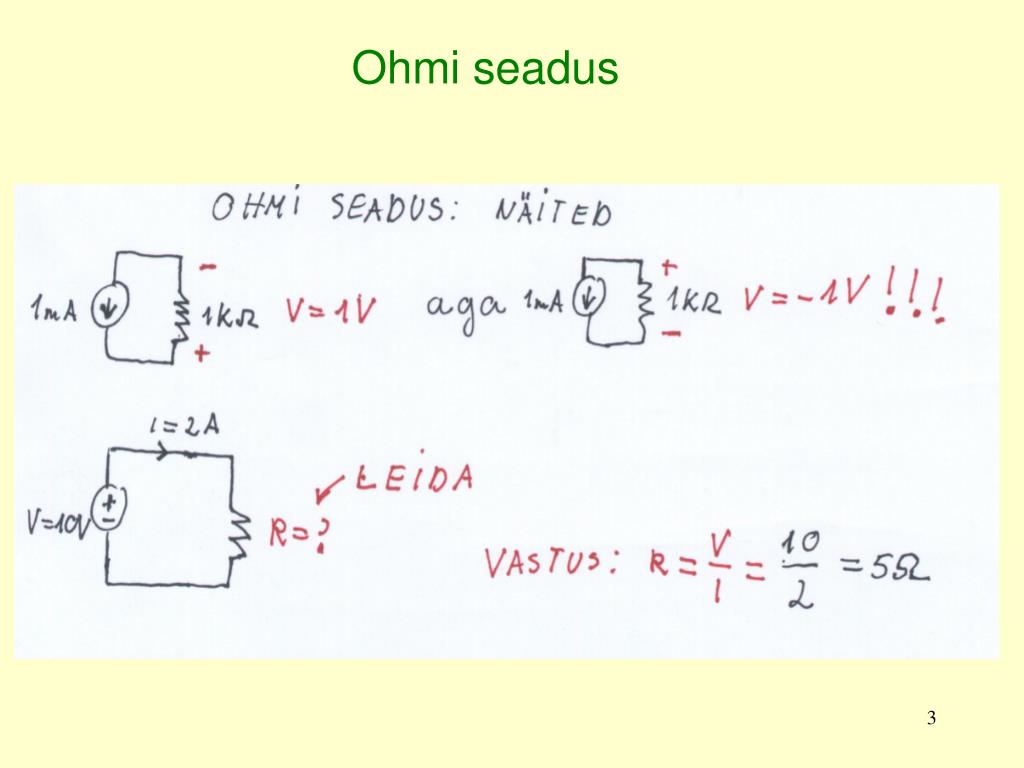

  3. Ohmi seadus

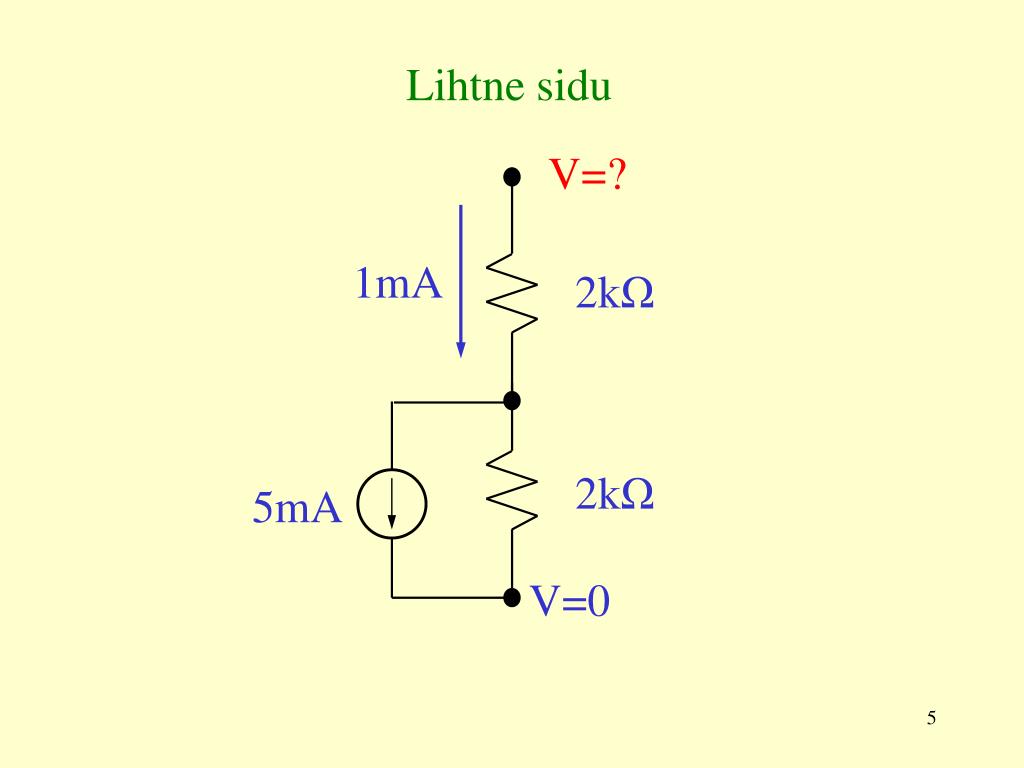

  4. Lihtne sidu V=? 1mA 2kΩ 2kΩ 5mA V=0

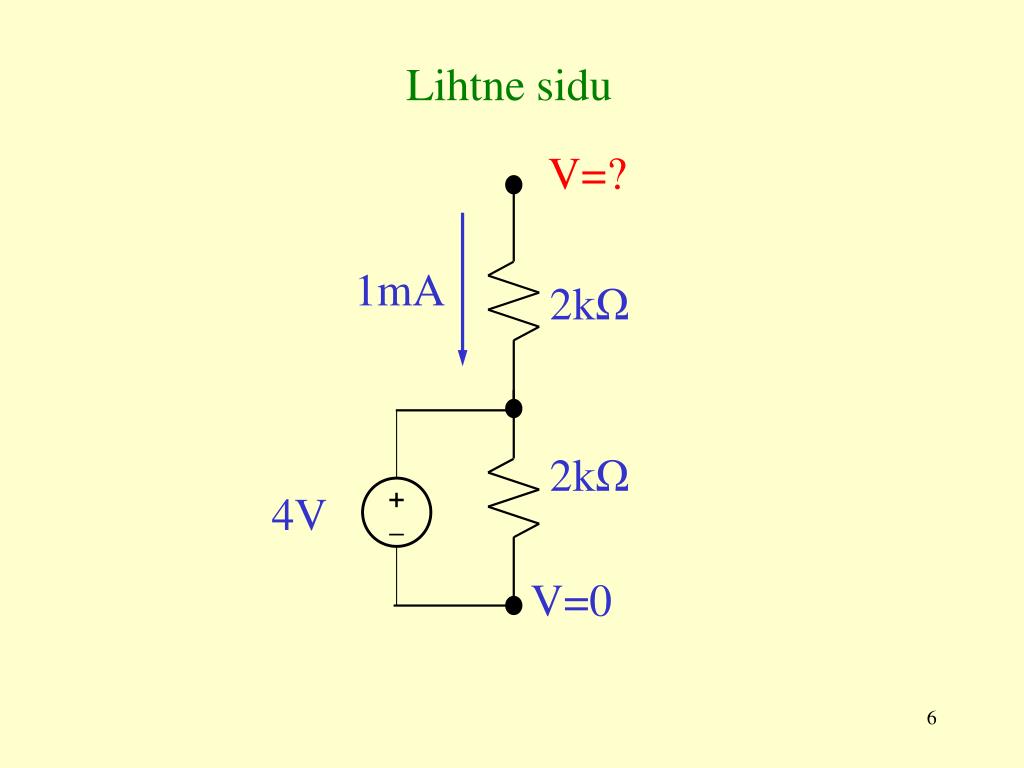

  5. +– Lihtne sidu V=? 1mA 2kΩ 2kΩ 4V V=0

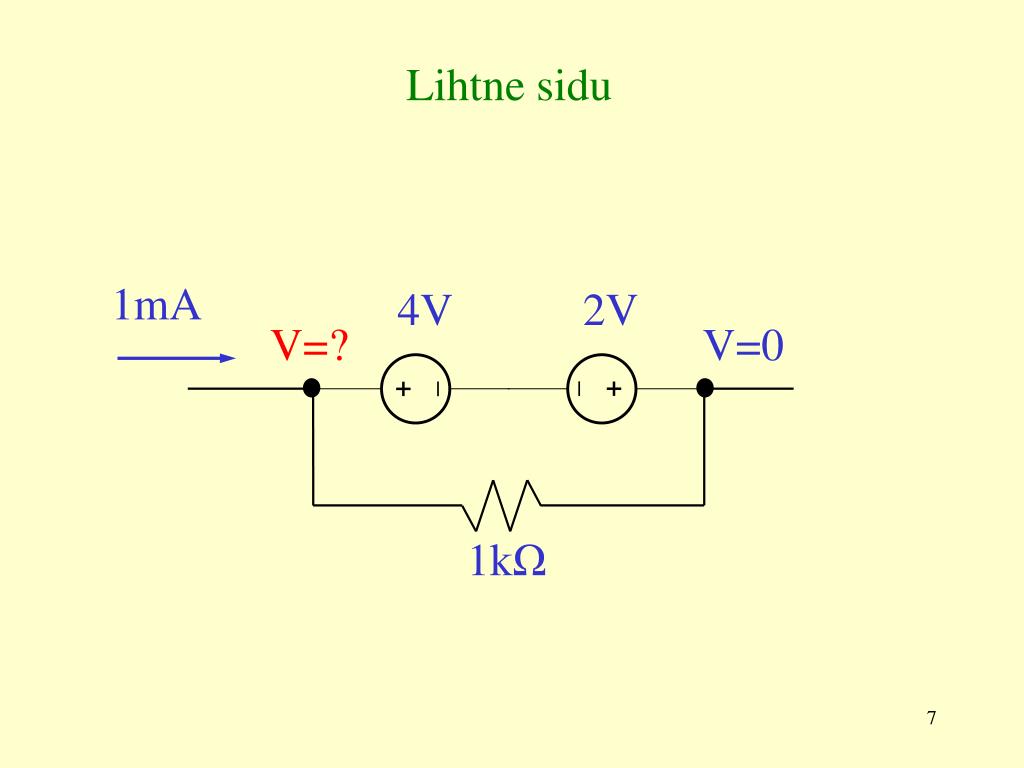

  6. +– +– Lihtne sidu 1mA 4V 2V V=? V=0 1kΩ

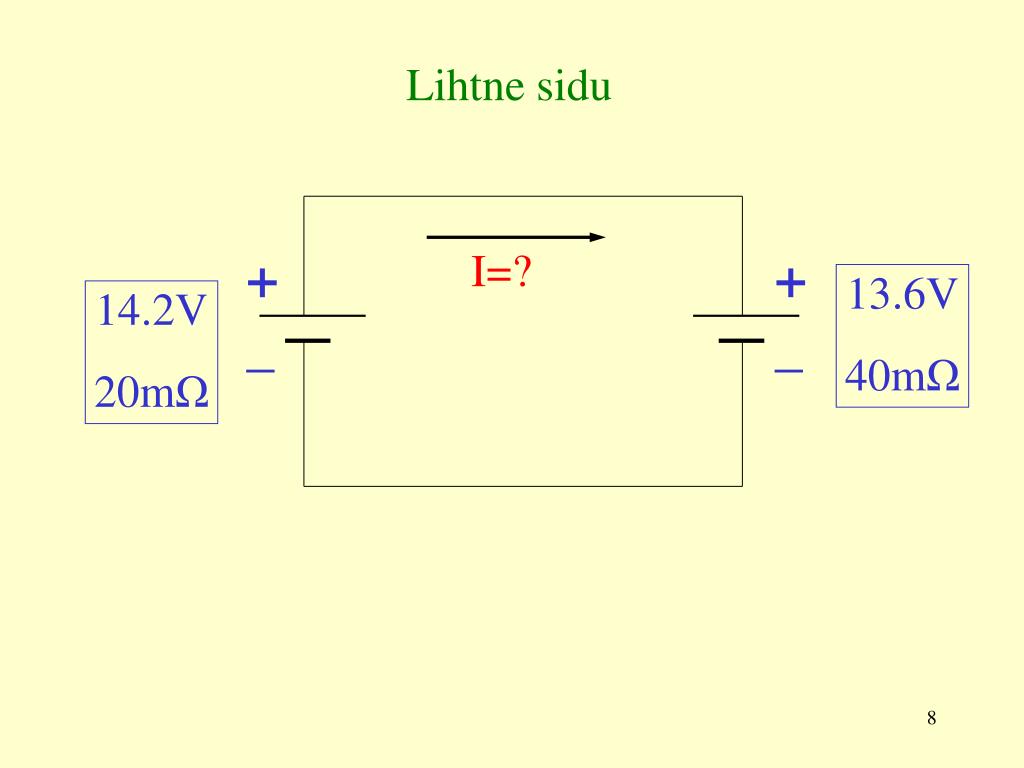

  7. Lihtne sidu +_ I=? +_ 13.6V 40mΩ 14.2V 20mΩ
