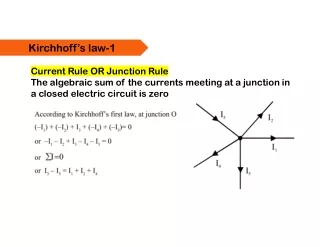

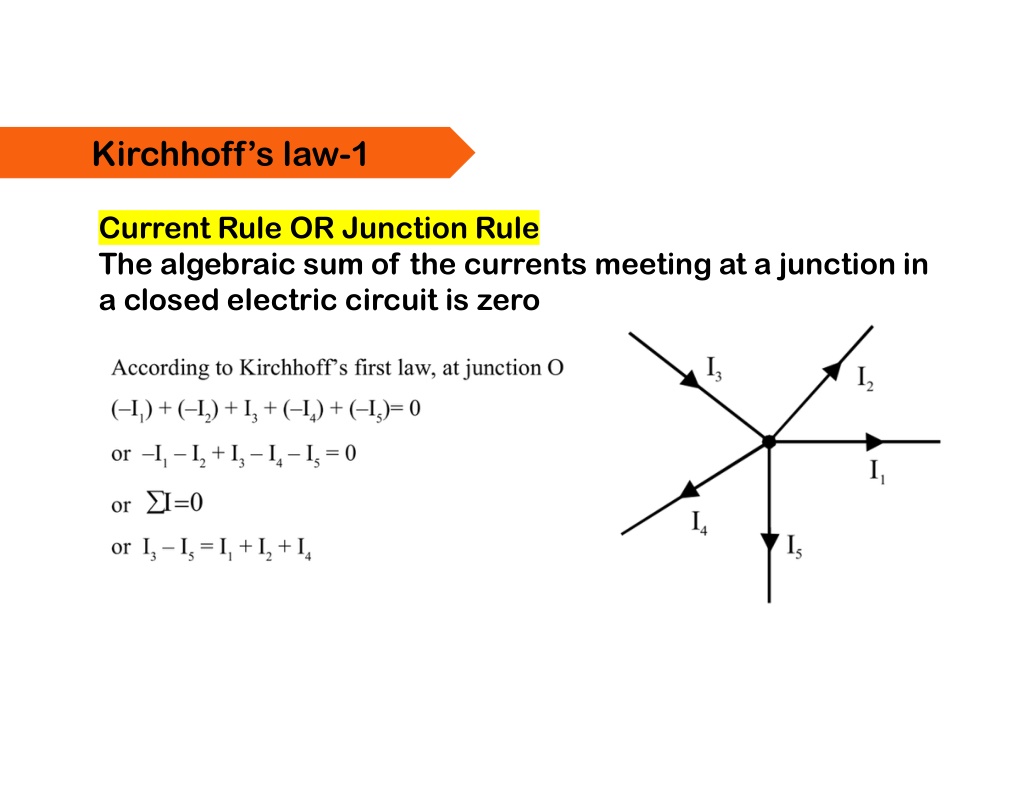

  1. Kirchhoff’s law-1 Current Rule OR Junction Rule The algebraic sum of the currents meeting at a junction in a closed electric circuit is zero

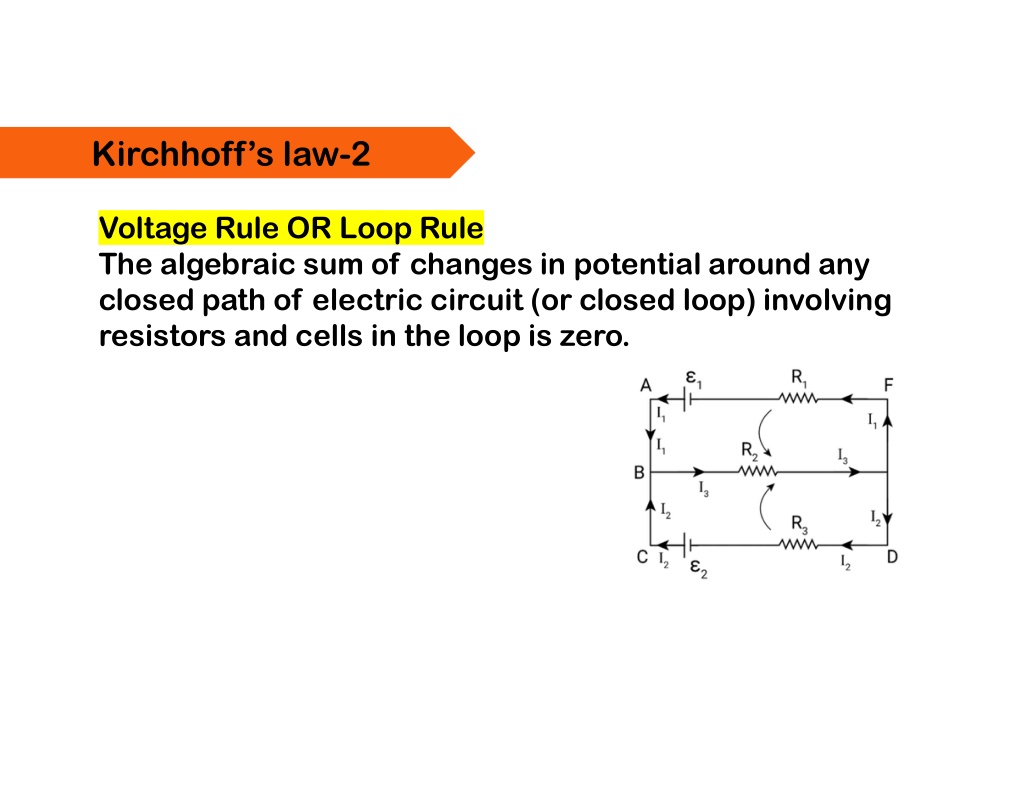

  2. Kirchhoff’s law-2 Voltage Rule OR Loop Rule The algebraic sum of changes in potential around any closed path of electric circuit (or closed loop) involving resistors and cells in the loop is zero.

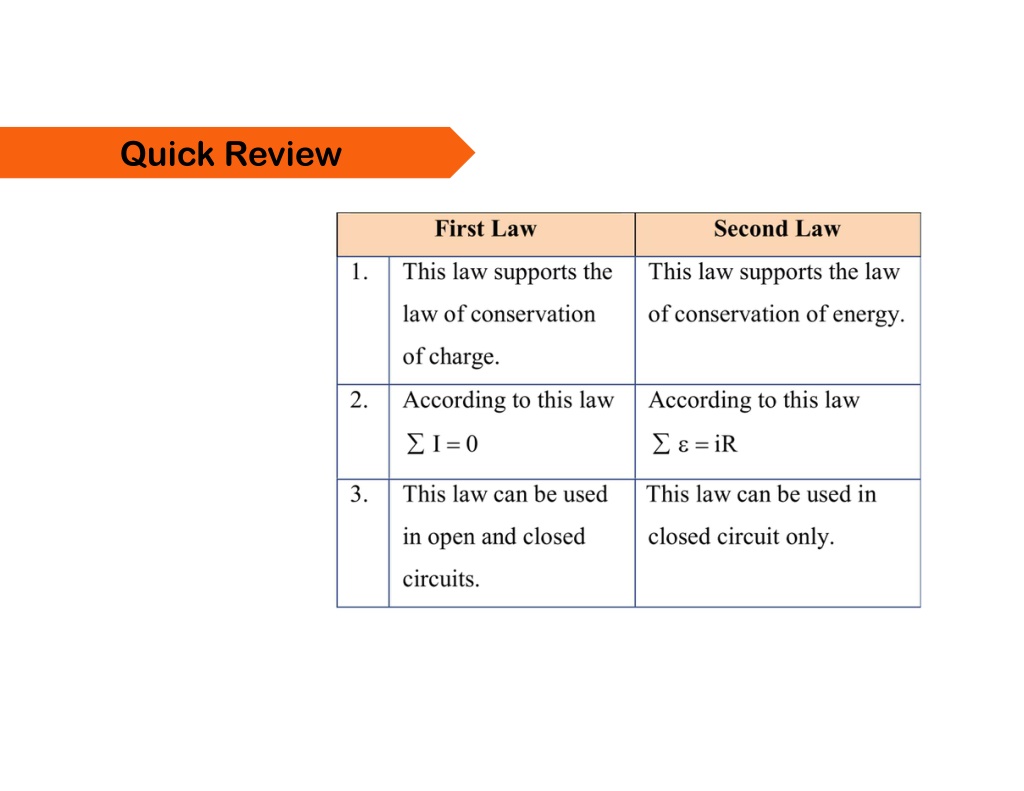

  3. Quick Review

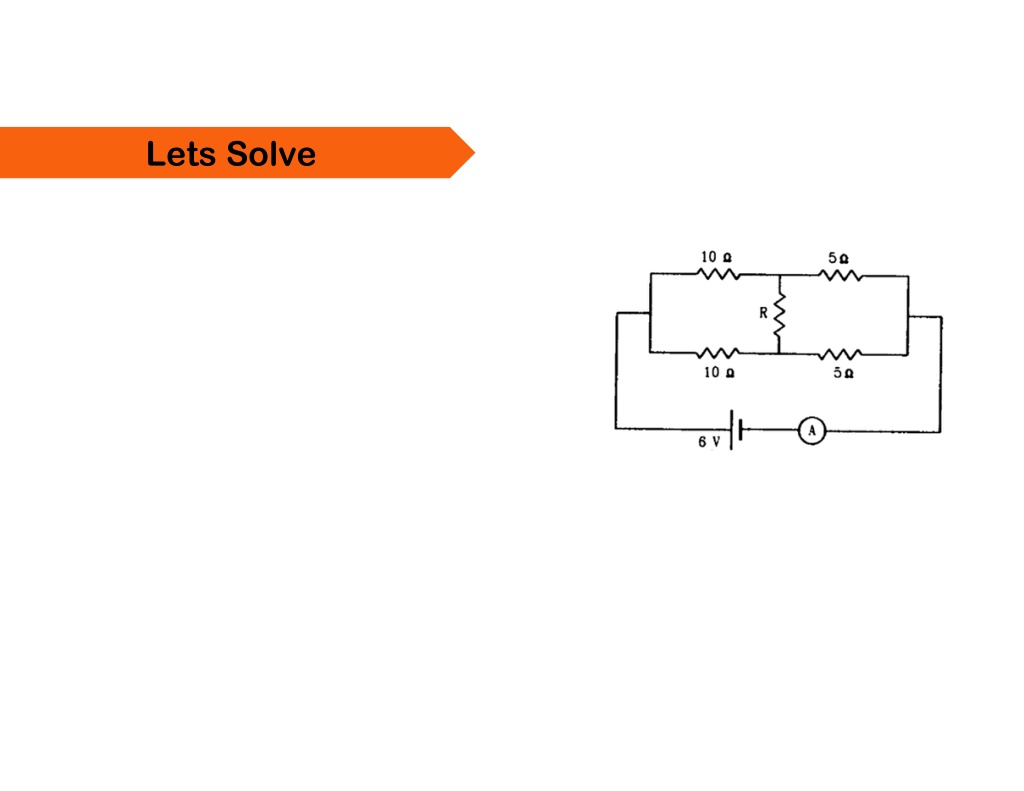

  4. Lets Solve

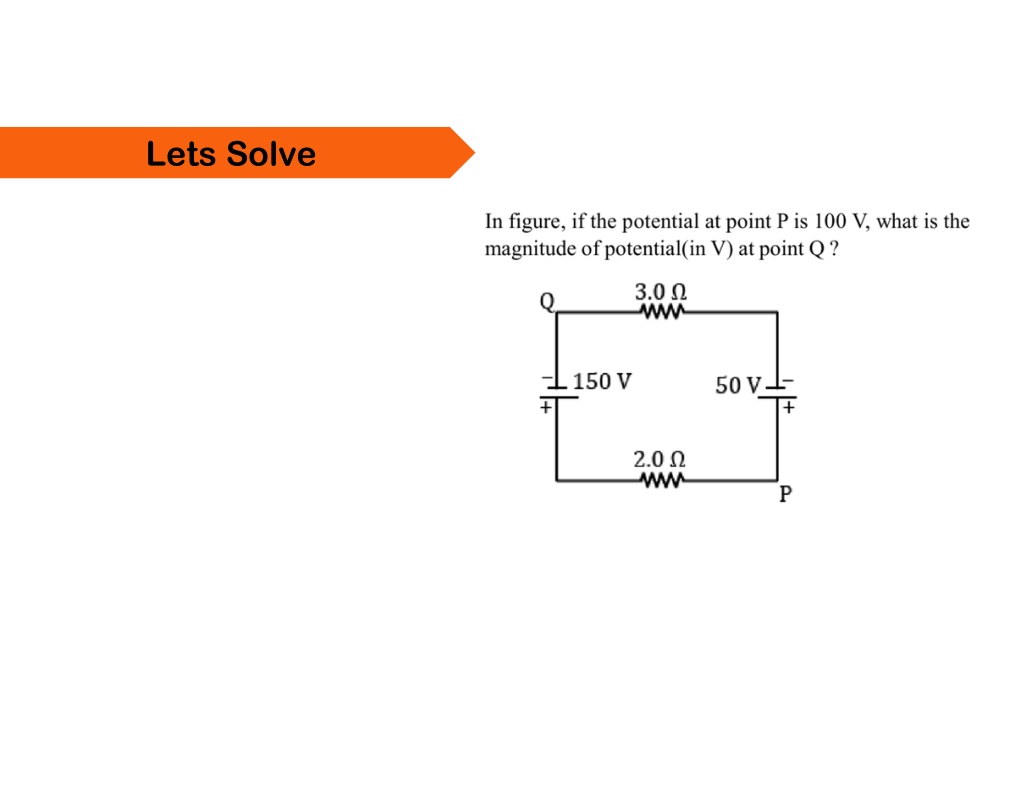

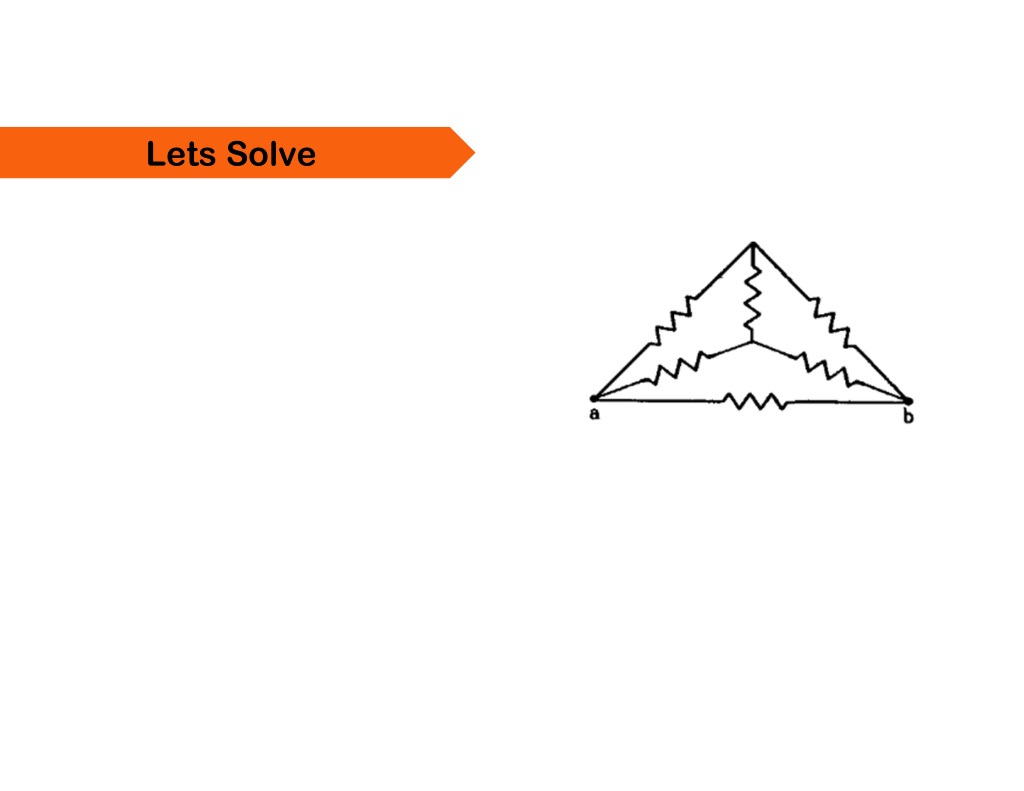

  5. Lets Solve

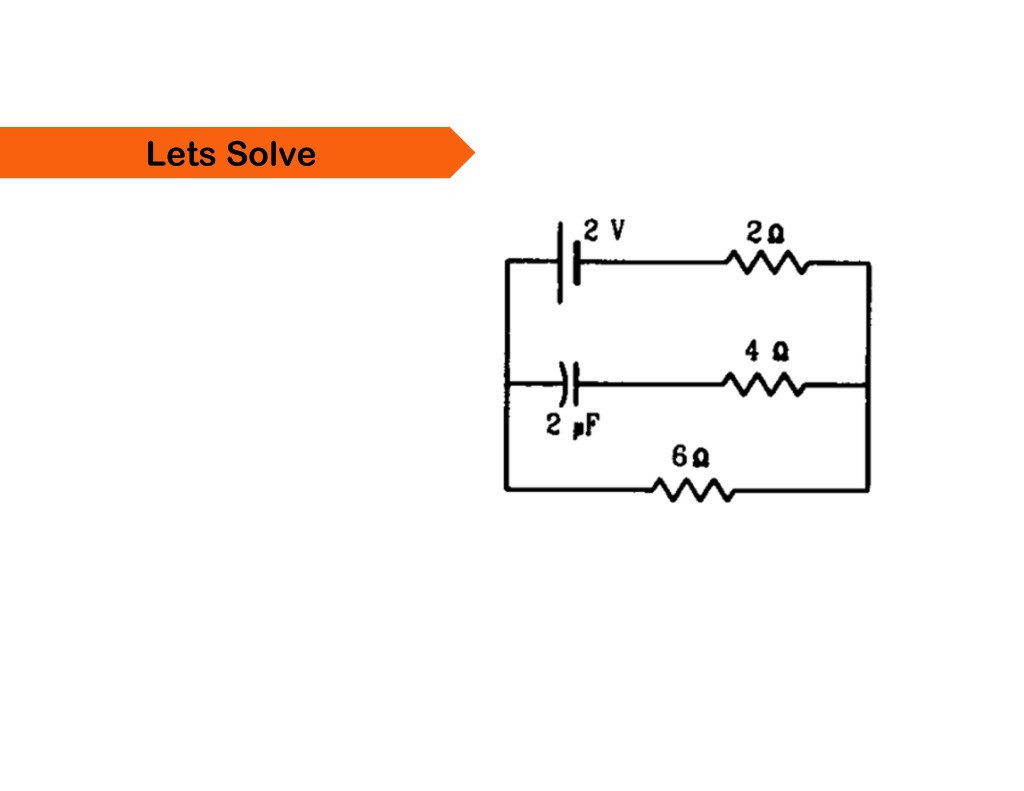

  6. Lets Solve

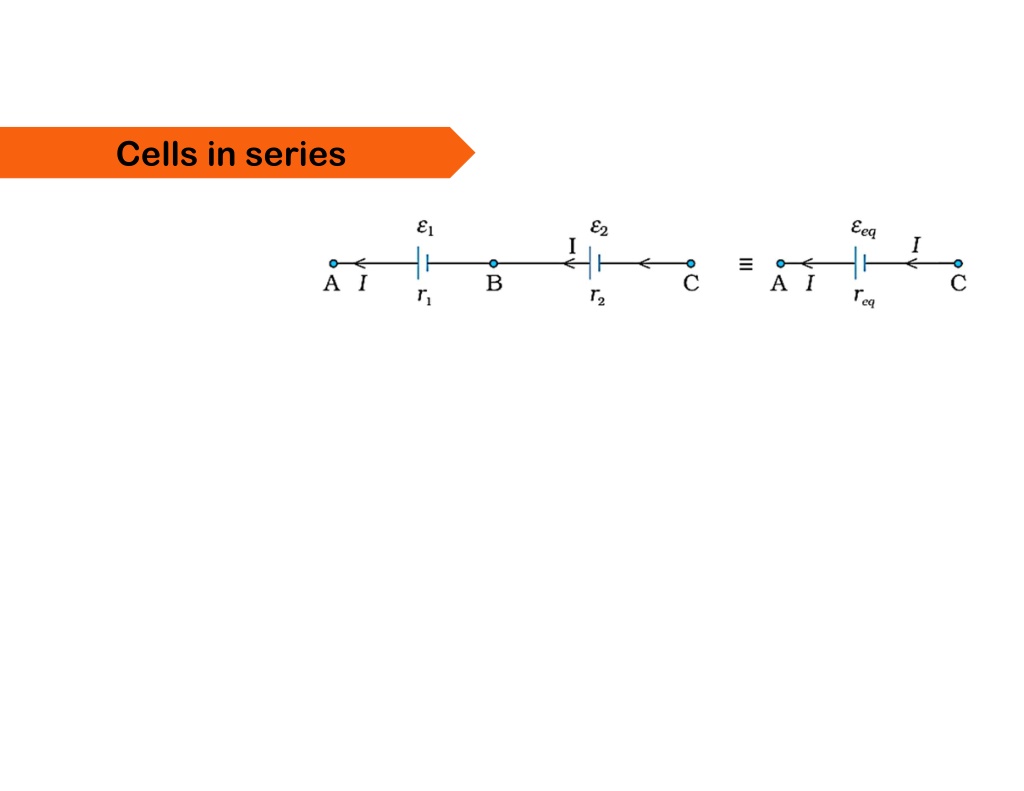

  7. Cells in series

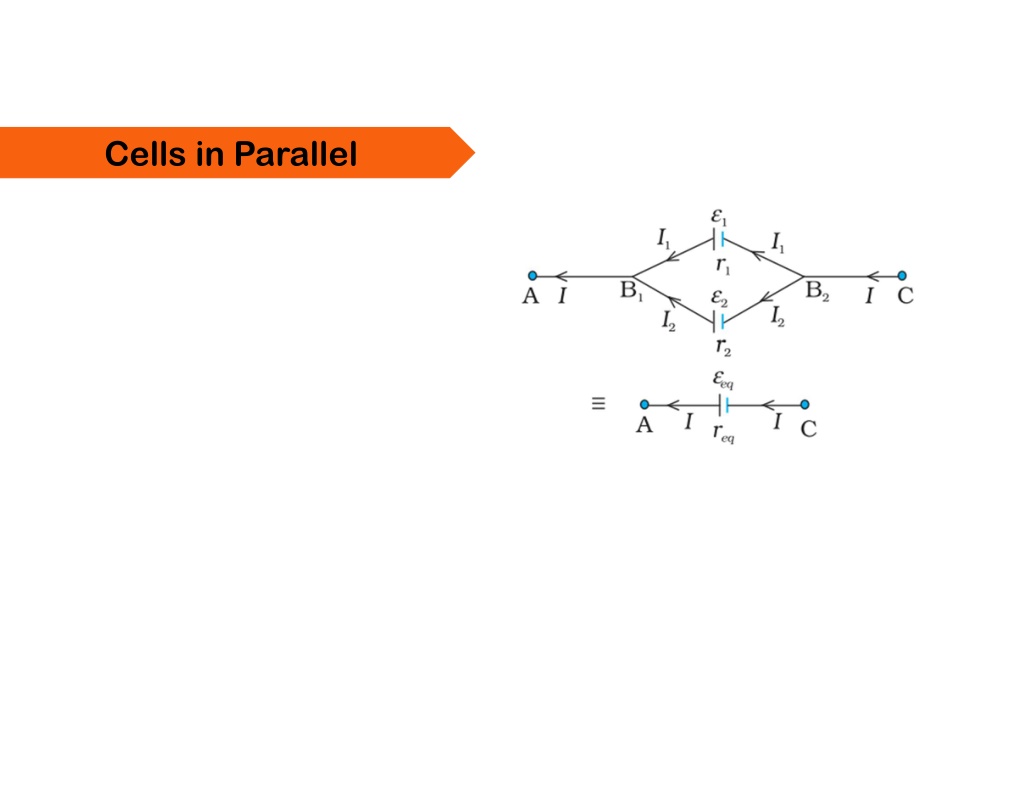

  8. Cells in Parallel

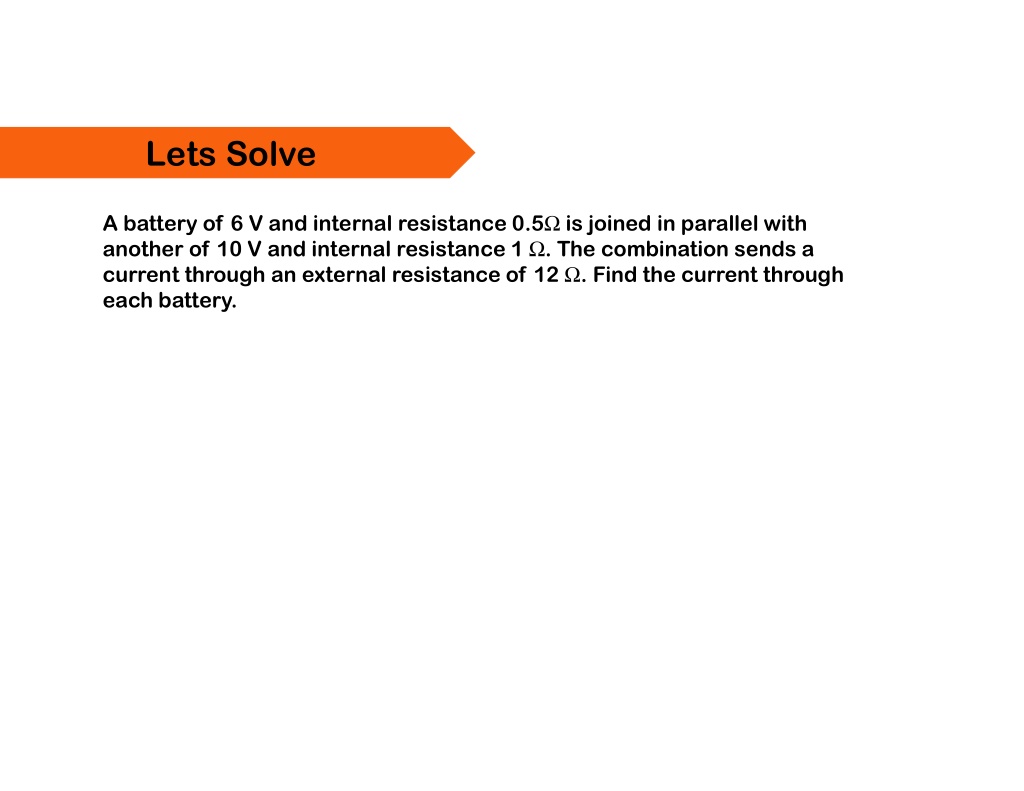

  9. Lets Solve A battery of 6 V and internal resistance 0.5Ω is joined in parallel with another of 10 V and internal resistance 1 Ω. The combination sends a current through an external resistance of 12 Ω. Find the current through each battery.

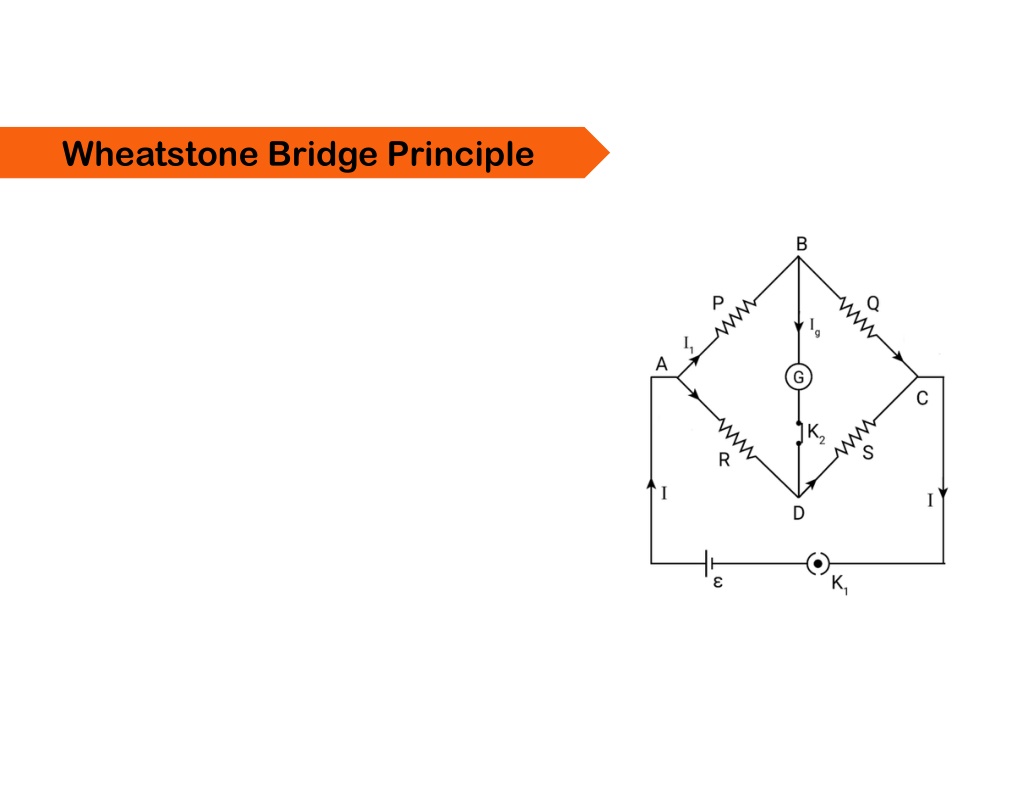

  10. Wheatstone Bridge Principle

  11. Lets Solve

  12. Lets Solve

  13. Meter Bridge Principle

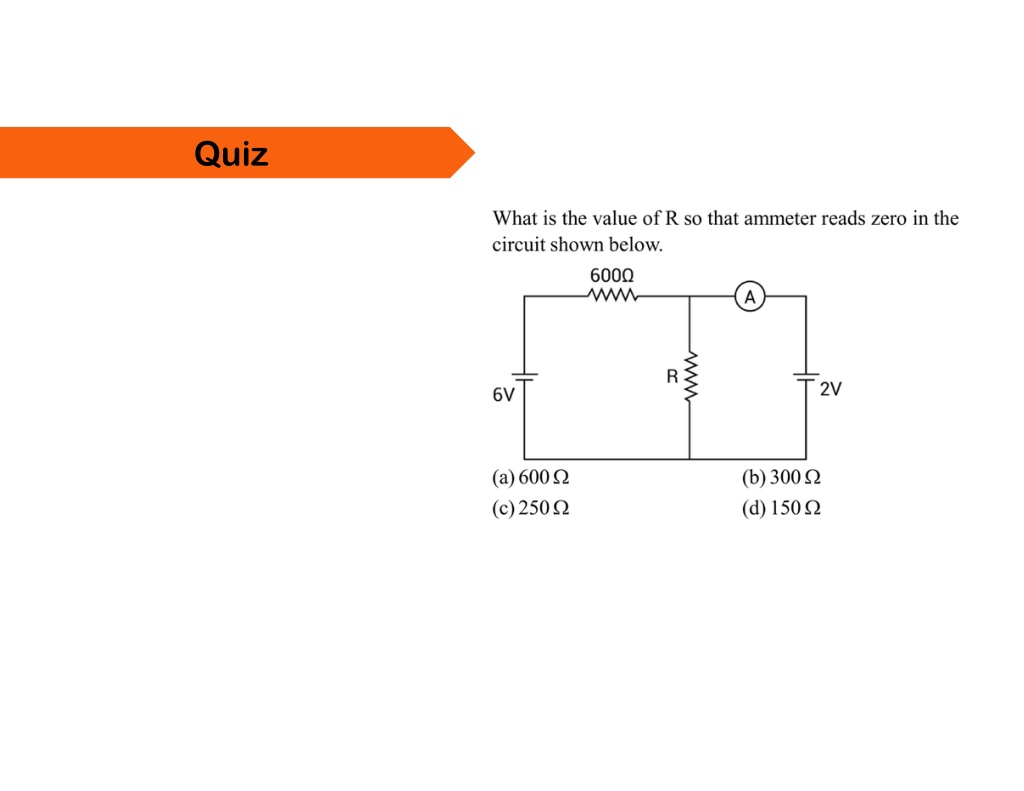

  14. Quiz

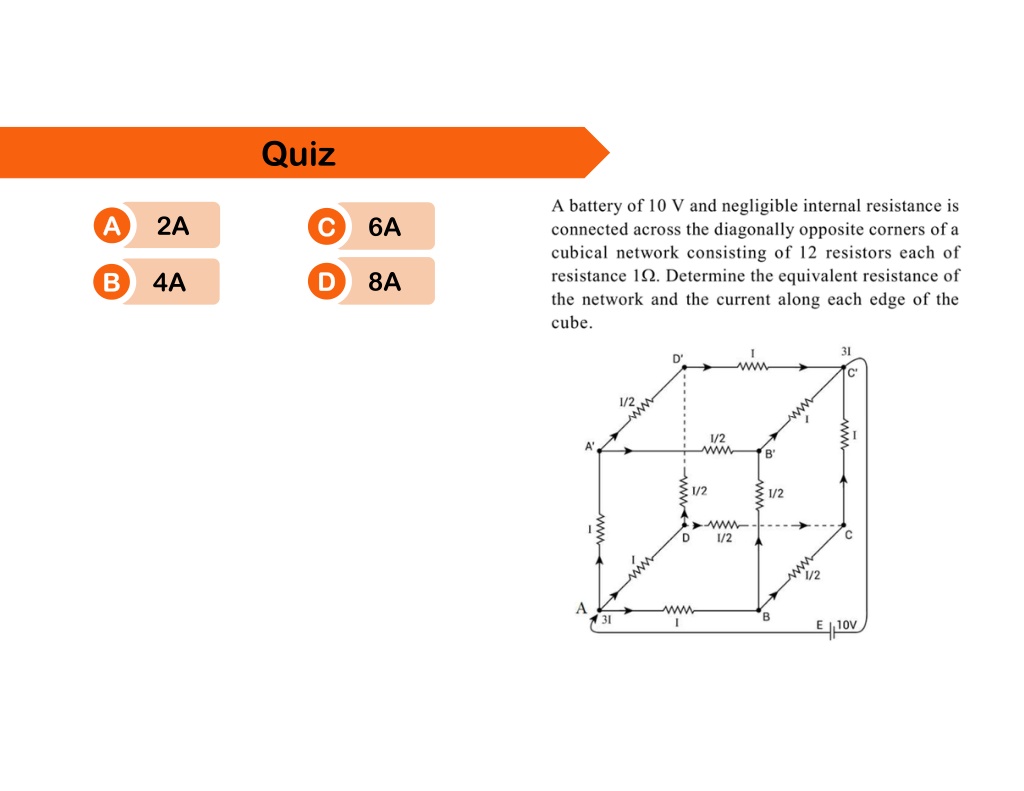

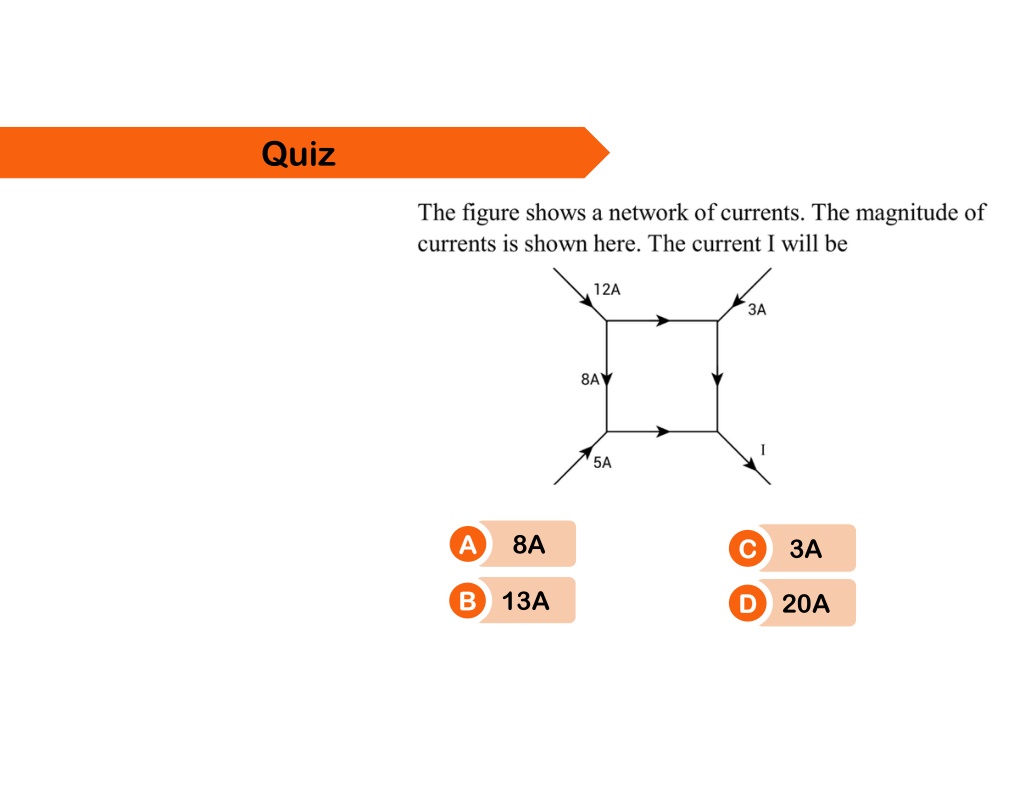

  15. Quiz 8A A A 3A C C 13A B B 20A D D

  16. Quiz 2A A A 6A C C 8A D D 4A B B

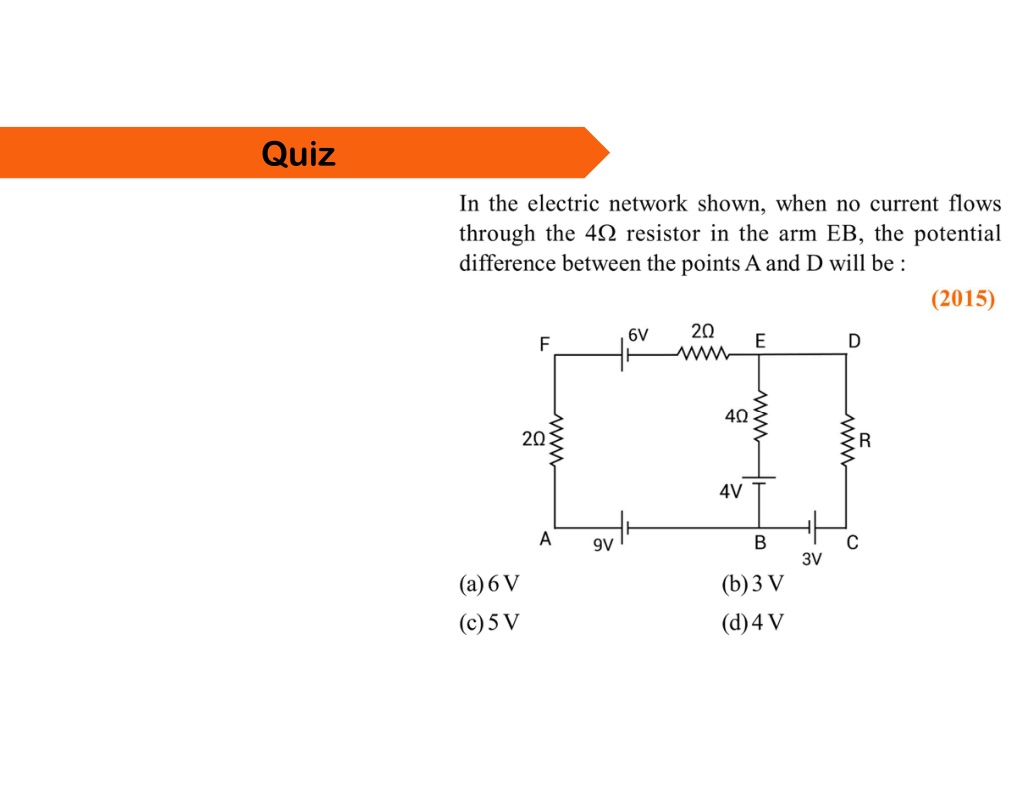

  17. Quiz

  18. Quiz
