Utilizing SSES for Enhanced Satellite Data Accuracy in GOES Retrievals

This research explores the use of SSES (Satellite System Estimation System) to refine the accuracy of GOES L2P (Level 2 Product) retrievals. By integrating additional information that cannot be derived from ancillary data alone, we analyze how retrieval bias correlates with clear-sky transmittance and air-sea temperature differences. Our findings suggest that the sensitivity to air-sea temperature variations increases as transmittance decreases, leading to a derived bias model based on offset and gradient terms. The results highlight the importance of considering these factors in accurate satellite data interpretation.

milla
Download Presentation

Utilizing SSES for Enhanced Satellite Data Accuracy in GOES Retrievals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. GOES-L2P SSES estimation • Using SSES to provide additional information that cannot be calculated from L2P ancillary data • 1st cut assumption is that retrieval bias depends on • Clear-sky transmittance (calculated from NCEP → CRTM) • Air-sea temperature difference (currently NCEP only) • Assume that sensitivity to Air-Sea Temperature Difference (ASTD) increases with decreasing transmittance • Derive bias = offset + gradientASTD for different 11 • Post-corrected σ is estimated as a function of transmittance only • Different for sensor/day/night

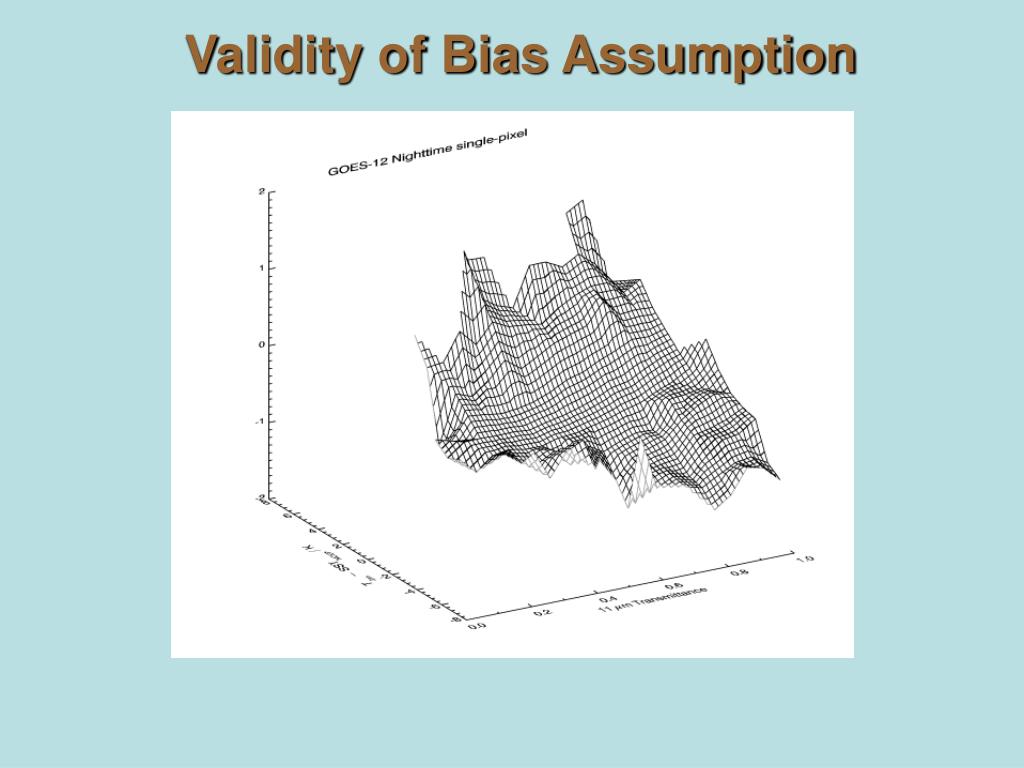

  2. Validity of Bias Assumption

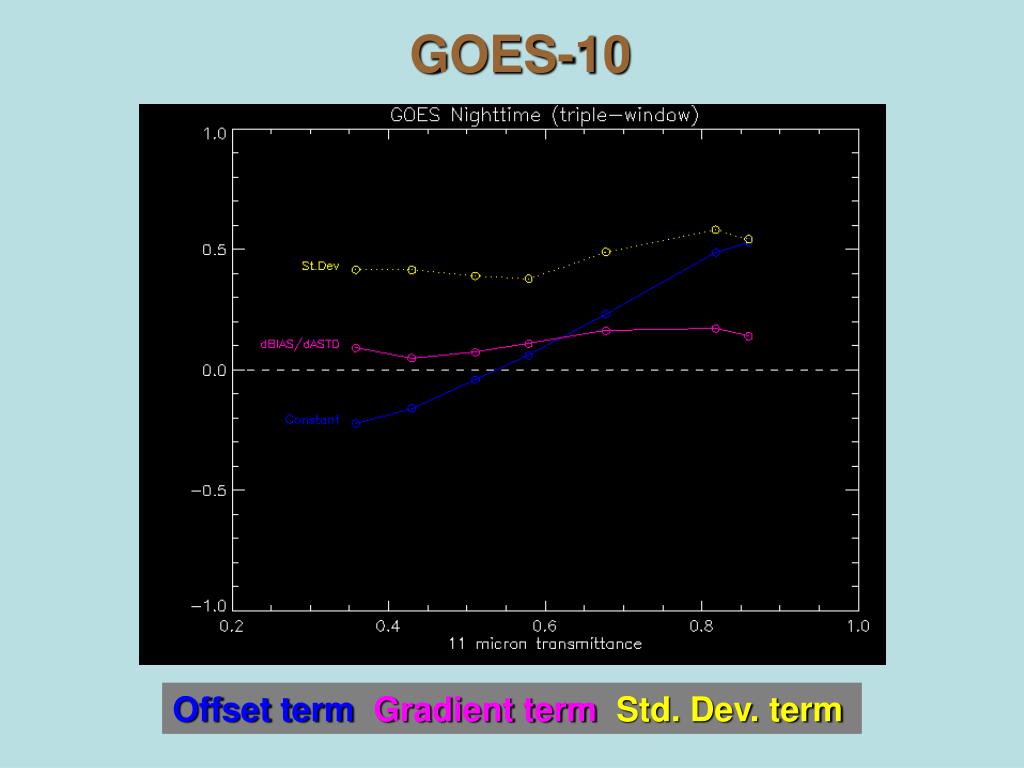

  3. GOES-10 Offset termGradient termStd. Dev. term

  4. GOES-12 Offset termGradient termStd. Dev. term

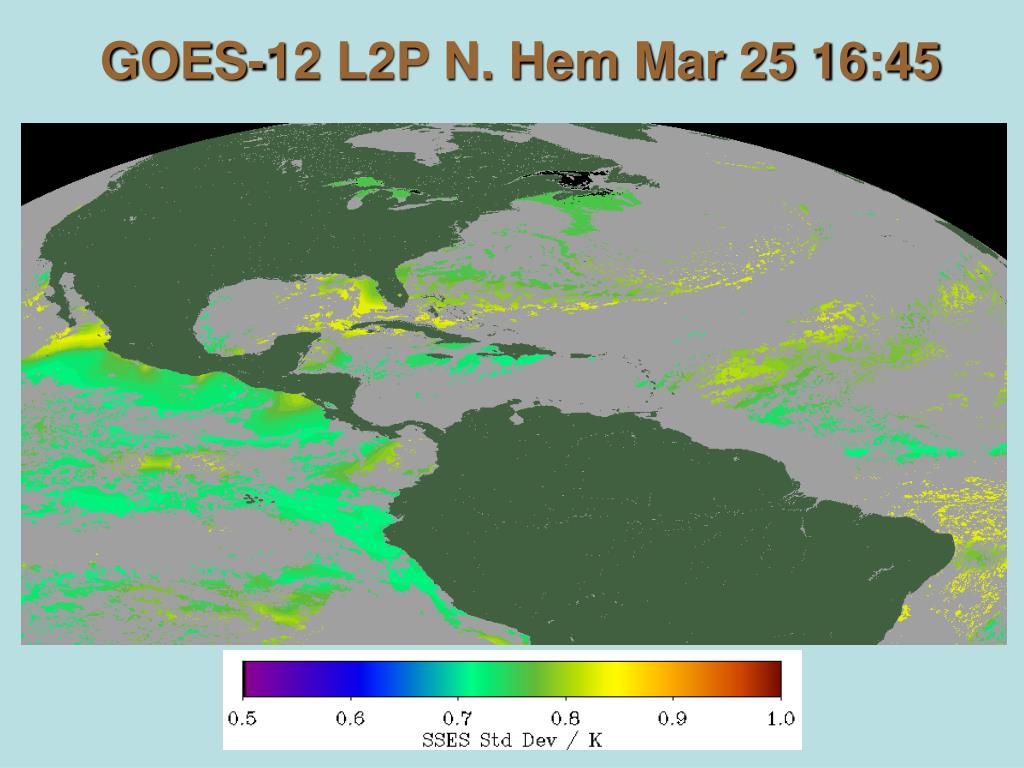

  5. GOES-12 L2P N. Hem Mar 25 16:45 GOES-12 L2P N. Hem Mar 28 15:15 GOES-12 L2P N. Hem Mar 28 15:15 GOES-12 L2P N. Hem Mar 25 16:45

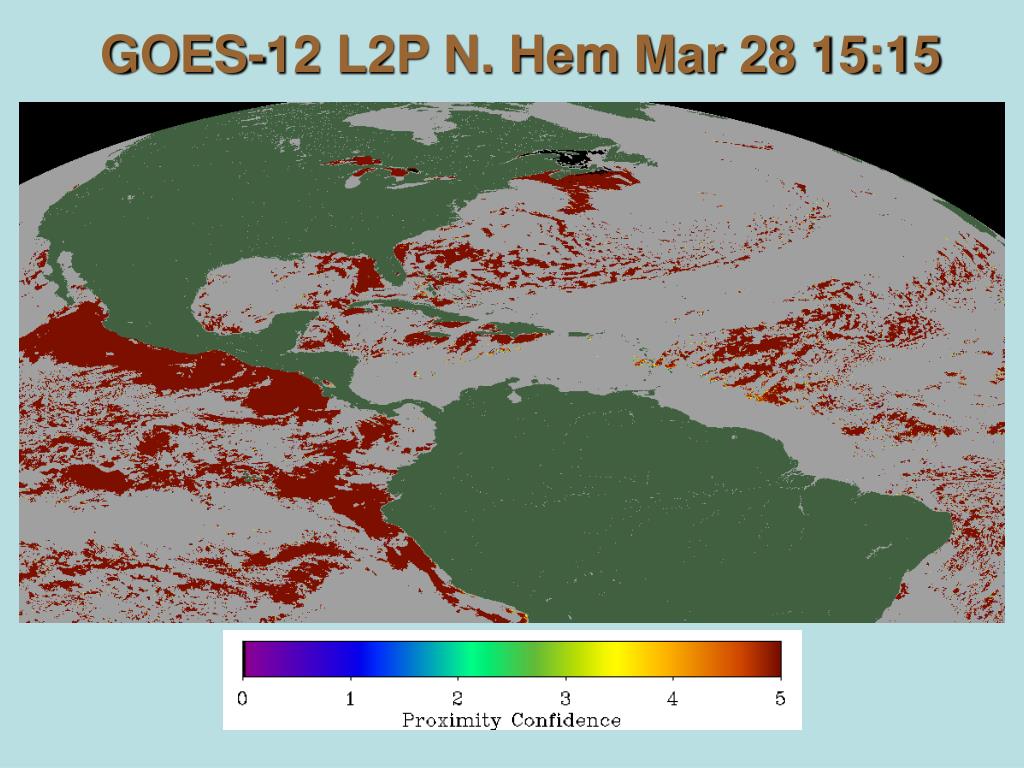

  6. GOES-12 L2P N. Hem Mar 28 15:15
