  1. Instruction Sets and Beyond Computers, Complexity, and Controversy Brian Blum, Darren Drewry Ben Hocking, Gus Scheidt

  2. Outline • Points of Clarification • RISC and CISC defined • Points of Attention and Contention • RISC II and the MCF Evaluation • Multiple Register Sets • The 432 • Summary

  3. Points of Clarification • 1985 - What is RISC today? • RISC – Number of Instructions • RISC:academic .vs. CISC:commercial

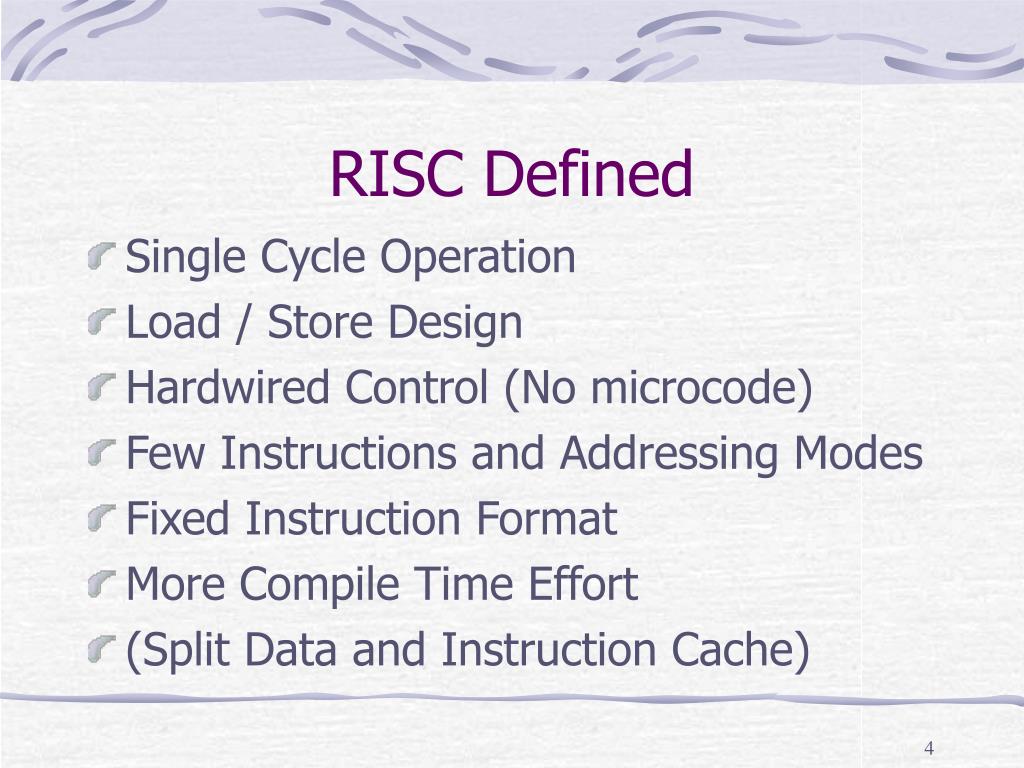

  4. RISC Defined • Single Cycle Operation • Load / Store Design • Hardwired Control (No microcode) • Few Instructions and Addressing Modes • Fixed Instruction Format • More Compile Time Effort • (Split Data and Instruction Cache)

  5. CISC in Comparison • Larger and more Complex (Insn & Addr) • Multiple Cycle Execution (micro-instructions) • Upward Compatible (w/ Obsolete Insn) • Standardized • More Hardware (on-chip logic) • Fewer Registers – Unified Cache?

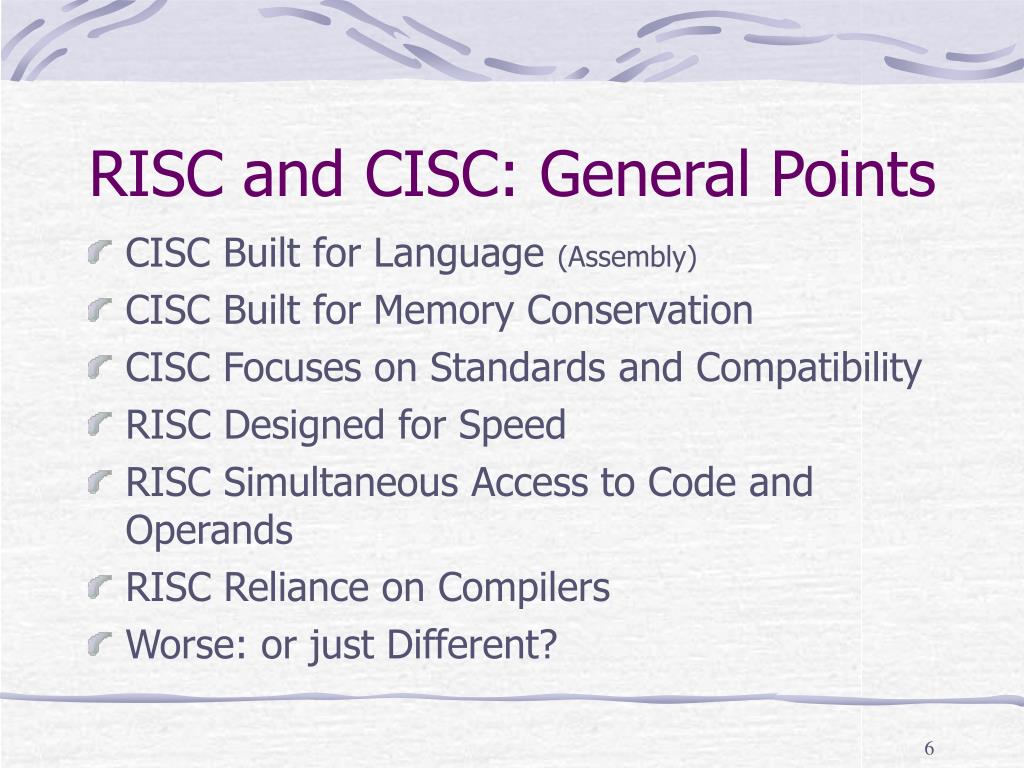

  6. RISC and CISC: General Points • CISC Built for Language (Assembly) • CISC Built for Memory Conservation • CISC Focuses on Standards and Compatibility • RISC Designed for Speed • RISC Simultaneous Access to Code and Operands • RISC Reliance on Compilers • Worse: or just Different?

  7. Two Misconceptions about RISC and CISC • Implication that discussion is limited to selection of instruction set. • Tradeoffs across various boundaries: architecture / implementation hardware / software compile-time / run-time

  8. Two Misconceptions about RISC and CISC • Implication that any machine is one or the other. • Machine performance difficult to interpret • Absolute number of instructions is not the only criterion - compiler / architecture coupling - non-instruction set design decisions

  9. Early arguments for RISC • Simpler designs could be realized more quickly • Avoid performance disadvantages of old implementation technology.

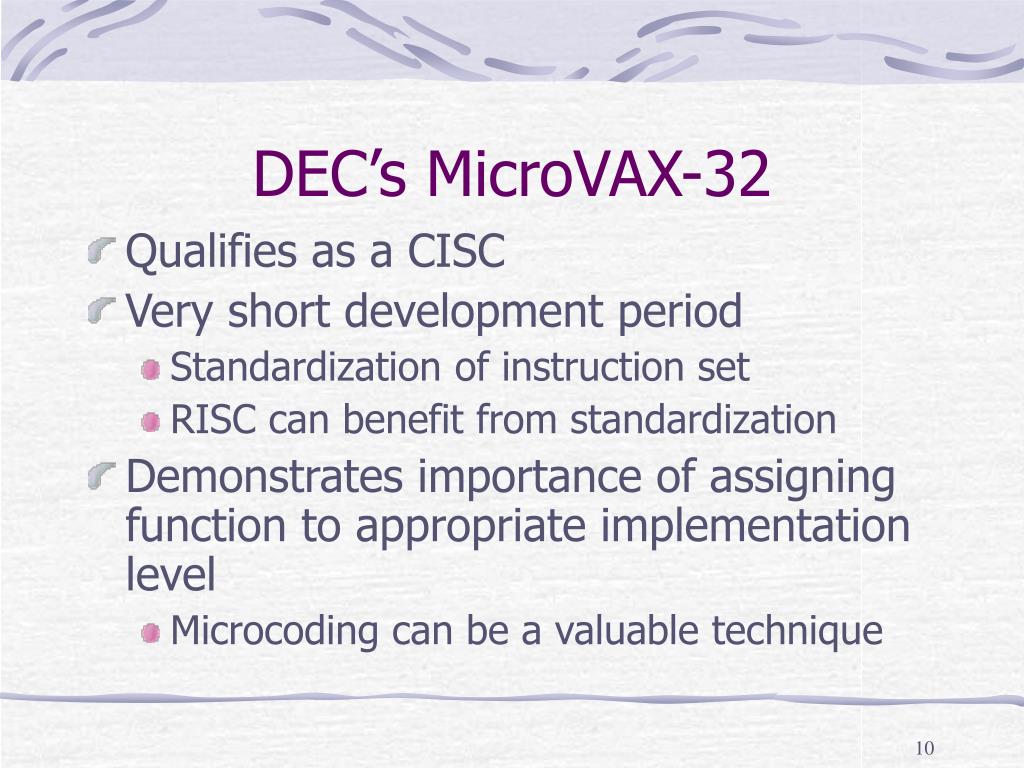

  10. DEC’s MicroVAX-32 • Qualifies as a CISC • Very short development period • Standardization of instruction set • RISC can benefit from standardization • Demonstrates importance of assigning function to appropriate implementation level • Microcoding can be a valuable technique

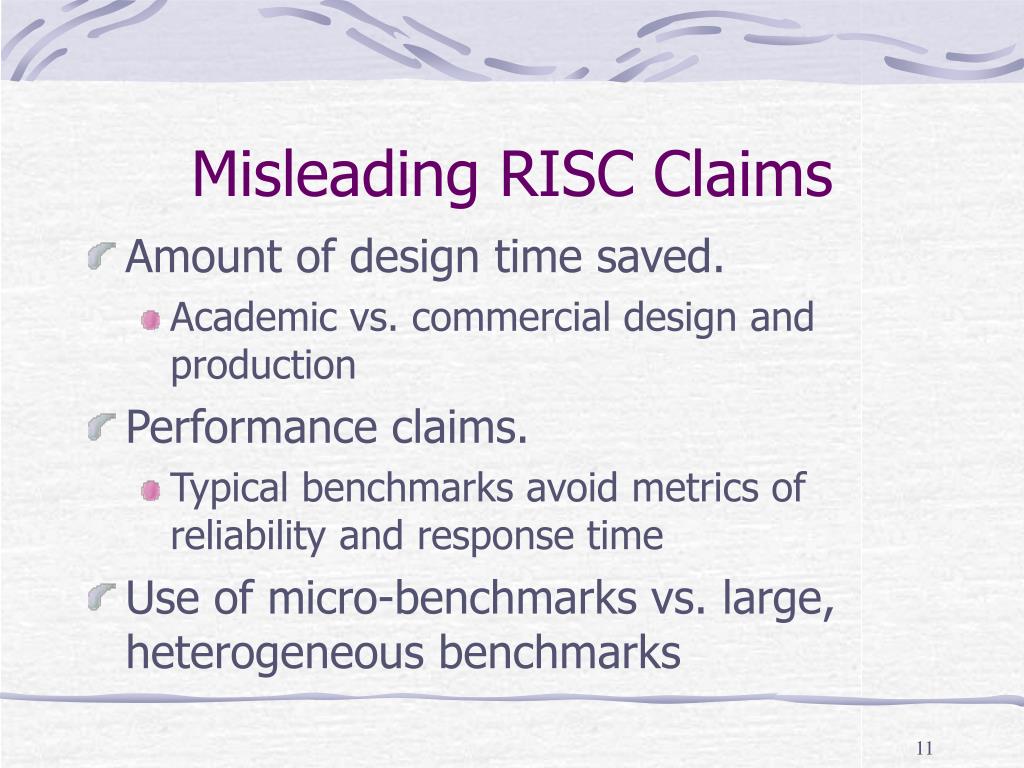

  11. Misleading RISC Claims • Amount of design time saved. • Academic vs. commercial design and production • Performance claims. • Typical benchmarks avoid metrics of reliability and response time • Use of micro-benchmarks vs. large, heterogeneous benchmarks

  12. Multiple Register Sets • Performance feature independent of RISC aspect of processor • Reduce frequency of register saves/restores on procedure calls • Overlap register sets for parameter passing • MRS impact performance for both RISC and CISC

  13. Effect of MRS on CISC Effect of MRS on RISC

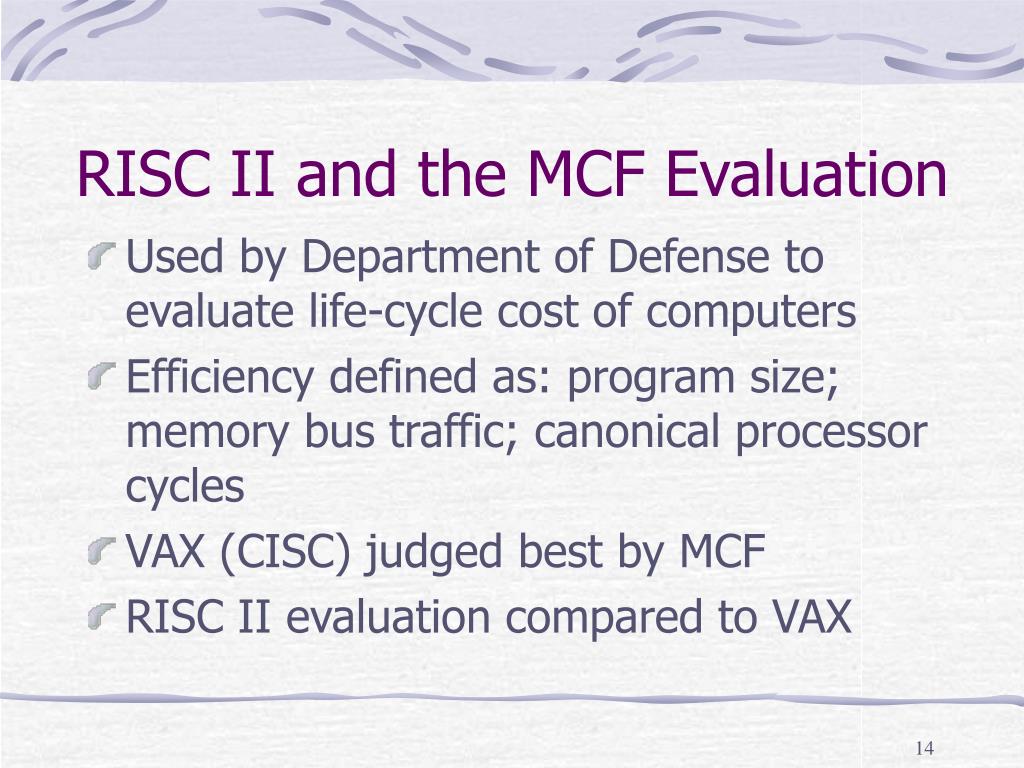

  14. RISC II and the MCF Evaluation • Used by Department of Defense to evaluate life-cycle cost of computers • Efficiency defined as: program size; memory bus traffic; canonical processor cycles • VAX (CISC) judged best by MCF • RISC II evaluation compared to VAX

  15. RISC II and the MCF Evaluation • Results of comparison • VAX requires 3.5 times less memory (for program instructions) • RISC II has 2.5 times more processor-memory traffic • VAX requires fewer cycles than RISC II

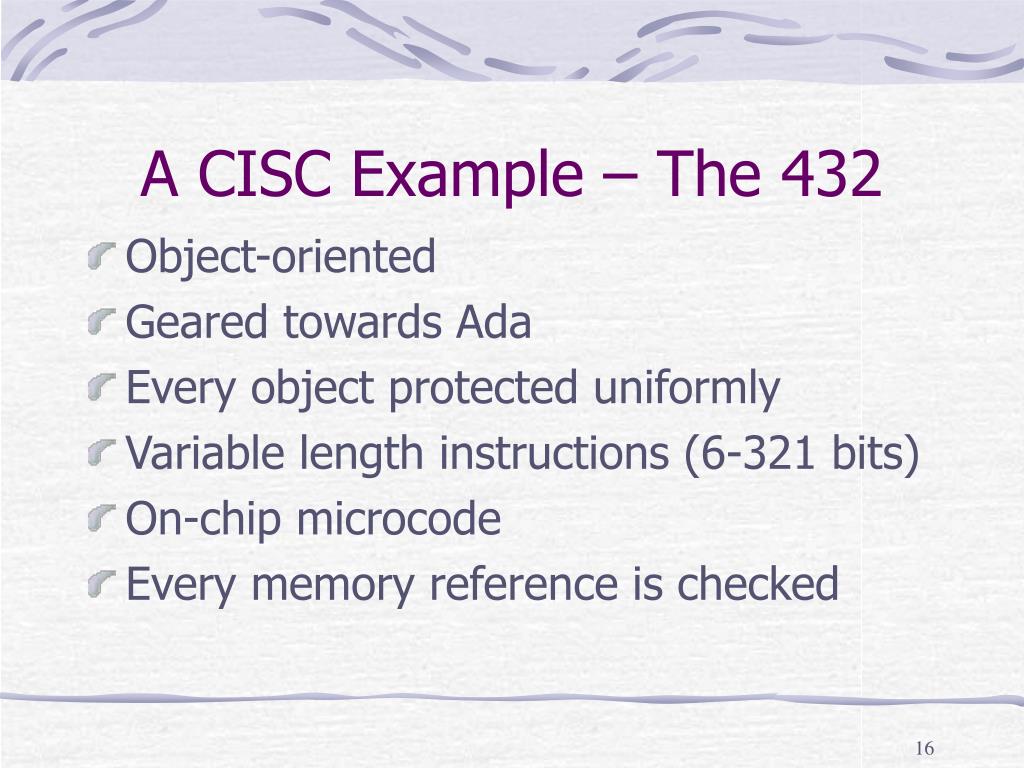

  16. A CISC Example – The 432 • Object-oriented • Geared towards Ada • Every object protected uniformly • Variable length instructions (6-321 bits) • On-chip microcode • Every memory reference is checked

  17. Problems with the 432 • 10-20 times as slow on low-level benchmarks (such as Hanoi) • No on-chip data caching • No instruction stream literals • No local registers • Ada compile performs almost no optimization

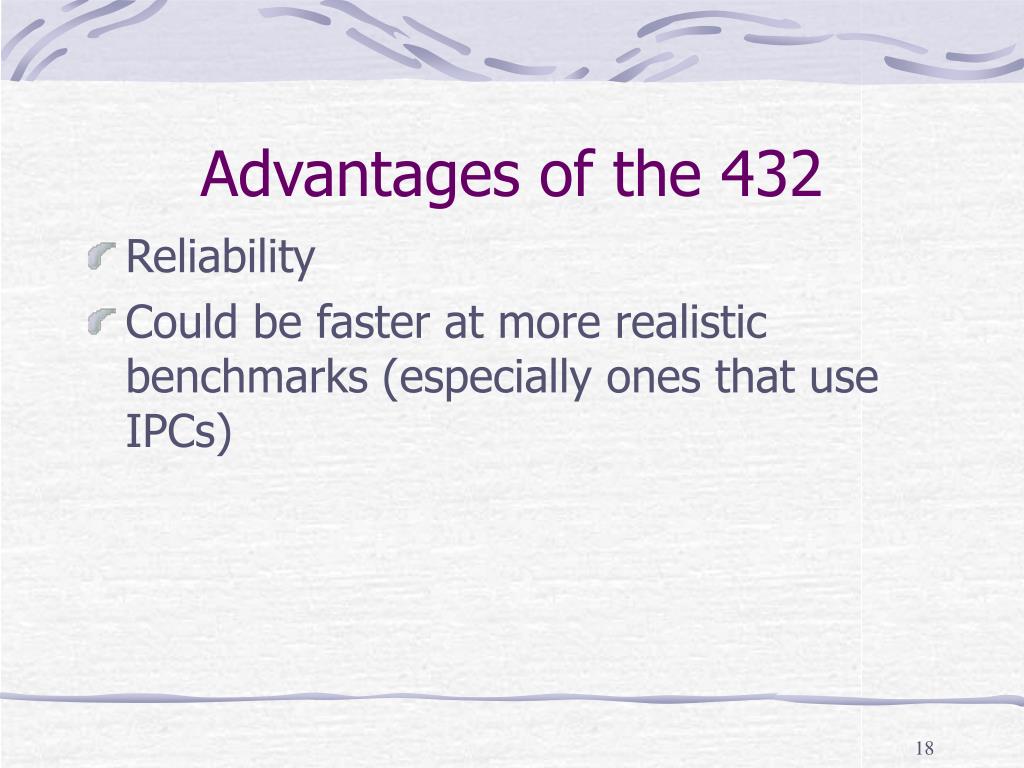

  18. Advantages of the 432 • Reliability • Could be faster at more realistic benchmarks (especially ones that use IPCs)

  19. Lessons from the 432 • Even with all of the oversights of the 432, it has an important advantage – reliability • More realistic benchmarks should be used to compare RISC with CISC • CISCs should take advantage of multiple register sets

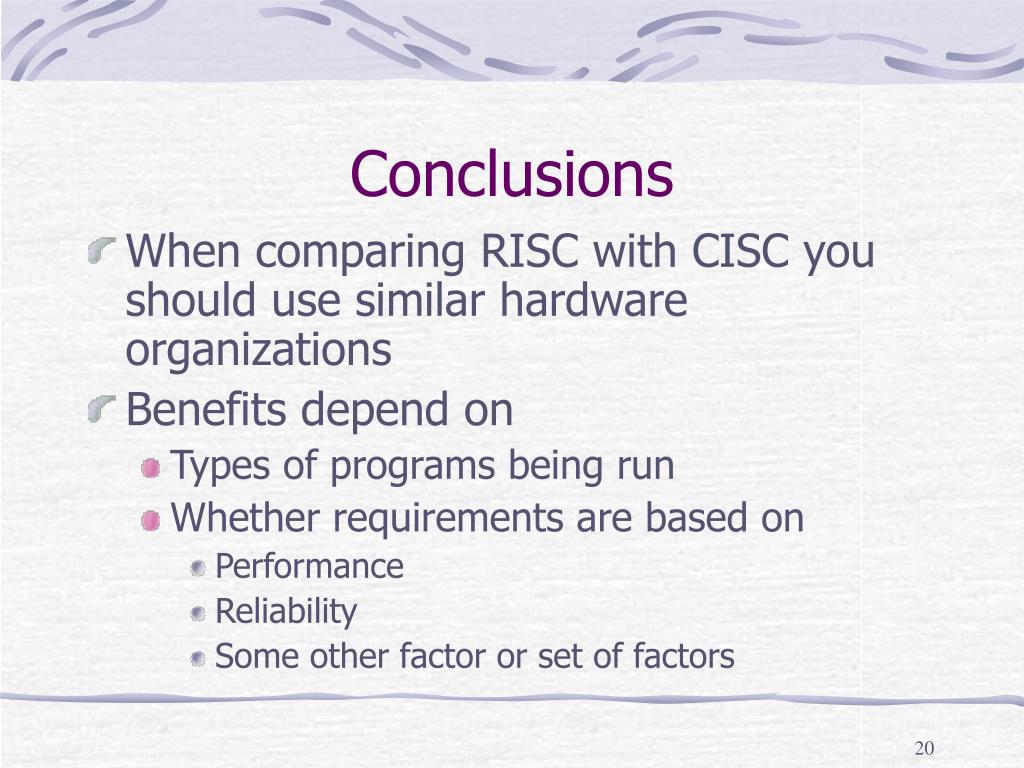

  20. Conclusions • When comparing RISC with CISC you should use similar hardware organizations • Benefits depend on • Types of programs being run • Whether requirements are based on • Performance • Reliability • Some other factor or set of factors

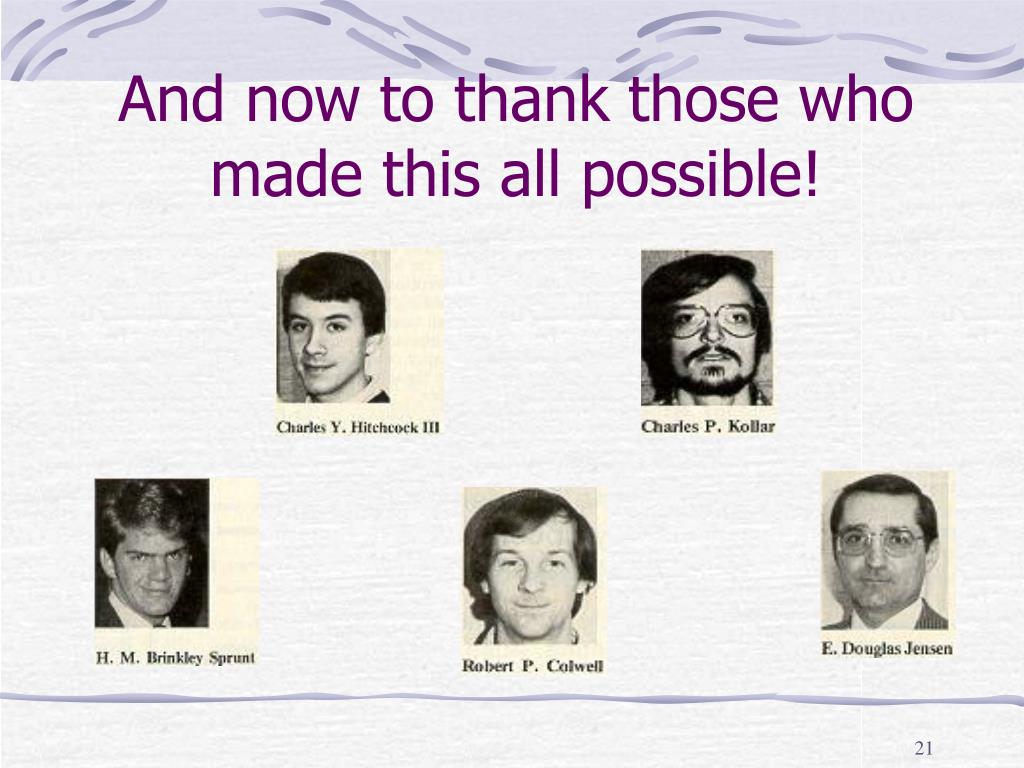

  21. And now to thank those who made this all possible!
