  1. Instruction Sets Week 9 Computer Architecture Computer Architecture

  2. Review Keywords & Concepts • English words & ideas you must know: • Sign & Magnitude • 2’s Complement • Booth’s Algorithm • Exponent • Mantissa • Significand • Biased • Overflow • Underflow • Normalize / renormalize Computer Architecture

  3. What we will learn today • Collect Homework • Review last class • Instruction Sets: Characteristics • Machine Instruction Characteristics • Types of Operands • Pentium and PowerPC Data Types • QUIZ Computer Architecture

  4. Computer Arithmetic • Integers • Unsigned • Binary representation 010011 = 0 x 25 + 1 x 24 + 0 x 23 + 0 x 22 + 1 x 21 + 1 x 20 = 1 x 16 + 1 x 2 + 1 x 1 = 19 • Examples: 101 = 5 1000 = 8 1010 = 10 011001 = 25 Computer Architecture

  5. Computer Arithmetic • Integers • Signed • MSB (Most Significant Bit)  sign bit • Bit is 0  positive number • Bit is 1  negative number • Binary representation • Sign & Magnitude • 2’s Complement Computer Architecture

  6. Integers (Sign & Magnitude) • Integers • Signed (Sign & Magnitude representation) • Positive numbers – similar to unsigned binary numbers • Negative numbers • First bit (left most bit  MSB) is sign • 0  positive • 1  negative • Remaining bits • Magnitude (size) of negative number • Example 11100 sign bit is 1  negative number 1100  magnitude  12 so… 11000 is a -12 Computer Architecture

  7. Sign & Magnitude • Advantage • Easy for humans to understand • Disadvantages • Two Zeros (i.e. 1000000 = -0 & 0000000 = +0) • Difficult for computers to understand • It is expensive to make computer hardware to use sign & magnitude Computer Architecture

  8. Integers (2’s compliment) • Integers • Signed (2’s Complement) • Positive numbers – similar to unsigned binary numbers • Negative numbers • First bit (left most bit  MSB) is sign • 0  positive • 1  negative • To determine magnitude of negative number • Flip all the bits (change 0  1 and 1  0) • Add 1 Computer Architecture

  9. 2’s Complement • Advantages • Only 1 zero (i.e. 000000) • Easy for computer to understand • Easy / cheap to build computer hardware / CPU • Disadvantage • Difficult for humans to understand (quickly recognize) REMEMBER: 2’s complement applies to NEGATIVE numbers only! Computer Architecture

  10. Binary Operations • Subtraction • There is NO subtraction in modern computers! • We convert to negative & then add!!! • For example: 9 – 5 [really means (+9) – (+5)] [(+9) + (-5)  actual operation is addition] 9 = 00001001 5 = 00000101 -5 = 11111011 So… 9 – 5 becomes: 00001001 +9 11111011 -5 ------------ --- 00000100 +4 Computer Architecture

  11. Binary Operations • Multiplication (positive numbers) 01101 13 x00011 3 -------- --- 01101 39 01101 --------- 0100111  39 Computer Architecture

  12. Binary Operations • Multiplication (negative numbers) • Use Booth’s Algorithm • Textbook – Page 301 & 302 0111 1001 x1101 (0) x1101 (0) ------------ ------------ 11111001 1-0 00000111 1-0 0000111 0-1 1111001 0-1 111001 1-0 000111 1-0 00000 1-1 00000 1-1 ------------ ------------ 11101011 00010101 (7) X (-3) = -21 (-7) x (-3) = (+21) Computer Architecture

  13. Floating Point Numbers • Binary • SAME idea as Decimal • Format • 1 bit – Sign • 8 bits – Exponent • 23 bits – significand / mantissa Significand or Mantissa Exponent S Computer Architecture

  14. Floating Point Numbers • Addition (Decimal) a = .77 x 102 b = .935 x 103 NOTE: to add or subtract – MUST have same exponent!! a = .077 x 103 b = .935 x 103 a + b = .077 + .935 x 103 = 1.012 x 103 = .1012 x 104 Computer Architecture

  15. Floating Point Numbers • Addition & Subtraction basic rules: • Check for zeros • Align the significands (mantissas) • Add or subtract the significands (mantissas) • Normalize the results Computer Architecture

  16. Floating Point Numbers • Errors • Exponent overflow • Number (exponent) too large • Exponent underflow • Number (exponent) too small • Significand underflow • While aligning significands number becomes zero • Significand overflow • Addition produces a carry which requires a normalization Computer Architecture

  17. Floating Point Numbers • Multiplication (basic rules) • If either number is zero then answer is zero • Add exponents (re-set bias & check for errors – overflow / underflow) • Multiple significands (include sign bit) • Re-normalize Computer Architecture

  18. Special floating point representations • An exponent equal 255 = 11111111(2 in a floating point representation indicates a special value • When the exponent is equal 255 = 11111111(2 and the fraction is 0, the value represented is infinity • When the exponent is equal 255 = 11111111(2 and the fraction is non-zero, the value represented is Not a Number (NaN) Computer Architecture

  19. Machine Instructions • Information required by CPU • Operation Code • Source Operand Reference • Result Operand Reference • Next Instruction reference Computer Architecture

  20. Location of Operand Reference • Main Memory (or cache) a = b + c; (a, b, & c are all memory locations) • Register in CPU c++; (c = c + 1; number 1 may be stored in a register) • I/O Device Computer Architecture

  21. Next Instruction Reference • ‘normally’ the next instruction in memory PC (program counter in CPU is incremented) • Branch or Jump instruction Change PC (i.e. PC = PC + 10) if (x > 0) { a = 10; } else { a = 20; } Computer Architecture

  22. Instruction Representation Assembly Language vs. Machine Language • Assembly language uses mnemonics add r1, y • Machine Language is binary (all 1’s & 0’s) 0110 - Opcode of 4 bits 000001 – Register 1 110111 – Address in memory for y Actual: 011000000110111 Computer Architecture

  23. Instruction Types • Data Processing • Arithmetic Instructions • Logic Instructions • Data Storage • Store data into memory (from CPU) • Fetch data from memory (into CPU) • Data Movement • I/O Instructions • Control • Test Instructions (conditional / if statements) • Branch Instructions (go to or subroutine statements) Computer Architecture

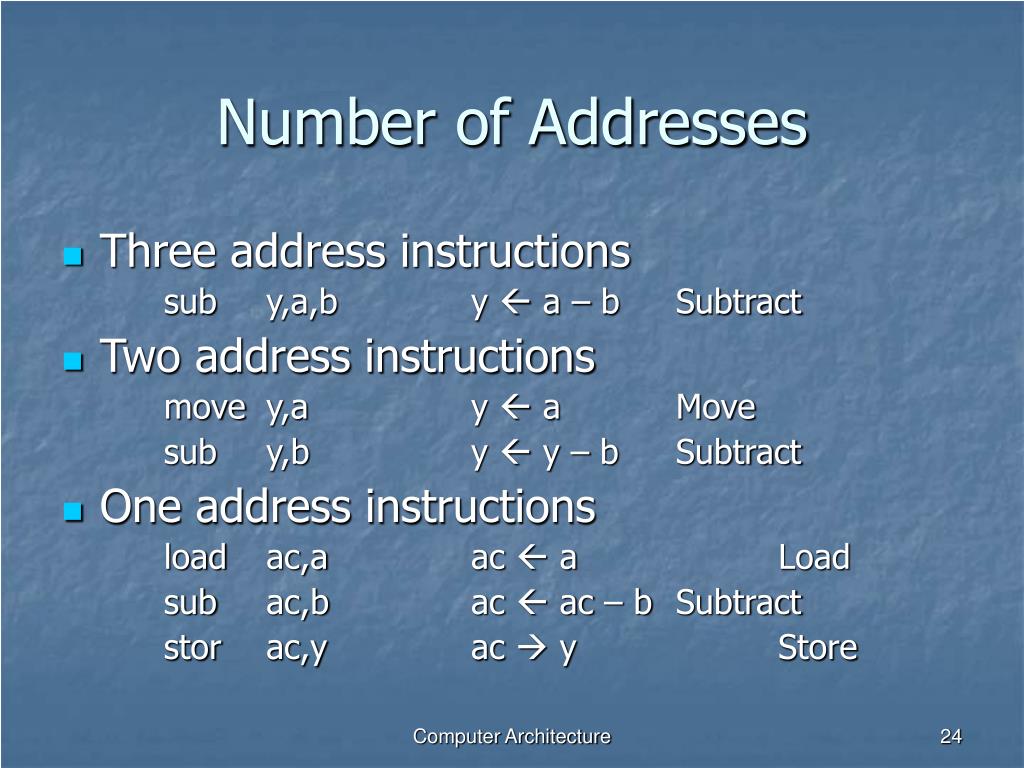

  24. Number of Addresses • Three address instructions sub y,a,b y  a – b Subtract • Two address instructions move y,a y  a Move sub y,b y  y – b Subtract • One address instructions load ac,a ac  a Load sub ac,b ac  ac – b Subtract stor ac,y ac  y Store Computer Architecture

  25. Example • if (x > 0) { a = 10; } else { a = 20;} cmpg x,0 Compare – skip if true jmp z1 Go to z1 loadi ac,20 Load 20 into a register stor ac,a Store 20 into memory a jmp z2 Go to z2 z1: loadi ac,10 Load 10 into a register stor ac,a Store 10 into memory a z2: … Computer Architecture

  26. Types of Operands • Addresses • Locations in main memory • Numbers • Integer (2’s complement) • Floating Point • Decimal (BCD – Binary Coded Decimal) • Characters • ASCII (American Standard Code for Information Interchange) • EBCDIC (Extended Binary Coded Decimal Interchange Code) • Unicode • Logical Data • True (1) / False (0) Computer Architecture

  27. Pentium Data Types • General • Byte (8-bits) • Word (16 bits) • Doubleword (32 bits) • Qualword (64 bits) • Integer (signed - 2’s complement) • Byte, Word, Doubleword • Ordinal (unsigned) • Byte, Word, Doubleword Computer Architecture

  28. Pentium Data Types • Unpacked BCD (Binary Coded Decimal) • Packed BCD (Binary Coded Decimal) • Near Pointer (relative address pointer) • Bit Field (contiguous sequence of bits) • Byte String (contiguous sequence of bytes) • Floating Point (see Figure 10.4 page 340) Computer Architecture

  29. BCD • Binary Coded Decimal • 4-bit code 0 = 0000 5 = 0101 1 = 0001 6 = 0110 2 = 0010 7 = 0111 3 = 0011 8 = 1000 4 = 0100 9 = 1001 • Packed 234  001000110100 • Unpacked 234  00000001 00000011 00000100 Computer Architecture

  30. BCD – Binary Coded Decimal • Advantages • Store large integer numbers – up to 99 digits • Used for business applications (i.e. Cobol) • No rounding errors (<99 digits) • Disadvantages • Takes more memory • Slow to compute • Can be very slow if CPU does not support BCD arithmetic in hardware (must compute in software) Computer Architecture

  31. What you know now • Instructions Sets • Machine Instruction Characteristics • Types of Operands • Pentium and PowerPC Data Types Computer Architecture

  32. Reading • http://en.wikipedia.org/wiki/Instruction_set Next Lecture • Instruction Sets – part 2 Computer Architecture

  33. HomeworkWeek 9 See webpage for homework assignment! Computer Architecture
