Identification à un modèle du 2ème ordre

Système en boucle ouverte :. Système en boucle fermée :. 5. T A. Problème sur la détermination, cas limite ou m BO = 1. ω 0BF = 15.7 rad/s. T 0BO = 8,69. SYSTEME INSTABLE !. T A. ω 0BO = 6,33 rad / s. V R. T B. V C. Identification à un modèle du 2ème ordre. T 0BO = 5,06.

micah
Download Presentation

Identification à un modèle du 2ème ordre

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

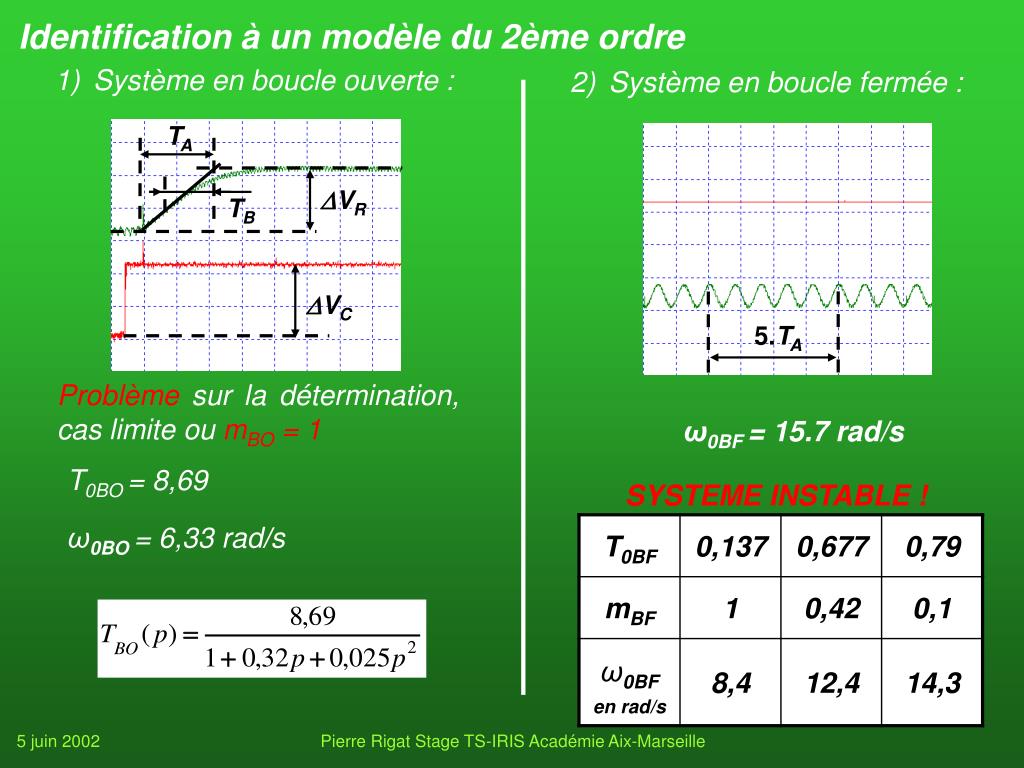

  1. Système en boucle ouverte : • Système en boucle fermée : 5.TA Problème sur la détermination, cas limite ou mBO = 1 ω0BF= 15.7 rad/s T0BO = 8,69 SYSTEME INSTABLE ! TA ω0BO= 6,33 rad/s VR TB VC Identification à un modèle du 2ème ordre Pierre Rigat Stage TS-IRIS Académie Aix-Marseille

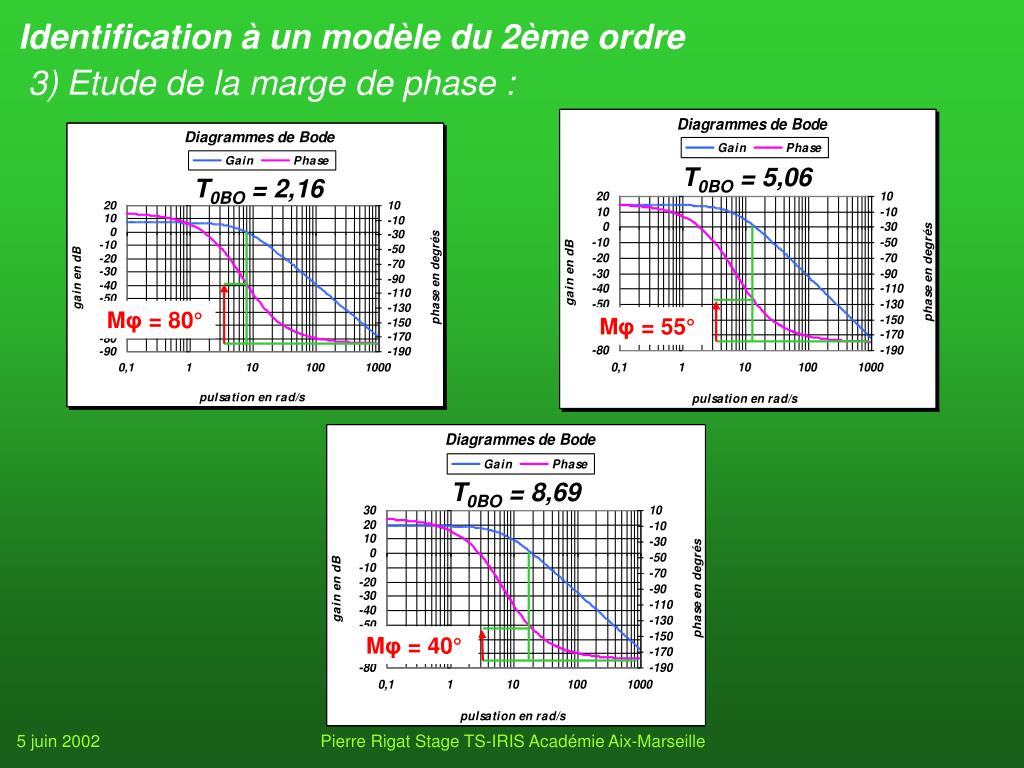

  2. T0BO = 5,06 T0BO = 2,16 Mφ = 55° Mφ = 80° T0BO = 8,69 Mφ = 40° Identification à un modèle du 2ème ordre • Etude de la marge de phase : Pierre Rigat Stage TS-IRIS Académie Aix-Marseille
