  1. Chapter 4 Review

  2. Question 1 • What are the units of Force?

  3. Answer • Newtons (N)

  4. Question 2 • What are forces that result from physical contact between two objects called?

  5. Answer • Contact

  6. Question 3 • A magnet lifting paper clips on a tabletop is an example of a _________ force.

  7. Answer • Field

  8. Question 4 • Draw a FBD of the sled in the picture below.

  9. Answer • See board

  10. Question 5 • An object at rest remains at rest and an object in motion remains in motion unless acted upon by a net external force is what property of an object?

  11. Answer • Inertia

  12. Question 6 • A car crashes into a telephone pole. Draw a FBD of the car.

  13. Answer • See board

  14. Question 7 • True or False: Inertia is a force

  15. Answer • False

  16. Question 8 • Which object has more inertia, a tennis ball or a bowling ball?

  17. Answer • Bowling Ball

  18. Question 9 • The more ________ an object has, the harder it is to put it in motion or to stop its motion.

  19. Answer • Mass

  20. Question 10 • The wind exerts a force of 452 N north on a sailboat, while the water exerts a force of 325 N west on the sailboat. Find the magnitude and direction of the net force on the sailboat.

  21. Answer • 557 N at 36 West of North

  22. Question 11 • How would you symbolically write “the net force in the x direction is equal to”?

  23. Answer • Fx =

  24. Question 12 • Find the net force acting on the following object 216 N 48 184 N

  25. Answer • Fnet = 165.3 N at 13.8 West of North

  26. Question 13 • Name two possibilities for the velocity of an object that is in a state of equilibrium.

  27. Answer • Constant velocity • Velocity = 0 (at rest)

  28. Question 14 • What is the acceleration of an object that is in a state of equilibrium?

  29. Answer • Acceleration = 0

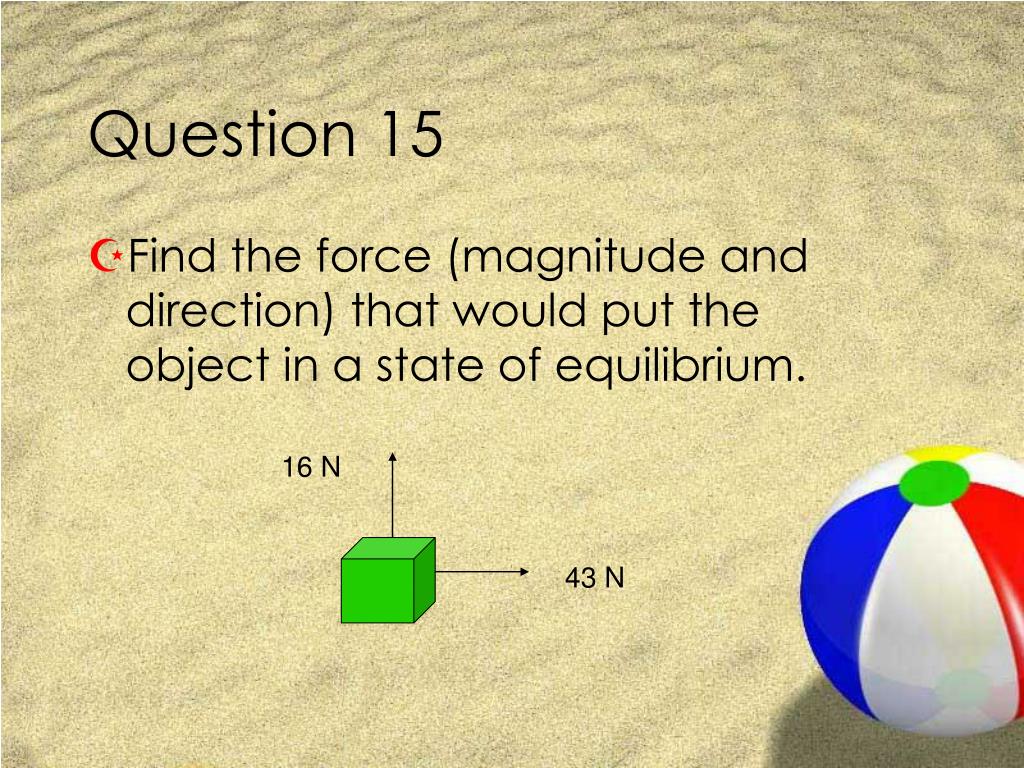

  30. Question 15 • Find the force (magnitude and direction) that would put the object in a state of equilibrium. 16 N 43 N

  31. Answer • F = 46 N at 20.4 South of West

  32. Question 16 • True of False: A car driving on a straight highway with its cruise control set to 65 mph is in a state of equilibrium.

  33. Answer • True

  34. Question 17 • What is Newton’s Second Law in equation form?

  35. Answer • F = ma

  36. Question 18 • If the mass of an object is decreased, what happens to its acceleration (force is constant)?

  37. Answer • Acceleration increases

  38. Question 19 • A 2 kg otter starts from rest at the top of a muddy incline 0.85 m long and slides down to the bottom in 0.50 s. What net force acts on the otter along the incline?

  39. Answer • F = 13.6 N

  40. Question 20 • Find the acceleration of an 12 kg object subjected to the following forces. 15 N 58 22 10 N

  41. Answer • Acceleration is 0.83 m/s2 at 27.6 North of East

  42. Question 21 • What force would cause the following object to have an acceleration of 5 m/s2 to the West? 6 N F 14 N 22 N m = 2 kg

  43. Answer • F = 40 N

  44. Question 22 • What 2 factors affect the amount of friction that exists between two objects in contact?

  45. Answer • Normal Force • Contact surfaces

  46. Question 23 • If an object is moving, _________ friction opposes the motion.

  47. Answer • Kinetic

  48. Question 24 • Draw a FBD for the following situation. Assume the box is sliding downward towards the level ground.

  49. Answer • See board

  50. Question 25 • What is the formula used to determine the frictional force?
