Fallen Barite Tanks

Fallen Barite Tanks.

mele
Download Presentation

Fallen Barite Tanks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

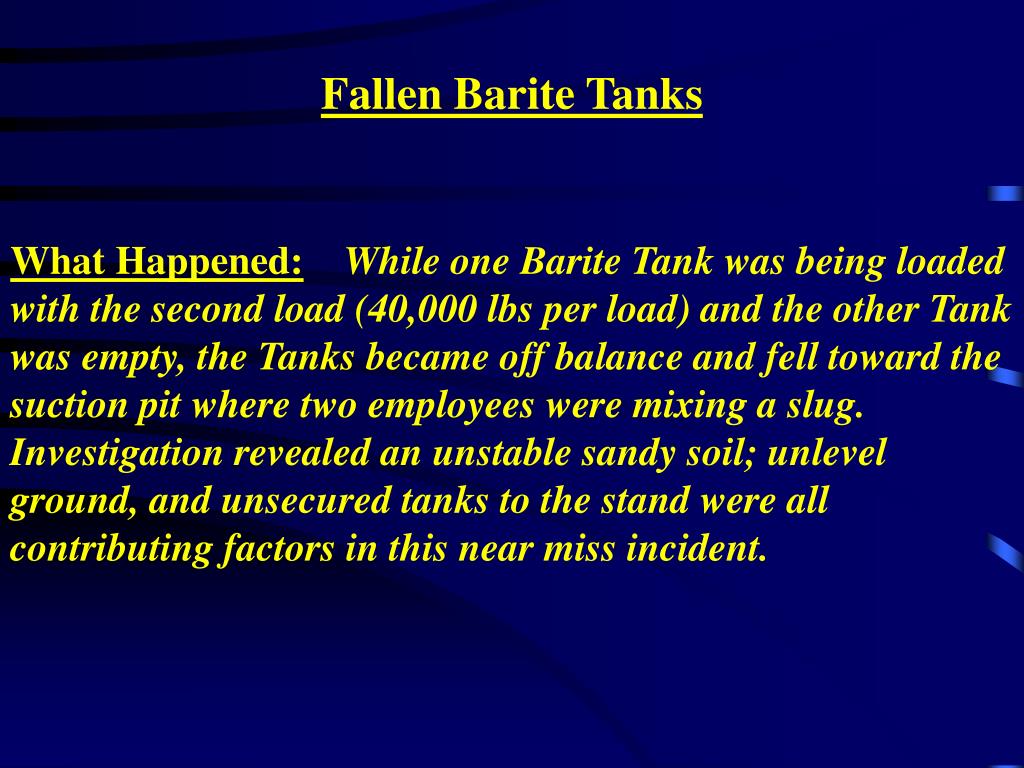

  1. Fallen Barite Tanks What Happened:While one Barite Tank was being loaded with the second load (40,000 lbs per load) and the other Tank was empty, the Tanks became off balance and fell toward the suction pit where two employees were mixing a slug. Investigation revealed an unstable sandy soil; unlevel ground, and unsecured tanks to the stand were all contributing factors in this near miss incident.

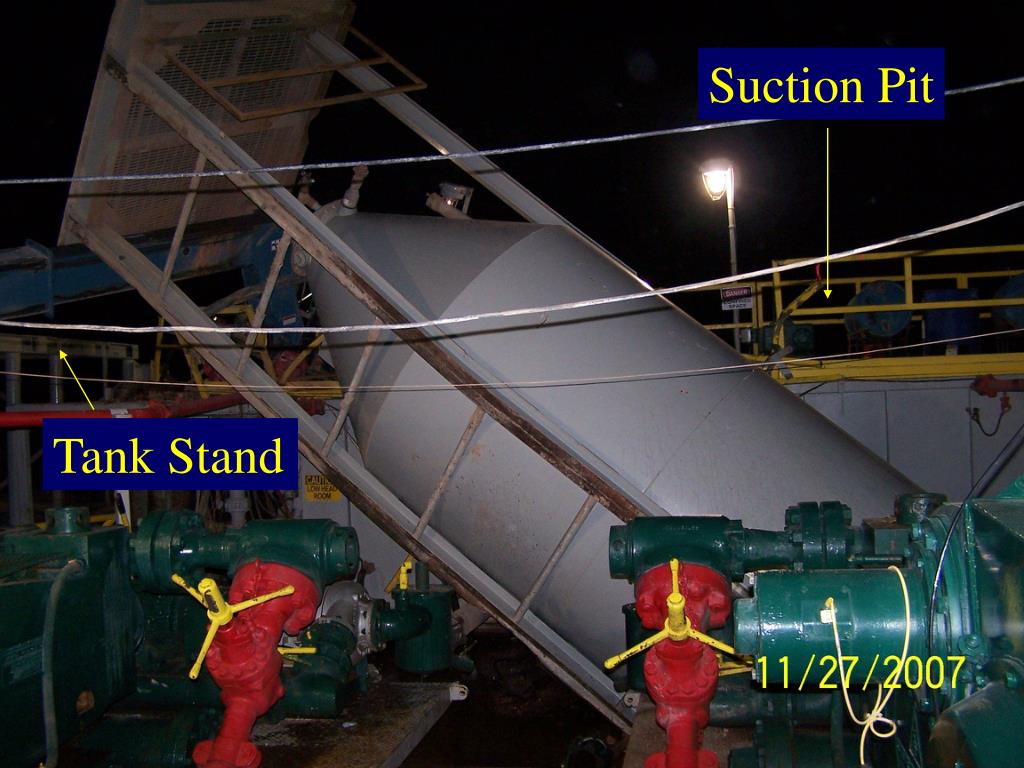

  2. Suction Pit Tank Stand

  3. Loaded Tank Empty Tank Two Team Members Working Here

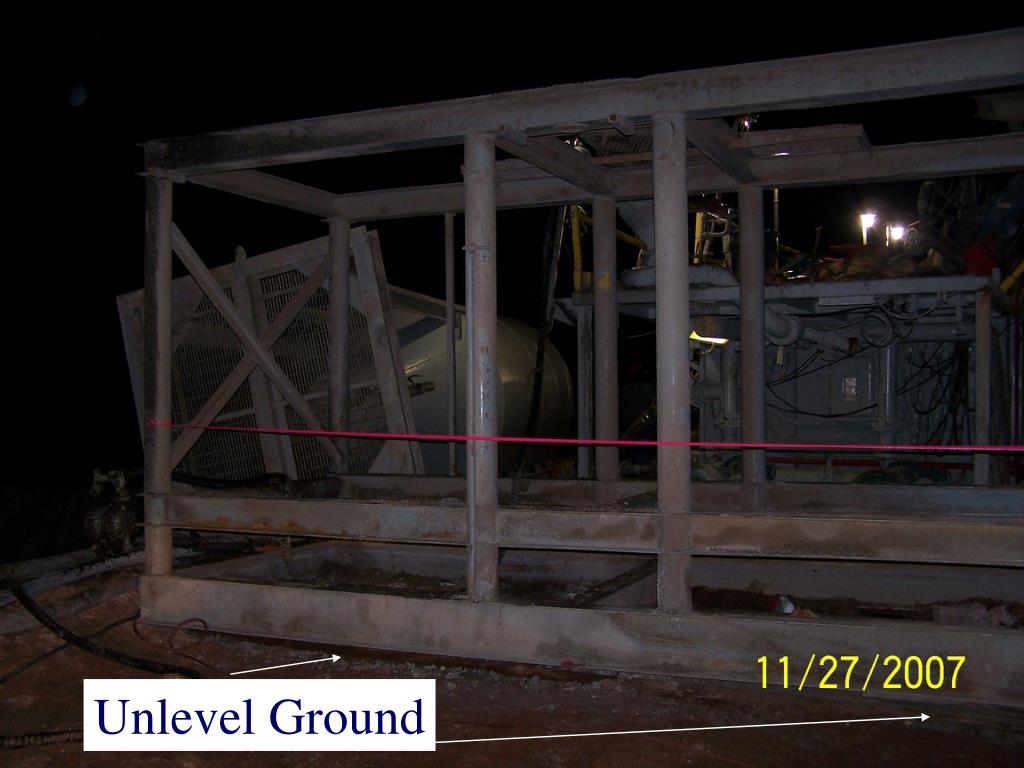

  4. Unlevel Ground

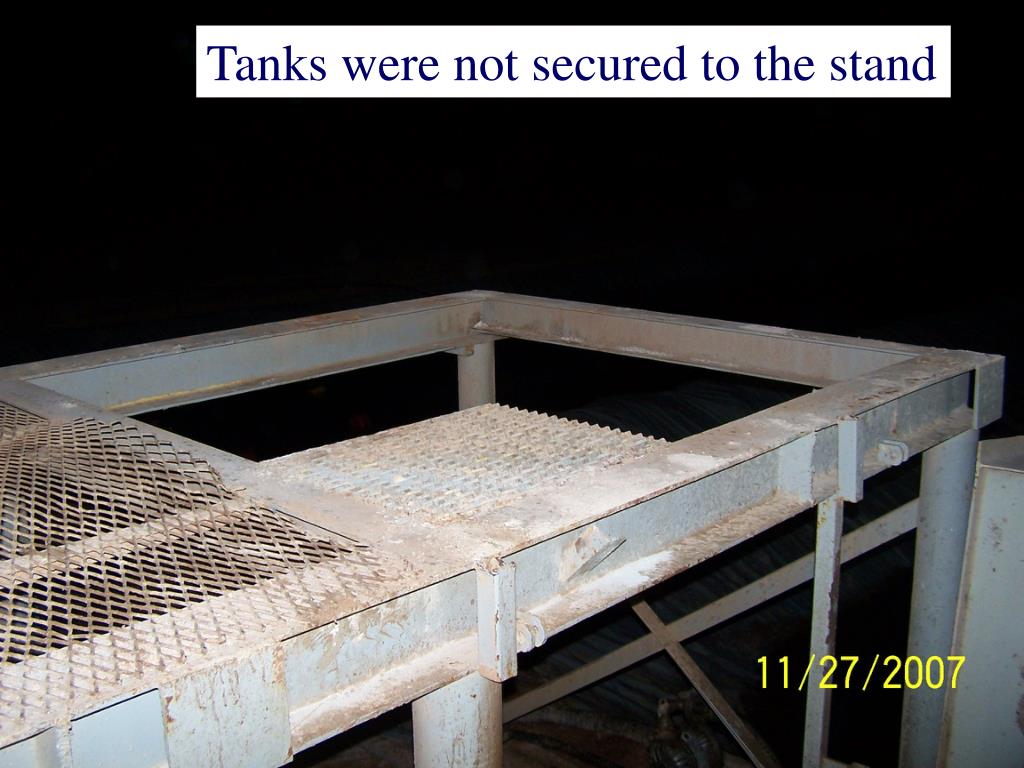

  5. Tanks were not secured to the stand

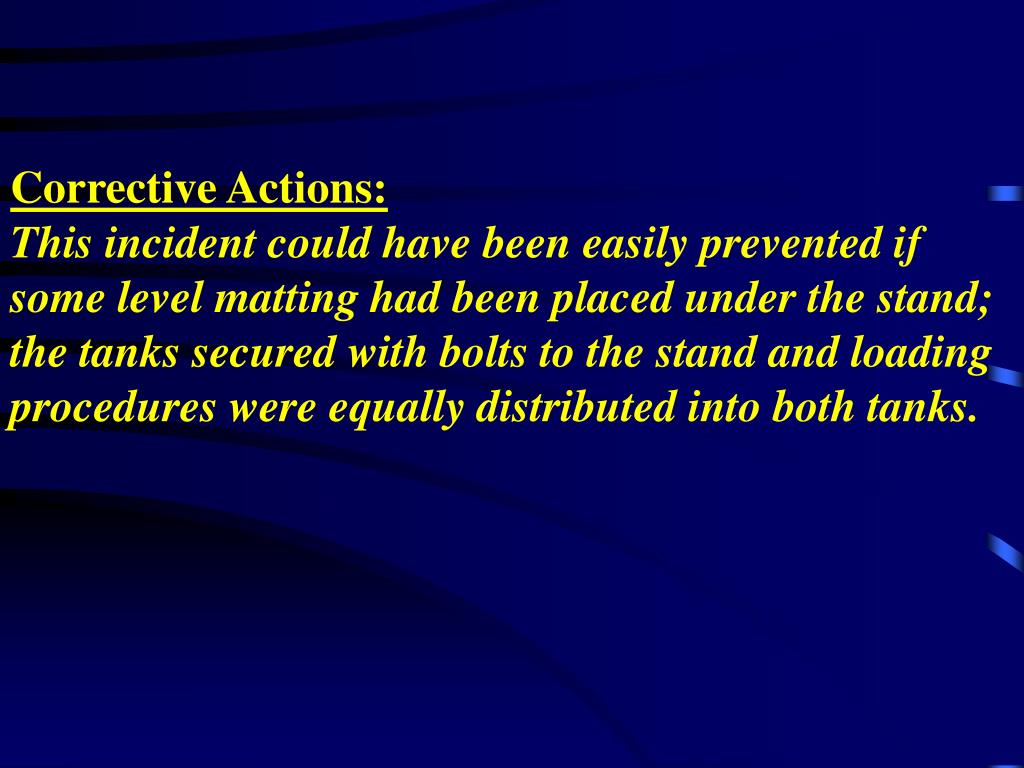

  6. Corrective Actions: This incident could have been easily prevented if some level matting had been placed under the stand; the tanks secured with bolts to the stand and loading procedures were equally distributed into both tanks.

  7. Any Questions?
