Power over Coaxial Extender. VC-203PT & VC-203PR. Product Overview Product Benefits Product Features Applications Appendix. Presentation Outlines. VC-203PT. VC-203PR. Product Overview. Featuring wide operating temperature. Thus, great for use in harsh environment.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

Power over Coaxial Extender


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
power over coaxial extender

Power over Coaxial Extender

VC-203PT & VC-203PR

slide2
Product Overview

Product Benefits

Product Features

Applications

Appendix

Presentation Outlines

VC-203PT

VC-203PR

product overview
Product Overview
  • Featuring wide operating temperature. Thus, great for use in harsh environment.

VC-203PT

VC-203PR

product overview1
Product Overview
  • The disadvantage of General VDSL2 Extender Application

- Needs to find power outlet to feed the devices

VDSL2 Extender

VDSL2 Extender

RG6 Coaxial Cable

product overview2
Product Overview
  • No need to find power outlet in every location
  • Saves time and money
  • Provides power to VC-203PR up to 1000m in distance
  • What are the advantages of PoE over Coaxial ?

VC-203PR

Receiver

VC-203PT

Transmitter

PoE overCoaxial

RG6 Coaxial Cable

product overview3
Product Overview

PLANET Power over Coaxial Extender

Model

VC-203PT

VC-203PR

PoE over Coax. Extender

Transmitter

Receiver

Ethernet Port

1 x 10/100Base-TX

(PoE IN)

1 x 10/100Base-TX

(PoE OUT)

BNC Connector

Power/Data Transmitter

Power/DataReceiver

OperatingTemperature

-40 to 75 degrees C

product overview4

1

BNC Connector

POC OUT

4

DC Power Input

5

2

3

802.3af/at

PoE Input

LED Indicators

Mode DIP Switch

Product Overview

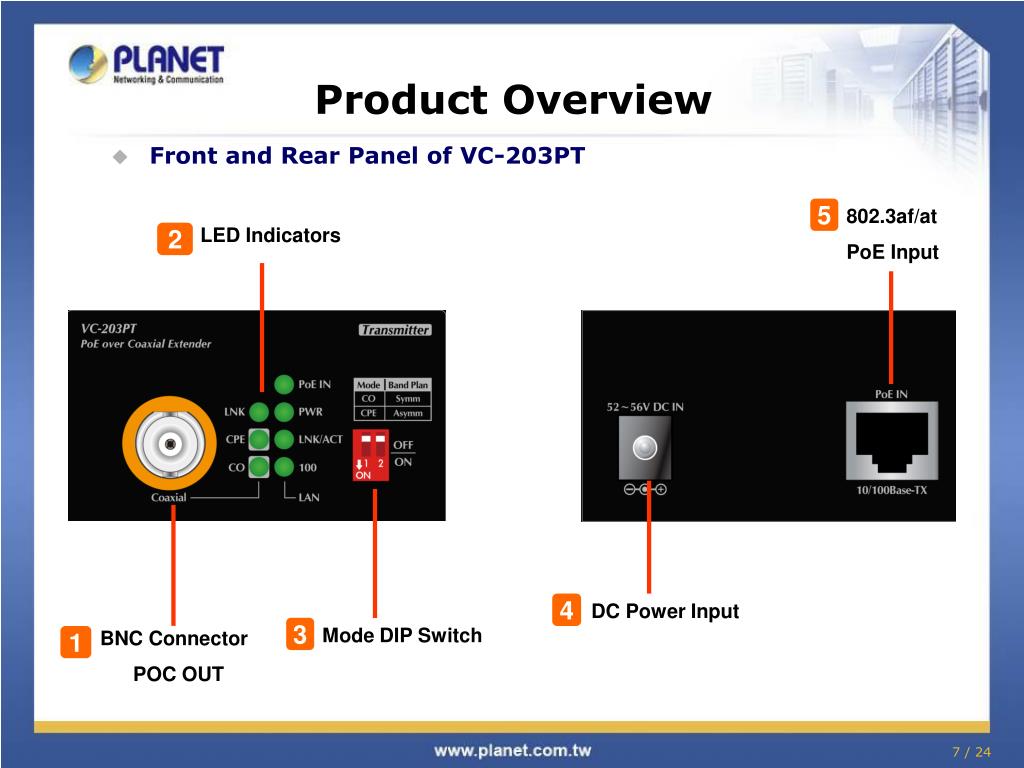

  • Front and Rear Panel of VC-203PT
product overview5
Product Overview

Front and Rear Panel of VC-203PR

1

BNC Connector

POC OUT

4

6

5

DC Output

Terminal Block

Power Splitter

DIP Switch

DC Power Input

7

2

3

802.3af/at

PoE Out

LED Indicators

Mode DIP Switch

slide9

Product Benefits

  • Industrial Conformance
    • -40 to 75 degrees C operating temperature
    • IP30 metal case protection
  • Power over Ethernet
    • Eliminates Power cabling with PoE over Coaxial
    • Ethernet over coaxial up to 1km with 5C2V/RG6 75Ωcable
    • Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet on RJ-45 port
    • Supports PoE Power up to 30.8 watts (Vary on Power Source and Coaxial Distance)
    • Auto detect powered device (PD) (VC-203PR)
product features

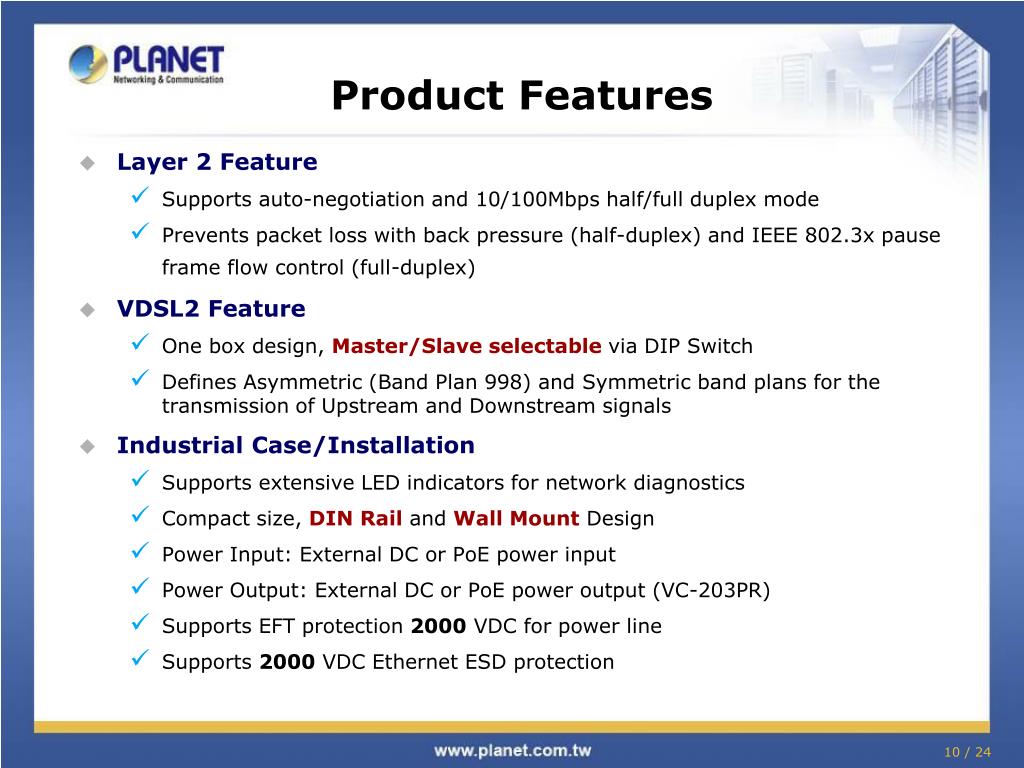

Product Features
  • Layer 2 Feature
    • Supports auto-negotiation and 10/100Mbps half/full duplex mode
    • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • VDSL2 Feature
    • One box design, Master/Slave selectable via DIP Switch
    • Defines Asymmetric (Band Plan 998) and Symmetric band plans for the transmission of Upstream and Downstream signals
  • Industrial Case/Installation
    • Supports extensive LED indicators for network diagnostics
    • Compact size, DIN Rail and Wall Mount Design
    • Power Input: External DC or PoE power input
    • Power Output: External DC or PoE power output (VC-203PR)
    • Supports EFT protection 2000 VDC for power line
    • Supports 2000 VDC Ethernet ESD protection
product attention
Product Attention

Type of Coaxial Cable

Please take care of the conditions of the resistance value of cables as follows. Because there are various resistance values in the category of RG-59/U or RG-6/U cable.

Coaxial Cable Type & Spec.

RG-59/U

Less than 30Ω/1000 ft.

RG-6/U

Less than 12Ω/1000 ft.

power vs distance
Power vs. Distance

The Distance Factor (DC 56V in VC-203PT)

The Distance Factor (PoE 56V in VC-203PT)

performance data rate
Performance - Data Rate

Downstream: VC-203PR to VC-203PT

Upstream: VC-203PT to VC-203PR

product attention1
Product Attention

electric power from Coaxial Center Pin.

As the VC-203PT is power over coaxial, it only can work with PLANET VC-203PR. If connected with Non-PoE coax-LAN equipment, it might cause damage to the equipment as there has

product applications
Product Applications

The VC-203PT, which functions with the VC-203PR, can split into four different kinds of combinations. The VC-203PT can power by either from external DC power adapter or high power PoE switch. The power output of the VC-203PR is selectable - PoE output to the PoE Powered Devices (PD) OR DC power output to the Non-PoE Devices.

Type 1 – VC-203PT with 52~56V power adapter and VC-203PR with PoE power output

product applications1
Product Applications

Type 2 – VC-203PT with 52~56V power adapter and VC-203PR with DC power output

product applications2
Product Applications

Type 3 – VC-203PT with PoE power input and VC-203PR with PoE power output

product applications3
Product Applications

Type 4 – VC-203PT with PoE power input and VC-203PR with DC power output

product applications4
Product Applications

Type 5 – PLANET VC-202A (does not support Power over coaxial) with coaxial link to

VC-203PR and VC-203PR gets external DC power input directly and RJ-45 with PoE output

appendix sales target
Appendix Sales Target
  • Target Markets
    • IE Distributor
    • Manufacturer
    • System Integrator
    • Tender Market (Public Construction)
    • Transportation / Hospital / Bank
  • Profitable Products
    • The following Industrial PoE devices are potential to all customers:
      • PoE Switches: ISW-5xxPT Series, ISW-5xxPS Series, ISW-1022MPT, IVC-2004PT
      • PoE Splitters/Injectors/Converters: IPOE-162, IPOE-162S, IGTP-80xT Series
    • The following Outdoor Standard PoE IP Cameras/Wireless Devices are potential to all customers:
      • PoE IP Cameras: ICA-3250V/3350V/HM312/HM316/HM351/HM620
      • Standard PoE Wireless Devices: WNAP-6350/7350
vc 203pr related products

VC-202A

IVC-2002

IVC-2004PT

PWR-65-56

VC-203PR related products
  • VDSL2
  • Power Supply
difference between vc 205 kit
Difference between VC-205-KIT

Front Panel of VC-203PT

Front Panel of VC-205PT

Rear Panel of VC-203PT

Rear Panel of VC-205PT

difference between vc 205 kit1
Difference between VC-205-KIT

Front Panel of VC-203PR

Front Panel of VC-205PR

Rear Panel of VC-203PR

Rear Panel of VC-205PR
