advanced sensor development for life assessment of power plants

Spent Life:

18 % :

33%

63%

76%

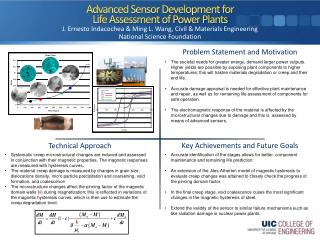

Advanced Sensor Development forLife Assessment of Power Plants

J. Ernesto Indacochea & Ming L. Wang, Civil & Materials Engineering

National Science Foundation

  • The societal needs for greater energy, demand larger power outputs. Higher yields are possible by exposing plant components to higher temperatures; this will hasten materials degradation or creep and their end life.
  • Accurate damage appraisal is needed for effective plant maintenance and repair, as well as for remaining life assessment of components for safe operation.
  • The electromagnetic response of the material is affected by the microstructural changes due to damage and this is assessed by means of advanced sensors.
  • Systematic creep microstructural changes are induced and assessed in conjunction with their magnetic properties. The magnetic responses are measured with hysteresis curves.
  • The material creep damage is measured by changes in grain size, dislocations density, micro particle precipitation and coarsening, void formation, and coalescence
  • The microstructure changes affect the pinning factor of the magnetic domain walls (k) during magnetization; this is reflected in variations of the magnetic hysteresis curves, which is then use to estimate the creep degradation level.
  • Accurate identification of the stages allows for better component maintenance and remaining life prediction.
  • An extension of the Jiles-Atherton model of magnetic hysteresis to evaluate creep changes was attained to closely check the progress of the pinning domain factor.
  • In the final creep stage, void coalescence cuses the most significant changes in the magnetic hysteresis of steel.
  • Extend the validity of the sensor to similar failure mechanisms such as like radiation damage in nuclear power plants.
