chapter 6

Chapter 6

Printing in a darkroom

tools
Tools
  • Easel for 8x10 paper
  • Plastic tray
  • Negative holder and number of your enlarger
  • Filters
  • Focusing magnifier
  • enlarger
  • 8x10 photo paper
  • Brush or other to clean negative
  • Developer, stop bath, fixer, stop, washer, dryer
enlarger pgs 112 113
Enlarger Pgs 112-113
  • Ours are sized for 11x14 or smaller, usually 8x10
  • Has a head with the lamp
    • 2 types
      • Condenser: uses a lens above the negative to concentrate the light. More contrast. This is the type we use at VVC.
      • Diffusion: scatters unfocused light over the negative
  • Enlarger should spread light evenly over the negative
  • Light goes through a lens with f stops to regulate the amount of light passing through.
  • Timer switches light on and off
photo paper pgs 114 115
Photo paper pgs 114-115
  • Variable Contrast or VC. Vary the contrast with a filter. This is what we use.
  • Graded paper. Single contrast from grade 0 to grade 5.
  • Resin Coated or RC. Requires less washing time.
  • Fiber based paper. Premium product for Fine Art Photography. Much longer washing period.
steps to making a print
Steps to making a print
  • Set up enlarger. Start at f/11.
  • Contact sheet from your negatives in the sleeve.
    • Emulsion side down!
  • Test strip of sleeve between 2 rows to determine optimal exposure time.
    • May not work for all negatives in the sleeve.
    • Just like we did the value strip for the photogram.
  • Expose the full contact print and develop.
  • If necessary, adjust time and repeat.
make an enlargement
Make an enlargement
  • Evaluate your contact sheet for the negatives you want to print. Do this in the light.
    • Use the light box and loupe to see flaws.
  • Insert negative strip in the negative carrier.
    • Emulsion side down.
    • Brush the carrier for dust.
    • Clean the negative.
      • Air or brush
  • Insert carrier into the enlarger
enlargement cont
Enlargement cont.
  • Open f stop to brightest position to focus
  • Insert white focus paper into the easel to focus
    • Use adjustment knob to focus to your eye.
  • Adjust the image to enlarge or shrink image
    • Be sure image fills the paper!
    • Re-focus image
  • Use grain magnifier to make final focus. Without this step you final image will NOT be in focus.
    • Move magnifier around until you see the grain or edges.
test strip pgs 120 122

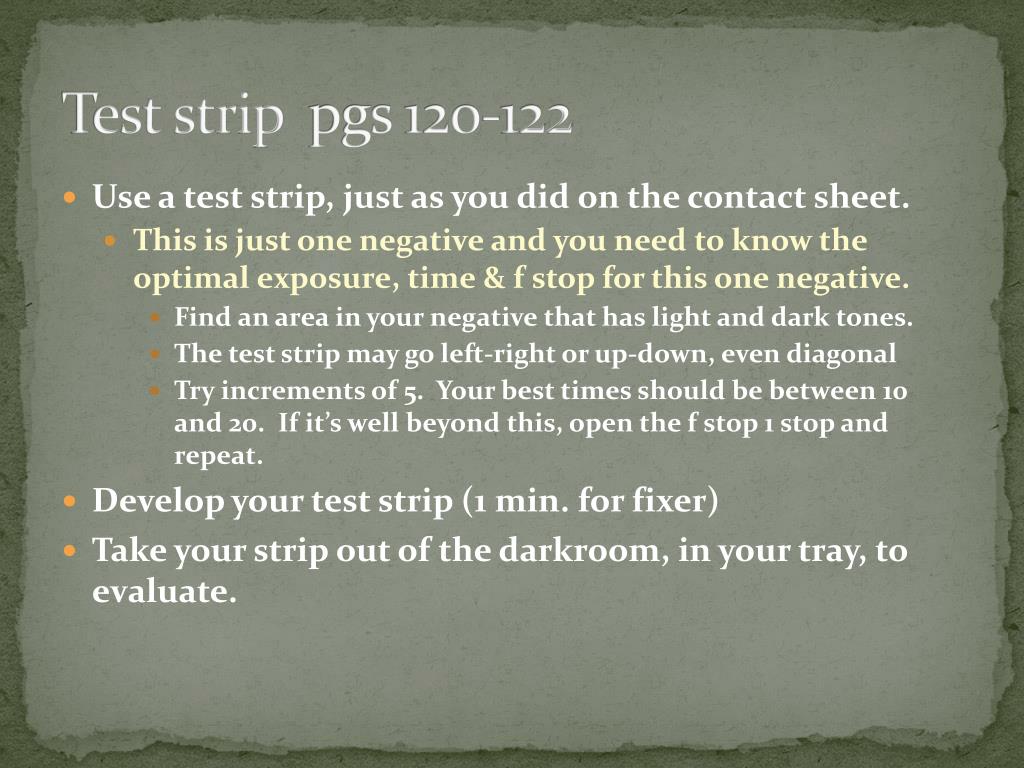

Test strip pgs 120-122
  • Use a test strip, just as you did on the contact sheet.
    • This is just one negative and you need to know the optimal exposure, time & f stop for this one negative.
      • Find an area in your negative that has light and dark tones.
      • The test strip may go left-right or up-down, even diagonal
      • Try increments of 5. Your best times should be between 10 and 20. If it’s well beyond this, open the f stop 1 stop and repeat.
  • Develop your test strip (1 min. for fixer)
  • Take your strip out of the darkroom, in your tray, to evaluate.
test strip cont
Test strip cont.
  • If you are not sure it’s 15 or 20, then fine tune your test strip.
    • This time do 15, 16, 17, 18, 19, 20
      • Run the whole strip 15 seconds. Then cover all but the top section and run 1 second, move the cover down and repeat until you’ve added 1 more second to each section. Your top will be 20 seconds and the bottom that you did not uncover is at 15.
      • Be sure you have highlights and shadows
      • Develop and evaluate.
full size print
Full size print
  • Put your focus paper back in and recheck your focus.
  • Be sure modeling light is off.
  • Put your photo paper into the easel and be sure you have a ¼ inch edge all around the print.
  • Expose and develop
    • Put in fixer 1 to 2 minutes, rinse, a take out of the darkroom to evaluate. If it’s right, put back into the fixer until a total of 5 minutes and complete the process
developer pgs 123 125
Developer pgs 123-125
  • Note time you put the print in the developer tray. Gently agitate the tray.
    • Using tongs you may turn the paper over but DO NOT poke at the image side of the paper. 2-4 times is enough.
  • Drain the developer from the print. Hold it 2-5 inches above the tray while it drips. Don’t shake!
  • Transfer to the stop bath for 30 seconds. Gently agitate.
  • Drain print
fixer
Fixer
  • Once drained in the stop bath, move to the fixer with tongs. Never, never, never use your fingers. Do not put the tongs from one tray into the next.
  • Agitate for 5 minutes. You may turn the print over once a minute with tongs only.
  • Print can now be exposed to light. Drain fixer and move the the 2 minute wash tray.
  • Using your tray, move the print to the 10 minute tumble-washer
wash to dry
Wash to dry
  • Try to minimize starts and stop of the big washer.
  • When your print is done, remove and put it face down on the board above the washer. Squeegee the print
  • Remove to your tray and take to the outer room and place on the drying screen.
    • Never do this unless your print has been through a complete wash.
judging your print pgs 126 127
Judging your print pgs 126-127
  • Density
    • The longer the exposure, the more density. That is, the darker the print
      • Change time or f stop
  • What you want:
    • Full range of tones
      • Rich blacks, many shades of gray, brilliant whites)
    • Realistic sense of texture
    • Use ordinary light, not safe light, to evaluate
judging cont
Judging cont.
  • Contrast
    • Difference in brightness between light and dark areas of the print.
  • Low contrast appears gray a weak.
    • No real blacks or brilliant whites
  • High contrast
    • Harsh, too contrasty
      • Lacks texture or details in the shadows
      • White may be blown out to pure white. Texture or details missing
how to proceed
How to proceed
  • Judge density (too dark or light) and find correct exposure.
  • Judge contrast and use filter to adjust.
    • We start with a #2. That is a normal filter.
    • Smaller # is less contrast, larger is more contrast
  • This is why we recommend you buy the big box of paper. This may take several prints.
  • Make a test strip for density (time) for the highlights. Make test strips and adjust time and/or f stop.
  • Repeat for the shadows
adjust contrast
Adjust contrast
  • We have an exercise to teach this coming soon.
  • If you can see details in the negative (use a loupe and the light box)and they print black, then lower the contrast.
  • If shadows are too light or look weak and gray, use a higher contrast filter.
  • Further adjustment through dodge and burn and that comes later.
  • Your print will dry down darker that when wet.
so what do i settle for now
So what do I settle for now?
  • What’s the subject of your photo? Make sure that comes out the best you can.
  • A person? The skin tones
  • A moving car? The car
when to stop this chapter
When to stop this chapter
  • We’ll stop for now at page 127.
  • We’ll cover more when we do contrast and dodge/burn.
  • This last part because you’ll hit some frustration and not be sure what to do.
  • Testing in invaluable. Cut 1 sheet into 4 or 5 test strips so you test a large area.
  • Test highlights and shadows on one strip and adjust.
  • Be patient. Allow adequate time to print.
extra review
Extra Review
  • Density in a negative or print is
    • The amount of silver build up on the surface
    • The overall lightness and darkness of either a print or negative
    • And is controlled by the amount of exposure
  • If your first print is too light then add time to add density
  • An 35mm SLR has an advantage over other types of cameras, you se what your film sees.
shutter aperture review
Shutter Aperture review
  • Using a 50mm lens, what shutter speed will probably have some blur?
  • Using a 50mm lens, what shutter speed will probably freeze any action?
  • What f stop will give a shallow depth of field?
  • What f stop will give a deep depth of field?
bonus review
Bonus Review
  • The initial exposure is f/11 at 1/60 sec. If the photographer changes the shutter to 1/1000, what f stop should they set the camera to get the equivalent amount of light?
  • Shutter speeds
  • 1/60 1/125 1/250 1/500 1/1000
    • Four stops from 60 to 1000 and ½ the light with each stop
  • F stops – need more light to balance the shutter
  • f/11 f/8 f/5.6 f/4 f/2.8
    • Each stop is twice the amount of light
