Wind energy in the caribbean the time is now

Wind Energy in the Caribbean the time is NOW!

Presented by

Margo Guda

Fundashon Antiyano Pa Energia

Curaçao, Netherlands Antilles

At the Wind Energy Workshop

Presented by the V.I. Energy Office

St Thomas, USVI

January 31, 2008


Outline
Outline

  • What is happening

  • What is necessary to get started

  • Issues and priorities


Playa kanoa
Playa Kanoa

Annual production: about 45 GWh


Tera kora
Tera Kora

The process for the repowering of this wind farm has begun in 2007



French caribbean projects
French Caribbean projects

Grand Maison Wind farm

9 machines, 2.4 MW. VERGNET

La Mahaudière Wind farm

11 machines, 3 MW. VERGNET

Morne Carrière Wind farm

4 machines, 1.1 MW. VERGNET

Union Electrica / VERGNET

Isla de la Juventud, Cuba. 6 machines, 1.7 MW

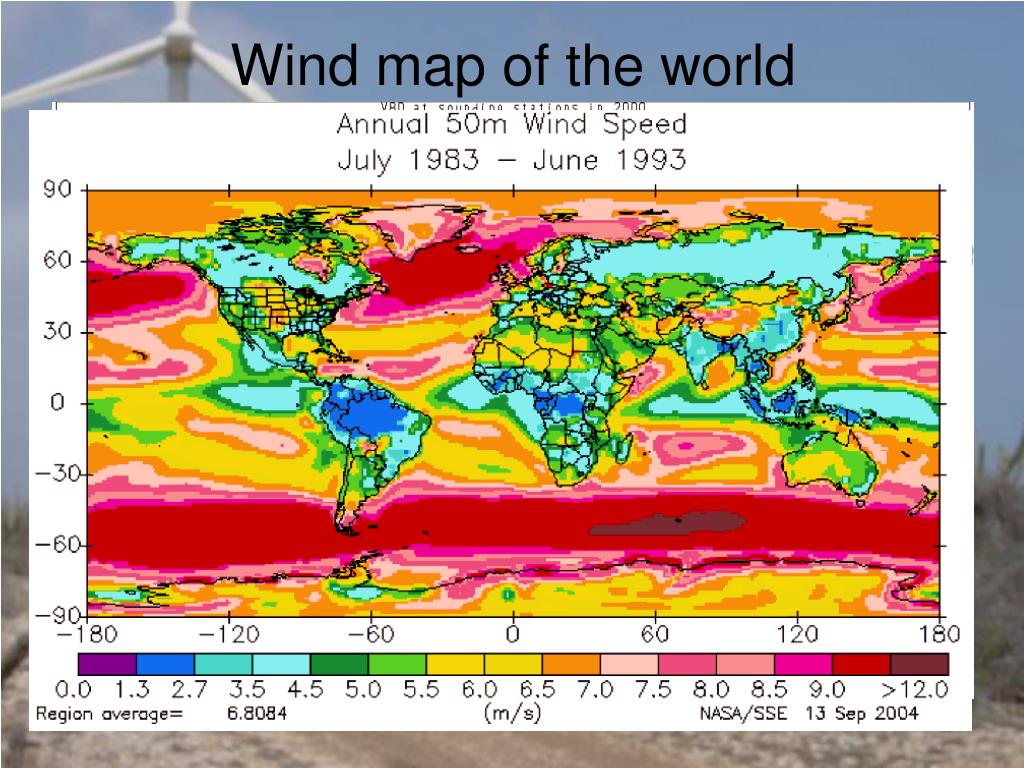

Wind map of the world
Wind map of the world

Source: Cristina L. Archer and Mark Z. Jacobson

Department of Civil and Environmental Engineering, Stanford University, Stanford, CA





Installed capacity is growing apace
Installed capacity is growing apace…

  • Fastest growing markets: Europe, North America, Asia

  • Turbines cannot be built fast enough

  • Why is the Caribbean falling behind?

Source: GWEC, Brussels 2006




Modern caribbean experiences with wind energy
Modern Caribbean experiences with wind energy

  • Curaçao – since 1984

  • Bonaire – since 1984

  • Barbados – since 1984

  • Guadeloupe and Martinique – since 1993

  • Jamaica – since 2004

  • Cuba – since 2007


Caribbean wind energy projects and plans
Caribbean wind energy projects and plans

  • Aruba – plans, no machines yet

  • Barbados – plans, no machines yet

  • Bonaire – project nearing construction phase

  • Curaçao – two wind farms, work on extension ongoing

  • Guyana – negotiations ongoing

  • Jamaica – wind farm, talk of extension

  • Panama – plans, no machines yet


Caribbean wind energy projects and plans cont d
Caribbean wind energy projects and plans, cont’d

  • Cuba – wind farm, construction for more seems to be ongoing

  • Dominican Republic - plans, some machines in storage but nothing operating as yet

  • St Vincent – plans; project ongoing

  • St Lucia – plans; project ongoing

  • St Eustatius – plans; project ongoing

  • Colombian Guajira – resource assessment in progress for wind farm site; ongoing


Issues and priorities
Issues and priorities

  • Resource assessment

  • Land availability and ownership

  • Grid connection issues

  • Power purchase contract and financeability

  • Policy issues and legal support

  • Environmental impacts


What is necessary to get started
What is necessary to get started

  • Resource assessment:

    • Identify promising locations

    • Assure access

  • Land availability and ownership:

    • Identify owners of promising locations

    • Address access issues

    • Identify environmental issues

  • Grid connection:

    • Distance to grid

    • Grid capability

  • Policy issues and legal support:

    • IPP status

    • Grid access

    • other


Resource assessment
Resource assessment

  • Identify promising regions, based on

    • Local informants

    • Biological and other indicators

    • General topography

    • Other modeled information, if available

  • Collect and analyze existing data, both long-time (reference) and shorter period data, if available

  • Perform correlation analysis on data sets in the same wind regime

  • Collect period data for locations of interest

  • Use correlation with long-term data set to estimate long-term characteristics, including wind energy density.


Resource assessment cont d
Resource assessment, cont’d

  • Data to collect for promising sites:

    • Average hourly wind speed

    • Wind direction, hourly average

    • Turbulence intensity

    • Shear coefficient from ground level to at least hub height

  • Recommended measurement period one year

    • Unless there is very good correlation with a nearby reference site


Resource assessment cont d1
Resource assessment, cont’d

  • Characteristics of interest:

    • Diurnal variation of hourly wind speed

    • Diurnal variation of wind direction

    • Diurnal variation of turbulence

    • Diurnal variation of shear coefficient or vertical profile of the wind speed

    • Seasonal variations of these variables

    • Annual distribution of hourly wind speeds

    • Analysis of extreme wind speeds’ occurrence and risk analysis

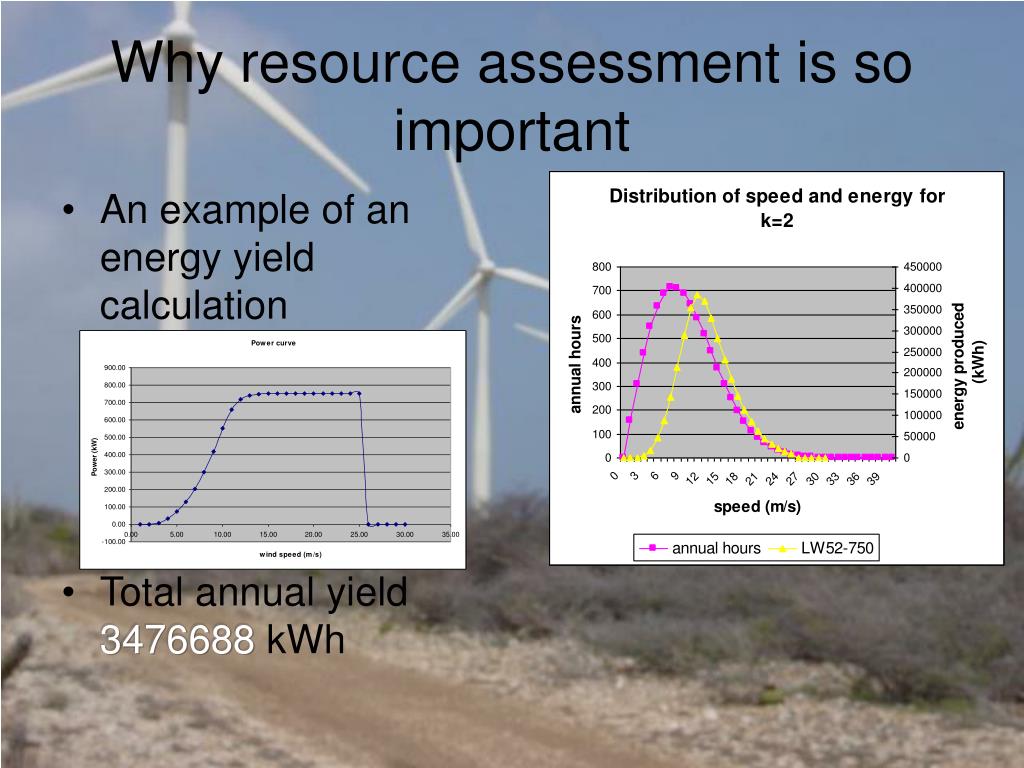

Why resource assessment is so important
Why resource assessment is so important

  • An example of an energy yield calculation

  • Total annual yield 3476688 kWh


Why resource assessment is so important cont d
Why resource assessment is so important, cont’d

  • An example of an energy yield calculation

  • Total annual yield 3920617 kWh


Why resource assessment is so important cont d1
Why resource assessment is so important, cont’d

  • Resource assessment allows for matching wind regime and turbine

  • Matching regime and wind turbine allows for maximizing output

  • Optimal machine sizing determines the best energy cost

  • Therefore resource assessment is crucial to the success of a project


Wind energy in the caribbean the time is now

Thank you

Thank you
