Presentation Transcript

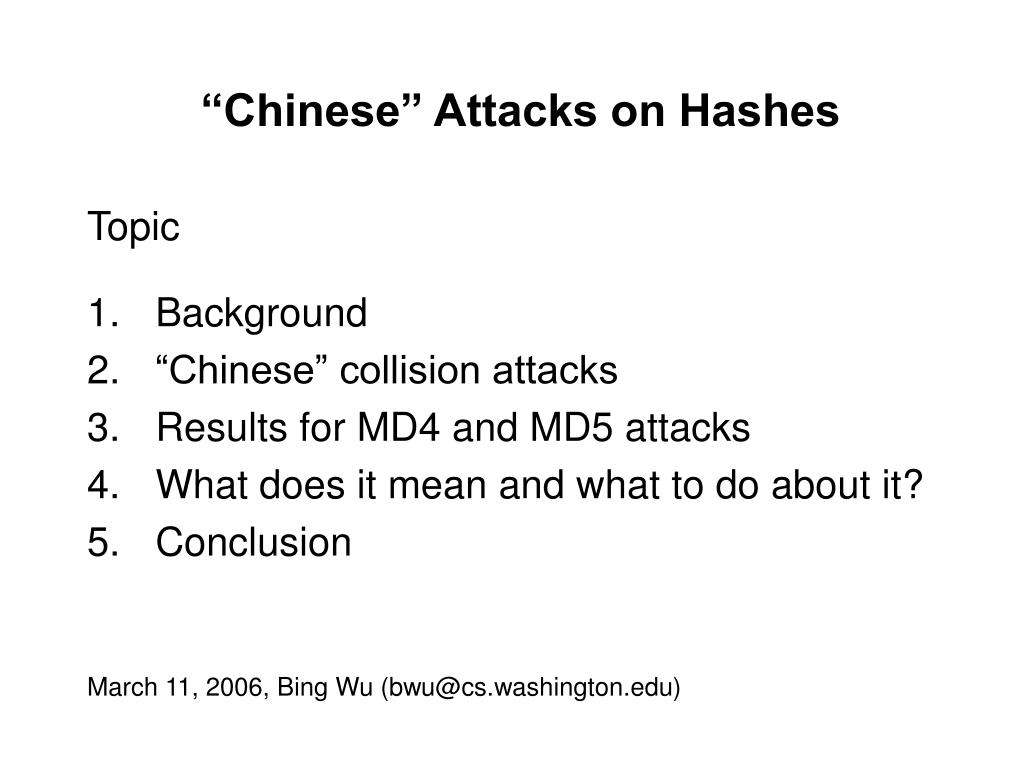

“Chinese” Attacks on Hashes


  • Background
  • “Chinese” collision attacks
  • Results for MD4 and MD5 attacks
  • What does it mean and what to do about it?
  • Conclusion

March 11, 2006, Bing Wu (


“Chinese” Attacks on Hashes


  • Two sides of a coin: developing new hash functions and breaking them.
  • MD4 (1990) family hash functions and attacks on them.
  • Breakthroughs by “Chinese” attacks in 2004 and 2005: MD4, MD5, HAVAL, RIPEMD, SHA-0, SHA-1.
  • Best results:

MD4: 2^8 MD4 operations.

MD5: 2^39 MD5 operations for first blocks and 2^32 for second blocks.

SHA-1: 2^63 SHA-1 operations.

March 11, 2006, Bing Wu (


“Chinese” Attacks on Hashes

“Chinese” collision attacks

  • Find a “low-Hamming-weight differential” Δ (a vector of almost all zeros) such that for messages M, the probability that h(MΔ) = h(M) is larger than it should be.
  • Basically, the attacks are involved with three steps:
    • Find a collision differential for which M and M’ probably produce a collision.
    • Derive a set of sufficient conditions which ensure the collision differential to hold.
    • Make some modification to M such that almost all the sufficient conditions hold. This is done by two types of message modification techniques, which are termed as “single-step modification” and “multi-step modification”. This greatly improves the probability that M and M’ may produce a collision.

March 11, 2006, Bing Wu (


“Chinese” Attacks on Hashes

Results for MD4 and MD5 attacks

  • Computational resource: My PC, Pentium4, 3.40G, WinXP.
  • C programs on Unix/Linux (Cygwin on Windows).
  • Results for “Chinese” attacks on MD4 and MD5.
      • MD4: about 5 seconds to produce a collision.
      • MD5: about 1 hour to produce a collision.

March 11, 2006, Bing Wu (


“Chinese” Attacks on Hashes

What does it mean and what to do about it?

  • Hash functions such as MD5 are no longer useful as digital signature hashes.
  • No panic. Attacks are collision resistance attacks, not pre-image attacks. Applications that use hashes, such as HMAC-MD5 protocols are still fine.
  • Don’t use MD4, MD5, HAVAL, RIPEMD, SHA-0, and avoid SHA-1 if possible.
  • Upgrade to stronger ones, such as SHA-2.
  • VSH is about the best generally published hash function, but needs more review.
  • Alternative approaches:

1) Protocols without requiring that the hash function be collision resistant, such as adding randomness to hash functions.

2) Message pre-processing to convert plaintext messages into a form that makes all existing collision attacks inapplicable.

March 11, 2006, Bing Wu (


“Chinese” Attacks on Hashes


  • “Chinese” attacks on hashes are remarkable in the cryptographic area.
  • Makes people upgrade their systems to employ better hash functions as well as develop new and more collision-resistant hash functions.
  • Greatly help us achieve a more secure digital world.

March 11, 2006, Bing Wu (
