  1. Objectives • Finish with compressors • Learn about refrigerants and expansion valves (Ch. 4) • Start with heat exchangers

  2. Summary • Many compressors available • ASHRAE Handbook is good source of more detailed information • Very large industry

  3. Expansion Valves • Throttles the refrigerant from condenser temperature to evaporator temperature • Connected to evaporator superheat • Increased compressor power consumption • Decreased pumping capacity • Increased discharge temperature • Can do it with a fixed orifice (pressure reducing device), but does not guarantee evaporator pressure

  4. Thermostatic Expansion Valve (TXV) • Variable refrigerant flow to maintain desired superheat

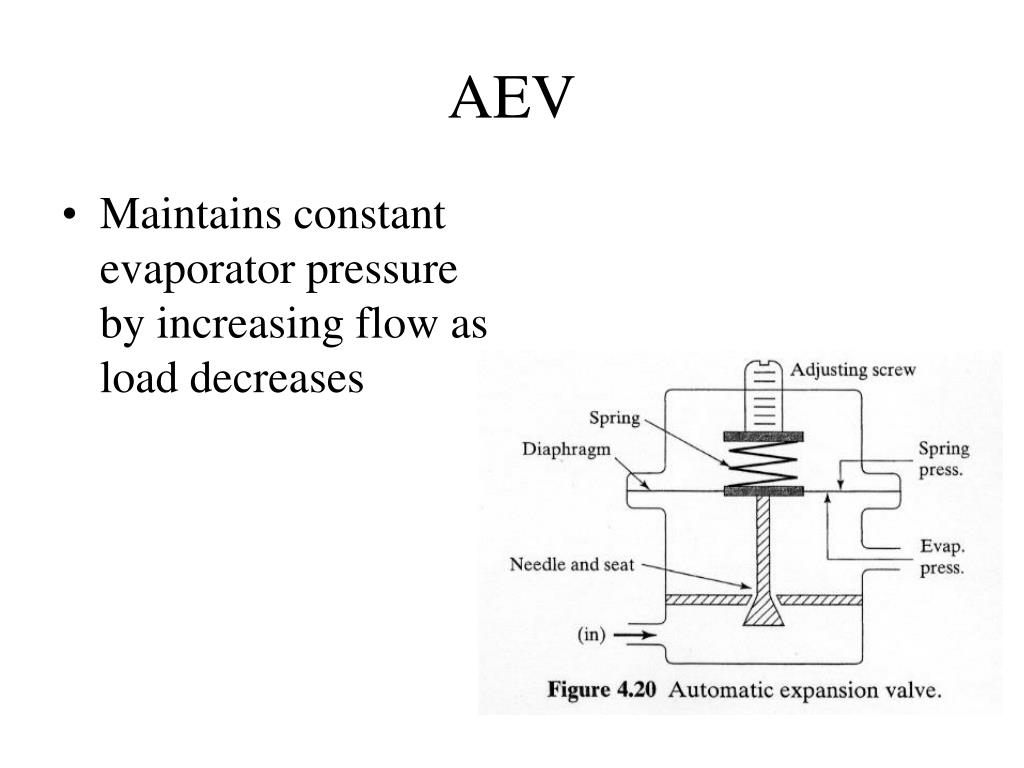

  5. AEV • Maintains constant evaporator pressure by increasing flow as load decreases

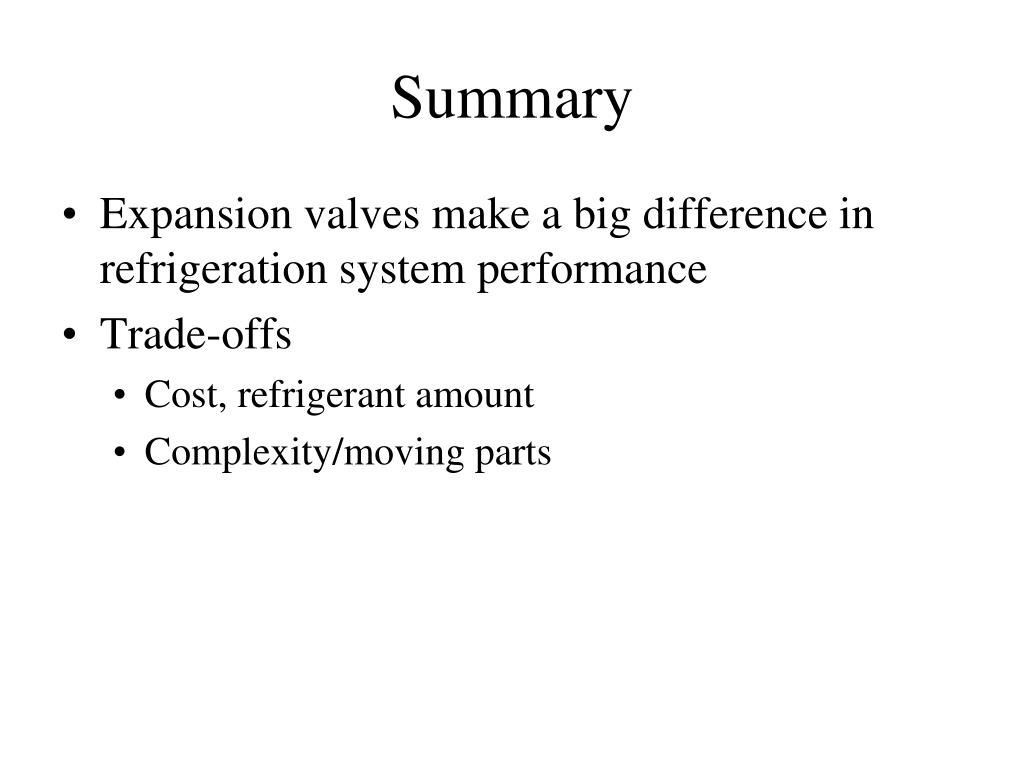

  6. Summary • Expansion valves make a big difference in refrigeration system performance • Trade-offs • Cost, refrigerant amount • Complexity/moving parts

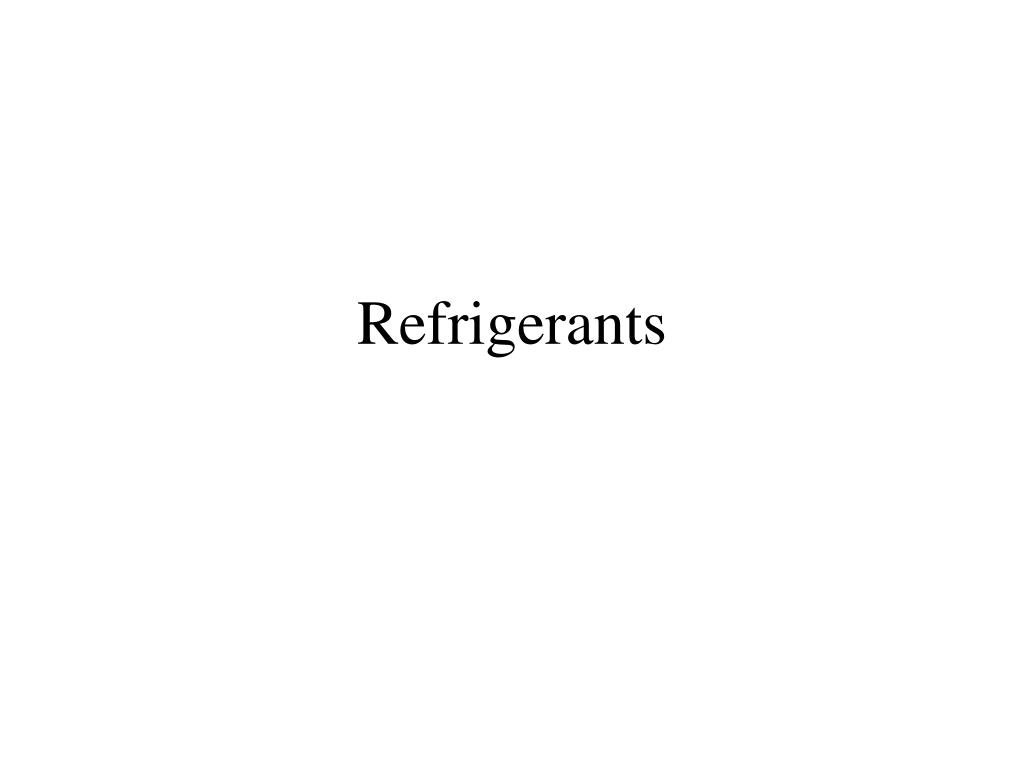

  7. Refrigerants

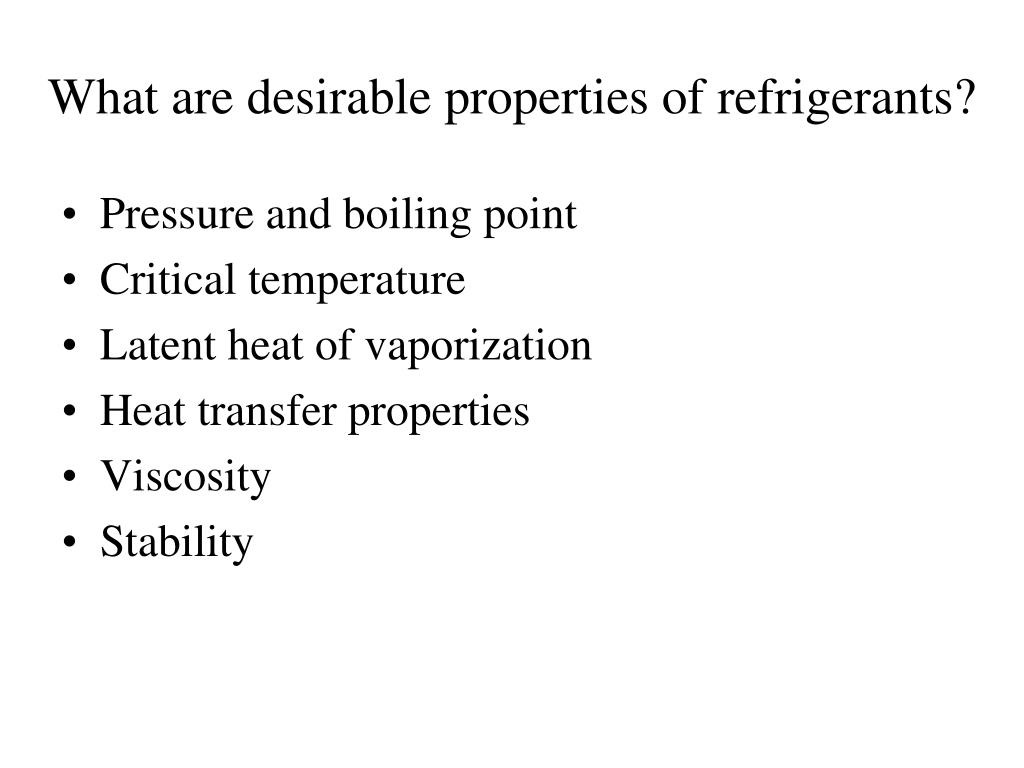

  8. What are desirable properties of refrigerants? • Pressure and boiling point • Critical temperature • Latent heat of vaporization • Heat transfer properties • Viscosity • Stability

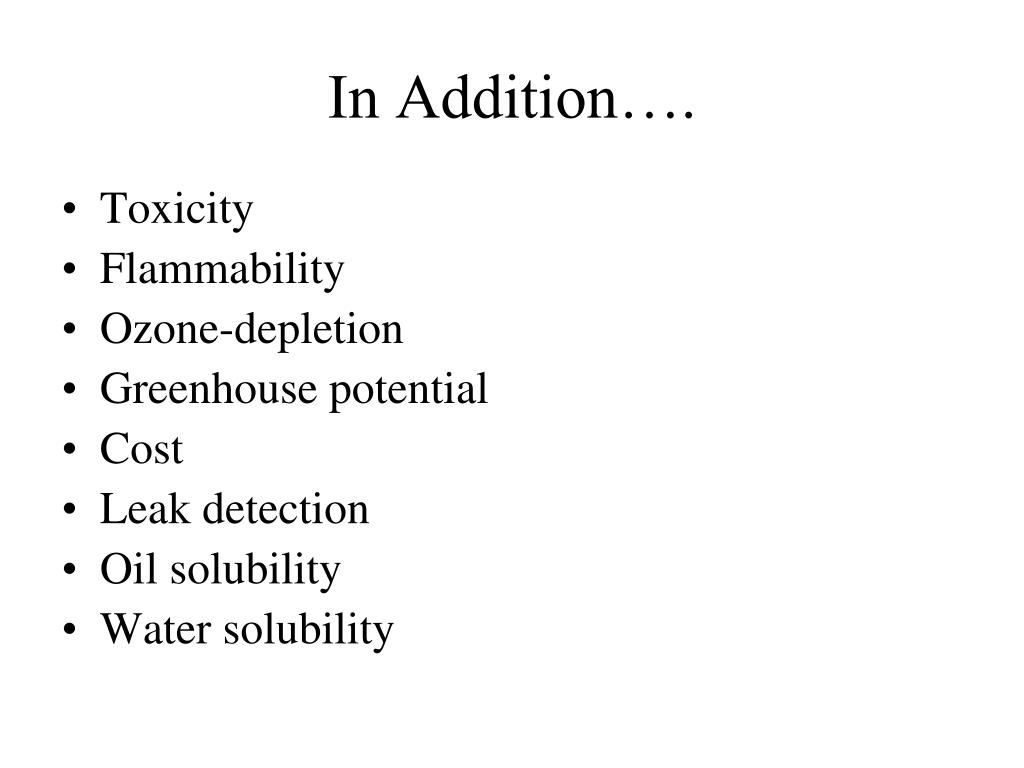

  9. In Addition…. • Toxicity • Flammability • Ozone-depletion • Greenhouse potential • Cost • Leak detection • Oil solubility • Water solubility

  10. Refrigerants • What does R-12 mean? • ASHRAE classifications • From right to left ← • # fluorine atoms • # hydrogen atoms +1 • # C atoms – 1 (omit if zero) • # C=C double bonds (omit if zero) • B at end means bromine instead of chlorine • a or b at end means different isomer

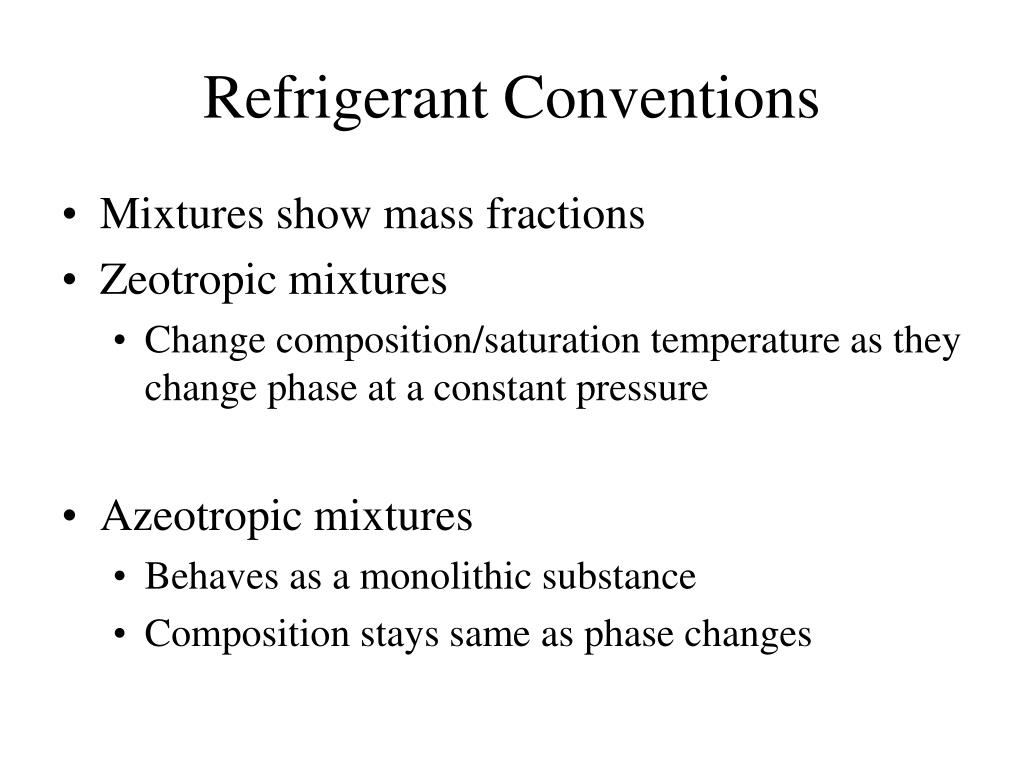

  11. Refrigerant Conventions • Mixtures show mass fractions • Zeotropic mixtures • Change composition/saturation temperature as they change phase at a constant pressure • Azeotropic mixtures • Behaves as a monolithic substance • Composition stays same as phase changes

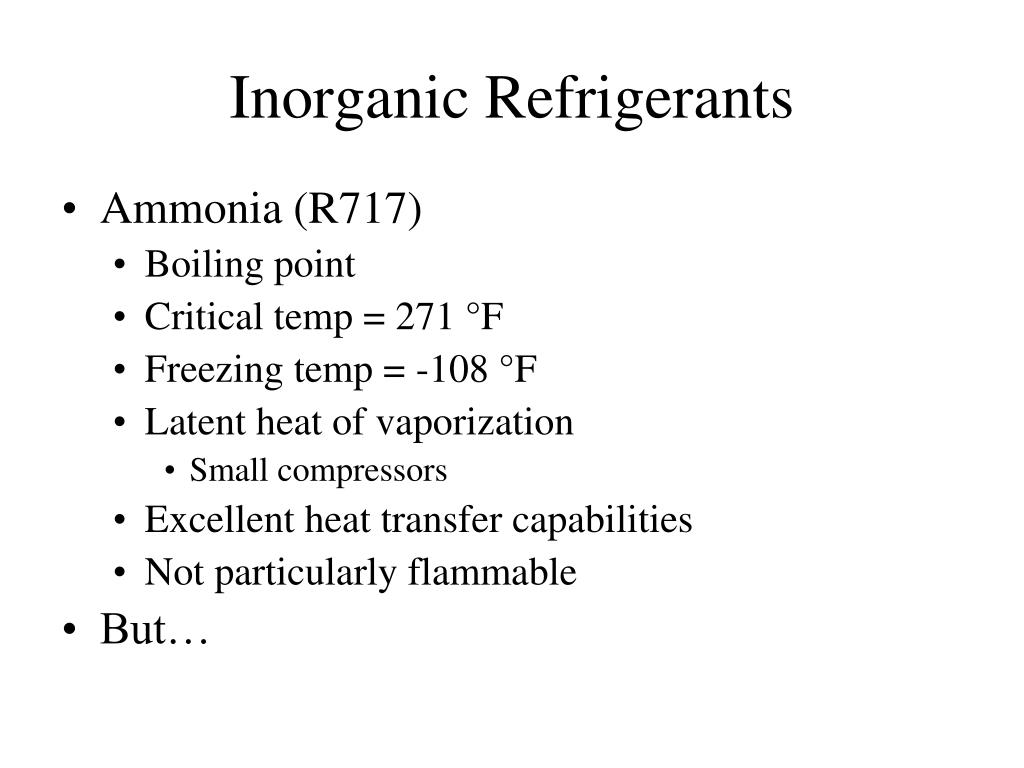

  12. Inorganic Refrigerants • Ammonia (R717) • Boiling point • Critical temp = 271 °F • Freezing temp = -108 °F • Latent heat of vaporization • Small compressors • Excellent heat transfer capabilities • Not particularly flammable • But…

  13. Carbon Dioxide (R744) • Cheap, non-toxic, non-flammable • Critical temp? • Huge operating pressures

  14. Water (R718) • Two main disadvantages? • ASHRAE Handbook of Fundamentals Ch. 20

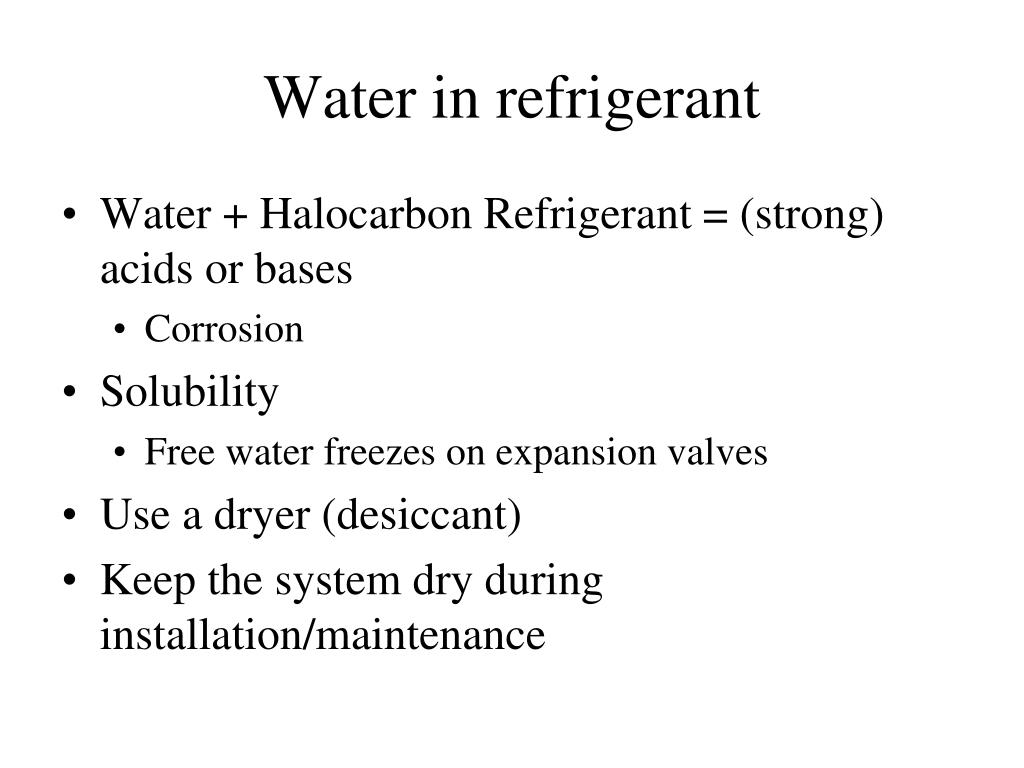

  15. Water in refrigerant • Water + Halocarbon Refrigerant = (strong) acids or bases • Corrosion • Solubility • Free water freezes on expansion valves • Use a dryer (desiccant) • Keep the system dry during installation/maintenance

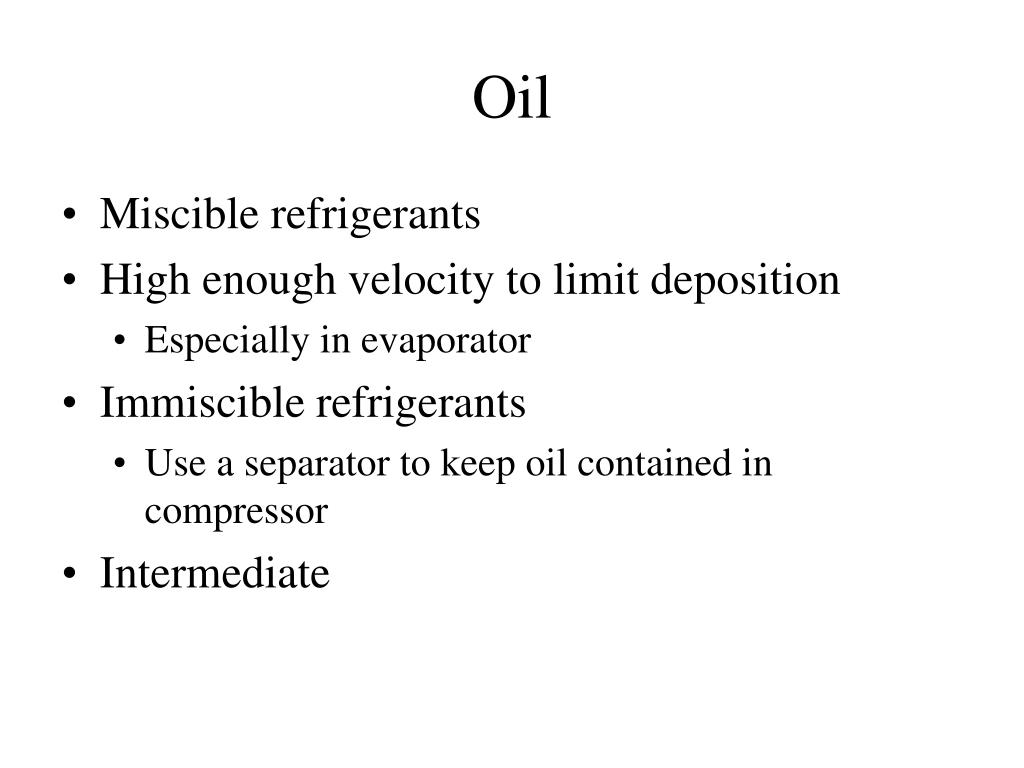

  16. Oil • Miscible refrigerants • High enough velocity to limit deposition • Especially in evaporator • Immiscible refrigerants • Use a separator to keep oil contained in compressor • Intermediate

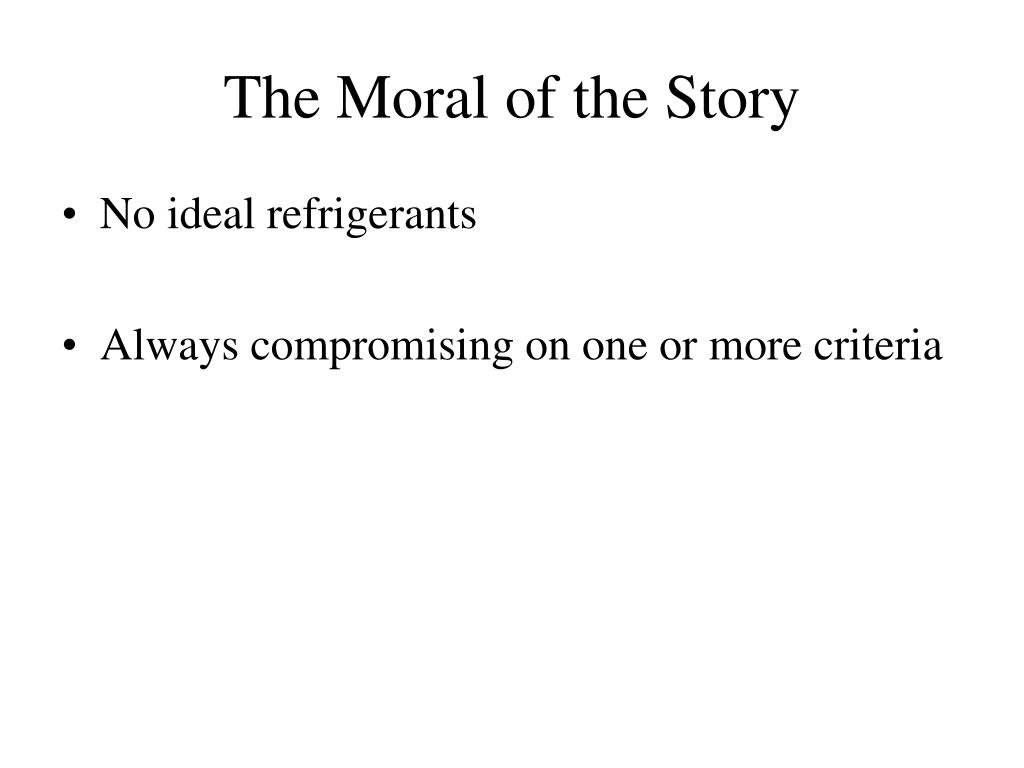

  17. The Moral of the Story • No ideal refrigerants • Always compromising on one or more criteria

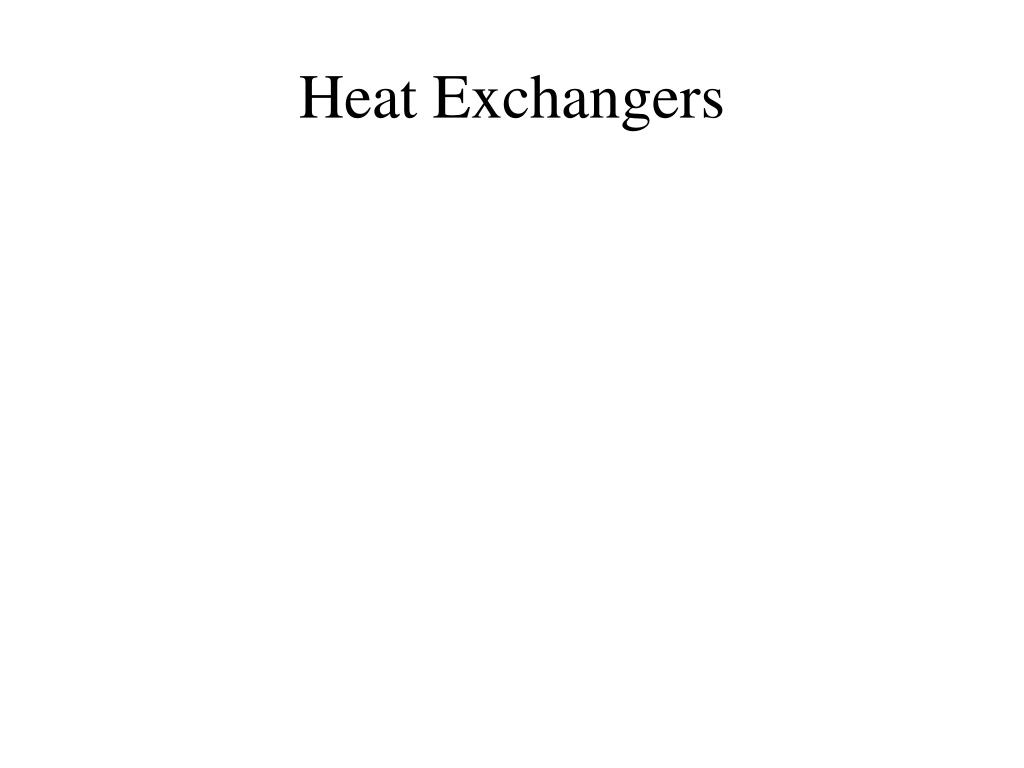

  18. Heat Exchangers

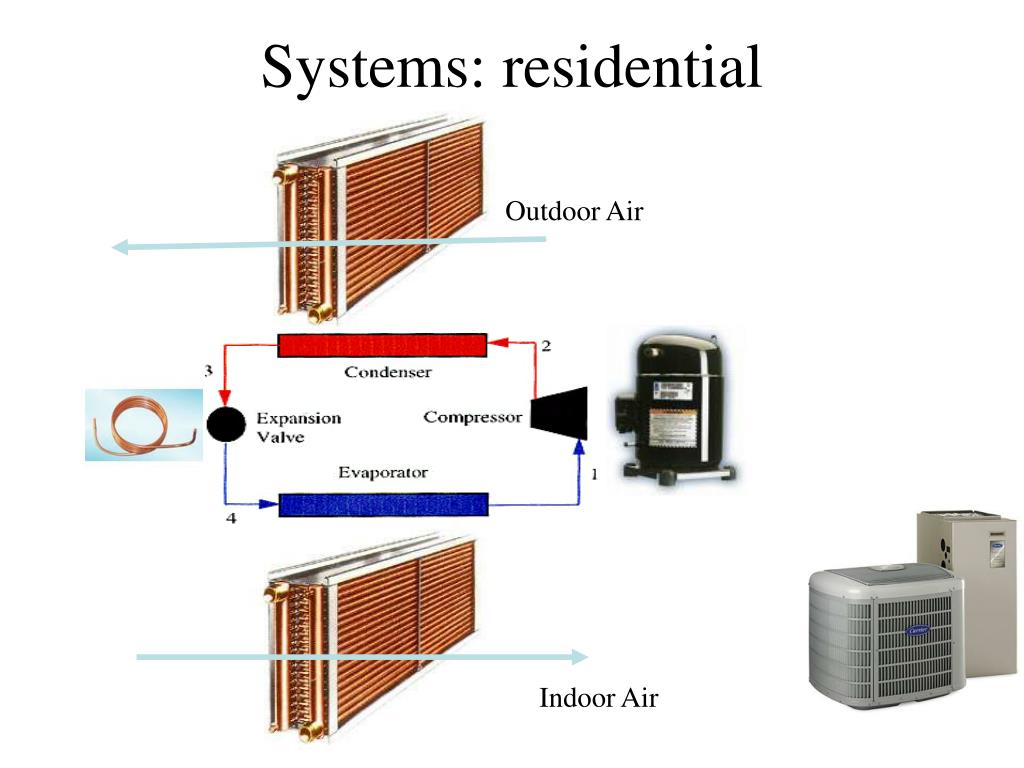

  19. Systems: residential Outdoor Air Indoor Air

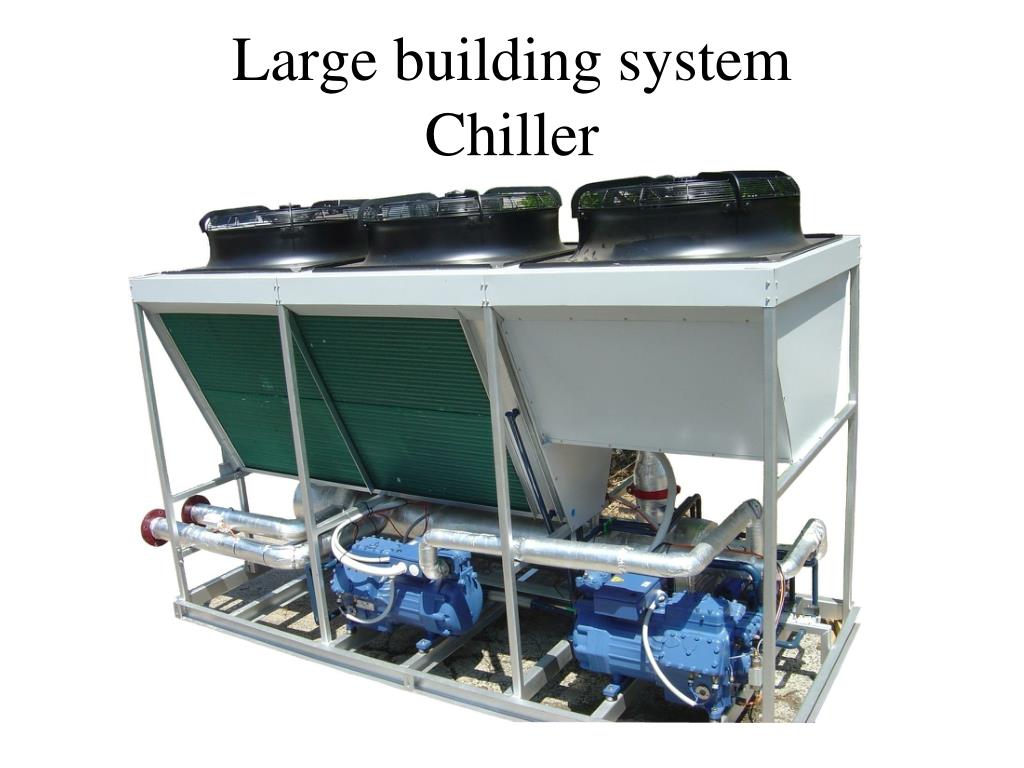

  20. Large building system Chiller

  21. Large building system Chiller Outdoor air 95oF 53oF Water from building Water to building 43oF

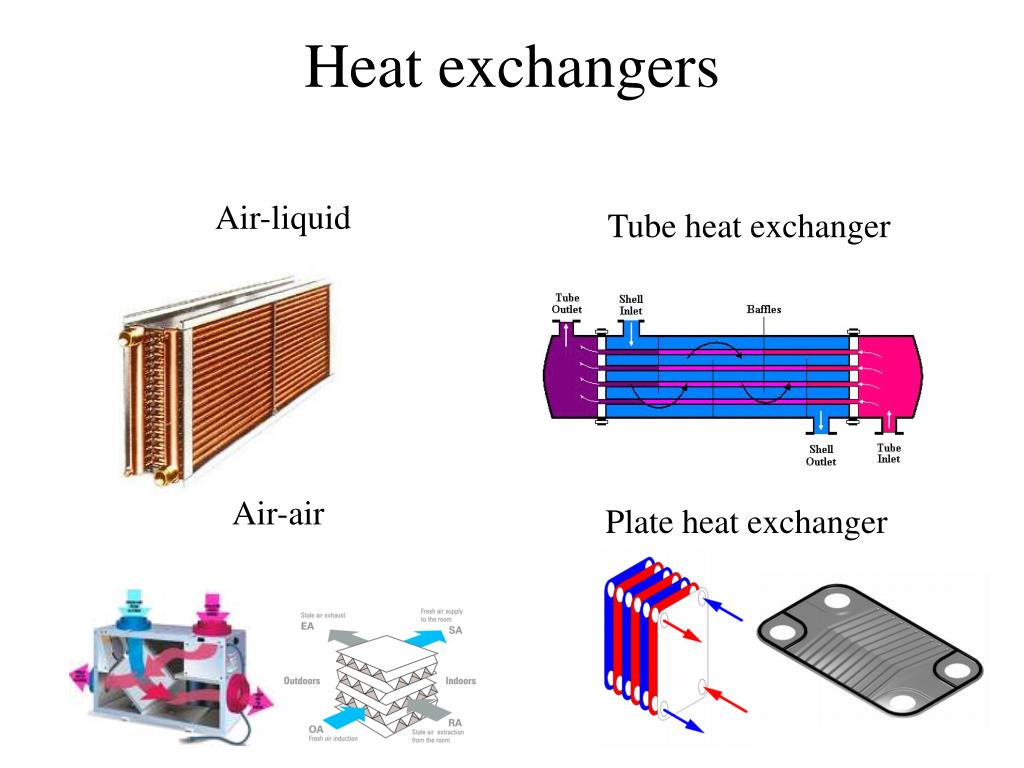

  22. Heat exchangers Air-liquid Tube heat exchanger Air-air Plate heat exchanger

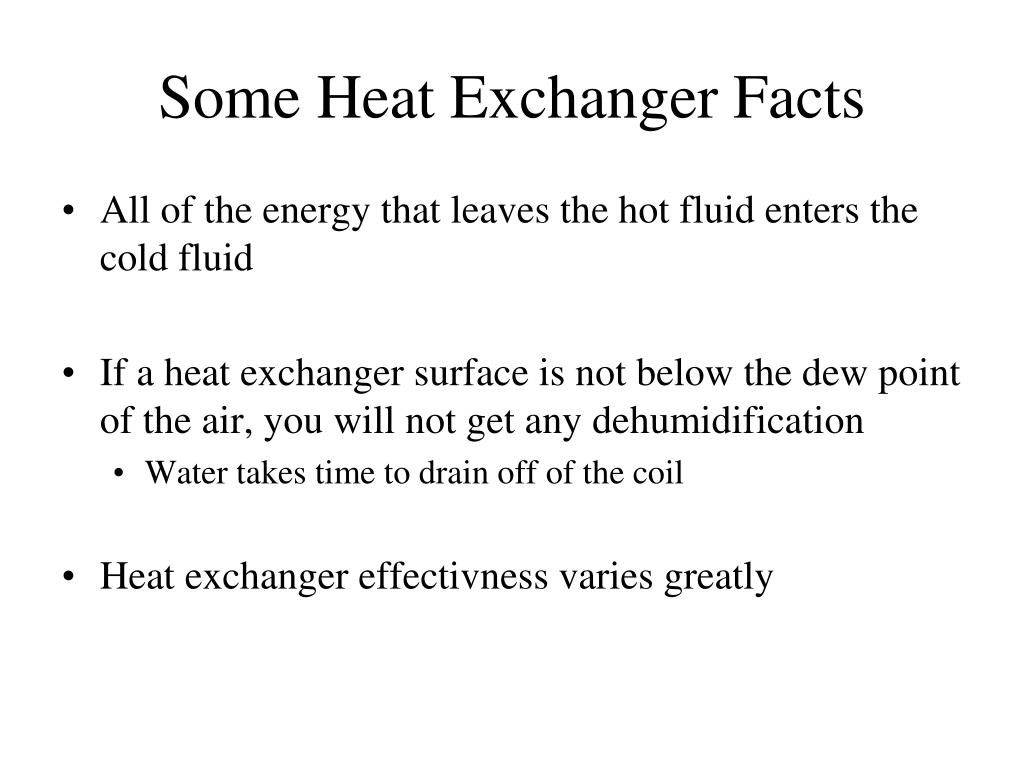

  23. Some Heat Exchanger Facts • All of the energy that leaves the hot fluid enters the cold fluid • If a heat exchanger surface is not below the dew point of the air, you will not get any dehumidification • Water takes time to drain off of the coil • Heat exchanger effectivness varies greatly

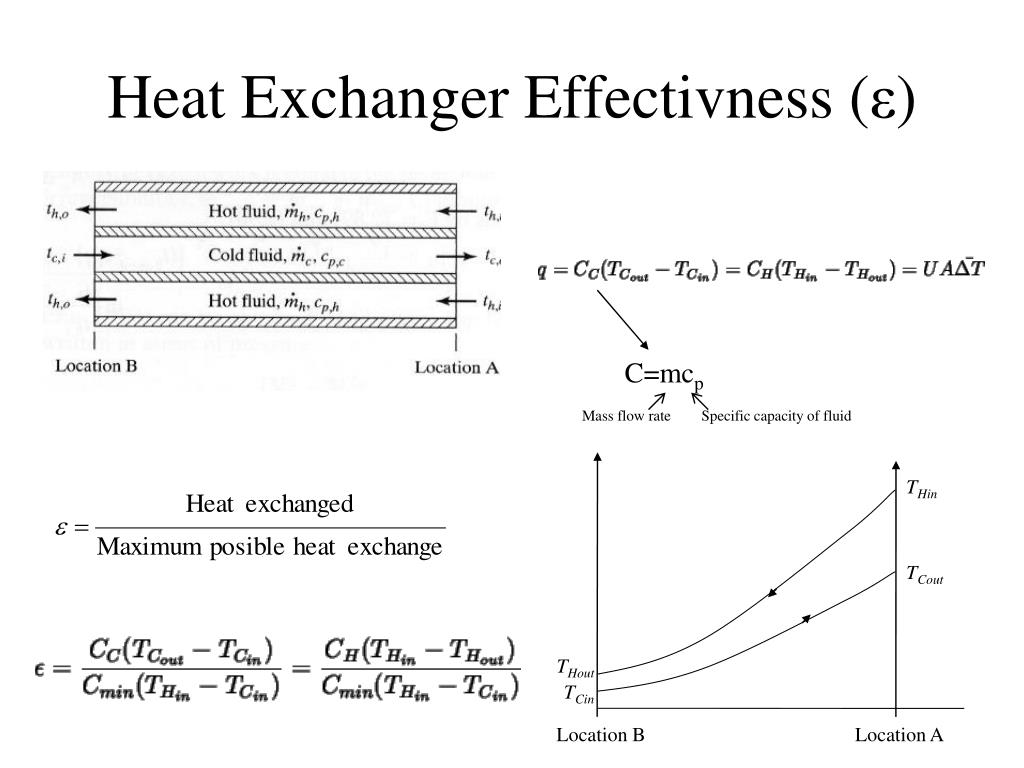

  24. Heat Exchanger Effectivness (ε) C=mcp Mass flow rate Specific capacity of fluid THin TCout THout TCin Location B Location A

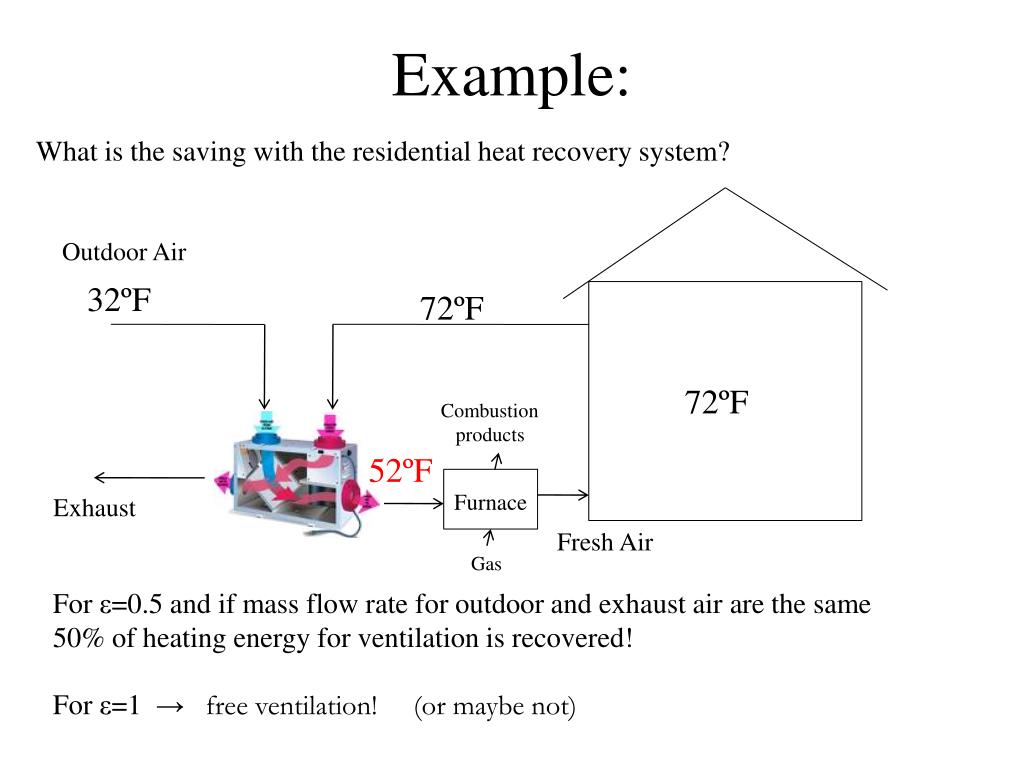

  25. Example: What is the saving with the residential heat recovery system? Outdoor Air 32ºF 72ºF 72ºF Combustion products 52ºF Furnace Exhaust Fresh Air Gas For ε=0.5 and if mass flow rate for outdoor and exhaust air are the same 50% of heating energy for ventilation is recovered! For ε=1 → free ventilation! (or maybe not)
