nasa technical standards program overview

NASA Technical Standards Program Overview

Joint Technical Architecture for Robotic Systems (JTARS) Working Group Meeting

Houston, Texas

May 11-12, 2005

  • Paul S. Gill
  • Manager, NASA Technical Standards Program Office
  • http://standards.nasa.gov

Danny Garcia/NASA Technical Program Office

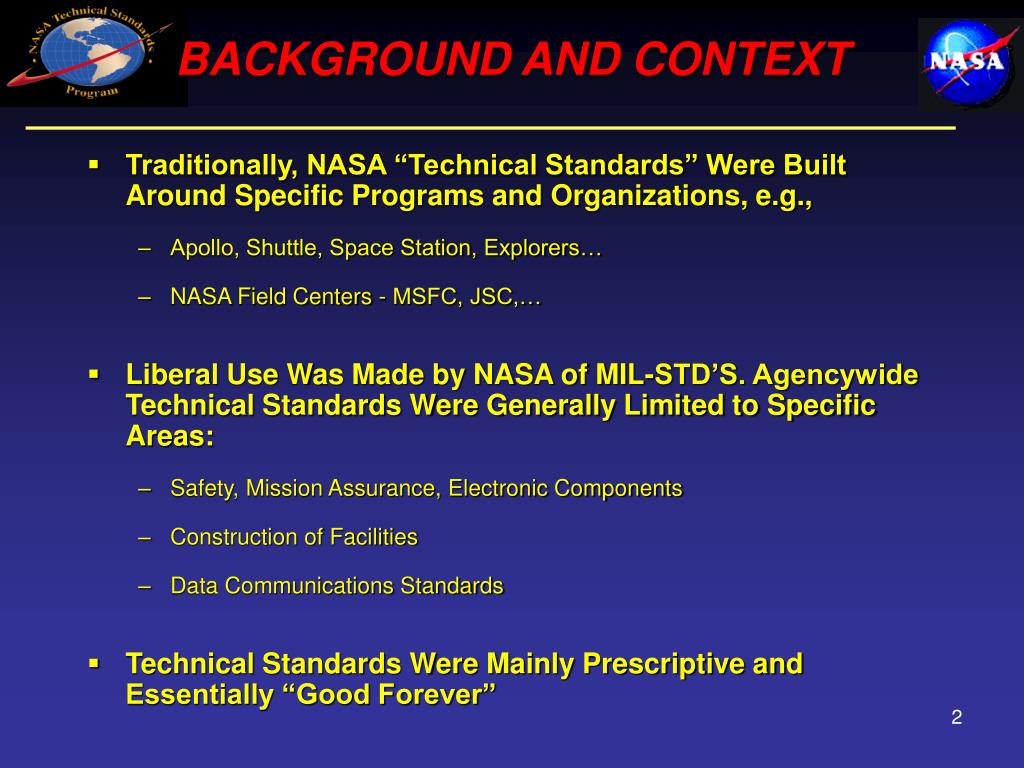

background and context
Traditionally, NASA “Technical Standards” Were Built Around Specific Programs and Organizations, e.g.,

Apollo, Shuttle, Space Station, Explorers…

NASA Field Centers - MSFC, JSC,…

Liberal Use Was Made by NASA of MIL-STD’S. Agencywide Technical Standards Were Generally Limited to Specific Areas:

Safety, Mission Assurance, Electronic Components

Construction of Facilities

Data Communications Standards

Technical Standards Were Mainly Prescriptive and Essentially “Good Forever”

BACKGROUND AND CONTEXT
program objectives
Establish and Maintain ”NASA Preferred Technical Standards” As a Common Baseline for NASA Programs

Develop Internal NASA Standards Where Available Standards Are Not Adequate

Evaluate, Support, and Adopt National and International Standards Where They Meet NASA’s Needs

Support the Use of Technical Standards on NASA Programs in the Systems Requirement Process

Provide Access for All nasa.gov Users to Full Text Standards From >100 Sources at http://standards.nasa.gov

Linking Standards to Lessons Learned for More Effective Use

Automated Notice of Updates for Standards Registered by Users

Program Objectives
slide4

NASA Technical Standards Program

Structure

Other NASA

Headquarters Offices

NASA Chief Engineer (Code AE)

(Rex Geveden, Chief Engineer)

- Functional Standards

- Program Level Coordination

- Policy/Oversight/Approval

- Program Sponsorship

NASA Technical

Standards Working Group

(TSWG)

(Paul Gill, Chair)

NASA Engineering

Management Board

(Rex Geveden, Chair)

- Center Approving Authority

- Program Issues

NASA Technical Standards Program Office

(Paul Gill, Manager)

- Center Representation

- Program Guidance

Topic and Discipline

Working Groups

- Program Management

- Standards Management System

http://standards.nasa.gov

- Prioritization of Needs

- Standards development

slide5

NASA Technical Standards Definitions

(1)Standards (STD)establish uniform engineering and technical requirements for processes, procedures, practices, and methods that have been endorsed as standard, including requirements for selection, application, and design criteria of an item.

(2) Specifications (SPEC)are prepared specifically to support acquisition, which clearly and accurately describes essential technical requirements for purchased items. Procedures necessary to determine that the requirements covered by the specification have been met are also included.

(3) Handbooks (HDBK)are guidance documents containing standard procedural, technical, engineering, or design information about material, processes, practices, and methods.

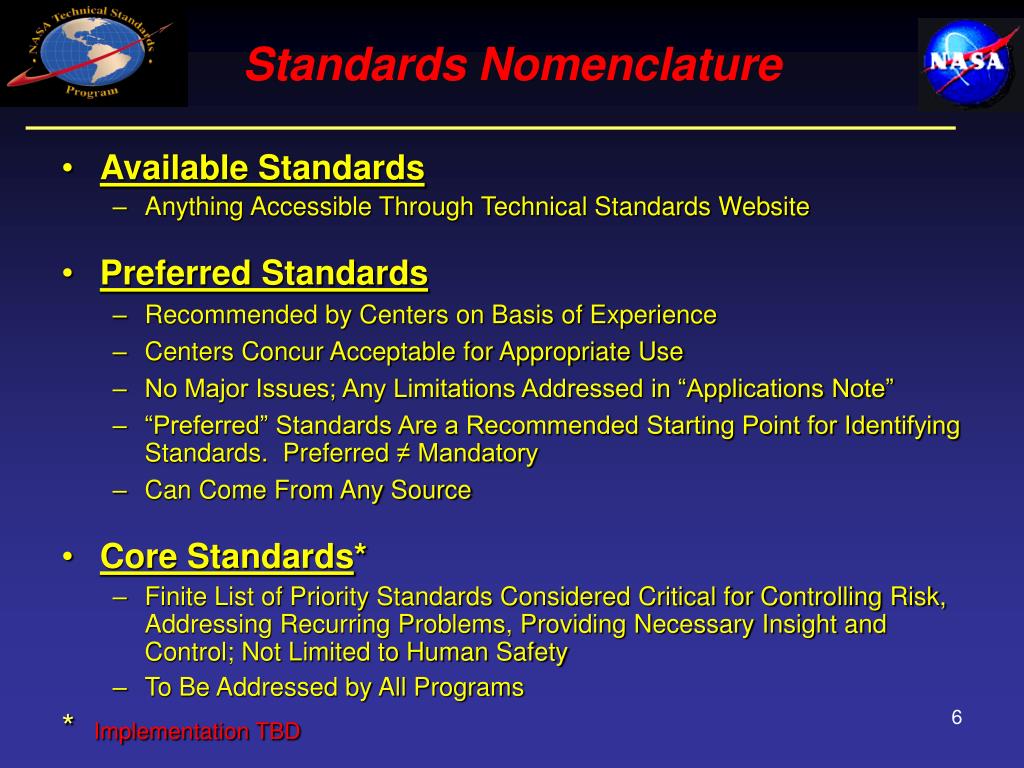

standards nomenclature
Available Standards

Anything Accessible Through Technical Standards Website

Preferred Standards

Recommended by Centers on Basis of Experience

Centers Concur Acceptable for Appropriate Use

No Major Issues; Any Limitations Addressed in “Applications Note”

“Preferred” Standards Are a Recommended Starting Point for Identifying Standards. Preferred ≠ Mandatory

Can Come From Any Source

Core Standards*

Finite List of Priority Standards Considered Critical for Controlling Risk, Addressing Recurring Problems, Providing Necessary Insight and Control; Not Limited to Human Safety

To Be Addressed by All Programs

* Implementation TBD

Standards Nomenclature
standards vs requirements
CAIB recommendation referred to both “requirements” and “standards”

Standards are only part of Technical Requirements; other types include:

Mission Design

Program Manufacturing

Performance (S/C) Test/Verification

Performance (System) Operations

Standards vs. Requirements
caib recommendation
7.5.-1 Establish an Independent Technical Engineering Authority that is responsible for technical requirements and all waivers to them… The Independent Technical Authority does the following as a minimum:

Develop and maintain technical standards for all Space Shuttle Program projects and elements

Be the sole waiver-granting authority for all technical standards…

The Chief Engineer has been designated the NASA Technical Authority; this authority is re-delegated to:

Discipline Technical Warrant Holders (responsible for requirements including standards)

Systems Technical Warrant Holders ( providing the interface with programs

CAIB Recommendation
slide10

NASA Technical Standards In Development

Doc Number

Title

NASA-HDBK-5010

Fracture Control Implementation Handbook for Payloads, Experiments, and Similar Hardware

NASA-STD-5017

Design And Development Criteria For Critical Mechanical Systems

NASA-HDBK-5011

Launch Facilities and Associated Ground Equipment Vibroacoustic Loads Environment Definition and Analysis

Applying Data Matrix Identification Symbols on Aerospace Parts

NASA-STD-6002B (Revision)

NASA-STD-7001A (Revision)

Payload Vibroacoustic Test Criteria

NASA-STD-0005

NASA Configuration Management (CM) Standard

NASA-HDBK-6003B (Revision)

Application of Data Matrix Identification Symbols to Aerospace Parts using Direct Part Marking Methods/Techniques

NASA-HDBK-6009

Materials & Process Design Guide

NASA-STD-5012

Strength And Life Assessment Requirements For Space Propulsion Systems Engines

NASA-STD-6001A (Revision)

Flammability, Odor, Offgassing, and Compatibility Requirements and Test Procedures for Materials In Environments that Support Combustion

NASA-STD-3000C (Revision)

Manned-Systems Integration Standard

NASA–HDBK-1001A (Revision)

Terrestrial Environment Criteria Handbook for Use in Aerospace Vehicle Development

NASA-SPEC-6012

Protective Finishes for Space Vehicle Structures

NASA-STD-4005

LEO Spacecraft Charging Design Standard

slide12

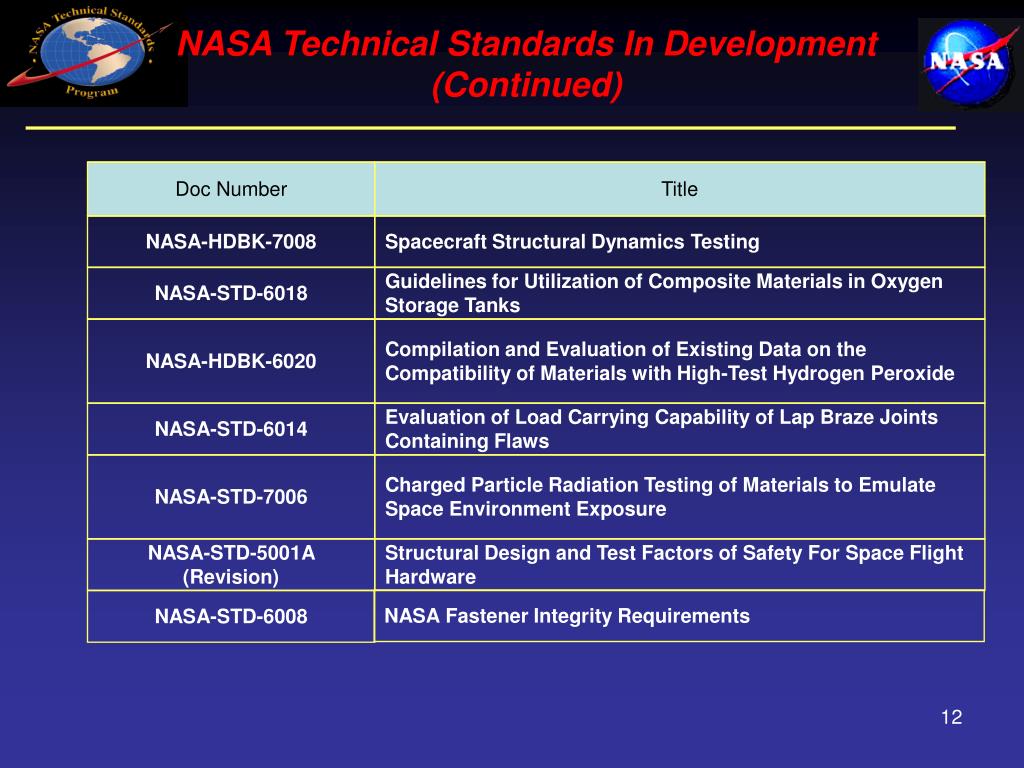

NASA Technical Standards In Development

(Continued)

Doc Number

Title

NASA-HDBK-7008

Spacecraft Structural Dynamics Testing

NASA-STD-6018

Guidelines for Utilization of Composite Materials in Oxygen Storage Tanks

NASA-HDBK-6020

Compilation and Evaluation of Existing Data on the Compatibility of Materials with High-Test Hydrogen Peroxide

NASA-STD-6014

Evaluation of Load Carrying Capability of Lap Braze Joints Containing Flaws

NASA-STD-7006

Charged Particle Radiation Testing of Materials to Emulate Space Environment Exposure

NASA-STD-5001A (Revision)

Structural Design and Test Factors of Safety For Space Flight Hardware

NASA Fastener Integrity Requirements

NASA-STD-6008

slide13

Title

JSC 8080 Design and Procedural Standards Handbook

Pyrotechnic D&V Standards for Human-Rated Space Vehicles based on NSTS 8060

Parachute Design and Verification Standards for Human-Rated Space Vehicles

NASA-STD-3000 Vol 8 (CEV)

Standard Manned Spacecraft Requirements for Materials and Processes

Passive Thermal Control System Standard

Battery Safety Handbook

SMAC Values

Rec Testing Meth for S/F Perf Verif of Non-Metallic Matls I: Ionizing Radiation Dose Effects

Rec Testing Meth for S/F Perf Verif of Non-Metallic Matls I: Solar UV, VUV and soft x-ray

Rec Testing Meth for S/F Perf Verif of Non-Metallic Matls I: Atomic Oxygen

Rec Practices for Evaluating Effects of S/C Struct Shielding on TID & SEE Environments

TPS Standard

Topics for Development

of NASA Technical Standards

Note: Not a complete list. Action still pending at most Centers

slide14

Topics for Development of NASA Technical Standards

(Continued)

Title

TID & SEE Verification of EEE Parts & Avionics Assembly for the ISS: Perf vs. Expectations

JSC 26626A “EVA Hardware Generic Design Requirements Document”

The Effects of High-Test Hydrogen Peroxide (HTP) on Structural Materials as Determined by Isothermal Microcalorimetry

Stds on Getter Material for Hi Vacuum Hermetic Apps

High Energy Corona Discharge Design HDBK

NASA sustaining Engineering Std

Outgassing Rate Measurements for the Screening of Nonmetallic Material

NASA Std for In-Space Logistics

Uses and Technical Requirements for Digital Photography, in Anomaly Recording for NASA Flight Hardware

JSC 28918, “EVA Design Requirements and Considerations”

Note: Not a complete list. Action still pending at most Centers

slide15

NASA Preferred Technical Standards

Status

  • Adopted/Pending Adoption Summary
    • Total 3,407 – (1,774 Performance, 1,633 Acquisition)
      • 62 NASA Developed Technical Standards
        • 26 Engineering Standards
        • 18 IT Standards
        • 18 Safety And Mission Assurance
      • 2,267 Adopted (Non-NASA) - (981 Performance, 1286 Acquisition)
        • 1,568 Voluntary Consensus Standards
        • 671 Military Specifications and Standards
        • 28 Federal and CID Standards
      • 1,078 Pending Adoption (Non-NASA) - (731 Performance, 347 Acquisition
        • 11 AIAA and 61 ISO Performance Standards Sent to NTSWG for Endorsement
        • 347 Acquisition and 659 Performance Standards Not Yet Sent Out to NTSWG
  • NASA Participation In Non- Gov’t Standards Development For FY05 Per OMB Circular A-119
    • 30 SDOs
    • 147 Participants
    • 197 Standards

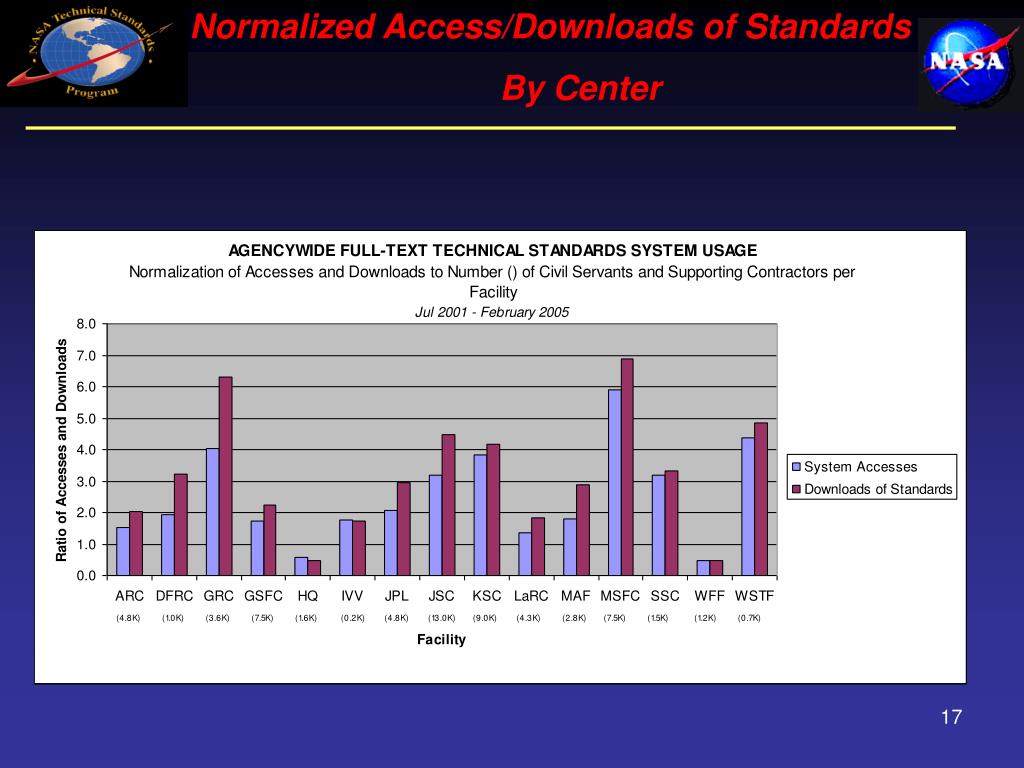

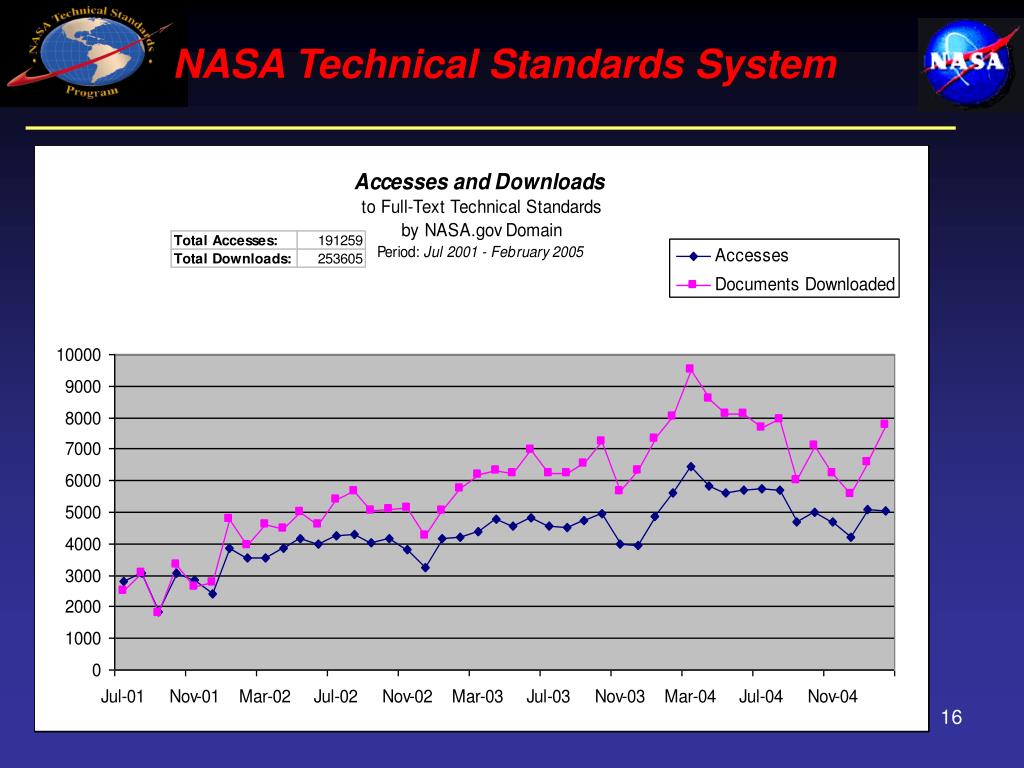

slide18

Standards Homepage

http://standards.nasa.gov

slide21

Standards Update Notification System

(SUNS)

  • SUNS allows users to register standards they use, and receive automatic notification when standards are revised, re-issued
  • Changes to technical standards can have major impacts on the safety, performance, reliability, and cost of programs/projects
  • Using out-of-date standards—unless required to meet specific need
    • Ignores improvements and misses the benefits of experience
    • Exposes programs/projects to the risk of repeating those failures that led to update of the standard
  • Pilot Test on Space Shuttle Solid Rocket Booster/TVC System
    • 552 standards cited; all but 124 cancelled, replaced, or document status was not verifiable

For all programs to date:

    • 7138 document update requests received
    • 2362 document update notifications sent
slide22

Lessons Learned-Technical Standards Integration

  • NASA Lessons Learned System documents problems and improved guidance from program and project experience
  • Linking Lessons Learned with standards provides basis for interpretation/use and update of standards
  • Users alerted to Lessons Learned at the time they come looking for the standards
  • Current status
    • Over 600 out of 1700 Lessons Learned now hot-linked to 420 NASA preferred and non-government technical standards
    • “Reverse” search capability permits users to view specific lessons learned by technical discipline and view the standards linked to them
    • Now adding “Application notes” from standards users that clarify or limit the scope, use, or context of standards; over 170 linked to date
    • Use of Lessons Learned system climbing
slide25

Technical Standards System User Surveys

Standards Data Base Survey (6732 unique users)

Lessons Learned Link Survey (30 Days, 93 users)

who pays for standards
Programs

Identification of and analysis of issues

Technique development and data analysis

Standards Program

Committee development and preparation

Center review and approval

NASA Chief Engineer Approval

Maintenance

NASA-wide access

ITA

Development of issues to be addressed

Implementation on projects: determination of requirements, oversight/evaluation of implementation

Who Pays for Standards?
slide27

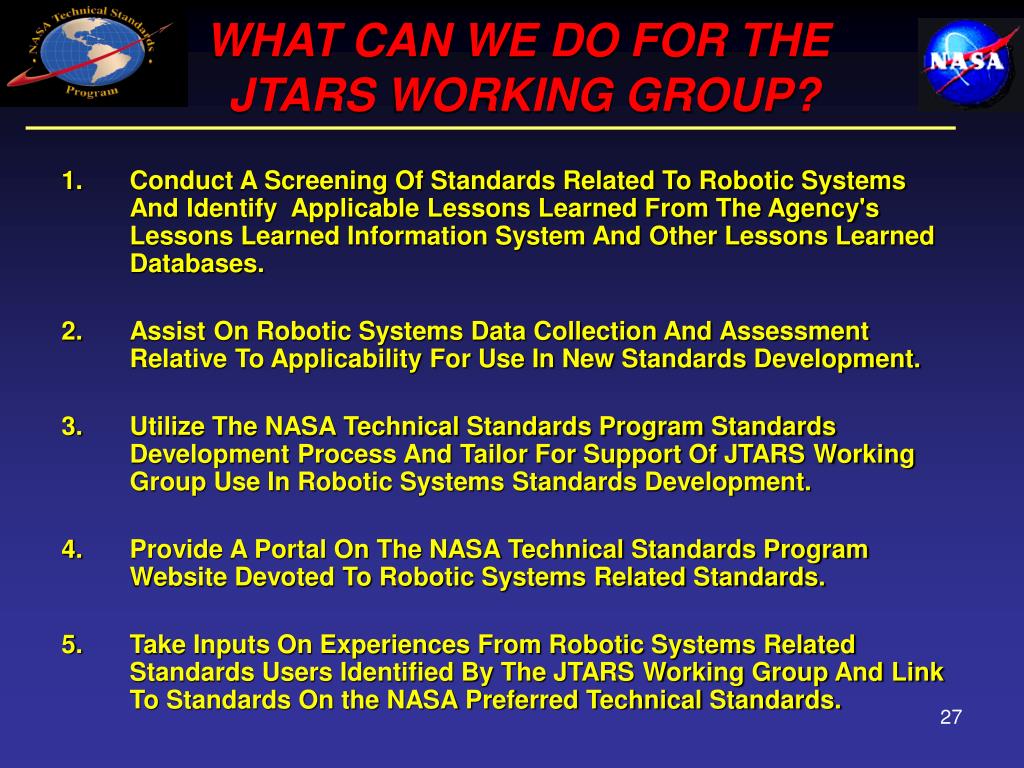

Conduct A Screening Of Standards Related To Robotic Systems And Identify Applicable Lessons Learned From The Agency's Lessons Learned Information System And Other Lessons Learned Databases.

Assist On Robotic Systems Data Collection And Assessment Relative To Applicability For Use In New Standards Development.

Utilize The NASA Technical Standards Program Standards Development Process And Tailor For Support Of JTARS Working Group Use In Robotic Systems Standards Development.

Provide A Portal On The NASA Technical Standards Program Website Devoted To Robotic Systems Related Standards.

Take Inputs On Experiences From Robotic Systems Related Standards Users Identified By The JTARS Working Group And Link To Standards On the NASA Preferred Technical Standards.

WHAT CAN WE DO FOR THE

JTARS WORKING GROUP?

nasa technical standards published

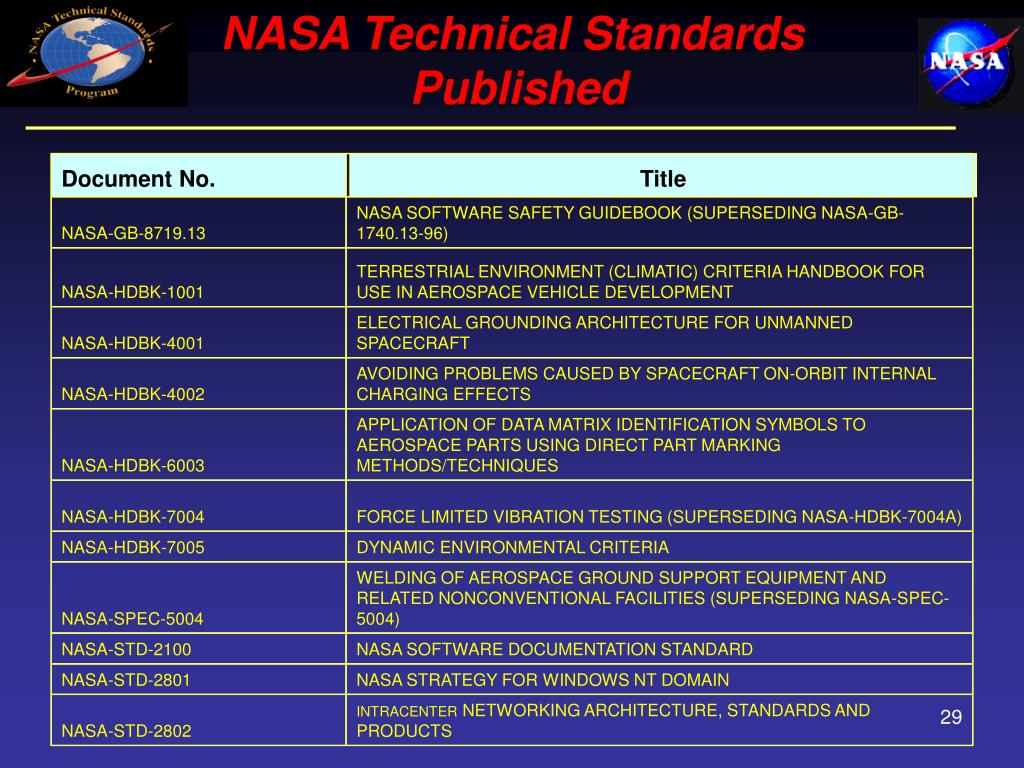

NASA Technical Standards Published

Document No.

Title

NASA-GB-8719.13

NASA SOFTWARE SAFETY GUIDEBOOK (SUPERSEDING NASA-GB-1740.13-96)

NASA-HDBK-1001

TERRESTRIAL ENVIRONMENT (CLIMATIC) CRITERIA HANDBOOK FOR USE IN AEROSPACE VEHICLE DEVELOPMENT

NASA-HDBK-4001

ELECTRICAL GROUNDING ARCHITECTURE FOR UNMANNED SPACECRAFT

NASA-HDBK-4002

AVOIDING PROBLEMS CAUSED BY SPACECRAFT ON-ORBIT INTERNAL CHARGING EFFECTS

NASA-HDBK-6003

APPLICATION OF DATA MATRIX IDENTIFICATION SYMBOLS TO AEROSPACE PARTS USING DIRECT PART MARKING METHODS/TECHNIQUES

NASA-HDBK-7004

FORCE LIMITED VIBRATION TESTING (SUPERSEDING NASA-HDBK-7004A)

NASA-HDBK-7005

DYNAMIC ENVIRONMENTAL CRITERIA

NASA-SPEC-5004

WELDING OF AEROSPACE GROUND SUPPORT EQUIPMENT AND RELATED NONCONVENTIONAL FACILITIES (SUPERSEDING NASA-SPEC-5004)

NASA-STD-2100

NASA SOFTWARE DOCUMENTATION STANDARD

NASA-STD-2801

NASA STRATEGY FOR WINDOWS NT DOMAIN

NASA-STD-2802

INTRACENTER NETWORKING ARCHITECTURE, STANDARDS AND PRODUCTS

slide30

NASA Technical Standards Published (Continued)

NASA-STD-2803

INTRANET STRATEGY

NASA-STD-2804

MINIMUM INTEROPERABILITY SOFTWARE SUITE (SUPERSEDING NASA-STD-2804E)

NASA-STD-2805

MINIMUM HARDWARE CONFIGURATIONS (SUPERSEDING NASA-STD-2805D)

NASA-STD-2806

NETWORK PROTOCOL

NASA-STD-2807

THE NASA DIRECTORY SERVICE - ARCHITECTURE, STANDARDS, AND PRODUCTS (SUPERSEDING NASA-STD-2807B)

NASA-STD-2808

INTEROPERABILITY PROFILE FOR NASA E-MAIL CLIENTS

NASA-STD-2809

NASA INTELLIGENT ELECTRONIC FORMS

NASA-STD-2810

UNIX INTEROPERABILITY

NASA-STD-2811

STANDARD WORKSTATION MANAGEMENT TOOLS

NASA-STD-2812

INTRANET FUNCTIONAL REQUIREMENTS

NASA-STD-2813

NASA FIREWALL STRATEGY, ARCHITECTURE, STANDARDS AND PRODUCTS

NASA-STD-2814

NASA INTEGRATED INFORMATION TECHNOLOGY ARCHITECTURE TECHNICAL FRAMEWORK TECHNICAL ARCHITECTURE VOL 1-2 (SUPERSEDING NASA-STD-2814)

slide31

NASA Technical Standards Published (Continued)

NASA-STD-2815

NASA ELECTRONIC MESSAGING ARCHITECTURE, STANDARDS AND PRODUCTS

NASA-STD-2817

COMPUTER-AIDED ENGINEERING, DESIGN AND MANUFACTURING DATA INTERCHANGE STANDARDS

NASA-STD-2818

DIGITAL TELEVISION STANDARDS FOR NASA

NASA-STD-2819

COLLABORATIVE TOOLS STANDARDS

NASA-STD-2820

ENCRYPTION AND DIGITAL SIGNATURE STANDARDS

NASA-STD-3000

MAN-SYSTEMS INTEGRATION STANDARDS - VOLUME 3

NASA-STD-3000

MAN-SYSTEMS INTEGRATION STANDARDS - VOLUME 2

NASA-STD-3000

MAN-SYSTEMS INTEGRATION STANDARDS - VOLUME 1

NASA-STD-4003

ELECTRICAL BONDING FOR NASA LAUNCH VEHICLES, SPACECRAFT, PAYLOADS, AND FLIGHT EQUIPMENT

NASA-STD-5001

STRUCTURAL DESIGN AND TEST FACTORS OF SAFETY FOR SPACE FLIGHT HARDWARE

NASA-STD-5002

LOAD ANALYSES OF SPACECRAFT AND PAYLOADS

NASA-STD-5003

FRACTURE CONTROL REQUIREMENTS FOR PAYLOADS USING THE SPACE SHUTTLE(SUPERSEDING NHB-8071.1-1988)

NASA-STD-5005

GROUND SUPPORT EQUIPMENT (SUPERSEDING NASA-STD-5005A)

slide32

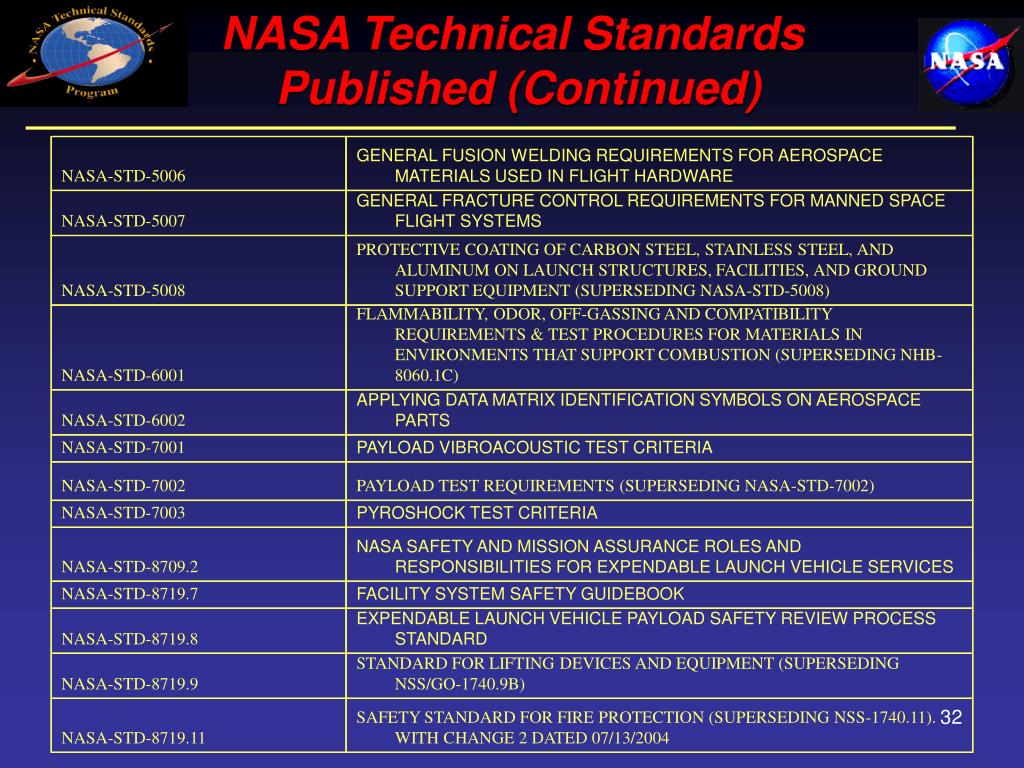

NASA Technical Standards Published (Continued)

NASA-STD-5006

GENERAL FUSION WELDING REQUIREMENTS FOR AEROSPACE MATERIALS USED IN FLIGHT HARDWARE

NASA-STD-5007

GENERAL FRACTURE CONTROL REQUIREMENTS FOR MANNED SPACE FLIGHT SYSTEMS

NASA-STD-5008

PROTECTIVE COATING OF CARBON STEEL, STAINLESS STEEL, AND ALUMINUM ON LAUNCH STRUCTURES, FACILITIES, AND GROUND SUPPORT EQUIPMENT (SUPERSEDING NASA-STD-5008)

NASA-STD-6001

FLAMMABILITY, ODOR, OFF-GASSING AND COMPATIBILITY REQUIREMENTS & TEST PROCEDURES FOR MATERIALS IN ENVIRONMENTS THAT SUPPORT COMBUSTION (SUPERSEDING NHB-8060.1C)

NASA-STD-6002

APPLYING DATA MATRIX IDENTIFICATION SYMBOLS ON AEROSPACE PARTS

NASA-STD-7001

PAYLOAD VIBROACOUSTIC TEST CRITERIA

NASA-STD-7002

PAYLOAD TEST REQUIREMENTS (SUPERSEDING NASA-STD-7002)

NASA-STD-7003

PYROSHOCK TEST CRITERIA

NASA-STD-8709.2

NASA SAFETY AND MISSION ASSURANCE ROLES AND RESPONSIBILITIES FOR EXPENDABLE LAUNCH VEHICLE SERVICES

NASA-STD-8719.7

FACILITY SYSTEM SAFETY GUIDEBOOK

NASA-STD-8719.8

EXPENDABLE LAUNCH VEHICLE PAYLOAD SAFETY REVIEW PROCESS STANDARD

NASA-STD-8719.9

STANDARD FOR LIFTING DEVICES AND EQUIPMENT (SUPERSEDING NSS/GO-1740.9B)

NASA-STD-8719.11

SAFETY STANDARD FOR FIRE PROTECTION (SUPERSEDING NSS-1740.11). WITH CHANGE 2 DATED 07/13/2004

slide33

NASA Technical Standards Published (Continued)

NASA-STD-8719.13

NASA SOFTWARE SAFETY STANDARD (SUPERSEDING NASA-STD-8719.13A)

NASA-STD-8729.1

PLANNING, DEVELOPING AND MANAGING AN EFFECTIVE RELIABILITY AND MAINTAINABILITY (R&M) PROGRAM

NASA-STD-8739.1

WORKMANSHIP STANDARD FOR STAKING AND CONFORMAL COATING OF PRINTED WIRING BOARDS AND ELECTRONIC ASSEMBLIES (SUPERSEDING NAS-5300.4(3J-1), NHB-5300.4(3L), AND NHB-5300.4(3M))

NASA-STD-8739.2

WORKMANSHIP STANDARD FOR SURFACE MOUNT TECHNOLOGY (SUPERSEDING NAS-5300.4(3M))

NASA-STD-8739.3

SOLDERED ELECTRICAL CONNECTIONS (SUPERSEDING NHB-5300.4(3A-2)) (INCLUDES CHANGE 2 RELEASED ON 01/18/2001)

NASA-STD-8739.4

CRIMPING, INTERCONNECTING CABLES, HARNESSES, AND WIRING (SUPERSEDING NAS-5300.4(3G-1), NHB-5300.4(3G) AND NHB-5300.4(3H)

NASA-STD-8739.5

FIBER OPTIC TERMINATIONS, CABLE ASSEMBLIES, AND INSTALLATION

NASA-STD-8739.8

SOFTWARE ASSURANCE STANDARD (SUPERSEDING NASA-STD-2201)

NSS-1740.12

SAFETY STANDARD FOR EXPLOSIVES, PROPELLANTS, AND PYROTECHNICS

NSS-1740.14

GUIDELINES AND ASSESSMENT PROCEDURES FOR LIMITING ORBITAL DEBRIS

NSS-1740.16

SAFETY STANDARD FOR HYDROGEN AND HYDROGEN SYSTEMS GUIDELINES FOR HYDROGEN SYSTEM DESIGN, MATERIALS SELECTION, OPERATIONS, STORAGE AND TRANSPORTATION

NSS/WS-1740.10

NASA SAFETY STANDARD FOR UNDERWATER FACILITY AND NON-OPEN WATER OPERATIONS (INCLUDES CHANGE 1 DATED 05/28/1997)

slide34

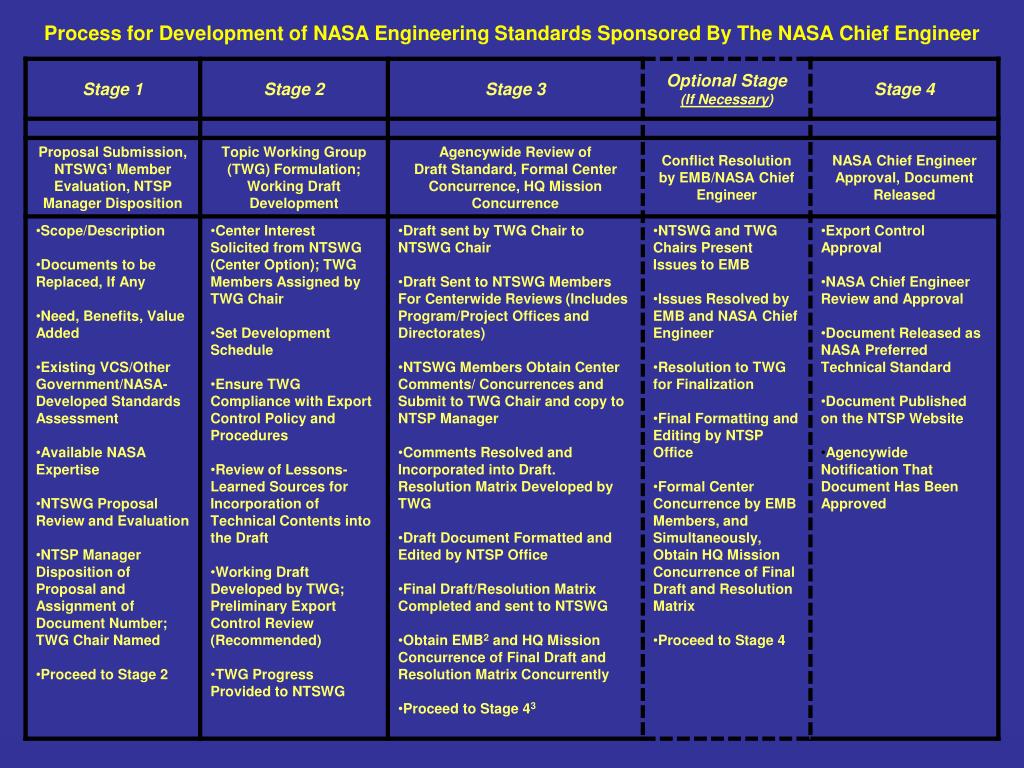

Process for Development of NASA Engineering Standards Sponsored By The NASA Chief Engineer
