Presentation Transcript
nitrate and groundwater flow to springs in the upper floridan aquifer lower acf chipola basin

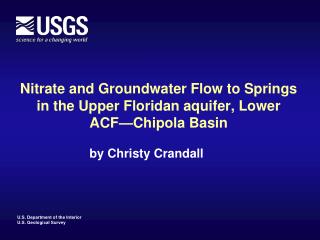

Nitrate and Groundwater Flow to Springs in the Upper Floridan aquifer, Lower ACF—Chipola Basin

by Christy Crandall

objectives of study 2007 through 2009
Objectives of Study—2007 through 2009

1) To quantify

  • groundwater travel times
  • areas contributing recharge
  • hydrologic and geochemical processes occurring along flowpaths

2) Test 3 nitrogen management scenarios from 2002 through 2050 in areas contributing recharge to Jackson Blue, Baltzell Group, and Sandbag Springs.

  • Cessation of nitrogen input after 2001
  • 4 percent decline per year of nitrogen input
  • Maintain nitrogen input at 2001 levels
slide4

Study Area

Lower ACF Basin

Elevation

Streams

Physiographic

provinves

slide5

Floridan Aquifer

System

Named Springs

Mapped Closed-basin

depressions

Confinement

Status

slide13

Sub-Models

And

Selected Groundwater sites

slide19

pART

Particle Age and Area Contributing Recharge to Springs

slide22

K

Uncertainties

of Fertilizer Data

Locations of use?

Nitrate-N in mg/L

Jackson County, Florida, 1945 to 2001

slide23

Estimated changes in nitrate concentrations in Jackson Blue, Baltzell Group, and Sandbag Spring from 2002 through 2050 with 3 different management scenarios

  • Cessation of nitrogen input after 2001
  • 4 percent decline per year of nitrogen input
  • Maintain nitrogen input at 2001 levels
slide24

Estimated changes in nitrate concentrations in Jackson Blue Spring

from 2002 through 2050 with 3 different management scenarios

slide25

Estimated changes in nitrate concentrations in Baltzell Spring Group

from 2002 through 2050 with 3 different management scenarios

slide26

Estimated changes in nitrate concentrations in Sandbag Spring

from 2002 through 2050 with 3 different management scenarios

future directions large objectives
Future Directions--Large Objectives
  • Develop linked groundwater/surface water model to calculate daily stage, stream flux, and head, as a function of pumpage, rainfall, upstream conditions, climate events, and dam releases through 2050
future directions my tasks
Future Directions—my tasks
  • Convert Current Model to transient flow model
  • Use more sophisticated unsaturated flow and streamflow routing to account for aquifer- stream interaction, evaporation and recharge in the surficial aquifer/residium.
  • Calibrate transient model for 1978 to 2008 recharge, stream and spring flow and pumpage conditions.
