pleural effusions

Pleural Effusions

Kady Rejret, RN,BSN

Alverno College MSN-621

navigating this tutorial
Navigating this tutorial

Takes you back to the Outcomes page

Takes you to next page

Takes you to previous page

Takes you to previous page viewed

outcomes click on the topic below you would like to view

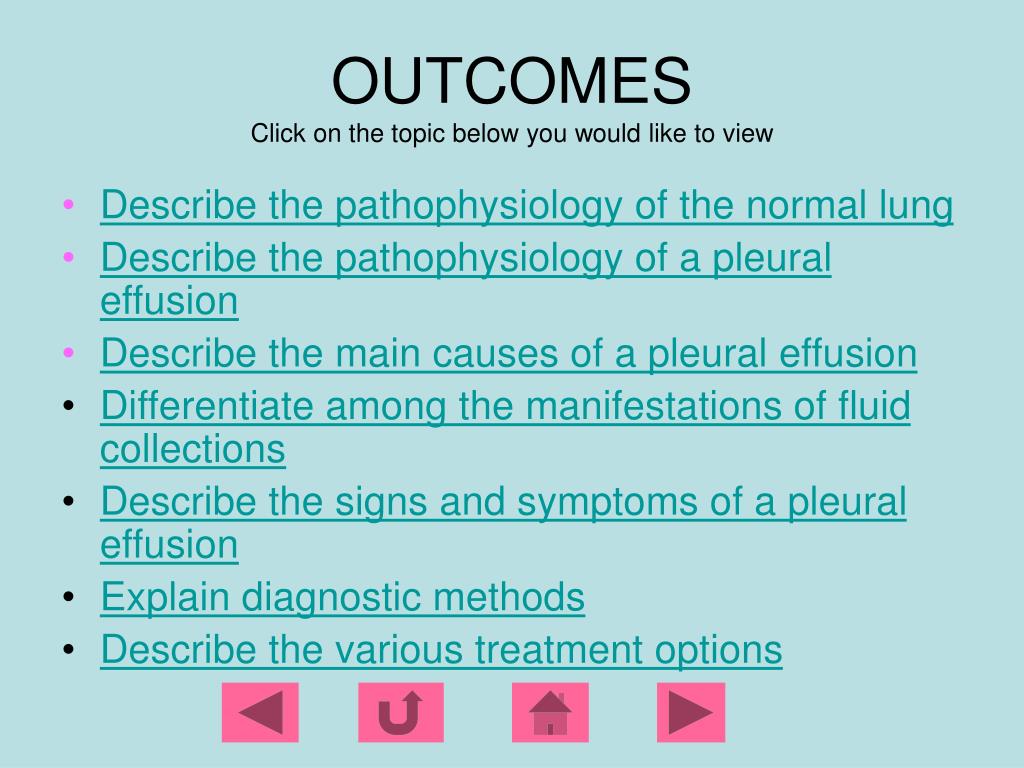

OUTCOMESClick on the topic below you would like to view
  • Describe the pathophysiology of the normal lung
  • Describe the pathophysiology of a pleural effusion
  • Describe the main causes of a pleural effusion
  • Differentiate among the manifestations of fluid collections
  • Describe the signs and symptoms of a pleural effusion
  • Explain diagnostic methods
  • Describe the various treatment options
normal lung pleural effusion
Normal lung pleural effusion

Picture used with permission (Allibone, 2006, p.56)

physiology of the normal lung

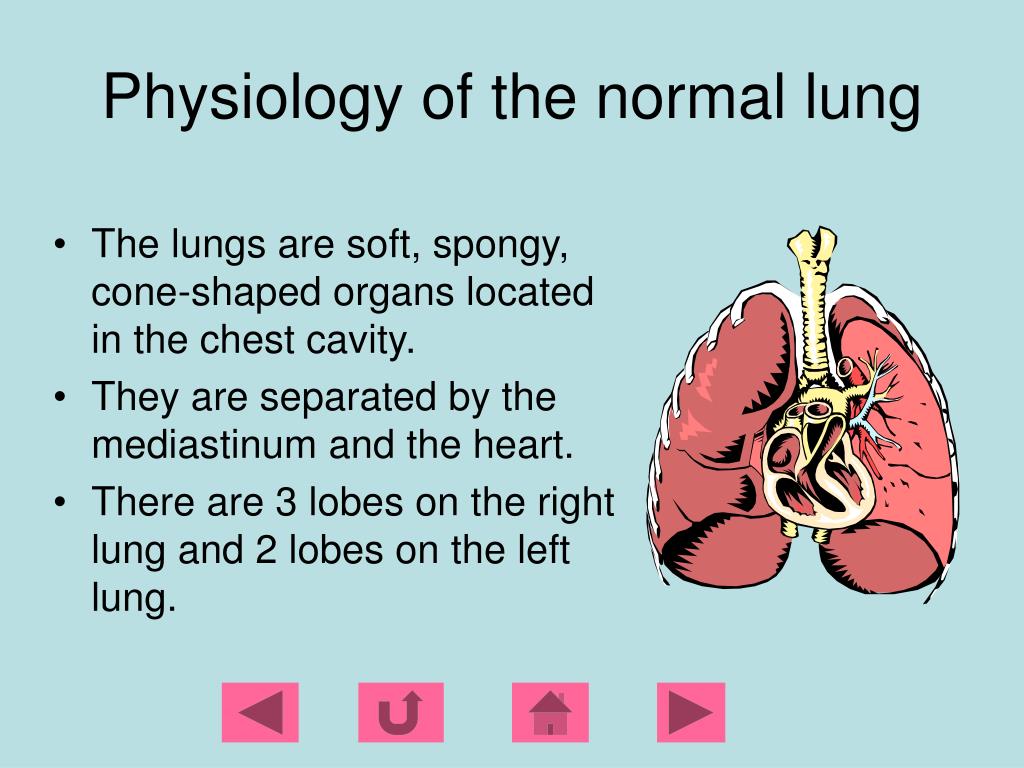

Physiology of the normal lung
  • The lungs are soft, spongy, cone-shaped organs located in the chest cavity.
  • They are separated by the mediastinum and the heart.
  • There are 3 lobes on the right lung and 2 lobes on the left lung.
pleura

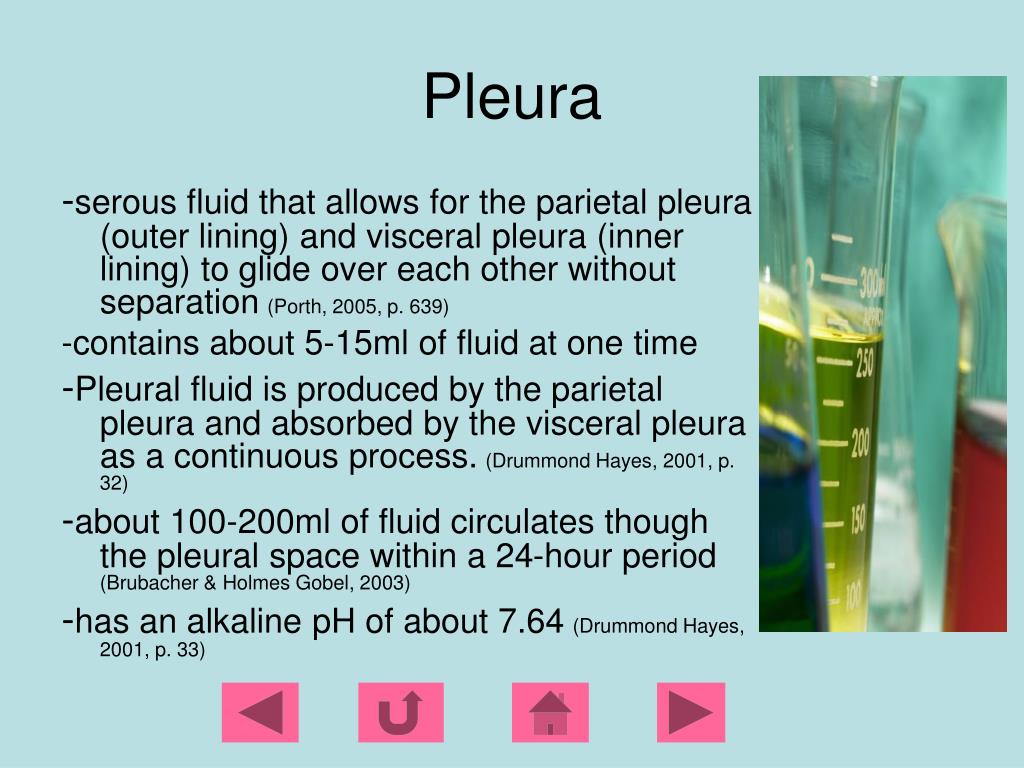

Pleura

-serous fluid that allows for the parietal pleura (outer lining) and visceral pleura (inner lining) to glide over each other without separation(Porth, 2005, p. 639)

-contains about 5-15ml of fluid at one time

-Pleural fluid is produced by the parietal pleura and absorbed by the visceral pleura as a continuous process.(Drummond Hayes, 2001, p. 32)

-about 100-200ml of fluid circulates though the pleural space within a 24-hour period(Brubacher & Holmes Gobel, 2003)

-has an alkaline pH of about 7.64(Drummond Hayes, 2001, p. 33)

layers of the lung
Layers of the lung

Pleural Space

  • thin, transparent, serous membrane which lines the thoracic cavity
  • a potential space between the parietal pleura and visceral pleura

Rib Cage

Lung

Picture used with permission Allibone, 2006

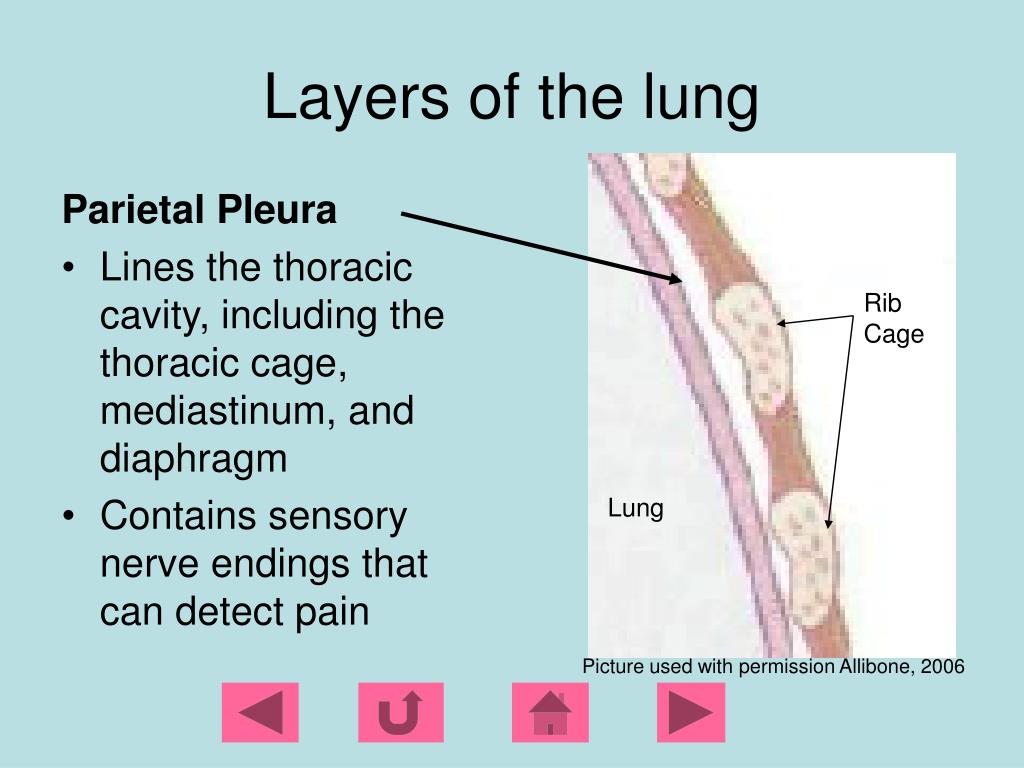

layers of the lung8
Layers of the lung

Parietal Pleura

  • Lines the thoracic cavity, including the thoracic cage, mediastinum, and diaphragm
  • Contains sensory nerve endings that can detect pain

Rib Cage

Lung

Picture used with permission Allibone, 2006

layers of the lung9
Layers of the lung

Visceral Pleura

  • Lines the entire surface of the lung
  • Contains NO sensory nerve endings that detect pain

Rib Cage

Lung

Picture used with permission Allibone, 2006

review question
Review question:

Pleuritic chest pain indicates

inflammation or irritation of the

parietal pleura or visceral pleura?

(click on the correct answer)

think again
Think again!

The visceral pleura contains no

nerve endings for detecting pain.

correct
Correct!

The parietal pleura contains sensory nerve endings that

can detect pain.

review question13
Review question:

The pleural space typically contains how much fluid?

5-15ml

50-100ml

100-200ml

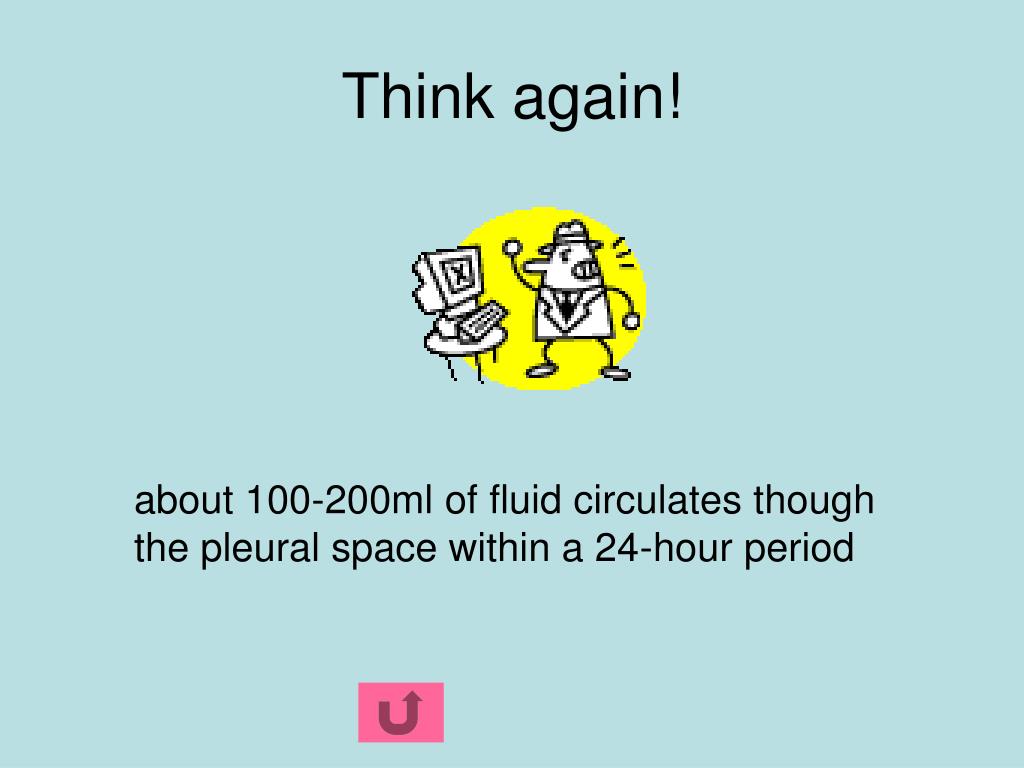

think again14
Think again!

about 100-200ml of fluid circulates though the pleural space within a 24-hour period

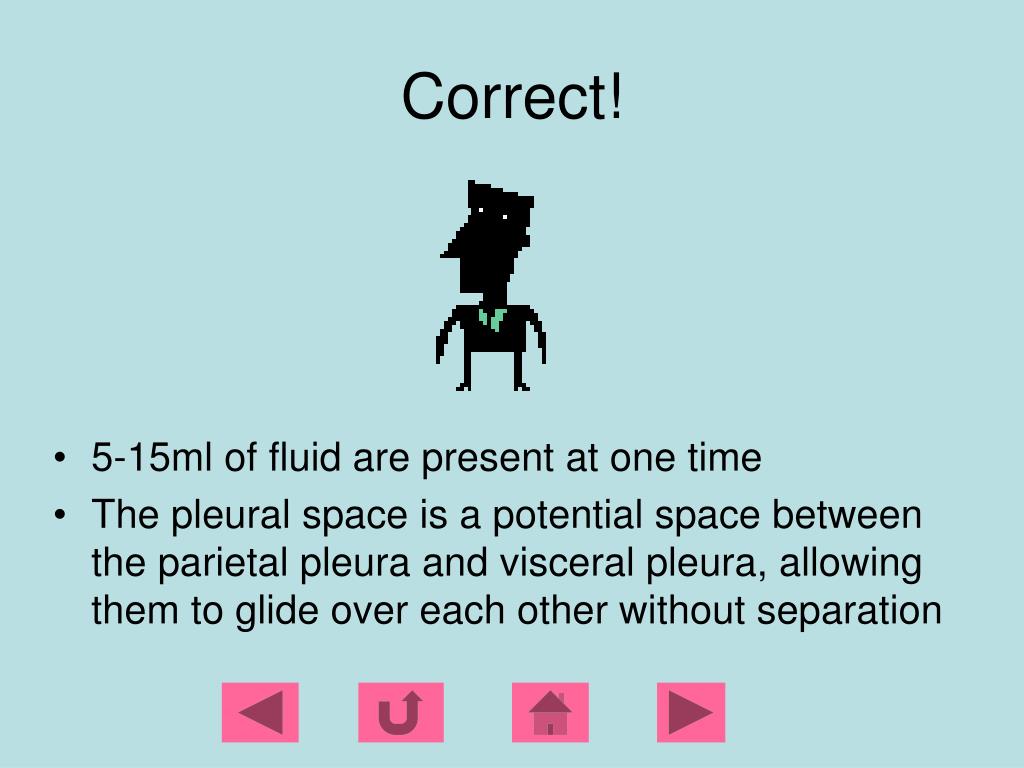

correct15
Correct!
  • 5-15ml of fluid are present at one time
  • The pleural space is a potential space between the parietal pleura and visceral pleura, allowing them to glide over each other without separation
the normal lung
The lungs are supplied with blood via the pulmonary and bronchial circulations.

Pulmonary circulation: supplied from the pulmonary artery and provides for gas exchange function of the lungs.

Bronchial circulation: distributes blood to the conducting airways and supporting structures of the lung.

The normal lung
the normal lung17
Intrapulmonary pressure

-the pressure within the alveoli -as the chest expands on inspiration the intrapulmonary pressure becomes more negative, which causes air to be sucked into the lungs.

(Allibone, 2006, p. 56)

Intrapleural pressure

-Negative pressure is created in the pleural space as the thoracic cage enlarges and the lungs recoil during normal inspiration -negative pressure may be lost if fluid collects in the pleural space, making the lung unable to expand fully.

(Allibone, 2006, p. 56)

The normal lung
the normal lung18
The normal lung
  • cells within the pleura are primarily mesothelial cells that line the surfaces of the pleural membranes and some white blood cells (WBC).
  • The visceral pleura absorbs fluid, which then drains into the lymphatic system and returns to the blood
  • Protein in the circulation and balanced pressures keep excessive amounts of fluid from seeping out of the blood vessels into the pleural space

(Pumonary Channel, 2007)

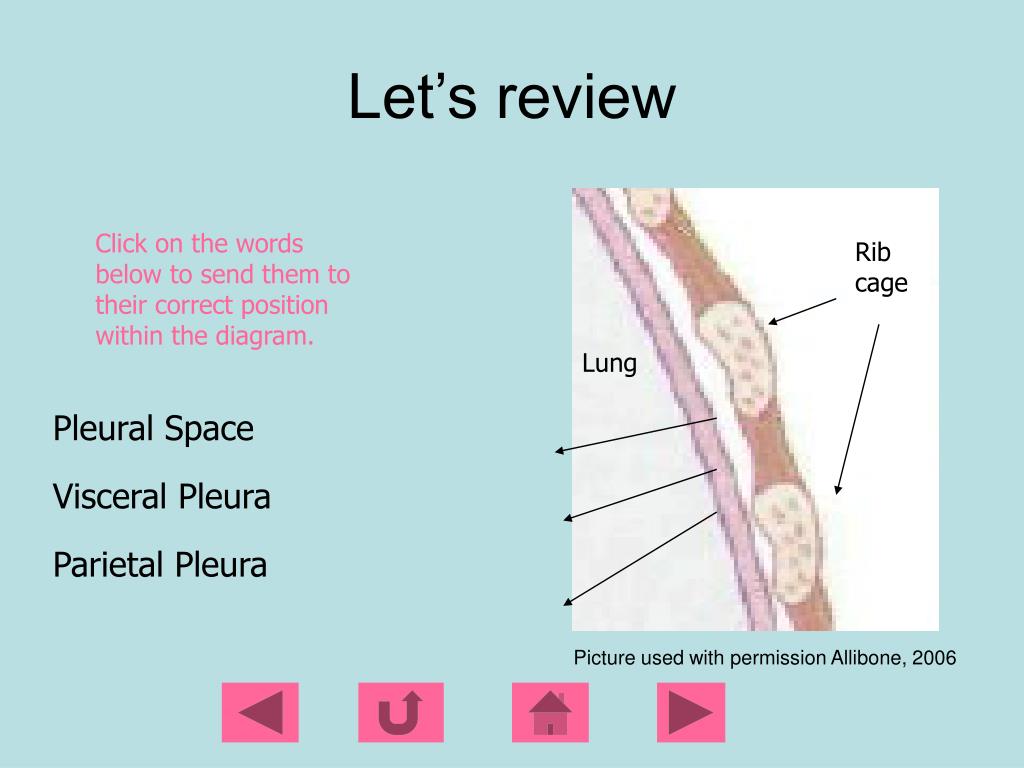

let s review
Let’s review

Click on the words below to send them to their correct position within the diagram.

Rib cage

Lung

Pleural Space

Visceral Pleura

Parietal Pleura

Picture used with permission Allibone, 2006

let s review20
Let’s review

Fluid is absorbed by the:

Parietal Pleura

Pleural Space

Visceral Pleura

think again21

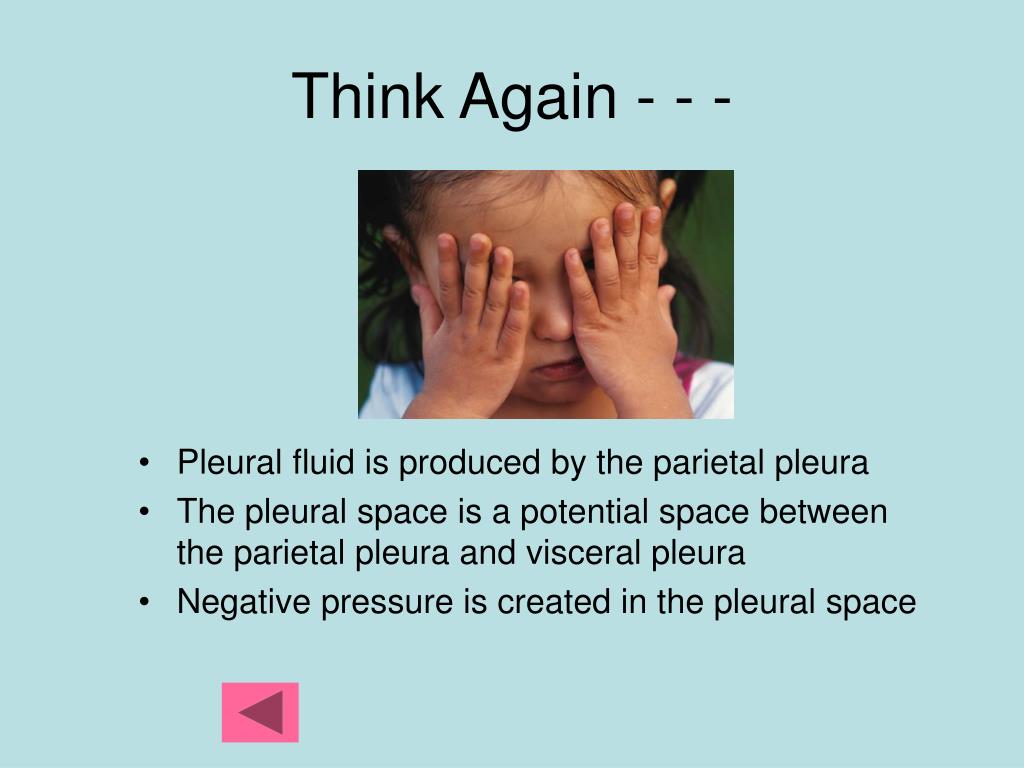

Think Again - - -
  • Pleural fluid is produced by the parietal pleura
  • The pleural space is a potential space between the parietal pleura and visceral pleura
  • Negative pressure is created in the pleural space
c o r r e c t

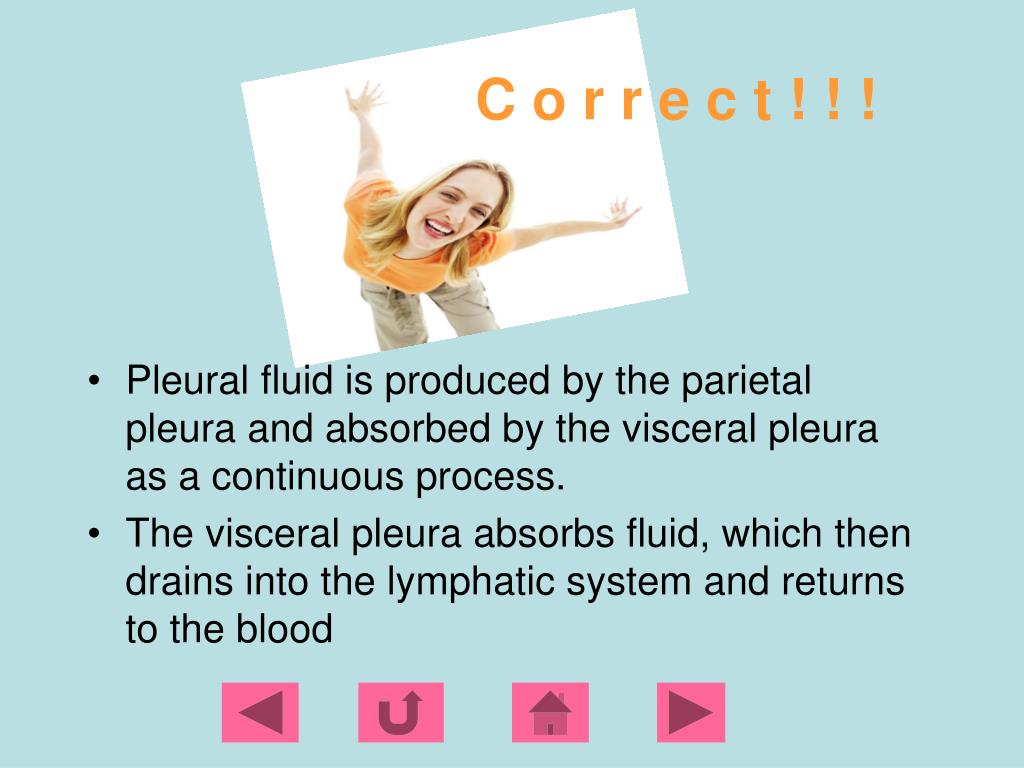

C o r r e c t ! ! !
  • Pleural fluid is produced by the parietal pleura and absorbed by the visceral pleura as a continuous process.
  • The visceral pleura absorbs fluid, which then drains into the lymphatic system and returns to the blood
outcomes click on the topic below you would like to view23
OUTCOMESClick on the topic below you would like to view
  • Describe the pathophysiology of the normal lung
  • Describe the pathophysiology of a pleural effusion
  • Describe the main causes of a pleural effusion
  • Differentiate among the manifestations of fluid collections
  • Describe the signs and symptoms of a pleural effusion
  • Explain diagnostic methods
  • Describe the various treatment options
pleural effusion
Pleural effusion
  • Created by an abnormal collection of fluid in the pleural space
  • Seen in chest X-ray with presence of about 200ml pleural fluid
  • Fluid in X-ray seen as a dense, white shadow with a concave upper edge (fluid level)

(Allibone, 2006)

Click on the pleural effusion in the picture!

Used with permission (Allibone, 2006, p. 59)

pleural effusion25

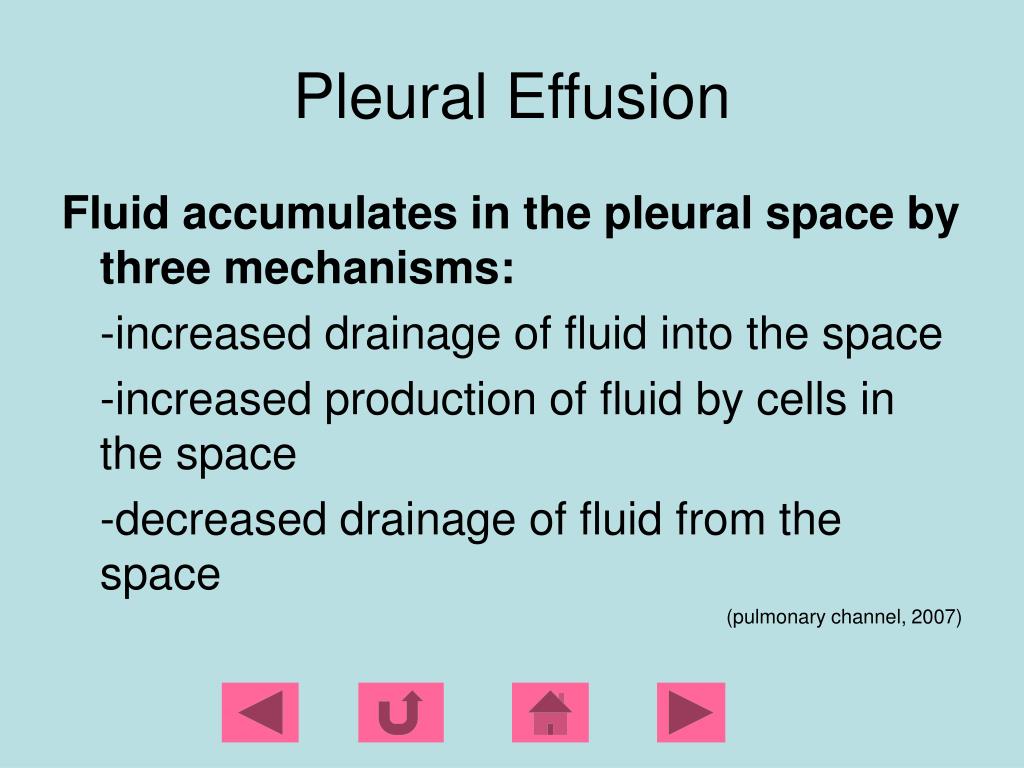

Pleural Effusion

Fluid accumulates in the pleural space by three mechanisms:

-increased drainage of fluid into the space

-increased production of fluid by cells in the space

-decreased drainage of fluid from the space

(pulmonary channel, 2007)

pleural effusion26
Pleural Effusion
  • The build-up of fluid presses on the lung, making it difficult for the lung to expand fully.
  • Part or all of the lung may then collapse

(National Cancer Institute, 2007)

pleural effusion27
Pleural Effusion
  • Your lungs contain millions of small, elastic

air sacs called alveoli

  • Normally, with each breath the air sacs take in oxygen and release carbon dioxide
  • Sometimes increased pressure in the blood vessels in your lungs forces fluid into the air sacs, filling them with fluid and preventing absorption of oxygen.

(Mayo Foundation for Medical Education and Research, 2006)

pleural effusions28
Pleural Effusions

Malignancy accounts for about 40% of symptomatic pleural effusions, with congestive heart failure and infection being the other leading causes

(National Cancer Institute, 2006)

slide29

Fluid collection in both lower lobes of the lungs due to CHF

Picture used with permission (Allibone, 2006, p. 59)

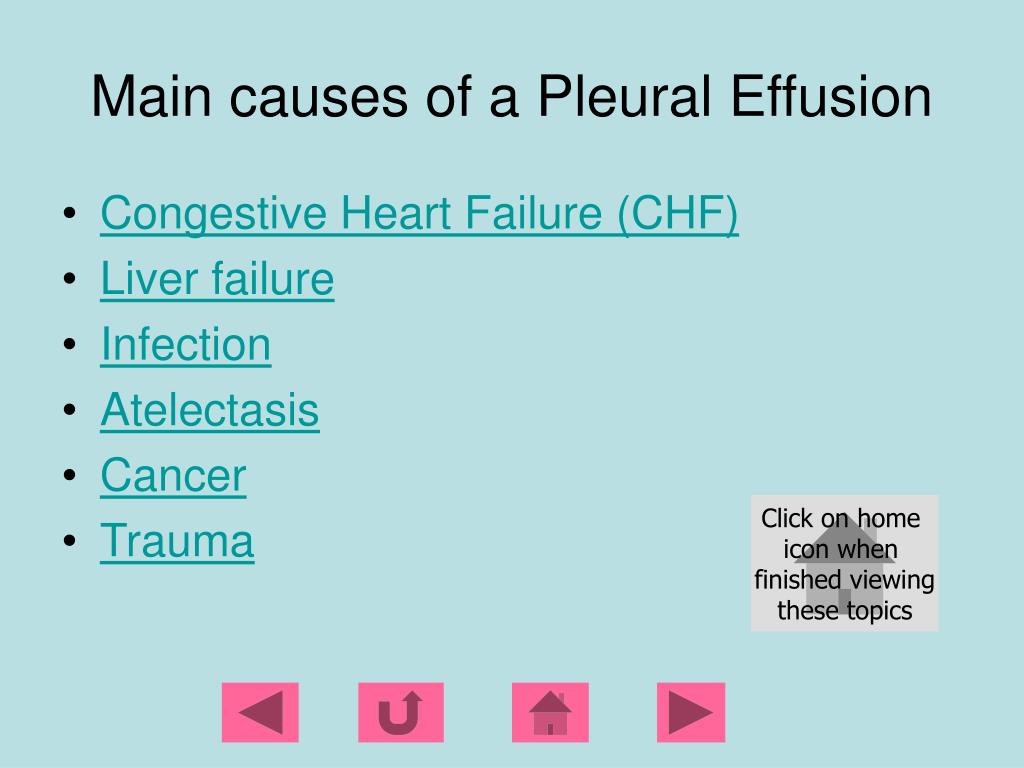

main causes of a pleural effusion
Main causes of a Pleural Effusion
  • Congestive Heart Failure (CHF)
  • Liver failure
  • Infection
  • Atelectasis
  • Cancer
  • Trauma

Click on home

icon when

finished viewing

these topics

congestive heart failure chf

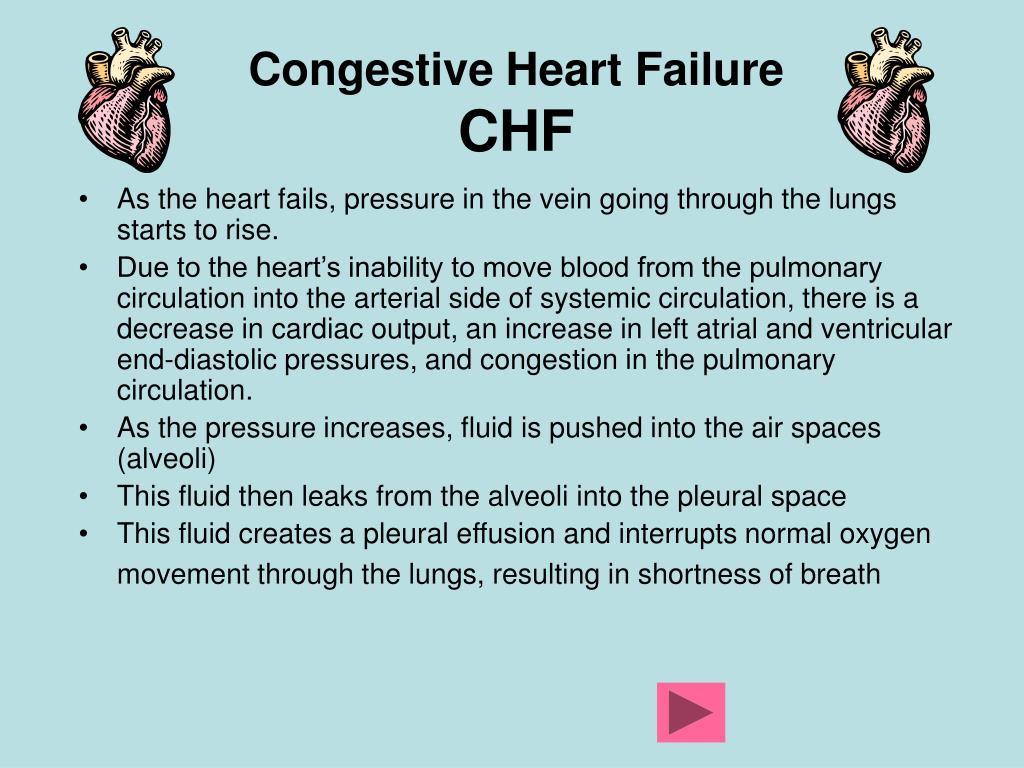

Congestive Heart FailureCHF
  • As the heart fails, pressure in the vein going through the lungs starts to rise.
  • Due to the heart’s inability to move blood from the pulmonary circulation into the arterial side of systemic circulation, there is a decrease in cardiac output, an increase in left atrial and ventricular end-diastolic pressures, and congestion in the pulmonary circulation.
  • As the pressure increases, fluid is pushed into the air spaces (alveoli)
  • This fluid then leaks from the alveoli into the pleural space
  • This fluid creates a pleural effusion and interrupts normal oxygen movement through the lungs, resulting in shortness of breath
slide32
CHF
  • CHF is the most common cause of pleural effusion.
  • Frequently the effusions are bilateral (approximately 75% of the time) but may occur alone on either side with the right side being more common.
  • Fluid is usually straw colored, with low white blood cell counts (<500 cells/mm3) and a mononuclear cell predominance.
  • With severe congestive heart failure, fluid may persist in spite of vigorous diuresis.

(National Lung Health Education Program, 2000)

Back

liver failure
Liver Failure
  • Negative intrapleural pressure may lead to a transudative effusion due to peritoneal fluid from ascites moving across the diaphragm into the chest

(Current Therapy, 2001, p. 208)

infection

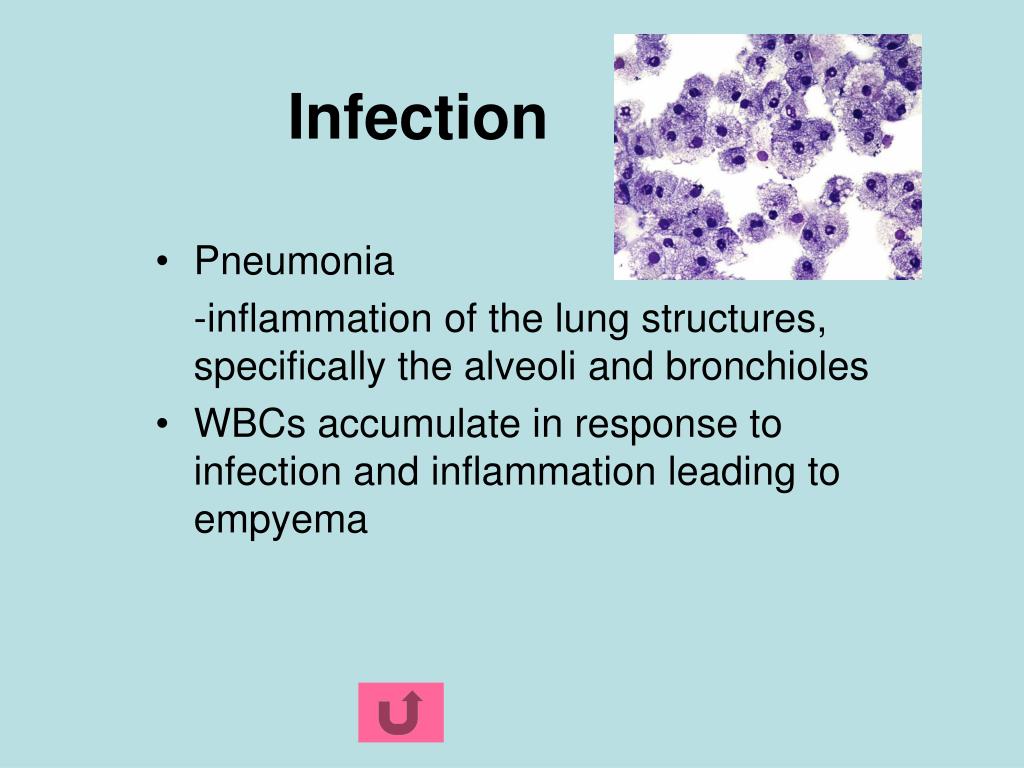

Infection
  • Pneumonia

-inflammation of the lung structures, specifically the alveoli and bronchioles

  • WBCs accumulate in response to infection and inflammation leading to empyema
atelectasis

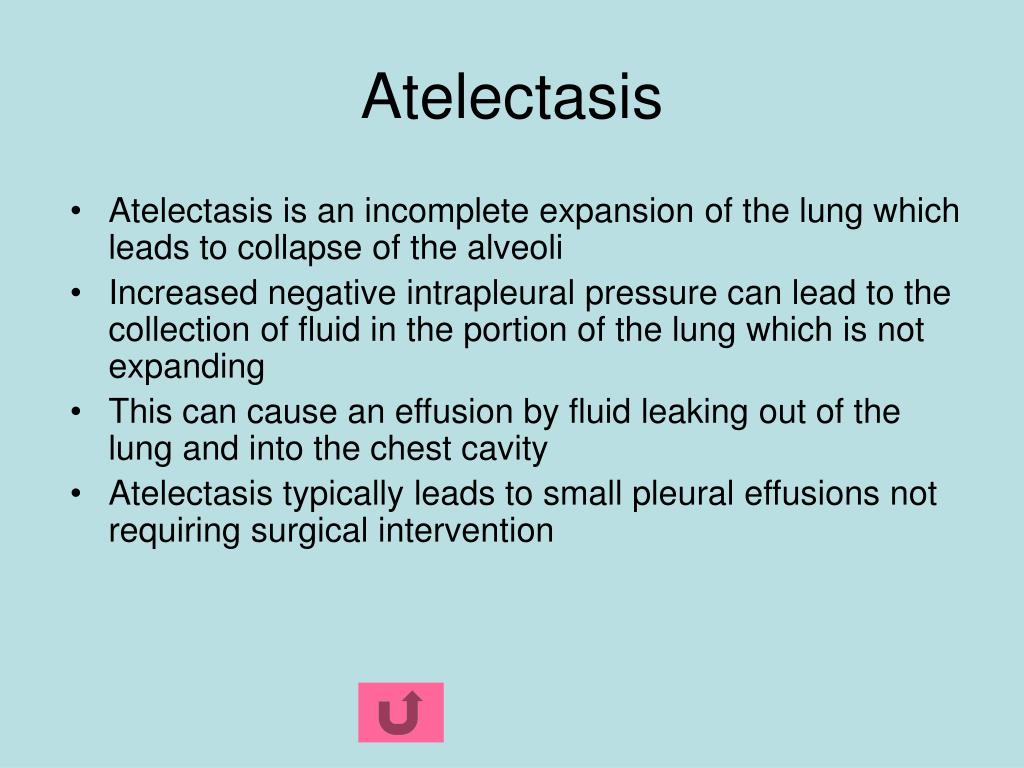

Atelectasis
  • Atelectasis is an incomplete expansion of the lung which leads to collapse of the alveoli
  • Increased negative intrapleural pressure can lead to the collection of fluid in the portion of the lung which is not expanding
  • This can cause an effusion by fluid leaking out of the lung and into the chest cavity
  • Atelectasis typically leads to small pleural effusions not requiring surgical intervention
cancer
Cancer
  • Impaired lymphatic drainage of the pleural space due to obstruction by a tumor
  • Typically due to the interference with the visceral pleura (which absorbs pleural fluid)
  • A tumor can obstruct pulmonary veins, preventing fluid from being reabsorbed into the bloodstream
  • A tumor can perforate the thoracic duct
  • Shedding of malignant cells into the pleural space, decreasing reabsorption of pleural fluid back into the lymphatic system (Brubacher & Holmes Gobel, 2003, p. 1)
trauma
Trauma
  • Increased capillary permeability as a result of inflammation
  • Fluid (most often, blood) may collect in the lung cavity as a result of trauma to the lung

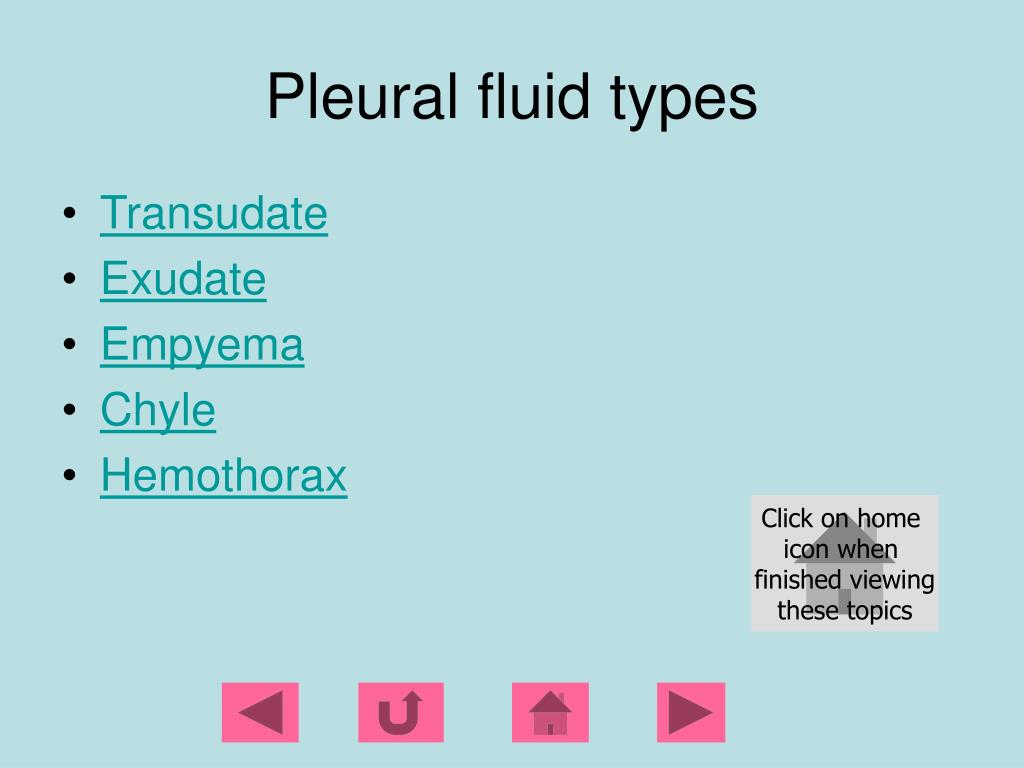

pleural fluid types
Pleural fluid types
  • Transudate
  • Exudate
  • Empyema
  • Chyle
  • Hemothorax

Click on home

icon when

finished viewing

these topics

transudate
Transudate
  • Clear, pale yellow, watery substance
  • Influenced by systemic factors that alter the formation or absorption of fluid
  • Increase in hydrostatic pressure
  • Decrease in plasma oncotic pressure
  • Contains few protein cells
  • Common causes: CHF and liver or kidney disease
exudate

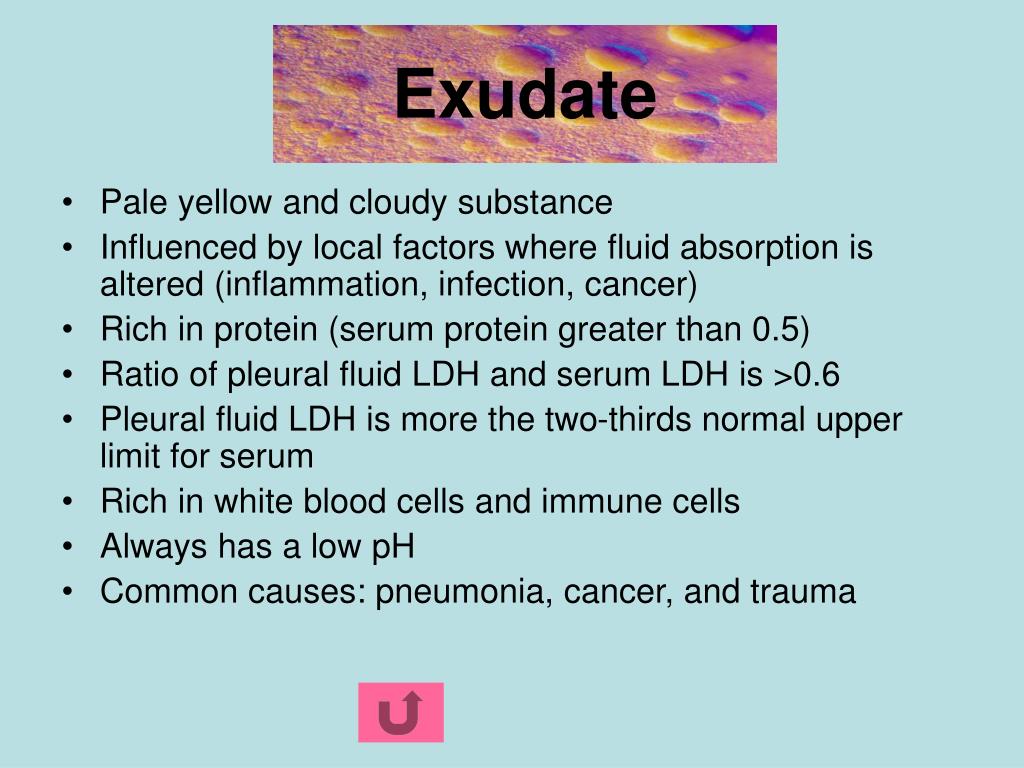

Exudate
  • Pale yellow and cloudy substance
  • Influenced by local factors where fluid absorption is altered (inflammation, infection, cancer)
  • Rich in protein (serum protein greater than 0.5)
  • Ratio of pleural fluid LDH and serum LDH is >0.6
  • Pleural fluid LDH is more the two-thirds normal upper limit for serum
  • Rich in white blood cells and immune cells
  • Always has a low pH
  • Common causes: pneumonia, cancer, and trauma
empyema

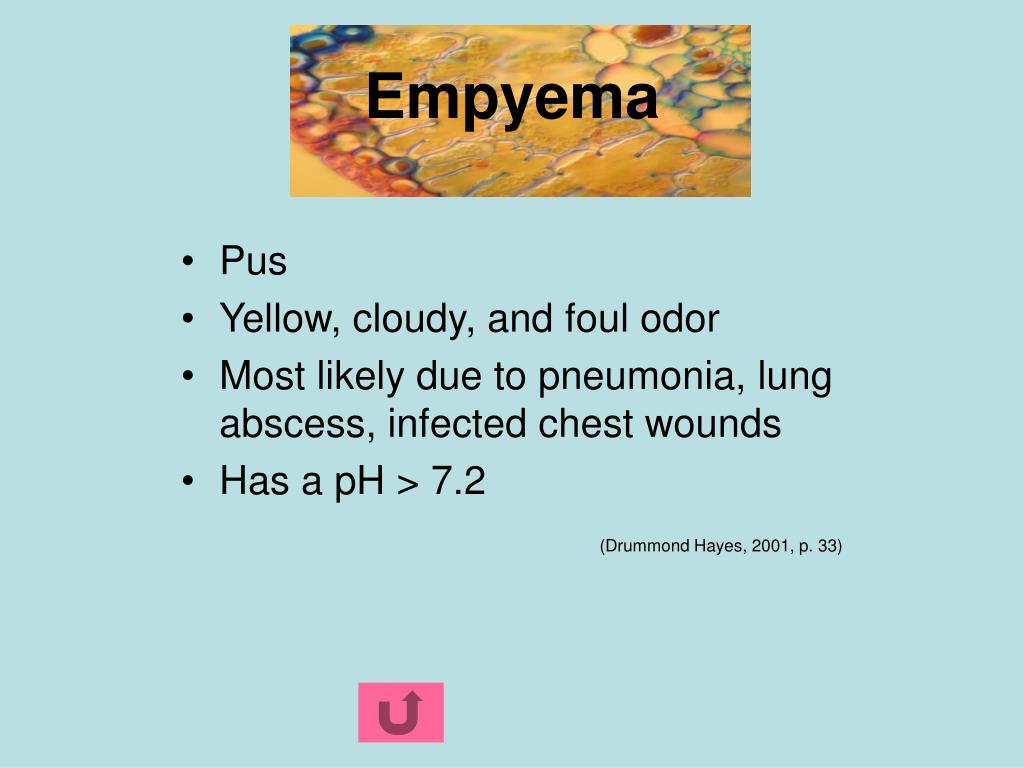

Empyema
  • Pus
  • Yellow, cloudy, and foul odor
  • Most likely due to pneumonia, lung abscess, infected chest wounds
  • Has a pH > 7.2

(Drummond Hayes, 2001, p. 33)

chyle
Chyle
  • Milky fluid
  • Consists of lymph and fat
  • Chyle leaks from the thoracic duct

-due to lymphatic obstruction (tumor) or trauma

  • High triglyceride levels found in fluid analysis
hemothorax
Hemothorax
  • Blood
  • Usually results from chest injury
  • A blood vessel ruptures into the pleural space or a bulging area into the aorta (aortic aneurysm) leaks blood into the pleural space
  • Can occur as a result of bleeding from the ribs, chest wall, pleura, and the lung
let s review44
Let’s review
  • Which is NOT a type of fluid that may cause a pleural effusion?

-empyema

-chylothorax

-pneumothorax

-hemothorax

this is a fluid that may cause a pleural effusion
This is a fluid that may cause a Pleural Effusion
  • Empyema (pus), Chylothorax (chyle), and hemothorax (blood) are all fluids that may result in a pleural effusion.
correct this is not a fluid
Correct, this is not a fluid!
  • Pneumothorax is a collection of air in the pleural cavity.
signs and symptoms
Signs and symptoms
  • Dyspnea
  • Cough, usually non-productive
  • Pleuritic chest pain
  • Chest pressure
  • Hypoxemia
  • Decreased breath sounds on the affected side
  • Some people may exhibit no symptoms!
diagnosis
Diagnosis
  • Chest radiograph (x-ray)

-able to distinguish >200ml of fluid

  • Chest ultrasound

-locates small amounts or isolated loculated pockets of fluid

-able to give precise position of accumulation

  • Computed Tomography (CT) scan

-Differentiates between fluid collection, lung abcess, or tumor

diagnosis49
Diagnosis

Fluid analysis confirms a pleural effusion

Normal pleural fluid has the following characteristics:

  • clear ultrafiltrate of plasma
  • pH 7.60-7.64
  • protein content less than 2% (1-2 g/dL)
  • fewer than 1000 WBCs per cubic millimeter
  • glucose content similar to that of plasma
  • lactate dehydrogenase (LDH) level less than 50% of plasma and sodium
  • potassium and calcium concentration similar to that of the interstitial fluid

(Abrahamian, 2005, p. 2 of 28)

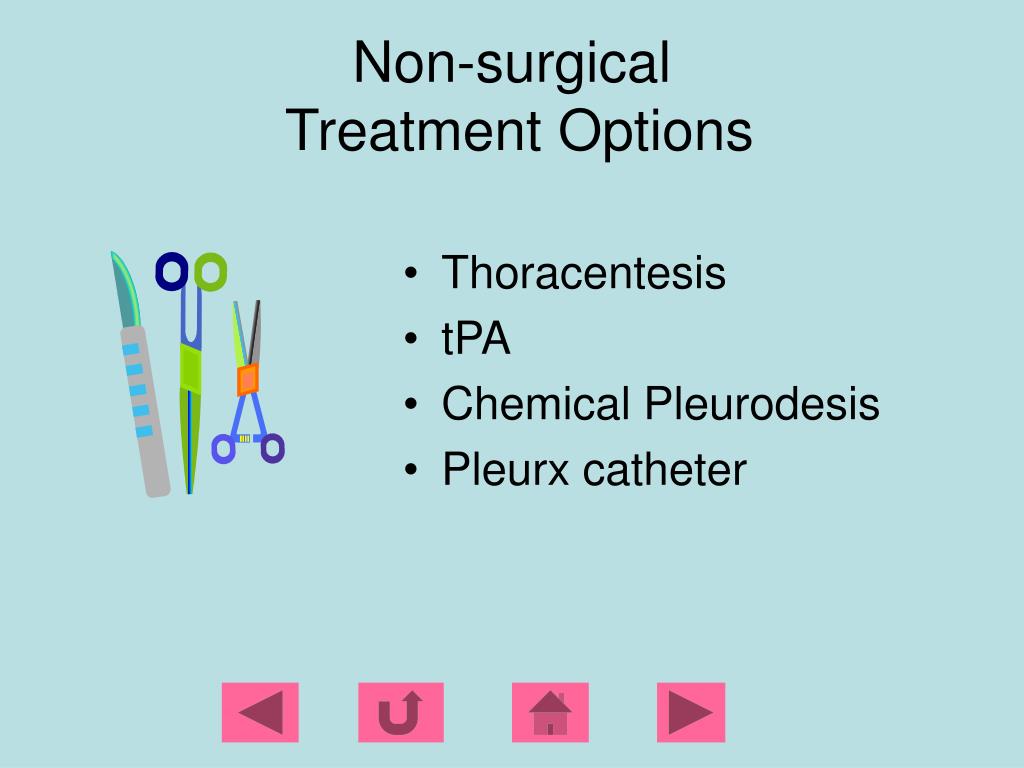

non surgical treatment options
Non-surgical Treatment Options
  • Thoracentesis
  • tPA
  • Chemical Pleurodesis
  • Pleurx catheter
thoracentesis
Thoracentesis
  • A needle is inserted into the chest wall to remove the collection of fluid
  • 50-100ml of fluid is sent for analysis
  • Determines the type of fluid (transudate or exudate)

Picture used with permission (Allibone, 2006, p. 60)

thoracentesis52
Thoracentesis
  • Not a permanent solution, fluid may reaccumulate after a few days
  • Will temporarily relieve symptoms
  • Potential complications include bleeding, infection, and pneumothorax
tpa alteplase
tPA (alteplase)
  • Thrombolytic enzyme
  • Converts plasminogen to the enzyme plasmin, which degrades fibrin clots
  • Lyses thrombi and emboli
  • May be administered into the chest tube catheter to restore patency and improve drainage
  • The patient is instructed to move positions frequently to distribute the medication throughout the lung
chemical pleurodesis
Chemical Pleurodesis
  • Sclerosing agents used: Talc, bleomycin, or doxycyline
  • Administered through a chest tube to create inflammation and subsequent fusion of the parietal and visceral pleura
  • Fluid is then unable to accumulate in this potential space
chemical pleurodesis55
Chemical Pleurodesis
  • The goal of chemical pleurodesis is to cause an irritation between the two layers covering the lung.
  • The sclerosant irritates the pleurae which results in inflammation and causes the pleurae to stick together.
  • The procedure can be done at the bedside or in the operating room.
  • Do not administer with any anti-inflammatory agents
pleurx catheter
Pleurx Catheter
  • Small, flexible tube inserted into the chest to drain fluid from around the lungs
  • Contains a one-way valve that prevents air from entering and fluid from leaking out when capped
  • Allows for intermittent home drainage using a vacuum bottle

Picture used with permission from Denver Biomedical

pleurx catheter57
Pleurx Catheter

In chest wall where fluid is accumulating

Picture used with permission from Denver Biomedical

pleurx catheters
Pleurx Catheters
  • Catheters are typically drained every one to two days
  • Keeping the lung fairly free of fluid, will most likely permanently stop the fluid from building up, so that the catheter can be removed.
  • The catheter may remain until fluid quits draining from the lung
  • The length of time a catheter will remain varies from patient to patient, ranging from a few weeks to several months.
pleurx catheter59
Pleurx Catheter
  • Beneficial for patients who are independent and able to perform self drainage
  • Minimizes the time spent in the hospital
  • Patients are instructed to drain up to 1,000ml of fluid at one time
  • Patients are instructed to call MD if drainage is <50ml on three consecutive sessions
  • Patients are able to wear usual clothing and continue usual activities
pleurx catheter60
Pleurx Catheter

Cap

  • Easy to connect vacuum container
  • Some patients experience pain upon drainage, slowing the drainage with the clamp or stopping briefly may relieve this pain

Photos by Kady Rejret, 2007

pleurx
Pleurx

Photo by Kady Rejret, 2007

pleurx catheter benefits
Pleurx Catheter Benefits

• Reduces hospital length of stay

• Reduces costs

• Improves quality of life

• 46% pleurodesis in 29 days (median)

• Provides effective palliation of symptoms of pleural effusions

• Often implanted on an outpatient basis

• May be used with most trapped lung patients

• Minimizes pain

• Placed under local anesthetic

(Denver Biomedical, 2004)

pleurx catheter63
Pleurx Catheter

Click on the link below

for more information:

http://www.denverbiomedical.com

Used with permission from Denver Biomedical

let s review64
Let’s review

Which treatment option requires NO use of anti-inflammatories?

(click on the correct answer)

  • Thoracentesis
  • tPA
  • Chemical Pleurodesis
  • Pleurx Catheter
good job
Good Job!
  • Chemical Pleurodesis
  • This creates inflammation and subsequent fusion of the parietal and visceral pleura
  • Anti-inflammatories will counteract this reaction.
congratulations
Congratulations!

You have successfully completely this tutorial!

Kady Rejret,RN, BSN

references
References

Allibone, L. (2006). Assessment and management of patients with pleural effusions. Nursing Standard vol20 no22, 55-64

Abrahamian, F. M. (2005). Pleural Effusion. Retrieved March 22, 2007 from http://www.emedicine.com

Brubacher, S. & Holmes Gobel, B. (2003). Use of the pleurx pleural catheter for the management of malignant pleural effusions. Clinical Journal of Oncology Nursing 7 (1), 1-4

Denver Biomedical. (2004). Retrieved March 25, 2007 from http://www.denverbiomedical.com

Drummond Hayes, D. (2001). Stemming the tide of pleural effusions. Nursing Management 32(12), 29-35

Mayo Foundation for Medical Education and Research. (2006). Retrieved April 11, 2007 from http://www.mayoclinic.com/health

National Cancer Institute. (2006). Retrieved March 23, 2007 from http://www.cancer.gov

National Lung Health Education Program. (2000). Retrieved April 11, 2007 from www.nlhep.org

Porth,C.M. (2005). Pathophysiology: Concepts of Altered Health States (7th ed.) Lippincott.

Rejret, K. (2007). Personal Photograph.

Unattributed clipart: Microsoft Office, 2006.
