can crusher

Can Crusher

Ryan Yang

Kyle Knupp

Jessica Caraos

Renee Winet

problem statement

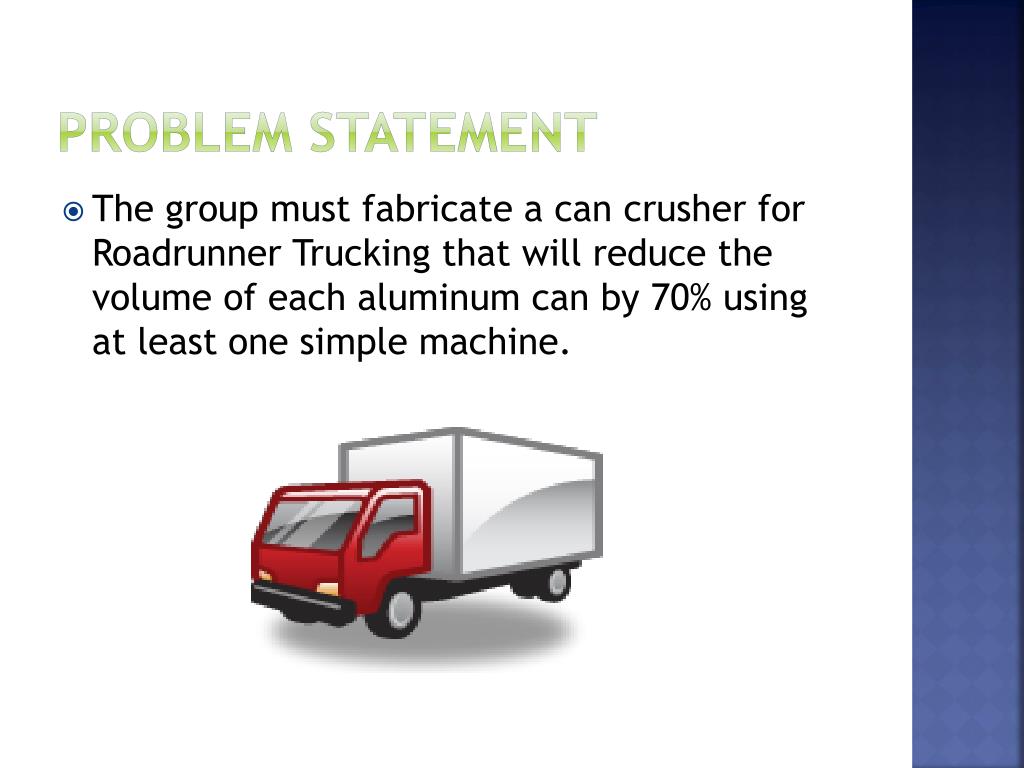

Problem statement
  • The group must fabricate a can crusher for Roadrunner Trucking that will reduce the volume of each aluminum can by 70% using at least one simple machine.
background

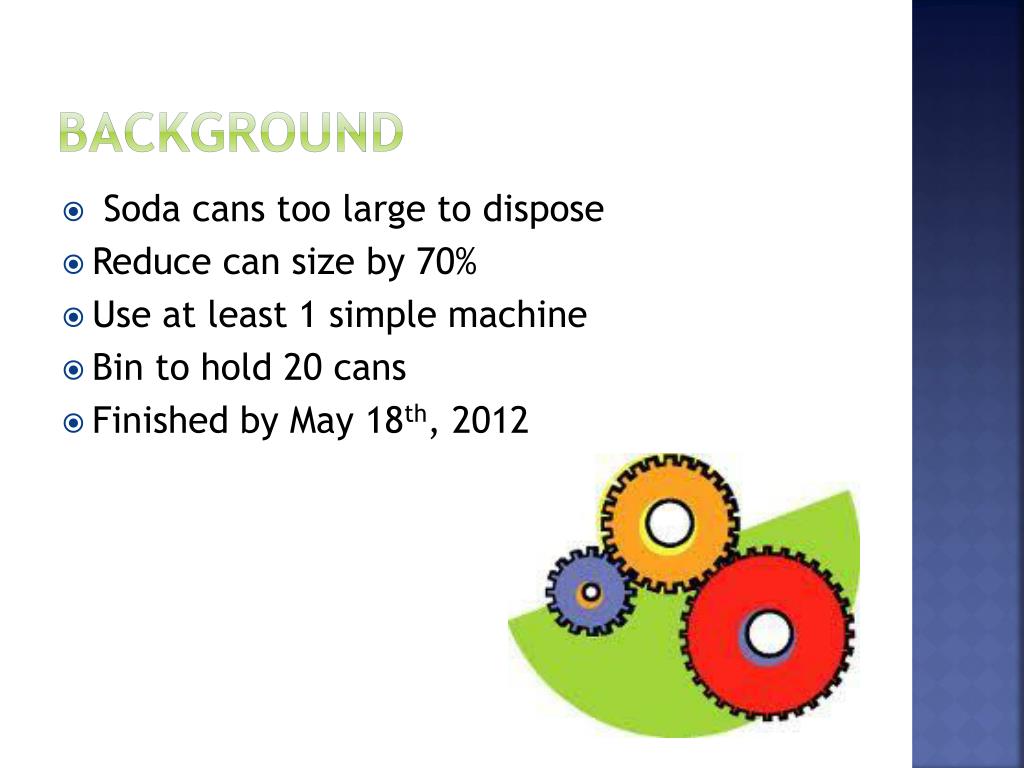

Background
  • Soda cans too large to dispose
  • Reduce can size by 70%
  • Use at least 1 simple machine
  • Bin to hold 20 cans
  • Finished by May 18th, 2012
customers
Customers
  • Roadrunner Trucking:
    • Needs to reduce cans by 70%
    • If not$0.05 penalty fee.
  • Mr. Pritchard:
    • ITC teacher
    • Collects Deliverables
research
Research
  • 100-170 lbs. of force
  • Simple machines decrease effort
  • Attach:
    • Wood glue, screws, nails, dowels
  • Crushed Can= 1.5” x 2.5”= App. 18in^3
  • Soft wood used because it’s cheaper.
criteria
Criteria
  • Minimum of one simple machine
  • Must fit within 18x24x30 box
  • PVC, Wood, Metal Hinges, and Brackets
  • Can must drop into bin
  • Bin must hold 20 crushed cans
constraints

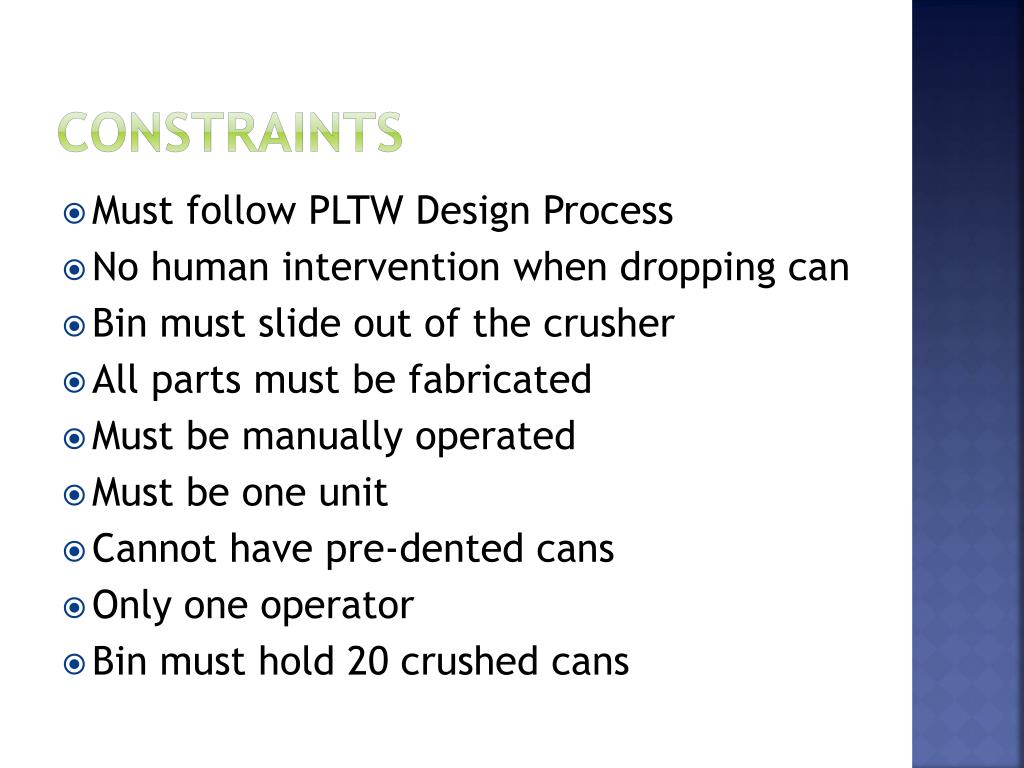

Constraints
  • Must follow PLTW Design Process
  • No human intervention when dropping can
  • Binmust slide out of the crusher
  • All parts must be fabricated
  • Must be manually operated
  • Must be one unit
  • Cannot have pre-dented cans
  • Only one operator
  • Bin must hold 20 crushed cans
select an approach1

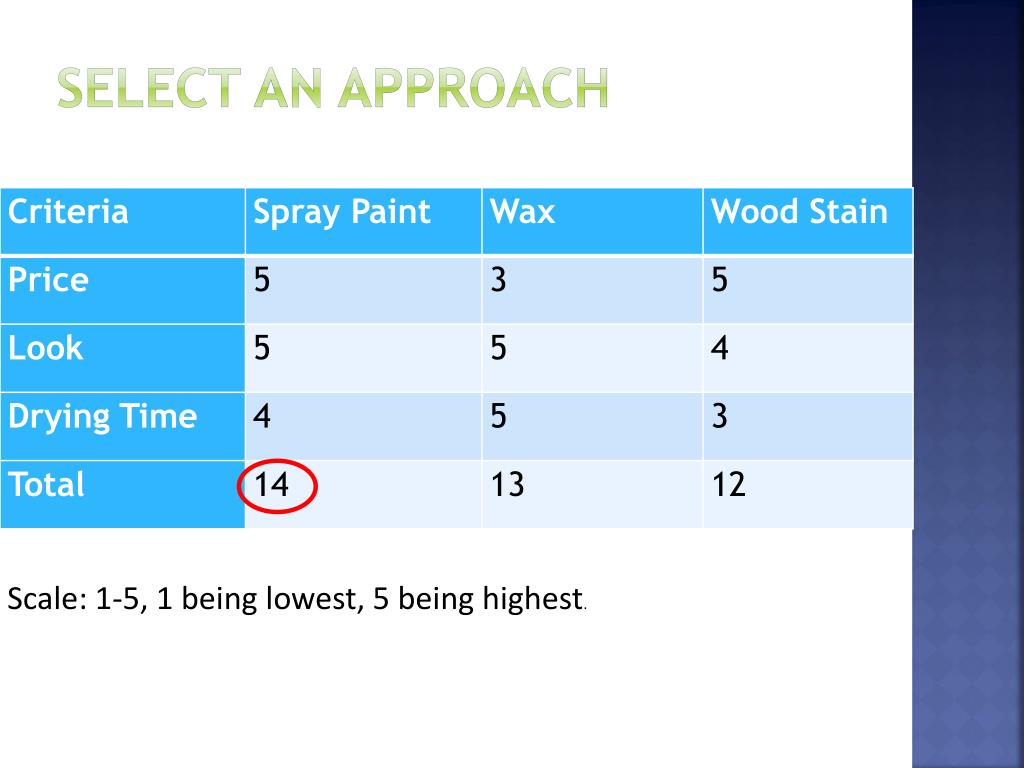

Select an approach

Scale: 1-5, 1 being lowest, 5 being highest.
