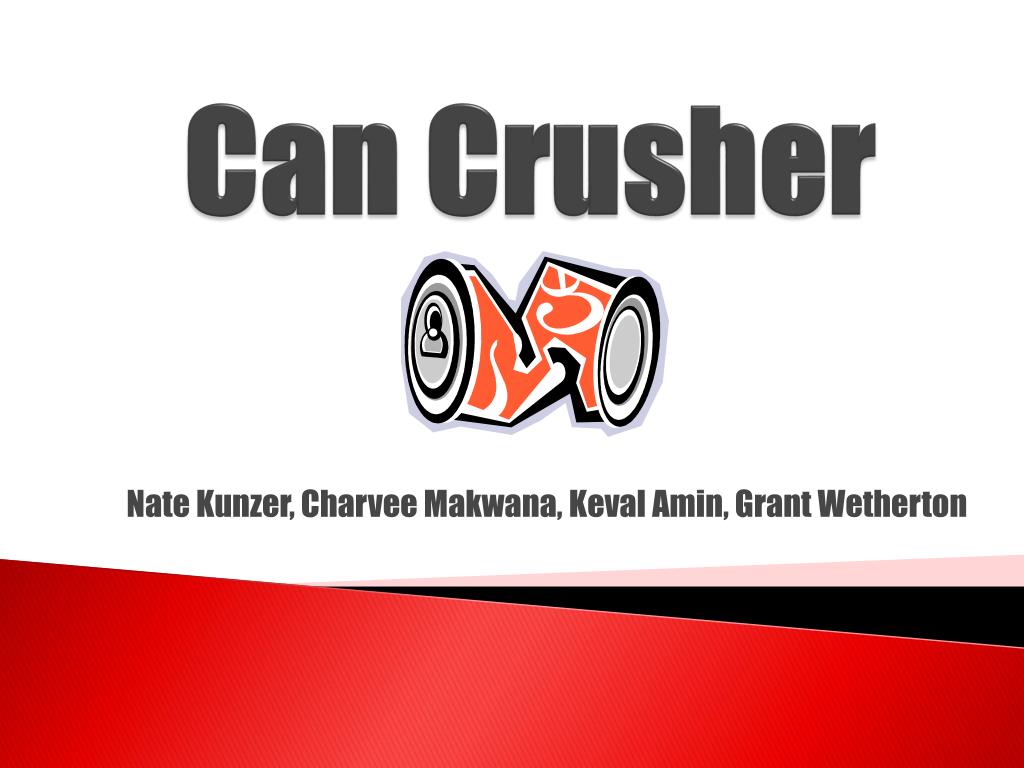

  1. Can Crusher Nate Kunzer, Charvee Makwana, KevalAmin, Grant Wetherton

  2. Agenda • Team Roles • Team Constitution • Timeline • Problem Statement • Background/Justification • Customer • Scope • Deliverables • Brainstorming • Research & Generate Ideas • Identify Criteria & Specify Constraints • Explore Possibilities • Select an Approach • Develop a Design Proposal • CAD Drawings • Bill of Materials • Build Process • Test Plan • Prototype • Test & Monitor • Refine • Lessons Learned • Summary

  3. Team Roles • Leader- Nate Kunzer • Scribe- Keval Amin • Scribe- CharveeMakwana • Timekeeper- Grant Wetherton

  4. Team Constitution • Respect each other • Avoid blaming others for any failures • NO idea will be ridiculed • Work is divided equally • NO ONE member will dominate over others • Respect each others opinions

  5. Timeline

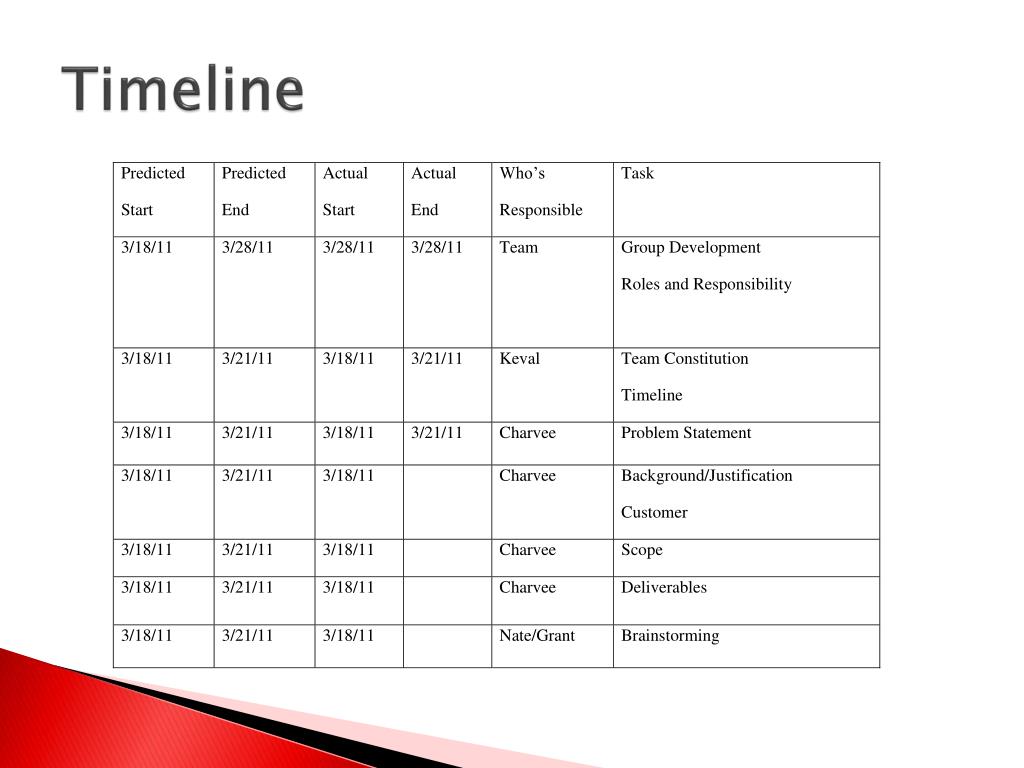

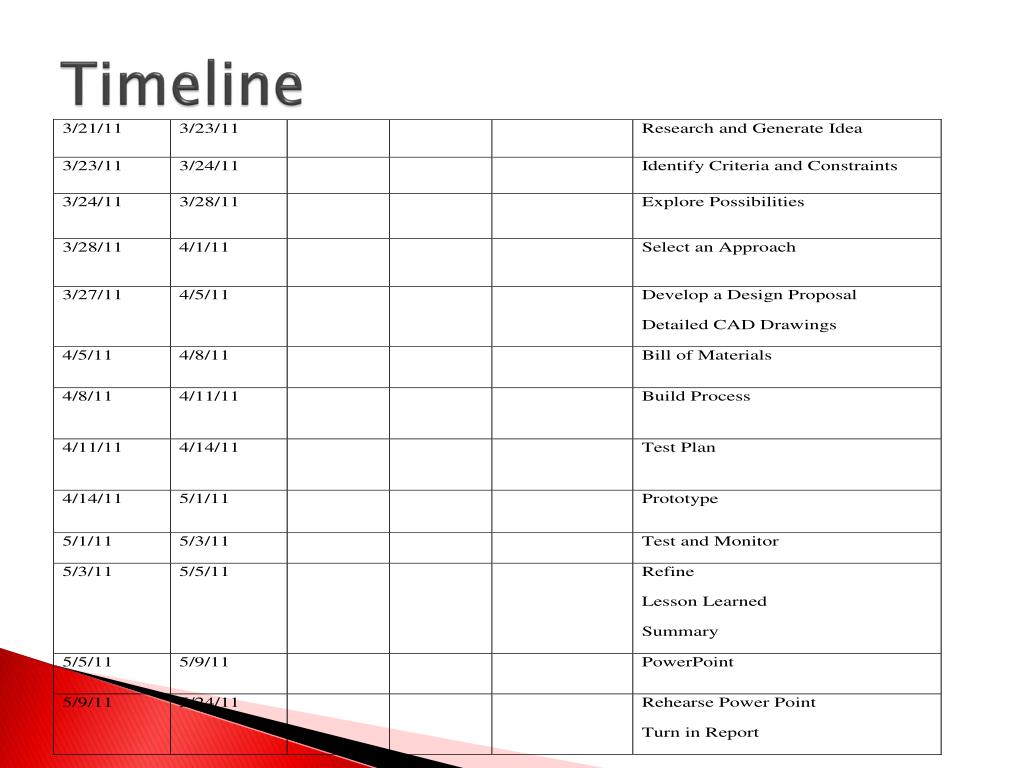

  6. Timeline

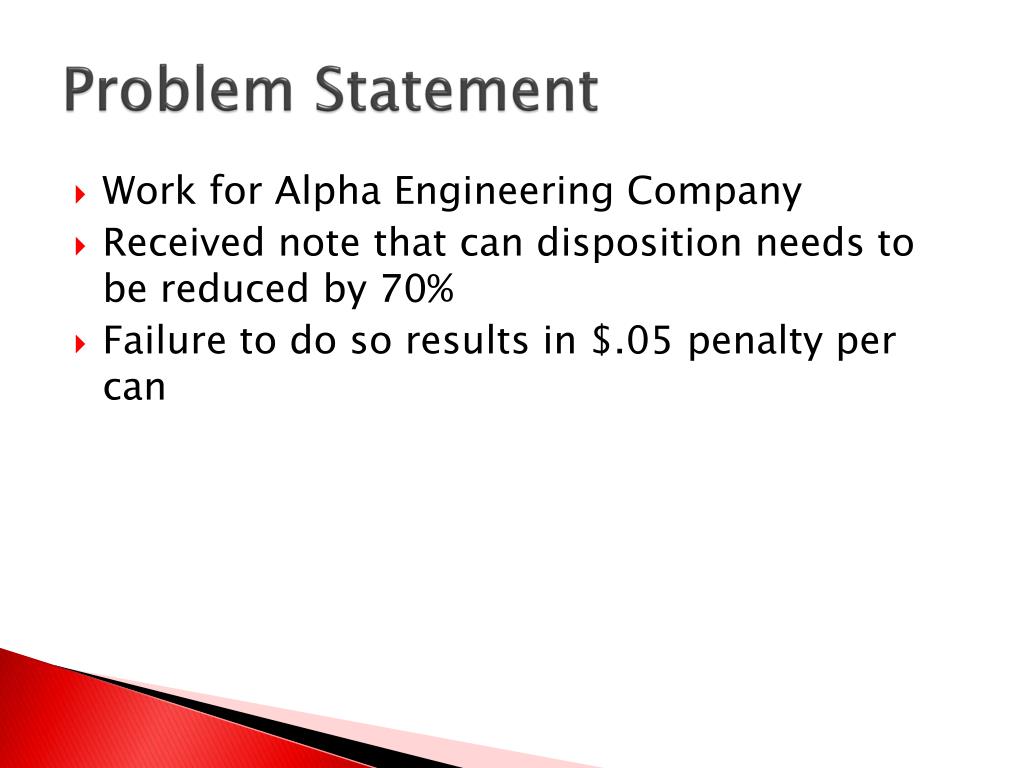

  7. Problem Statement • Work for Alpha Engineering Company • Received note that can disposition needs to be reduced by 70% • Failure to do so results in $.05 penalty per can

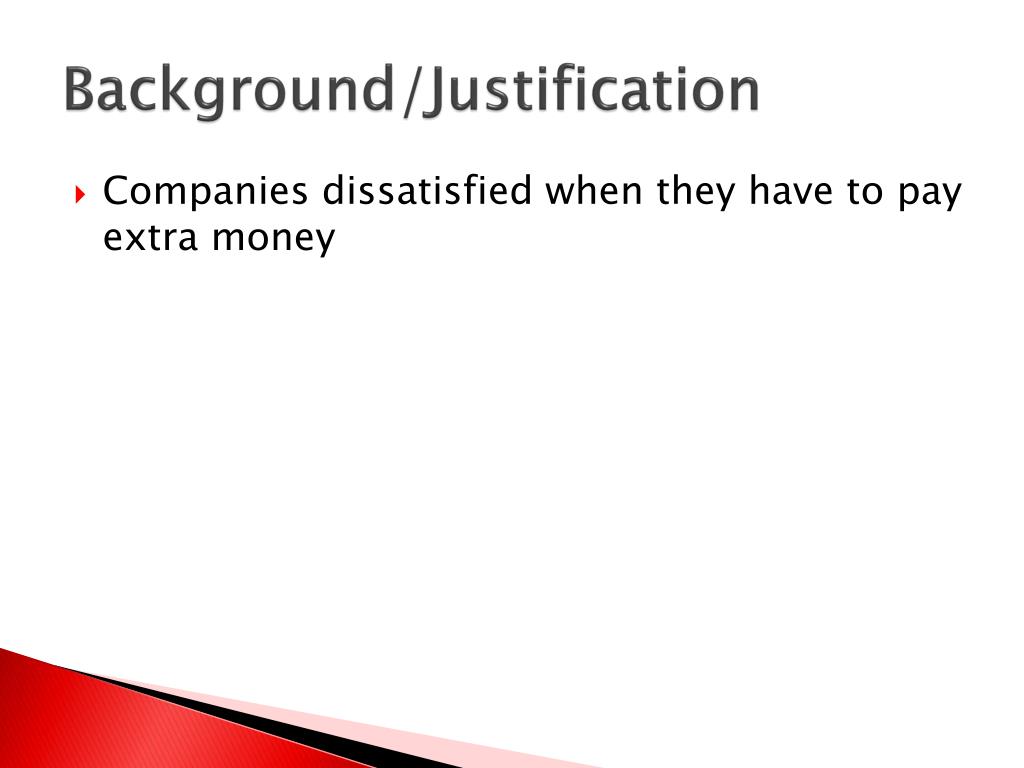

  8. Background/Justification • Companies dissatisfied when they have to pay extra money

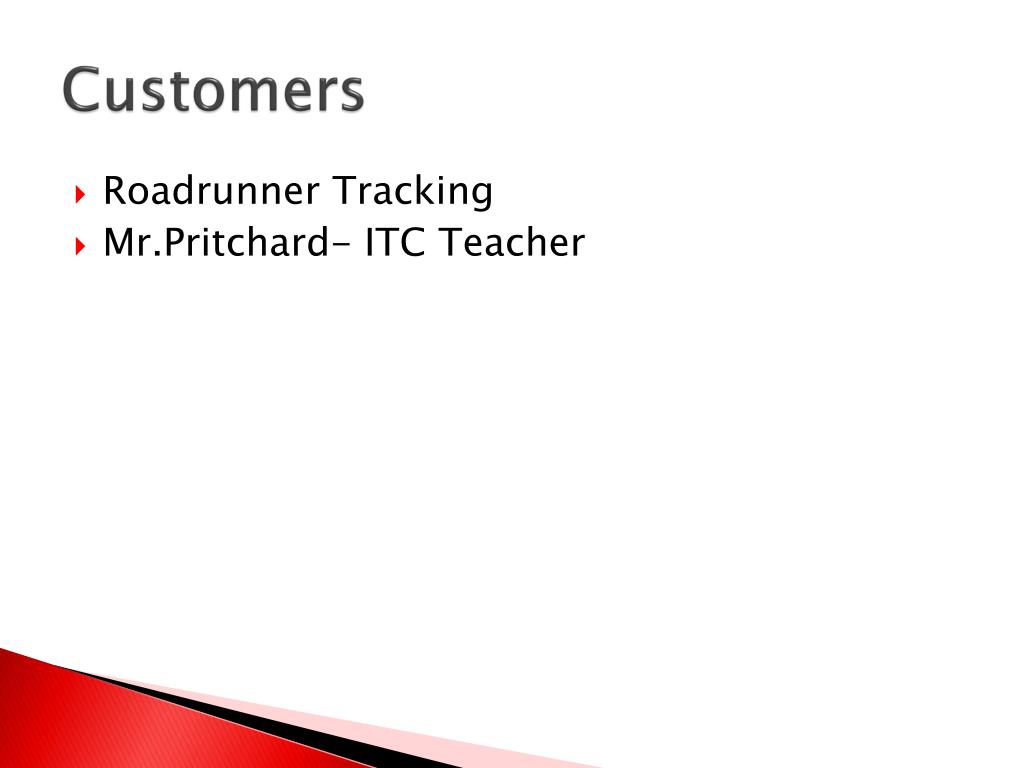

  9. Customers • Roadrunner Tracking • Mr.Pritchard- ITC Teacher

  10. Scope • Materials… • Screws • Nails • Metal hinges • PVC • Wood • Metal brackets • Resources • Ms. Hernacki- dimensions • Mr. Hund- CAD • Mr. Pritchard- Building, dimensioning

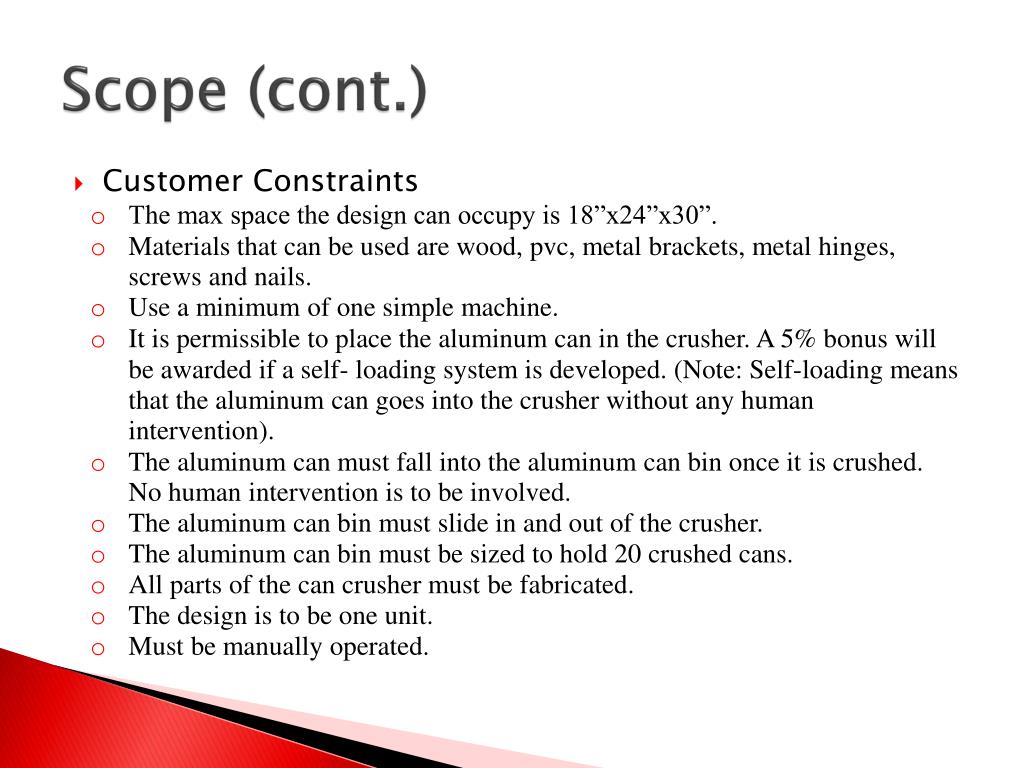

  11. Scope (cont.) • Customer Constraints • The max space the design can occupy is 18”x24”x30”. • Materials that can be used are wood, pvc, metal brackets, metal hinges, screws and nails. • Use a minimum of one simple machine. • It is permissible to place the aluminum can in the crusher. A 5% bonus will be awarded if a self- loading system is developed. (Note: Self-loading means that the aluminum can goes into the crusher without any human intervention). • The aluminum can must fall into the aluminum can bin once it is crushed. No human intervention is to be involved. • The aluminum can bin must slide in and out of the crusher. • The aluminum can bin must be sized to hold 20 crushed cans. • All parts of the can crusher must be fabricated. • The design is to be one unit. • Must be manually operated.

  12. Deliverables • Tech Report • PowerPoint Presentation • Final Can Crusher Prototype

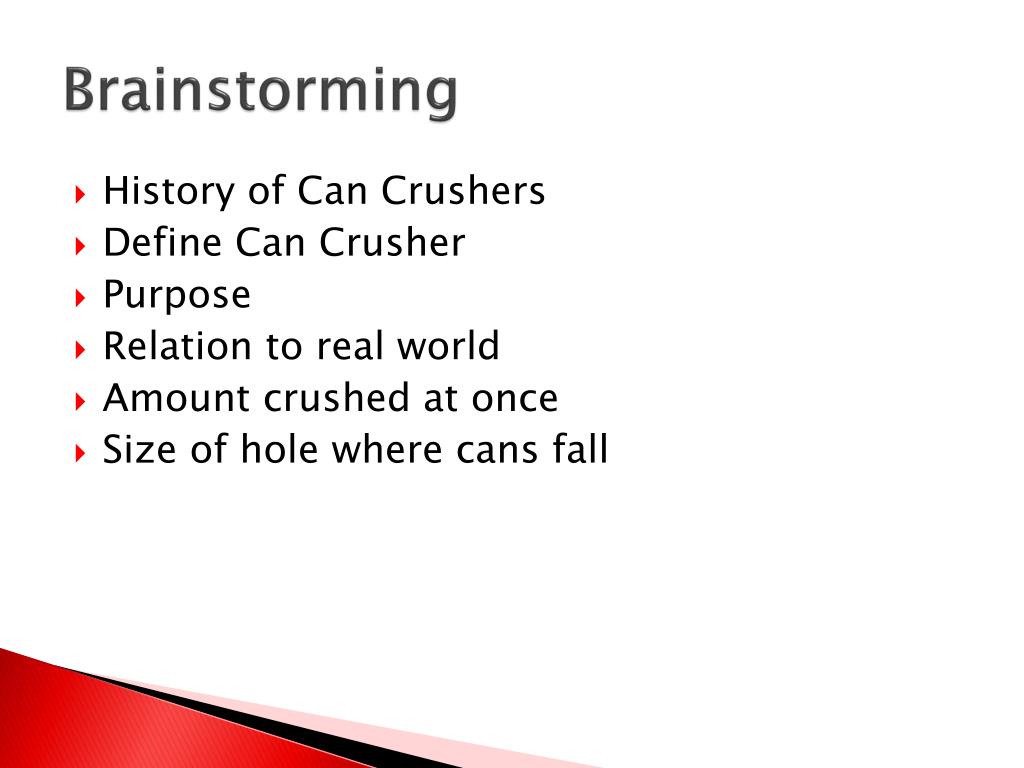

  13. Brainstorming • History of Can Crushers • Define Can Crusher • Purpose • Relation to real world • Amount crushed at once • Size of hole where cans fall

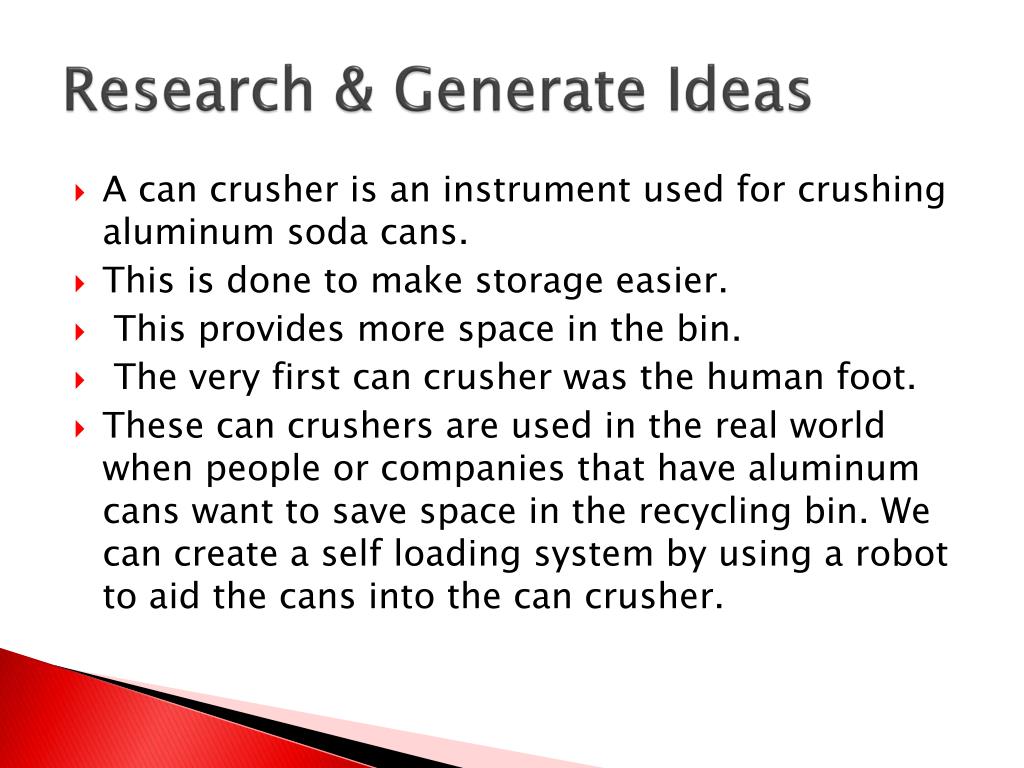

  14. Research & Generate Ideas • A can crusher is an instrument used for crushing aluminum soda cans. • This is done to make storage easier. • This provides more space in the bin. • The very first can crusher was the human foot. • These can crushers are used in the real world when people or companies that have aluminum cans want to save space in the recycling bin. We can create a self loading system by using a robot to aid the cans into the can crusher.

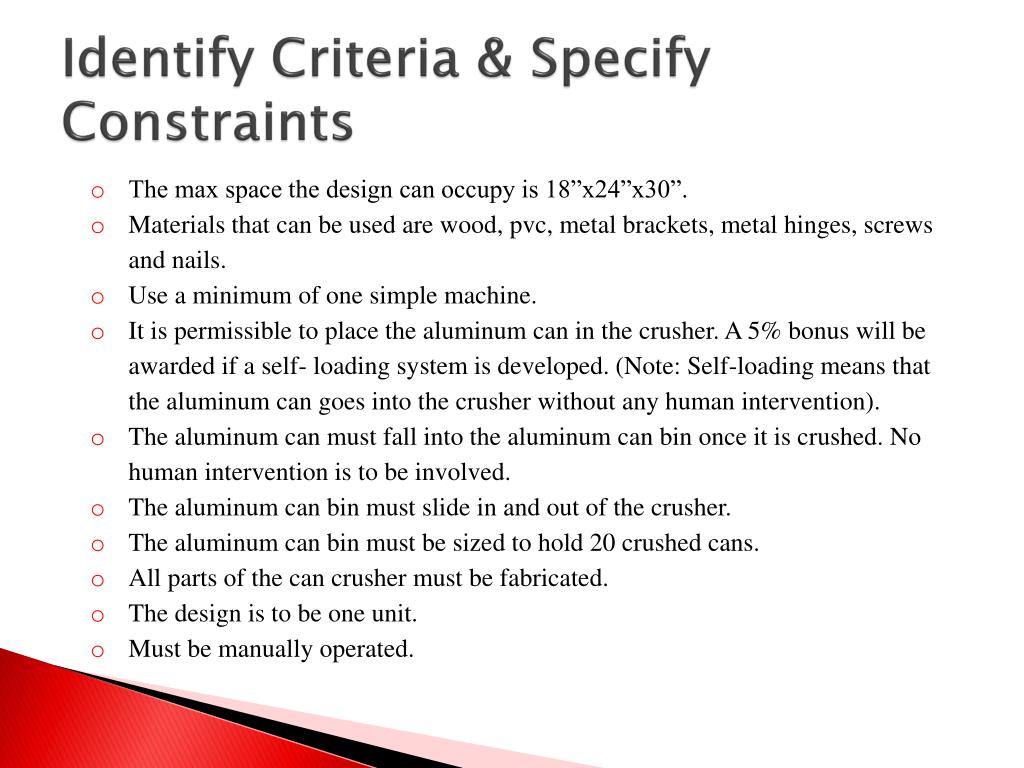

  15. Identify Criteria & Specify Constraints • The max space the design can occupy is 18”x24”x30”. • Materials that can be used are wood, pvc, metal brackets, metal hinges, screws and nails. • Use a minimum of one simple machine. • It is permissible to place the aluminum can in the crusher. A 5% bonus will be awarded if a self- loading system is developed. (Note: Self-loading means that the aluminum can goes into the crusher without any human intervention). • The aluminum can must fall into the aluminum can bin once it is crushed. No human intervention is to be involved. • The aluminum can bin must slide in and out of the crusher. • The aluminum can bin must be sized to hold 20 crushed cans. • All parts of the can crusher must be fabricated. • The design is to be one unit. • Must be manually operated.

  16. Explore Possibilities

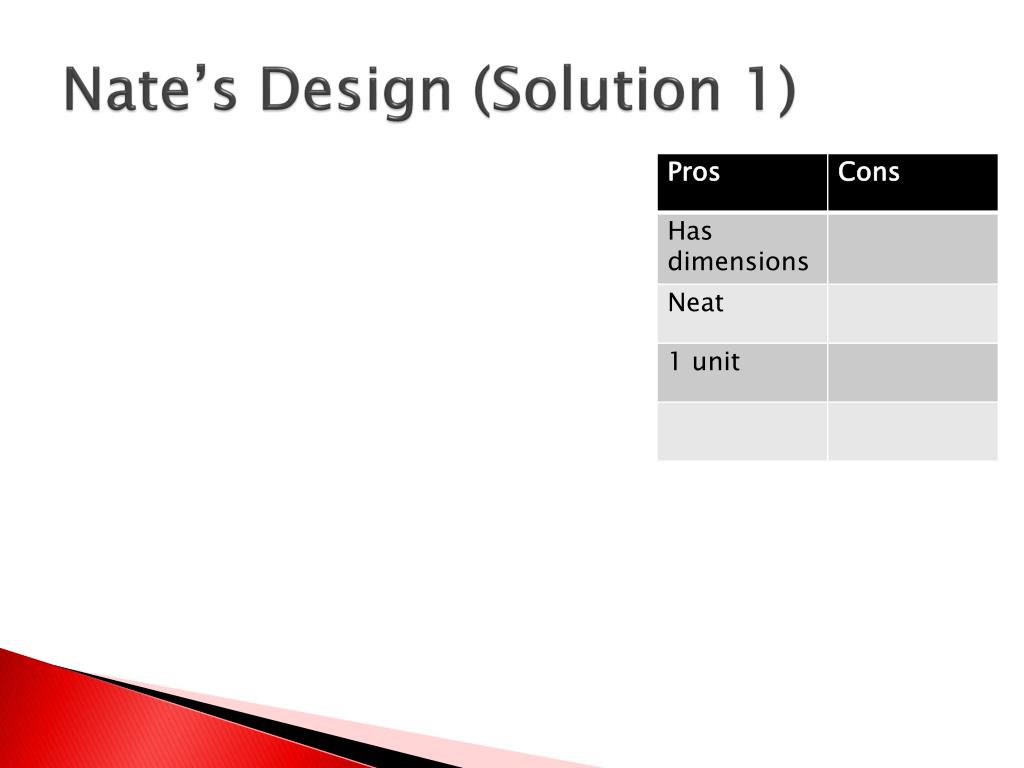

  17. Nate’s Design (Solution 1)

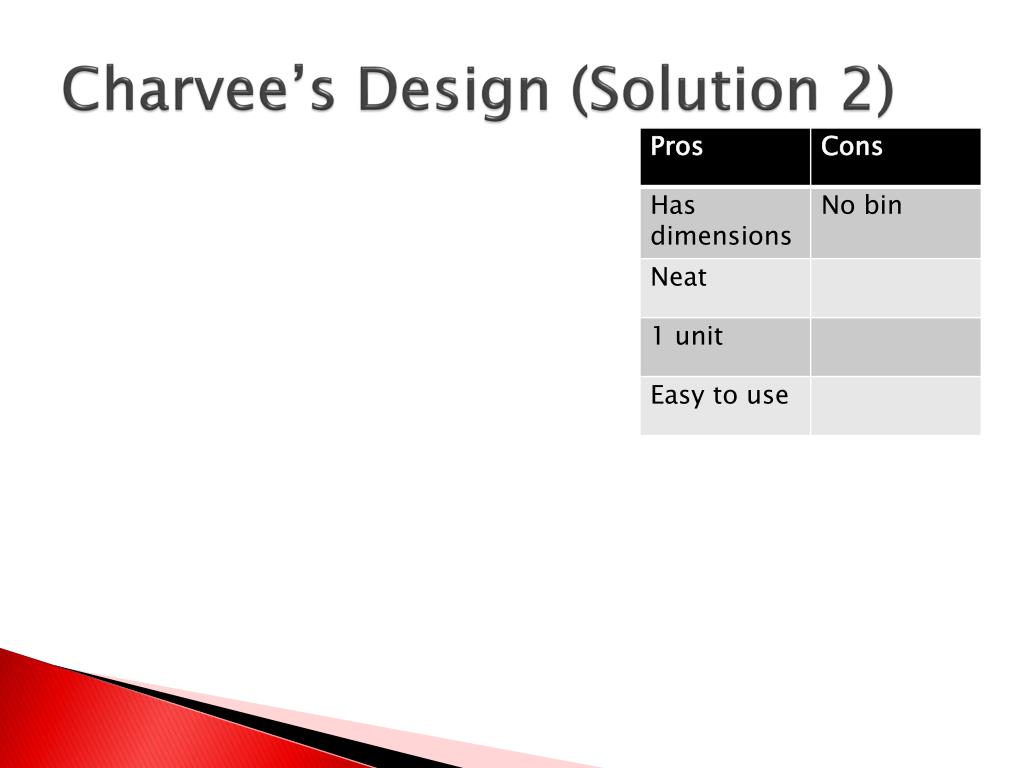

  18. Charvee’s Design (Solution 2)

  19. Keval’s Design (Solution 3)

  20. Grant’s Design (Solution 4)

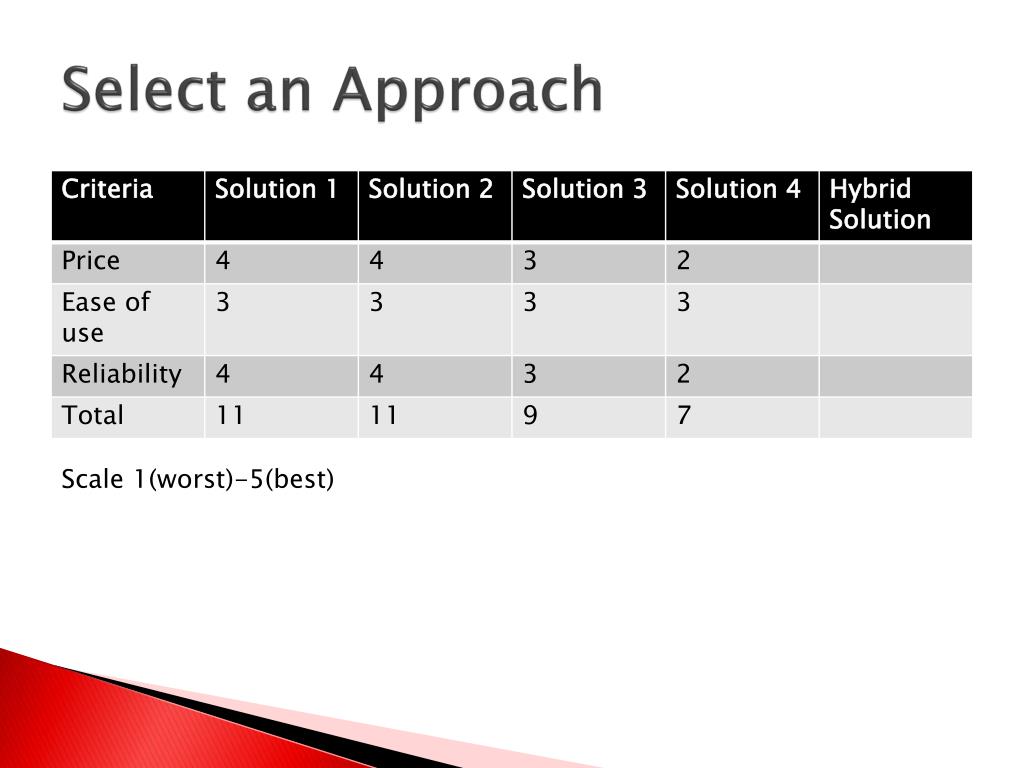

  21. Select an Approach Scale 1(worst)-5(best)

  22. Develop a Design Proposal

  23. Bill of Materials

  24. Build Process

  25. Test Plan

  26. Prototype

  27. Test & Monitor

  28. Refine

  29. Lessons Learned

  30. Summary

  31. Bibliography • http://www.wisegeek.com/what-is-a-can-crusher.htm
