  1. LMS2000 Installation & OperationsTraining

  2. Course Objectives Training to install and operate the LMS2000 system (NMS) Introduction Expectations Introduction

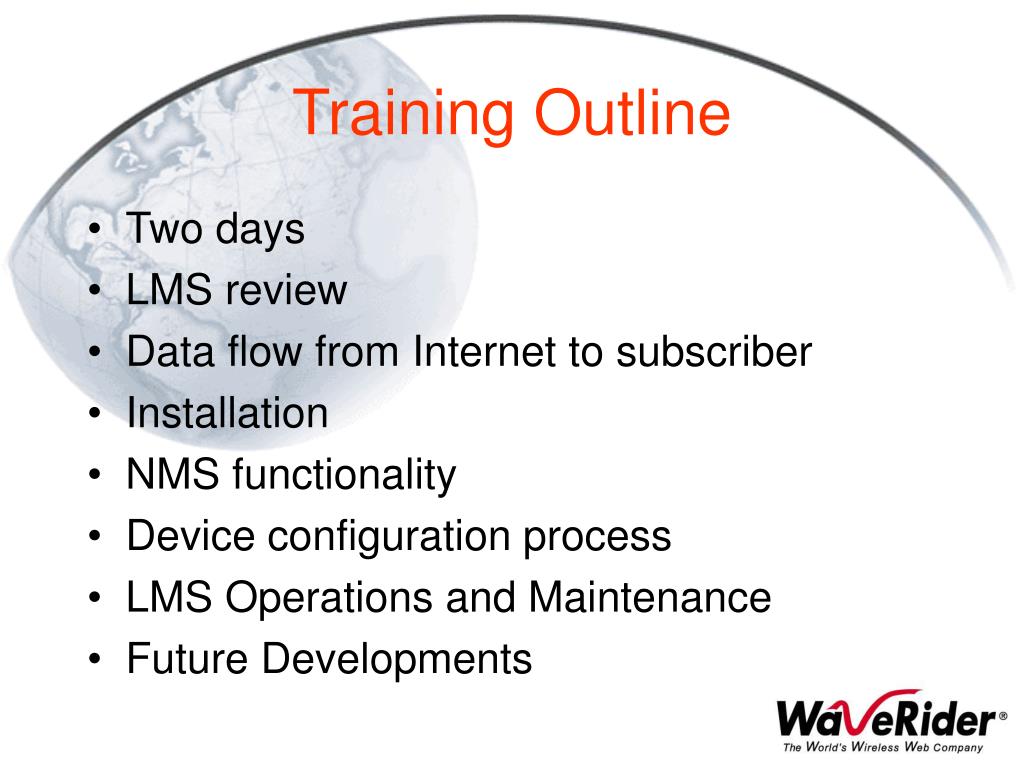

  3. Two days LMS review Data flow from Internet to subscriber Installation NMS functionality Device configuration process LMS Operations and Maintenance Future Developments Training Outline

  4. Schedule

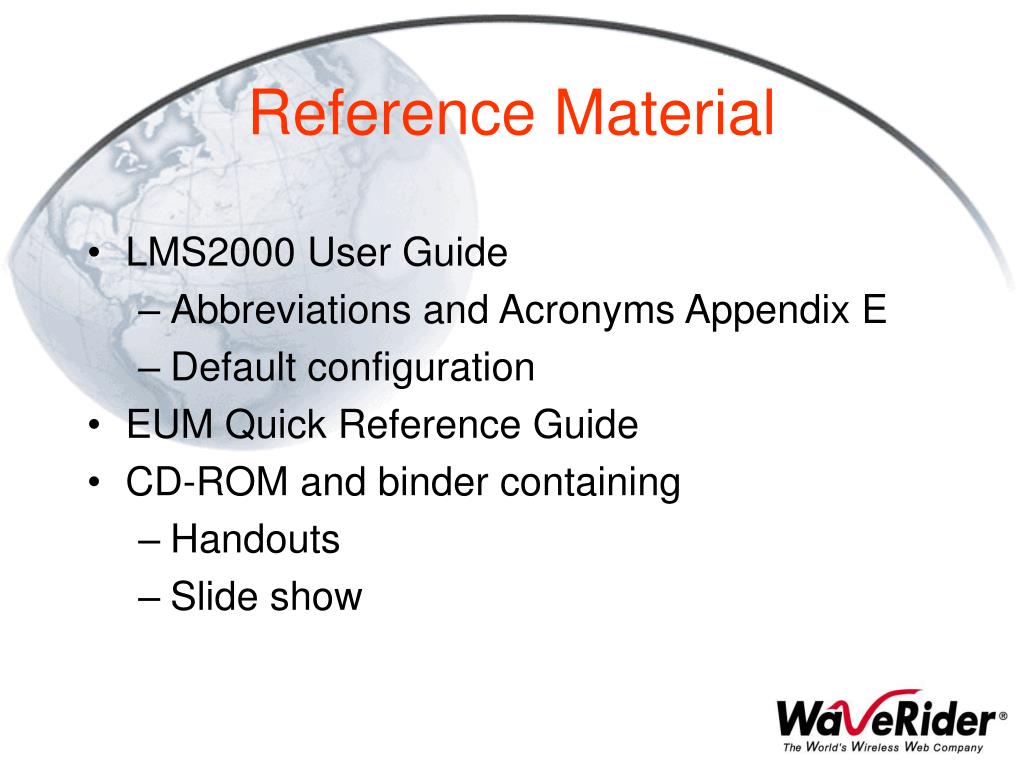

  5. LMS2000 User Guide Abbreviations and Acronyms Appendix E Default configuration EUM Quick Reference Guide CD-ROM and binder containing Handouts Slide show Reference Material

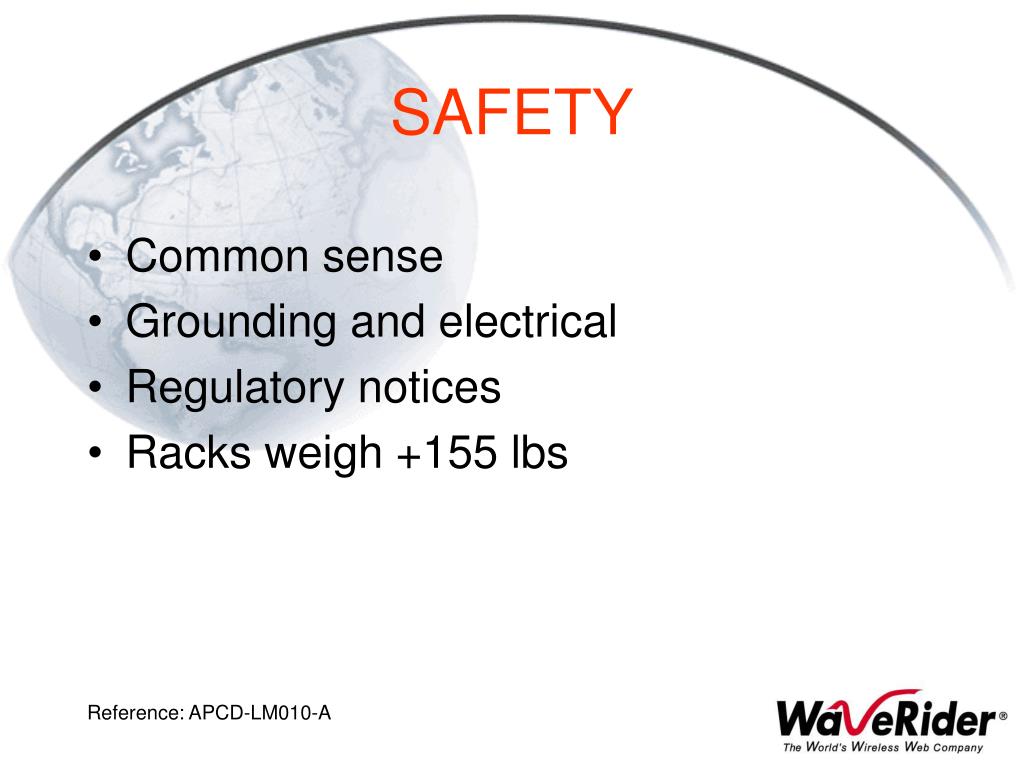

  6. Common sense Grounding and electrical Regulatory notices Racks weigh +155 lbs Reference: APCD-LM010-A SAFETY

  7. LMS Overview

  8. NAP - Network Access Point CAP - Communications Access Point CCU - CAP Communications Unit EUM - End User Modem NMS - Network Management System Reference: APCD-LM010-A Chapter 1 LMS2000 Components

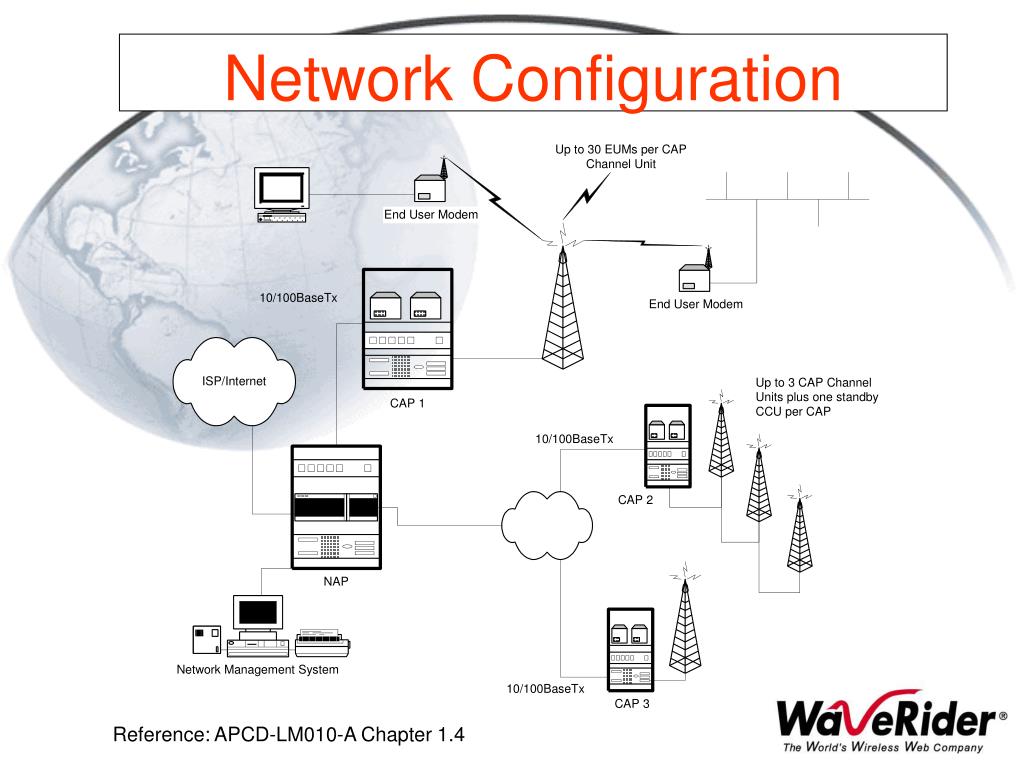

  9. Network Configuration Reference: APCD-LM010-A Chapter 1.4

  10. Data Flow Reference: APCD-LM010-A Chapter 1.5

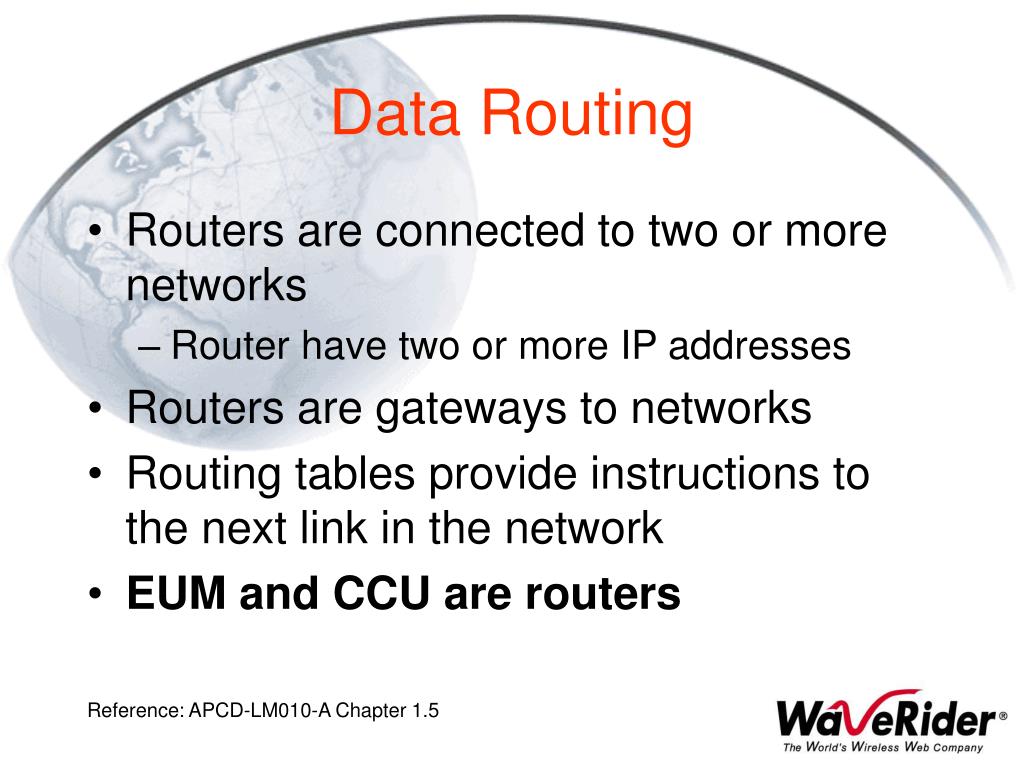

  11. Routers are connected to two or more networks Router have two or more IP addresses Routers are gateways to networks Routing tables provide instructions to the next link in the network EUM and CCU are routers Reference: APCD-LM010-A Chapter 1.5 Data Routing

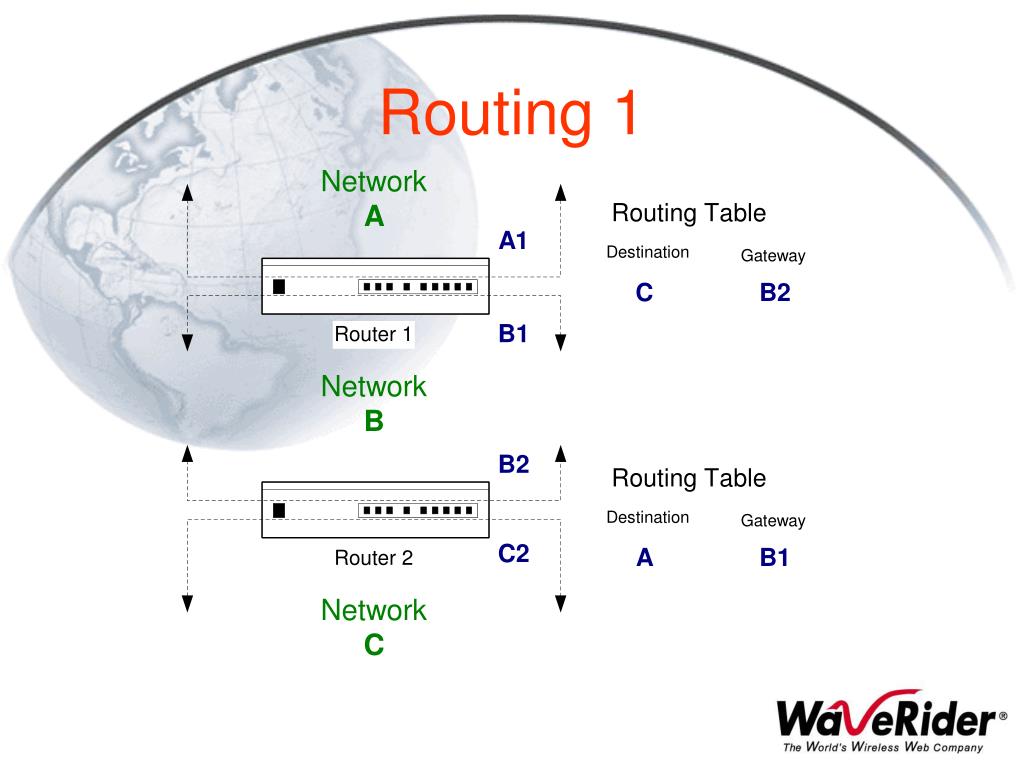

  12. Routing 1

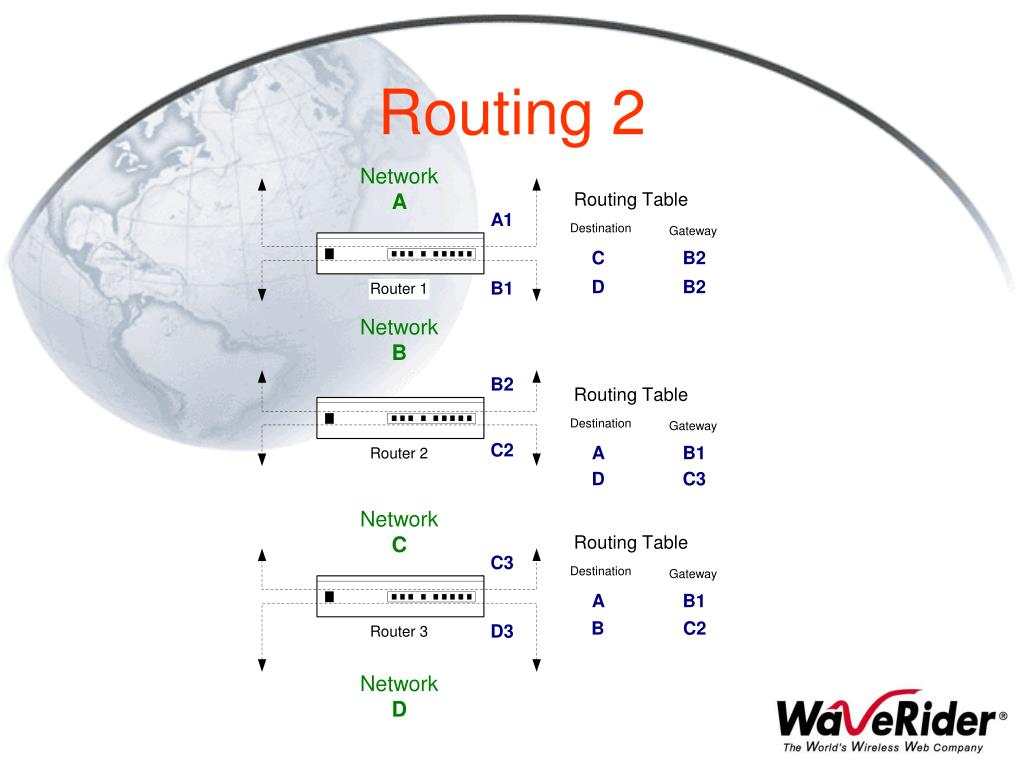

  13. Routing 2

  14. Routing 3

  15. Internet - SubscriberRouting 4

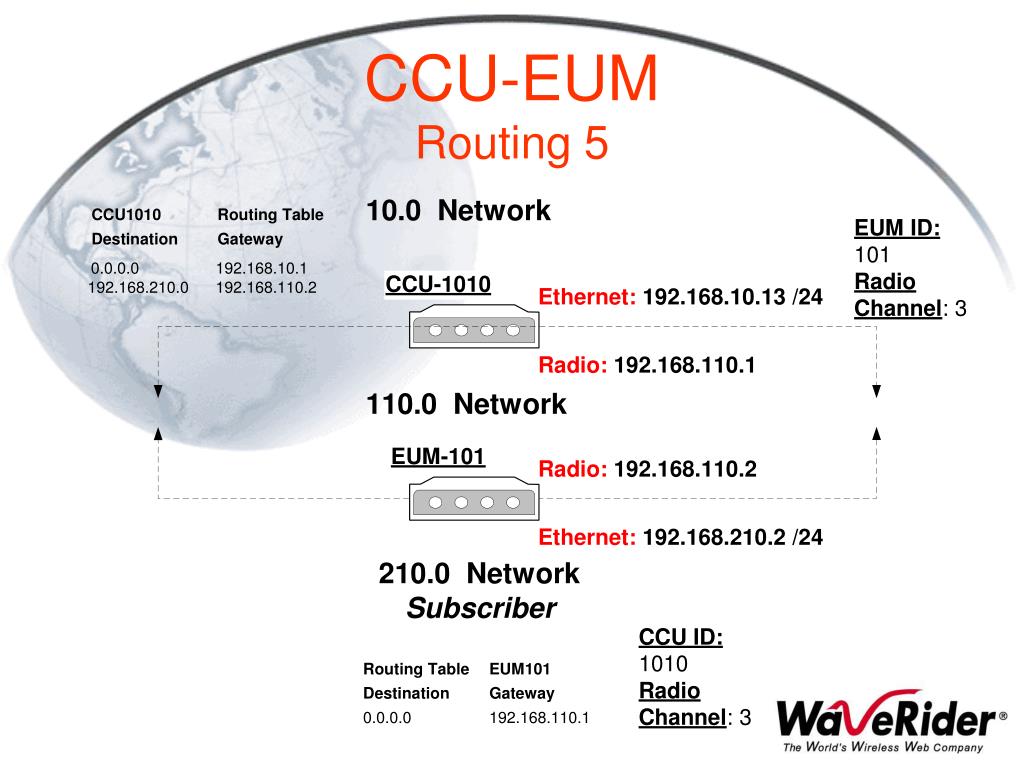

  16. CCU-EUMRouting 5

  17. Two EUMsRouting 6

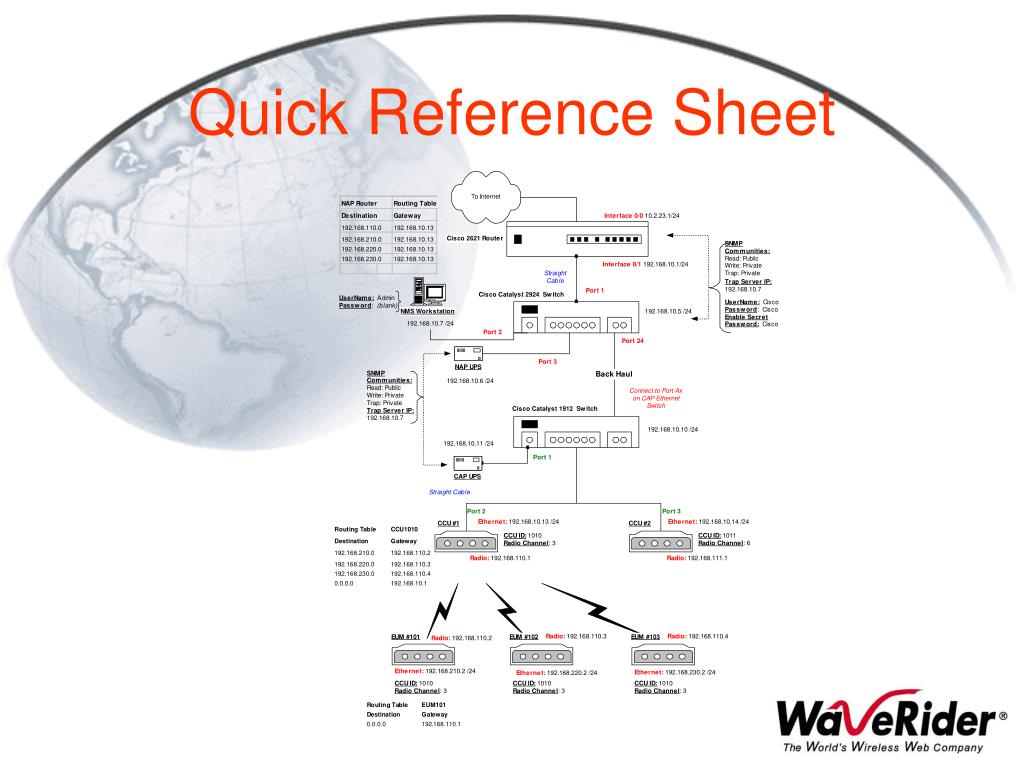

  18. Quick Reference Sheet

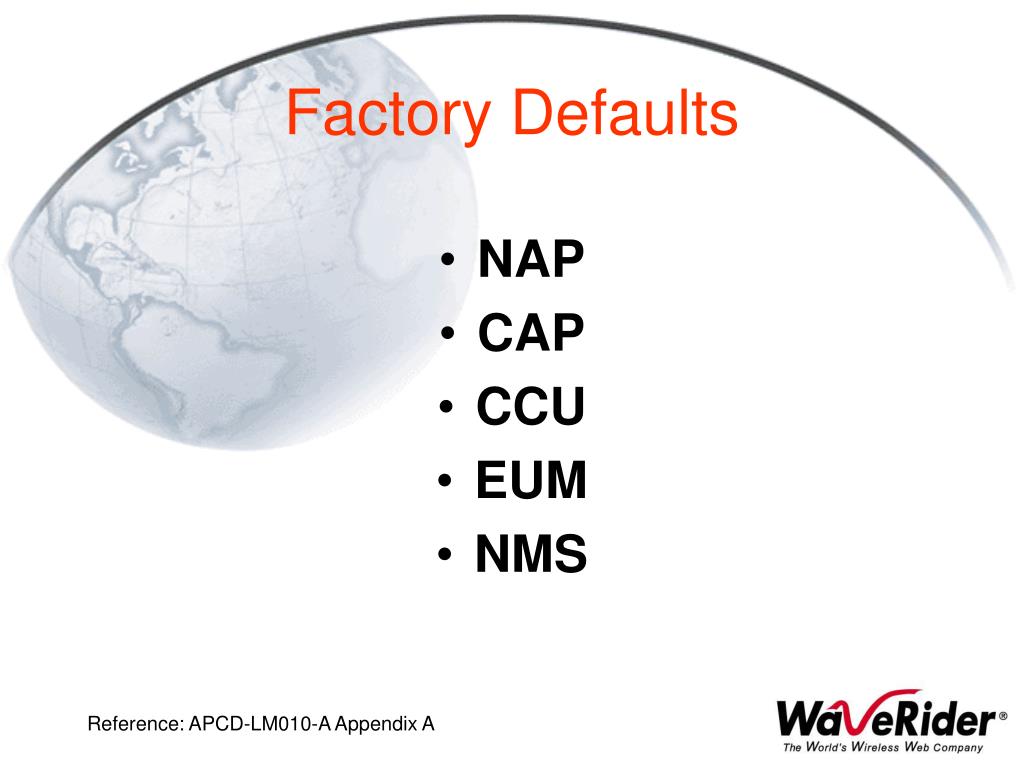

  19. NAP CAP CCU EUM NMS Reference: APCD-LM010-A Appendix A Factory Defaults

  20. Network Configuration Reference: APCD-LM010-A Chapter 1.4

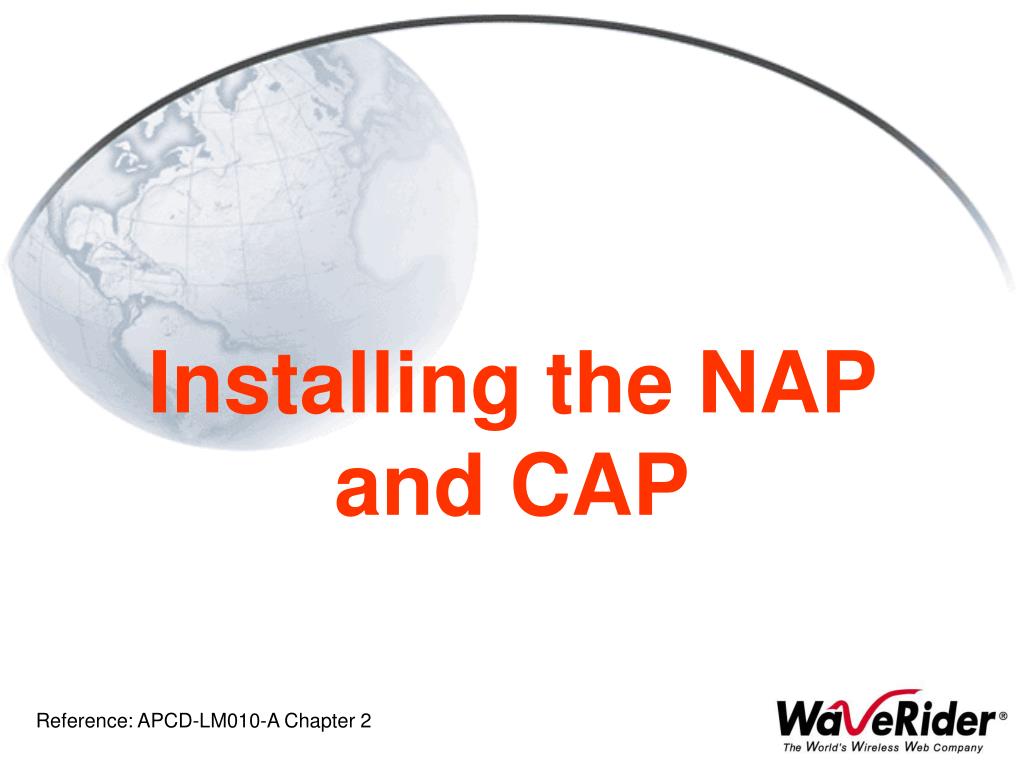

  21. Installing the NAP and CAP Reference: APCD-LM010-A Chapter 2

  22. Site preparation antenna/cable install Lightning protection power grounding After unpacking check for damage NAP/CAP shipped wired and pre-configured with defaults Cables and tools Reference: APCD-LM010-A Chapter 2 Pre-Install

  23. UPS Battery reconnect Turn on UPS power switch Three LED's indicating battery charge. Three is fully charged. Computer symbol (router/switch)LED green Verify rack/device cooling fans working Verify switch POST results Connect backhaul Reference: APCD-LM010-A Chapter 2 NAP and CAP Install

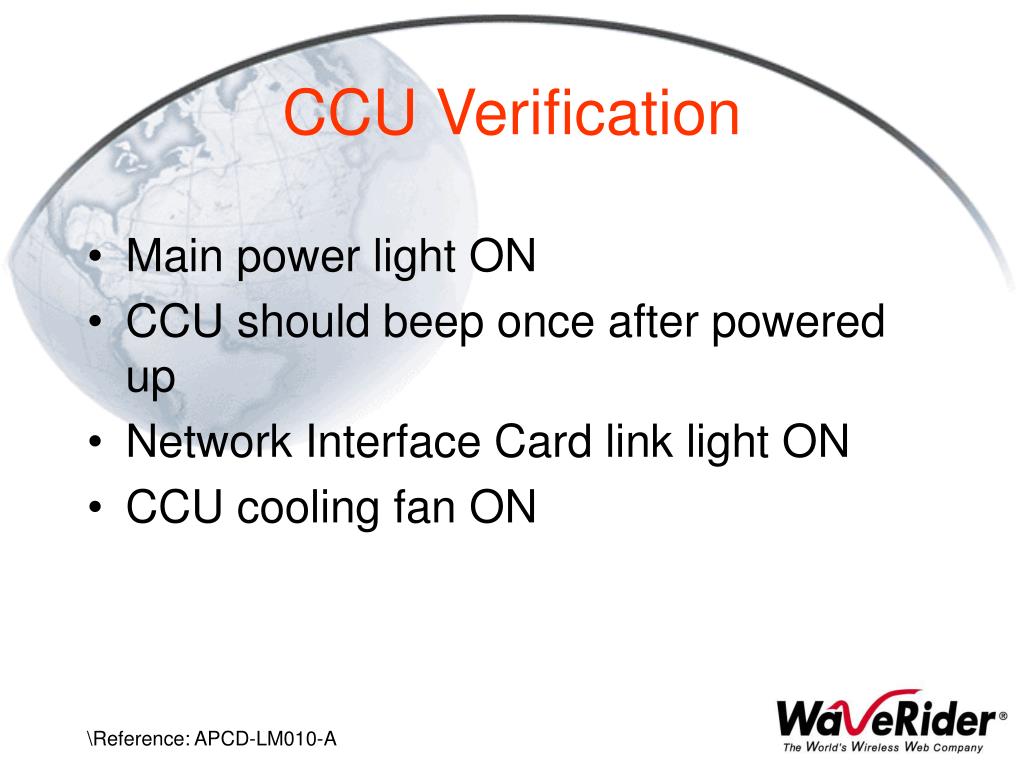

  24. Main power light ON CCU should beep once after powered up Network Interface Card link light ON CCU cooling fan ON \Reference: APCD-LM010-A CCU Verification

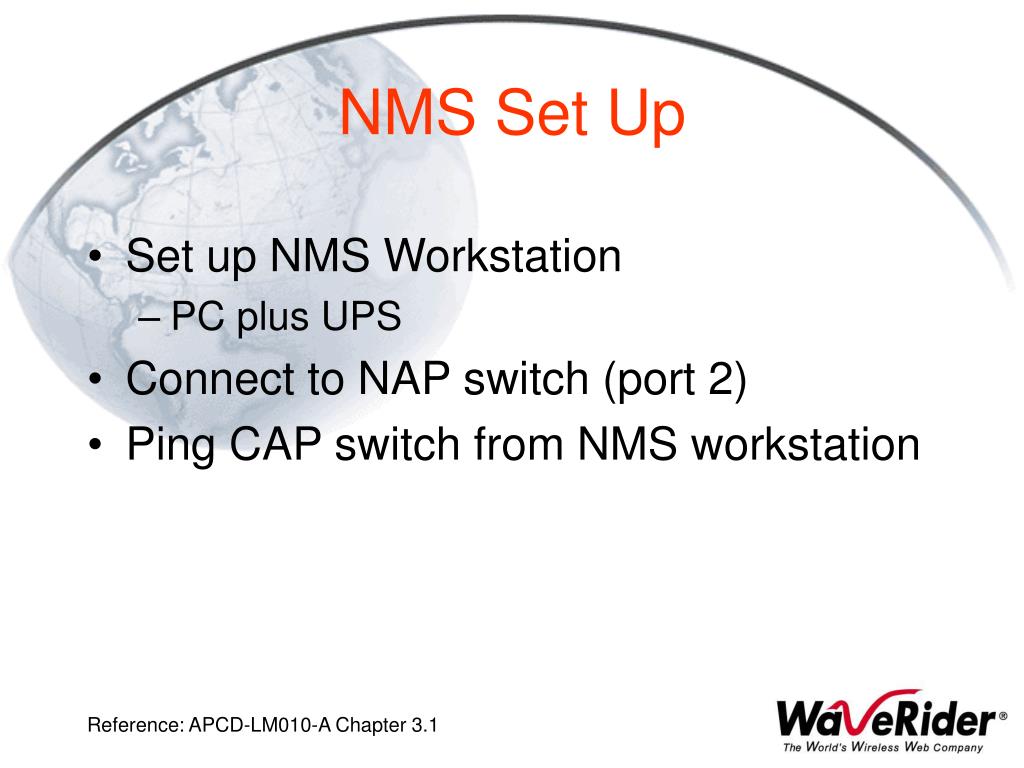

  25. Set up NMS Workstation PC plus UPS Connect to NAP switch (port 2) Ping CAP switch from NMS workstation Reference: APCD-LM010-A Chapter 3.1 NMS Set Up

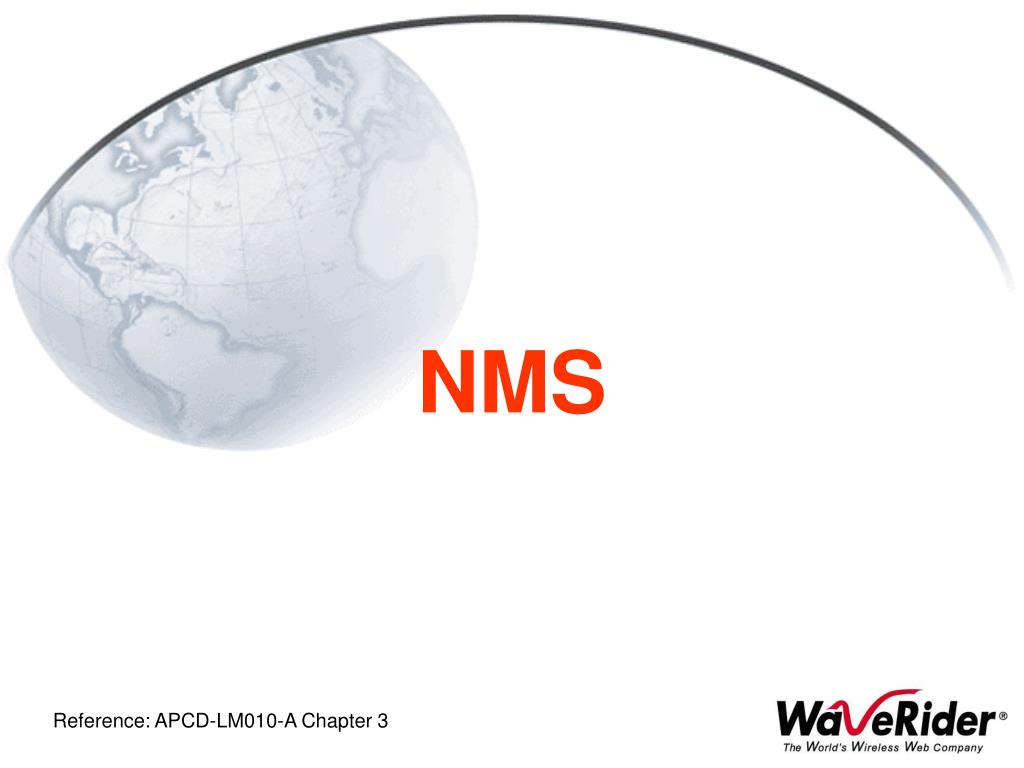

  26. NMS Reference: APCD-LM010-A Chapter 3

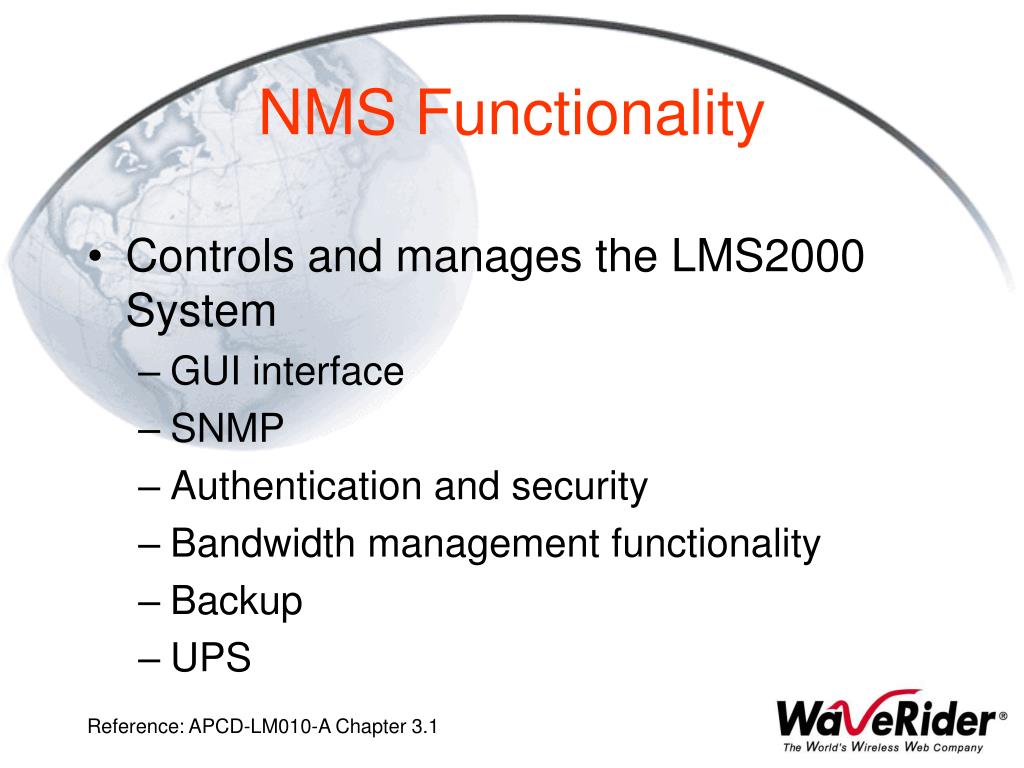

  27. Controls and manages the LMS2000 System GUI interface SNMP Authentication and security Bandwidth management functionality Backup UPS Reference: APCD-LM010-A Chapter 3.1 NMS Functionality

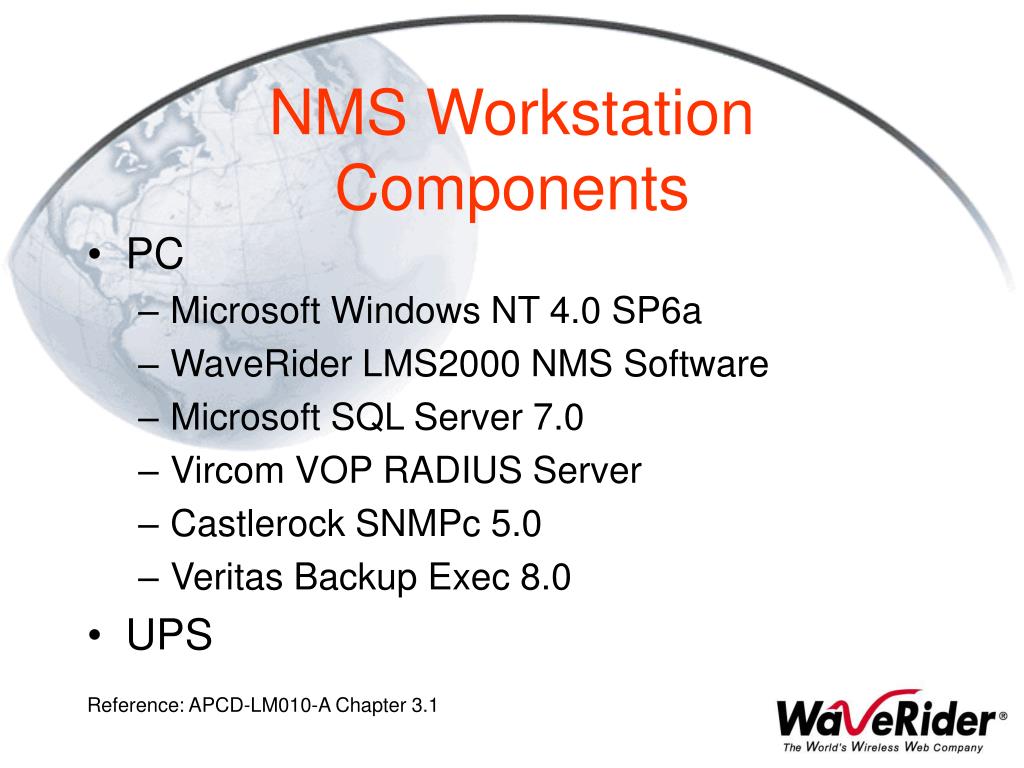

  28. PC Microsoft Windows NT 4.0 SP6a WaveRider LMS2000 NMS Software Microsoft SQL Server 7.0 Vircom VOP RADIUS Server Castlerock SNMPc 5.0 Veritas Backup Exec 8.0 UPS Reference: APCD-LM010-A Chapter 3.1 NMS Workstation Components

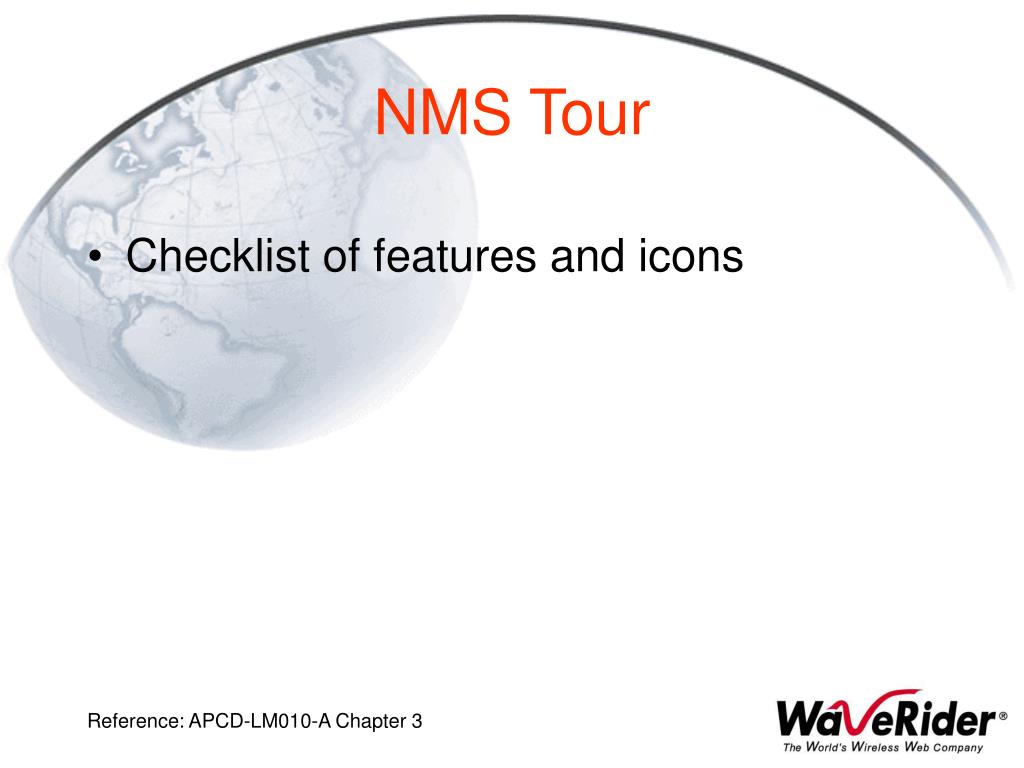

  29. Checklist of features and icons Reference: APCD-LM010-A Chapter 3 NMS Tour

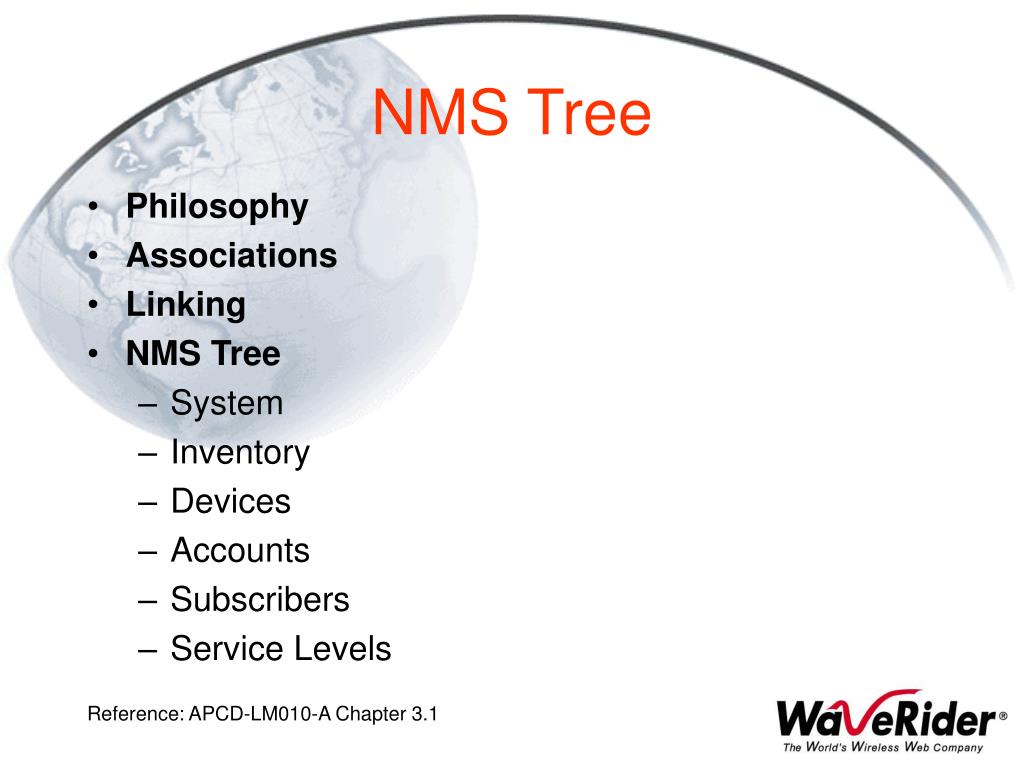

  30. Philosophy Associations Linking NMS Tree System Inventory Devices Accounts Subscribers Service Levels Reference: APCD-LM010-A Chapter 3.1 NMS Tree

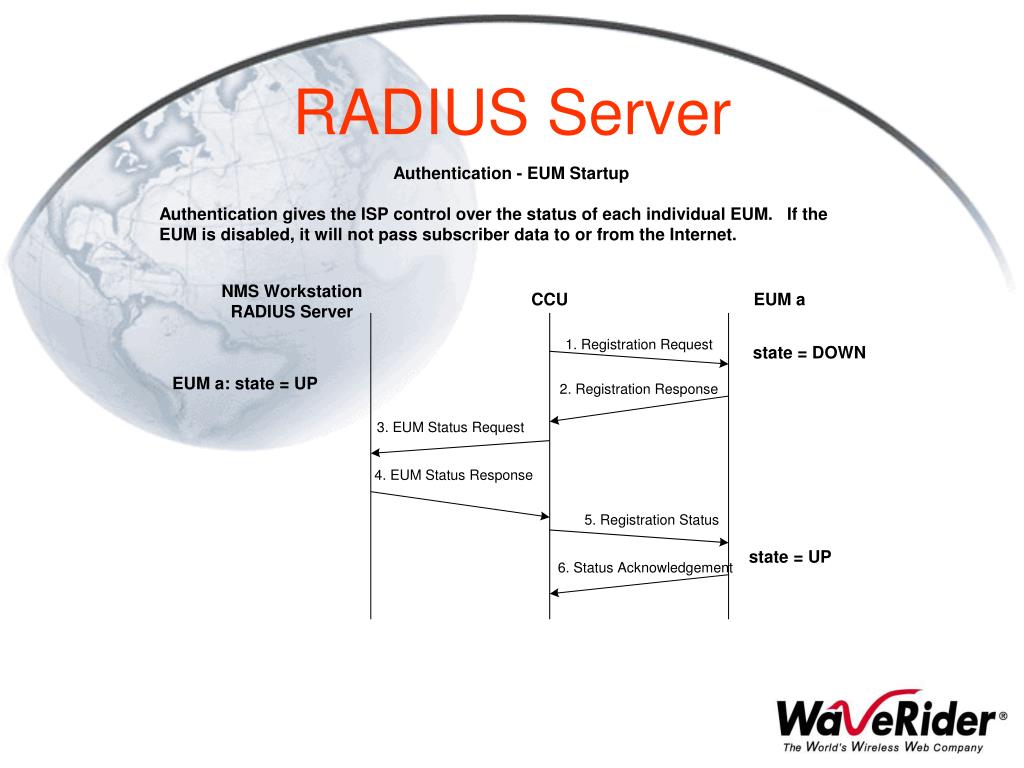

  31. RADIUS Server

  32. RADIUS Server 2

  33. Based upon service levels associated by subscriber Controls bandwidth EUMs can utilize Controlled by NAP router Bandwidth Management Functionality

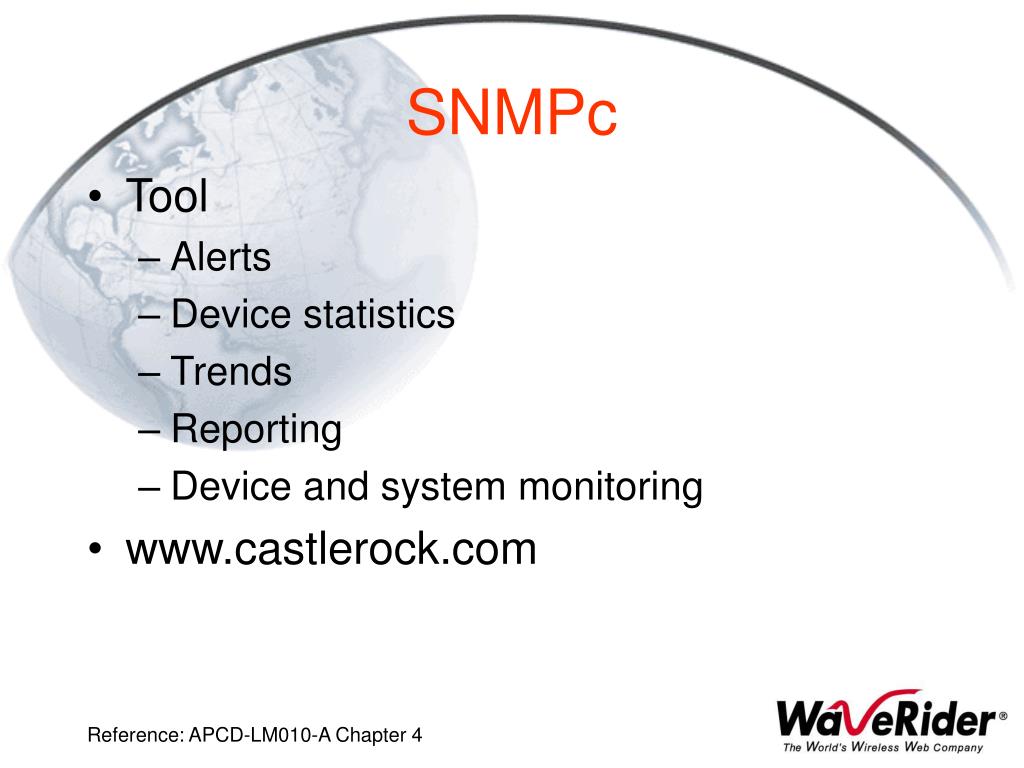

  34. Tool Alerts Device statistics Trends Reporting Device and system monitoring www.castlerock.com Reference: APCD-LM010-A Chapter 4 SNMPc

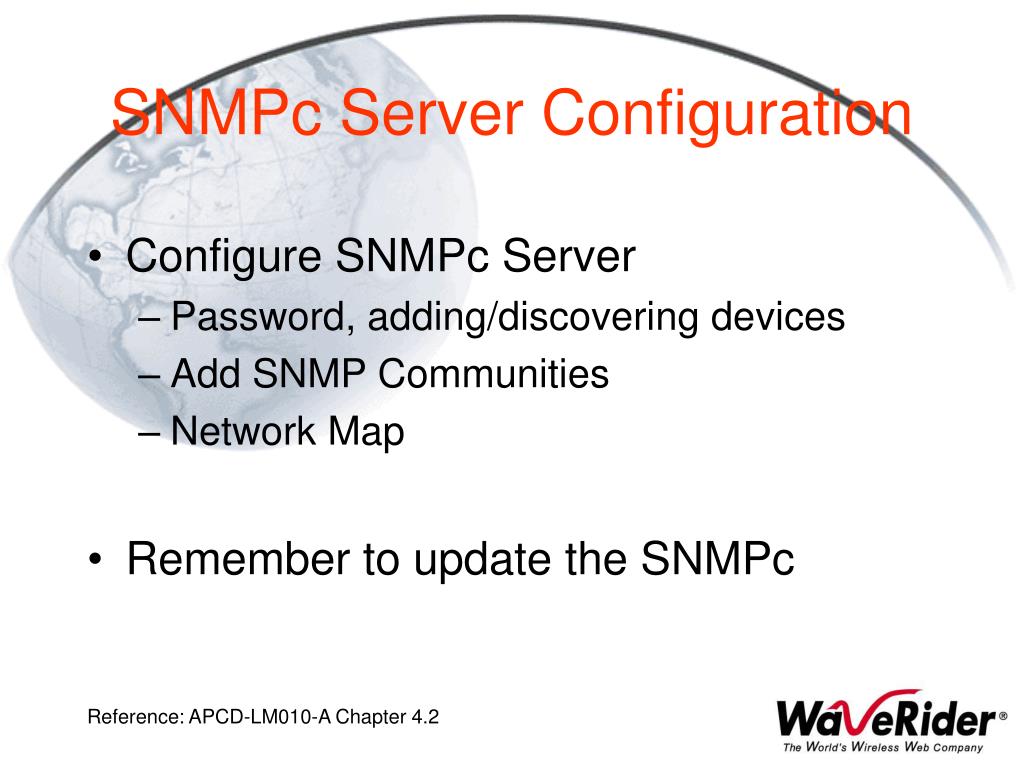

  35. Configure SNMPc Server Password, adding/discovering devices Add SNMP Communities Network Map Remember to update the SNMPc Reference: APCD-LM010-A Chapter 4.2 SNMPc Server Configuration

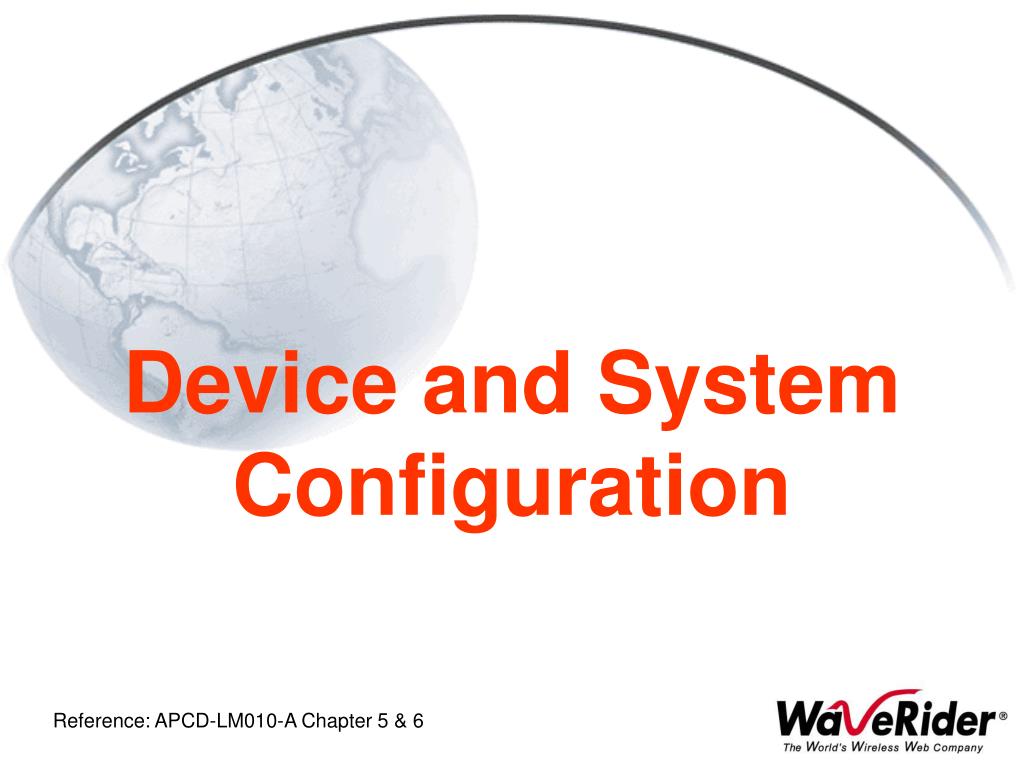

  36. Device and System Configuration Reference: APCD-LM010-A Chapter 5 & 6

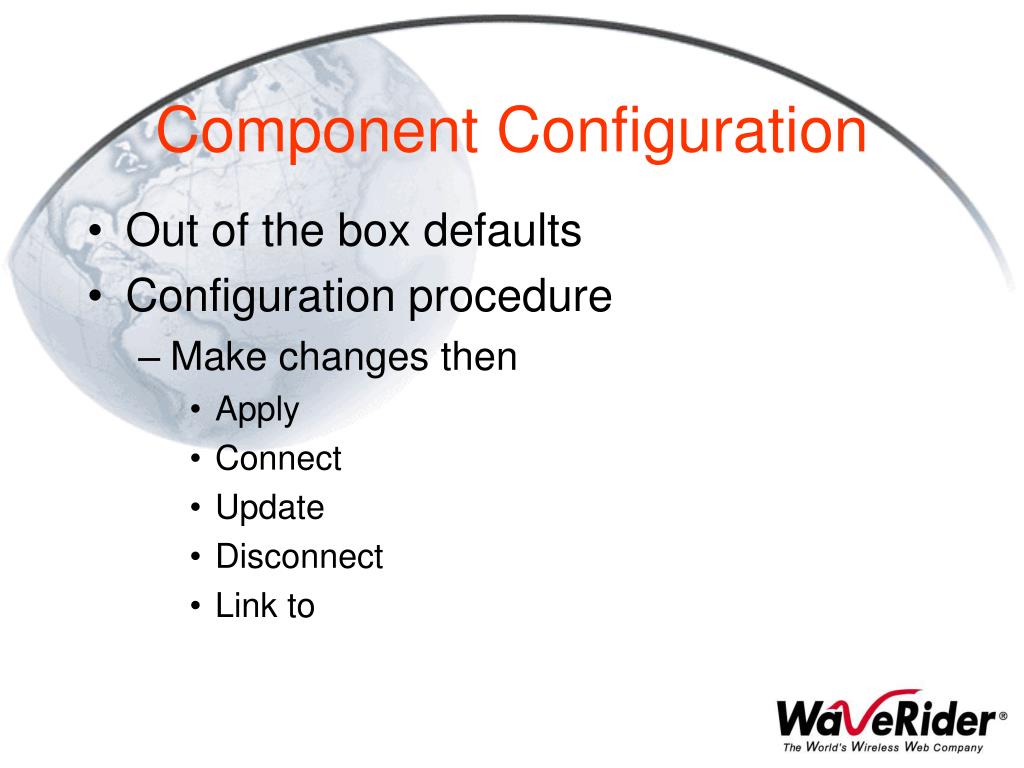

  37. Out of the box defaults Configuration procedure Make changes then Apply Connect Update Disconnect Link to Component Configuration

  38. Confirm/change Router/switch/UPS IP’s and Destination Netmask Device Trap server Configuration Process Create CCU in inventory as required Apply, connect, update, disconnect Link to Reference: APCD-LM010-A Chapter 5.1 NAP Configuration

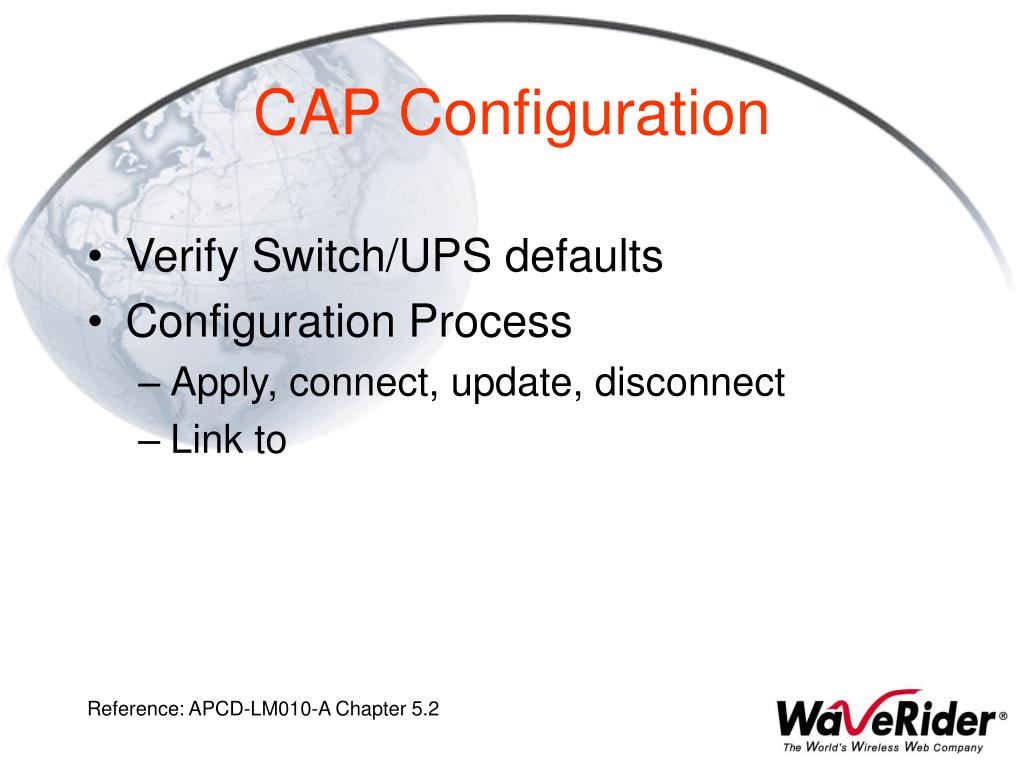

  39. Verify Switch/UPS defaults Configuration Process Apply, connect, update, disconnect Link to Reference: APCD-LM010-A Chapter 5.2 CAP Configuration

  40. 2 or 4 CCUs in a CAP Default configuration Radio/Ethernet IP Addresses SNMP/RADIUS Routing Password Reference: APCD-LM010-A Chapter 6 CCU Configuration

  41. Determine deployment details Add and edit EUM properties in database Enable Radio Update EUM device properties Link to: CCU Subscriber Service Level Deploy Reference: APCD-LM010-A Chapter 6 EUM Configuration

  42. Connect to NAP/CAP switch Confirm/Change Radio/Ethernet Parameters IP Routing SNMP Subscriber Update device configuration Change Ethernet IP address from default to subscriber Reference: APCD-LM010-A Chapter 7 EUM Configuration 2

  43. Save configuration to file Create association with CCU Add EUM to CCU Configuration (IP Route, EUM ID and IP) Add EUM route to NAP Router ENABLE RADIO Now ready for deployment Reference: APCD-LM010-A Chapter 7 EUM Configuration 3

  44. Install/mount EUM in destination location Attach antenna or 50 Ohm terminator RADIO ENABLED Reference: APCD-LM010-A Chapter 7.11 Deploy EUM

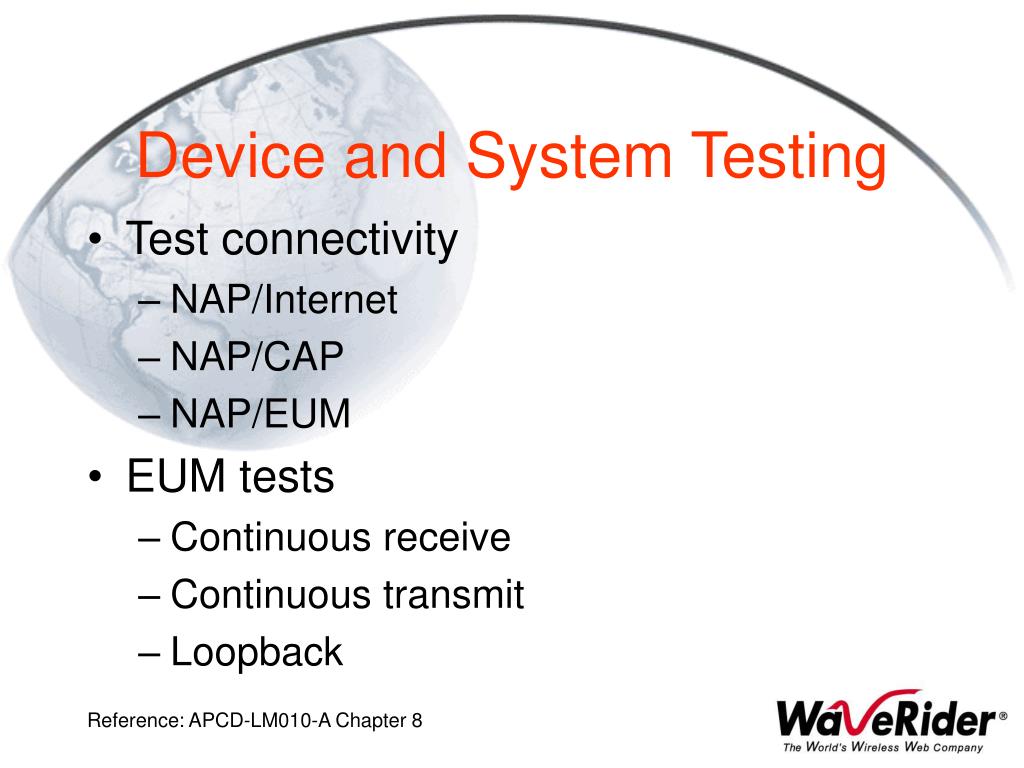

  45. Test connectivity NAP/Internet NAP/CAP NAP/EUM EUM tests Continuous receive Continuous transmit Loopback Reference: APCD-LM010-A Chapter 8 Device and System Testing

  46. Linking Accounts Subscribers Service levels Inventory Apply Connect Update Security (passwords) Don’t Forget

  47. Follow installation instructions If you’re not sure call WaveRider support SNMPc set up Configure steps Apply Connect Update Link to Don’t forget security/change the passwords Install Review

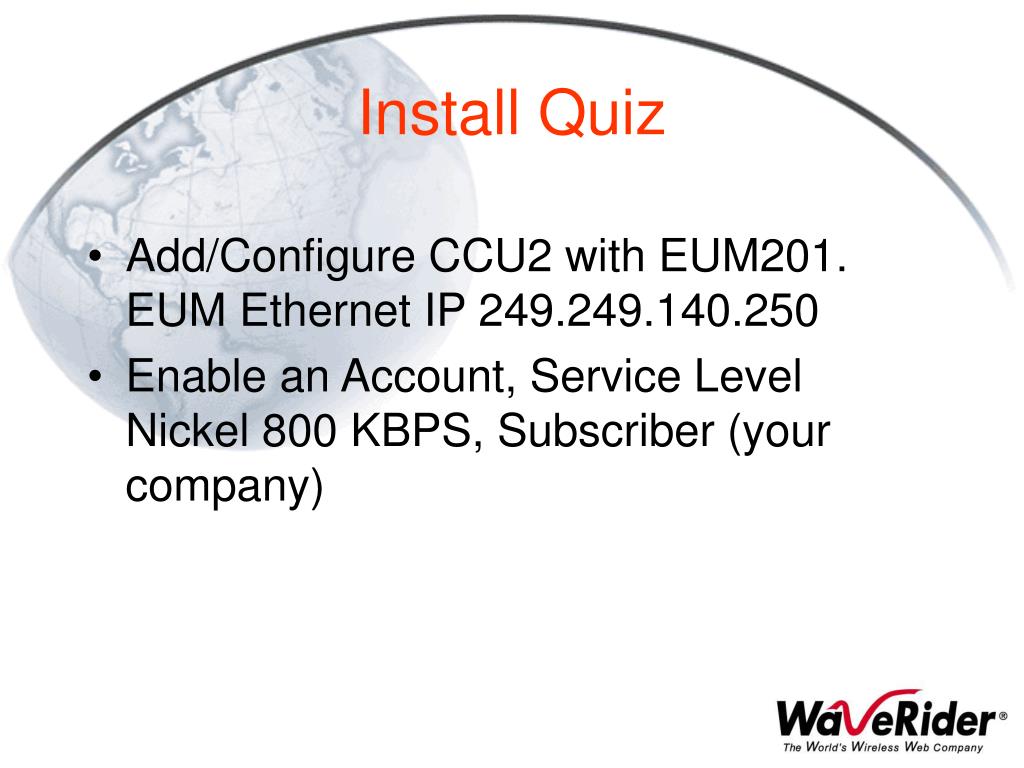

  48. Add/Configure CCU2 with EUM201. EUM Ethernet IP 249.249.140.250 Enable an Account, Service Level Nickel 800 KBPS, Subscriber (your company) Install Quiz

  49. Operations Reference: APCD-LM010-A

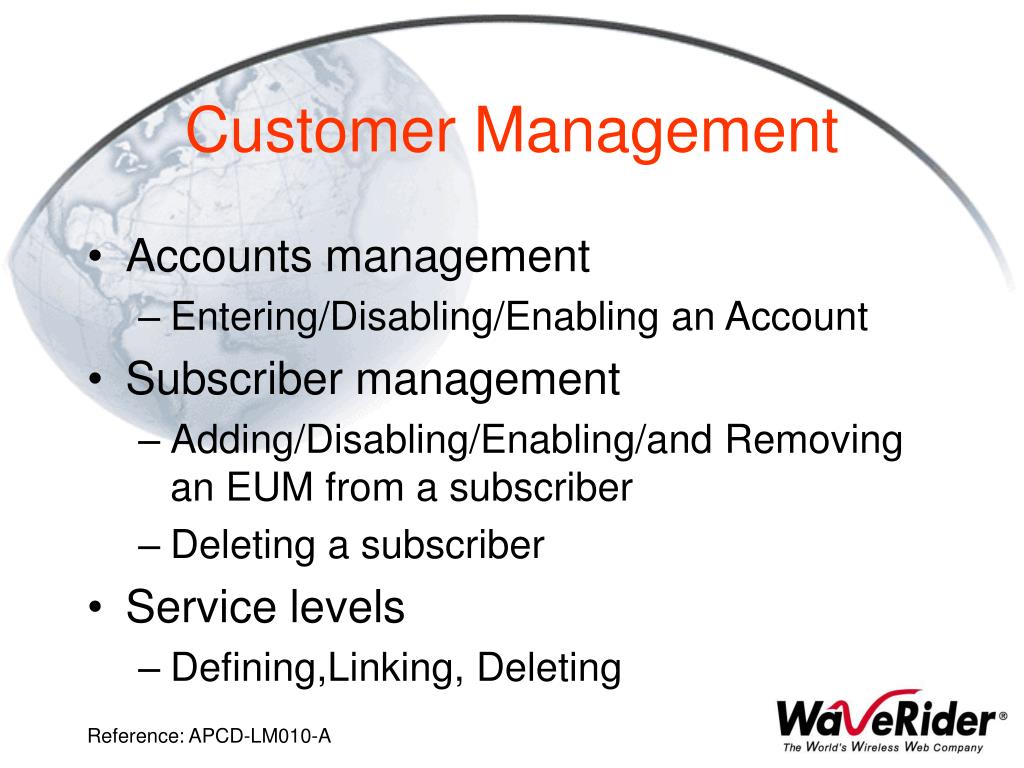

  50. Accounts management Entering/Disabling/Enabling an Account Subscriber management Adding/Disabling/Enabling/and Removing an EUM from a subscriber Deleting a subscriber Service levels Defining,Linking, Deleting Reference: APCD-LM010-A Customer Management
