  1. XW Series Installation Training

  2. Agenda • RE/Backup Power Markets Product Overview • XW System Overview • XW System Installation & Configuration • Wrap-up & Questions?

  3. RE/Backup Power Product Portfolio Single Phase Grid Tie GT2.8 GT3.3 GT4.0 GT5.0 Three Phase Grid Tie Battery Based Products DR Series C-Series XW Series GT100 GT250

  4. XW System Overview

  5. XW System Applications – Hybrid Solutions • Designed for any application • Off grid • Grid or Gen Backup • Grid Interactive with Battery Backup • Two AC Sources • Utility Grid &/or • AC Generators • Multiple DC Sources • Photovoltaic (PV) • Wind • Hydro • DC Generators

  6. XW System Complete System Solution Indoor installations from 4 kW to 18 kW Manageable building blocks for simple, easy, field configuration and installation XW Hybrid Inverter/Charger XW Solar Charge Controller XW Power Distribution Panel XW System Control Panel XW Automatic Generator Start Module Components network together and interact seamlessly to provide clean, reliable energy to connected loads

  7. Pure Sine Wave 120/240 volt split phase Industry leading efficiency Un-matched surge capacity Best-in-class battery charging 5-year standard warranty Easily configurable for multi-unit installations (Parallel up to 3 inverters for 18kW systems) XW 4024 (4.0 kW 24 volt) List price: $3,250, part number 865-1010 XW 4548 (4.5 kW 48 volt) List price: $3,600, part number 865-1005 XW 6048 (6.0 kW 48 volt) List price $4,500, part number 865-1000 XW Hybrid Inverter/Charger

  8. SW Series 34-52 Step sine wave XW Series Grid quality output True Sine Wave Output

  9. Efficiency Peak Efficiency 95% @ 1975W CEC Efficiency 92.5% XW6048 listed on CEC’s “List of Eligible Inverters”

  10. Surge Performance • 200% of rated output power for 7 seconds • Eg. XW6048-120/240-60 – L1-n: 105 Arms,L1-L2: 52 Arms • OutBack’s 5s surge rating: VFX3524, VFX3648 (5000 W, 50 Arms) • Full Digital Control regulates voltage from drooping during surge • Sensitive electronic loads will not be dropped • SWPlus5548 vs. XW6048 starting two 1hp air compressors: Vac = 115-118 Vrms Vac = 70-85 Vrms Iac_L1-n = 135 Apk Iac_L1-n = 124 Apk

  11. Includes AC/DC breakers and wiring for one XW Hybrid inverter/charger Innovative, extremely flexible Arctic Ultraflex BlueTM wiring is labeled, cut-to-length and ready to install Accommodates up to three XW Hybrid inverter/chargers and up to four charge controllers Includes mounting back plate and conduit box Designed for maximum installation flexibility List Price: $1,500 (Part number 865-1015) XW Power Distribution Panel

  12. XW Connection Kit for 2nd Inverter • Conduit Box • 250 A DC breaker and wiring • 60 A AC breaker and wiring • AC connections and wiring • AC Input/Bypass Switch assembly • Innovative, extremely flexible Arctic Ultraflex BlueTM wiring is labeled, cut-to-length and ready to install • Sync & Xanbus cables • List Price: $750 • (Part number 865-1020)

  13. XW Conduit Box • Bare conduit box • For systems larger than 2 inverters • To retrofit inverters into existing systems which may have AC/DC disconnects • List Price: $175 • (Part number 865-1025)

  14. 60 Amp Charge Controller 12 to 60 Vdc battery Battery V to 150 Voc array Dynamic Maximum Power Point Tracking algorithm Integrated PVGFP (Photovoltaic Ground Fault Protection) XanBusTM network enabled Convection cooled 5-year standard warranty List Price: $650 (Part number 865-1030) XW Solar Charge Controller

  15. Array Sizing • Select module • Select system battery voltage • Select operating temperature • Use absolute coldest day • Use average hottest day • Choose desired array configuration that matches charging requirements • Ensure 150Voc limit is not exceeded on coldest day • Ensure Vmp is not below battery voltage on hottest day

  16. XW System Control Panel • Central user interface • System Configuration • System Monitoring • Can be removed from system to prevent end-user tampering • List Price: $300 • (Part number 865-1050) • Features: • Graphical 128x64 pixel, backlit LCD screen • Large, tactile keypad buttons • Intuitive onscreen menu system (basic & advanced) • Built-in flash memory • Xanbus™ enabled • No “hub” required

  17. XW Automatic Generator Start Intelligent power management Automatically activates generator to provide power to recharge depleted battery bank or assist with heavy loads Comprehensive customizable triggers Low battery voltage High inverter load Thermostat signal Exercise period Max run-time, quiet time Compatible with popular generators 2 or 3 wire start control No extra relays or adapters required Onan, Kohler, Westerbeke, Northern Lights, Generac, Honda, and Powertech List Price: $200 (part number 865-1060)

  18. Xantrex XW SeriesSystem Installation

  19. 6kW Xantrex XW System with Solar Comparable FLexware 500 System: ~16 skus; >20 separate components

  20. System installation • Pre-installation • Step 1: Install the mounting plates • Step 2: Mount the Inverter • Step 3: Mount the XW Power Distribution Panel & XW Conduit Box • Step 4: Wire the Inverter • Step 5: Install Additional Inverter(s) • Install Charge Controller(s) • Connect communication/signal cables to their components

  21. Pre-Installation 54 inches Minimum Clearance Required for proper ventilation 30 inches 16” 16” 16” 6” • Provide a minimum clearance of 6 inches (15 cm) around the top and bottom of the XW Inverter for ventilation. • If XW Solar Charge Controllers are installed on the XW Power Distribution Panel as shown, provide a minimum clearance of 6 inches on the open side. If charge controllers are not installed, no clearance is required on the side of the Power Distribution Panel. • There must be at least three feet of clearance in front of the system for accessibility. (Note: Front of the Inverter protrudes 9 inches (23 cm) from wall.) • For optimum operation a maximum cable length of 10 feet (one way) from XW Inverter to the battery bank is recommended.

  22. Step 1 – Installing the Mounting Plates • Mounting Plates are included with XW Inverters and XW-PDP • Mounting holes spaced 16” on-center • Ensure wall / fasteners can support weight • Ensure first mounting plate is correct height and level • Additional mounting plates interlock to adjacent ones

  23. Step 2 – Mounting the Inverter • Hang on bracket & secure with screws on top

  24. Step 3 – Mounting the XW-Power Distribution Panel and Conduit Box • Hang XW-PDP on bracket & secure with screws on top • Secure XW-Conduit Box to bottom of inverter and to wall • Note - Conduit Box IS included with XW-PDP!

  25. Step 4 – Wiring the Inverter • Steps for wiring XW inverter to XW PDP: • Route and connect communication cables • Ground the Inverter • Make DC connections • Make AC connections

  26. Routing Communication and Signal Cables • Raceway separates communication cables from power cables • Its easiest to route the communications cables BEFORE making AC and DC connections Raceway separates signal cables from Power cables

  27. Communication Ports AC sync ports RJ45 x 2 Xanbus ports RJ45 x2 Battery Temp Sensor AUX Ports

  28. Grounding The Inverter • Connect the inverter chassis ground to the ground bar in the XW PDP using the pre-wired green grounding conductor.

  29. Making DC Connections • Connect the pre-wired red • DC cable from the XW PDP to • the inverter Positive DC terminal. • Connect the pre-wired black • DC cable from the XW PDP to • the inverter Positive DC terminal.

  30. Accessing the Inverter’s AC Terminals

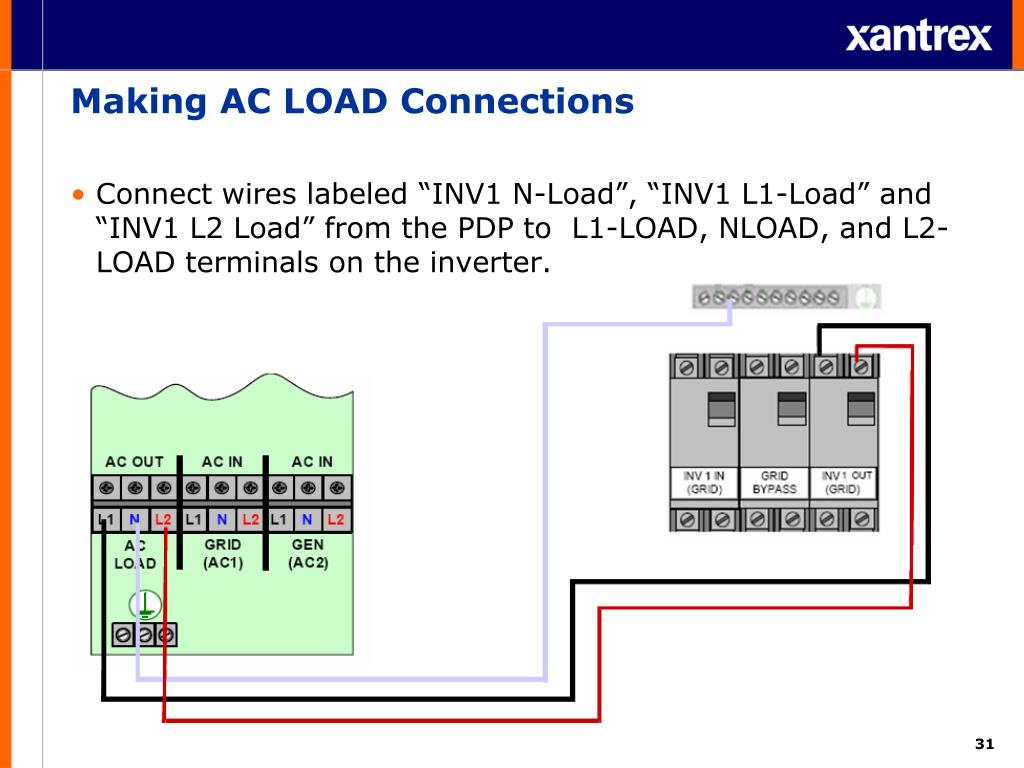

  31. Making AC LOAD Connections • Connect wires labeled “INV1 N-Load”, “INV1 L1-Load” and “INV1 L2 Load” from the PDP to L1-LOAD, NLOAD, and L2-LOAD terminals on the inverter.

  32. Making AC INPUT Connections • Connect wires labeled “INV1 L1-Grid”, “INV1 L2-Grid” on the XW-PDP to L1-AC1 and L2-AC1 terminals on the inverter

  33. Connect to AC Source and Sub-Panel • AC Source can either be Utility Grid (as shown) or Generator • Sub-panel may not be required if load breakers can fit into XW-PDP

  34. AC Wiring for Backup Generator or 2nd AC Source • Additional 2 Pole QOU Breaker required for Generator • If only 1 AC Source then use breakers provided with XW-PDP

  35. Step 5 – Installing Additional Inverters • List of parts needed to install 2nd inverter… • 2nd inverter • XW-Connection Kit for 2nd Inverter • Install inverter & conduit box • Mount Inverter & Conduit Box • Install DC Breaker in XW-PDP • Reconfigure AC Breakers • Connect DC wiring • Connect AC wiring • Connect Xanbus™ & sync wiring

  36. Reconfiguring AC Breakers • Breakers and busbars provided in XW-Connection Kit • Attached custom Bypass Interlock Plate to top breaker cover

  37. Connect Xanbus™ and AC Sync Cables • Route the cables (provided in XW-Connection Kit for Inv2) in communication raceways • Terminators are not required on AC Sync lines

  38. Mount Charge Controller(s) onto XW-PDP • Remove appropriate knockouts • Back the top side screw out ¼ inch • Remove the lower screw • Hang Charge Controller from keyhole slot on side of XW-PDP • Replace lower screw by inserting through hole on inside of XW-PDP

  39. Multiple charge controllers can be connected to a common battery bank • Each charge controller must have its own separate array • Battery negative connected to ground through PVGFP on charge controller • Install • 60ADC, 160VDC breaker on input (PV side) • 80ADC, 125VDC breaker on output (battery side)

  40. Connecting the Xanbus™ Network Daisy Chain • Device sequence doesn’t matter • Network terminator is required at each end of the daisy chain • No hub required, just standard Cat5 Ethernet cables • AGS and SCP can be mounted up to 130ft from inverter(s) and are powered off Xanbus™ network (i.e. no wall-warts)

  41. Xantrex XW SeriesSystem Configuration

  42. System Configuration • XW-System Control Panel is required for monitoring and configuring all devices in the system • Four screen/menu types • System Status Screen • Device Home Screens • Basic Setup Menus • Advanced Setup Menus

  43. Status Screens • System Status Screen: Displays aggregated status information for the entire system

  44. Status Screens • Device Home Screens: Displays specific status information about the device

  45. Setup Menus • There are two Setup menus used to configure the XW inverter: • Basic: Includes configuration items you may have to adjust in a basic system • Advanced: Gives you access to the full range of settings of the system

  46. Inverter Configurability • Inverter/charger settings • Low and high battery cut out/cut in and delay • Search watts, spacing of pulses • Charger settings • Battery type & capacity • Max charge rate, 2- or 3-Stage Charge Cycle, recharge set point • Bulk, absorption, float, & equalize voltages and duration of absorption cycle • Battery temperature compensation set point • AC settings • AC priority (AC1 or AC2) • AC breaker sizes • AC thresholds to define acceptable voltage and frequency ranges • Grid support settings • Grid support battery voltage • Sell enable/disable, max sell amps • Load shave enable/disable, load shave amps, load shave start/stop times • Generator support settings • Gen support enable/disable, Gen support amps • Auxiliary output settings • Enable/disable, Polarity, Trigger source (manual, battery voltage, temp, or fault) • Multi-Unit config settings • Device name & number, Mode Master/Slave, AC & DC Connections

  47. Charge Controller Configurability • Charger settings • Max charge rate, charge algorithm (3 stage or 2 stage) • Battery settings • Battery voltage, type & capacity • Absorption, float, & equalize voltages and duration of absorption cycle • Battery temperature compensation set point • Input settings • Auto-track enable/disable, reference voltage set point (if disabled) • Auxiliary output settings • Enable/disable, Polarity, Trigger source (manual, battery voltage, temp, or fault)

  48. Commissioning a Single Inverter • Confirm all connections • Apply DC Power to the Inverter • Inverter will perform self-test and power up in Standby Mode • Press On/Off Button • Check AC Voltage at AC Load Terminals

  49. Commissioning a Single Inverter • Apply AC Power from grid or generator • LED (AC1 or AC2) on front panel will blink until source is qualified • Display will show charge current Amps • Adjust Configuration Settings through XW-System Control Panel Basic or Advanced Setting menus if/as required for application

  50. Commissioning Multiple Inverters • Confirm all wiring and cable connections • Apply DC Power to 1st inverter, check display for self-test • Use SCP to set up Inv1 – in Multi Unit Config menu • Change Dev Number from “00” to “01” • Apply DC Power to 2nd inverter, check display for self-test • Use SCP to set up Inv2 – in Multi Unit Config menu • Change Dev Number from “00” to “02” • Change Invtr Mode from “SplitPhMaster” to “SplitPhSlave” • If a third inverter is installed, repeat steps to configure it as a Slave • Go to System Settings menu, change System Mode to “Operating” • Check AC Voltage at AC Load Breakers in XW-PDP • Apply AC Power from grid or generator, confirm charging • Adjust Configuration Settings if/as required for application
