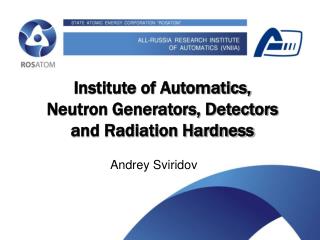

Institute of Automatics, Neutron Generators, Detectors and Radiation Hardness

Andrey Sviridov

slide2

Defense Applications

  • The most important defense areas of VNIIA are developments of:
  • Nuclear weapons for the strategic and tactical platforms;
  • Firing and neutron initiation systems for the nuclear weapons;
  • Non-nuclear components and automatics for the nuclear weapons;
  • Nuclear explosion monitoring equipment;
  • Unified test & measurement equipment;
  • Hardware and methods for measurement of the nuclear charge parameters during the experimenting activities.
slide3

Defense Applications

Platforms that carry the nuclear weapons designed at VNIIA

slide4

Neutron Generators

VNIIA is the only company is Russia that has the full-scale research & design, and fabrication capabilities to produce serially the portable neutron generators for variety of applications with the neutron radiation of a wide range of parameters.

Neutron tubes & plasma focus chambers

slide5

Neutron Generators

  • The neutron generators have a number of applications, such as:
  • Petroleum and uranium well-logging;
  • Monitoring of the industrial processes, certification of products;
  • Detection and identification of explosives and toxic agents;
  • Neutron therapy;
  • Neutron radiography and tomography;
  • Research of the physics of the nuclear reactors and the fuel assemblies;
  • Detection and monitoring of the nuclear materials;
  • Scientific research.
slide6

Neutron Generators

Neutron generators for the radiationanalysis equipment

slide7

Neutron Generators

Neutron generators for the radiationanalysis equipment

slide8

Neutron Generators

Pulsed neutron logging equipment

slide9

Neutron Generators

  • VNIIA neutron generators have the unique specifications:
  • Neutron yield up to 1012 neutron/s;
  • Pulse duration 0.01 µs to 10 ms;
  • Pulse frequency from single up to 10 kHz.

The neutron generators and hardware based on them is delivered to domestic customers, as well as to the USA,

the UK, Germany, China, Japan, Italy, Israel, South Korea, and the CIS countries.

slide10

Dosimetry, Spectrometry and Radiometry Equipment

Hand-held radiation monitor

The hand-held radiation monitors are capable of detecting 0.03 g of 239Pu and 0.3 g of 235U.

slide11

Dosimetry, Spectrometry and Radiometry Equipment

Radiation monitoringsystem

Checkpoint equipped with the radiation monitoring system

slide12

Equipment for Detection of Fast Processes

  • The Institute develops and fabricates the equipment for detecting and measuring of the fast processes for the nuclear physical research and the laser emission diagnostics:
  • Gamma and neutron detectors of the high sensitivity (up to 2·10-9 A·cm2·s/quantum), the high time resolution (0.5 to 10 ns), and the high linear current (2 to 10 A);
  • Chronographic electronic-optical detectors of the optical radiation in the wavelength range 300 to 1053 nm and subpicosecond time resolution;
slide13

Equipment for Detection of Fast Processes

  • The Institute develops and fabricates the equipment for detecting and measuring of the fast processes for the nuclear physical research and the laser emission diagnostics:
  • X-ray electronic-optical detectors for X-ray plasma image in the laser nuclear fusion installations:
  • - Chronographic electronic-optical detectors with the picosecond time resolution (3 ps) and the spectral detection range 0.1 to 10 keV;
  • - Multi-image electronic-optical detectors with the image duration 100 ps and the number of images equal to 10.
slide14

Equipment for Detection of Fast Processes

X-ray chronographic electronic-optic detector

Chronographic electronic-optic detector

slide15

Equipment for Detection of Fast Processes

Detectors of the pulsed neutrons and gamma rays

Shockproof multi-channel detector

slide16

Equipment for Detection of Fast Processes

The unique electro-vacuum devices are developed to be used in the scintillation detectors and the fast electronic-optical detectors: the photoelectron multipliers and the photo-elements of the high time resolution, the X-ray and chronographic electronic-optical converters. These devices have the linear characteristic current curve up to 10 A, the large gain factor up to 106, and the high time resolution (0.5 ns), so that they can be applied for detecting the subnanosecond processes.

Electro-vacuum devices for scintillation detectors and electronic-optical detectors

slide17

Equipment for Detection of Fast Processes

  • Digital TV detectors of the light radiation based on the CCD structures with the number of pixels up to 2048 x 2048 used for the direct detection of the spatial resolution of the items, and for reading out the data from the screen of the electronic-optical detectors;
  • Multi-channel analog-to-digital converter for the signal shape and the time intervals with the sampling frequency up to 4 GHz.
slide18

Equipment for Detection of Fast Processes

Multi-channel analog-to-digital converter

Digital TV detector

slide19

Radiation Hardness

n: 0.1 - 14 MeV

γ: 0.2 - 10 MeV nuclear blast

x : 0.01 – 0.2 MeV

n :2 - 100 MeV

µ:2 GeV cosmic rays

p :> GeV

e : GeV

catastrophic damages complete failure 1 10 mrad
Catastrophic damages (complete failure) ~ 1 - 10 Mrad.

Transient effects

Ionising effects

Latch-up

research methods
Research Methods

Imitators γ e

n n

p n

Modeling

Tests

methods of radiation hardness
Methods of radiation hardness

Protection

Distance, including taking outof sensor

Blinking memory

Circumvention

Reservation
