  1. Announcements:

  2. Last lecture • Organization of the nervous system • Introduction to the neuron • Today – electrical potential • Generating membrane potential • Nernst equation • Goldman equation • Maintaining ionic distributions

  3. Neural Signaling A Simple Circuit Between neurons Within neurons chemical & electrical electrical

  4. Bioelectric Potentials • Neurons have an electrical potential (voltage) across the cell membrane • The inside of the cell is more negative than the outside • called the Resting Membrane Potential

  5. Resting potential Measuring Membrane Potential amplifier microelectrode Reference electrode 0 mV cell -80 mV time Bathing solution

  6. Electrophysiology techniques Silver / Silver chloride wire electrode Amplifier output Reference electrode 3M KCl solution Very tiny hole (<<0.1m) Glass micropipette

  7. Resting Membrane Potential • How is it generated? • differential distribution of ions inside and outside the cell • Selective Permeability of the membrane to some ions

  8. How does unequal concentration of ions give rise to membrane potential ?

  9. Cl- Cl- Cl- Cl- Equal concentrations of ions 0 volts Artificial ion selective membrane (only K+, not Cl-) voltmeter K+ I II K+ 0.01 M KCL 0.01 M KCL K+ K+ No net movement

  10. Cl- Cl- Cl- Cl- Cl- Cl- Unequal concentrations of ions volts - + Ion selective membrane (only K+, not Cl-) K+ I II K+ K+ K+ 0.1 M KCL 0.01 M KCL K+ K+ K+ K+ concentration gradient

  11. K+ K+ K+ K+ K+ K+ K+ K+ K+ K+ K+ K+ K+ K+ Cl- Cl- Cl- Cl- Cl- Cl- Cl- Cl- Cl- Cl- Cl- Cl- Cl- Cl- Cl- Cl- Cl- Cl- Initial New Equilibrium + + + + + + CHEMICAL CHEMICAL ELECTRICAL

  12. Unequal concentrations of ions • Initial diffusion of K+ down concentration gradient from I to II • This causes + charge to accumulate in II because + and - charges are separated • Remember that Cl- can’t cross the membrane ! • Therefore II becomes positive relative to I

  13. Equilibrium Potential • As IIbecomes +, movement of K+ is repelled • Every K+ near the membrane has two opposing forces acting on it: • Chemical gradient • Electrical gradient • These two forces exactly balance each other • Called the electrochemical equilibrium

  14. The electrical potential that develops is called the equilibrium potential for the ion. • Electrical potential at which there is no net movement of the ion • Note: • only a very small number of ions actually contribute to the electrical potential • the overall concentrations of K and Cl in solution do not change.

  15. To calculate the equilibrium potential of any ion (eg. K, Na, Ca,) at any concentration • we use the Nernst Equation:

  16. Nernst Equation Ion Concentration I Temp (K) Gas Constant Equilibrium Potential of X ion (eg. K+) in Volts Ion Concentration II Valence of ion (-1, +1, +2) Faraday constant

  17. Nernst Equation • At 18C, for a monovalent ion, and converting to log10 ,the equation simplifies to:

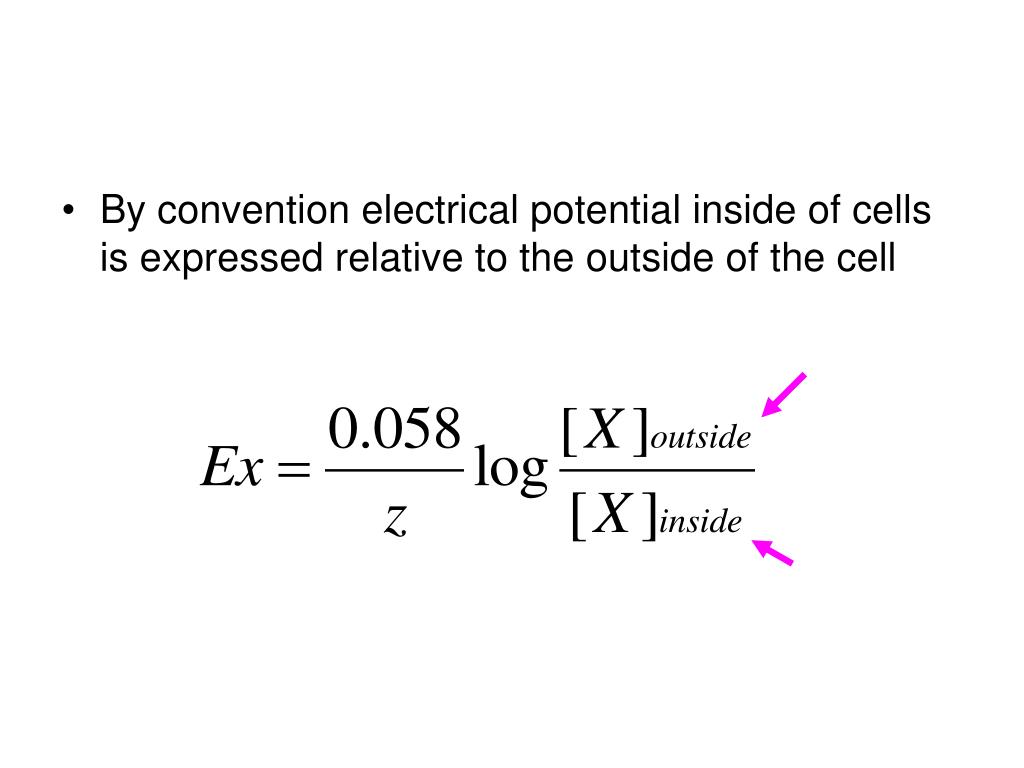

  18. By convention electrical potential inside of cells is expressed relative to the outside of the cell

  19. in out 0.1 M KCL 0.02 M KCL Example: K+ = -0.040 Volts = - 40 mV

  20. Therefore, • initial movement of K+ down concentration gradient • When electrical potential of -40 mV develops, there will be no net movement of K+ • Thus K+ is in electrochemical equilibrium

  21. in out Na+ Na+ Na+ Na+ Na+ Na+ 0.1 M KCl 0.02 M NaCl 0.01 M KCl 0.2 M NaCl K+ K+ K+ K+ K+ K+ What if there is more than one permeable ion? Permeable to K+ and Na+, but not Cl-

  22. To calculate the overall potential of multiple ions • use the Goldman Equation • Considers the permeability of ions and their concentrations

  23. Goldman equation Voltage Ion concentration Permeability Because Cl is negative

  24. Goldman equation • Example, typical mammalian cell: • Assume permeability for Na is 1/100 of permeability for K, and permeability of Cl is 0 • Assume [K]in= 140, [K]out=5 [Na]in =10, [Na]out=120

  25. Goldman equation • The resting membrane potential of most cells is predicted by the Goldman equation

  26. Summary & Key Concepts • Unequal distributions of an ion across a selective membrane • causes an electrochemical potential called the equilibrium potential • Two opposing forces act on ions at the membrane • A chemical force down the concentration gradient • An opposing electrical force

  27. Summary & Key Concepts • The equilibrium potential for an ion is described by the Nernst equation • Cell membranes are permeable to more than one ion • the membrane electrical potential is described by the Goldman equation

  28. So What??? • Everythingthe nervous system and muscles do depends on the resting membrane potential

  29. Sample question • If two concentrations of KCl solution across a membrane give an equilibrium potential for K+ of -60 mV, what will the equilibrium potential be if the concentrations on each side are reversed • -120 mV • 0 • +60 mV • -30 mV
