  1. Июнь 2010 ATEKO a.s.Представление компанииОсновные проекты 2009, 2008Технологии по сушке природного газаОчистка водорода

  2. ATEKO a.s.- Представление AO ATEKO является машиностроительной, производственной и инжиниринговой компанией, которая предлагает комплексные поставки инвестиционных агрегатов формой исполнения "под ключ" в области газовой, химической промышленности, машиностроения и пищевой промышленности, охлаждения воды, энергии и защиты окружающей среды. Фирма основана в 1949 г. Название АТЕКО носит с 1994 г. Число сотрудников: 45 Годовой оборот: ≈10 мил. Доля экспорта: 30% Компания входит в состав МЭДИС Холдинг ČSN EN ISO 9001:2001 ČSN EN ISO 14001:2005

  3. ATEKO a.s.- Направление деятельности Технологические установки – сушка природного газа (ведущая фирма в Чехии и Словакии) – для охраны окружающей среды – Установки по утилизачии паров, по устранении органических паров – альтернативные источники энергии –сухая ферментация, турбомашины c косвенным нагревом – холодильная и криогенная техника Аппараты – Кожухо-трубчатые теплообменики – Фильтры, сепараторы газа – турбоциркуляторы Инжиниринговые услуги- проектные разработки, шефмонтаж итд.

  4. ATEKO a.s. – профессиональный состав общества Дивизия процессов производства Базовый инжиниринг Детальный инжиниринг Проектирование технологических процессов и оборуддования Дивизия проектов Комплексная разработка проектной документации Обработка проектов на всех уровнях Инженерная деятельность при реализации строительных сооружений Конструкторская дивизия Инжинирные разработки аппаратов и оборудования Оформление испольнительной производительной документации Анализ статической и динамической загрузки методом конечных элементов Дивизияпроизводства и реализации Реализация и обеспечение поставок установок под ключ Комплексное гарантийное и после гарантийное сервисное обслуживание

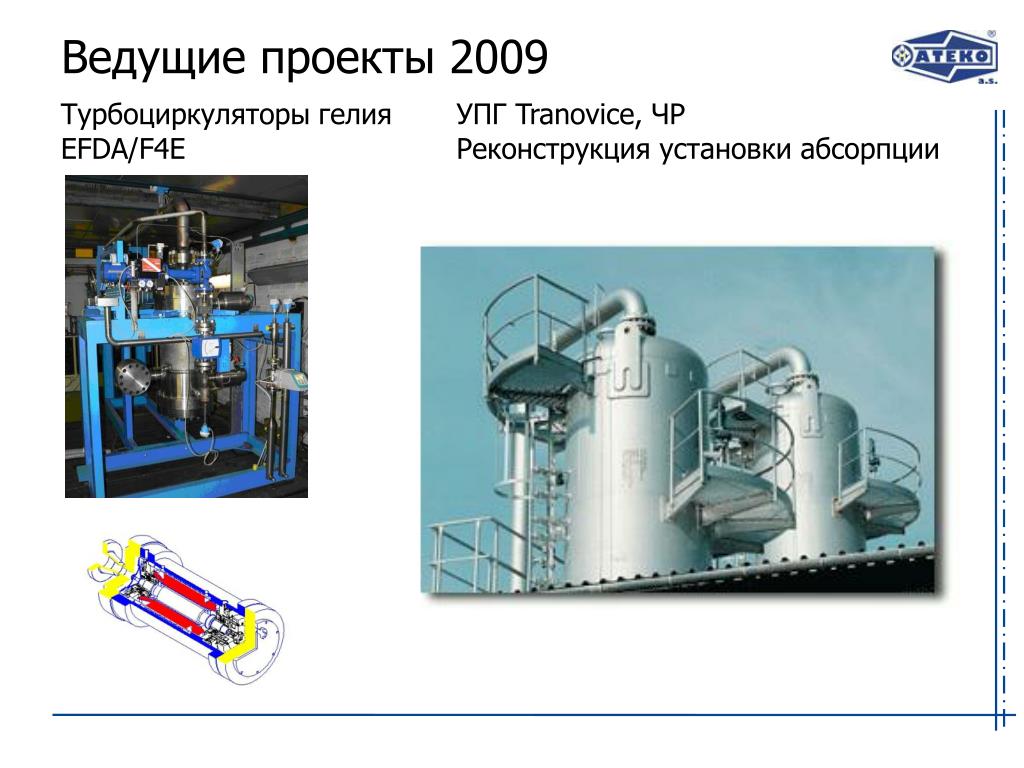

  5. Ведущие проекты 2009 Турбоциркуляторы гелия EFDA/F4E УПГ Tranovice, ЧР Реконструкция установки абсорпции

  6. Ведущие проекты 2008Очистка водорода (устранение ртути) IVECO Vysoké Mýto, ЧР Станция лакокрасочных покрытий

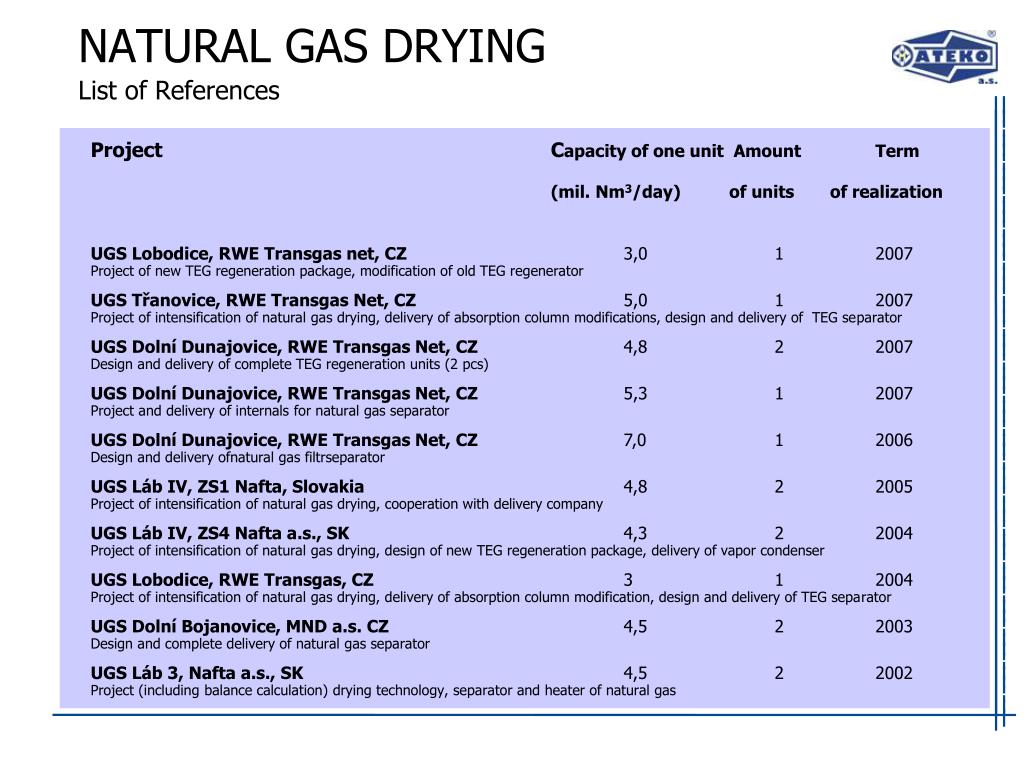

  7. NATURAL GAS DRYINGList of References Project Capacity of one unit Amount Term (mil. Nm3/day) of units of realization UGS Lobodice, RWE Transgas net, CZ 3,0 1 2007 Project of new TEG regeneration package, modification of old TEG regenerator UGS Třanovice, RWE Transgas Net, CZ 5,0 1 2007 Project of intensification of natural gas drying, delivery of absorption column modifications, design and delivery of TEG separator UGS Dolní Dunajovice, RWE Transgas Net, CZ 4,82 2007 Design and delivery of complete TEG regeneration units (2 pcs) UGS Dolní Dunajovice, RWE Transgas Net, CZ 5,312007 Project and delivery of internals for natural gas separator UGS Dolní Dunajovice, RWE Transgas Net, CZ 7,012006 Design and delivery ofnatural gas filtrseparator UGS Láb IV, ZS1 Nafta, Slovakia 4,8 2 2005 Project of intensification of natural gas drying, cooperation with delivery company UGS Láb IV, ZS4 Nafta a.s., SK 4,3 2 2004 Project of intensification of natural gas drying, design of new TEG regeneration package, delivery of vapor condenser UGS Lobodice, RWE Transgas, CZ 3 1 2004 Project of intensification of natural gas drying, delivery of absorption column modification, design and delivery of TEG separator UGS Dolní Bojanovice, MND a.s. CZ 4,5 2 2003 Design and complete delivery of natural gas separator UGS Láb 3, Nafta a.s., SK 4,5 2 2002 Project (including balance calculation) drying technology, separator and heater of natural gas

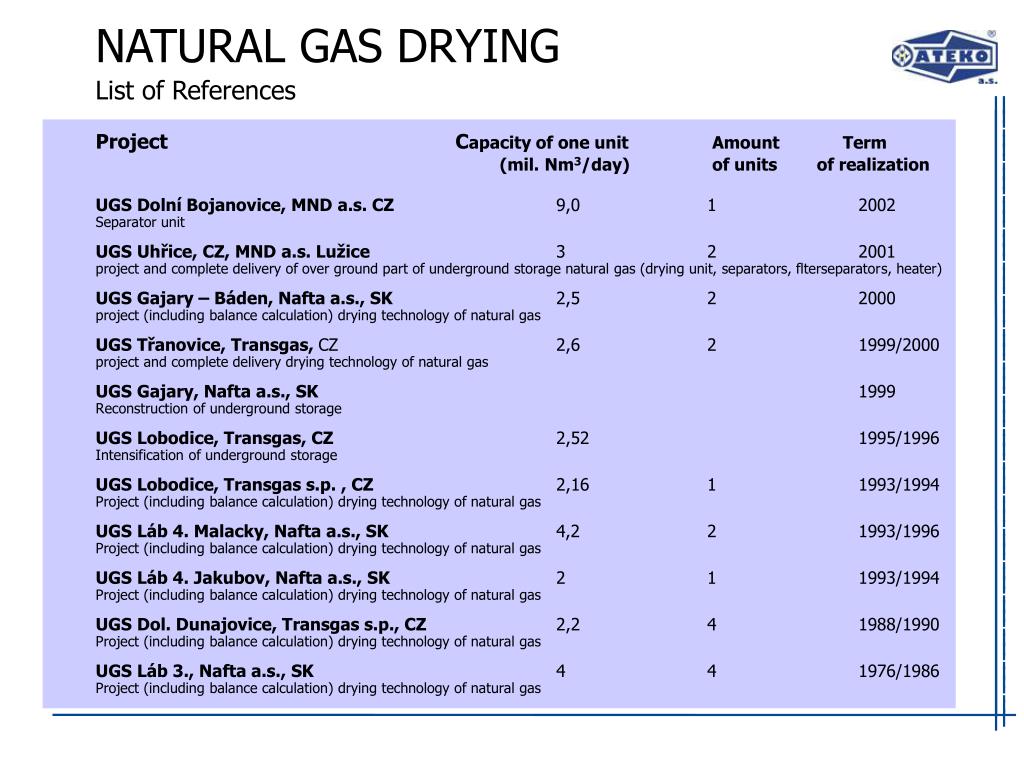

  8. NATURAL GAS DRYINGList of References Project Capacity of one unit Amount Term (mil. Nm3/day) of units of realization UGS Dolní Bojanovice, MND a.s. CZ 9,0 1 2002 Separator unit UGS Uhřice, CZ, MND a.s. Lužice 3 2 2001 project and complete delivery of over ground part of underground storage natural gas (drying unit, separators, flterseparators, heater) UGS Gajary – Báden, Nafta a.s., SK 2,5 2 2000 project (including balance calculation) drying technology of natural gas UGS Třanovice, Transgas, CZ 2,6 2 1999/2000 project and complete delivery drying technology of natural gas UGS Gajary, Nafta a.s., SK 1999 Reconstruction of underground storage UGS Lobodice, Transgas, CZ 2,52 1995/1996 Intensification of underground storage UGS Lobodice, Transgas s.p. , CZ 2,16 1 1993/1994 Project (including balance calculation) drying technology of natural gas UGS Láb 4. Malacky, Nafta a.s., SK 4,2 2 1993/1996 Project (including balance calculation) drying technology of natural gas UGS Láb 4. Jakubov, Nafta a.s., SK 2 1 1993/1994 Project (including balance calculation) drying technology of natural gas UGS Dol. Dunajovice, Transgas s.p., CZ 2,2 4 1988/1990 Project (including balance calculation) drying technology of natural gas UGS Láb 3., Nafta a.s., SK 4 4 1976/1986 Project (including balance calculation) drying technology of natural gas

  9. Underground Storage TřanoviceDrying technology of natural gas Investor: RWE TRANSGAS a.s. Supplier of drying unit ATEKO a.s. Time of delivery 12 months excluding pilot plant Put into operation 2000 Drying unit parameters: • capacity (2 lines) 1st line 88 000 Nm3/h 2nd line 107 000 Nm3/h • pressure 1st line 3-1,4 MPa 2nd line 3-1,2 MPa • temperature 15 – 25 °C • dew point- 8°C on 4 MPa

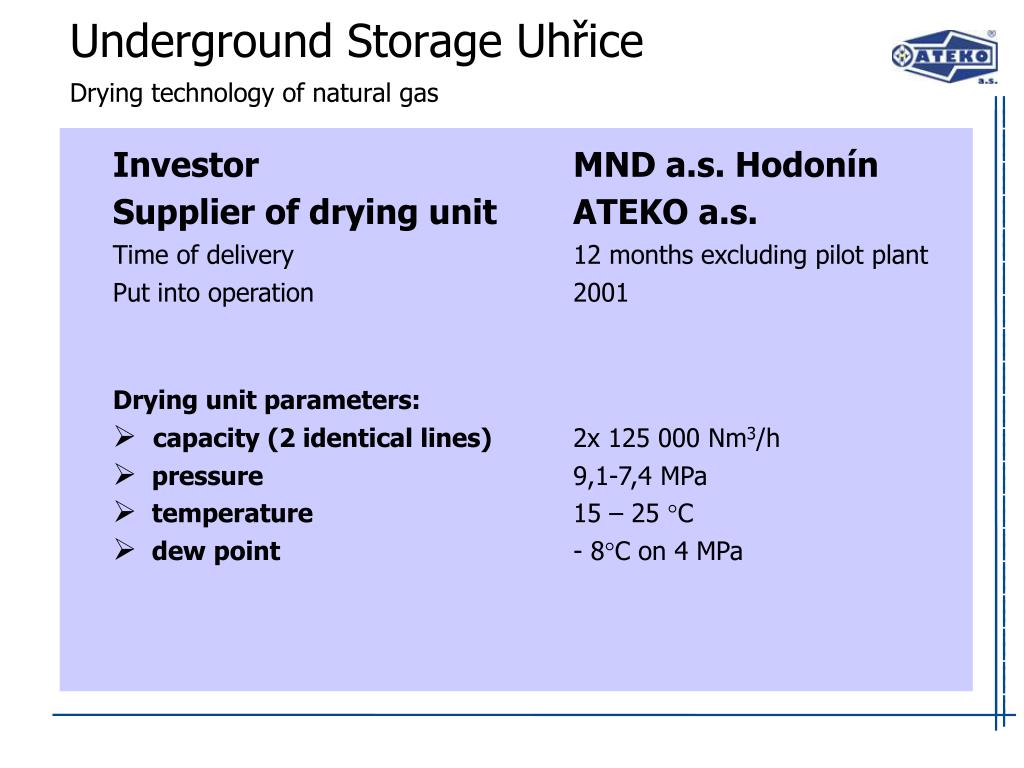

  10. Underground Storage UhřiceDrying technology of natural gas Investor MND a.s. Hodonín Supplier of drying unit ATEKO a.s. Time of delivery 12 months excluding pilot plant Put into operation 2001 Drying unit parameters: • capacity (2 identical lines) 2x 125 000 Nm3/h • pressure 9,1-7,4 MPa • temperature 15 – 25 °C • dew point- 8°C on 4 MPa

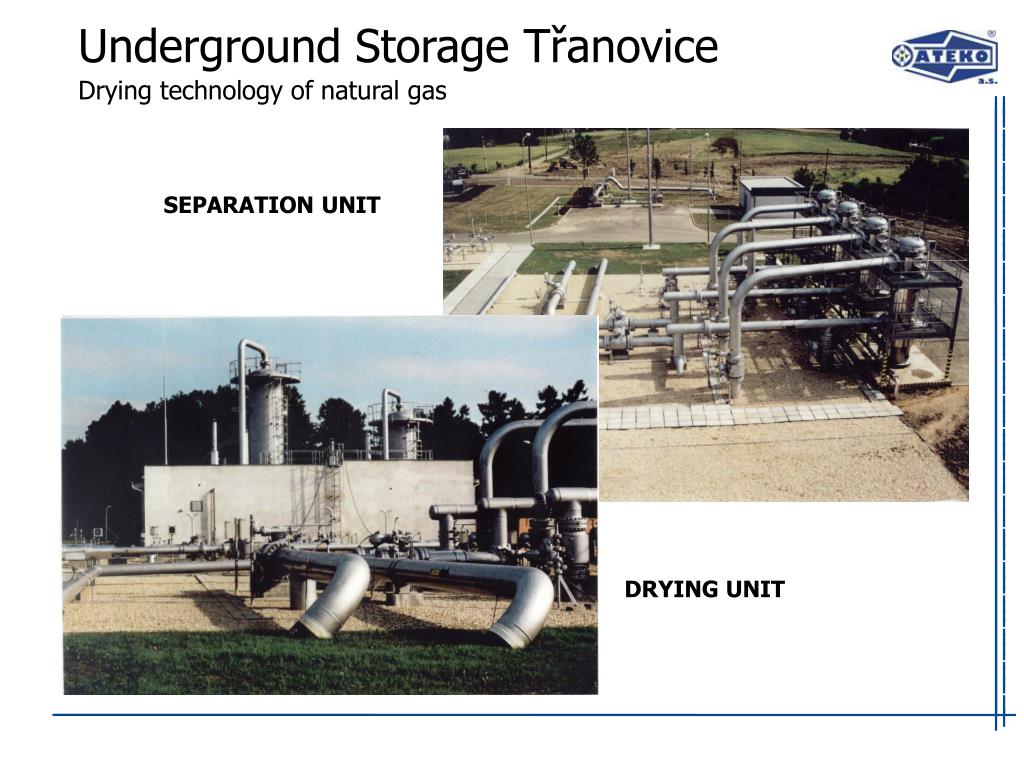

  11. Underground Storage TřanoviceDrying technology of natural gas SEPARATION UNIT DRYING UNIT

  12. Underground Storage UhřiceDrying technology of natural gas DRYING UNIT HEATER OF NATURAL GAS

  13. Hydrogen purification and treatment unitInvestor:Air Products Slovakia ATEKO a.s. has delivered and commissioned hydrogen purification and treatment unit for Air Products Slovakia (on NCHZ Novaky site) in 2007 – 2008. The unit improves the quality of raw hydrogen (H2 source - electrolysis) to meet the requirements for market of technical gases (H2 filling station).

  14. Hydrogen purification and treatment unitProcess description The unit consists of three sections Catalytic oxygen removal Hydrogen compression Hydrogen high-pressure purification Mercury and oxygen are removed from hydrogen in Catalytic oxygen removal section. Mercury vapours from hydrogen are adsorbed on sulphur-impregnated active carbon at temperature of 40°C and pressure of 6 barg. Mercury chemically reacts with sulphur to mercury sulphide. Oxygen is removed by chemical reaction with hydrogen when water is produced (exothermal reaction). Reaction is catalysed by platinum at temperature of 150°C and pressure of 6 barg. Hydrogen compression Hydrogen is compressed in three stage compressor from 6 barg to 120 – 220 barg. CO2 and water are removed in hydrogen high-pressure purification section. Water is first partly removed by condensation at 10°C and 120-220 barg. Water condensate is removed from gaseous hydrogen. CO2 and rest of water are adsorbed on molecular sieve at 120-220 barg and 10°C (physical adsorption). Molecular sieve is regenerated at increased temperature and reduced pressure after its saturation by water and CO2.

  15. Hydrogen purification and treatment unitOperating conditions

  16. Thank you ! Contact: Resslova 956 501 01 Hradec Králové Czech Republic http://www.ateko.cz E-mail: ateko@ateko.cz Phone: +420495844111 Fax: +420 495 213203
