fmri data analysis i basic analyses and the general linear model

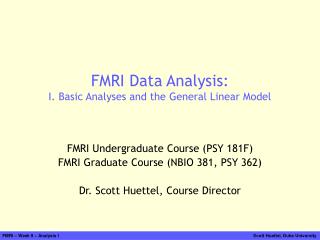

FMRI Data Analysis:I. Basic Analyses and the General Linear Model

FMRI Undergraduate Course (PSY 181F)

FMRI Graduate Course (NBIO 381, PSY 362)

Dr. Scott Huettel, Course Director

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

when do we not need statistical analysis
When do we not need statistical analysis?

Inter-ocular Trauma Test (Lockhead, personal communication)

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

why use statistical analyses
Why use statistical analyses?
  • Replaces simple subtractive methods
    • Signal highly corrupted by noise
      • Typical SNRs: 0.2 – 0.5
    • Sources of noise
      • Thermal variation (unstructured)
      • Physiological, task variability (structured)
  • Assesses quality of data
    • How reliable is an effect?
    • Allows distinction of weak, true effects from strong, noisy effects

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

what do our analyses generate
What do our analyses generate?
  • Statistical Parametric Maps
  • Brain maps of statistical quality of measurement
    • Examples: correlation, regression approaches
    • Displays likelihood that the effect observed is due to chance factors
    • Typically expressed in probability (e.g., p < 0.001), or via t or z statistics

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

what are our statistics for
What are our statistics for?

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide6
FMRI – Week 9 – Analysis I Scott Huettel, Duke University
key concepts
Key Concepts
  • Within-subjects analyses
    • Simple non-GLM approaches (older)
    • General Linear Model (GLM)
  • Across-subjects analyses
    • Fixed vs. Random effects
  • Correction for Multiple Comparisons
  • Displaying Data

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

simple hypothesis driven analyses
Simple Hypothesis-Driven Analyses
  • t-test across conditions
  • Time point analysis (i.e., t-test)
  • Correlation
  • Fourier analysis

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

correlation approaches old school
Correlation Approaches (old-school)
  • How well does our data match an expected hemodynamic response?
  • Special case of General Linear Model
  • Limited by choice of HDR
    • Assumes particular correlation template
    • Does not model task-unrelated variability
    • Does not model interactions between events

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

fourier analysis
Fourier Analysis
  • Fourier transform: converts information in time domain to frequency domain
    • Used to change a raw time course to a power spectrum
    • Hypothesis: any repetitive/blocked task should have power at the task frequency
  • BIAC function: FFTMR
    • Calculates frequency and phase plots for time series data.
  • Equivalent to correlation in frequency domain
  • Subset of general linear model
    • Same as if used sine and cosine as regressors

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide11

Power

12s on, 12s off

Frequency (Hz)

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide12
FMRI – Week 9 – Analysis I Scott Huettel, Duke University
the general linear model glm
The General Linear Model (GLM)

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

basic concepts of the glm
Basic Concepts of the GLM
  • GLM treats the data as a linear combination of model functions plus noise
    • Model functions have known shapes
    • Amplitude of functions are unknown
    • Assumes linearity of HDR; nonlinearities can be modeled explicitly
  • GLM analysis determines set of amplitude values that best account for data
    • Usual cost function: least-squares deviance of residual after modeling (noise)

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

signal noise and the general linear model
Signal, noise, and the General Linear Model

Amplitude (solve for)

Measured Data

Noise

Design Model

Cf. Boynton et al., 1996

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

form of the glm
Form of the GLM

Model Functions

Model Functions

Model

*

Amplitudes

=

+

Data

Noise

N Time Points

N Time Points

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

design matrices
Design Matrices

Model Parameters

Images

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide18

Regressors

(How much of the variance in the data does each explain?)

Contrasts

(Does one regressor explain more variance than another?)

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

the optimal relation between regressors depends on our research question
The optimal relation between regressors depends on our research question

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide20

Because of their correlation, the design is inefficient at distinguishing the contributions of R1 and R2 to the activation of a voxel.

Value of R2 (at each point in time)

Value of R1 (at each point in time)

Suppose that we have two correlated regressors.

R1: Motor?

R2: Visual?

X = Y

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide21

Now, the design allows us to separate the contributions of each regressor, but cannot look at their common effect.

Value of R2 (at each point in time)

Value of R1 (at each point in time)

Let’s now make the regressors anti-correlated .

X = -Y

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide22

This makes the activation uncorrelated, but doesn’t efficiently use the space.

Value of R2 (at each point in time)

X = Y

X = -Y

Value of R1 (at each point in time)

We can shift our block design in time, so that the regressors are off-set.

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide23

Now, we get more of a “cloud” arrangement of the time points.

(Squareness and lack of evenness is caused by my simulation approach)

Value of R2 (at each point in time)

Value of R1 (at each point in time)

And, we can make the regressors uncorrelated with each other through randomization.

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

fixed and random effects comparisons
Fixed and Random Effects Comparisons

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

fixed effects
Fixed Effects
  • Fixed-effects Model
    • Assumes that effect is constant (“fixed”) in the population
    • Uses data from all subjects to construct statistical test
    • Examples
      • Averaging across subjects before a t-test
      • Taking all subjects’ data and then doing an ANOVA
    • Allows inference to subject sample

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

random effects
Random Effects
  • Random-effects Model
    • Assumes that effect varies across the population
    • Accounts for inter-subject variance in analyses
    • Allows inferences to population from which subjects are drawn
    • Especially important for group comparisons
    • Required by many reviewers/journals

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

key concepts of random effects
Key Concepts of Random Effects
  • Assumes that activation parameters may vary across subjects
    • Since subjects are randomly chosen, activation parameters may vary within group
    • (Fixed-effects models assume that parameters are constant across individuals)
  • Calculates descriptive statistic for each subject
    • i.e., parameter estimate from regression model
  • Uses all subjects’ statistics in a higher-level analysis
    • i.e., group significance based on the distribution of subjects’ values.

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

the problem of multiple comparisons

P < 0.05 (1682 voxels)

P < 0.01 (364 voxels)

P < 0.001 (32 voxels)

The Problem of Multiple Comparisons

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide29

B

C

A

t = 2.10, p < 0.05 (uncorrected)

t = 3.60, p < 0.001 (uncorrected)

t = 7.15, p < 0.05, Bonferroni Corrected

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

options for multiple comparisons
Options for Multiple Comparisons
  • Statistical Correction (e.g., Bonferroni)
    • Family-wise Error Rate
    • False Discovery Rate (FDR)
  • Cluster Analyses
  • ROI Approaches

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

statistical corrections
Statistical Corrections
  • If more than one test is made, then the collective alpha value is greater than the single-test alpha
    • That is, overall Type I error increases
  • One option is to adjust the alpha value of the individual tests to maintain an overall alpha value at an acceptable level
    • This procedure controls for overall Type I error
    • Known as Bonferroni Correction

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide32
FMRI – Week 9 – Analysis I Scott Huettel, Duke University
bonferroni correction
Bonferroni Correction
  • Very severe correction
    • Results in very strict significance values
    • Typical brain may have up to ~30,000 functional voxels
      • P(Type I error) ~ 1.0 ; Corrected alpha ~ 0.000003
  • Greatly increases Type II error rate
  • Is not appropriate for correlated data
    • If data set contains correlated data points, then the effective number of statistical tests may be greatly reduced
    • Most fMRI data has significant correlation

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

gaussian field theory
Gaussian Field Theory
  • Approach developed by Worsley and colleagues to account for multiple comparisons
  • Provides false positive rate for fMRI data based upon the smoothness of the data
    • If data are very smooth, then the chance of noise points passing threshold is reduced
  • Recommendation: Use a combination of voxel and cluster correction methods

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide35
FMRI – Week 9 – Analysis I Scott Huettel, Duke University
cluster analyses
Cluster Analyses
  • Assumptions
    • Assumption I: Areas of true fMRI activity will typically extend over multiple voxels
    • Assumption II: The probability of observing an activation of a given voxel extent can be calculated
  • Cluster size thresholds can be used to reject false positive activity
    • Forman et al., Mag. Res. Med. (1995)
    • Xiong et al., Hum. Brain Map. (1995)

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

how many foci of activation
How many foci of activation?

Data from motor/visual event-related task (used in laboratory)

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

how large should clusters be
How large should clusters be?
  • At typical alpha values, even small cluster sizes provide good correction
    • Spatially Uncorrelated Voxels
      • At alpha = 0.001, cluster size 3
      • Type 1 rate to << 0.00001 per voxel
    • Highly correlated Voxels
      • Smoothing (FW = 0.5 voxels)
      • Increases needed cluster size to 7 or more voxels
  • Efficacy of cluster analysis depends upon shape and size of fMRI activity
    • Not as effective for non-convex regions
    • Power drops off rapidly if cluster size > activation size

Data from Forman et al., 1995

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

false discovery rate
False Discovery Rate
  • Controls the expected proportion of false positive values among suprathreshold values
    • Genovese, Lazar, and Nichols (2002, NeuroImage)
    • Does not control for chance of any face positives
  • FDR threshold determined based upon observed distribution of activity
    • So, sensitivity increases because metric becomes more lenient as voxels become significant

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide40

(sum)

Genovese, et al., 2002

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

roi comparisons
ROI Comparisons
  • Changes basis of statistical tests
    • Voxels: ~16,000
    • ROIs : ~ 1 – 100
  • Each ROI can be thought of as a very large volume element (e.g., voxel)
    • Anatomically-based ROIs do not introduce bias
  • Potential problems with using functional ROIs
    • Functional ROIs result from statistical tests
    • Therefore, they cannot be used (in themselves) to reduce the number of comparisons

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide42
FMRI – Week 9 – Analysis I Scott Huettel, Duke University
voxel and roi analyses are similar in concept
Voxel and ROI analyses are similar, in concept

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

summary of multiple comparison correction
Summary of Multiple Comparison Correction
  • Basic statistical corrections are often too severe for fMRI data
  • What are the relative consequences of different error types?
    • Correction decreases Type I rate: fewer false positives
    • Correction increases Type II rate: more misses
  • Alternate approaches may be more appropriate for fMRI
    • Cluster analyses
    • Region of interest approaches
    • Smoothing and Gaussian Field Theory
    • False Discovery Rate

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

displaying data
Displaying Data

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide46

Never Mask!

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

slide47
FMRI – Week 9 – Analysis I Scott Huettel, Duke University
slide48
FMRI – Week 9 – Analysis I Scott Huettel, Duke University
slide49
FMRI – Week 9 – Analysis I Scott Huettel, Duke University
summary of basic analysis methods
Summary of Basic Analysis Methods
  • Simple experimental designs
    • Blocked: t-test, Fourier analysis
    • Event-related: correlation, t-test at time points
  • Complex experimental designs
    • Regression approaches (GLM)
  • Critical problem: Minimization of Type I Error
    • Strict Bonferroni correction is too severe
    • Cluster analyses improve
    • Accounting for smoothness of data also helps
  • Use random-effects analyses to allow generalization to the population

FMRI – Week 9 – Analysis I Scott Huettel, Duke University

midterm results
Undergraduate

Mean score: ~78/100

Mean grade: B

See instructor or TAs for questions about answers

See instructor for grading questions/concerns

Reminder: Projects count as much as midterm!

Graduate

Mean score: ~81/100

Mean grade: B

See instructor for any examination questions

Graduate grades can be raised by meeting with instructor

Midterm Results

FMRI – Week 9 – Analysis I Scott Huettel, Duke University
