Presentation Transcript

  1. Water Cycle

  2. What is the water cycle? • This is how water circulates through our environment • Water changes from water to gas over and over again to complete the water cycle.

  3. Evaporation • Water evaporates into the atmosphere from the ocean, lakes, etc. • Evaporation = liquid gas

  4. Condensation • When water vapor particles join together to form a liquid and condense into clouds or dew. • Condensation = gas liquid

  5. Precipitation • Rain or snow that falls to the Earth

  6. Infiltration • The seeping in of water into soil or rocks through the cracks in the ground. • Eventually, this water goes back into the lakes and rivers.

  7. Runoff • Water that flows downslope on Earth’s surface and may enter a stream, river, or lake. • The rate of runoff is influenced by the angle of the slope, vegetation, rate of precipitation and soil composition. • Water that doesn’t go through infiltration, goes through runoff.

  8. Runoff

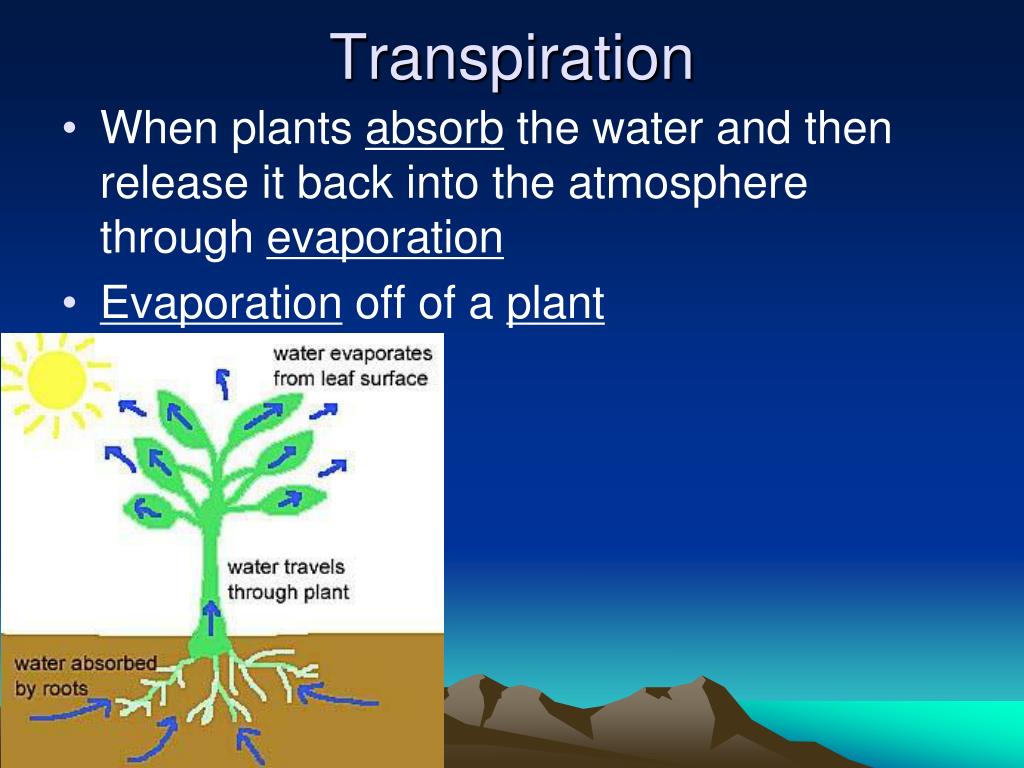

  9. Transpiration • When plants absorb the water and then release it back into the atmosphere through evaporation • Evaporation off of a plant

  10. Water Cycle

  11. Oceans—96.5% of water found here Fresh water—3.5% of water found here Fresh water distribution: Ice: 1.762% Groundwater: 1.7% Surface Fresh Water: 0.014% Atmosphere and soil: 0.002% The Structure of Hydrosphere

  12. Understanding Where Your Water Is Located—Oceans and Ice • What bodies of water hold the largest amount of water? • Oceans—the largest bodies of water on Earth (contain salt water only) • Features housing water as ICE • Icebergs: a large piece of freshwater ice floating in open waters. **approx. 85% of icebergs are under the surface of the water. • Glaciers: any large mass of ice that moves slowly over land formed by snow falling and compressing layer upon layer. • *permanent snow areas also “house” water as ice

  13. Fresh Water Locations—Surface Water • What is the difference between a watershed and a river basin? • Both terms describe land that drains into a river, stream or lake • River Basin: the term used to describe an area that drains into a large river • Watershed: the term used to describe an area that drains into a smaller river or stream

  14. Fresh Water Locations—River Basins and Watersheds • Larger river basins are made up of many interconnected watersheds • Example: Cape Fear and Neuse River Basins are made of many small watersheds • The water in a watershed runs to the lowest point—a river, stream, lake, or ocean

  15. Fresh Water Locations—Rivers, Streams, and Lakes • What is a river? • A large channel along which water is continually flowing down a slope—made of many streams that come together • What is a stream? • A small channel along which water is continually flowing down a slope—made of small gullies • What is a lake? • A body of water of considerable size contained on a body of land

  16. Fresh Water Locations--Groundwater • What is groundwater? • The water found in cracks and pores in sand, gravel and rocks below the earth’s surface • What is an aquifer? • A porous rock layer underground that is a reservoir for water

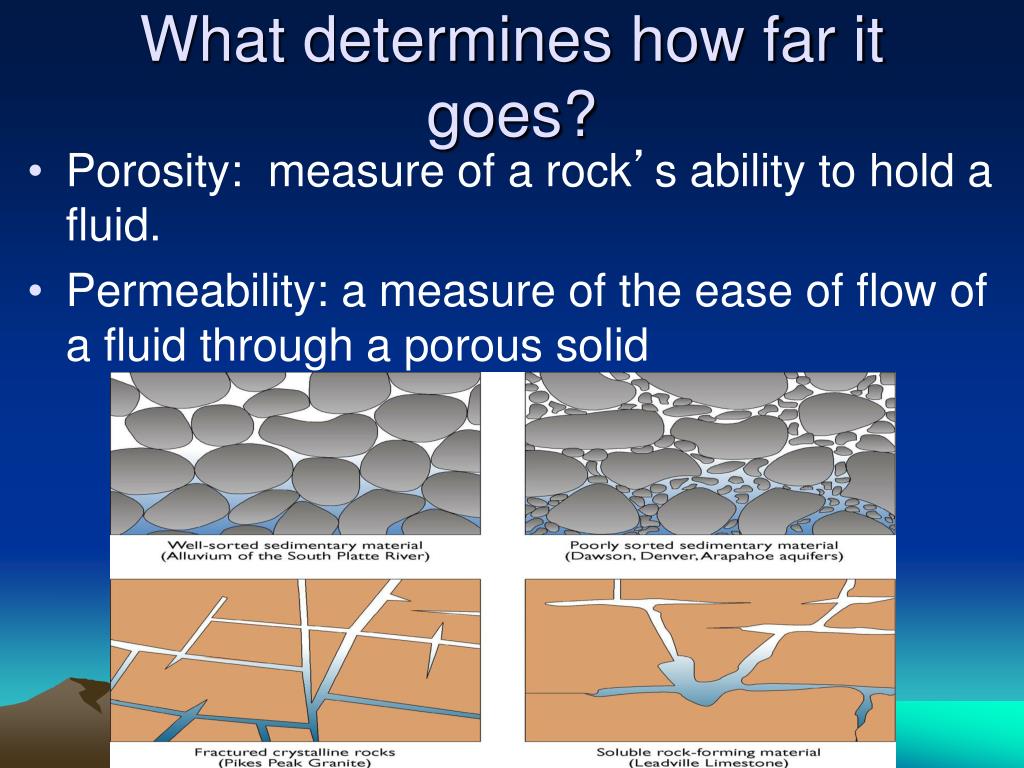

  17. What determines how far it goes? • Porosity: measure of a rock’s ability to hold a fluid. • Permeability: a measure of the ease of flow of a fluid through a porous solid

  18. Aquifers • porous rock layer which is capable of yielding useful supplies of water • layers of sand or fractured rock in which the pore spaces or fractures are filled with water

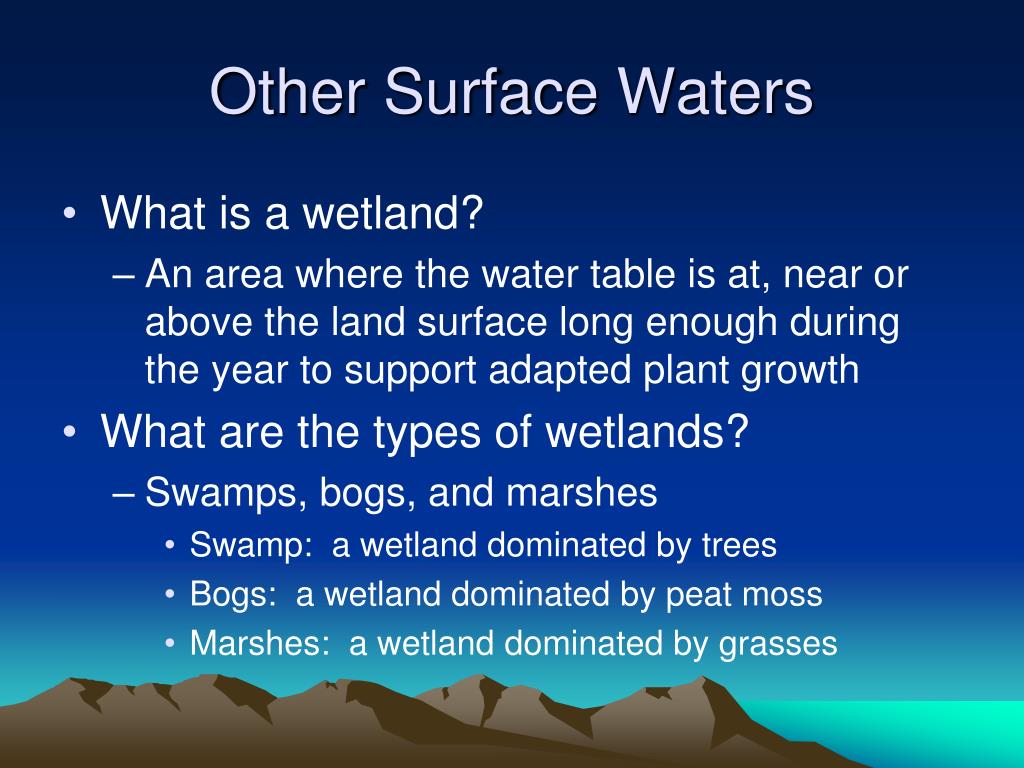

  19. Other Surface Waters • What is a wetland? • An area where the water table is at, near or above the land surface long enough during the year to support adapted plant growth • What are the types of wetlands? • Swamps, bogs, and marshes • Swamp: a wetland dominated by trees • Bogs: a wetland dominated by peat moss • Marshes: a wetland dominated by grasses
