Presentation Transcript
slide1

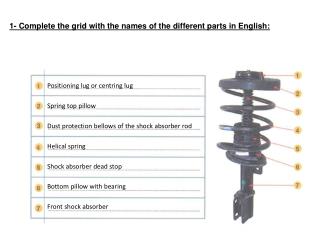

1- Complete the grid with the names of the different parts in English:

Positioninglug or centringlug

Spring top pillow

Dust protection bellows of the shock absorber rod

Helicalspring

Shock absorber dead stop

Bottompillowwithbearing

Front shock absorber

slide2

2- What is the function of the eighth and ninth parts? Give precise information.

  • The part n°8 isvery important for the good working of the steering.
  • If thisbearingis out of order, the steeringwheelwillbe hard to rotate and someclangswillappearwhenturning the wheels.
  • The shock absorber must slow down oscillations and vibrations of the suspension system to keepwheels in contact with the ground.
  • A vehiculewithshockabsorbers out of orderwon’tstay in line on the road and willbeuncomfortable.
slide3

3- When replacing front shock absorbers, I must pay attention to…

  • I musn’tunscrew the top shock absorber central screw on the car.(under the bonnet).
  • It’sverydangerous for the méchanics and canbe dommageable for the car’swing. The springcanjump. So take care, don’t confuse with fixing screw! And read the manufacturer’s notice!
  • When putting back new shockabsorbers, i must pay attention to the torque value of differentsscrews.
  • Screws fixing shockabsorbers on suspension arms….verybig torque about 100nm.
  • Screws fixing shockabsorbers on the wheelpathunder the bonnet…little torque about 2 or3 nm.
