  1. ACTN Proposed Protocol Work Dhruv Dhody 91st IETF @ Honolulu

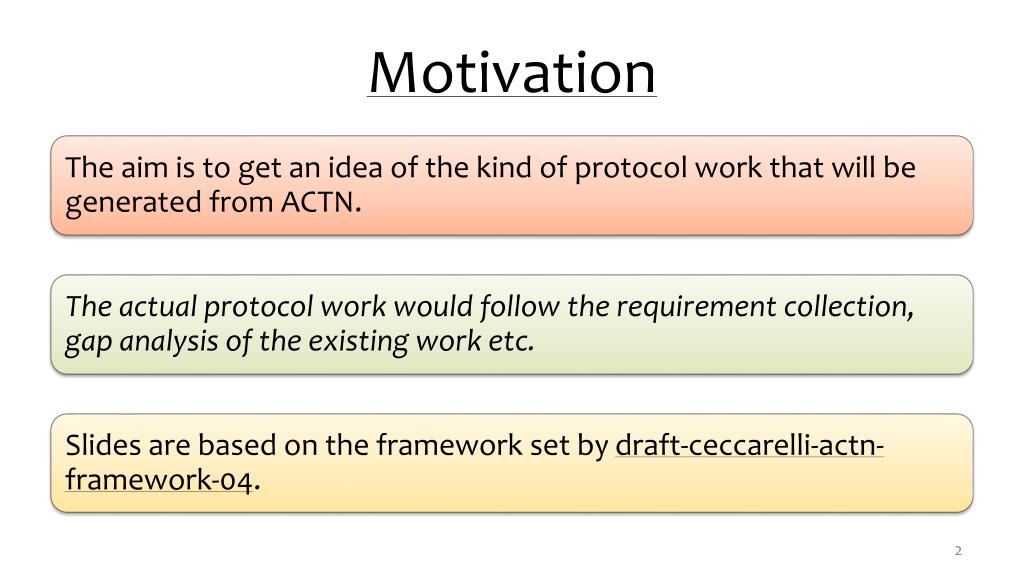

  2. Motivation

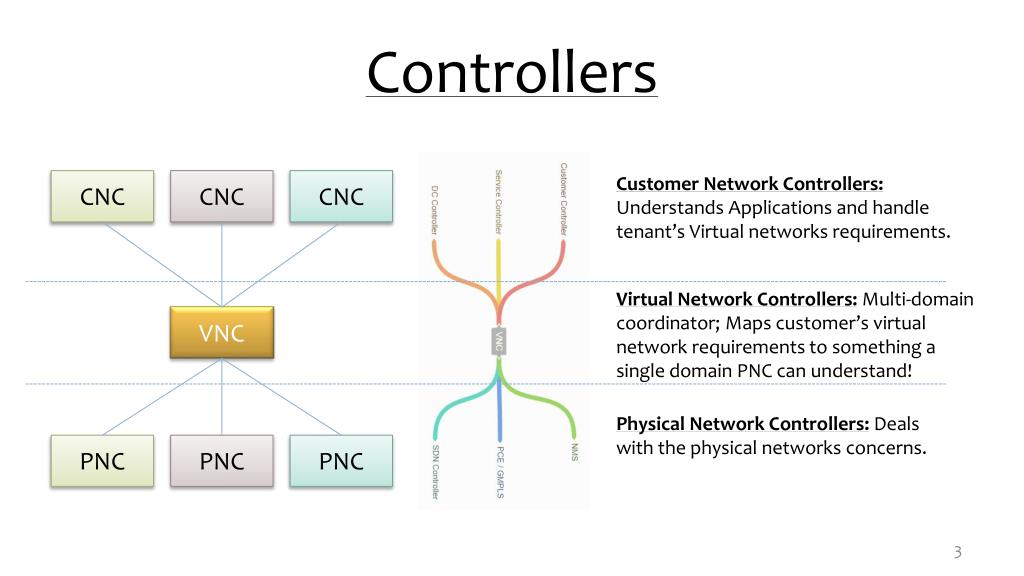

  3. Controllers Customer Network Controllers: Understands Applications and handle tenant’s Virtual networks requirements. CNC CNC CNC Virtual Network Controllers: Multi-domain coordinator; Maps customer’s virtual network requirements to something a single domain PNC can understand! VNC Physical Network Controllers: Deals with the physical networks concerns. PNC PNC PNC

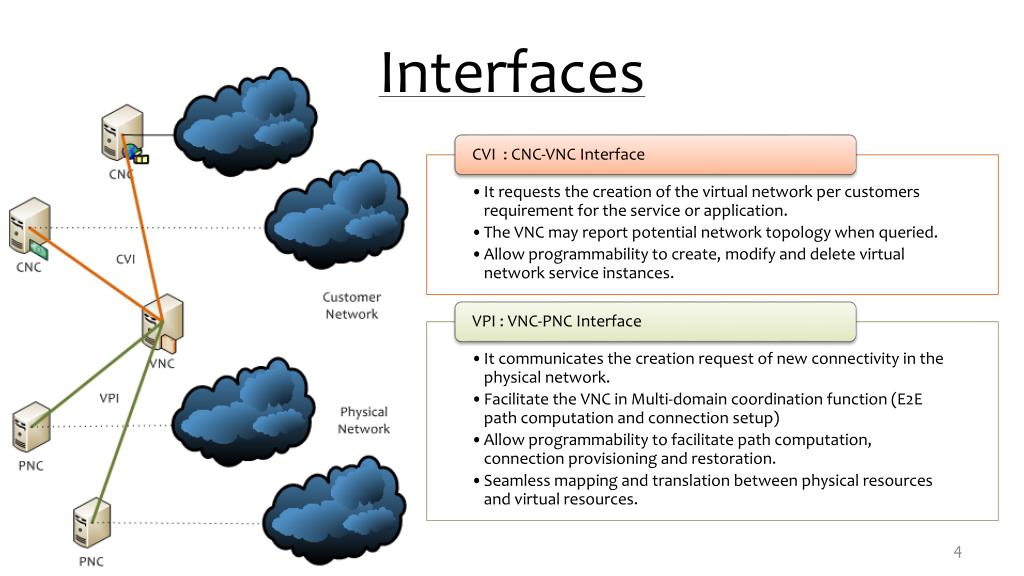

  4. Interfaces

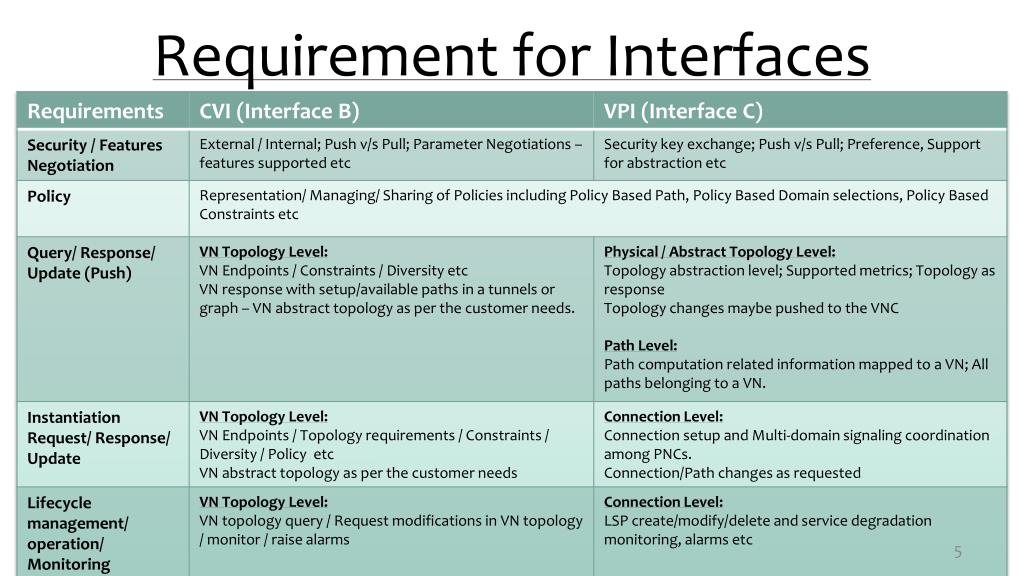

  5. Requirement for Interfaces

  6. Proposed Protocol Work VPI CVI

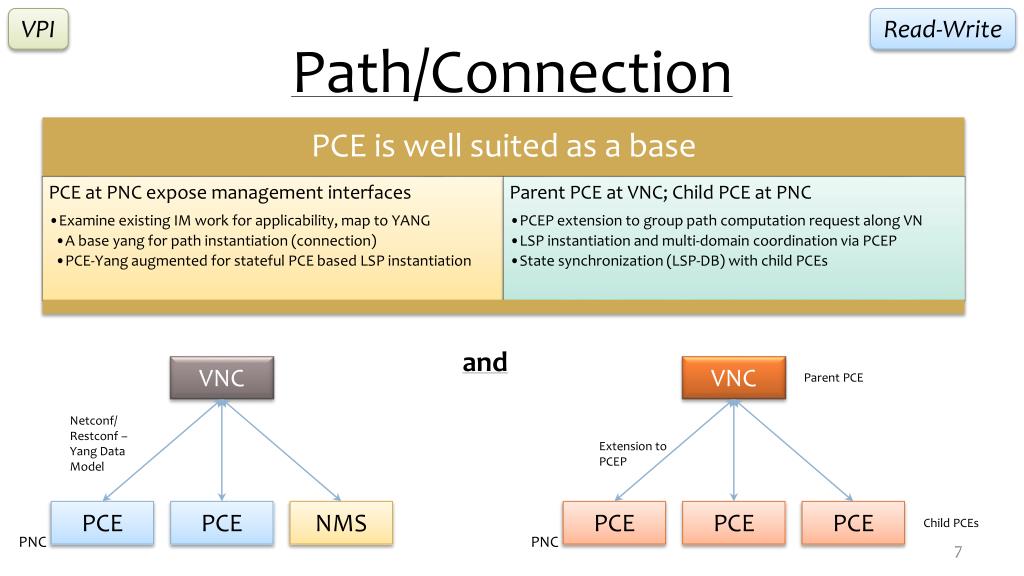

  7. VPI Read-Write Path/Connection and VNC VNC Parent PCE Netconf/ Restconf – Yang Data Model Extension to PCEP PCE PCE NMS PCE PCE PCE Child PCEs PNC PNC

  8. VPI Read-Only Physical/ Abstract Topology Choice Dependent on the type of PNC!

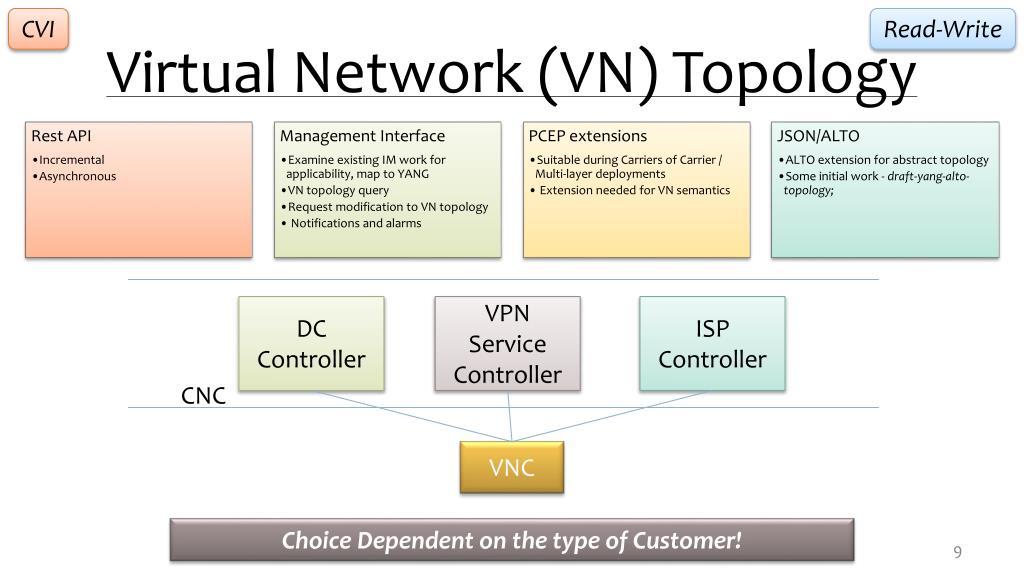

  9. CVI Read-Write Virtual Network (VN) Topology DC Controller VPN Service Controller ISP Controller CNC VNC Choice Dependent on the type of Customer!

  10. Question & Comments!
