  1. Proposed FIA DWM protocol July 2009

  2. Increasing need for information about the DWM biomass and carbon pool • Desire for national protocol, with less effort needed than for P3 DWM • Desire for national consistency • Desire rapid assessments (e.g. MS hurricane) option Why a P2-DWM protocol?

  3. Desire for more details on what we gain/lose by using different variables or transect configurations • Based on FIA information needs • Design guided by empirical data • Integrated with current P3 DWM protocol(MT Direction: develop a P2 DWM protocol that is a subset of P3 DWM protocols and also address and correct whatever P3 DWM protocols problems are identified in the re-work process) Why a new DWM protocol design effort?

  4. Volume, biomass, carbon • Fuel Loading – Biomass per acre • Wildlife/Ecological – CWM length per acre & number of logs by large-end diameter FIA Information Needs

  5. Estimates and variance minimally affected by transect configuration: transect orientation, location, or multiple piece crossings. • Length is the primary factor for reducing variance. • Additional plots buys more than adding transects or transect lengths to fewer plots. • Estimates are sensitive to log and FWM inclination, decay class biomass reduction factors, and other compilation assumptions. Results of Analyses

  6. Three Protocol Options • Protocol Improvements How does the proposed design integrate P2 and P3 DWM?

  7. OPTION I. BASE (CORE-OPTIONAL PROTOCOL for P2 Plots) Provides information about volume, biomass, carbon, and fuel load per acre, addressing the primary FIA information needs. PROTOCOL OPTIONS

  8. OPTION I. BASE (CORE-OPTIONAL PROTOCOL for P2 Plots) Provides information about volume, biomass, carbon, and fuel load per acre, addressing the primary FIA information needs. • OPTION II. WILDLIFE/ECOLOGICAL (CORE PROTOCOL for P3 Plots) Captures additional CWM structural information to address wildlife questions. PROTOCOL OPTIONS

  9. OPTION I. BASE (CORE-OPTIONAL PROTOCOL for P2 Plots) Provides information about volume, biomass, carbon, and fuel load per acre, addressing the primary FIA information needs. • OPTION II. WILDLIFE/ECOLOGICAL (CORE PROTOCOL for P3 Plots) Captures additional CWM structural information to address wildlife questions. • OPTION III. RAPID ASSESSMENT (CUSTOMIZED PROTOCOL) Accommodates the need for a temporary response to significant events; allows customization of the protocol for assessment information needs. PROTOCOL OPTIONS

  10. Base protocol (P2) addresses volume, biomass, carbon, and fuel load per acre with these variables: CWM species, decay class, and intersect diameter; FWM counts; and litter/duff depth. • Wildlife/Eco package (P3) to get CWM size class data, density(logs/ac), and cavity info: large + small end diameter, length, and hollow cavities. • Any non-base CWM variable can be measured as an optional add-on (e.g. large-end diameter or length). • Some non-base, dropped CWM variables are preserved and available for optional add-ons as desired: e.g., CWM history,% log charred by fire. Measured variables

  11. Pile measurement simplified: moved to transect cross-section instead of subplot 3-D volume estimate. • Microplot fuels and fuelbed depth dropped from all options; optional fuelbed ID from Scott & Burgan (2005; RMRS-GTR-153) photo-series provided. • Duff and litter depth non-sampled status clarified. • Improved compilation parameters included. • Further research needs highlighted. Protocol Improvements

  12. Two 24’ transects per subplot (transects start at subplot center). Transects connect to form a straight-line across subplot (reduces multiple intersections of same piece). • New transect azimuths more balanced than choosing 2 transects/subplot from the current P3 design. • Transects may be extended onto macroplot if macroplot is mapped and extra length desired. • A third 24’ transect may be added if maintaining transect length is important (e.g. to finish a P3 cycle using current design). Proposed transect design

  13. Proposed DWM Protocol Subplot 360° Macroplot 2 CWD transects FWD transects 180° Litter and duff depth Extra transect on subplot option 1 270° 90° Longer transect length on macroplot option 45° 315° 3 4 135° 225°

  14. Minimizes orientation bias • Reduces multiple intersections of the same piece by different transects • Gain in field efficiency • P2 / P3 integration Strengths of the proposed transect design

  15. Can customize to meet local needs • Can select any combination of 1 to 4 subplots • Can select any combination or number of transects • Choices are documented in columns on PLOT table, for compilation purposes Rapid assessment options for specific events:

  16. Line Intersect Sampling of DWM does not lend itself to change analysis. • DWM protocols do not track individual pieces; estimates of change on the plot are based on the difference in volume/biomass/carbon at the plot level between time 1 and time 2. • Variance of the change estimates may be higher for measurements taken on different transect layout. Change Analysis

  17. Example of length effect on variance

  18. Inclination=0°, expansion=1.0 transect plane selection probability length=10 ft transect plane Inclination=35°, expansion=1.22 Inclination matters whether piece is supported or on a slope Inclination matters for both CWM and FWM Likely bias could be underestimating CWM by 5% Example of piece inclination effect on expansion selection probability length=8.2 ft

  19. THE NITTY GRITTY #1: CWM

  20. THE NITTY GRITTY #2: CWM IN RESIDUE PILES

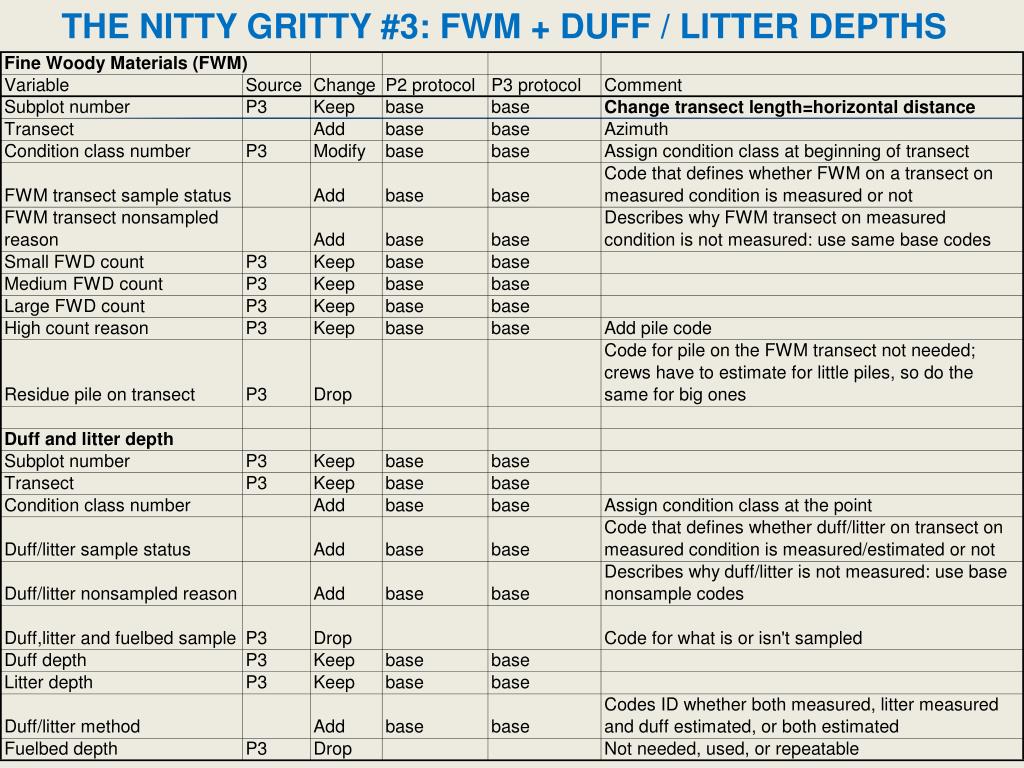

  21. THE NITTY GRITTY #3: FWM + DUFF / LITTER DEPTHS

  22. THE NITTY GRITTY #4: PLOT-COND-SEGMENTS

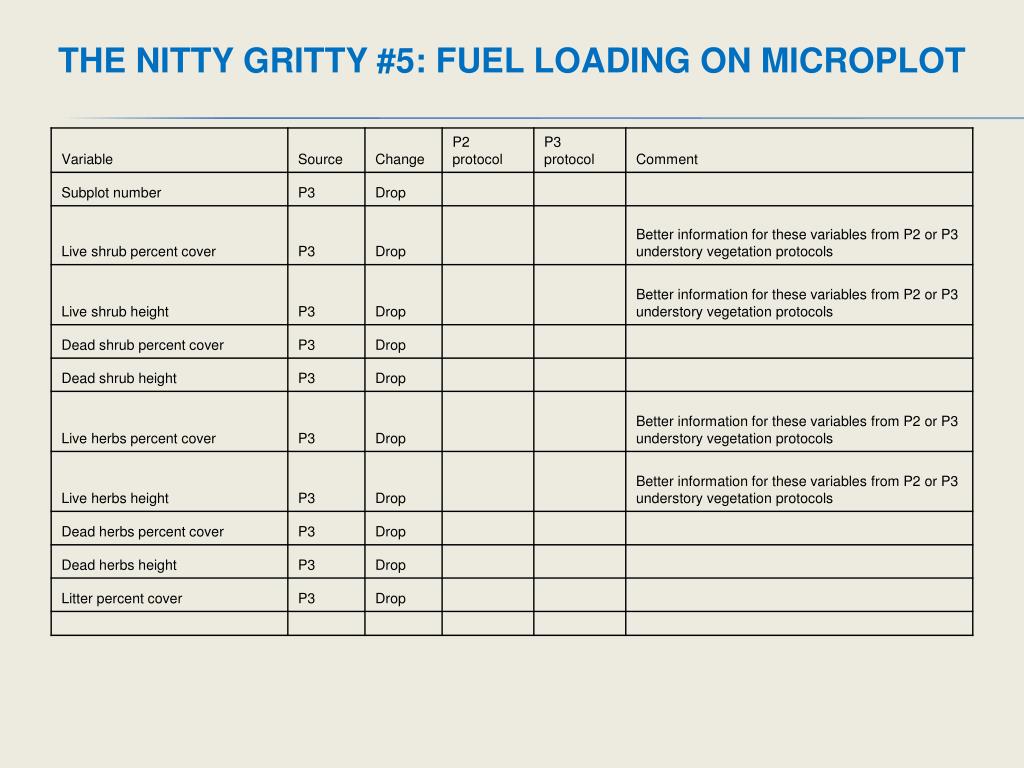

  23. THE NITTY GRITTY #5: FUEL LOADING ON MICROPLOT
