  1. MATPLOTLIB PART II

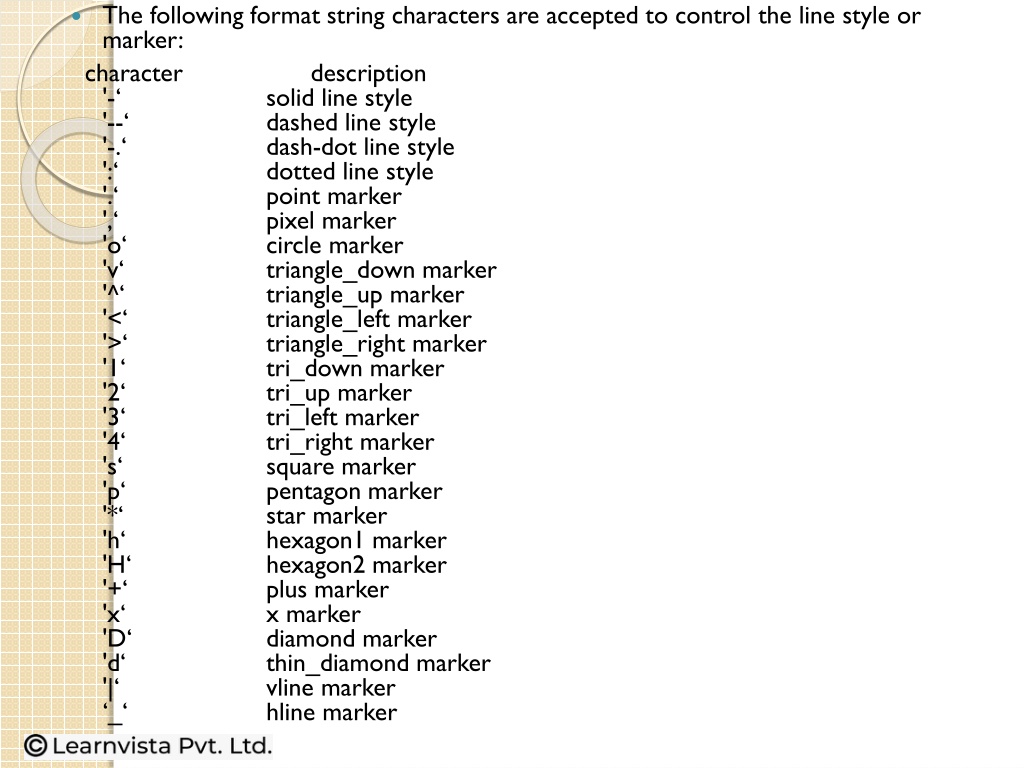

  2. The following format string characters are accepted to control the line style or marker: character description'-‘ solid line style'--‘ dashed line style'-.‘ dash-dot line style':‘ dotted line style'.‘ point marker',‘ pixel marker'o‘ circle marker'v‘ triangle_down marker'^‘ triangle_up marker'<‘ triangle_left marker'>‘ triangle_right marker'1‘ tri_down marker'2‘ tri_up marker'3‘ tri_left marker'4‘ tri_right marker's‘ square marker'p‘ pentagon marker'*‘ star marker'h‘ hexagon1 marker'H‘ hexagon2 marker'+‘ plus marker'x‘ x marker'D‘ diamond marker'd‘ thin_diamond marker'|‘ vline marker‘_‘ hline marker

  3. There are several parameters that determine what the figure looks like:

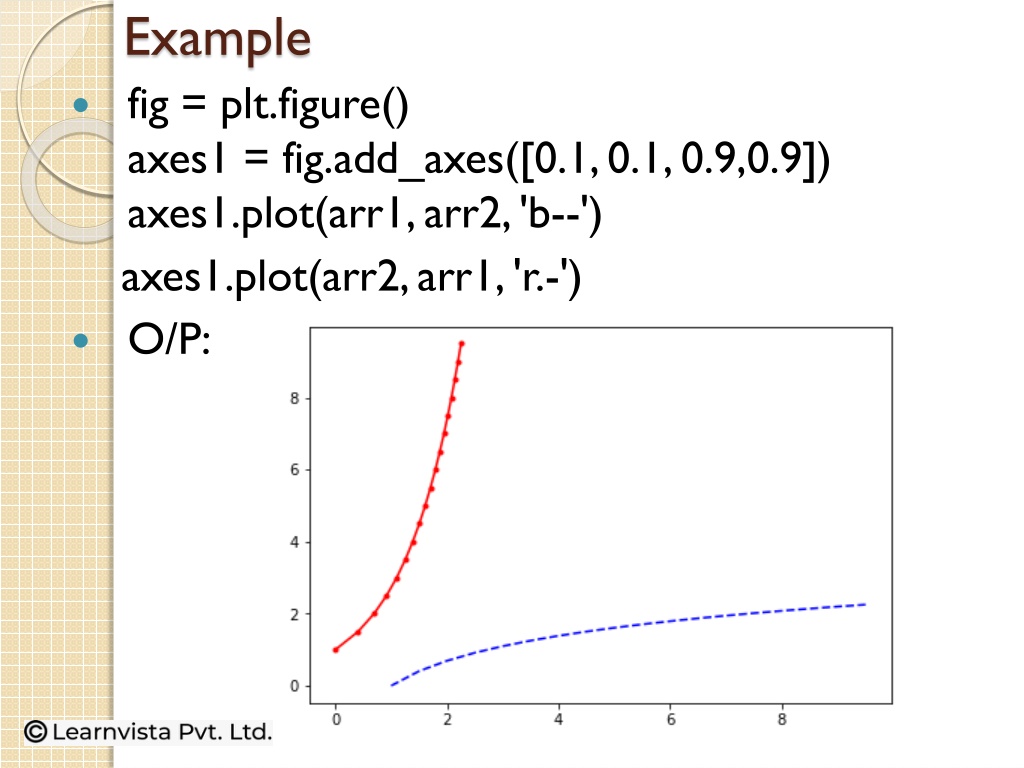

  4. Example • fig = plt.figure() axes1 = fig.add_axes([0.1, 0.1, 0.9,0.9])  axes1.plot(arr1, arr2, 'b--') axes1.plot(arr2, arr1, 'r.-') • O/P:

  5. Alpha parameter can be mentioned that defines the transparency in the plot. • Eg: fig = plt.figure() axes1 = fig.add_axes([0.1, 0.1, 0.9,0.9])   axes1.plot(arr1, arr2, color = '#808000',  lw = 10) axes1.plot(arr2, arr1, color = '#00FF00',  lw = 0.25) axes1.plot(arr1, arr1*2, color = '#00FF00',  lw = 1)

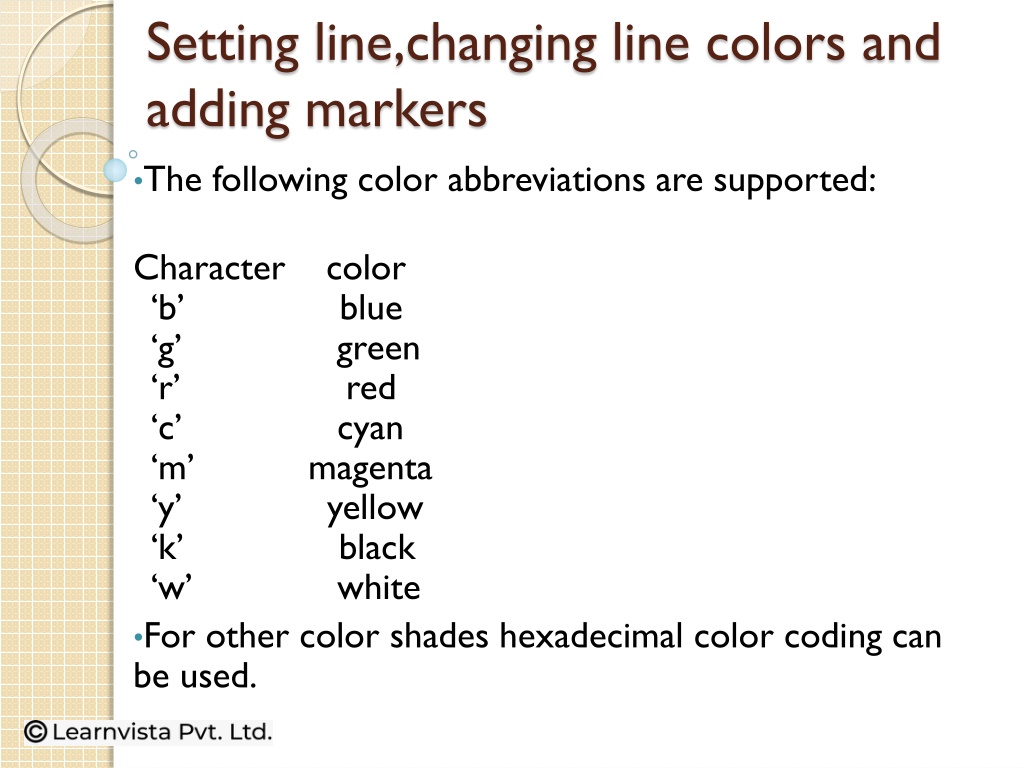

  6. Setting line,changing line colors and adding markers The following color abbreviations are supported: Character color ‘b’ blue ‘g’ green ‘r’ red ‘c’ cyan ‘m’ magenta ‘y’ yellow ‘k’ black ‘w’ white For other color shades hexadecimal color coding can be used.

  7. O/P:

  8. Ls parameter defines the line style as mentioned in the previous table . • Lw defines the line width that we wish to have in the plot • Eg:fig = plt.figure() axes1 = fig.add_axes([0.1, 0.1, 0.9,0.9])  #l,b,w,h -[0 and 1] axes1.plot(arr1, arr2, color = '#808000', lw = 10, ls = '--')axes1.plot(arr2, arr1, color = '#00FF00', lw = 3.25, ls = ':')axes1.plot(arr1, arr1*2, color = '#00FF00', lw = 1, ls = '-.')

  9. O/P:

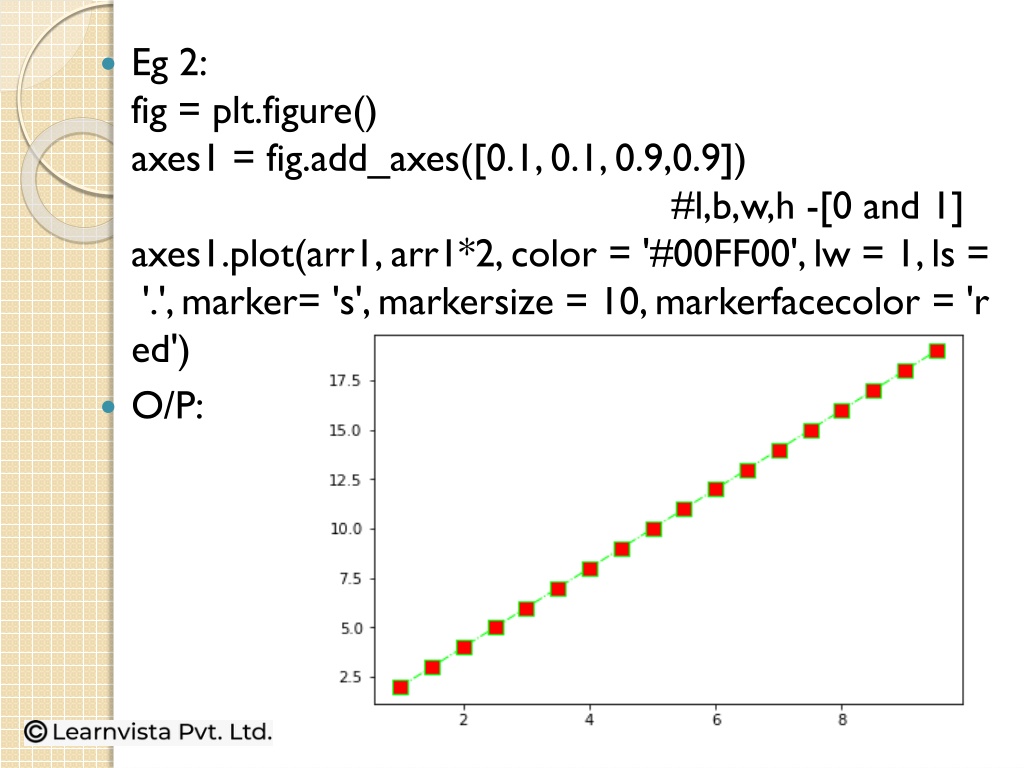

  10. Eg 2:fig = plt.figure()axes1 = fig.add_axes([0.1, 0.1, 0.9,0.9])   #l,b,w,h -[0 and 1]axes1.plot(arr1, arr1*2, color = '#00FF00', lw = 1, ls = '.', marker= 's', markersize = 10, markerfacecolor = 'red') • O/P:
