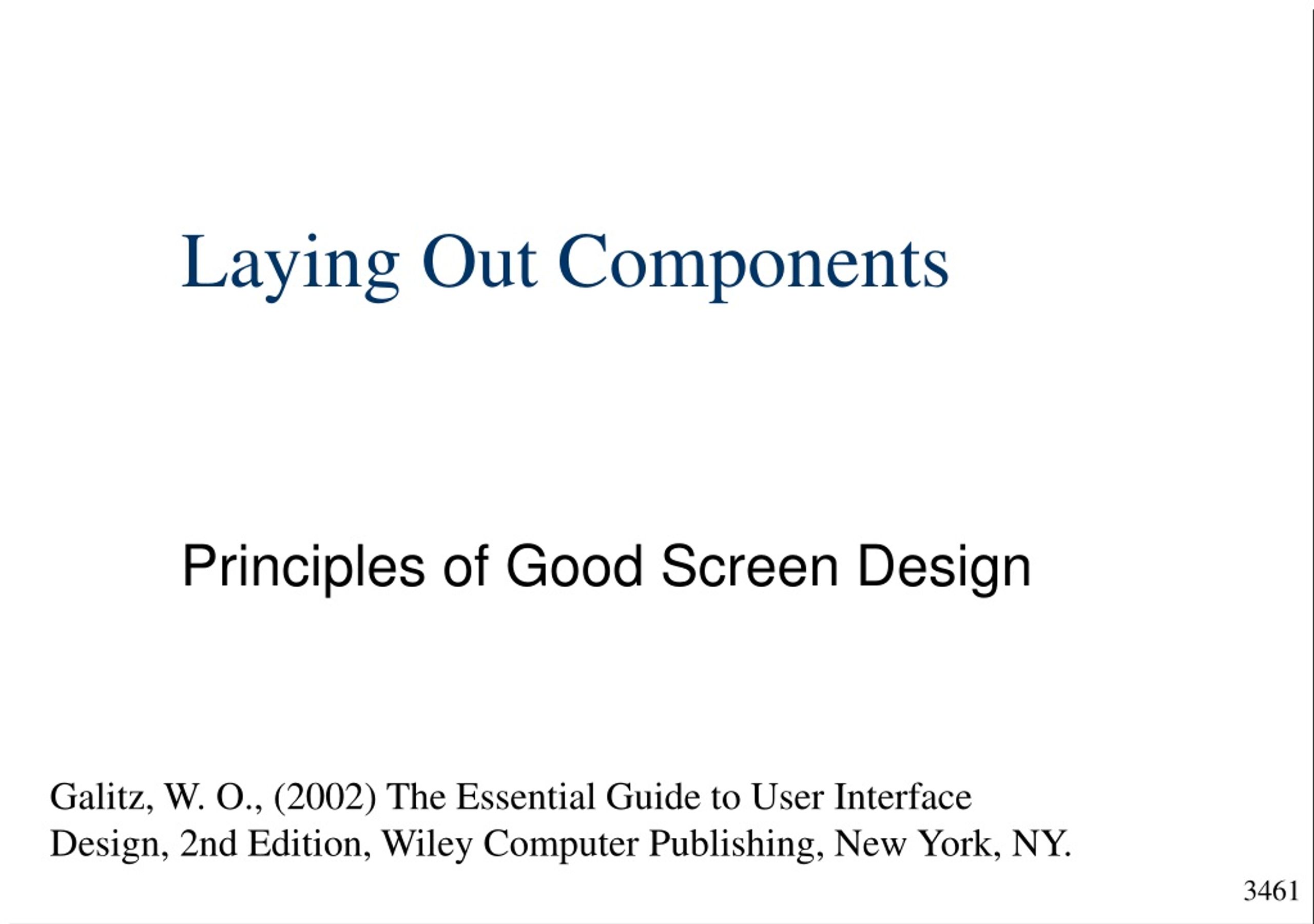

Laying Out Components Principles of Good Screen Design Galitz, W. O., (2002) The Essential Guide to User Interface Design, 2nd Edition, Wiley Computer Publishing, New York, NY.

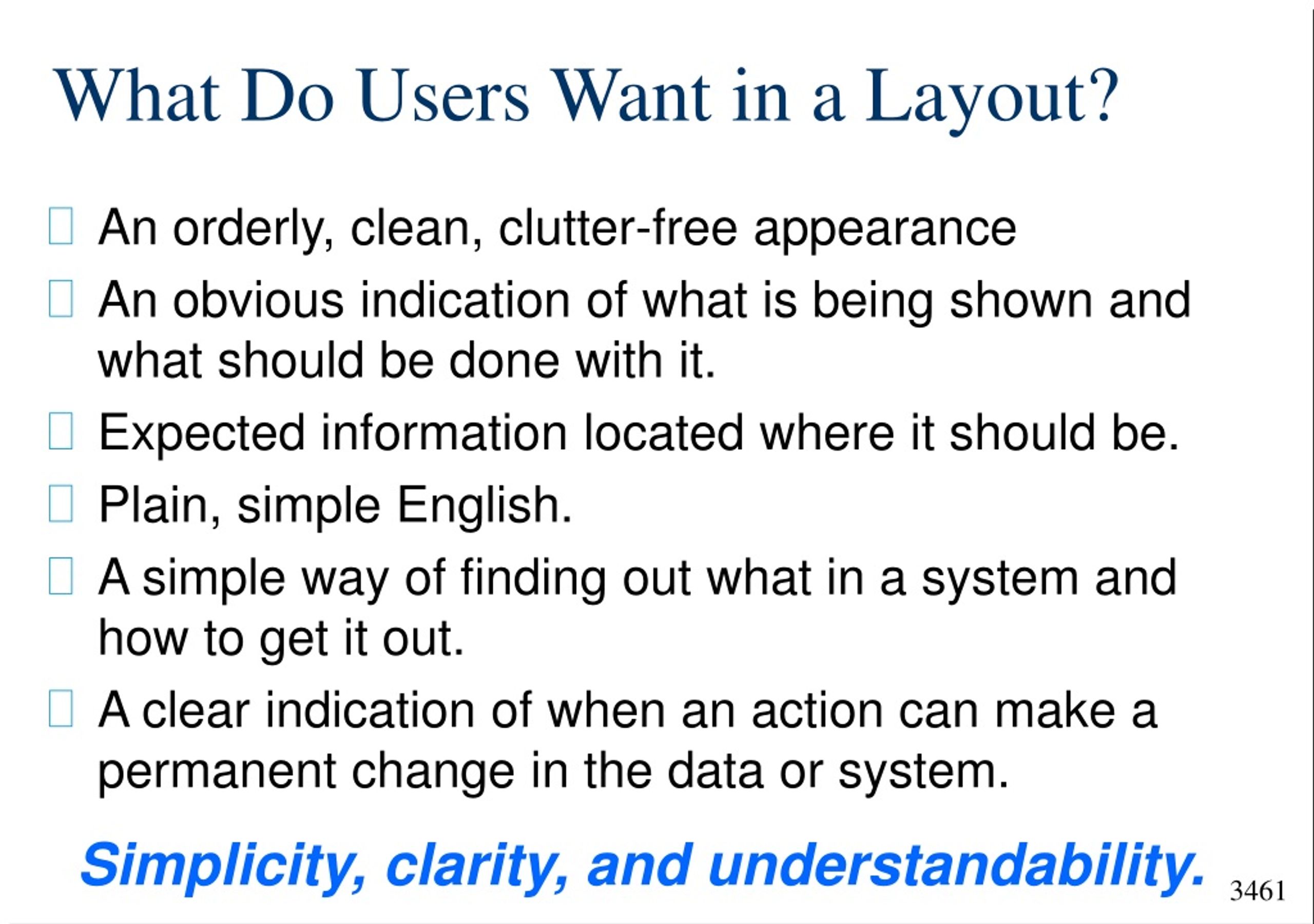

What Do Users Want in a Layout? • An orderly, clean, clutter-free appearance • An obvious indication of what is being shown and what should be done with it. • Expected information located where it should be. • Plain, simple English. • A simple way of finding out what in a system and how to get it out. • A clear indication of when an action can make a permanent change in the data or system. Simplicity, clarity, and understandability.
Keep in mind that ... People will send many, many hours staring at your screens.

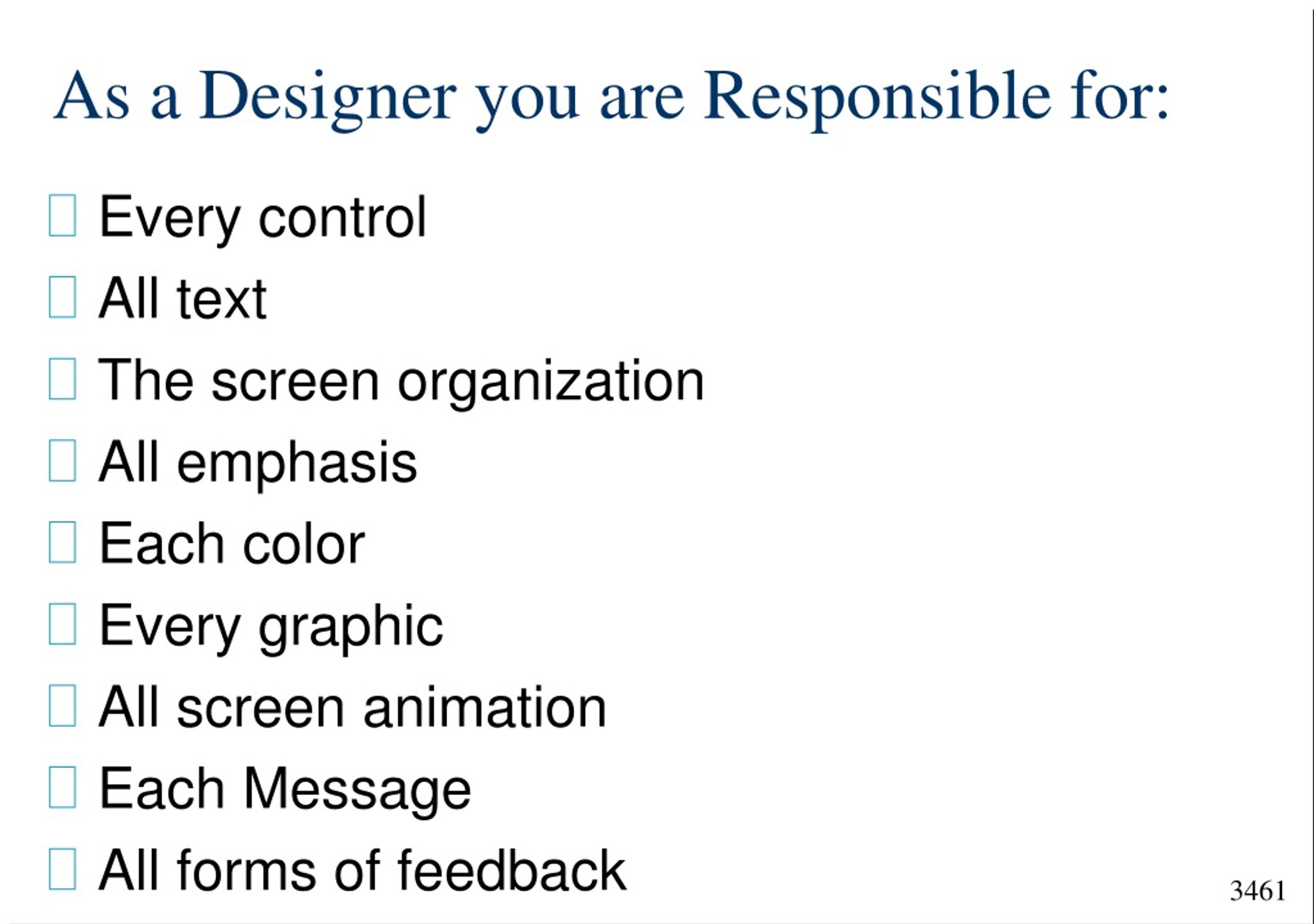

As a Designer you are Responsible for: • Every control • All text • The screen organization • All emphasis • Each color • Every graphic • All screen animation • Each Message • All forms of feedback

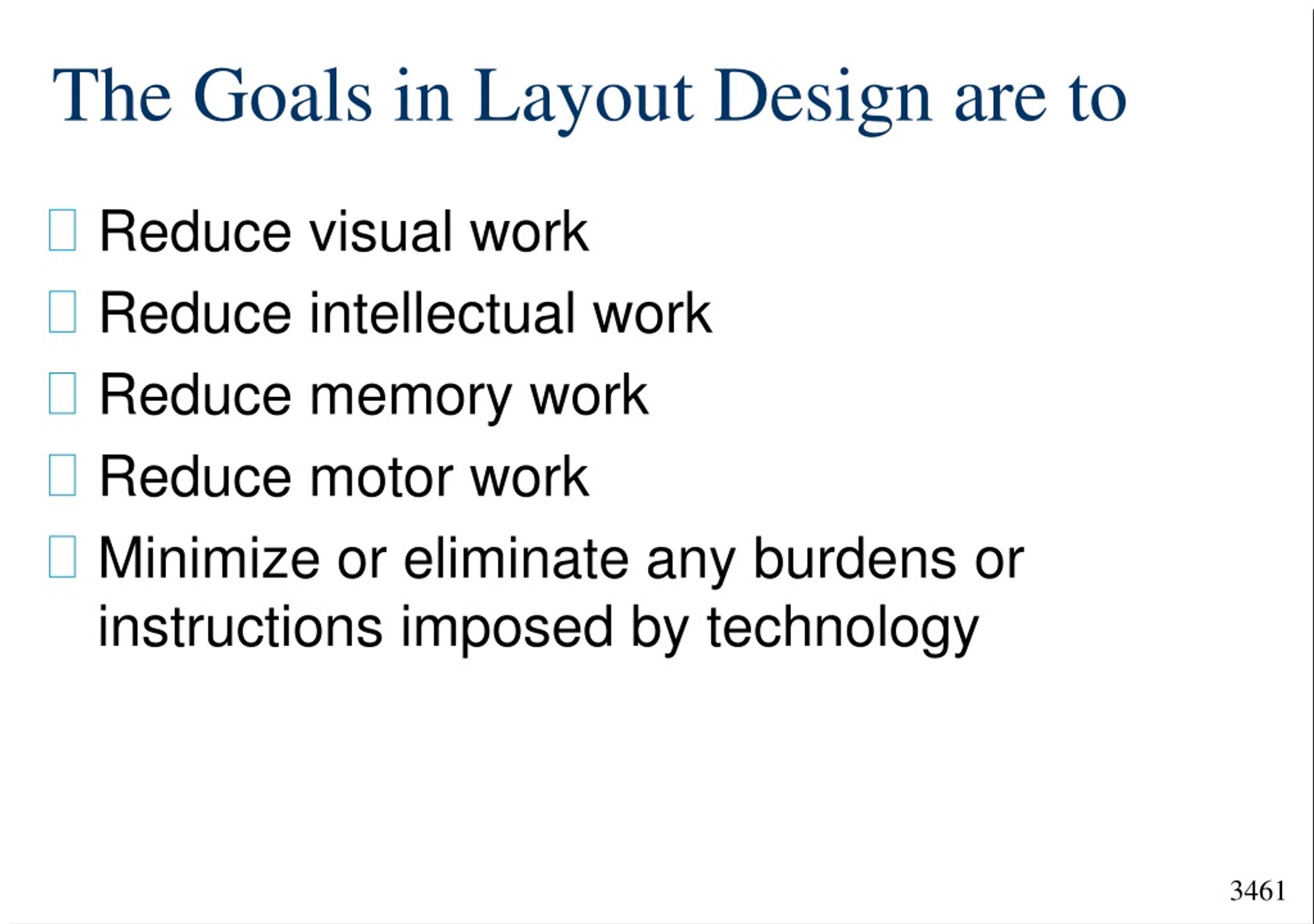

The Goals in Layout Design are to • Reduce visual work • Reduce intellectual work • Reduce memory work • Reduce motor work • Minimize or eliminate any burdens or instructions imposed by technology

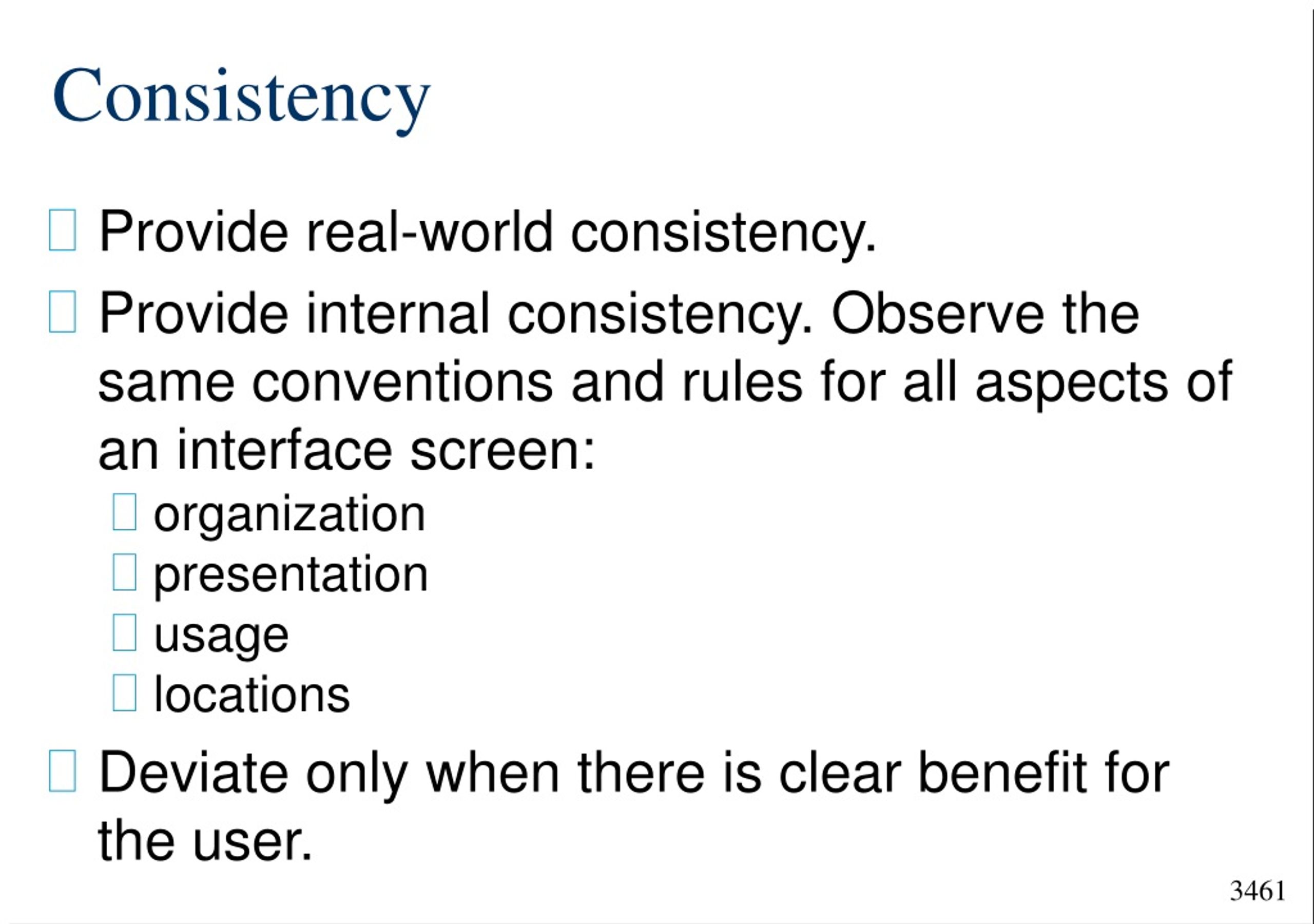

Consistency • Provide real-world consistency. • Provide internal consistency. Observe the same conventions and rules for all aspects of an interface screen: • organization • presentation • usage • locations • Deviate only when there is clear benefit for the user.

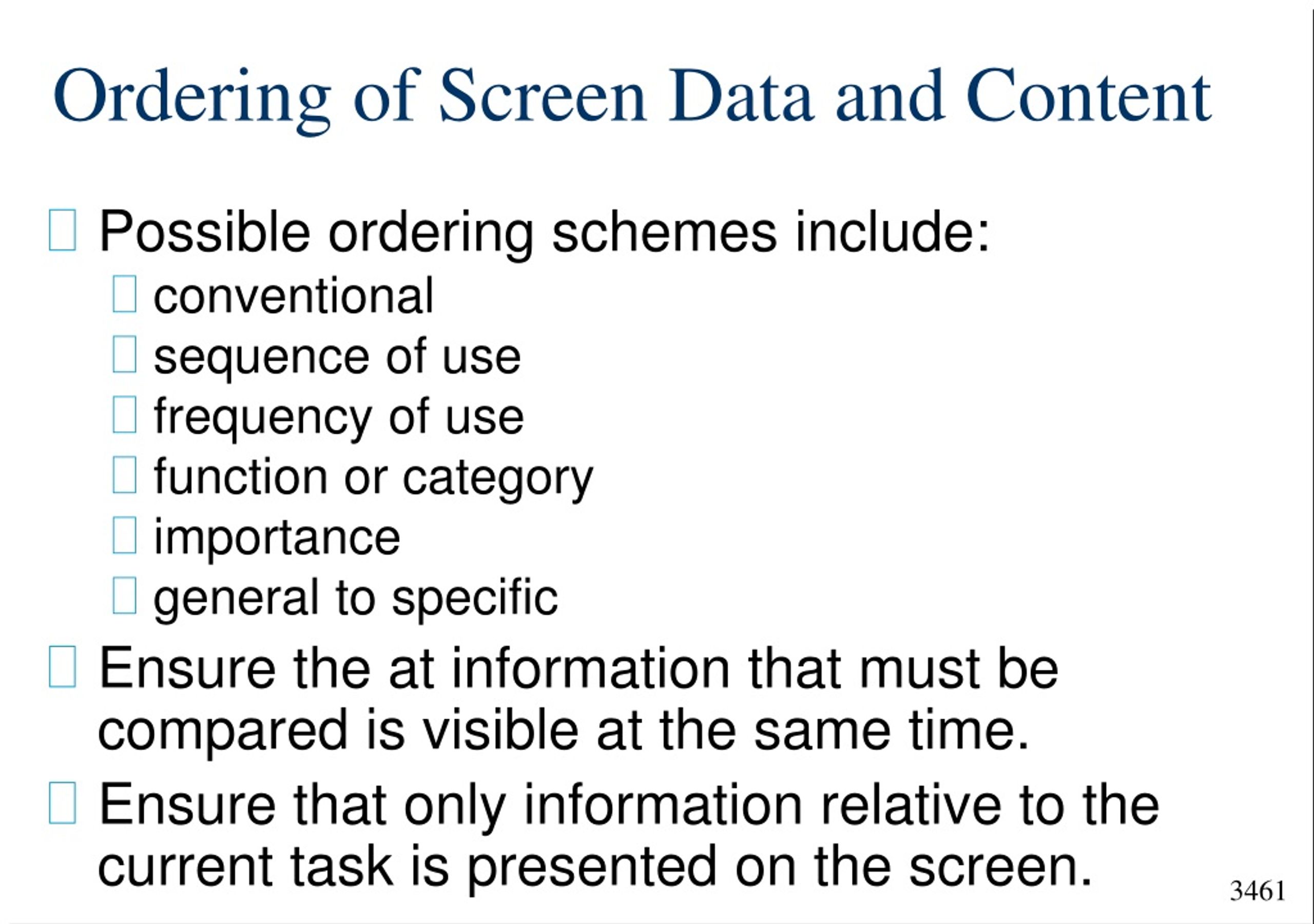

Ordering of Screen Data and Content • Possible ordering schemes include: • conventional • sequence of use • frequency of use • function or category • importance • general to specific • Ensure the at information that must be compared is visible at the same time. • Ensure that only information relative to the current task is presented on the screen.

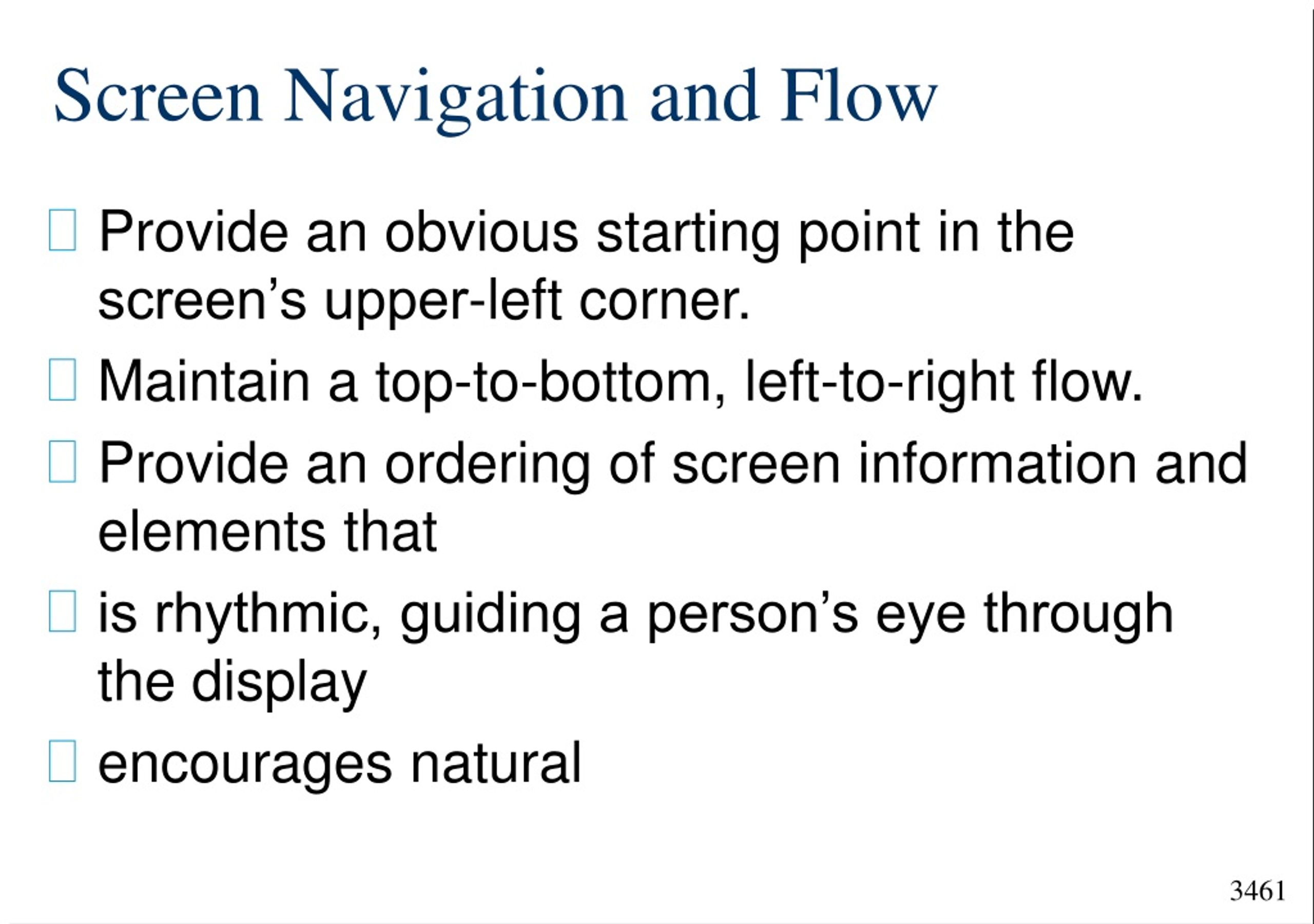

Screen Navigation and Flow • Provide an obvious starting point in the screen’s upper-left corner. • Maintain a top-to-bottom, left-to-right flow. • Provide an ordering of screen information and elements that • is rhythmic, guiding a person’s eye through the display • encourages natural

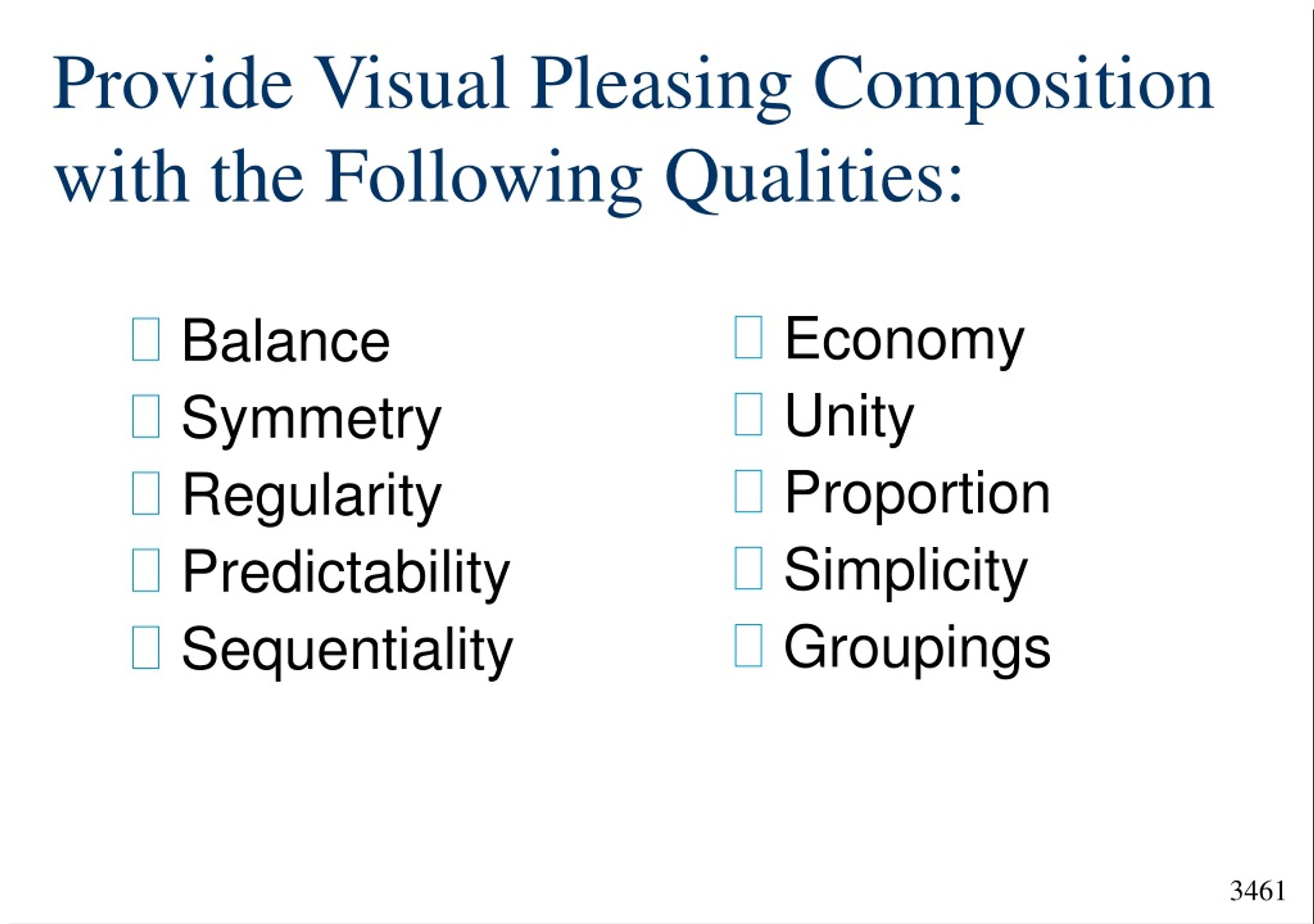

Provide Visual Pleasing Composition with the Following Qualities: • Balance • Symmetry • Regularity • Predictability • Sequentiality • Economy • Unity • Proportion • Simplicity • Groupings

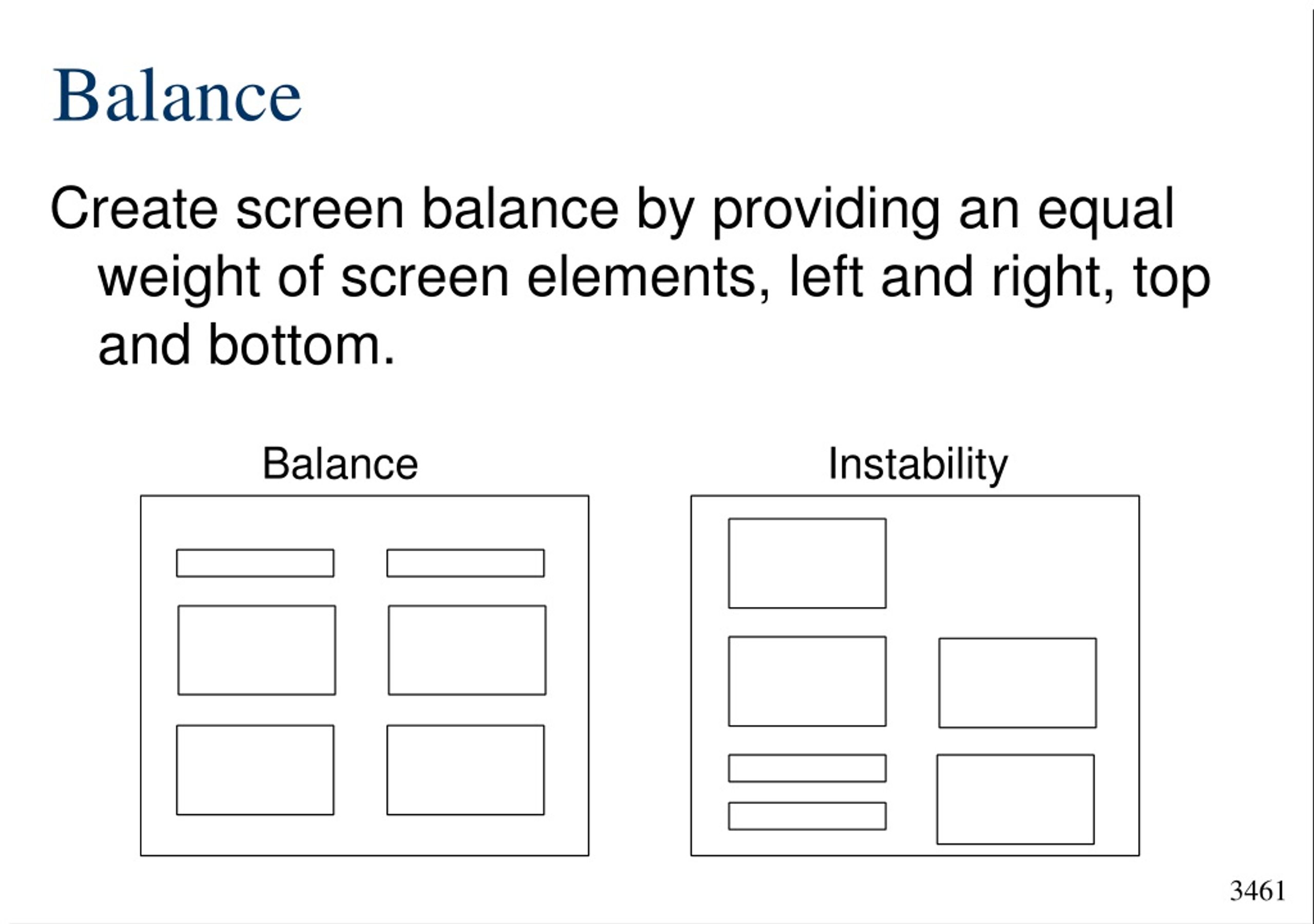

Balance Create screen balance by providing an equal weight of screen elements, left and right, top and bottom.

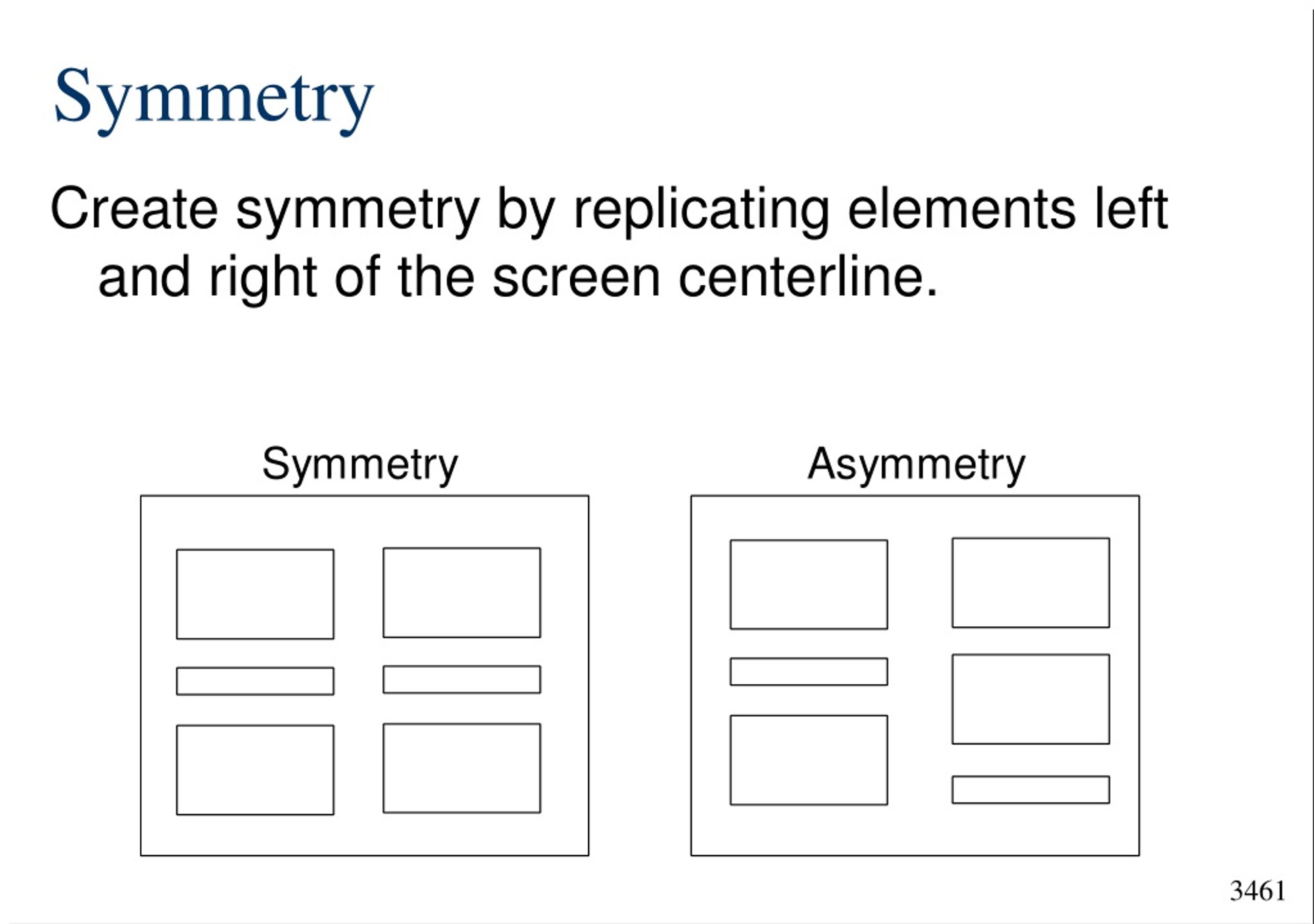

Symmetry Create symmetry by replicating elements left and right of the screen centerline.

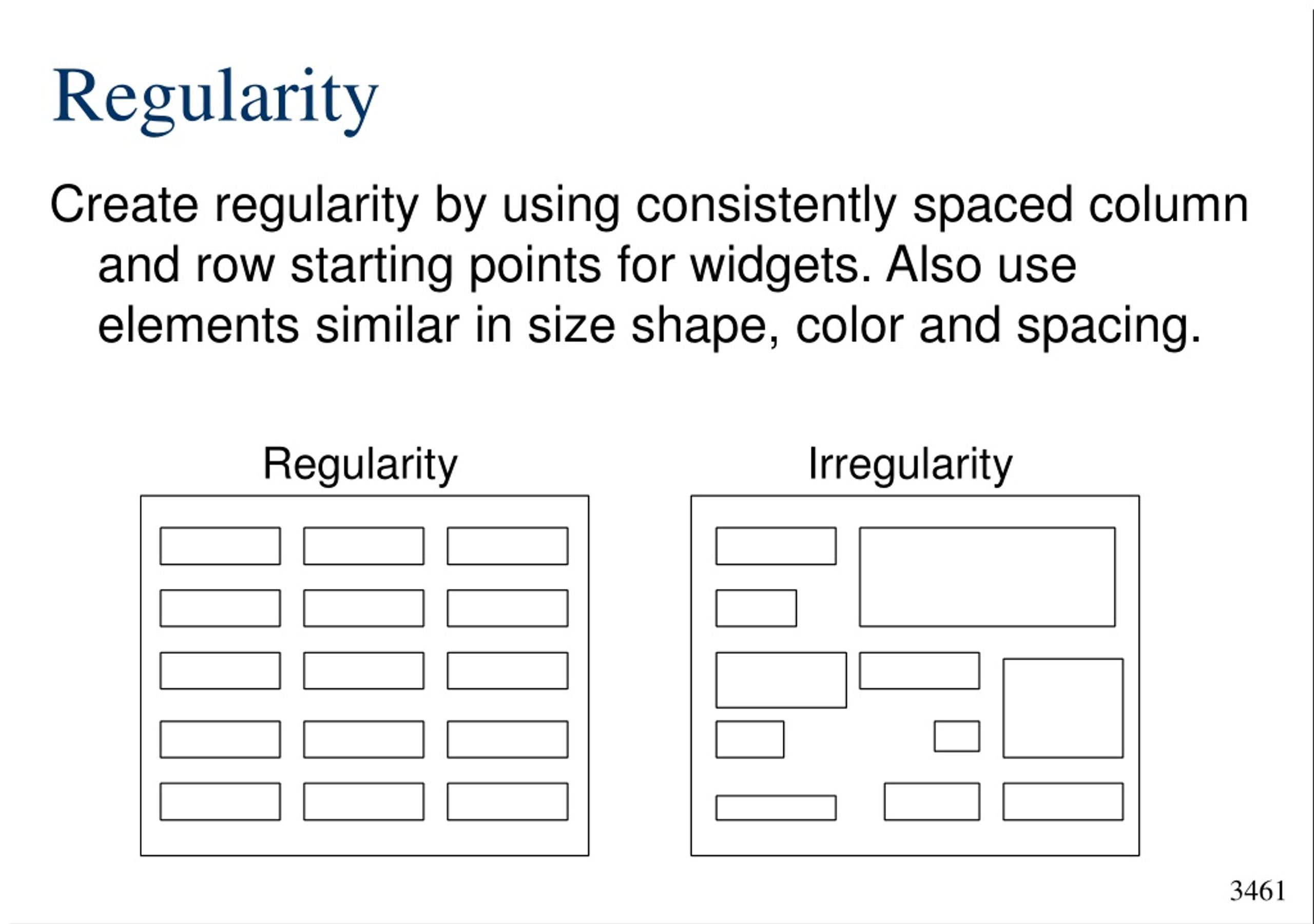

Regularity Create regularity by using consistently spaced column and row starting points for widgets. Also use elements similar in size shape, color and spacing.

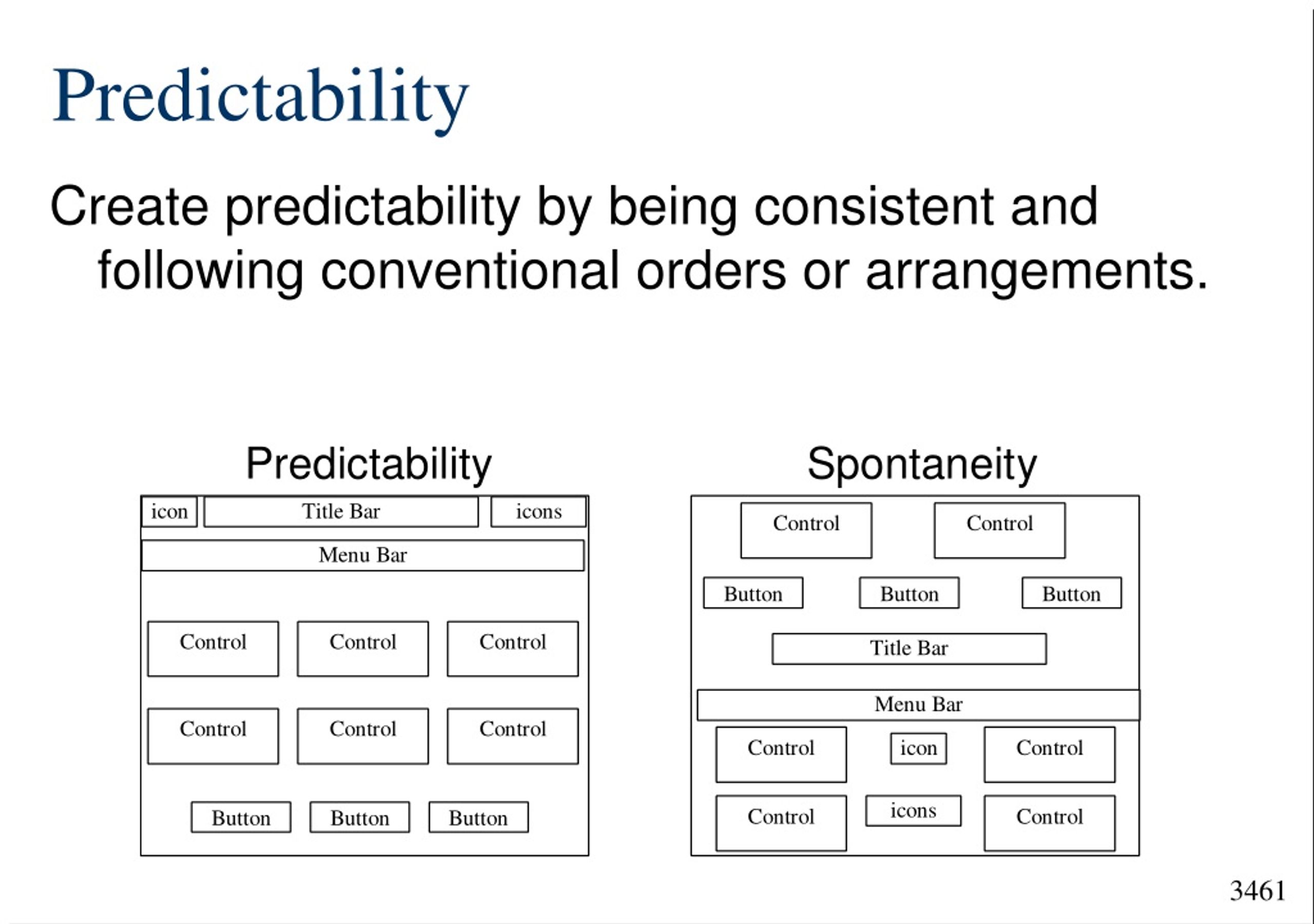

Predictability Create predictability by being consistent and following conventional orders or arrangements.

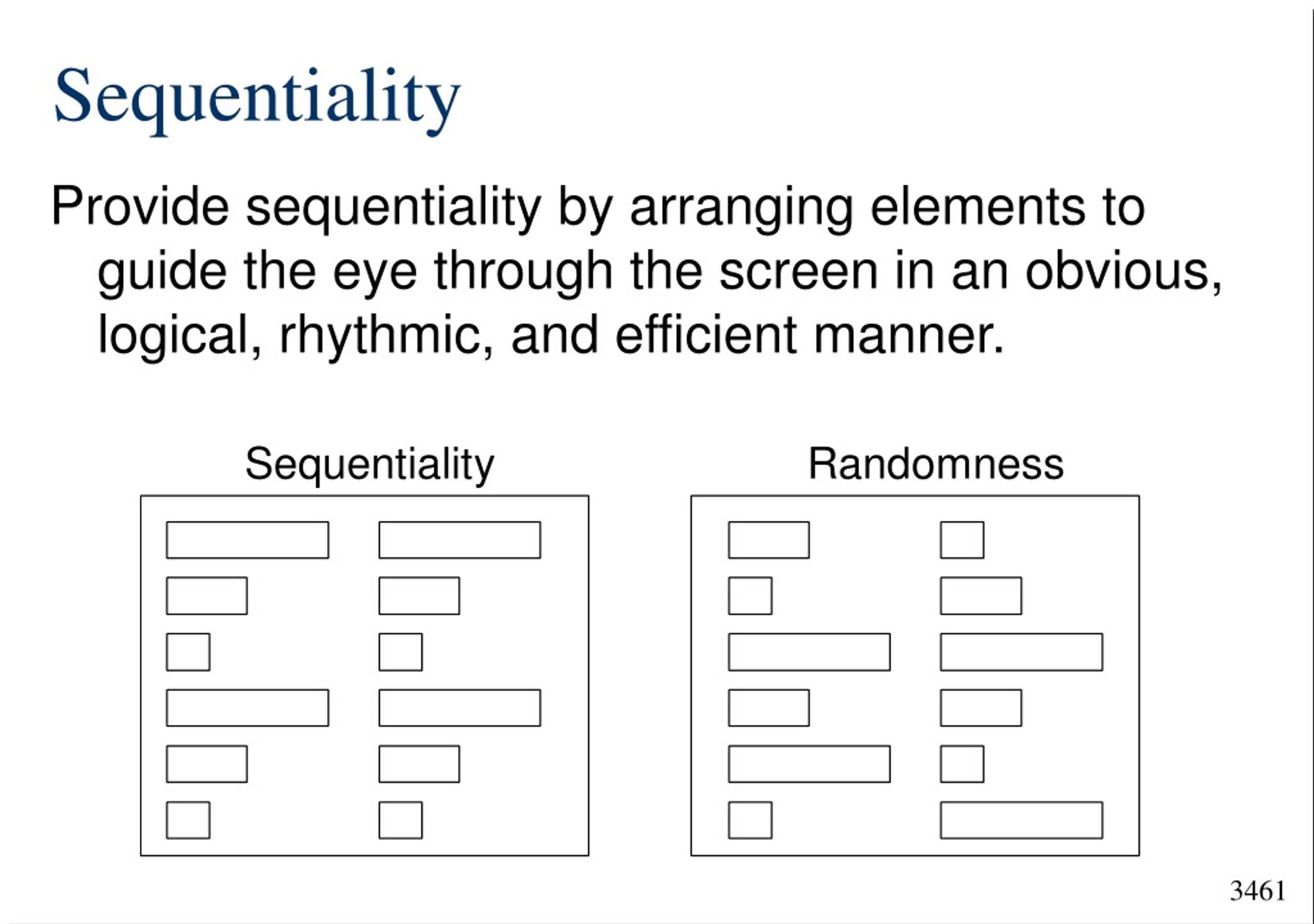

Sequentiality Provide sequentiality by arranging elements to guide the eye through the screen in an obvious, logical, rhythmic, and efficient manner.

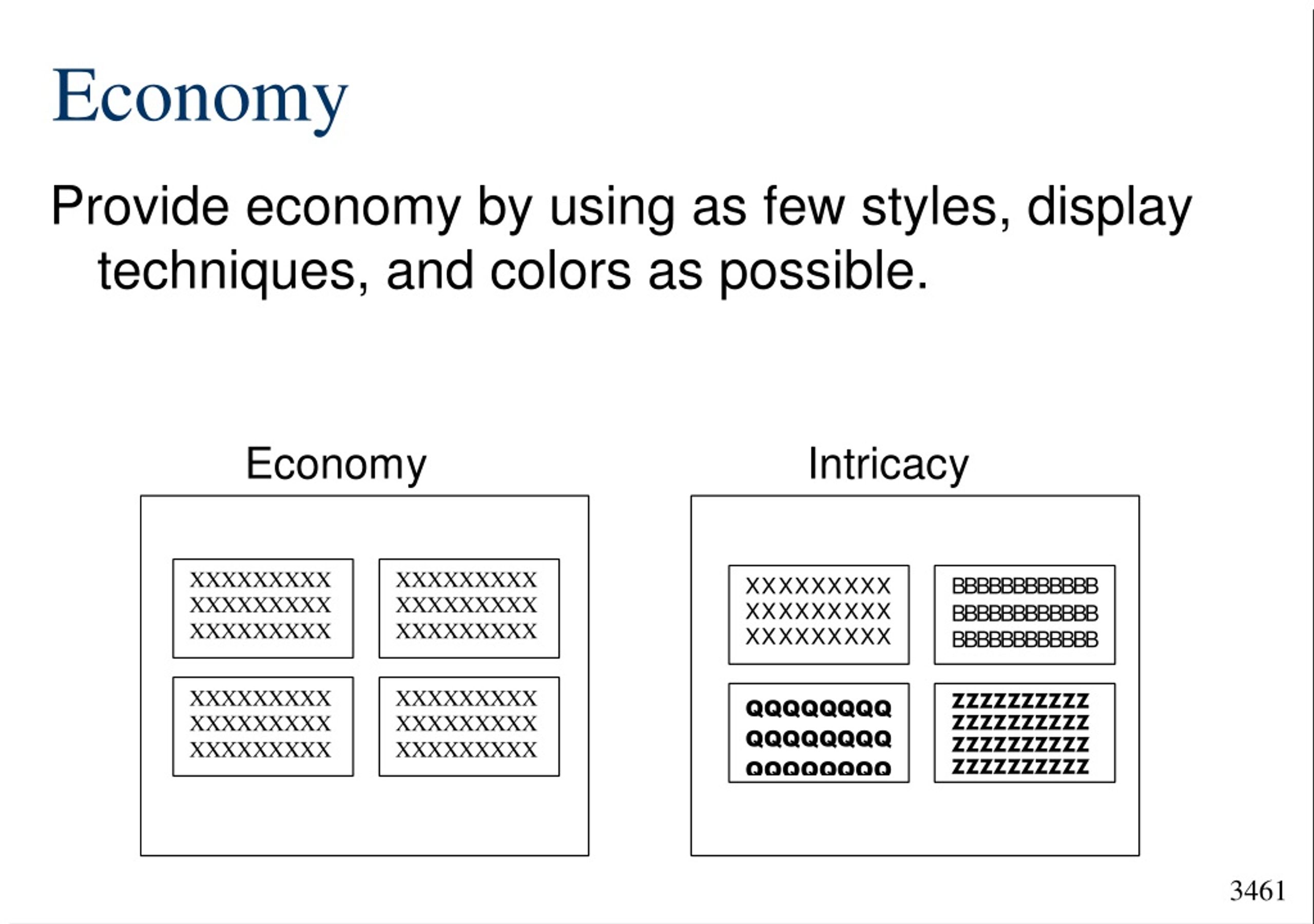

Economy Provide economy by using as few styles, display techniques, and colors as possible.

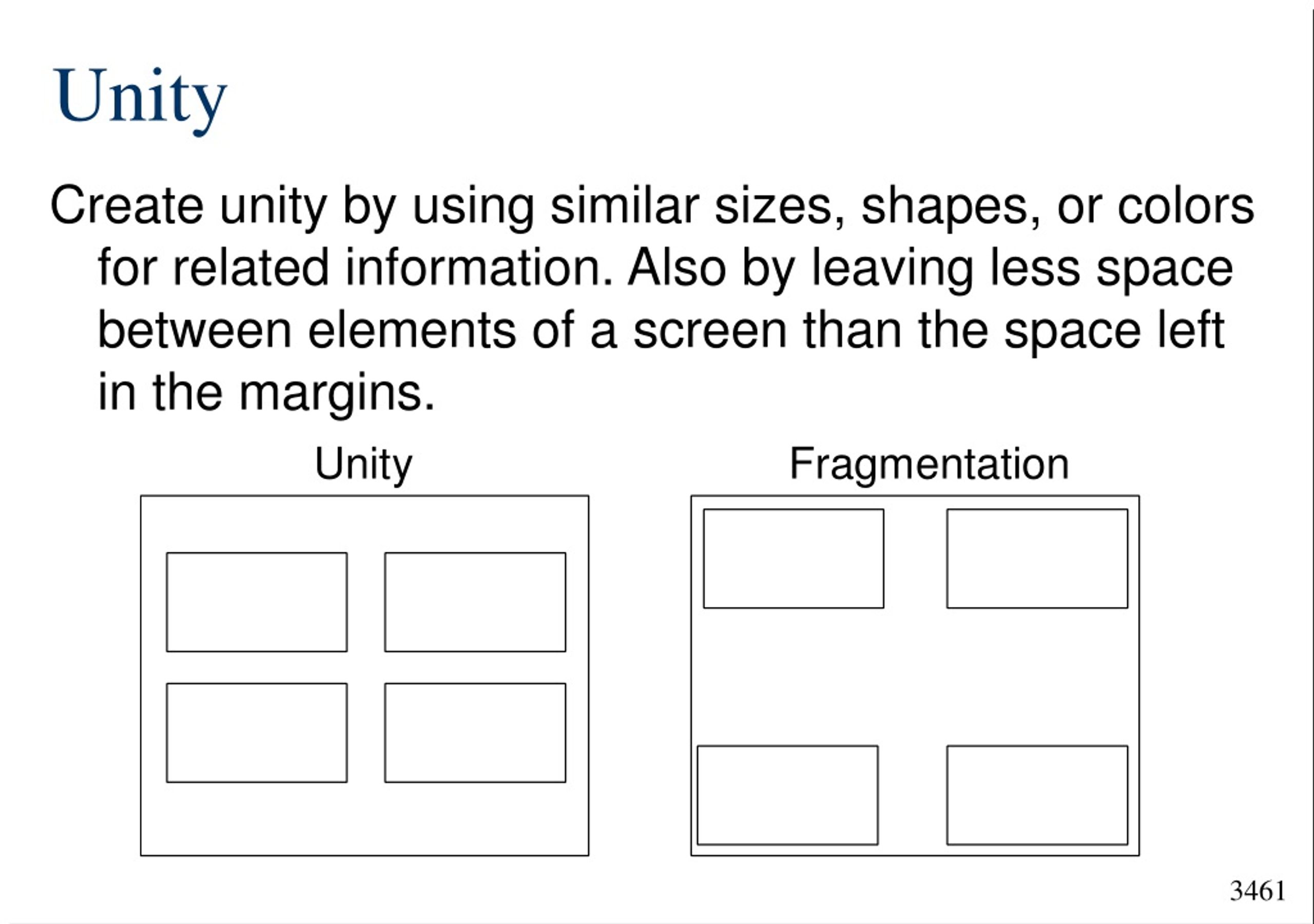

Unity Create unity by using similar sizes, shapes, or colors for related information. Also by leaving less space between elements of a screen than the space left in the margins.

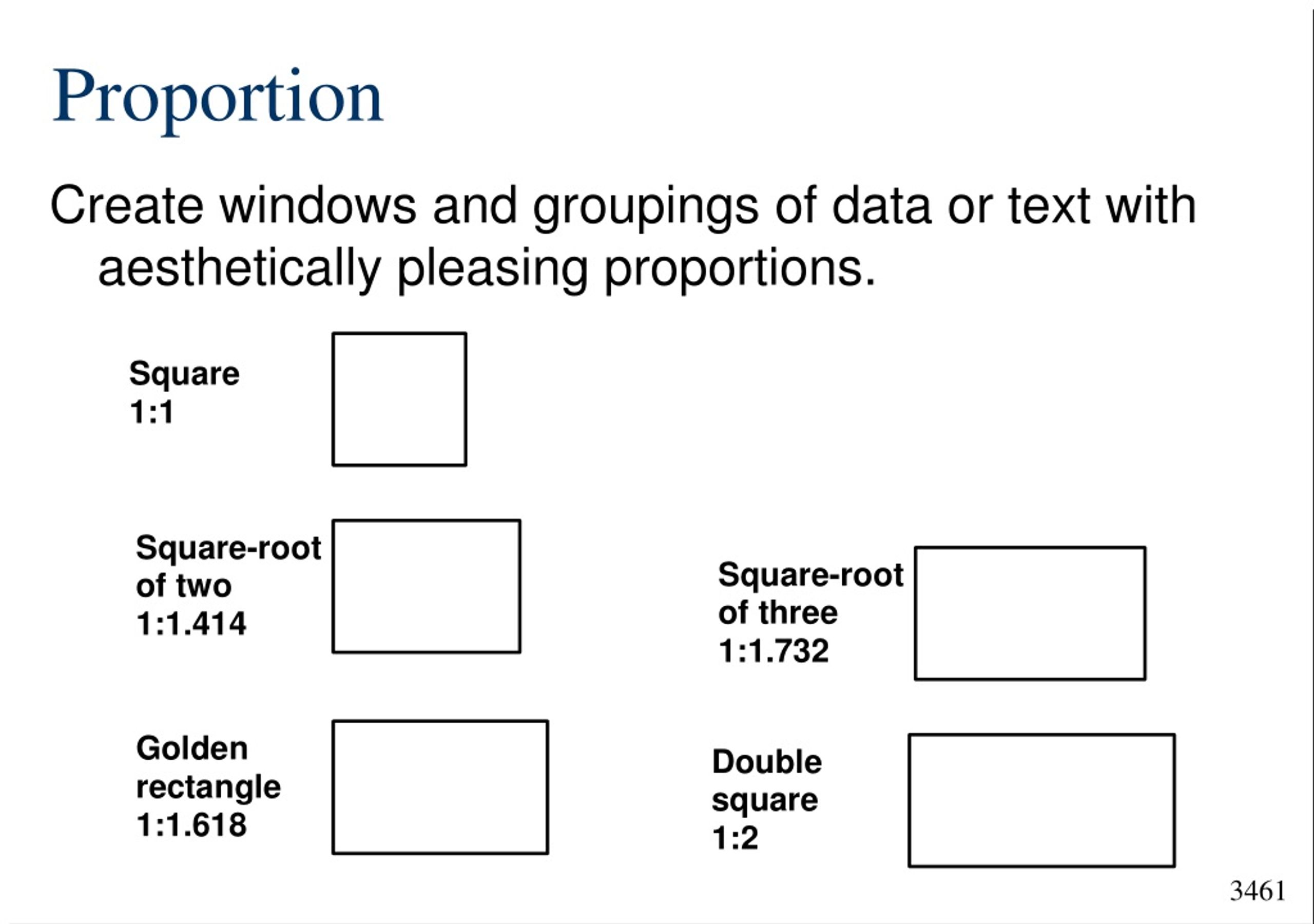

Proportion Create windows and groupings of data or text with aesthetically pleasing proportions.

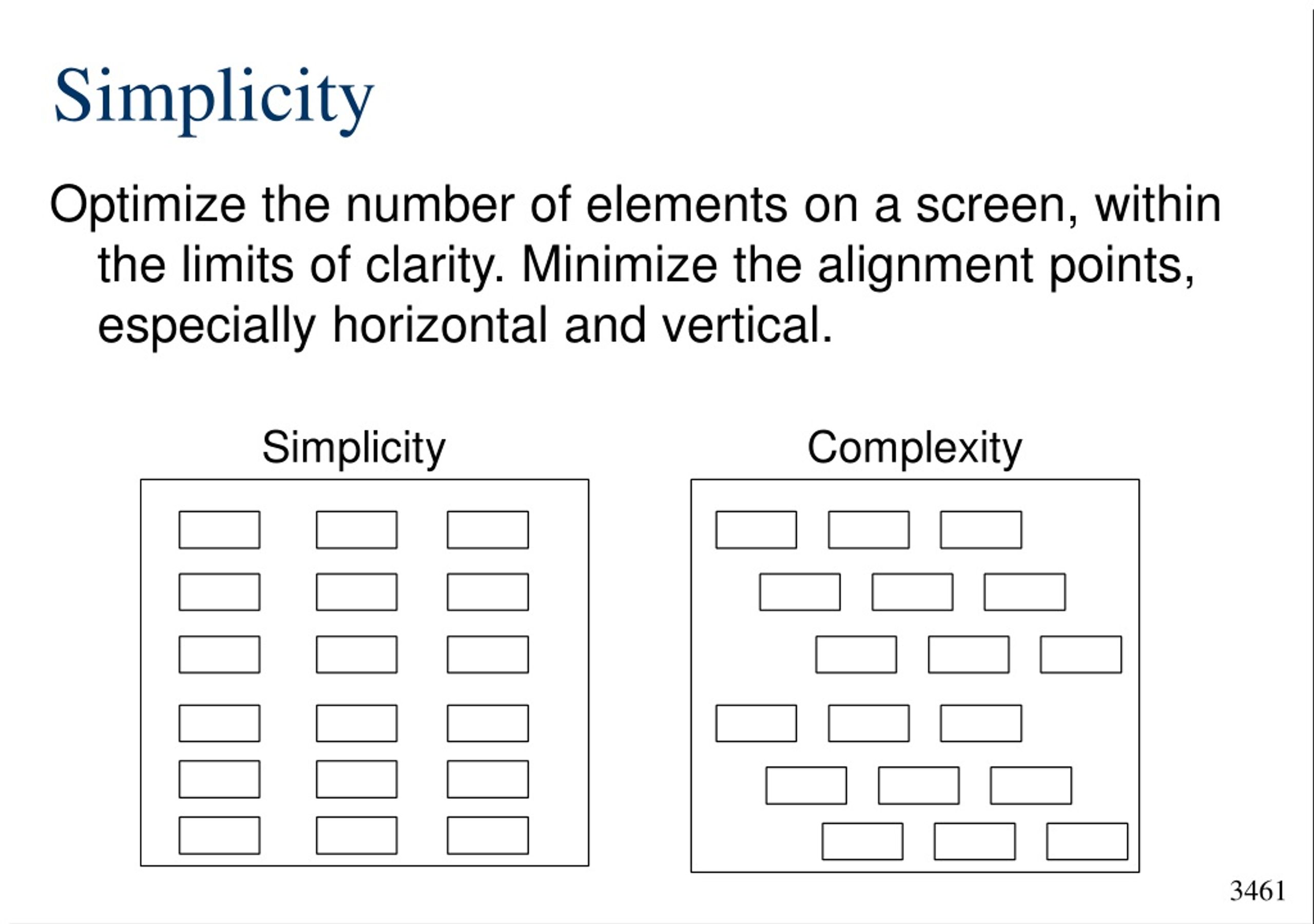

Simplicity Optimize the number of elements on a screen, within the limits of clarity. Minimize the alignment points, especially horizontal and vertical.

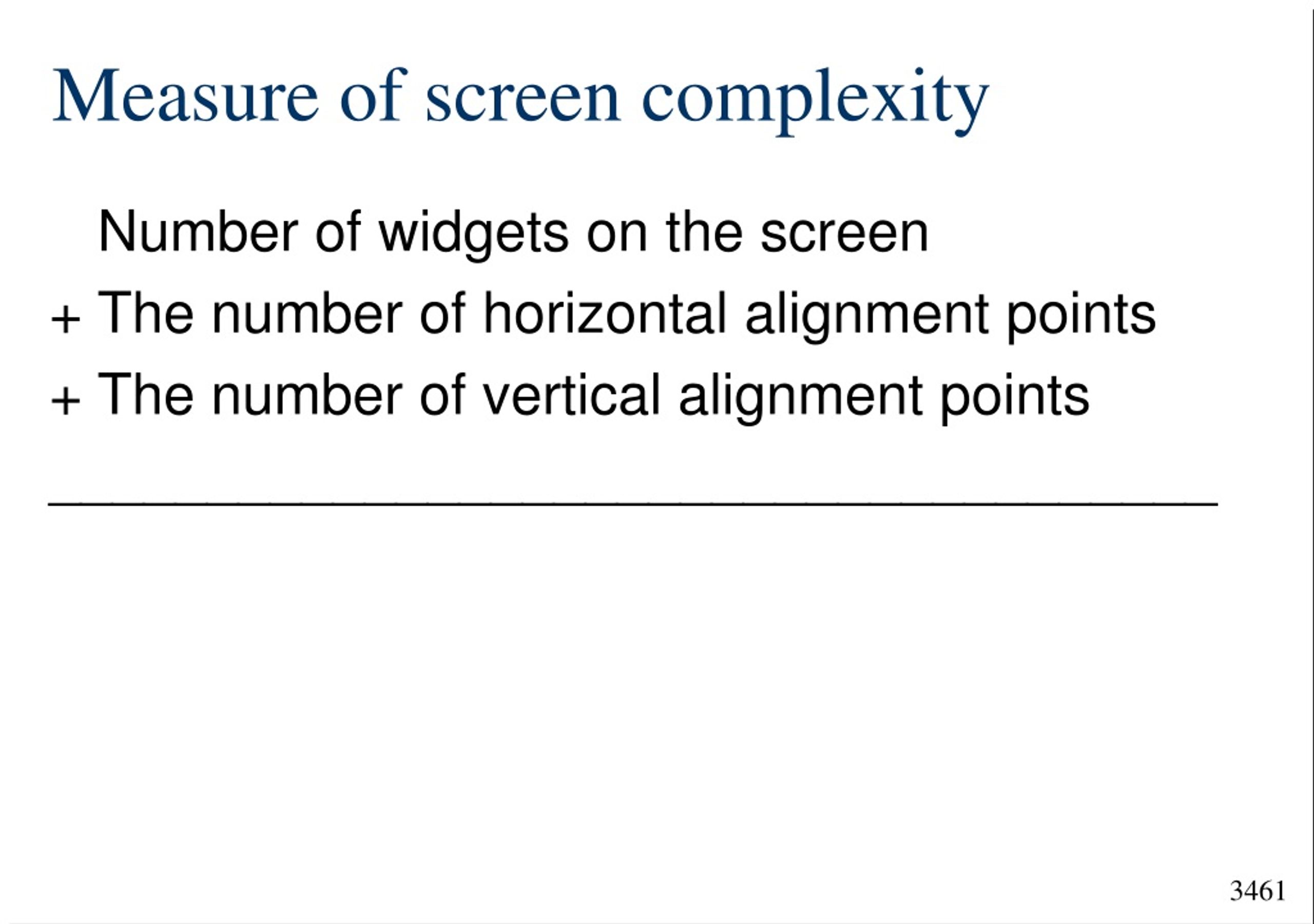

Measure of screen complexity Number of widgets on the screen + The number of horizontal alignment points + The number of vertical alignment points _____________________________________

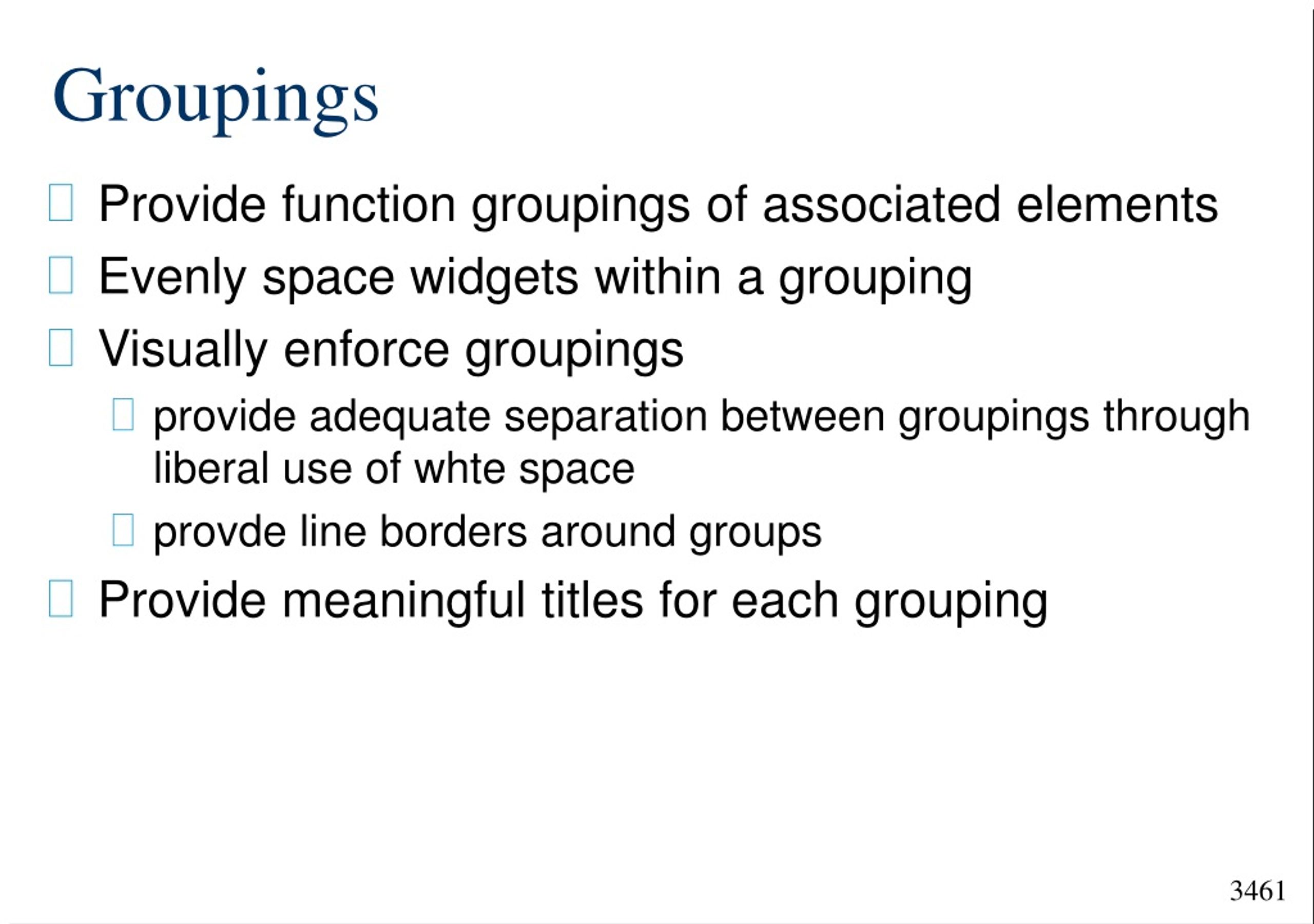

Groupings • Provide function groupings of associated elements • Evenly space widgets within a grouping • Visually enforce groupings • provide adequate separation between groupings through liberal use of whte space • provde line borders around groups • Provide meaningful titles for each grouping

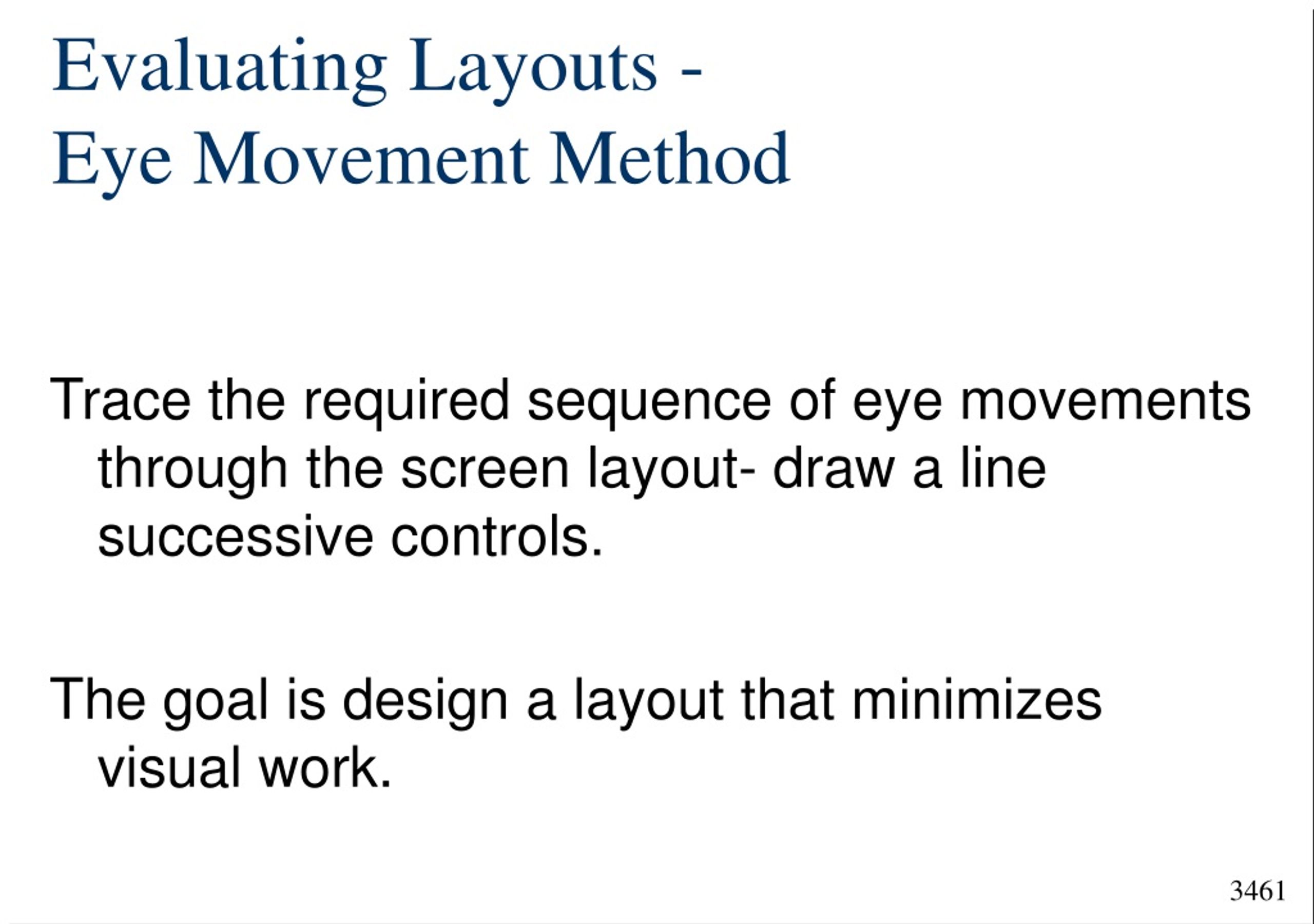

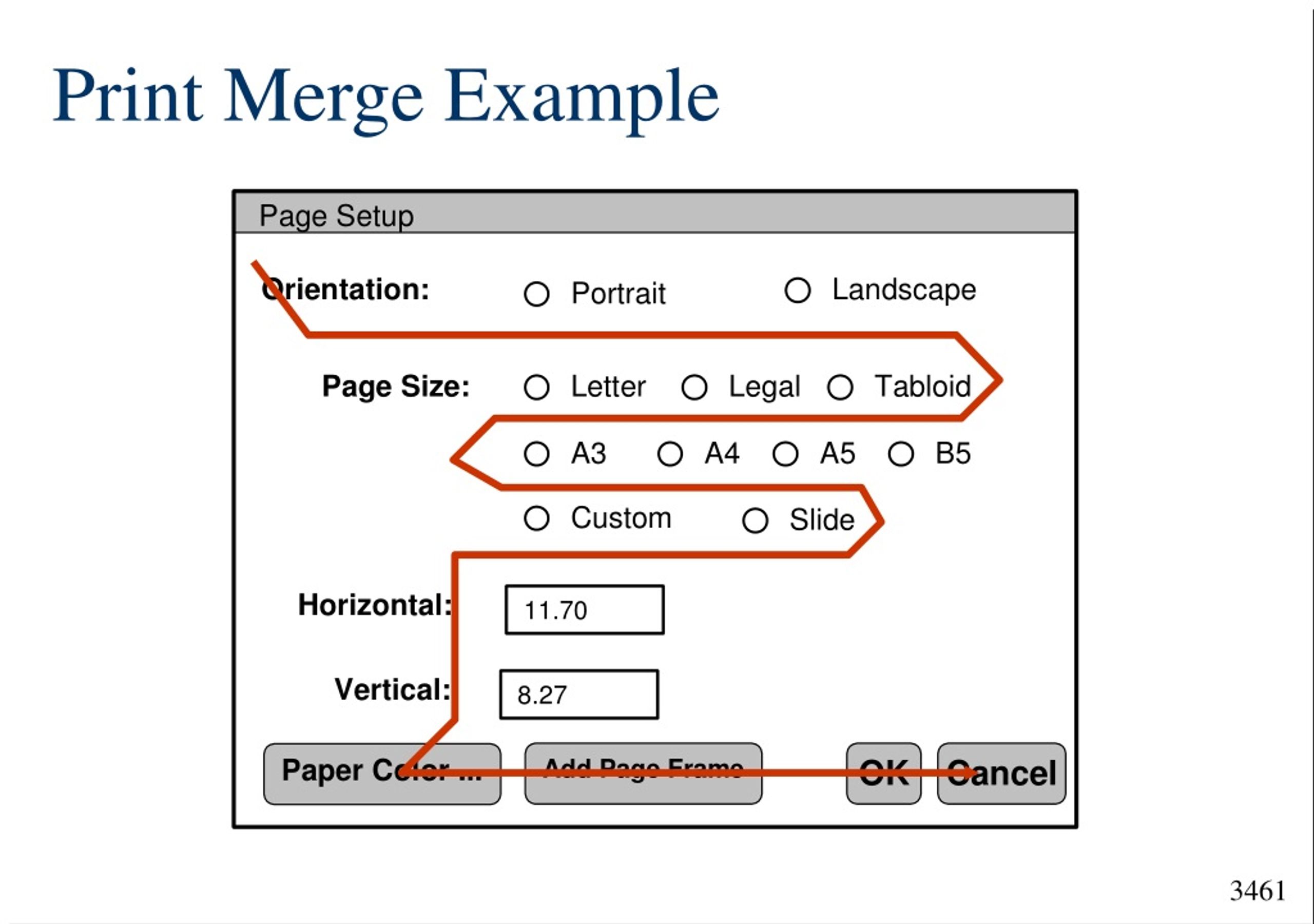

Evaluating Layouts - Eye Movement Method Trace the required sequence of eye movements through the screen layout- draw a line successive controls. The goal is design a layout that minimizes visual work.
