FINAL EXAM REVIEW

To insert your company logo on this slide From the Insert Menu Select “ Picture ” Locate your logo file Click OK To resize the logo Click anywhere inside the logo. The boxes that appear outside the logo are known as “ resize handles. ” Use these to resize the object.

lalasa
Download Presentation

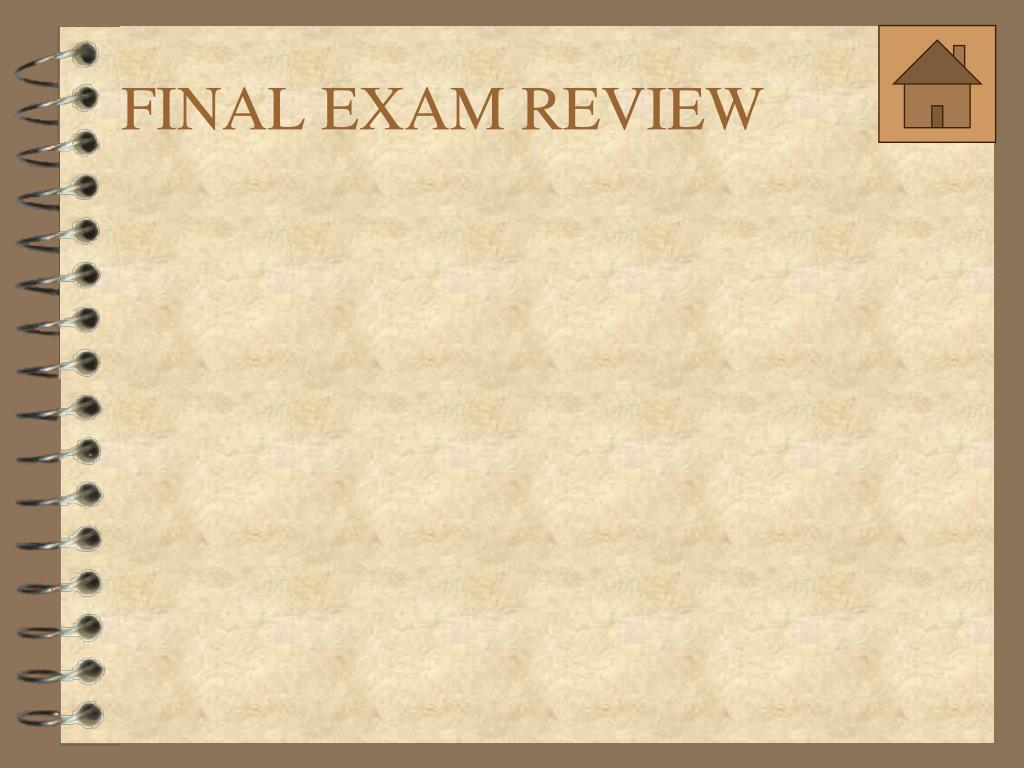

FINAL EXAM REVIEW

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. To insert your company logo on this slide • From the Insert Menu • Select “Picture” • Locate your logo file • Click OK • To resize the logo • Click anywhere inside the logo. The boxes that appear outside the logo are known as “resize handles.” • Use these to resize the object. • If you hold down the shift key before using the resize handles, you will maintain the proportions of the object you wish to resize. FINAL EXAM REVIEW

  2. What to Bring to the Exam • Two #2 pencils with good erasers. • Your brain. Please don’t leave it at home.  • WHAT NOT TO BRING: • PDA’s and cell. Cell phones must be turned OFF and be left somewhere other than where you are sitting. • Headphones may not be on your person during the exam. • Calculators will not be allowed (they won’t be needed). • Food or any drinks. (c) 2006, Mark Rosengarten

  3. How To Prepare • DO NOT CRAM. Get your studying done with by the night before. Get a good night’s sleep and have breakfast the morning of the exam. • Use notes and information on the blog. • Actively participate in any and all review classes and activities offered by your teacher. • Study vocabulary. Identify key words and use flash cards to help you remember what the meaning of those words are and the concepts behind them. (c) 2006, Mark Rosengarten

  4. Outline for Review 1) The Atom (Electron Config) 2) Matter (Phases, Types, Changes) 3) Bonding (Periodic Table, Ionic, Covalent) 4) Compounds (Formulas, Reactions, IMAF’s) 5)Math of Chemistry (Formula Mass, Gas Laws, Neutralization, etc.) 6) Kinetics and Thermodynamics (PE Diagrams, etc.) 7) Acids and Bases (pH, formulas, indicators, etc.) 8) Oxidation and Reduction (Half Reactions, Cells, etc.) 9) Organic Chemistry (Hydrocarbons, Families, Reactions) 10) ) The Atom (Nuclear) (c) 2006, Mark Rosengarten

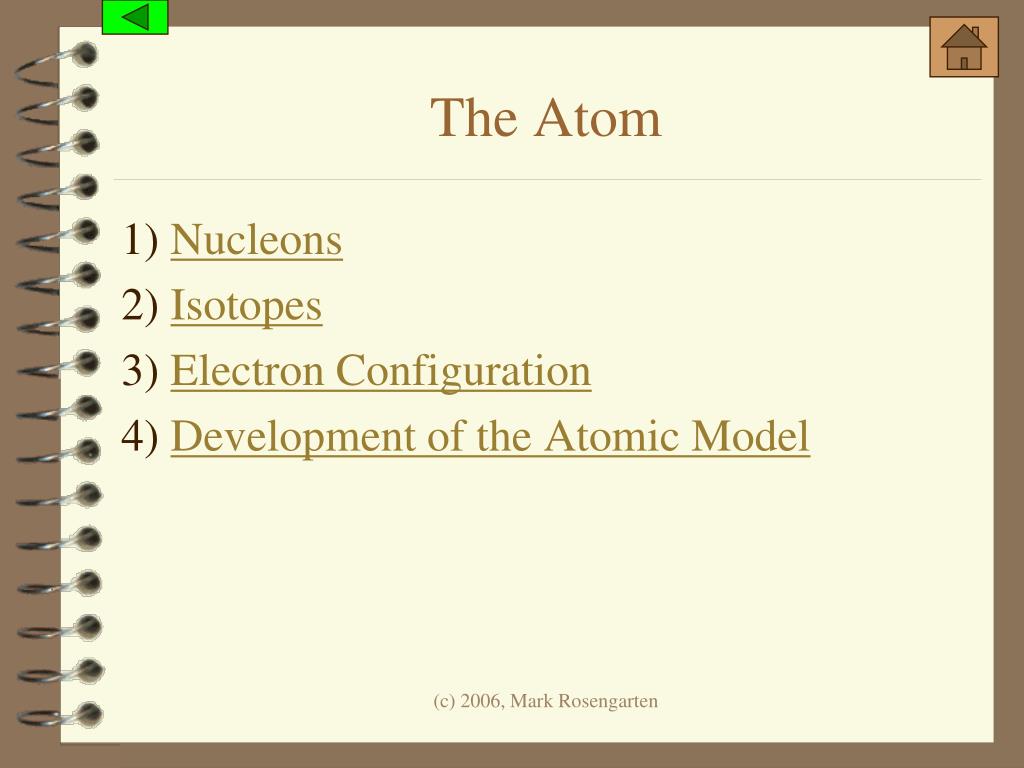

  5. The Atom 1) Nucleons 2) Isotopes 3) Electron Configuration 4) Development of the Atomic Model (c) 2006, Mark Rosengarten

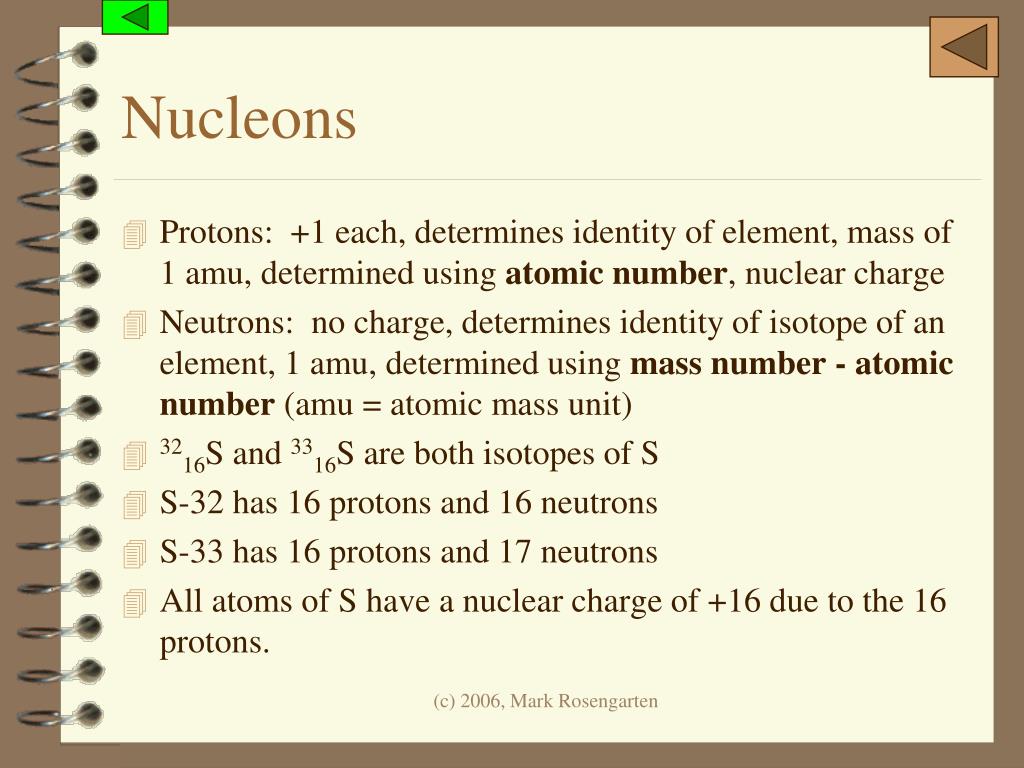

  6. Nucleons • Protons: +1 each, determines identity of element, mass of 1 amu, determined using atomic number, nuclear charge • Neutrons: no charge, determines identity of isotope of an element, 1 amu, determined using mass number - atomic number (amu = atomic mass unit) • 3216S and 3316S are both isotopes of S • S-32 has 16 protons and 16 neutrons • S-33 has 16 protons and 17 neutrons • All atoms of S have a nuclear charge of +16 due to the 16 protons. (c) 2006, Mark Rosengarten

  7. Isotopes • Atoms of the same element MUST contain the same number of protons. • Atoms of the same element can vary in their numbers of neutrons, therefore many different atomic masses can exist for any one element. These are called isotopes. • The atomic mass on the Periodic Table is the weight-average atomic mass, taking into account the different isotope masses and their relative abundance. • Rounding off the atomic mass on the Periodic Table will tell you what the most common isotope of that element is. (c) 2006, Mark Rosengarten

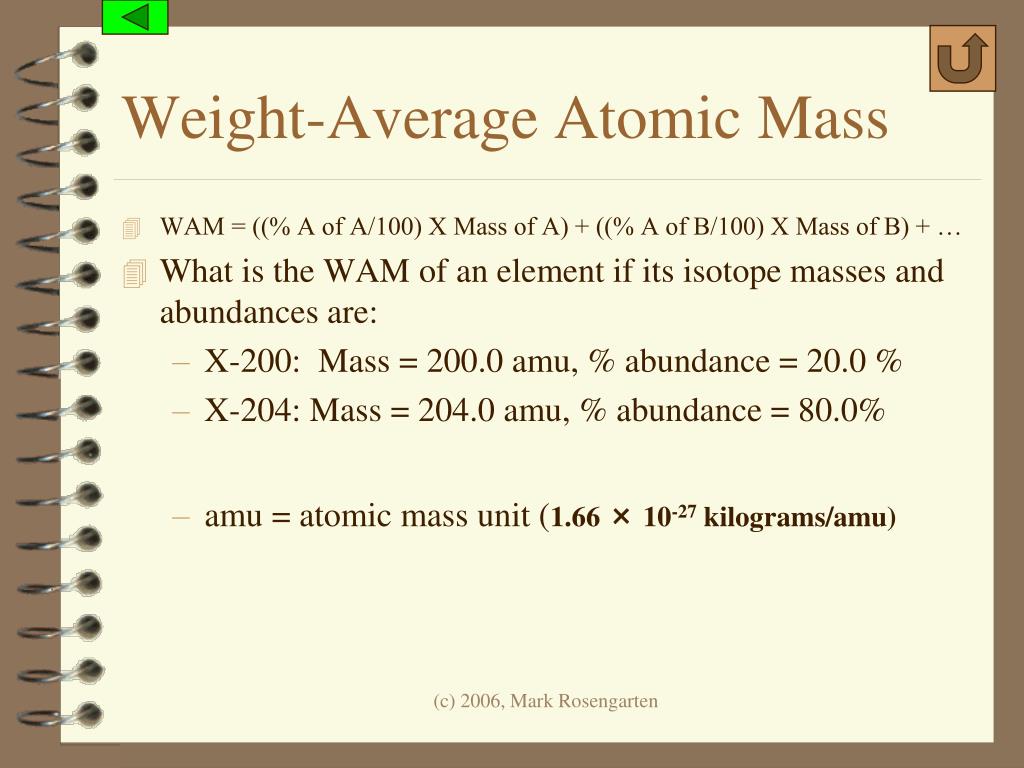

  8. Weight-Average Atomic Mass • WAM = ((% A of A/100) X Mass of A) + ((% A of B/100) X Mass of B) + … • What is the WAM of an element if its isotope masses and abundances are: • X-200: Mass = 200.0 amu, % abundance = 20.0 % • X-204: Mass = 204.0 amu, % abundance = 80.0% • amu = atomic mass unit (1.66 × 10-27 kilograms/amu) (c) 2006, Mark Rosengarten

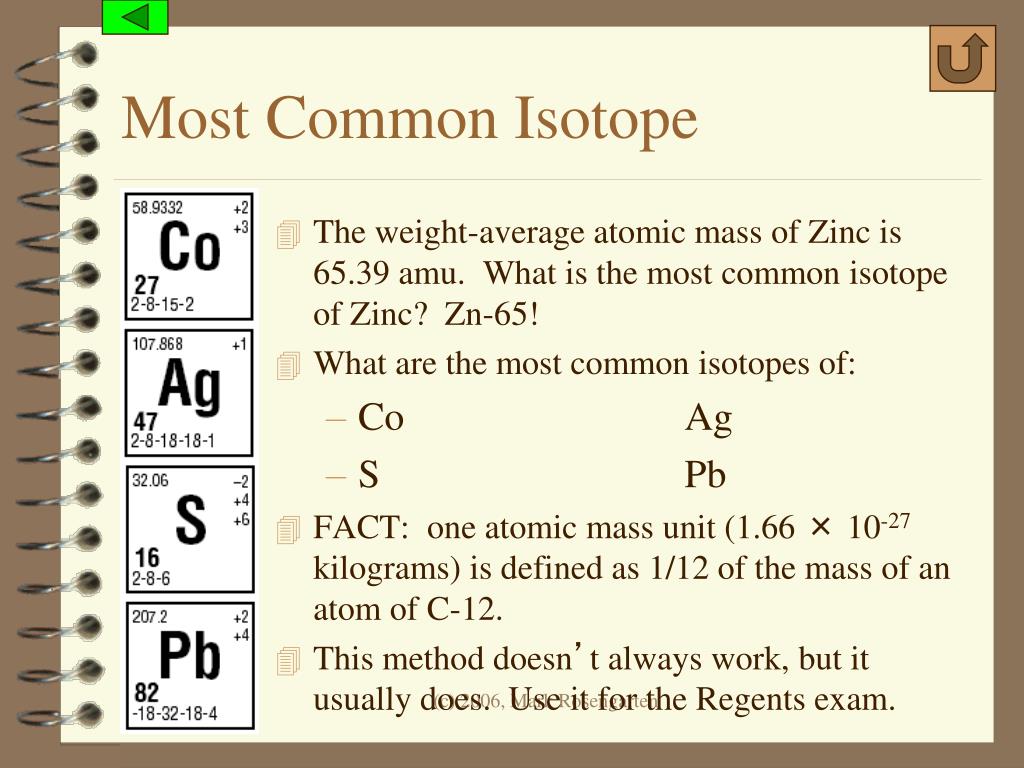

  9. Most Common Isotope • The weight-average atomic mass of Zinc is 65.39 amu. What is the most common isotope of Zinc? Zn-65! • What are the most common isotopes of: • Co Ag • S Pb • FACT: one atomic mass unit (1.66 × 10-27 kilograms) is defined as 1/12 of the mass of an atom of C-12. • This method doesn’t always work, but it usually does. Use it for the Regents exam. (c) 2006, Mark Rosengarten

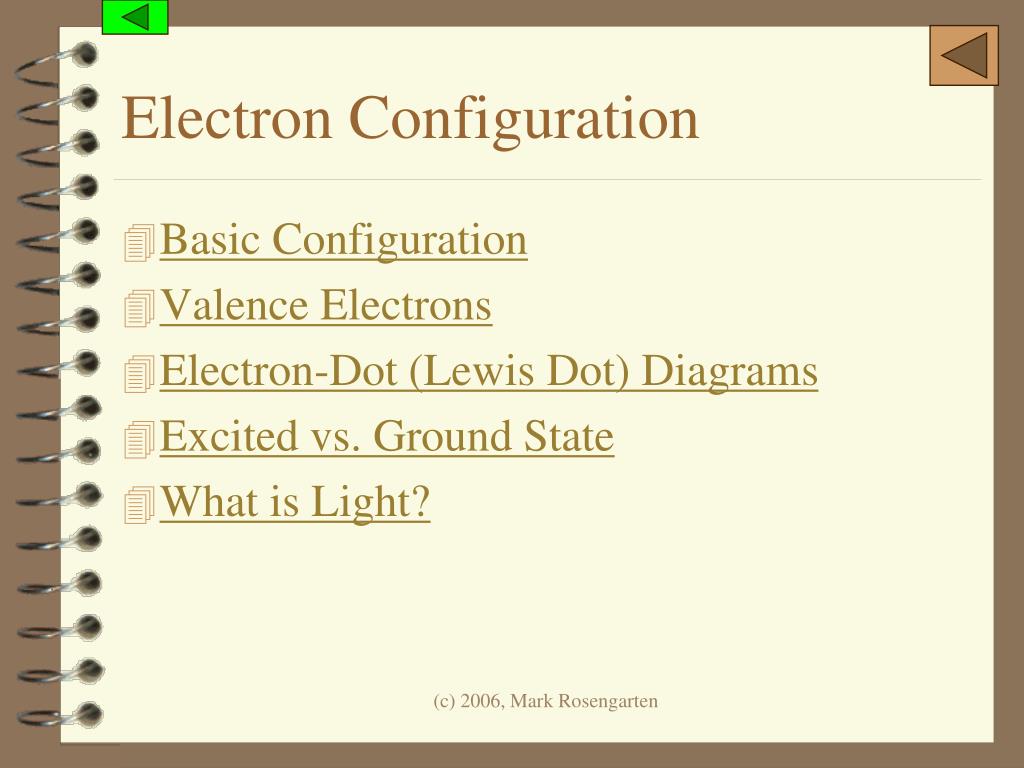

  10. Electron Configuration • Basic Configuration • Valence Electrons • Electron-Dot (Lewis Dot) Diagrams • Excited vs. Ground State • What is Light? (c) 2006, Mark Rosengarten

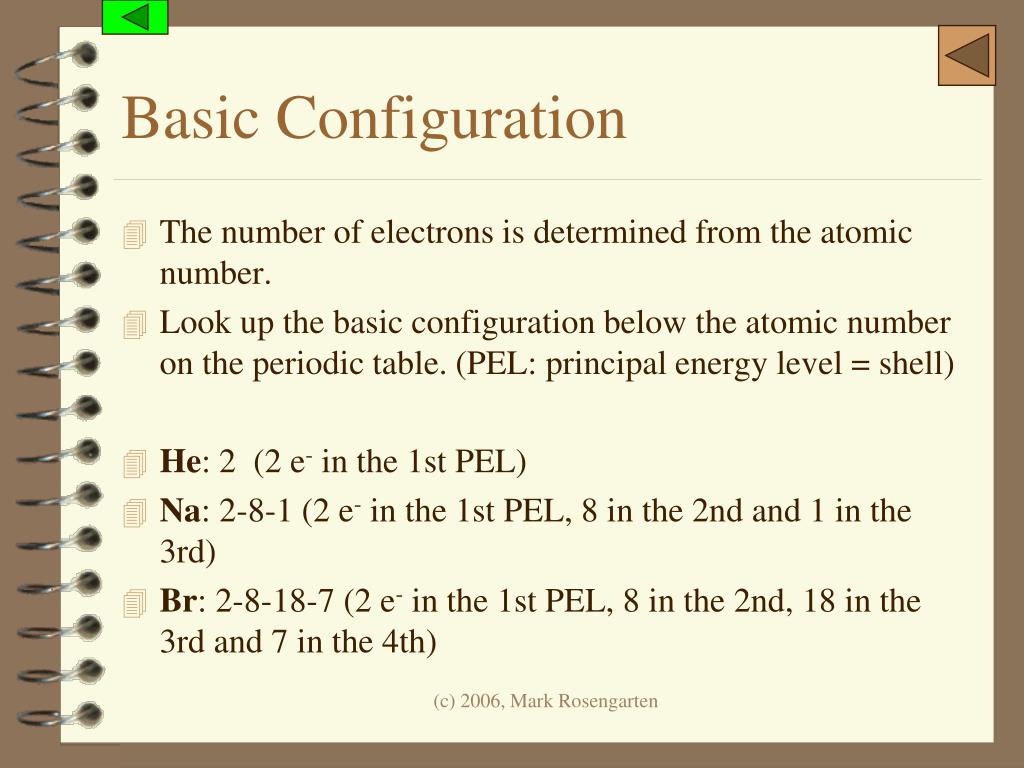

  11. Basic Configuration • The number of electrons is determined from the atomic number. • Look up the basic configuration below the atomic number on the periodic table. (PEL: principal energy level = shell) • He: 2 (2 e- in the 1st PEL) • Na: 2-8-1 (2 e- in the 1st PEL, 8 in the 2nd and 1 in the 3rd) • Br: 2-8-18-7 (2 e- in the 1st PEL, 8 in the 2nd, 18 in the 3rd and 7 in the 4th) (c) 2006, Mark Rosengarten

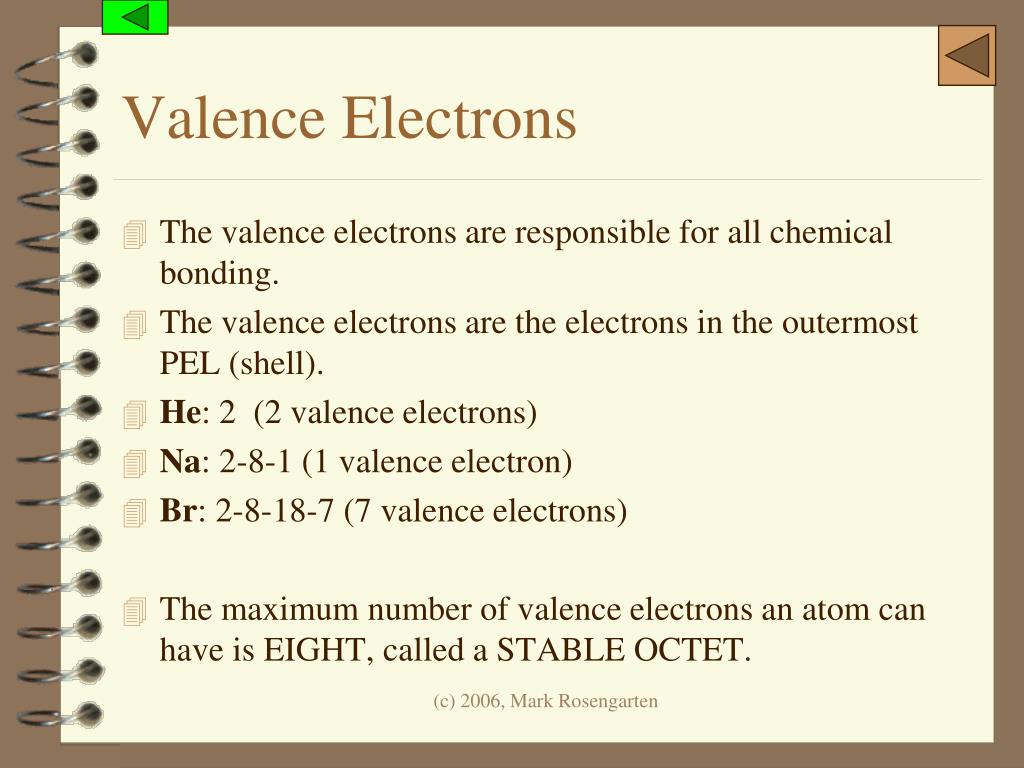

  12. Valence Electrons • The valence electrons are responsible for all chemical bonding. • The valence electrons are the electrons in the outermost PEL (shell). • He: 2 (2 valence electrons) • Na: 2-8-1 (1 valence electron) • Br: 2-8-18-7 (7 valence electrons) • The maximum number of valence electrons an atom can have is EIGHT, called a STABLE OCTET. (c) 2006, Mark Rosengarten

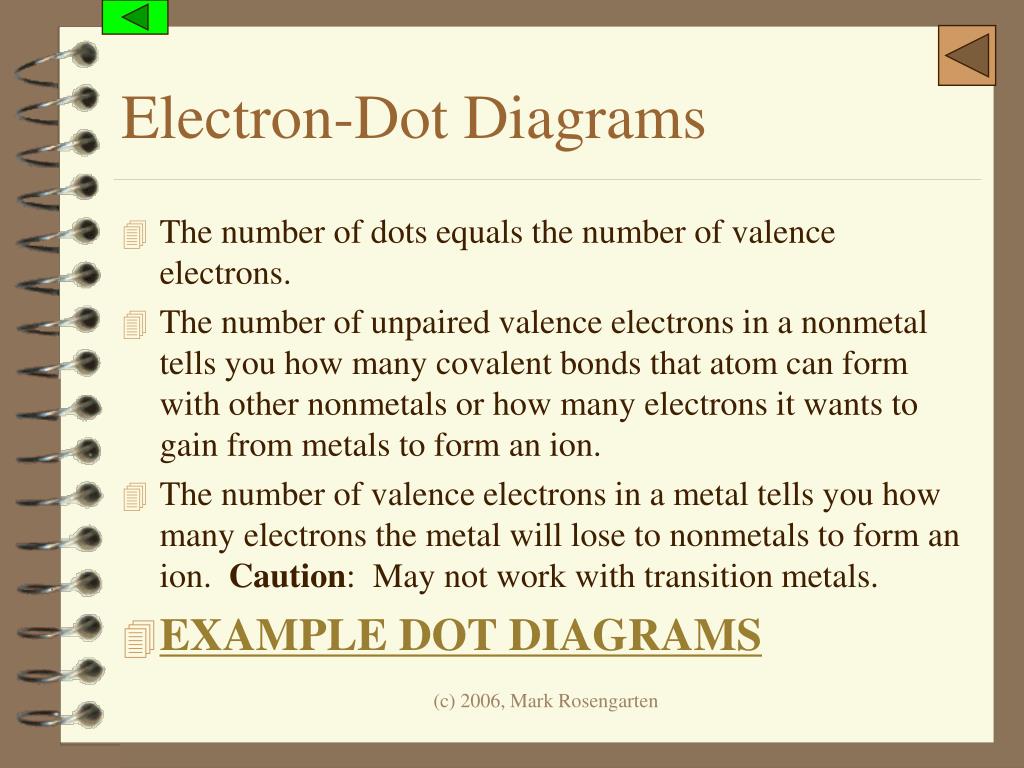

  13. Electron-Dot Diagrams • The number of dots equals the number of valence electrons. • The number of unpaired valence electrons in a nonmetal tells you how many covalent bonds that atom can form with other nonmetals or how many electrons it wants to gain from metals to form an ion. • The number of valence electrons in a metal tells you how many electrons the metal will lose to nonmetals to form an ion. Caution: May not work with transition metals. • EXAMPLE DOT DIAGRAMS (c) 2006, Mark Rosengarten

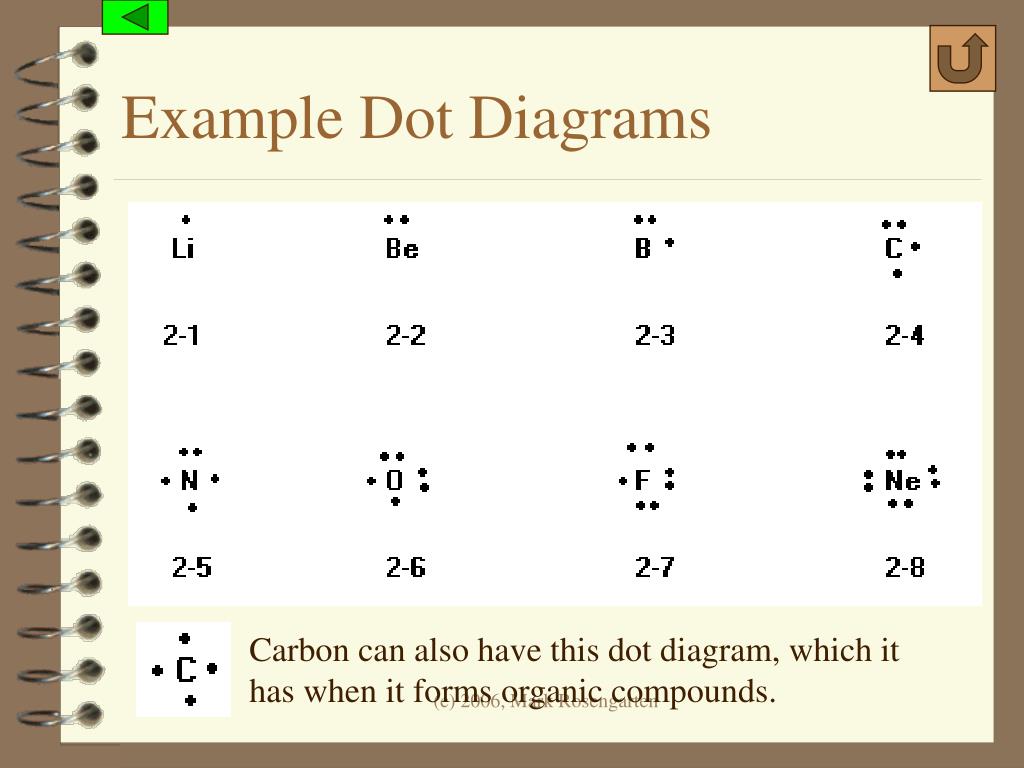

  14. Example Dot Diagrams Carbon can also have this dot diagram, which it has when it forms organic compounds. (c) 2006, Mark Rosengarten

  15. Excited vs. Ground State • Configurations on the Periodic Table are ground state configurations. • If electrons are given energy, they rise to higher energy levels (excited state). • If the total number of electrons matches in the configuration, but the configuration doesn’t match, the atom is in the excited state. • Na (ground, on table): 2-8-1 • Example of excited states: 2-7-2, 2-8-0-1, 2-6-3 (c) 2006, Mark Rosengarten

  16. What Is Light? • Light is formed when electrons drop from the excited state to the ground state. • The lines on a bright-line spectrum come from specific energy level drops and are unique to each element. • EXAMPLE SPECTRUM (c) 2006, Mark Rosengarten

  17. EXAMPLE SPECTRUM This is the bright-line spectrum of hydrogen. The top numbers represent the PEL (shell) change that produces the light with that color and the bottom number is the wavelength of the light (in nanometers, or 10-9 m). No other element has the same bright-line spectrum as hydrogen, so these spectra can be used to identify elements or mixtures of elements. (c) 2006, Mark Rosengarten

  18. Development of the Atomic Model • Thompson Model • Rutherford Gold Foil Experiment and Model • Bohr Model • Quantum-Mechanical Model (c) 2006, Mark Rosengarten

  19. Thompson Model • The atom is a positively charged diffuse mass with negatively charged electrons stuck in it. (c) 2006, Mark Rosengarten

  20. Rutherford Model • The atom is made of a small, dense, positively charged nucleus with electrons at a distance, the vast majority of the volume of the atom is empty space. Alpha particles shot at a thin sheet of gold foil: most go through (empty space). Some deflect or bounce off (small + charged nucleus). (c) 2006, Mark Rosengarten

  21. Bohr Model • Electrons orbit around the nucleus in energy levels (shells). Atomic bright-line spectra was the clue. (c) 2006, Mark Rosengarten

  22. Quantum-Mechanical Model • Electron energy levels are wave functions. • Electrons are found in orbitals, regions of space where an electron is most likely to be found. • You can’t know both where the electron is and where it is going at the same time. • Electrons buzz around the nucleus like gnats buzzing around your head. (c) 2006, Mark Rosengarten

  23. Matter 1) Properties ofPhases 2) Types of Matter 3) Phase Changes (c) 2006, Mark Rosengarten

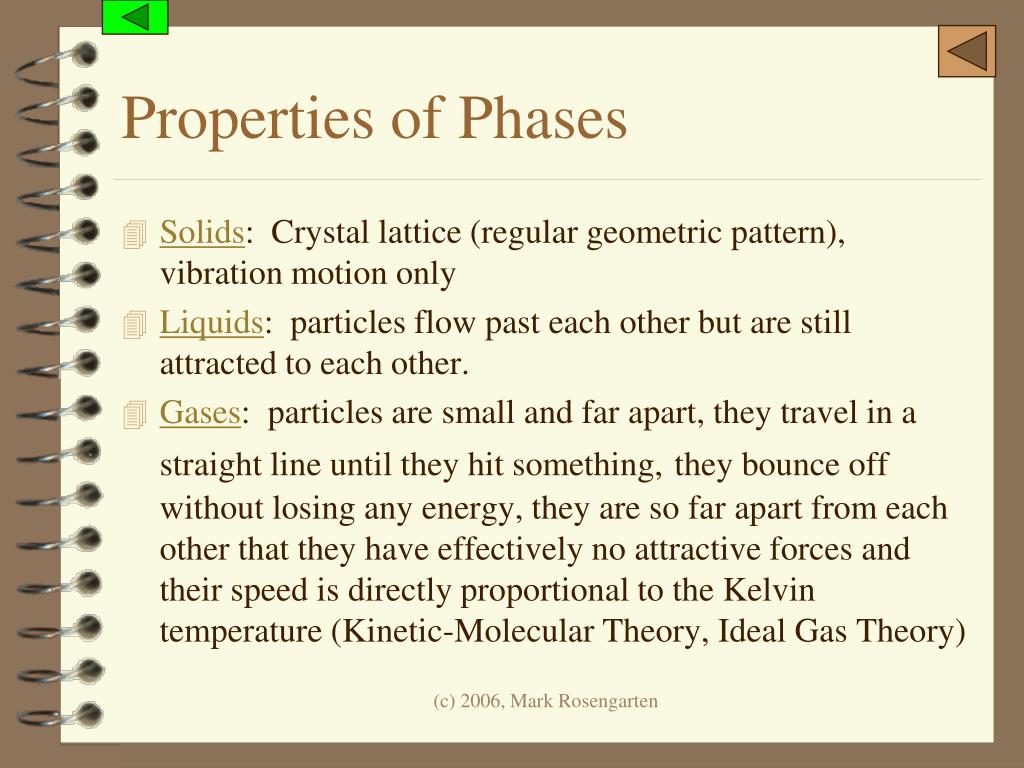

  24. Properties of Phases • Solids: Crystal lattice (regular geometric pattern), vibration motion only • Liquids: particles flow past each other but are still attracted to each other. • Gases: particles are small and far apart, they travel in a straight line until they hit something,they bounce off without losing any energy, they are so far apart from each other that they have effectively no attractive forces and their speed is directly proportional to the Kelvin temperature (Kinetic-Molecular Theory, Ideal Gas Theory) (c) 2006, Mark Rosengarten

  25. Solids The positive and negative ions alternate in the ionic crystal lattice of NaCl. (c) 2006, Mark Rosengarten

  26. Liquids When heated, the ions move faster and eventually separate from each other to form a liquid. The ions are loosely held together by the oppositely charged ions, but the ions are moving too fast for the crystal lattice to stay together. (c) 2006, Mark Rosengarten

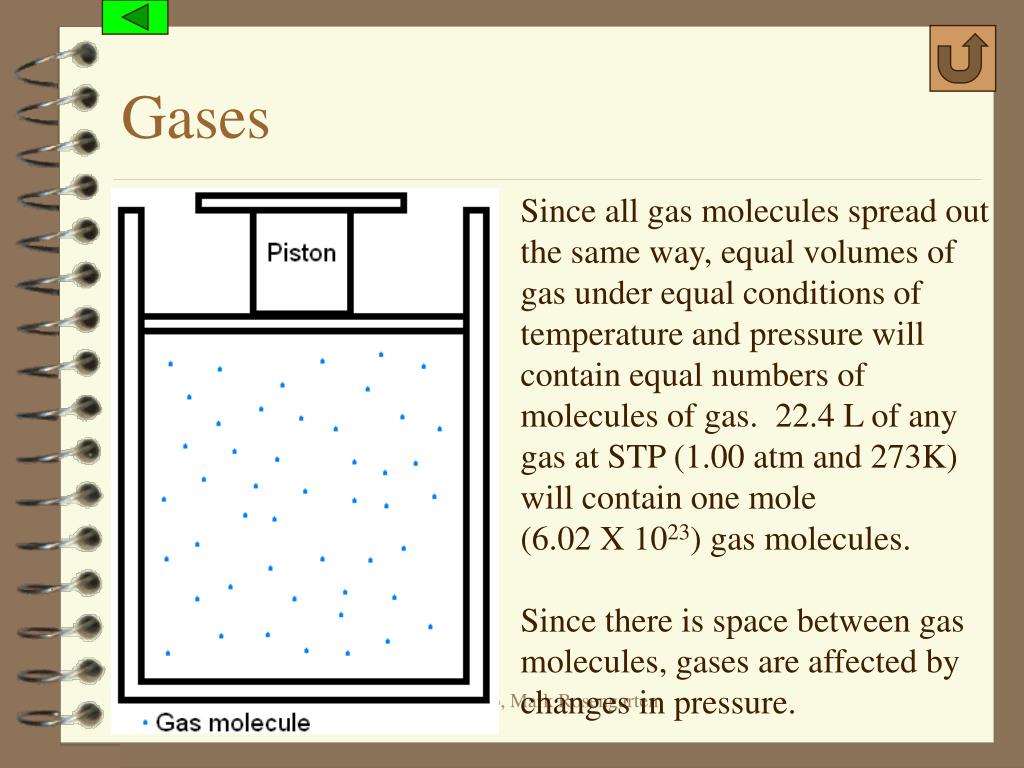

  27. Gases Since all gas molecules spread out the same way, equal volumes of gas under equal conditions of temperature and pressure will contain equal numbers of molecules of gas. 22.4 L of any gas at STP (1.00 atm and 273K) will contain one mole (6.02 X 1023) gas molecules. Since there is space between gas molecules, gases are affected by changes in pressure. (c) 2006, Mark Rosengarten

  28. Types of Matter • Substances (Homogeneous) • Elements (cannot be decomposed by chemical change): Al, Ne, O, Br, H • Compounds (can be decomposed by chemical change): NaCl, Cu(ClO3)2, KBr, H2O, C2H6 • Mixtures • Homogeneous: Solutions (solvent + solute) • Heterogeneous: soil, Italian dressing, etc. (c) 2006, Mark Rosengarten

  29. Elements • A sample of lead atoms (Pb). All atoms in the sample consist of lead, so the substance is homogeneous. • A sample of chlorine atoms (Cl). All atoms in the sample consist of chlorine, so the substance is homogeneous. (c) 2006, Mark Rosengarten

  30. Compounds • Lead has two charges listed, +2 and +4. This is a sample of lead (II) chloride (PbCl2). Two or more elements bonded in a whole-number ratio is a COMPOUND. • This compound is formed from the +4 version of lead. This is lead (IV) chloride (PbCl4). Notice how both samples of lead compounds have consistent composition throughout? Compounds are homogeneous! (c) 2006, Mark Rosengarten

  31. Mixtures • A mixture of lead atoms and chlorine atoms. They exist in no particular ratio and are not chemically combined with each other. They can be separated by physical means. • A mixture of PbCl2 and PbCl4 formula units. Again, they are in no particular ratio to each other and can be separated without chemical change. (c) 2006, Mark Rosengarten

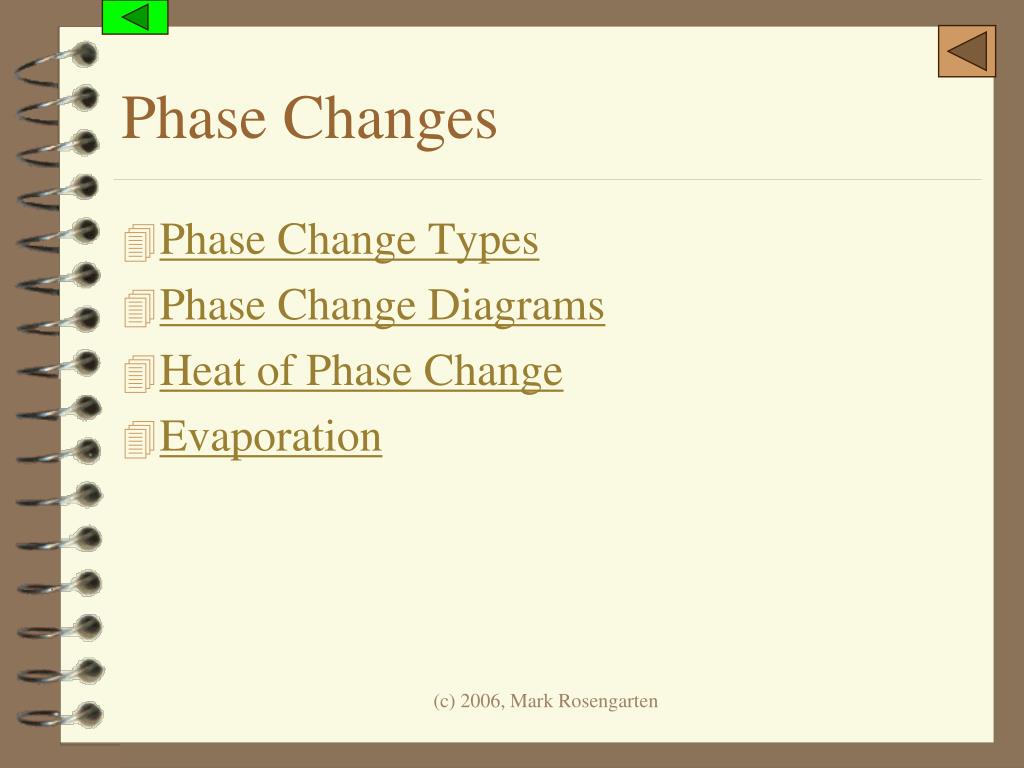

  32. Phase Changes • Phase Change Types • Phase Change Diagrams • Heat of Phase Change • Evaporation (c) 2006, Mark Rosengarten

  33. Phase Change Types (c) 2006, Mark Rosengarten

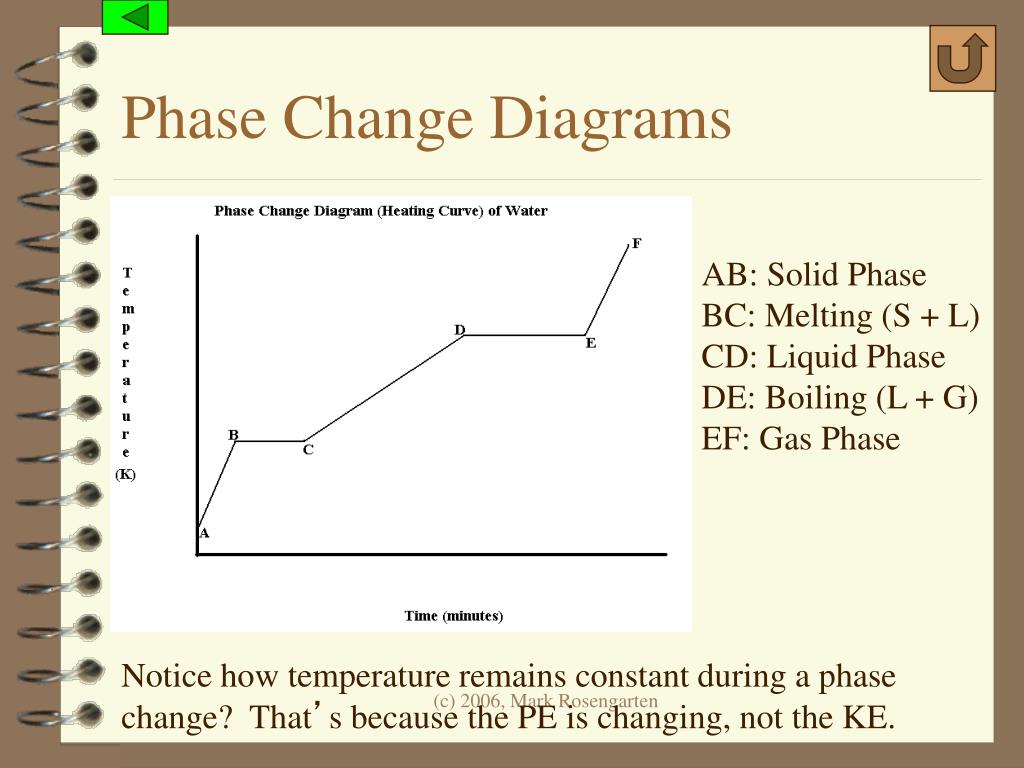

  34. Phase Change Diagrams AB: Solid Phase BC: Melting (S + L) CD: Liquid Phase DE: Boiling (L + G) EF: Gas Phase Notice how temperature remains constant during a phase change? That’s because the PE is changing, not the KE. (c) 2006, Mark Rosengarten

  35. Heat of Phase Change • How many joules would it take to melt 100. g of H2O (s) at 0oC? • q=mHf = (100. g)(334 J/g) = 33400 J • How many joules would it take to boil 100. g of H2O (l) at 100oC? • q=mHv = (100.g)(2260 J/g) = 226000 J (c) 2006, Mark Rosengarten

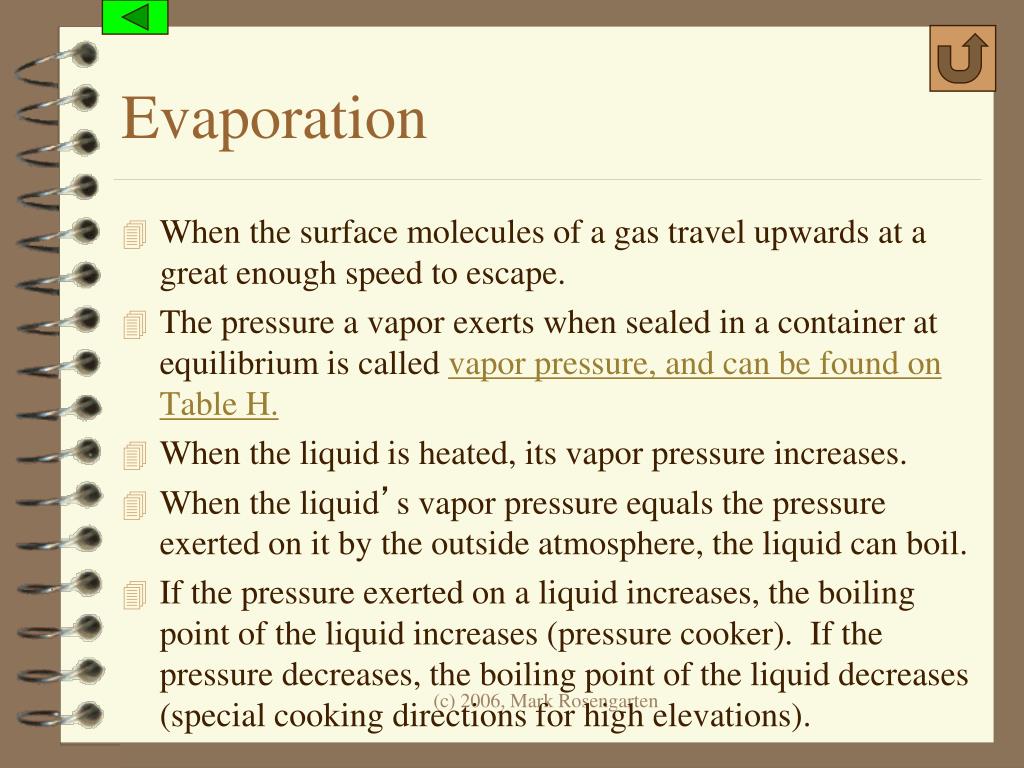

  36. Evaporation • When the surface molecules of a gas travel upwards at a great enough speed to escape. • The pressure a vapor exerts when sealed in a container at equilibrium is called vapor pressure, and can be found on Table H. • When the liquid is heated, its vapor pressure increases. • When the liquid’s vapor pressure equals the pressure exerted on it by the outside atmosphere, the liquid can boil. • If the pressure exerted on a liquid increases, the boiling point of the liquid increases (pressure cooker). If the pressure decreases, the boiling point of the liquid decreases (special cooking directions for high elevations). (c) 2006, Mark Rosengarten

  37. Reference Table H: Vapor Pressure of Four Liquids (c) 2006, Mark Rosengarten

  38. Bonding 1) The Periodic Table 2) Ions 3) Ionic Bonding 4) Covalent Bonding 5) Metallic Bonding (c) 2006, Mark Rosengarten

  39. The Periodic Table • Metals • Nonmetals • Metalloids • Chemistry of Groups • Electronegativity • Ionization Energy (c) 2006, Mark Rosengarten

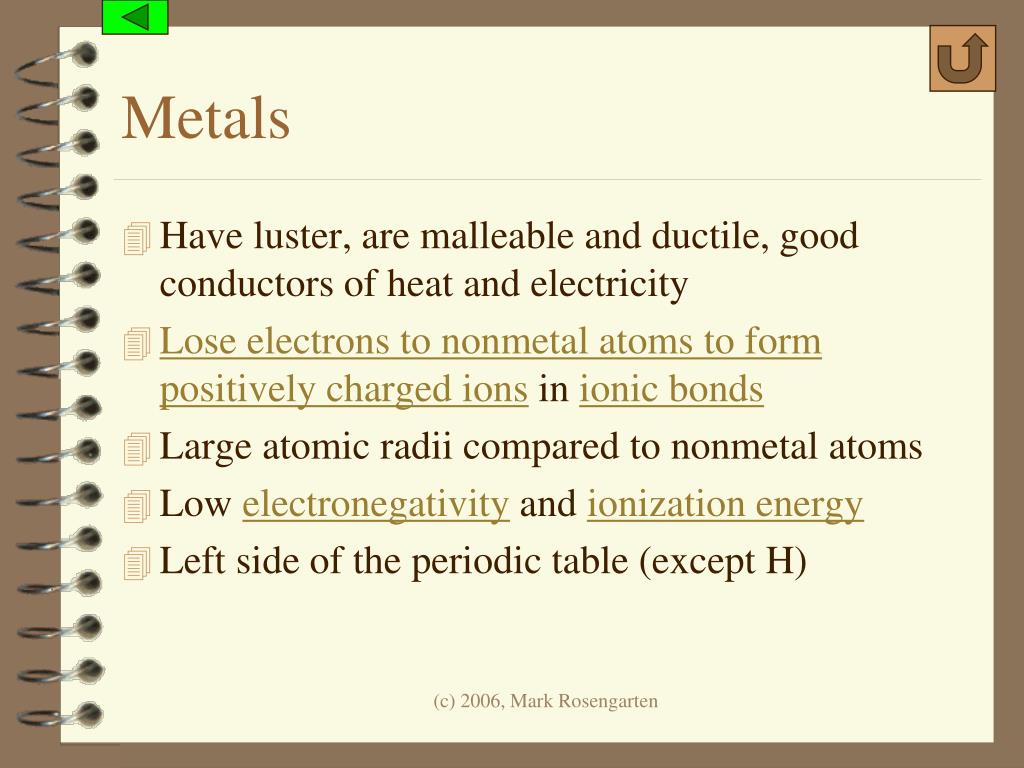

  40. Metals • Have luster, are malleable and ductile, good conductors of heat and electricity • Lose electrons to nonmetal atoms to form positively charged ions in ionic bonds • Large atomic radii compared to nonmetal atoms • Low electronegativity and ionization energy • Left side of the periodic table (except H) (c) 2006, Mark Rosengarten

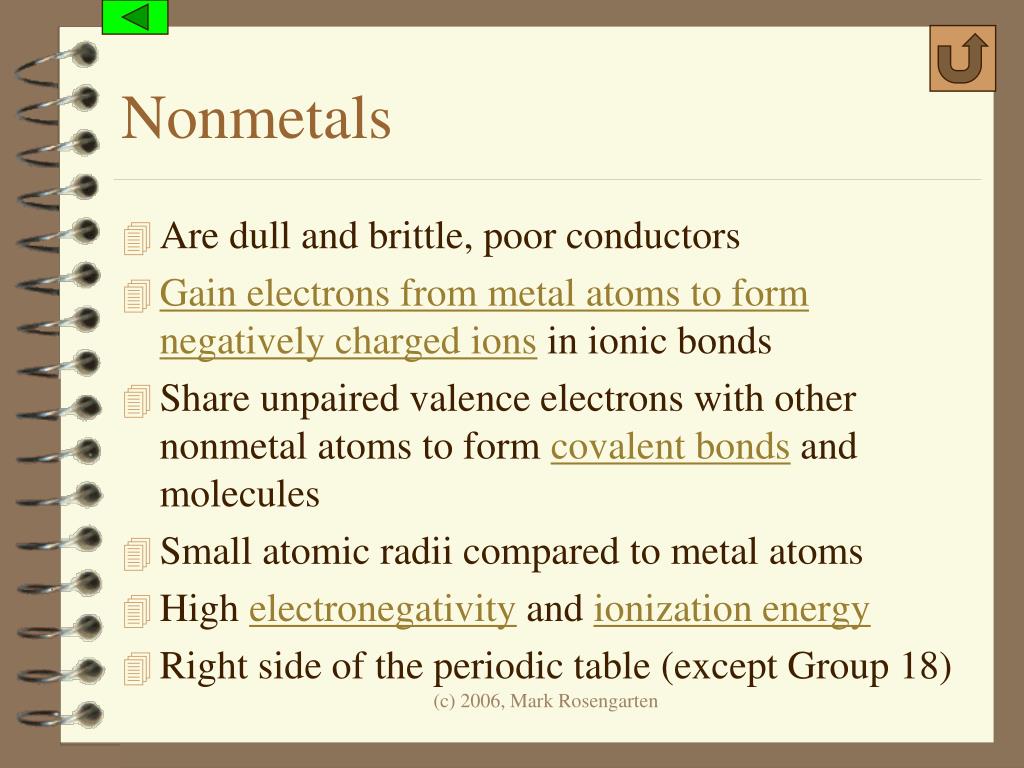

  41. Nonmetals • Are dull and brittle, poor conductors • Gain electrons from metal atoms to form negatively charged ions in ionic bonds • Share unpaired valence electrons with other nonmetal atoms to form covalent bonds and molecules • Small atomic radii compared to metal atoms • High electronegativity and ionization energy • Right side of the periodic table (except Group 18) (c) 2006, Mark Rosengarten

  42. Metalloids • Found lying on the jagged line between metals and nonmetals flatly touching the line (except Al and Po). • Share properties of metals and nonmetals (Si is shiny like a metal, brittle like a nonmetal and is a semiconductor). (c) 2006, Mark Rosengarten

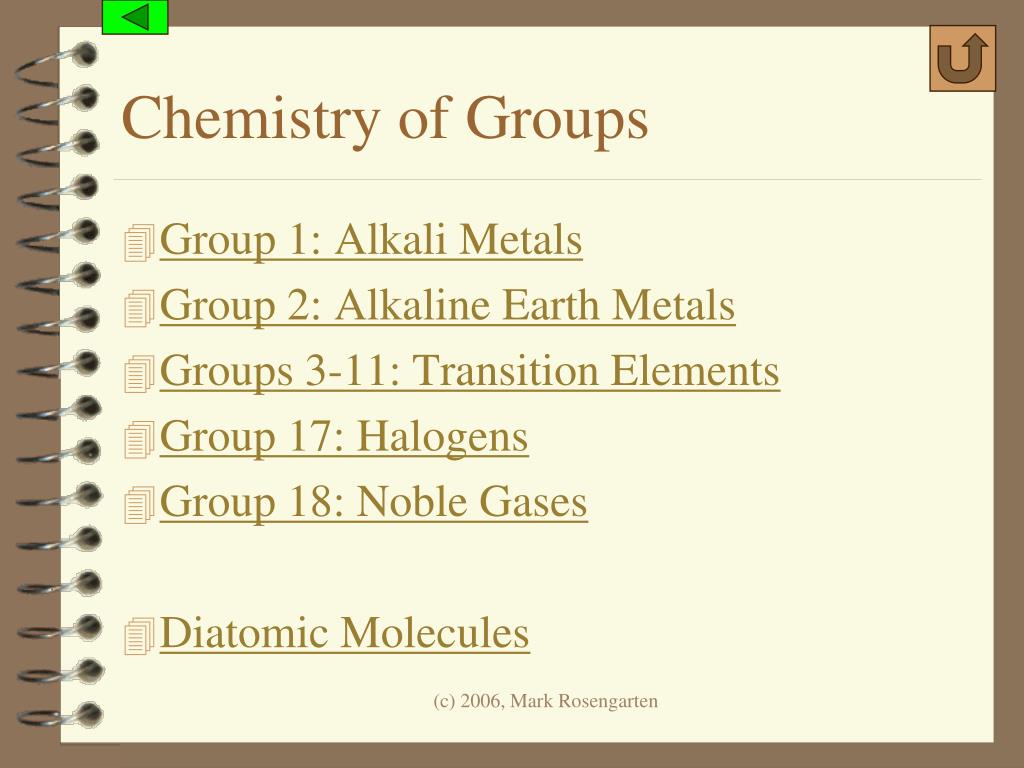

  43. Chemistry of Groups • Group 1: Alkali Metals • Group 2: Alkaline Earth Metals • Groups 3-11: Transition Elements • Group 17: Halogens • Group 18: Noble Gases • Diatomic Molecules (c) 2006, Mark Rosengarten

  44. Group 1: Alkali Metals • Most active metals, only found in compounds in nature • React violently with water to form hydrogen gas and a strong base: 2 Na (s) + H2O (l)  2 NaOH (aq) + H2 (g) • 1 valence electron • Form +1 ion by losing that valence electron • Form oxides like Na2O, Li2O, K2O (c) 2006, Mark Rosengarten

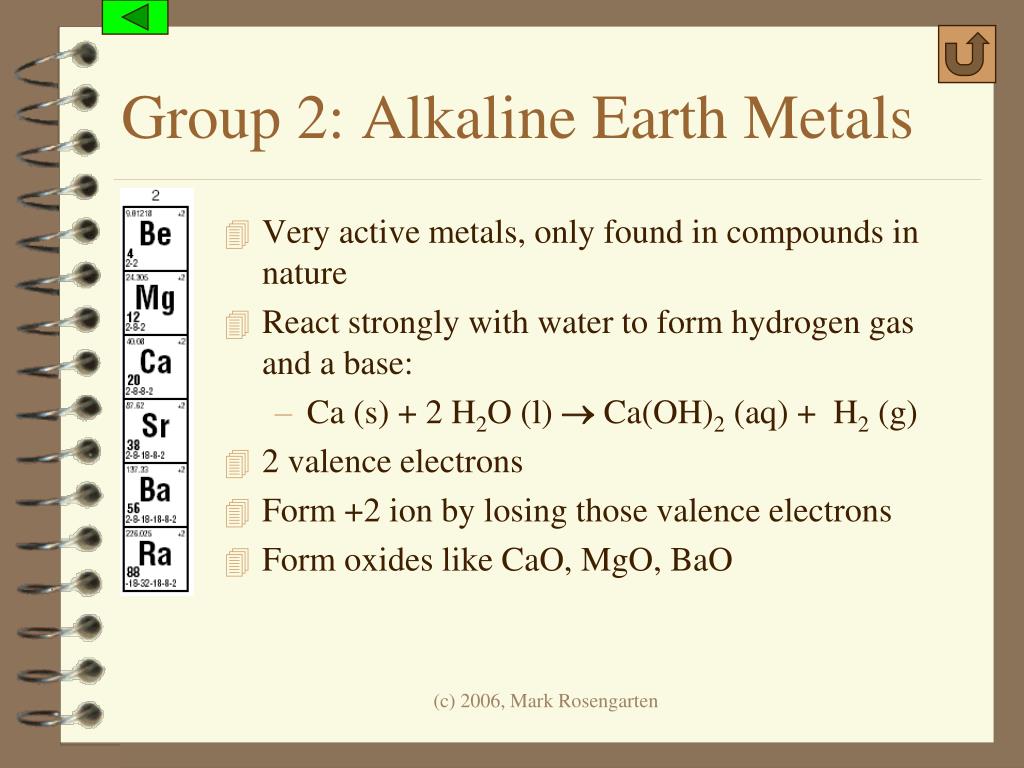

  45. Group 2: Alkaline Earth Metals • Very active metals, only found in compounds in nature • React strongly with water to form hydrogen gas and a base: • Ca (s) + 2 H2O (l)  Ca(OH)2 (aq) + H2 (g) • 2 valence electrons • Form +2 ion by losing those valence electrons • Form oxides like CaO, MgO, BaO (c) 2006, Mark Rosengarten

  46. Groups 3-11: Transition Metals • Many can form different possible charges of ions • If there is more than one ion listed, give the charge as a Roman numeral after the name • Cu+1 = copper (I) Cu+2 = copper (II) • Compounds containing these metals can be colored. (c) 2006, Mark Rosengarten

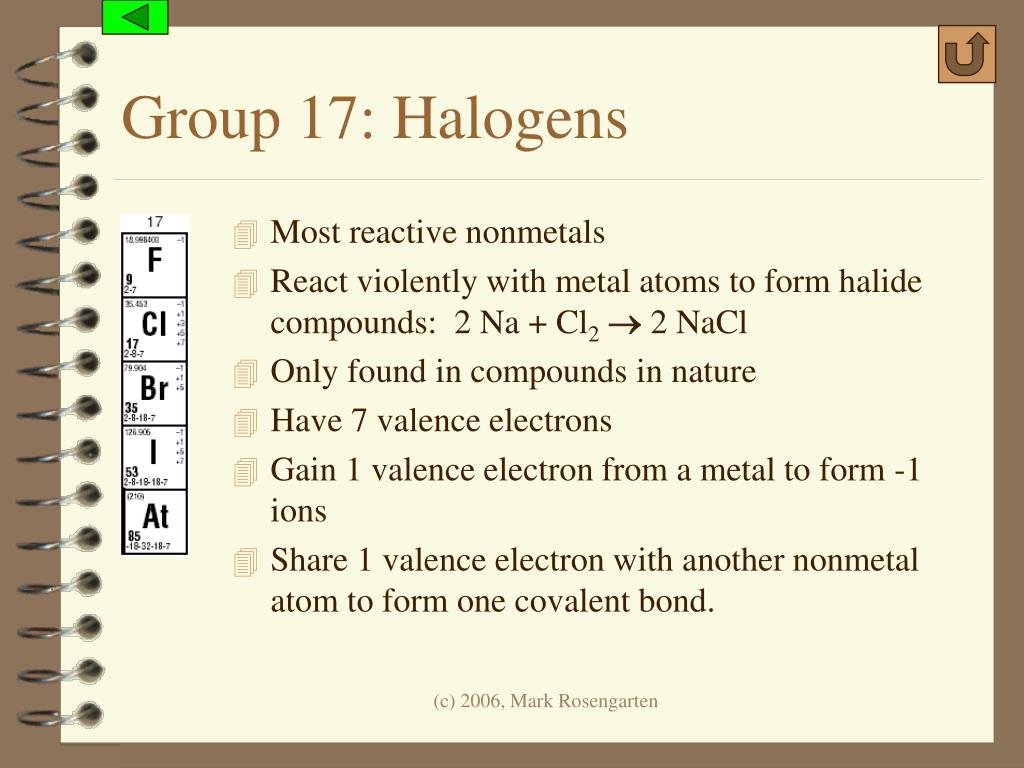

  47. Group 17: Halogens • Most reactive nonmetals • React violently with metal atoms to form halide compounds: 2 Na + Cl2 2 NaCl • Only found in compounds in nature • Have 7 valence electrons • Gain 1 valence electron from a metal to form -1 ions • Share 1 valence electron with another nonmetal atom to form one covalent bond. (c) 2006, Mark Rosengarten

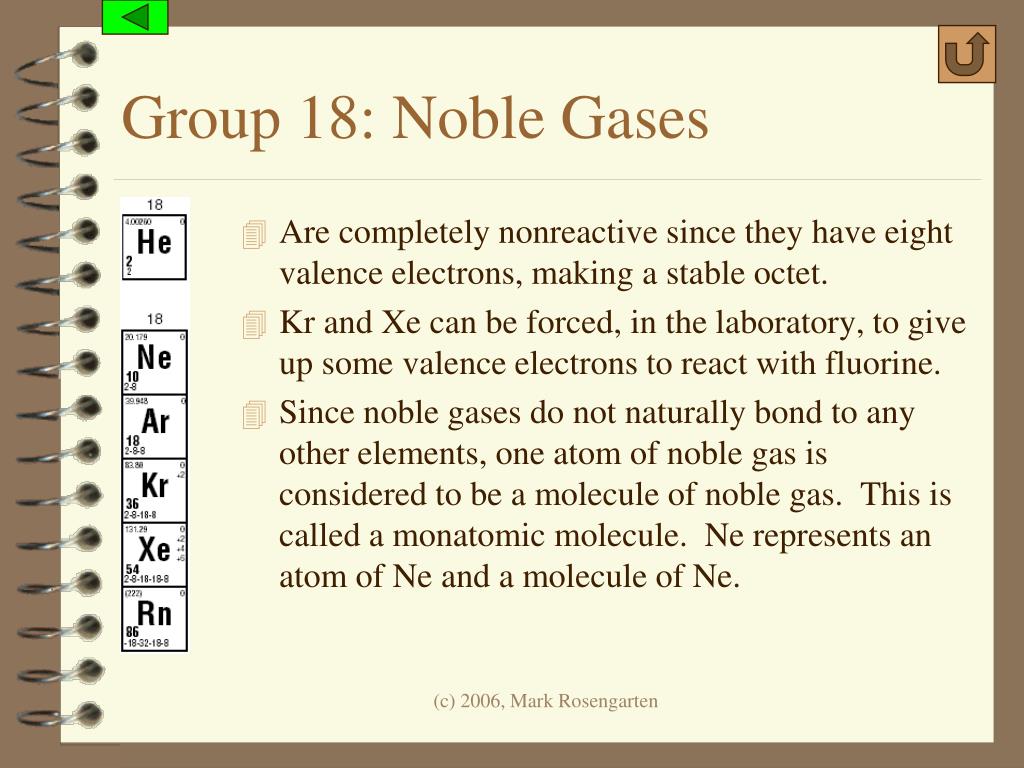

  48. Group 18: Noble Gases • Are completely nonreactive since they have eight valence electrons, making a stable octet. • Kr and Xe can be forced, in the laboratory, to give up some valence electrons to react with fluorine. • Since noble gases do not naturally bond to any other elements, one atom of noble gas is considered to be a molecule of noble gas. This is called a monatomic molecule. Ne represents an atom of Ne and a molecule of Ne. (c) 2006, Mark Rosengarten

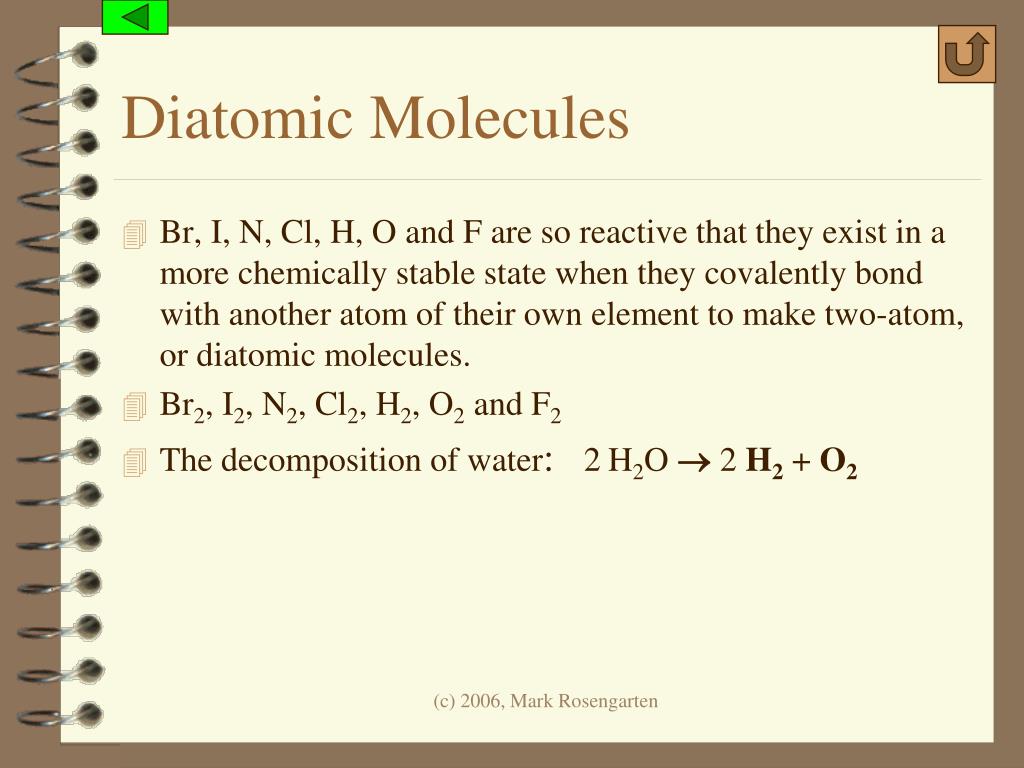

  49. Diatomic Molecules • Br, I, N, Cl, H, O and F are so reactive that they exist in a more chemically stable state when they covalently bond with another atom of their own element to make two-atom, or diatomic molecules. • Br2, I2, N2, Cl2, H2, O2 and F2 • The decomposition of water: 2H2O  2 H2 + O2 (c) 2006, Mark Rosengarten

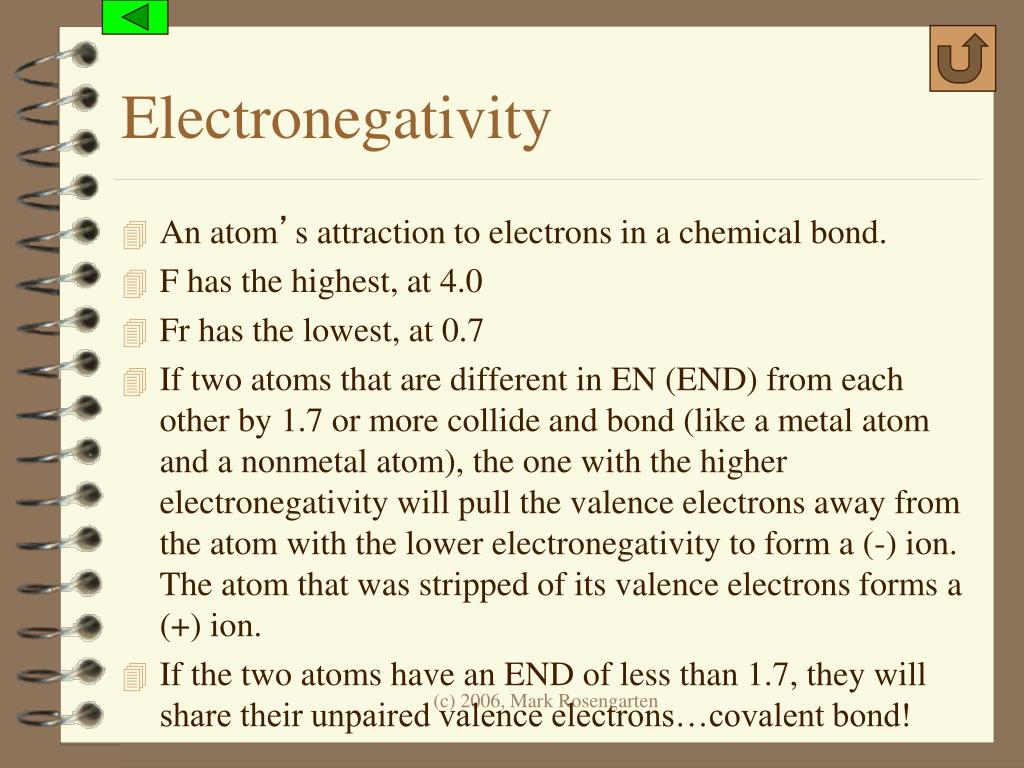

  50. Electronegativity • An atom’s attraction to electrons in a chemical bond. • F has the highest, at 4.0 • Fr has the lowest, at 0.7 • If two atoms that are different in EN (END) from each other by 1.7 or more collide and bond (like a metal atom and a nonmetal atom), the one with the higher electronegativity will pull the valence electrons away from the atom with the lower electronegativity to form a (-) ion. The atom that was stripped of its valence electrons forms a (+) ion. • If the two atoms have an END of less than 1.7, they will share their unpaired valence electrons…covalent bond! (c) 2006, Mark Rosengarten
