Osteology

Osteology. Osteology: The study of the anatomy, physiology and related diseases of bone is referred to as osteology. Bone. Bone: A specialized type of connective tissue that consists of living cells held in place by a rigid intercellular matrix of collagen fibers embedded with calcium salts.

laith-oneal
Download Presentation

Osteology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Osteology • Osteology: The study of the anatomy, physiology and related diseases of bone is referred to as osteology.

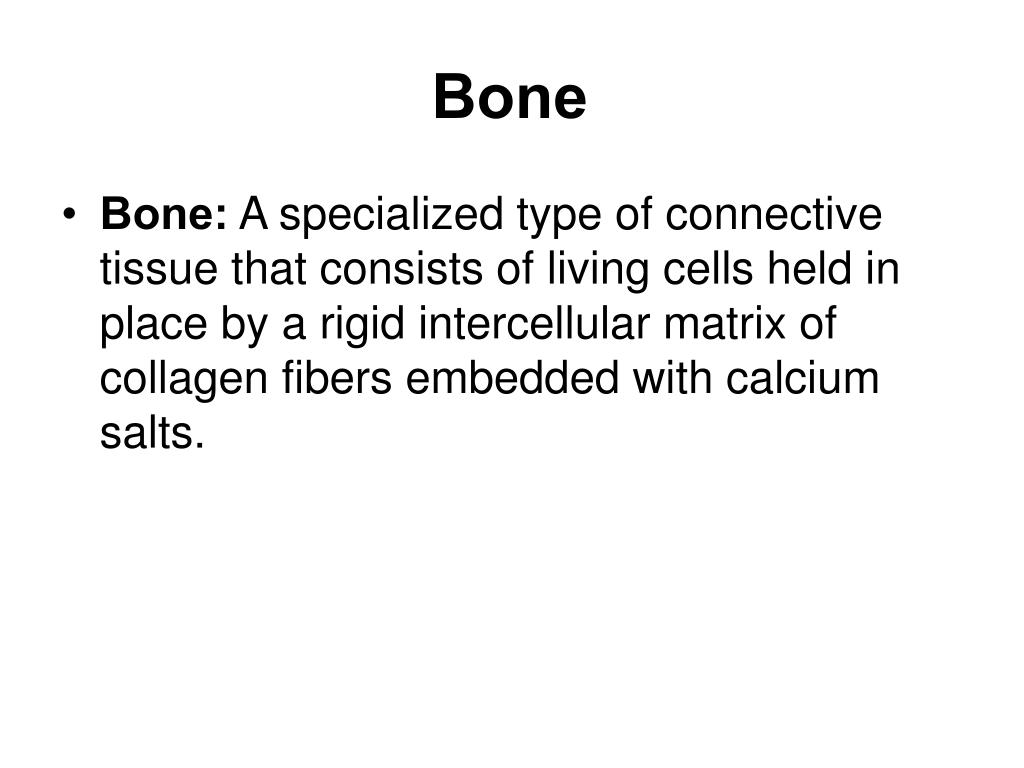

  2. Bone • Bone: A specialized type of connective tissue that consists of living cells held in place by a rigid intercellular matrix of collagen fibers embedded with calcium salts.

  3. Matrix of Bone • Inorganic mineral salts provide bone’s hardness • hydroxyapatite (calcium phosphate) & calcium carbonate • Organic collagen fibers provide bone’s flexibility • their tensile strength resists being stretched or torn • remove minerals with acid & rubbery structure results • Mineralization (calcification) is hardening of tissue when mineral crystals deposit around collagen fibers • Bone is not completely solid since it has small spaces for vessels and red bone marrow • spongy bone has many such spaces • compact bone has very few

  4. Exercise, Hormones, and Nutrition • Normal bone growth and maintenance depend on nutritional and hormonal factors • Vitamin C is required for collagen synthesis, and stimulation of osteoblast differentiation • Vitamin A stimulates osteoblast activity • Vitamins K and B12 help synthesize bone proteins • Growth hormone and thyroxine stimulate bone growth • Estrogens and androgens stimulate osteoblasts • Calcitonin and parathyroid hormone regulate calcium and phosphate levels

  5. Factors Affecting Bone Growth • Nutrition • adequate levels of minerals and vitamins • calcium and phosphorus for bone growth • vitamin C for collagen formation • vitamins K and B12 for protein synthesis • Sufficient levels of specific hormones • during childhood need insulin like growth factor • promotes cell division at epiphyseal plate • need hGH (growth), thyroid (T3 &T4) and insulin • sex steroids at puberty • growth spurt and closure of the epiphyseal growth plate • estrogens promote female changes -- wider pelvis

  6. Exercise, Hormones, and Nutrition

  7. Hormonal Abnormalities • Oversecretion of HGH during childhood produces giantism ( in adults=acromegally) • Undersecretion of HGH or thyroid hormone during childhood produces short stature (dwarfism) • Both men or women that lack estrogen receptors on cells grow taller than normal • estrogen responsible for closure of growth plate

  8. Exercise, Hormones, and Nutrition FIGURE 6–14 Examples of Abnormal Bone Development.

  9. Calcium Homeostasis & Bone Tissue • Skeleton is reservoir of Calcium & Phosphate • Calcium ions involved with many body systems • nerve & muscle cell function • blood clotting • enzyme function in many biochemical reactions • Small changes in blood levels of Ca+2 can be deadly (plasma level maintained 9-11mg/100mL) • cardiac arrest if too high • respiratory arrest if too low

  10. Calcium Homeostasis • Calcium Regulation • Calcium ions in body fluids • Must be closely regulated • Homeostasis is maintained • By calcitonin and parathyroid hormone • Which control storage, absorption, and excretion

  11. Calcium Homeostasis • Calcitonin and parathyroid hormone control and affect • Bones • Where calcium is stored • Digestive tract • Where calcium is absorbed • Kidneys • Where calcium is excreted

  12. Calcium Homeostasis • Parathyroid Hormone (PTH) • Produced by parathyroid glands in neck • Increases calcium ion levels by • Stimulating osteoclasts • Increasing intestinal absorption of calcium • Decreasing calcium excretion at kidneys • Calcitonin • Secreted by C cells (parafollicular cells) in thyroid • Decreases calcium ion levels by • Inhibiting osteoclast activity • Increasing calcium excretion at kidneys

  13. Hormonal Influences • Parathyroid hormone (PTH) is secreted if Ca+2 levels falls • PTH gene is turned on & more PTH is secreted from gland • osteoclast activity increased, kidney retains Ca+2 and produces calcitriol • Calcitonin hormone is secreted from parafollicular cells in thyroidif Ca+2 blood levels get too high • inhibits osteoclast activity • increases bone formation by osteoblasts

  14. Calcium Homeostasis Figure 6–15 A Chemical Analysis of Bone.

  15. Calcium Homeostasis Figure 6–16a Factors That Alter the Concentration of Calcium Ions in Body Fluids.

  16. Calcium Homeostasis Figure 6–16b Factors That Alter the Concentration of Calcium Ions in Body Fluids.

  17. Exercise & Bone Tissue • The pull on bone by skeletal muscle and gravity is mechanical stress . • Stress increases deposition of mineral salts & production of collagen (calcitonin prevents bone loss) • Lack of mechanical stress results in bone loss • reduced activity while in a cast • astronauts in weightlessness • bedridden person • Weight-bearing exercises build bone mass (walking or weight-lifting)

  18. Osteopenia • Bones become thinner and weaker with age • Osteopenia begins between ages 30 and 40 • Women lose 8% of bone mass per decade, men 3%

  19. Osteopenia • The epiphyses, vertebrae, and jaws are most affected: • Resulting in fragile limbs • Reduction in height • Tooth loss • Osteoporosis • Severe bone loss • Affects normal function • Over age 45, occurs in • 29% of women • 18% of men

  20. Osteopenia Figure 6–19 The Effects of Osteoporosis on Spongy Bone.

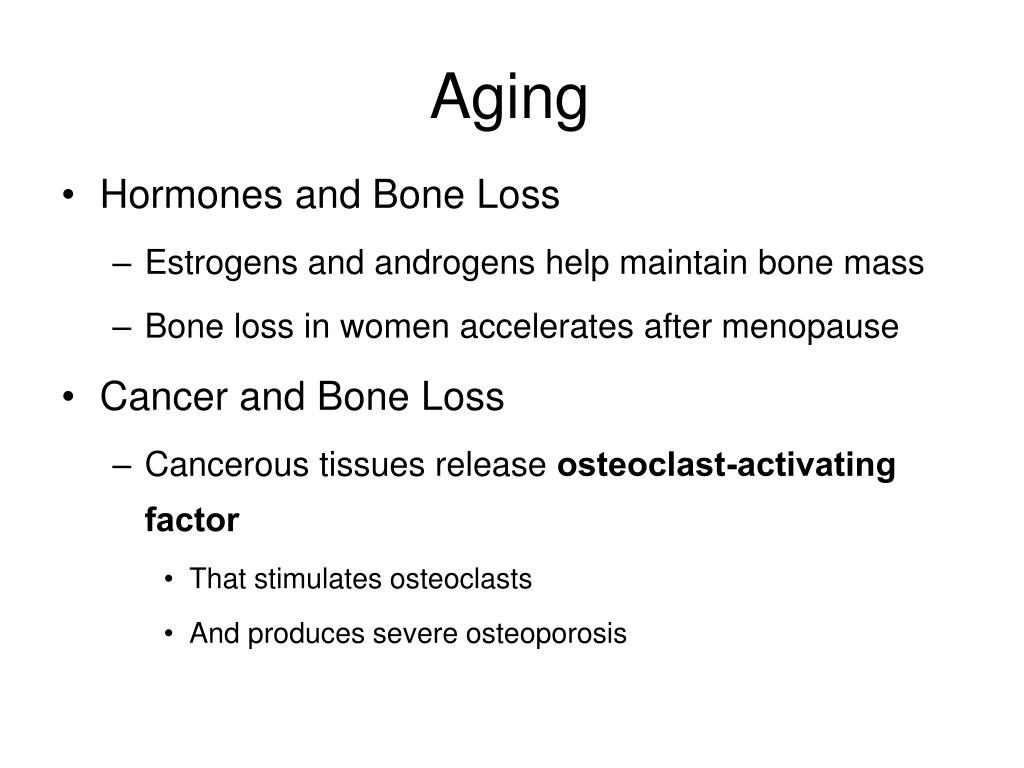

  21. Aging • Hormones and Bone Loss • Estrogens and androgens help maintain bone mass • Bone loss in women accelerates after menopause • Cancer and Bone Loss • Cancerous tissues release osteoclast-activating factor • That stimulates osteoclasts • And produces severe osteoporosis

  22. Osteoporosis • Decreased bone mass resulting in porous bones • Those at risk • white, thin menopausal, smoking, drinking female with family history • athletes who are not menstruating due to decreased body fat & decreased estrogen levels • eating disorders whose intake of calcium is too low • Prevention or decrease in severity • adequate diet, weight-bearing exercise • behavior when young may be most important factor

  23. Osteoporosis • Osteoporosis is a disorder characterized by a decrease in total bone material which is experienced primarily by females. It is theorized that osteoporosis is caused primarily by an estrogen deficiency. Estrogen is a parathyroid antagonist. When insufficient estrogen is produced by the female, the parathyroid hormone that is present can significantly de-mineralize the skeletal system. Osteoporosis begins at about the age of 18 years, where lifestyle factors (smoking, poor diet and sedentary lifestyle) play the most significant roles. At age 35 years, the amount of estrogen produced by most females begins to decrease and bone demineralization accelerates. After menopause, osteoporosis progresses rapidly because of the absence of estrogen. Osteoporosis is visible on an x-ray only after at least 30% of the bone mass has been lost. Patients, however, only experience symptoms after at least 50% of the total bone mass has been lost. It is necessary for individuals at risk to undergo early diagnostic imaging tests (single/dual photon absorptiometry) in order to detect osteoporosis in its earliest stages. The most effective therapy for osteoporosis is prevention. Individuals should attempt to maintain a healthy skeletal system in their youth. Causes of osteoporosis include: genetic factors, estrogen deficiencies, poor diet (high phosphate/low calcium), smoking, and environmental factors.

  24. Lateral View of Osteoporotic Thoracic Spine

  25. Normal Bone VS Osteoporotic Bone (Cod Fish Vertebra)

  26. Hyperkyphosis

  27. Disorders of Bone Ossification • Rickets • calcium salts are not deposited properly • bones of growing children are soft • bowed legs, skull, rib cage, and pelvic deformities result • Osteomalacia • new adult bone produced during remodeling fails to ossify • hip fractures are common

  28. Functions of Bone • 1) Support • 2) Protection • 3) Locomotion • 4) Mineral homeostasis • 5) Hematopoiesis • 6) Triglyceride storage

  29. Anatomy of a Long Bone • Diaphysis: The long cylindrical portion (shaft/bone) of a long bone. • Epiphysis: The proximal and distal ends of a long bone. • Metaphysis: In a mature/adult bone, the metaphysis represents the region of the bone where the diaphysis joins to the epiphysis. In a growing bone, the metaphysis contains the epiphyseal (growth) plate. The epiphyseal plate is a layer of hyaline cartilage existing within the metaphysis of a long bone that allows the diaphysis of the bone to grow in length, but not width. • Articular Cartilage: Articular cartilage is a thin layer of hyaline cartilage that covers the proximal and distal epiphyses where the bone forms articulations/joints. Articular cartilage reduces friction in moveable joints, and assists in shock absorption

  30. Typical Long Bone

  31. Articular Cartilage • Articular Cartilage: Articular cartilage is a thin layer of hyaline cartilage that covers the proximal and distal epiphyses where the bone forms articulations/joints. Articular cartilage reduces friction in moveable joints, and assists in shock absorption

  32. Periosteum • Periosteum: The periosteum is a tough sheath of dense irregularly arranged connective tissue that covers the surface of bone except where articular cartilage exists. The periosteum. The periosteum contains cells which are involved in bone formation and allows the bone to grow in diameter/thickness. The periosteum also helps to nourish the bone, assist in fracture repair, protects the bone and acts as an attachment site for tendons and ligaments.

  33. Periosteum and Endosteum

  34. Medullary Cavity • Medullary Cavity: The space within the diaphysis of a long bone that contains the red (infant) or yellow (adult) bone marrow.

  35. Endosteum • Endosteum: The membrane that contains bone forming cells that lines the internal surface of the medullary cavity and external surface of the boney trabeculae.

  36. Spongy Bone and the Endosteum

  37. Histology of Bone • Bone is a typical connective tissue. It contains a small number of cells existing in a large amount of intercellar matrix. The matrix of bone is approximately 25% water, 25% protein fibers, and 50% crystallized mineral salts. There are four types of cells that can be found in bone: • a) osteogenic cells • b) osteoblasts • c) osteocytes • d) osteoclasts.

  38. Osteogenic Cells • Osteogenic Cells: Osteogenic cells are undifferentiated stem cells that are found in the inner surface of the periosteum, the endosteum and in the canals that transmit blood vessels within the bone. These cells are the only bone cells that are capable of reproduction and ultimately differentiate into osteoblasts.

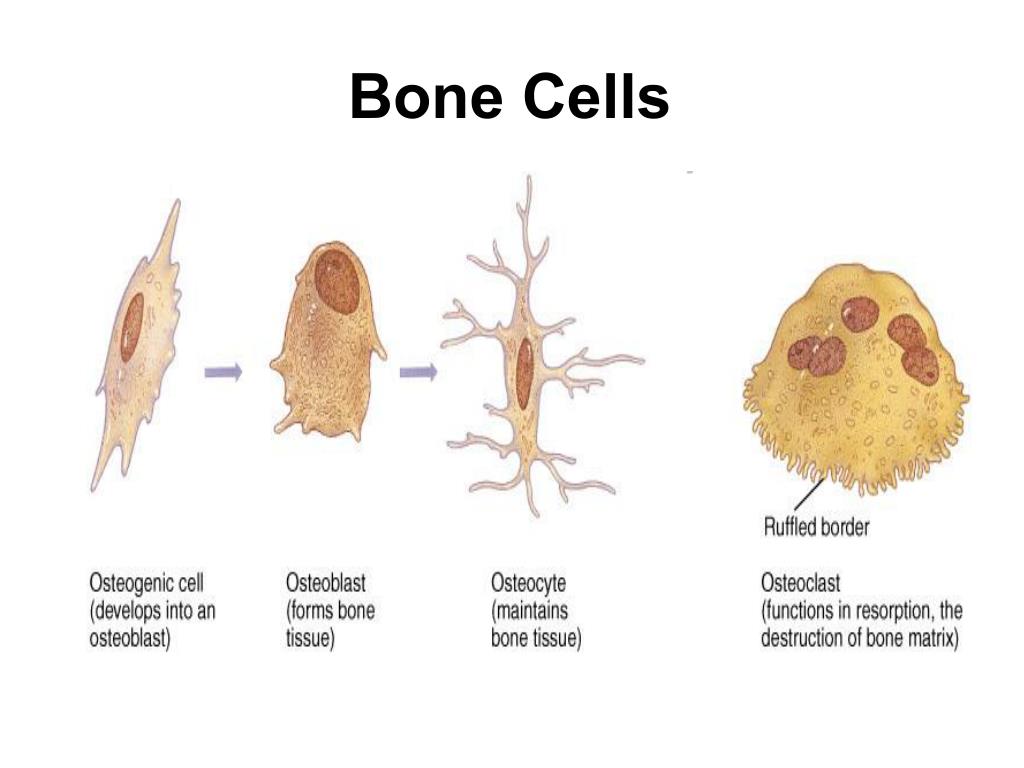

  39. Bone Cells

  40. Osteoblasts • Osteoblasts: Osteoblasts synthesize and secrete collagen fibers as well as other organic compounds that are needed to build bone. They are also involved in initiating the calcification of these organic components of bone.

  41. Osteocytes • Osteocytes: Osteocytes represent the principle type of bone cell in bone tissue. Osteocytes are mature cells that arise from osteoblasts that have been trapped in the mineral intercellular matrix of bone. Osteocytes essentially maintain bone tissue.

  42. Osteoclasts • Osteoclasts: Osteoclasts are large cells which result from the fusion of as many as 50 monocytes. Osteoclasts exist primarily within the endosteum of bone. These cells contain a ruffled border that faces the bone, from which powerfullysosomalenzymes and acids are released that break bone down.

  43. Types of Bone • Bone essentially occurs as either: • a) compact bone or • b) spongy bone.

  44. Compact VS Spongy Bone

  45. Haversian System • Compact bone is dense and smooth in appearance. It forms the external layer of all of the bones of the body and makes up the principle portion of the diaphysis of the long bones. Compact bone contains few spaces between its mineralized components and is arranged in units calledHaversiansystems/osteons. Compact bone provides bone with protection, support and the ability to resist weight bearing stresses.

  46. Three Dimensional Structure of the Haversian System/Osteon

  47. Micrograph of the Osteon

  48. Histology of Bone

  49. The Haversian System • The Haversian system is the basic unit of compact bone. Blood vessels, lymphatic vessels and nerves penetrate through the compact layer of bone through small openings known as Volkmann’s/perforating canals. These blood vessels will connect with the blood vessels of the periosteum, medullary cavity, and the central canal of the Haversian system. The central canals of the Haversian system and the blood vessels which are contained within them, run in a longitudinal direction through the compact bone. Surrounding these canals/blood vessels, are concentric rings composed of the mineralized intercellular matrix of bone. Contained within these rings, are small spaces known aslacunae which contain the osteocytes. Extending from each osteocyte are cytoplasmic projections referred to as canaliculae. The canaliculae of the osteocytes from each successive ring contact each other and allow the osteocytes to pass/exchange material between themselves and the blood vessels within the Haversian canal. The exchange of materials via the canaliculae of the osteocytes allows the passage of substances such as nutrients, hormones, dissolved gases, and wastes through the calcified intercellular matrix of bone.
