Slide-Dryer-LSLD-A10

Slide Dryer LSLD-A10 is a compact dryer unit for drying the paraffin tissue section mounting purpose. Temperature of dryer is microprocessor controlled. Equipped with thermal heaters for even heat transfer. LED display screen is used for adjusting and viewing the temperature of the unit. It is ideally used in cytology, histology, pathology and biology for paraffin tissue section mounting.

labtrondigital
Download Presentation

Slide-Dryer-LSLD-A10

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

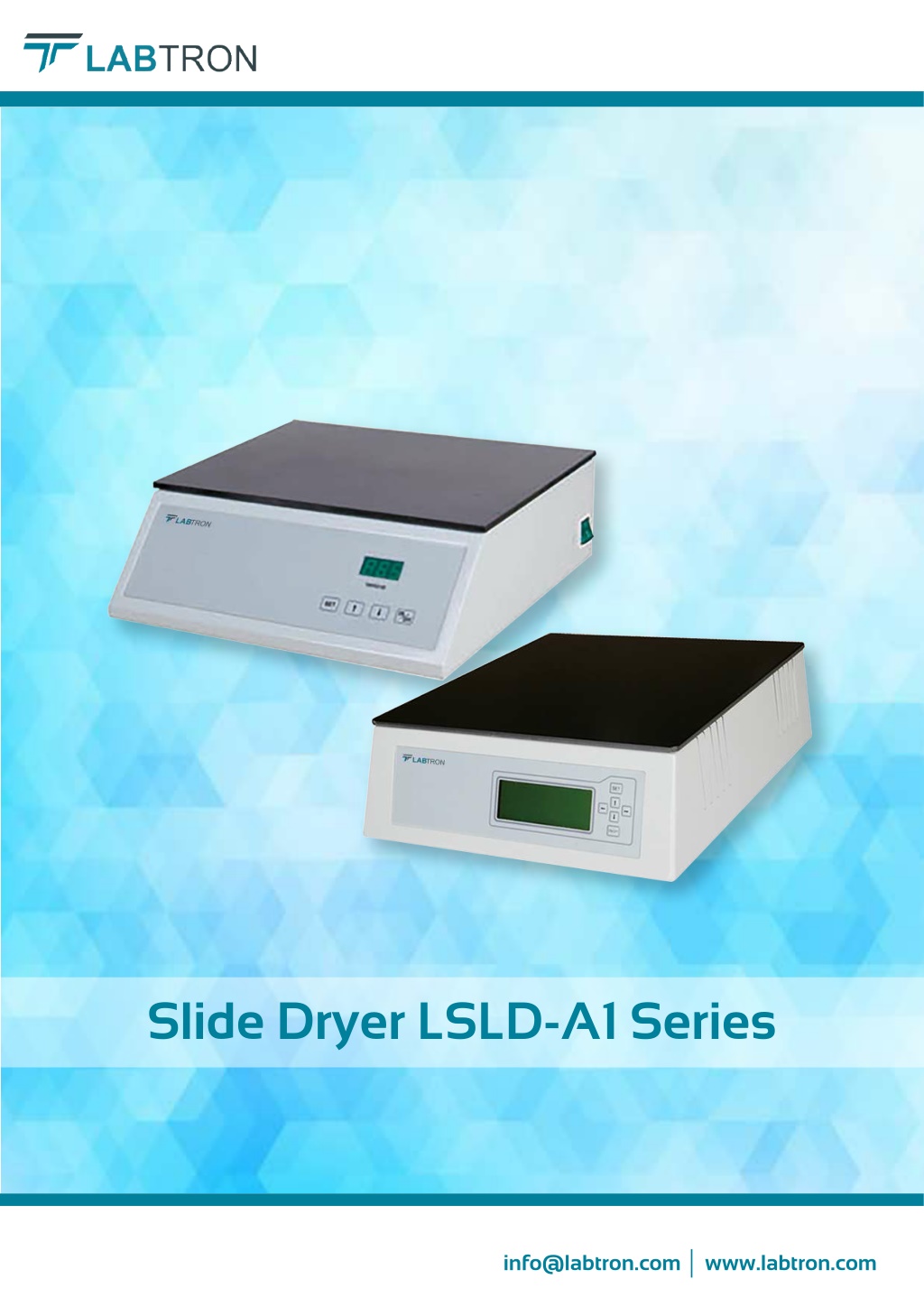

  1. Slide Dryer LSLD-A1 Series info@labtron.com www.labtron.com

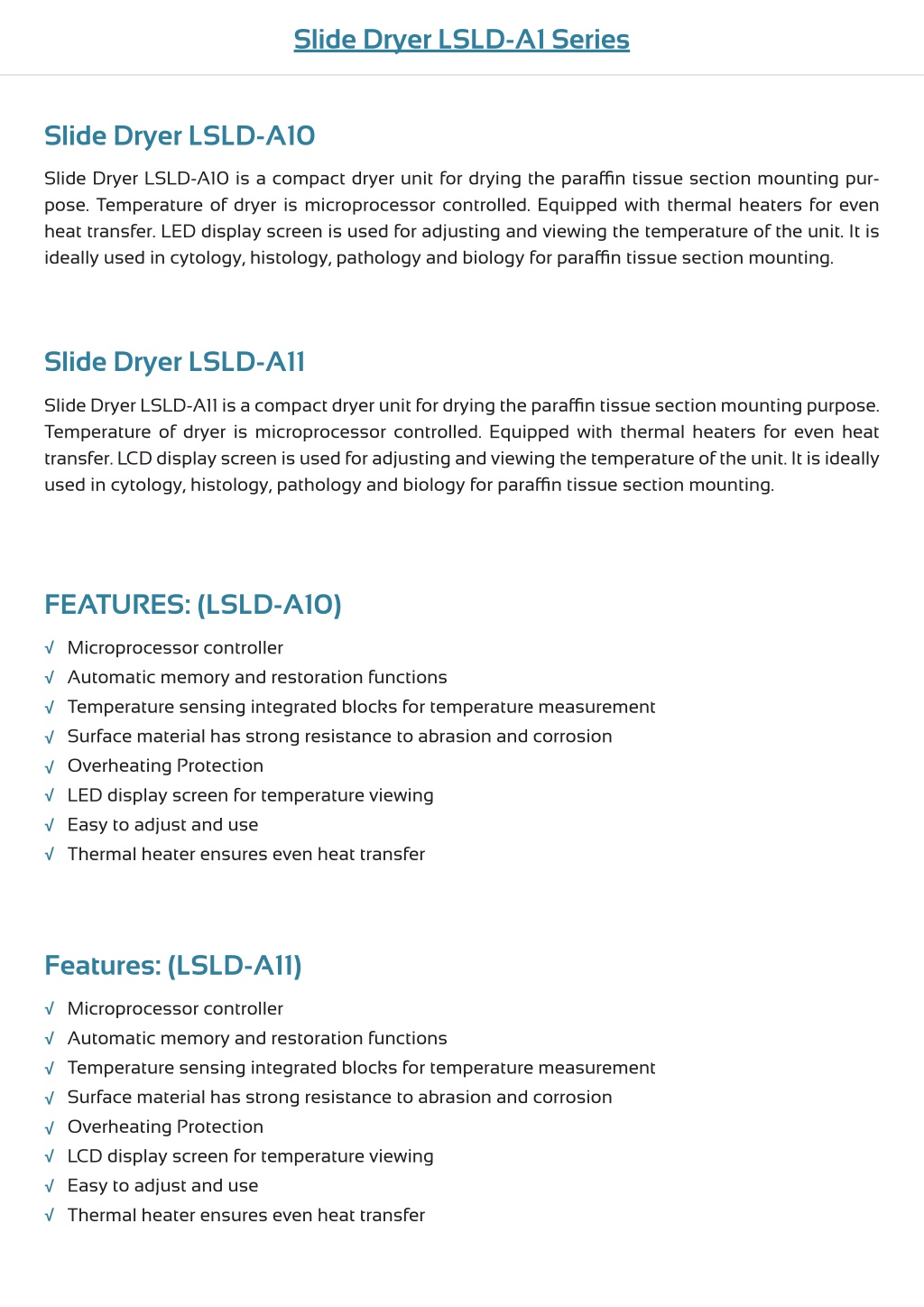

  2. Slide Dryer LSLD-A1 Series Slide Dryer LSLD-A10 Slide Dryer LSLD-A10 is a compact dryer unit for drying the paraffin tissue section mounting pur- pose. Temperature of dryer is microprocessor controlled. Equipped with thermal heaters for even heat transfer. LED display screen is used for adjusting and viewing the temperature of the unit. It is ideally used in cytology, histology, pathology and biology for paraffin tissue section mounting. Slide Dryer LSLD-A11 Slide Dryer LSLD-A11 is a compact dryer unit for drying the paraffin tissue section mounting purpose. Temperature of dryer is microprocessor controlled. Equipped with thermal heaters for even heat transfer. LCD display screen is used for adjusting and viewing the temperature of the unit. It is ideally used in cytology, histology, pathology and biology for paraffin tissue section mounting. FEATURES: (LSLD-A10) Microprocessor controller Automatic memory and restoration functions Temperature sensing integrated blocks for temperature measurement Surface material has strong resistance to abrasion and corrosion Overheating Protection LED display screen for temperature viewing Easy to adjust and use Thermal heater ensures even heat transfer Features: (LSLD-A11) Microprocessor controller Automatic memory and restoration functions Temperature sensing integrated blocks for temperature measurement Surface material has strong resistance to abrasion and corrosion Overheating Protection LCD display screen for temperature viewing Easy to adjust and use Thermal heater ensures even heat transfer

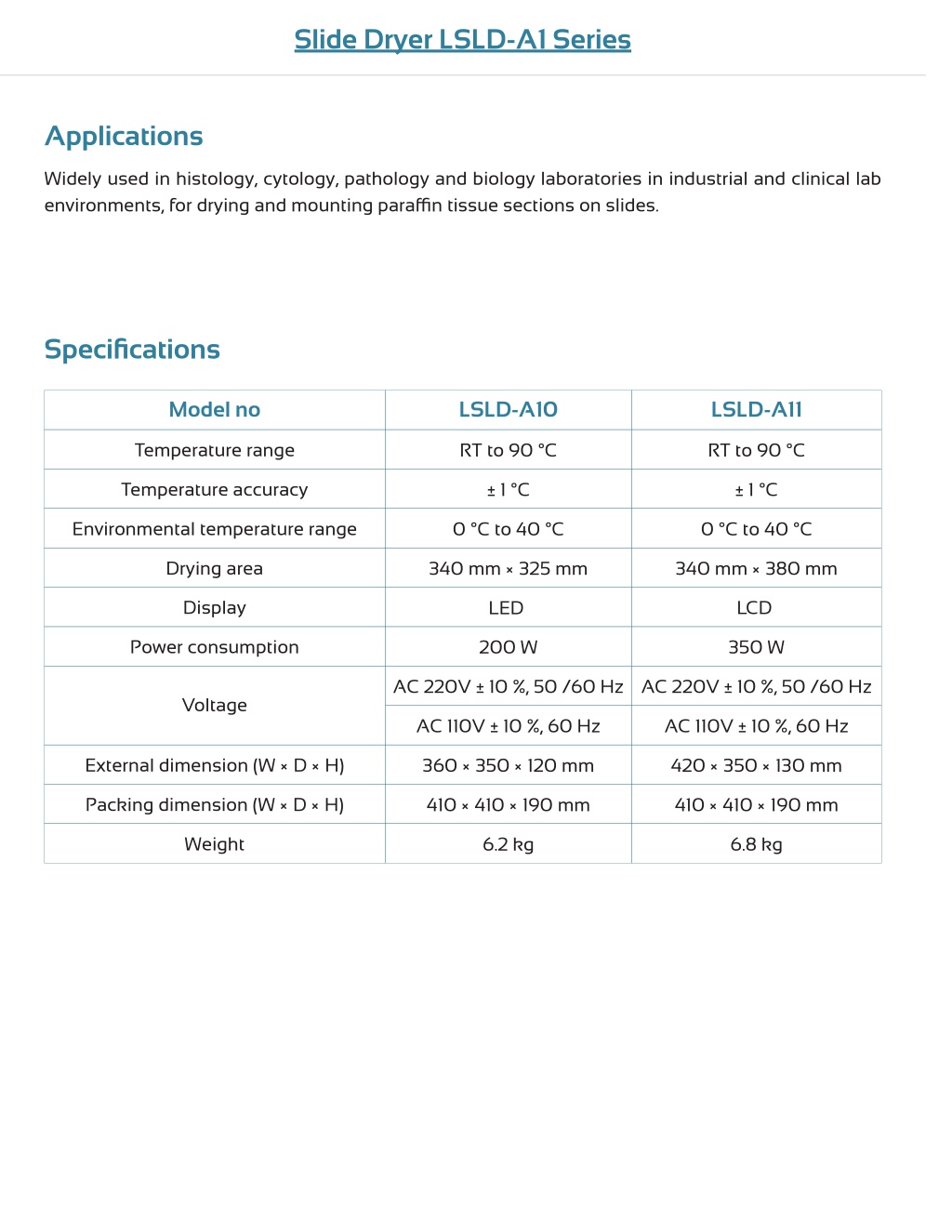

  3. Slide Dryer LSLD-A1 Series Applications Widely used in histology, cytology, pathology and biology laboratories in industrial and clinical lab environments, for drying and mounting paraffin tissue sections on slides. Specifications Model no LSLD-A10 LSLD-A11 Temperature range RT to 90 °C RT to 90 °C Temperature accuracy ± 1 °C ± 1 °C Environmental temperature range 0 °C to 40 °C 0 °C to 40 °C Drying area 340 mm × 380 mm 340 mm × 325 mm Display LCD LED Power consumption 350 W 200 W AC 220V ± 10 %, 50 /60 Hz AC 220V ± 10 %, 50 /60 Hz Voltage AC 110V ± 10 %, 60 Hz AC 110V ± 10 %, 60 Hz External dimension (W × D × H) 420 × 350 × 130 mm 360 × 350 × 120 mm Packing dimension (W × D × H) 410 × 410 × 190 mm 410 × 410 × 190 mm Weight 6.8 kg 6.2 kg
