LABNICS-Constant-Temperature-Incubator-NCTI-100

Constant Temperature Incubator NCTI-100 is a laboratory incubator with forced air convection that maintains controlled heat distribution throughout the chamber. Equipped with PID intelligent controller, integrated LCD, programmable alarm system and customized temperature setting makes it easier for the user to achieve the required conditions. The inner glass door makes it easy to view the contents without disturbing the atmosphere of the incubator.

labnics14
Download Presentation

LABNICS-Constant-Temperature-Incubator-NCTI-100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CONSTANT TEMPERATURE INCUBATOR NCTI-100

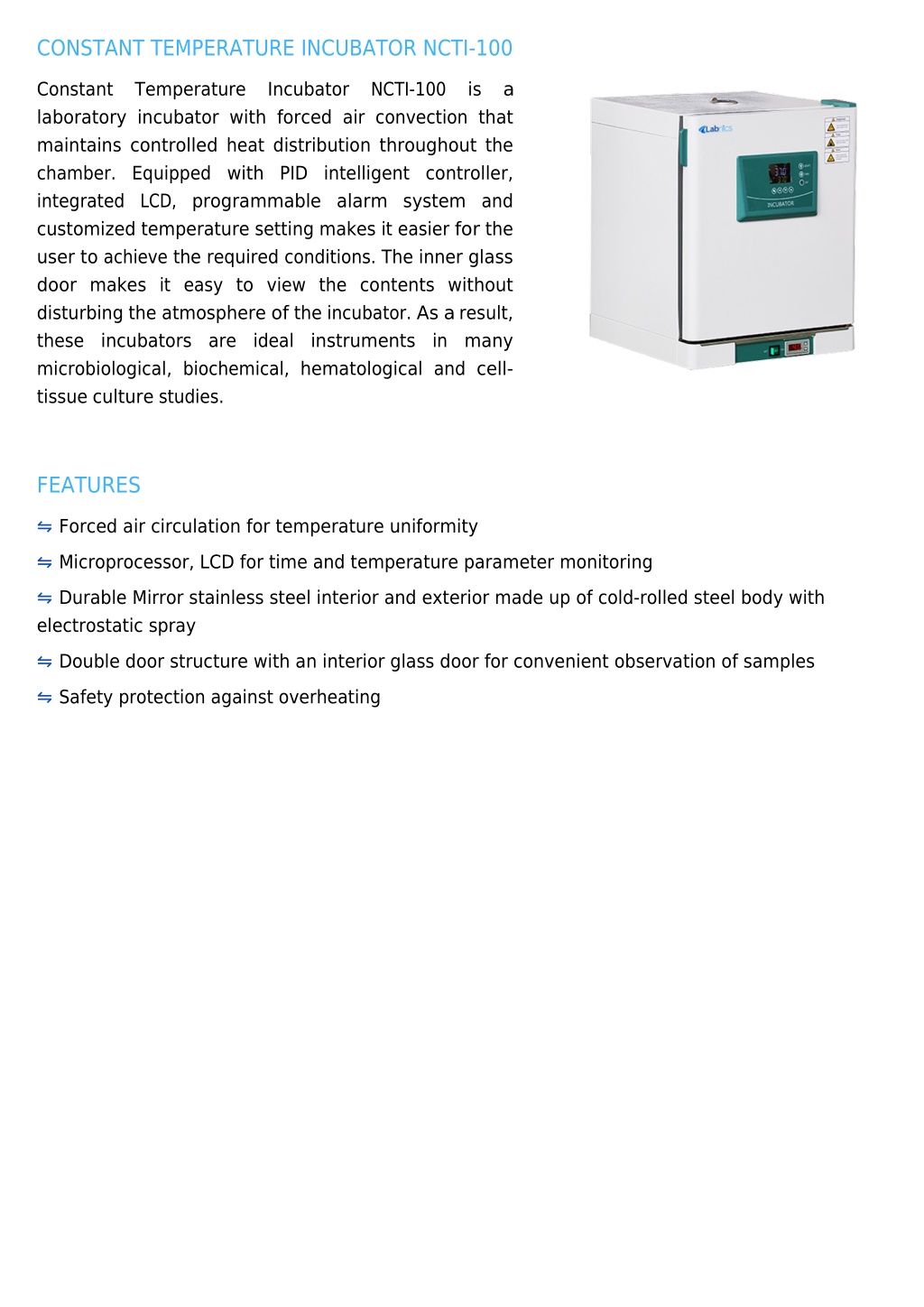

  2. CONSTANT TEMPERATURE INCUBATOR NCTI-100 Constant laboratory incubator with forced air convection that maintains controlled heat distribution throughout the chamber. Equipped with PID intelligent controller, integrated LCD, programmable alarm system and customized temperature setting makes it easier for the user to achieve the required conditions. The inner glass door makes it easy to view the contents without disturbing the atmosphere of the incubator. As a result, these incubators are ideal microbiological, biochemical, hematological and cell- tissue culture studies. Temperature Incubator NCTI-100 is a instruments in many FEATURES ⇋ Forced air circulation for temperature uniformity ⇋ Microprocessor, LCD for time and temperature parameter monitoring Durable Mirror stainless steel interior and exterior made up of cold-rolled steel body with electrostatic spray ⇋ ⇋ Double door structure with an interior glass door for convenient observation of samples ⇋ Safety protection against overheating

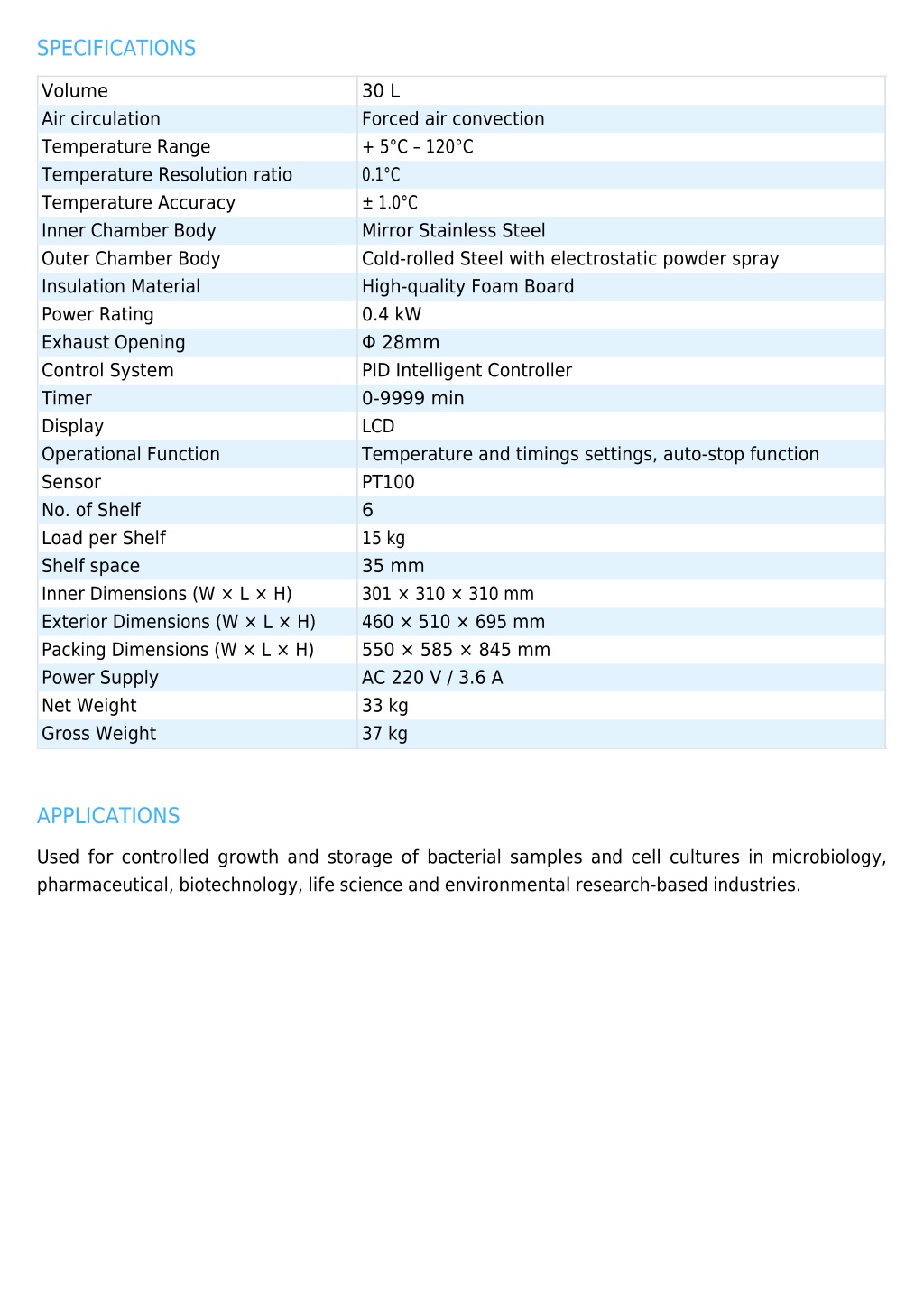

  3. SPECIFICATIONS Volume Air circulation Temperature Range Temperature Resolution ratio Temperature Accuracy Inner Chamber Body Outer Chamber Body Insulation Material Power Rating Exhaust Opening Control System Timer Display Operational Function Sensor No. of Shelf Load per Shelf Shelf space Inner Dimensions (W × L × H) Exterior Dimensions (W × L × H) Packing Dimensions (W × L × H) Power Supply Net Weight Gross Weight 30 L Forced air convection + 5°C – 120°C 0.1°C ± 1.0°C Mirror Stainless Steel Cold-rolled Steel with electrostatic powder spray High-quality Foam Board 0.4 kW Φ 28mm PID Intelligent Controller 0-9999 min LCD Temperature and timings settings, auto-stop function PT100 6 15 kg 35 mm 301 × 310 × 310 mm 460 × 510 × 695 mm 550 × 585 × 845 mm AC 220 V / 3.6 A 33 kg 37 kg APPLICATIONS Used for controlled growth and storage of bacterial samples and cell cultures in microbiology, pharmaceutical, biotechnology, life science and environmental research-based industries.

  4. Labnics product catalog Generated on: 09/01/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
