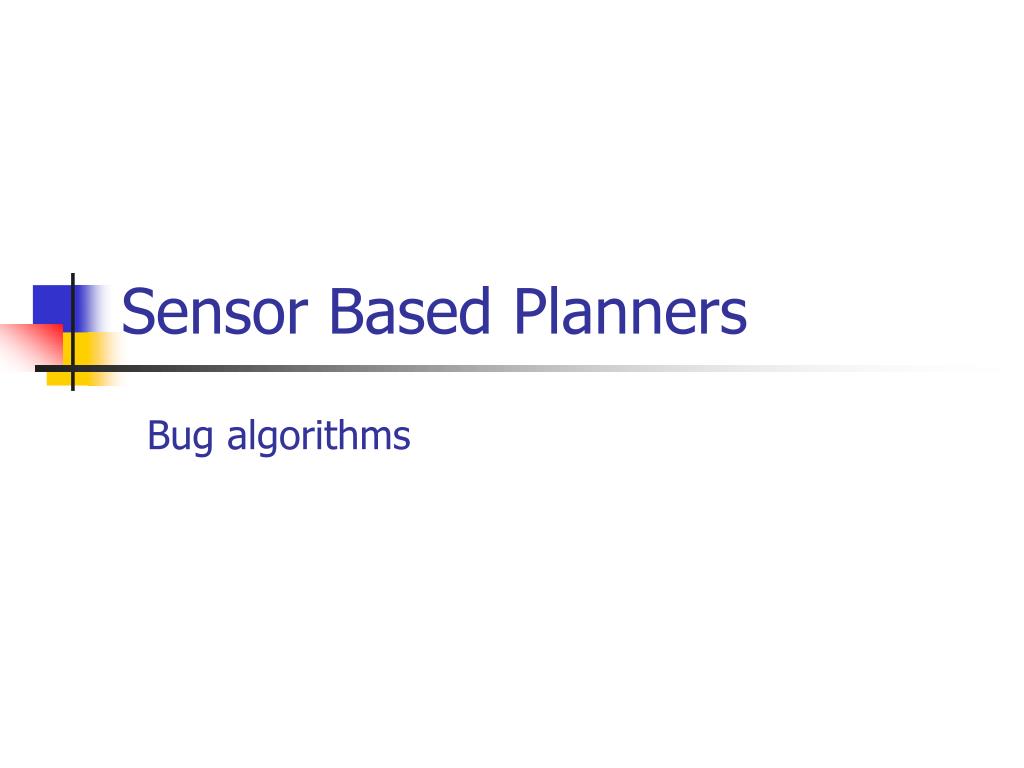

  1. Sensor Based Planners Bug algorithms

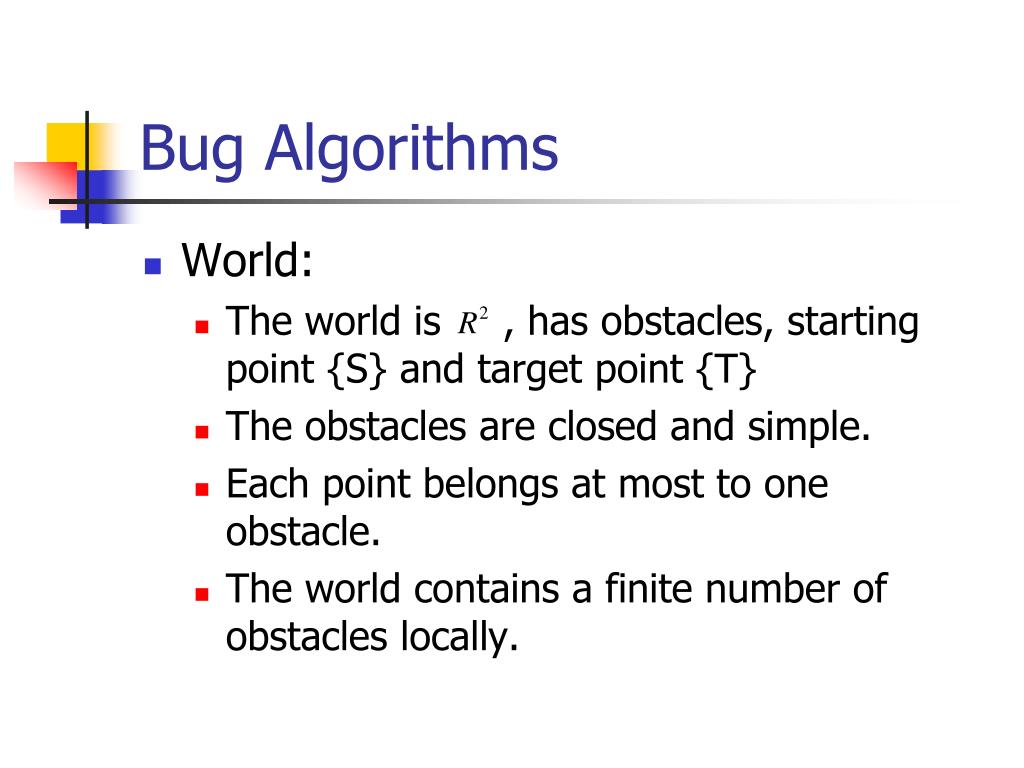

  2. Bug Algorithms • World: • The world is , has obstacles, starting point {S} and target point {T} • The obstacles are closed and simple. • Each point belongs at most to one obstacle. • The world contains a finite number of obstacles locally.

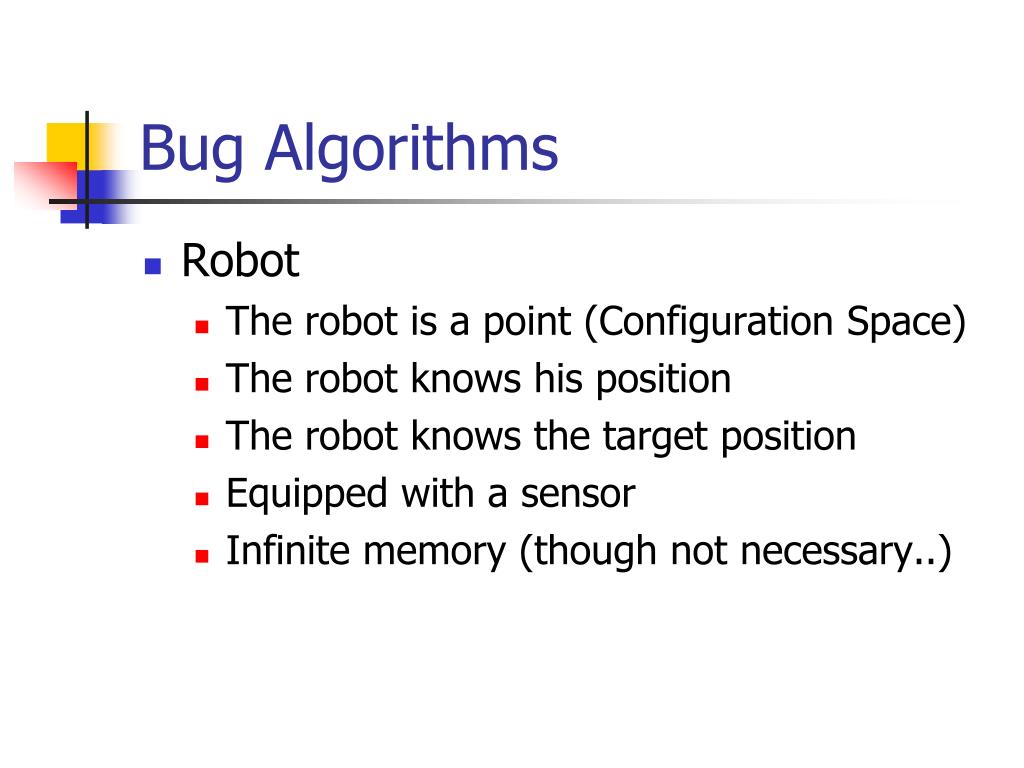

  3. Bug Algorithms • Robot • The robot is a point (Configuration Space) • The robot knows his position • The robot knows the target position • Equipped with a sensor • Infinite memory (though not necessary..)

  4. Bug Behaviors • Bug behaviors are simple: • Move in a straight line to the target • Follow a wall (right or left)

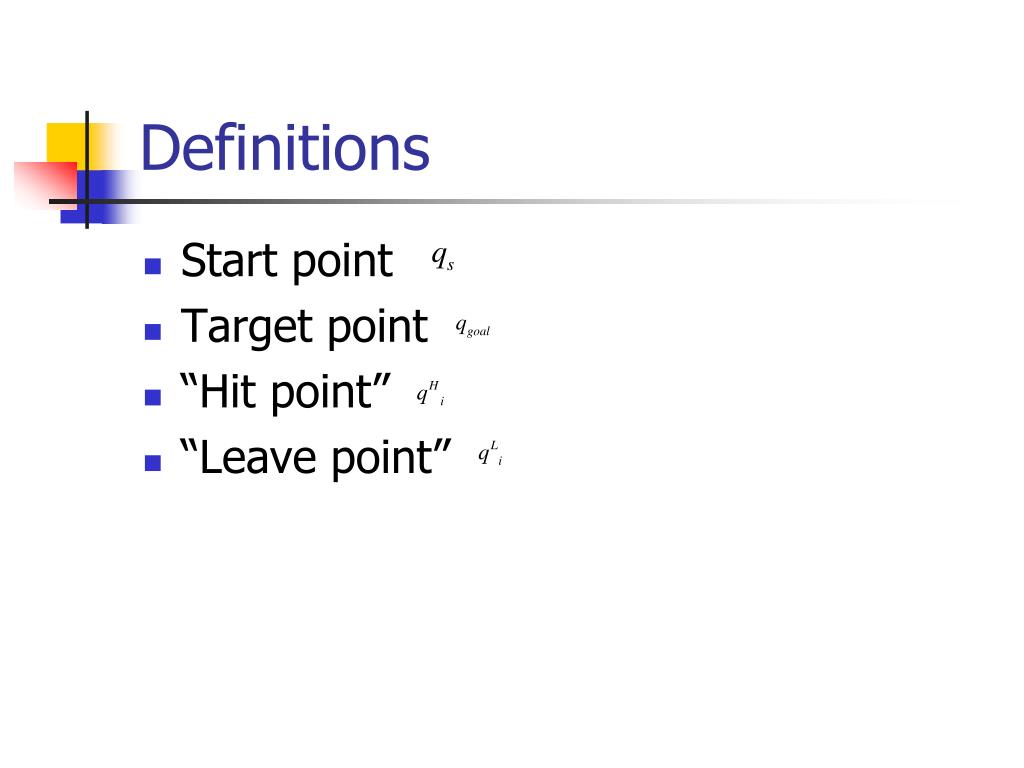

  5. Definitions • Start point • Target point • “Hit point” • “Leave point”

  6. Bug 0 (No memory) • Head toward goal • Follow obstacle until you can head toward goal again (left or right but not both) • continue

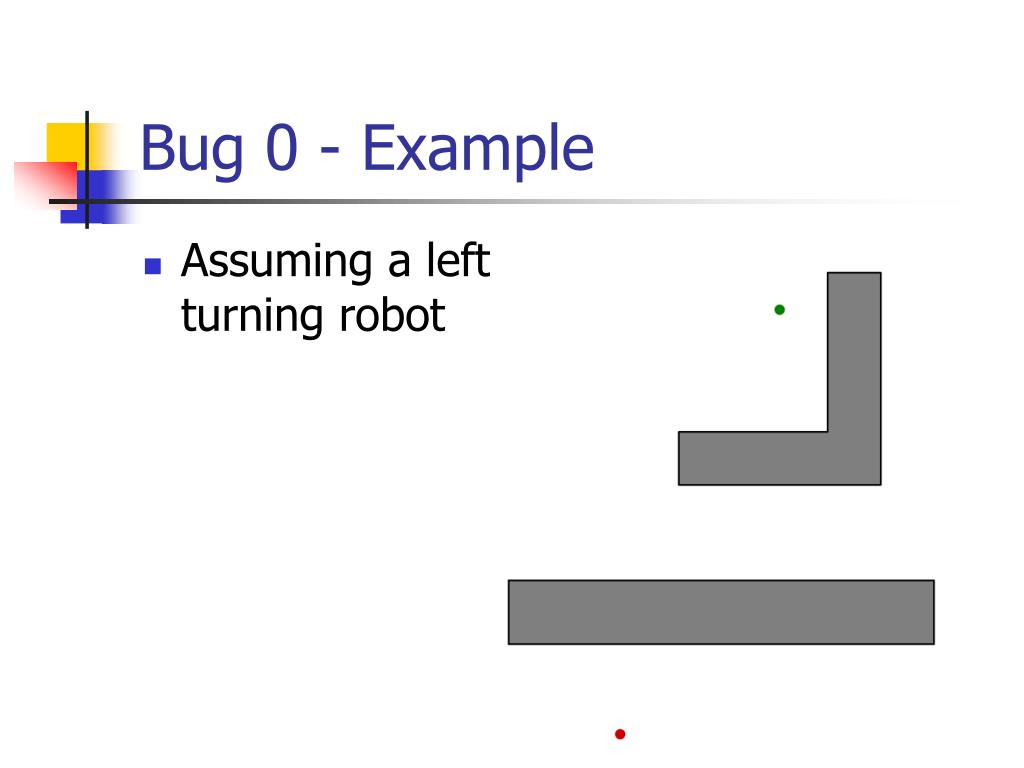

  7. Bug 0 - Example • Assuming a left tturning robot

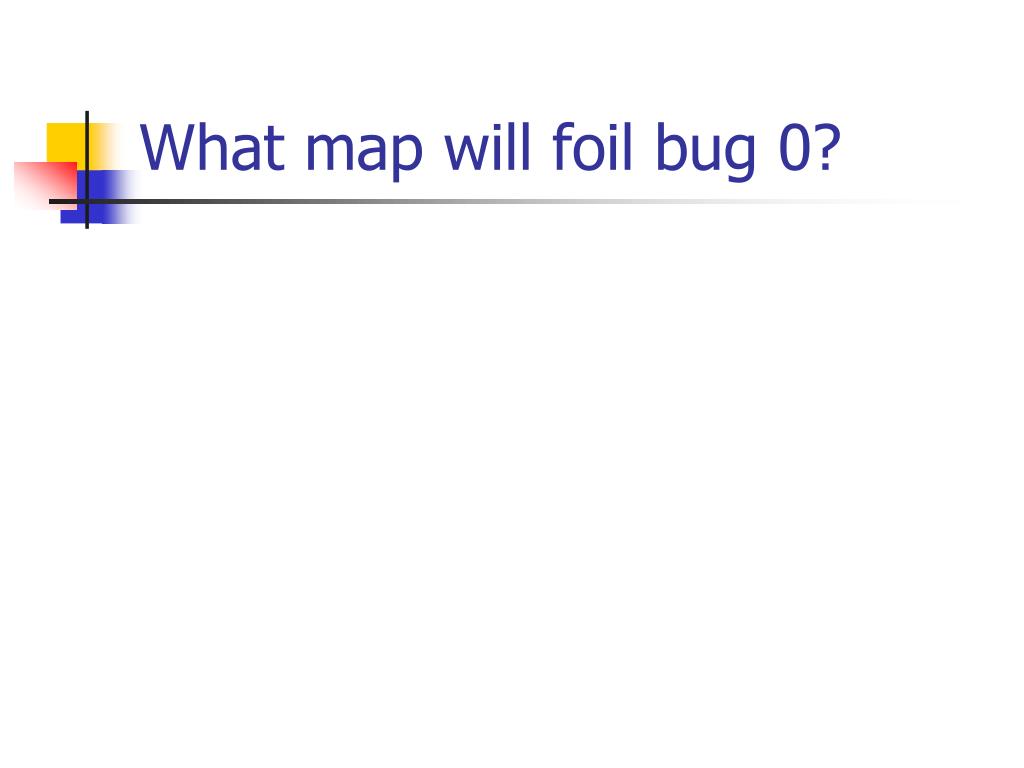

  8. What map will foil bug 0?

  9. What map will foil bug 0?

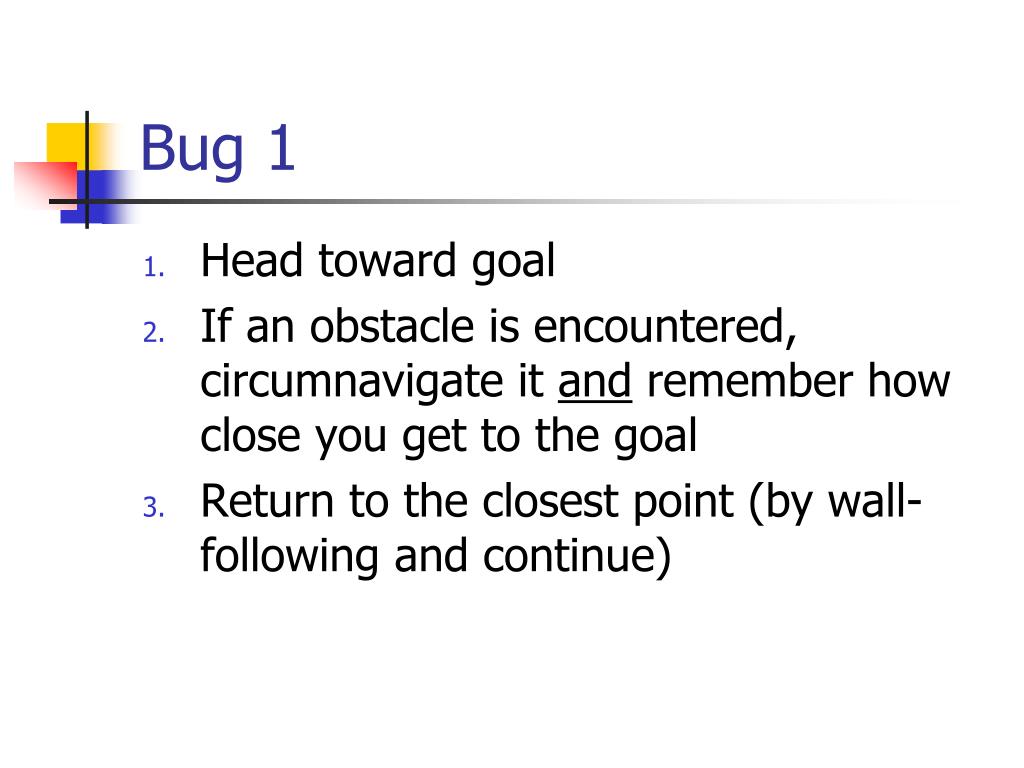

  10. Bug 1 • Head toward goal • If an obstacle is encountered, circumnavigate it and remember how close you get to the goal • Return to the closest point (by wall-following and continue)

  11. Bug 1 - Example

  12. Bug 2 • Call the line from the starting point to the goal the m-line • Head toward goal on the m-line • If an obstacle in the way, follow it until you encounter the m-line again. • Leave the obstacle and continue toward goal.

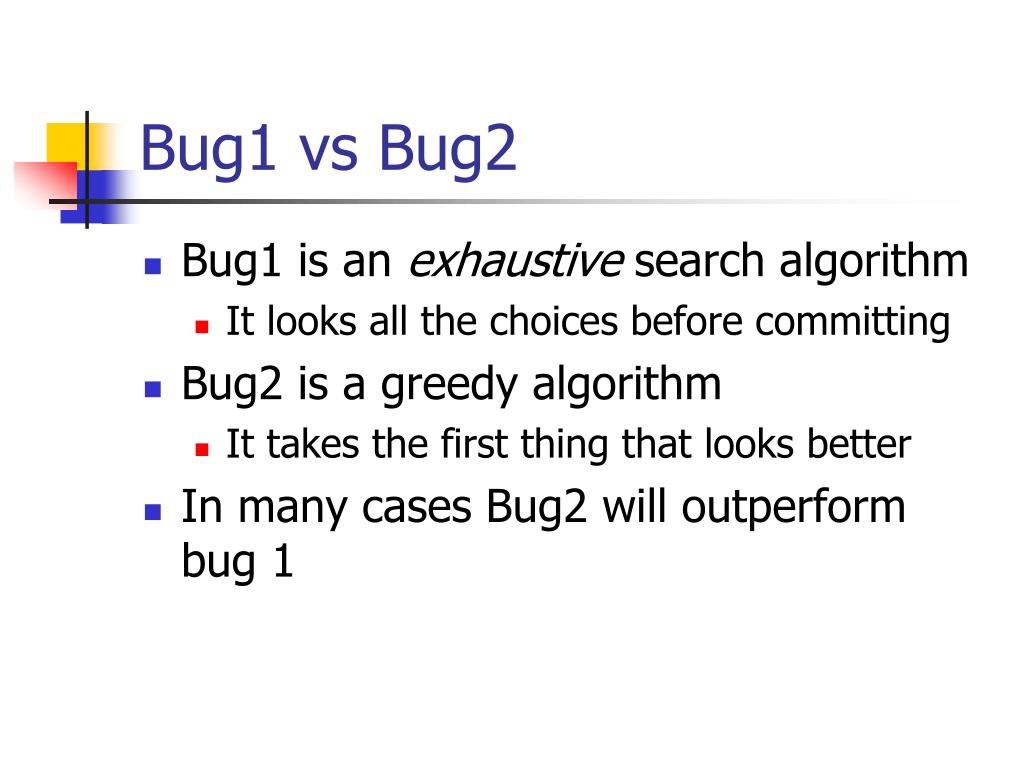

  13. Bug1 vs Bug2 • Bug1 is an exhaustivesearch algorithm • It looks all the choices before committing • Bug2 is a greedy algorithm • It takes the first thing that looks better • In many cases Bug2 will outperform bug 1

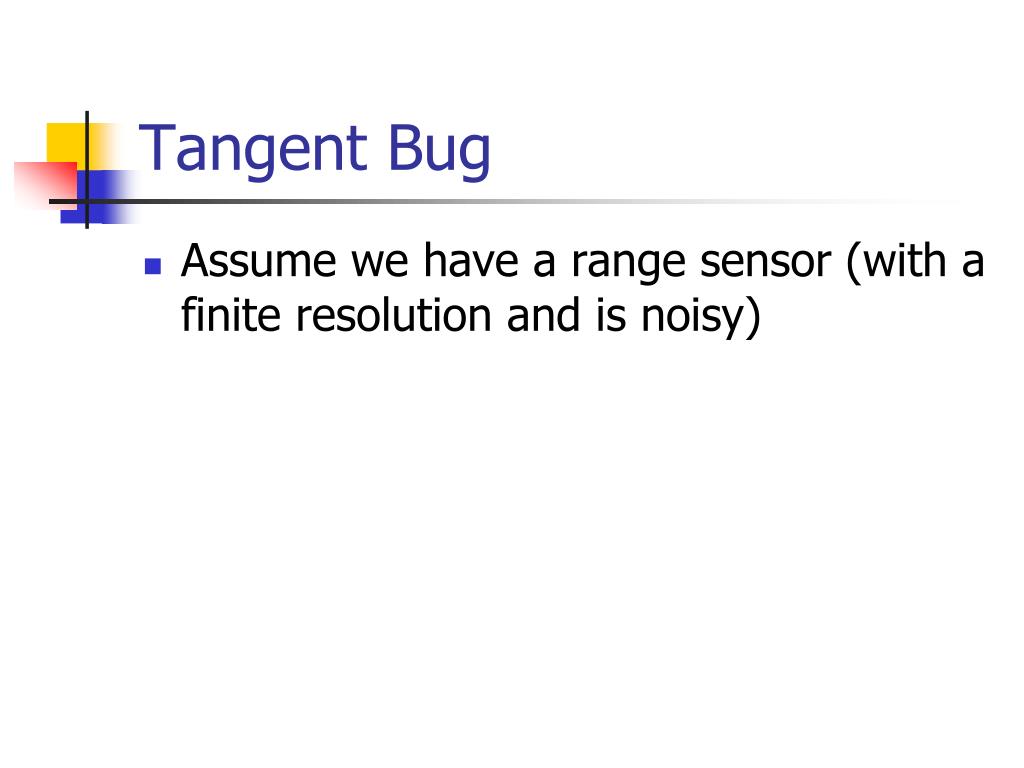

  14. Tangent Bug • Assume we have a range sensor (with a finite resolution and is noisy)

  15. Tangent Bug

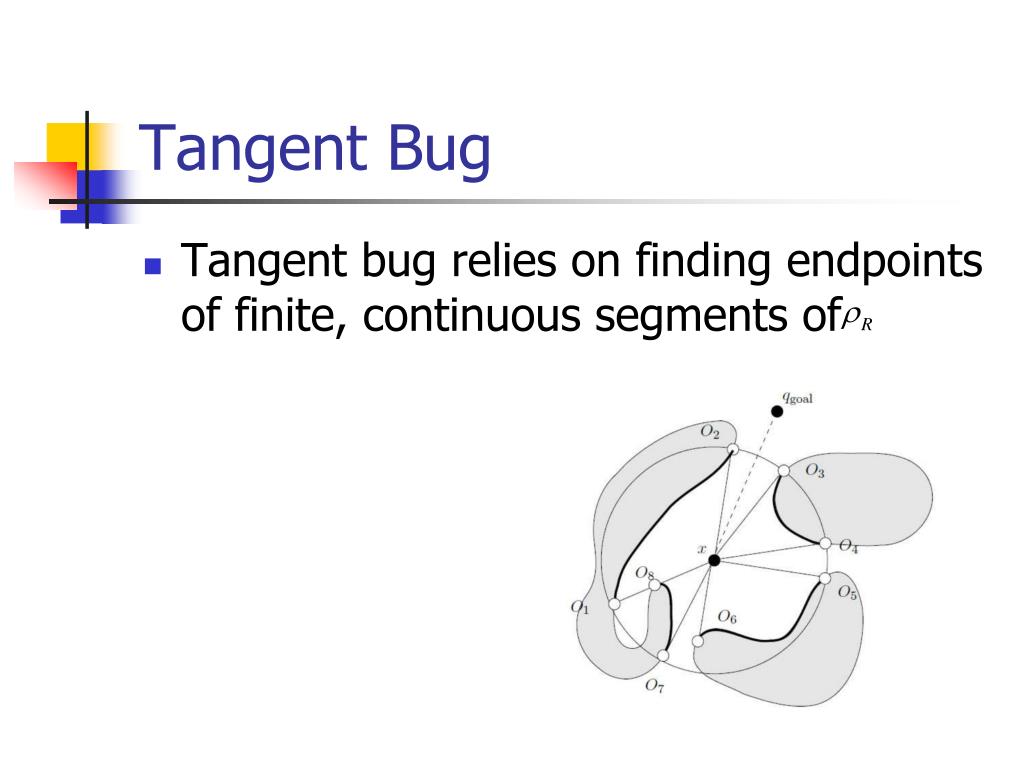

  16. Tangent Bug • Tangent bug relies on finding endpoints of finite, continuous segments of

  17. Tangent Bug • Tangent bug relies on finding endpoints of finite, continuous segments of

  18. Tangent Bug – Motion to Goal • Move to in a straight line toward goal • If you “see” something in front of you • For any such that choosethe point that minimizes

  19. Motion to Goal Example

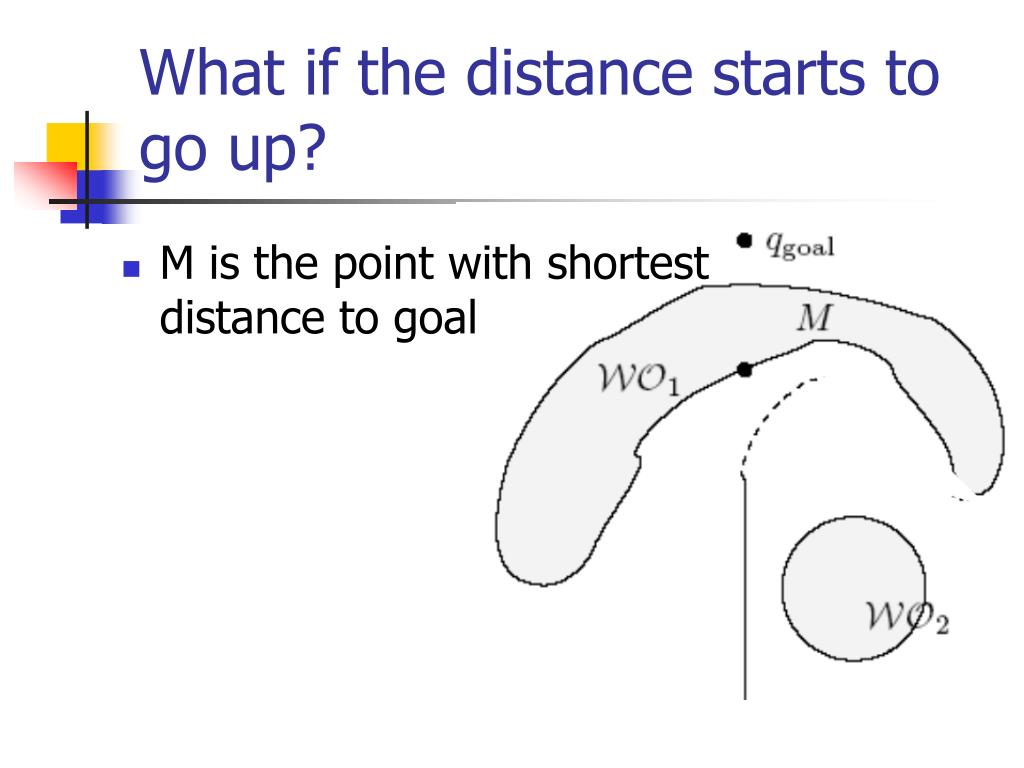

  20. What if the distance starts to go up? • M is the point with shortestdistance to goal

  21. What if the distance starts to go up? • M is the point with shortestdistance to goal • Start to act like a BUG! And follow boundary

  22. d_reach and d_follow • d_follow: is the shortest distance between the boundary which had been sensed and the goal. (observed thus far) • d_reach: let A be all the points within line of sight of x with range R that are on the followed obstacle.

  23. Tangent Bug – terminate boundary-following behavior • When • We found a point on the obstacle, which is closer to the goal than any point we sensed so far (on the currently followed obstacle).

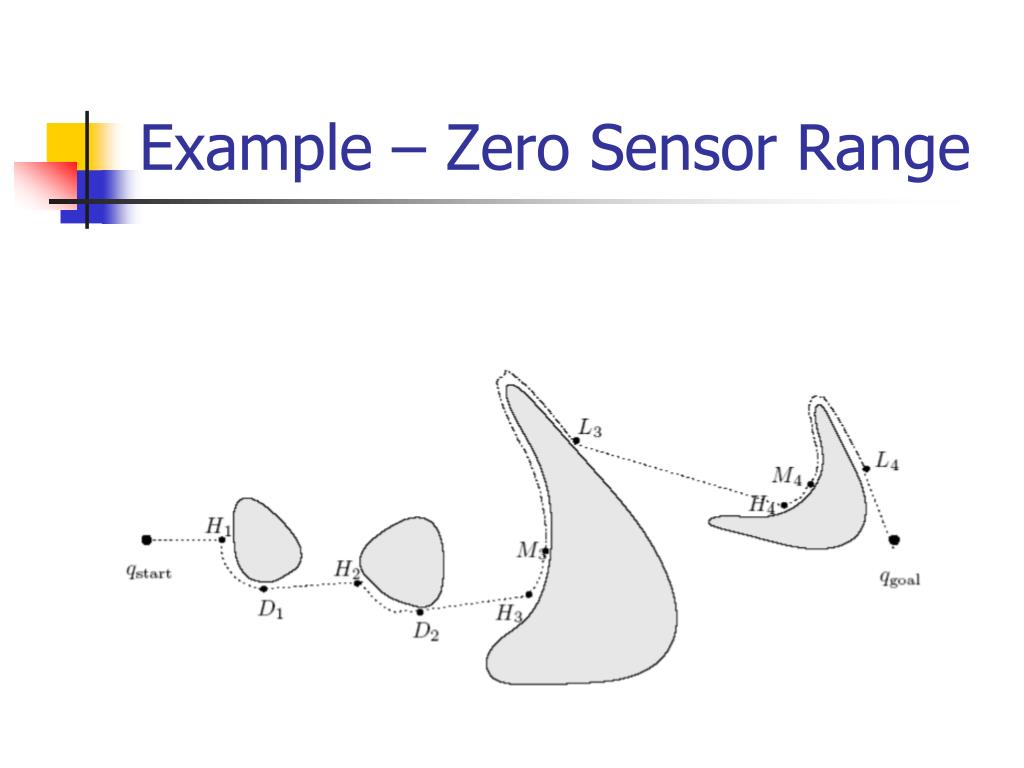

  24. Example – Zero Sensor Range

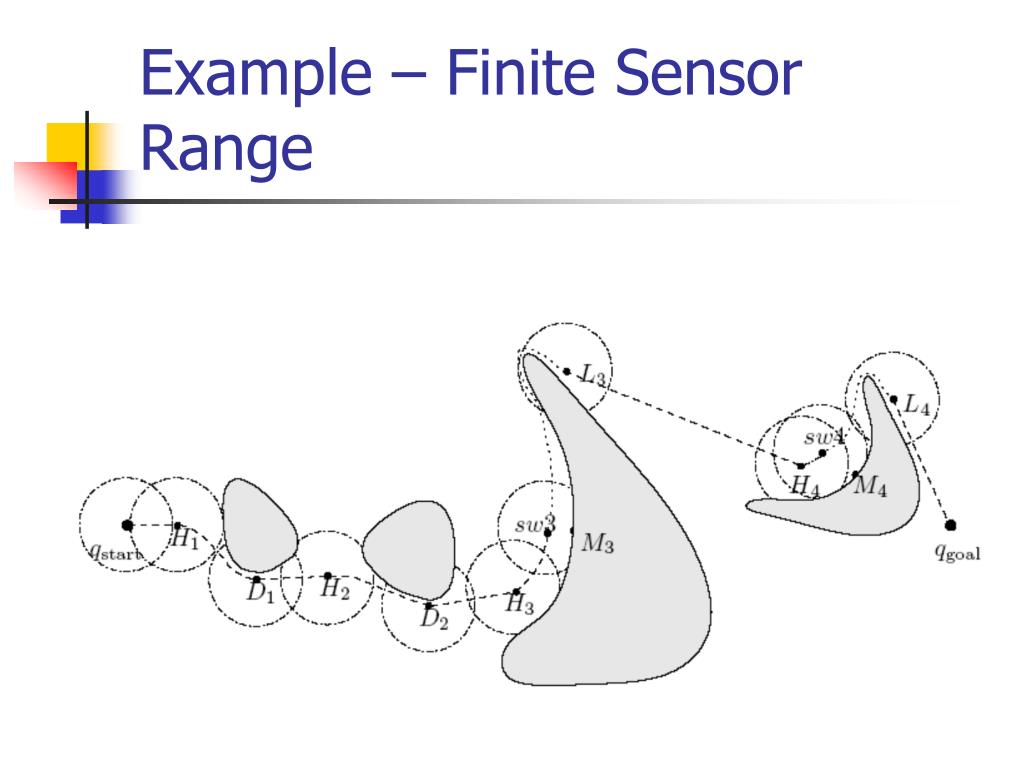

  25. Example – Finite Sensor Range

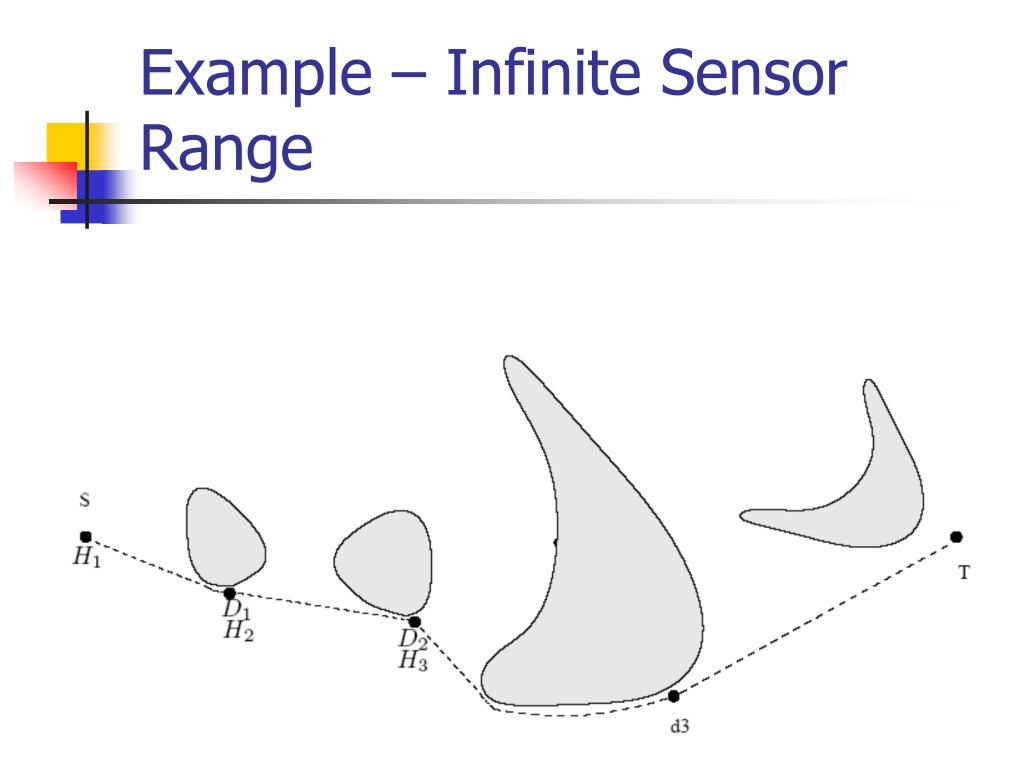

  26. Example – Infinite Sensor Range

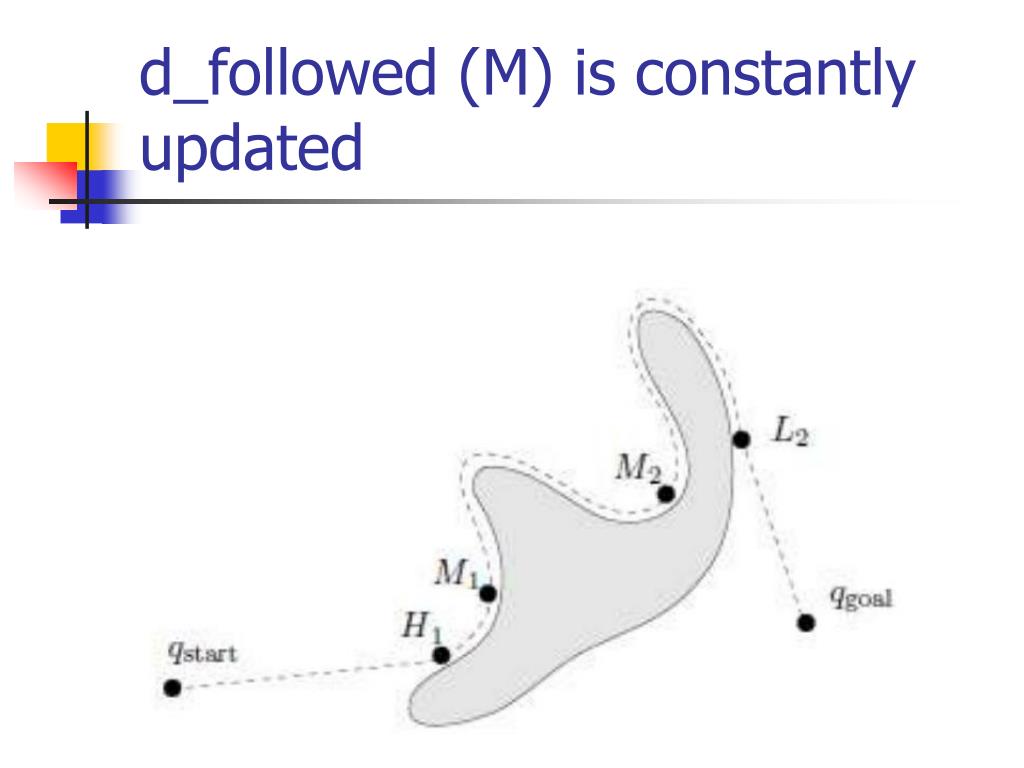

  27. d_followed (M) is constantly updated
