Lab 6: Sensor Based Planning

Lab 6: Sensor Based Planning. Lab TAs: Justin Moidel Ben Morse. Challenge Statement. Find a way around an unknown map from a known start position to a known end position without touching any obstacle or leaving the map. Mapping. Travel along the blue path Map obstacles in the grey area

tia
Download Presentation

Lab 6: Sensor Based Planning

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lab 6: Sensor Based Planning Lab TAs: Justin Moidel Ben Morse

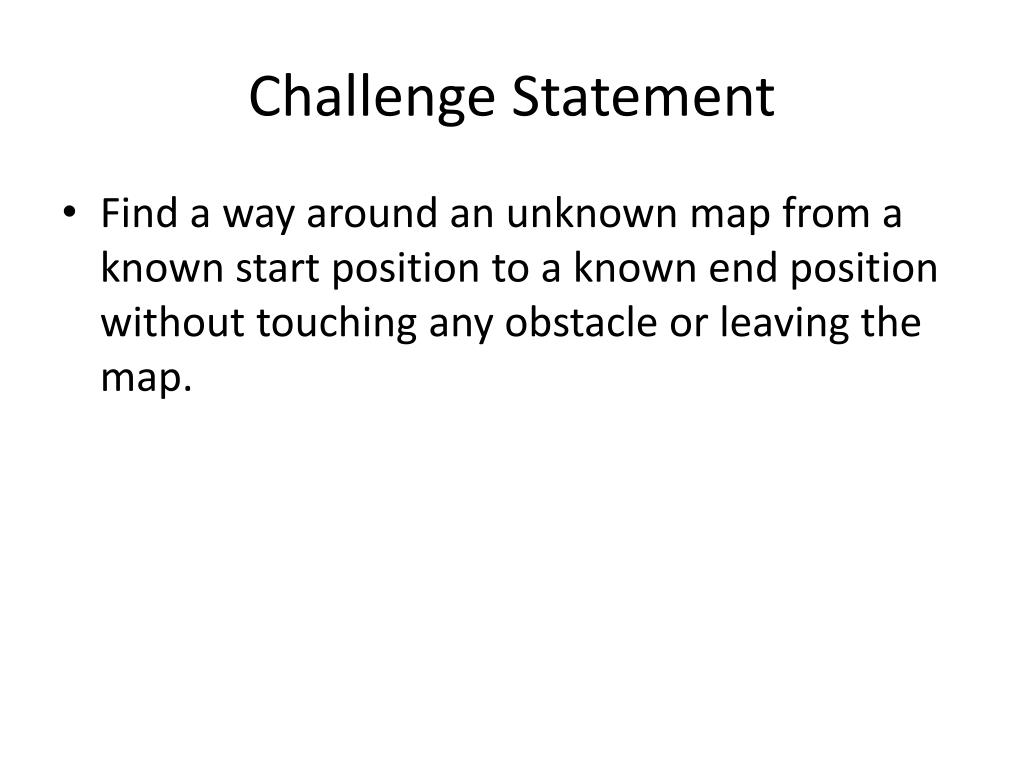

  2. Challenge Statement • Find a way around an unknown map from a known start position to a known end position without touching any obstacle or leaving the map.

  3. Mapping • Travel along the blue path • Map obstacles in the grey area • Stop when you reach the end of the path

  4. Planning • Red: Start Position • Green: Goal Position • White: Obstacles will not be placed here • Grey: Obstacles will be placed here • There will be one path with a one block radius around it free (95 point path) • 100 point path will only be 6” wide

  5. Grading • Mapping (50 points) [2 tries]: • Robot seems to mark some blocks and move correctly - 20 points • Robot executes motion correctlly but marks more than 2 but less than 5 blocks wrong - 10 points • 1 or 2 blocks wrongly marked / not marked - 20 points • All blocks correctlly marked - 30 points • Planning (50 points) [2 tries]: • Robot seems to sense, plan and act - 10 points • Robot hits an obstacle after travelling between 5 to 10 unique blocks - 20 points • Robot hits an obstacle after travelling between 10 to 20 unique blocks - 30 points • Robot stops within two blocks of the goal - 40 points
