  1. Service Repair Manual Models C9IndustrialEngine

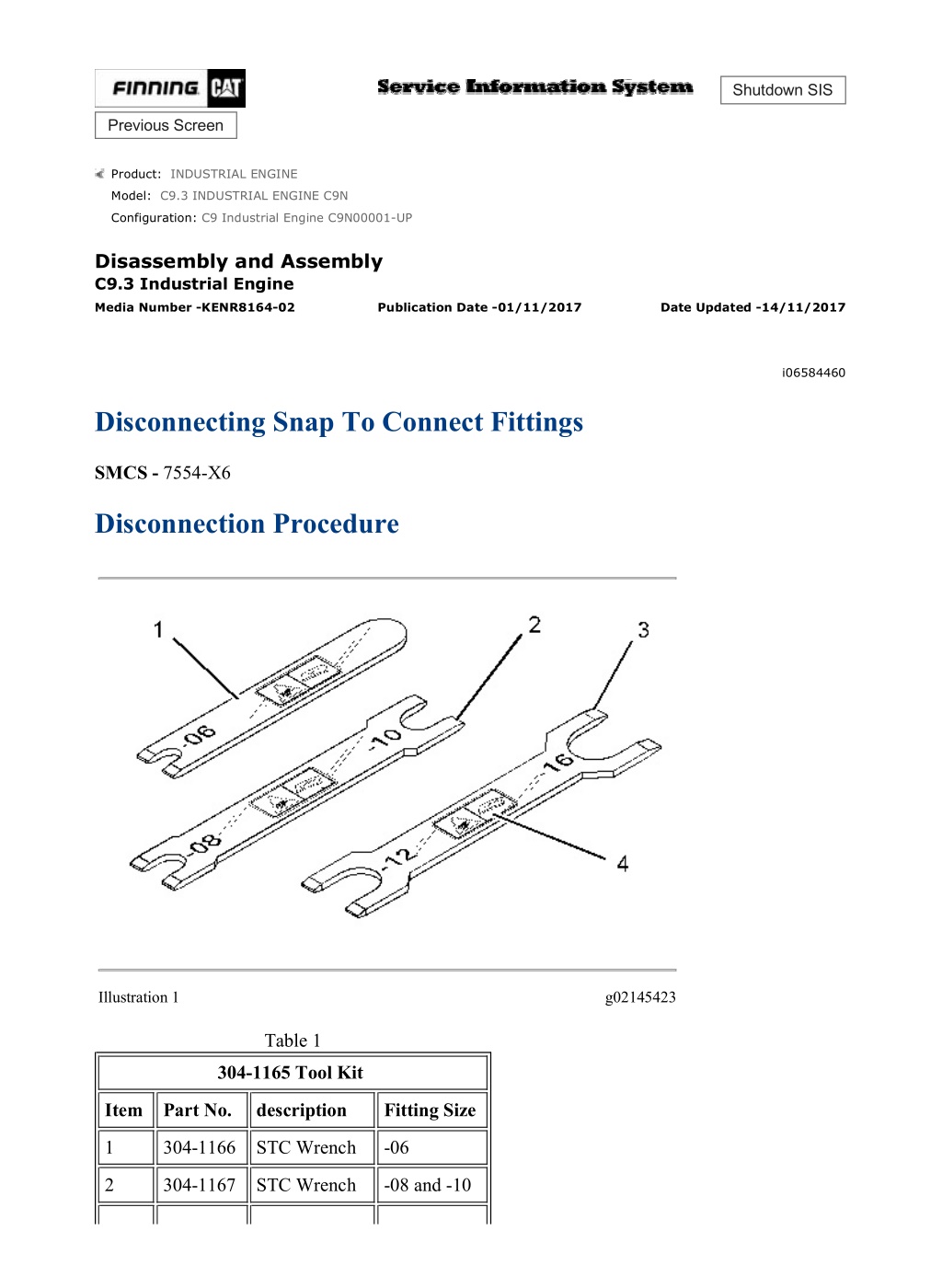

  2. w 1/4(W) Shutdown SIS Previous Screen Product: INDUSTRIAL ENGINE Model: C9.3 INDUSTRIAL ENGINE C9N Configuration: C9 Industrial Engine C9N00001-UP Disassembly and Assembly C9.3 Industrial Engine Media Number -KENR8164-02 Publication Date -01/11/2017 Date Updated -14/11/2017 i06584460 Disconnecting Snap To Connect Fittings SMCS - 7554-X6 Disconnection Procedure Illustration 1 g02145423 Table 1 304-1165 Tool Kit Item Part No. description Fitting Size 1 304-1166 STC Wrench -06 2 304-1167 STC Wrench -08 and -10 https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

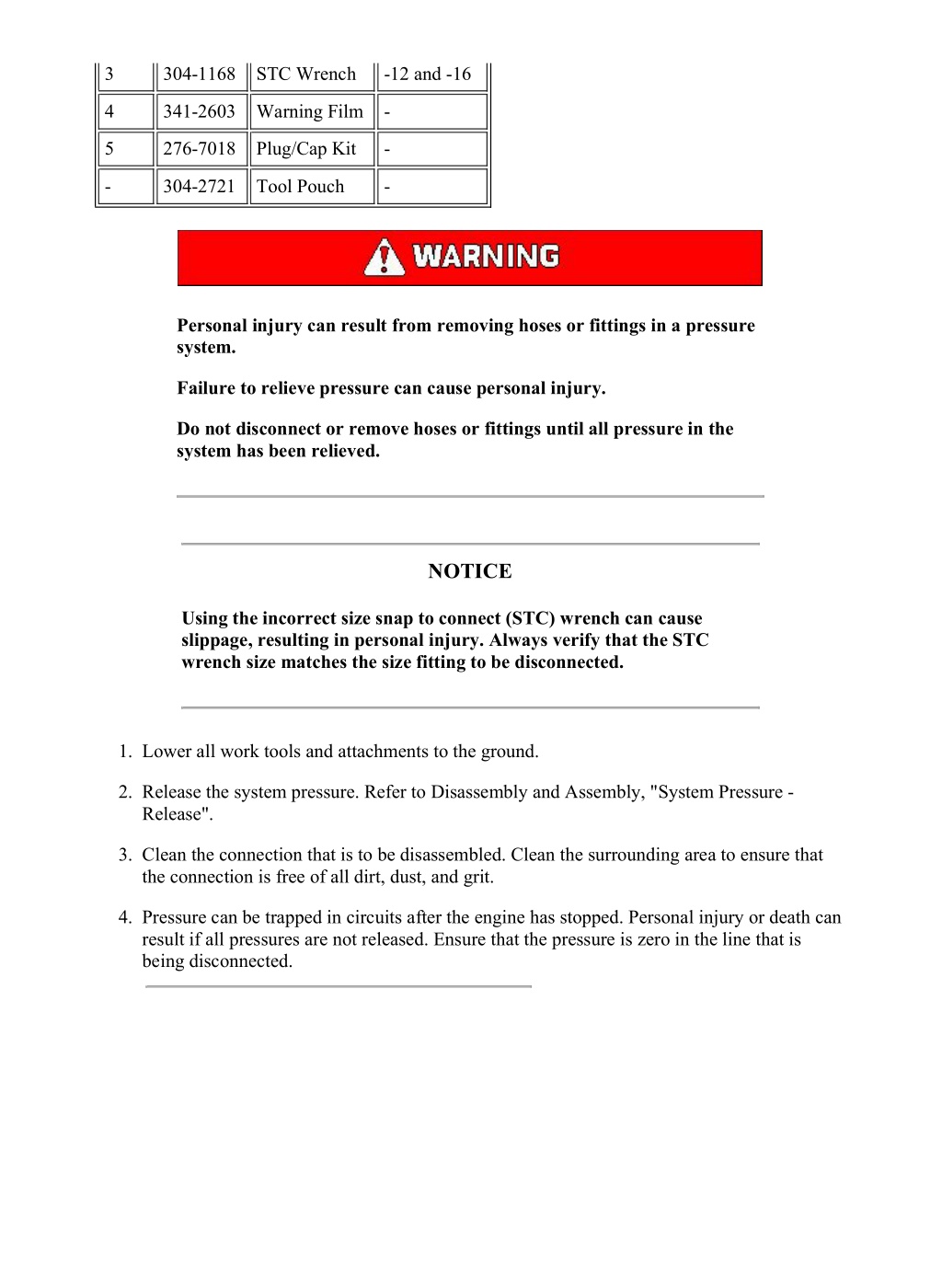

  3. w 2/4(W) 3 304-1168 STC Wrench -12 and -16 4 341-2603 Warning Film - 5 276-7018 Plug/Cap Kit - - 304-2721 Tool Pouch - Personal injury can result from removing hoses or fittings in a pressure system. Failure to relieve pressure can cause personal injury. Do not disconnect or remove hoses or fittings until all pressure in the system has been relieved. NOTICE Using the incorrect size snap to connect (STC) wrench can cause slippage, resulting in personal injury. Always verify that the STC wrench size matches the size fitting to be disconnected. 1. Lower all work tools and attachments to the ground. 2. Release the system pressure. Refer to Disassembly and Assembly, "System Pressure - Release". 3. Clean the connection that is to be disassembled. Clean the surrounding area to ensure that the connection is free of all dirt, dust, and grit. 4. Pressure can be trapped in circuits after the engine has stopped. Personal injury or death can result if all pressures are not released. Ensure that the pressure is zero in the line that is being disconnected. https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

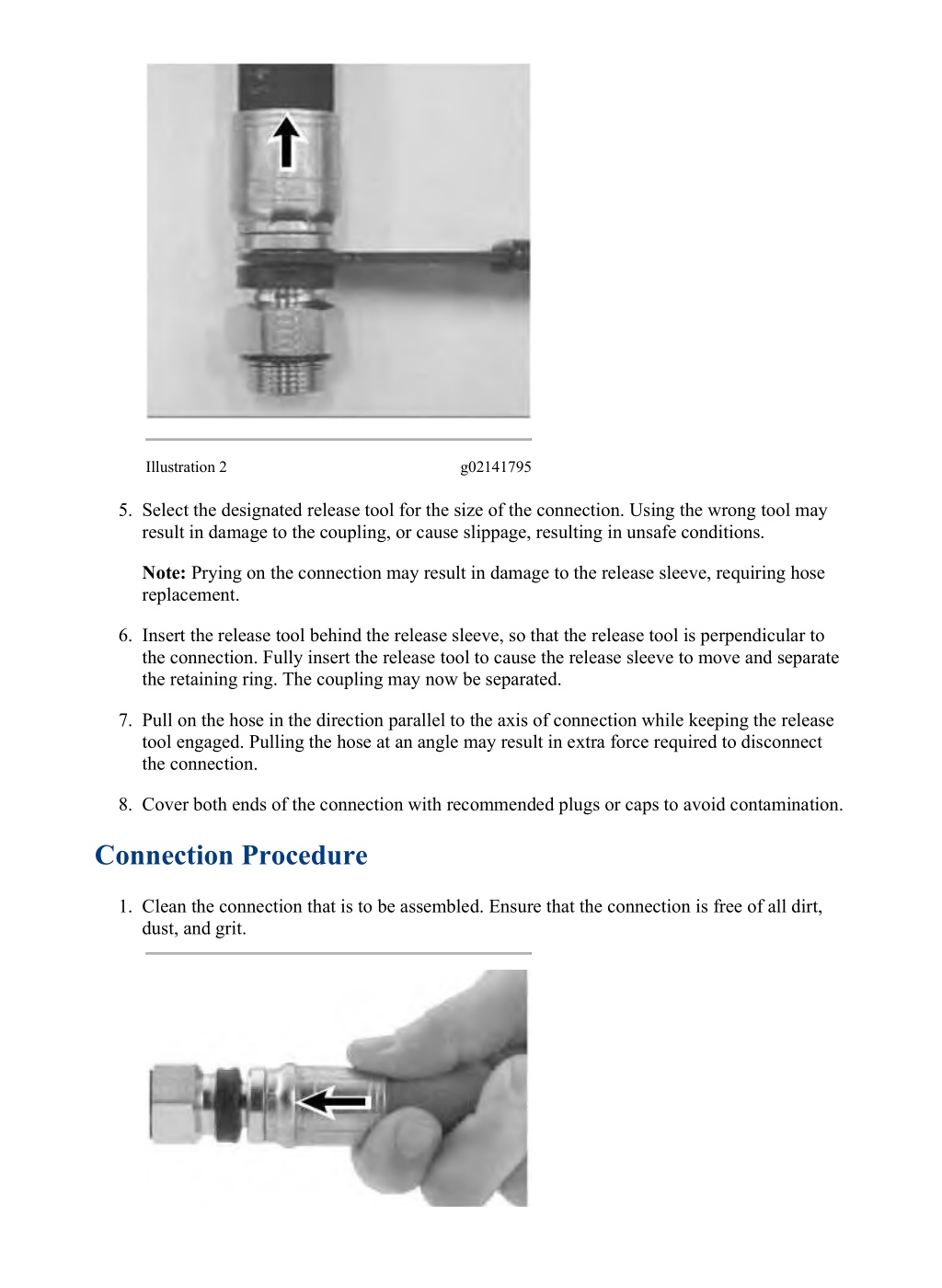

  4. w 3/4(W) Illustration 2 g02141795 5. Select the designated release tool for the size of the connection. Using the wrong tool may result in damage to the coupling, or cause slippage, resulting in unsafe conditions. Note: Prying on the connection may result in damage to the release sleeve, requiring hose replacement. 6. Insert the release tool behind the release sleeve, so that the release tool is perpendicular to the connection. Fully insert the release tool to cause the release sleeve to move and separate the retaining ring. The coupling may now be separated. 7. Pull on the hose in the direction parallel to the axis of connection while keeping the release tool engaged. Pulling the hose at an angle may result in extra force required to disconnect the connection. 8. Cover both ends of the connection with recommended plugs or caps to avoid contamination. Connection Procedure 1. Clean the connection that is to be assembled. Ensure that the connection is free of all dirt, dust, and grit. https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

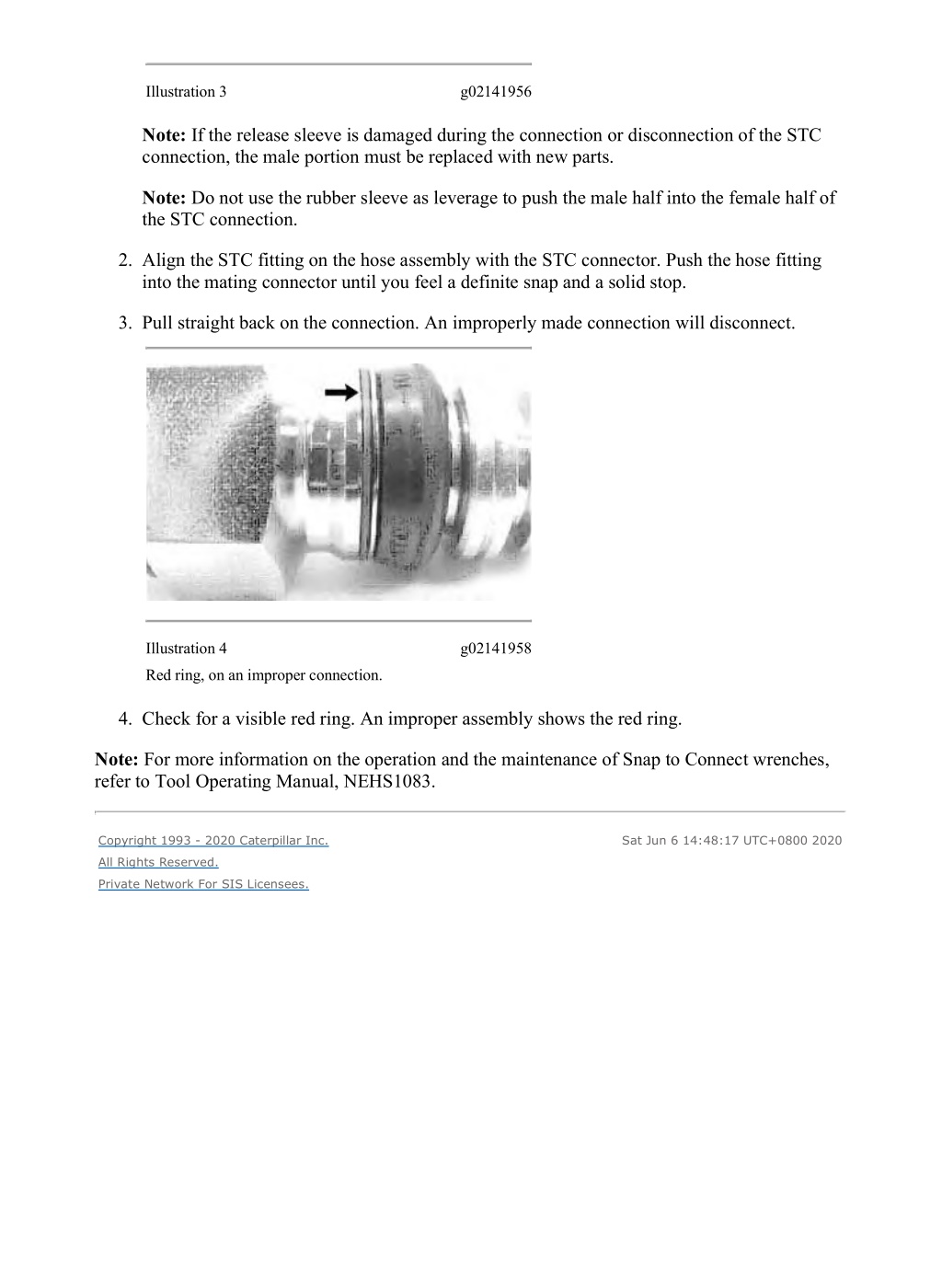

  5. w 4/4(W) Illustration 3 g02141956 Note: If the release sleeve is damaged during the connection or disconnection of the STC connection, the male portion must be replaced with new parts. Note: Do not use the rubber sleeve as leverage to push the male half into the female half of the STC connection. 2. Align the STC fitting on the hose assembly with the STC connector. Push the hose fitting into the mating connector until you feel a definite snap and a solid stop. 3. Pull straight back on the connection. An improperly made connection will disconnect. Illustration 4 g02141958 Red ring, on an improper connection. 4. Check for a visible red ring. An improper assembly shows the red ring. Note: For more information on the operation and the maintenance of Snap to Connect wrenches, refer to Tool Operating Manual, NEHS1083. Copyright 1993 - 2020 Caterpillar Inc. Sat Jun 6 14:48:17 UTC+0800 2020 All Rights Reserved. Private Network For SIS Licensees. https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

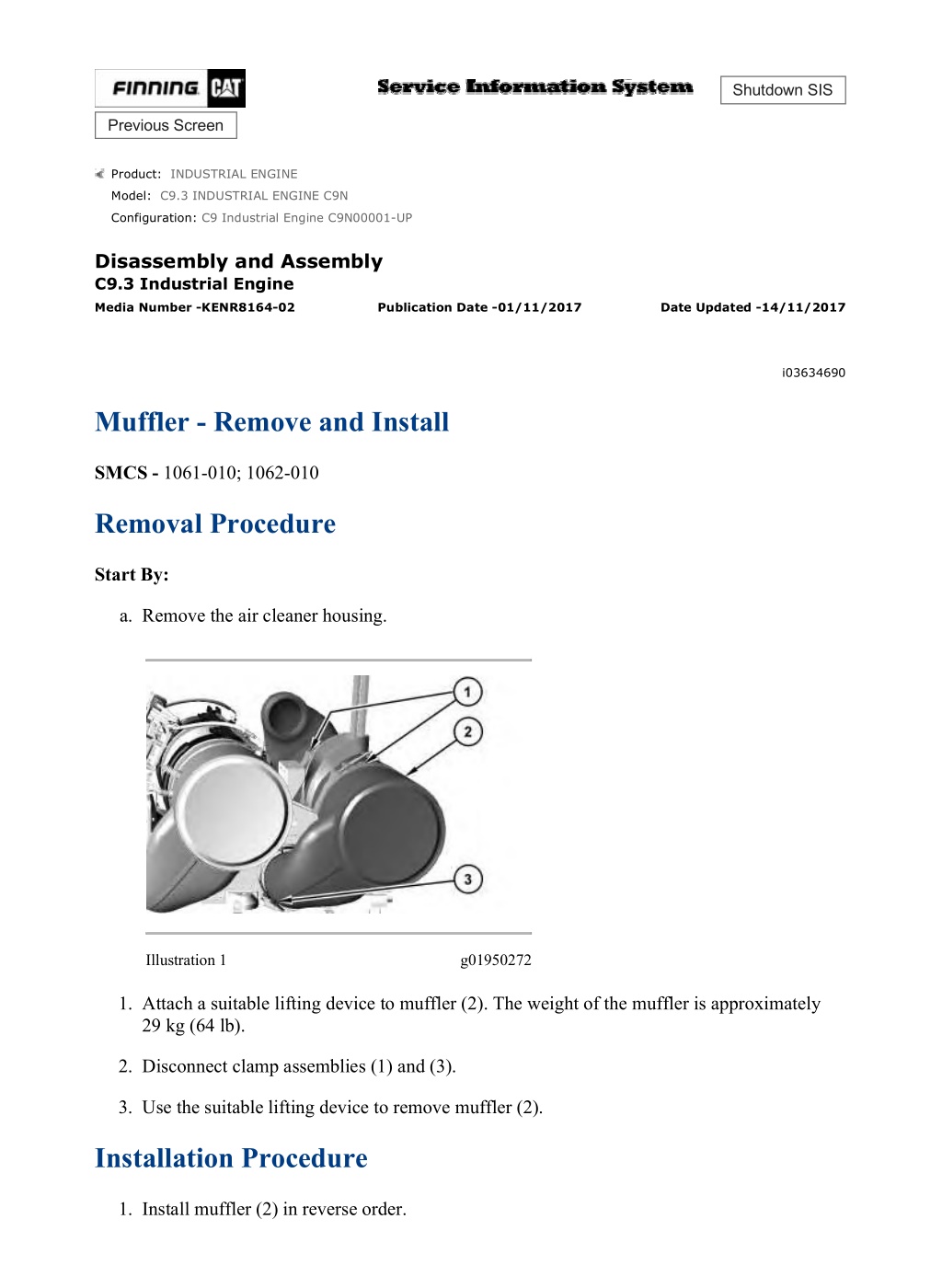

  6. w 1/2(W) Shutdown SIS Previous Screen Product: INDUSTRIAL ENGINE Model: C9.3 INDUSTRIAL ENGINE C9N Configuration: C9 Industrial Engine C9N00001-UP Disassembly and Assembly C9.3 Industrial Engine Media Number -KENR8164-02 Publication Date -01/11/2017 Date Updated -14/11/2017 i03634690 Muffler - Remove and Install SMCS - 1061-010; 1062-010 Removal Procedure Start By: a. Remove the air cleaner housing. Illustration 1 g01950272 1. Attach a suitable lifting device to muffler (2). The weight of the muffler is approximately 29 kg (64 lb). 2. Disconnect clamp assemblies (1) and (3). 3. Use the suitable lifting device to remove muffler (2). Installation Procedure 1. Install muffler (2) in reverse order. https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

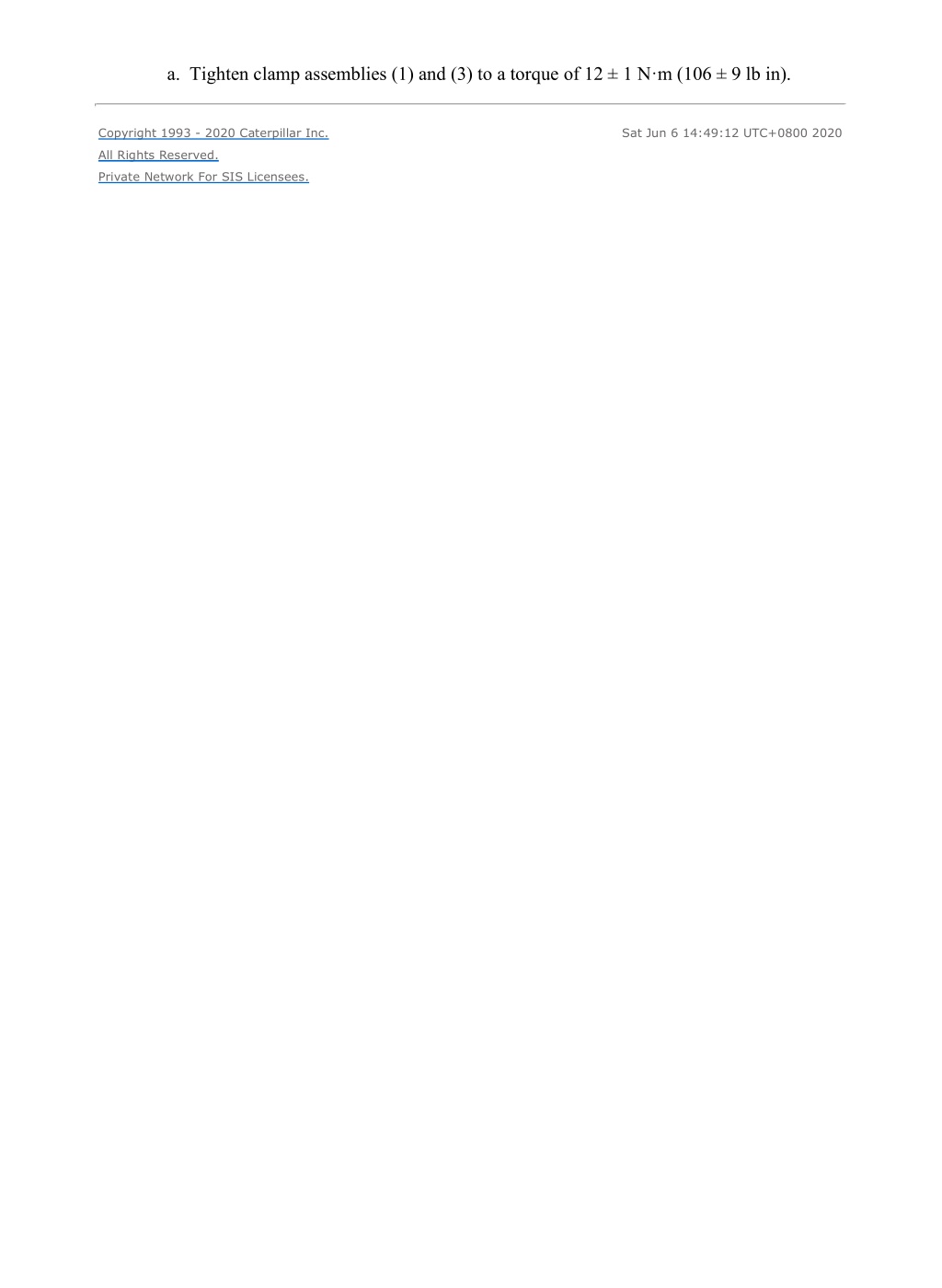

  7. w 2/2(W) a. Tighten clamp assemblies (1) and (3) to a torque of 12 ± 1 N·m (106 ± 9 lb in). Copyright 1993 - 2020 Caterpillar Inc. Sat Jun 6 14:49:12 UTC+0800 2020 All Rights Reserved. Private Network For SIS Licensees. https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

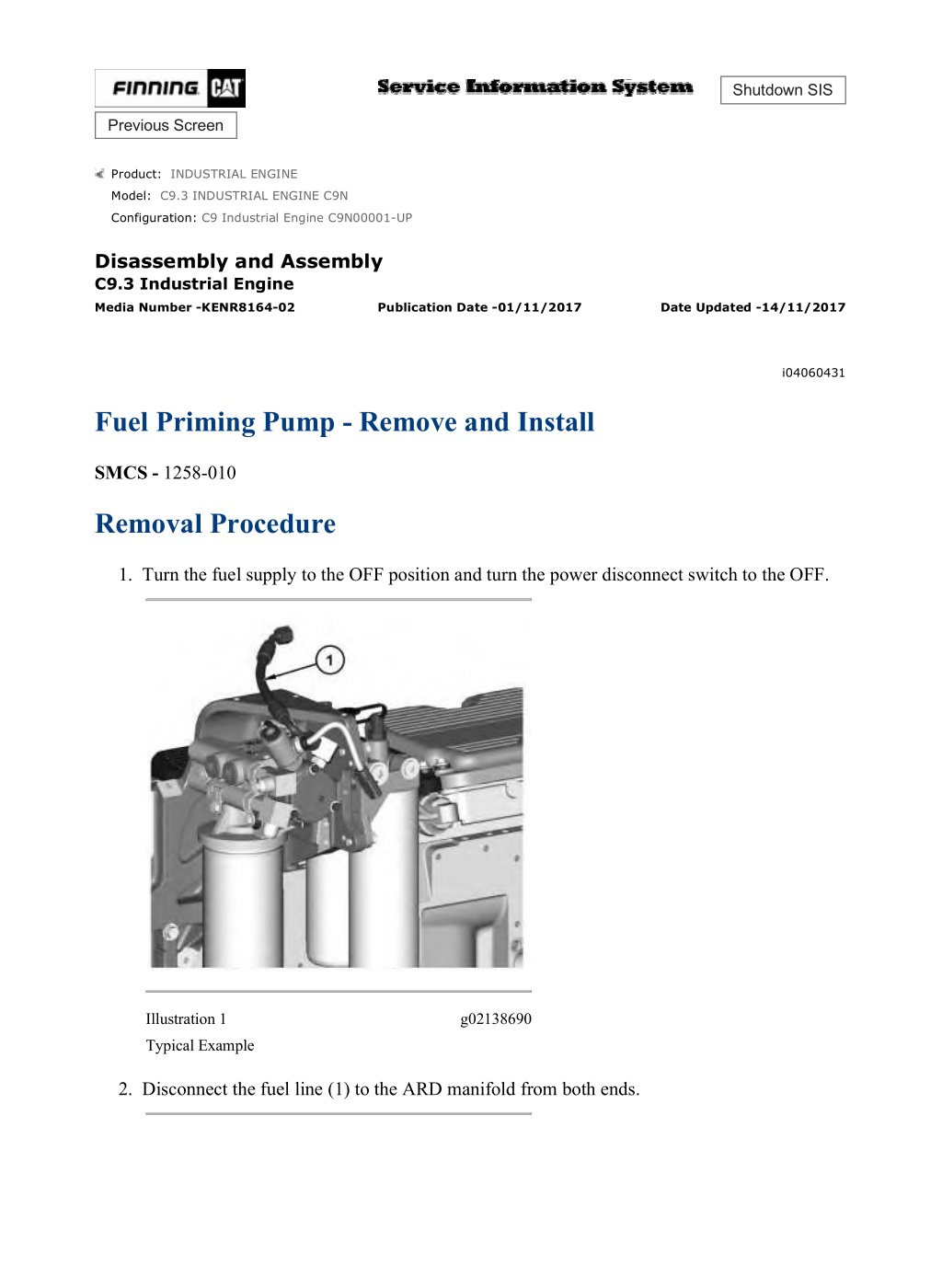

  8. w 1/9(W) Shutdown SIS Previous Screen Product: INDUSTRIAL ENGINE Model: C9.3 INDUSTRIAL ENGINE C9N Configuration: C9 Industrial Engine C9N00001-UP Disassembly and Assembly C9.3 Industrial Engine Media Number -KENR8164-02 Publication Date -01/11/2017 Date Updated -14/11/2017 i04060431 Fuel Priming Pump - Remove and Install SMCS - 1258-010 Removal Procedure 1. Turn the fuel supply to the OFF position and turn the power disconnect switch to the OFF. Illustration 1 g02138690 Typical Example 2. Disconnect the fuel line (1) to the ARD manifold from both ends. https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

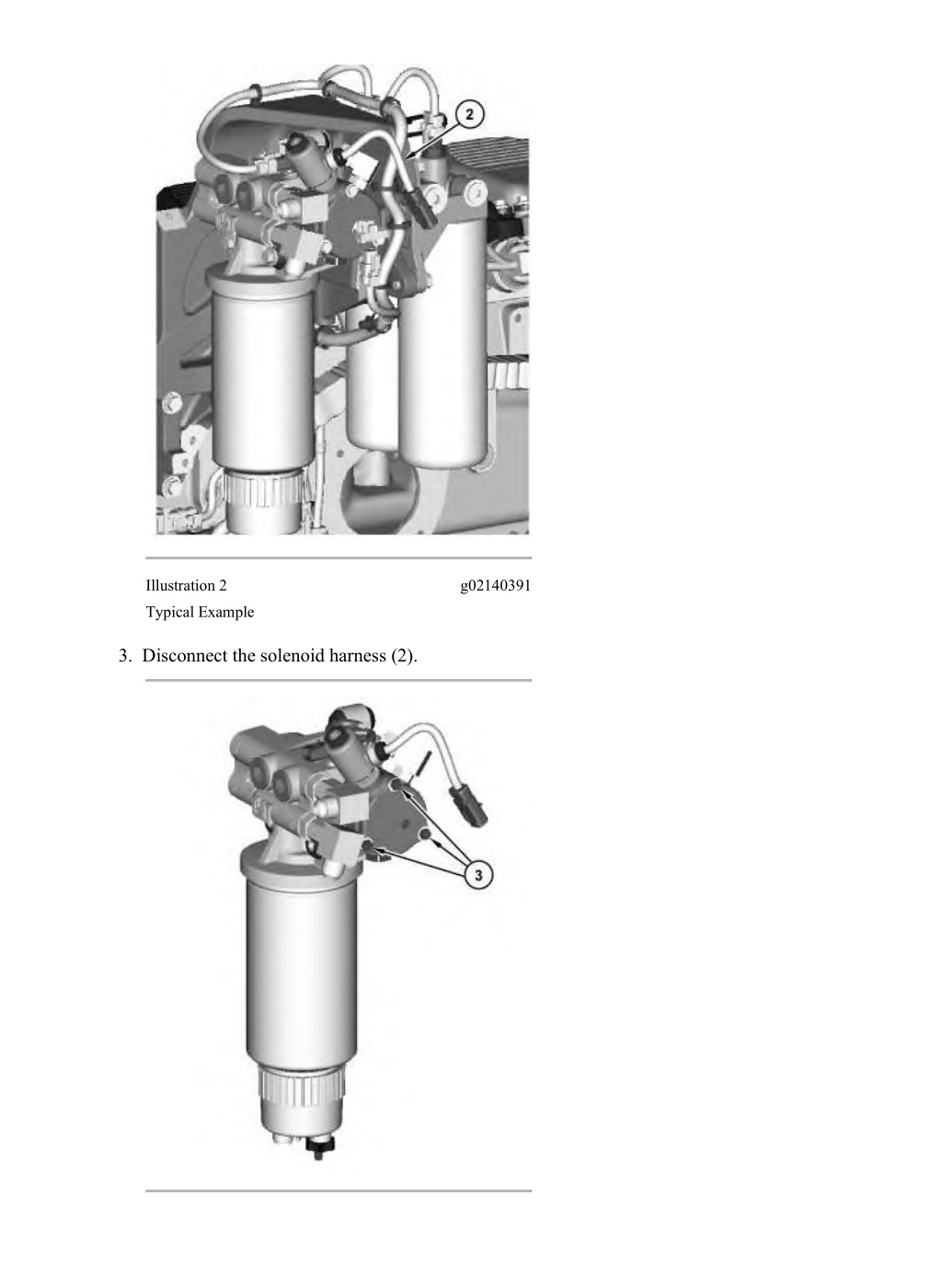

  9. w 2/9(W) Illustration 2 g02140391 Typical Example 3. Disconnect the solenoid harness (2). https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

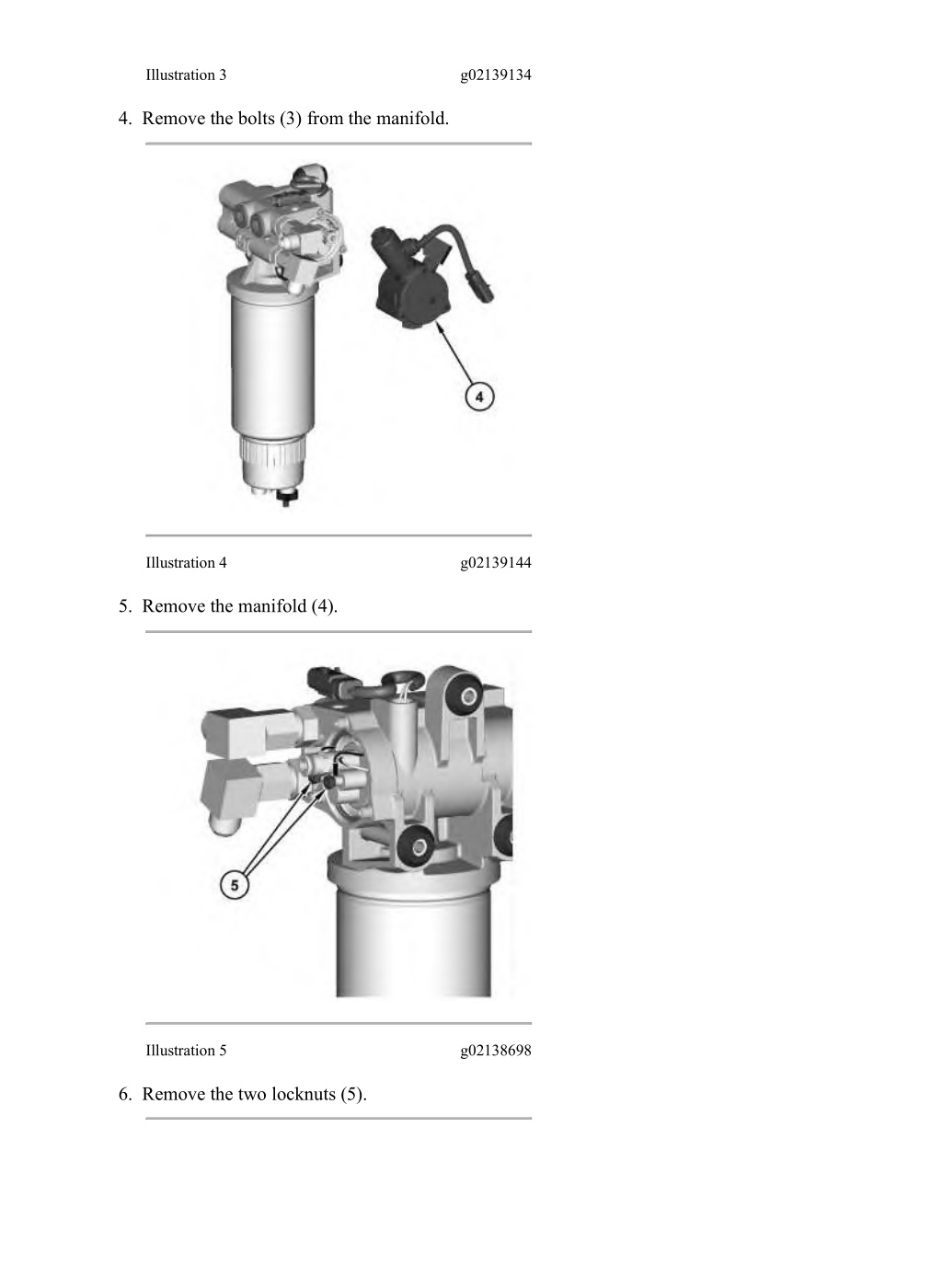

  10. w 3/9(W) Illustration 3 g02139134 4. Remove the bolts (3) from the manifold. Illustration 4 g02139144 5. Remove the manifold (4). Illustration 5 g02138698 6. Remove the two locknuts (5). https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

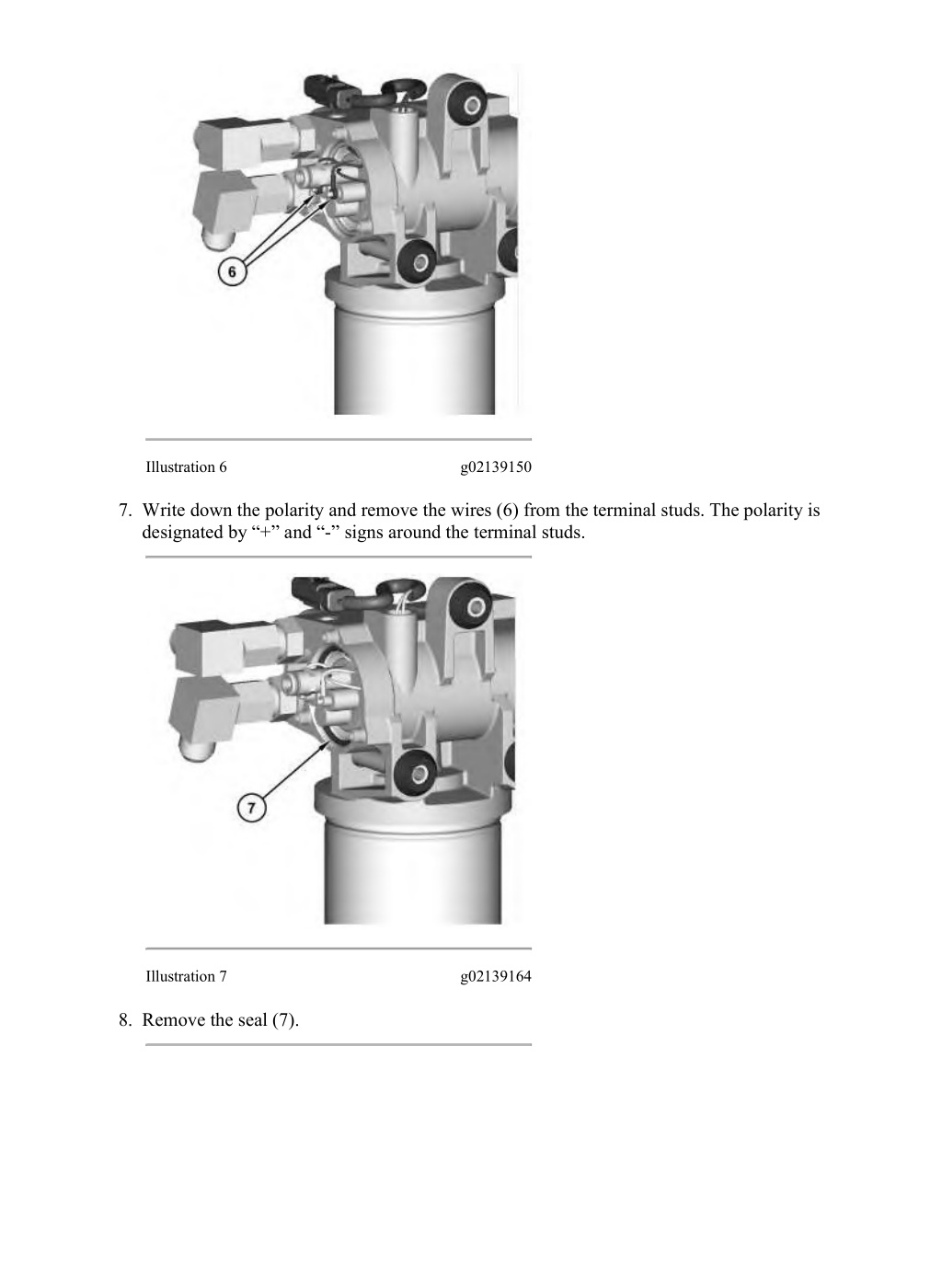

  11. w 4/9(W) Illustration 6 g02139150 7. Write down the polarity and remove the wires (6) from the terminal studs. The polarity is designated by “+” and “-” signs around the terminal studs. Illustration 7 g02139164 8. Remove the seal (7). https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

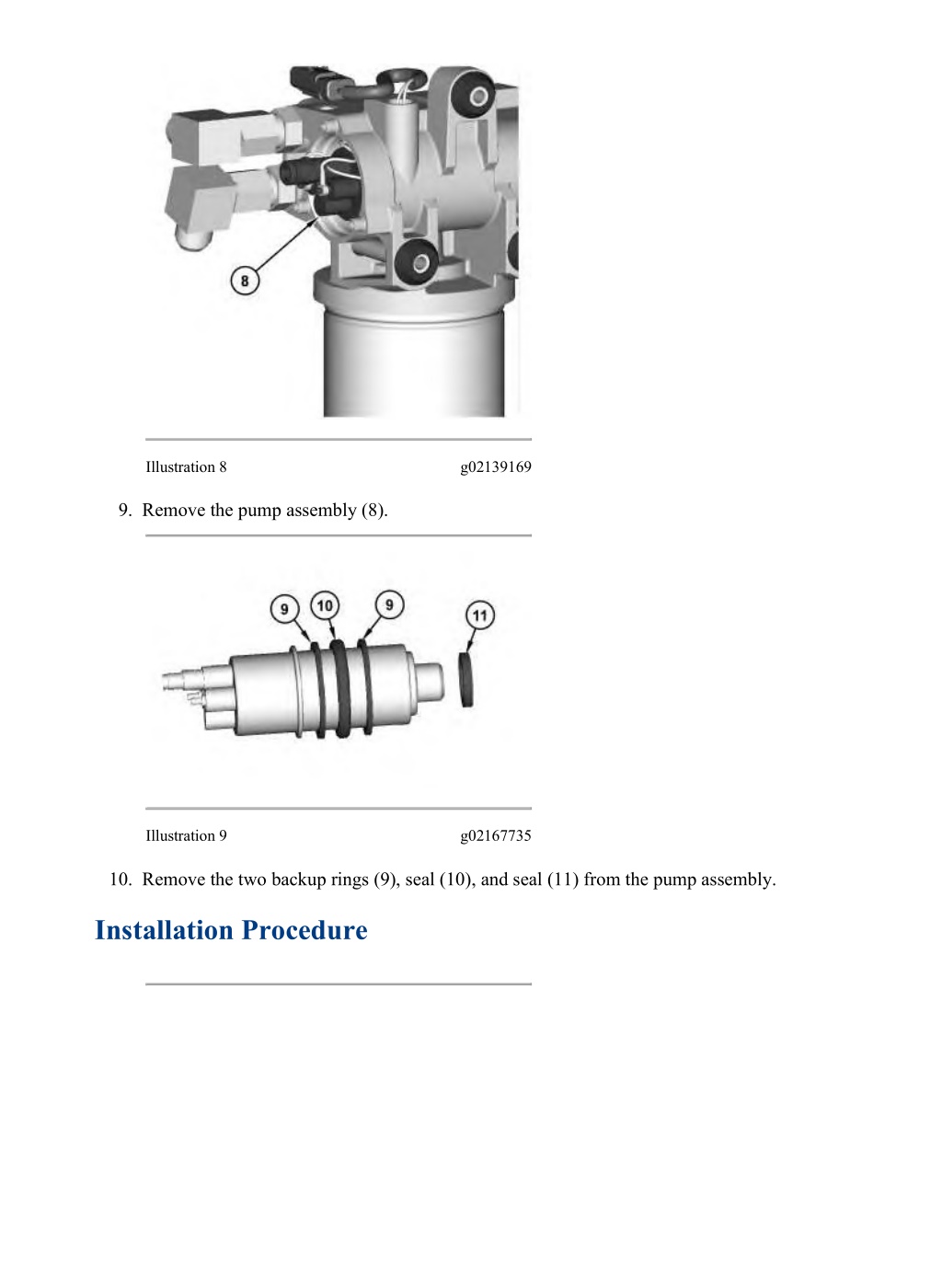

  12. w 5/9(W) Illustration 8 g02139169 9. Remove the pump assembly (8). Illustration 9 g02167735 10. Remove the two backup rings (9), seal (10), and seal (11) from the pump assembly. Installation Procedure https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

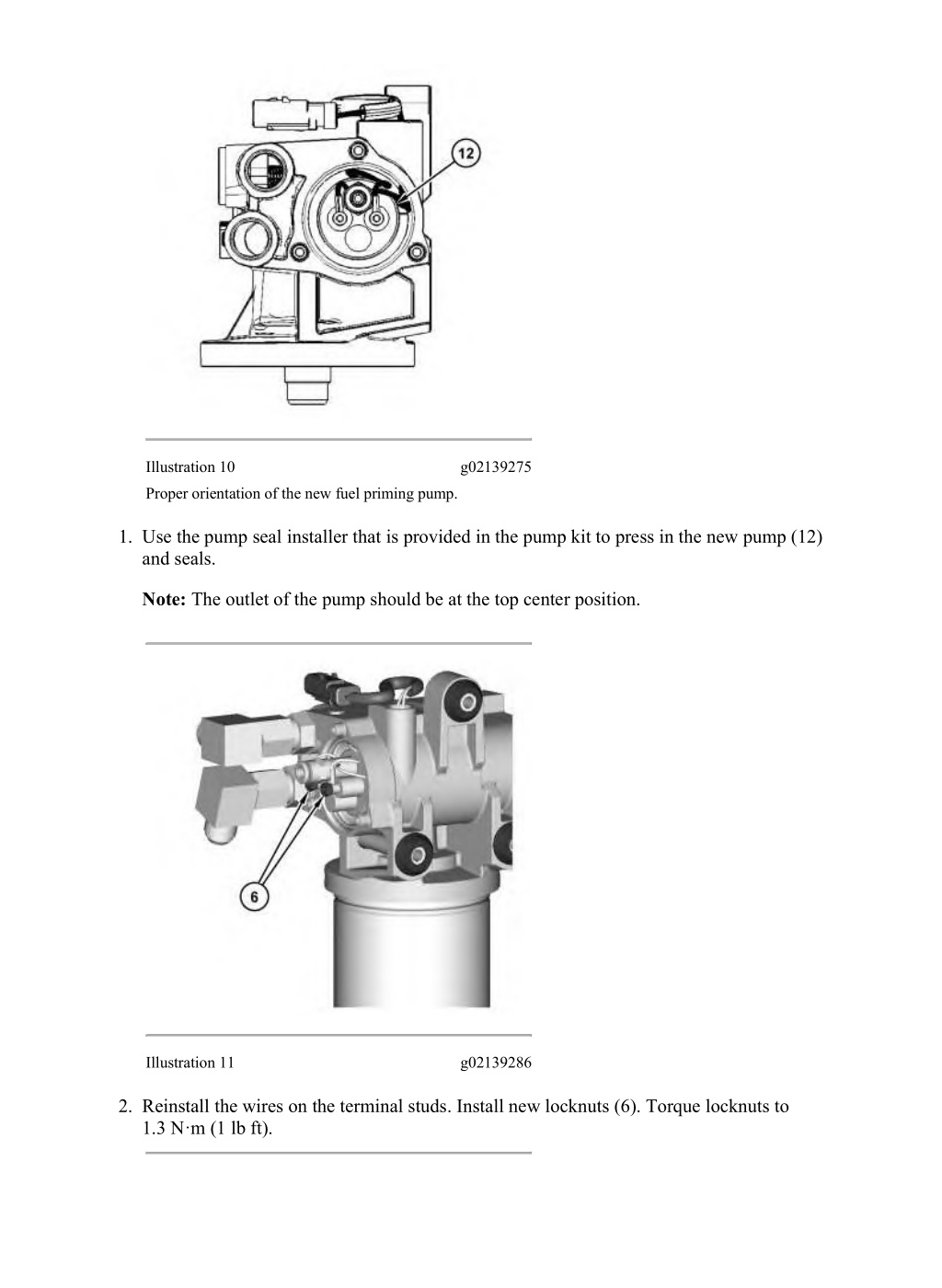

  13. w 6/9(W) Illustration 10 g02139275 Proper orientation of the new fuel priming pump. 1. Use the pump seal installer that is provided in the pump kit to press in the new pump (12) and seals. Note: The outlet of the pump should be at the top center position. Illustration 11 g02139286 2. Reinstall the wires on the terminal studs. Install new locknuts (6). Torque locknuts to 1.3 N·m (1 lb ft). https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

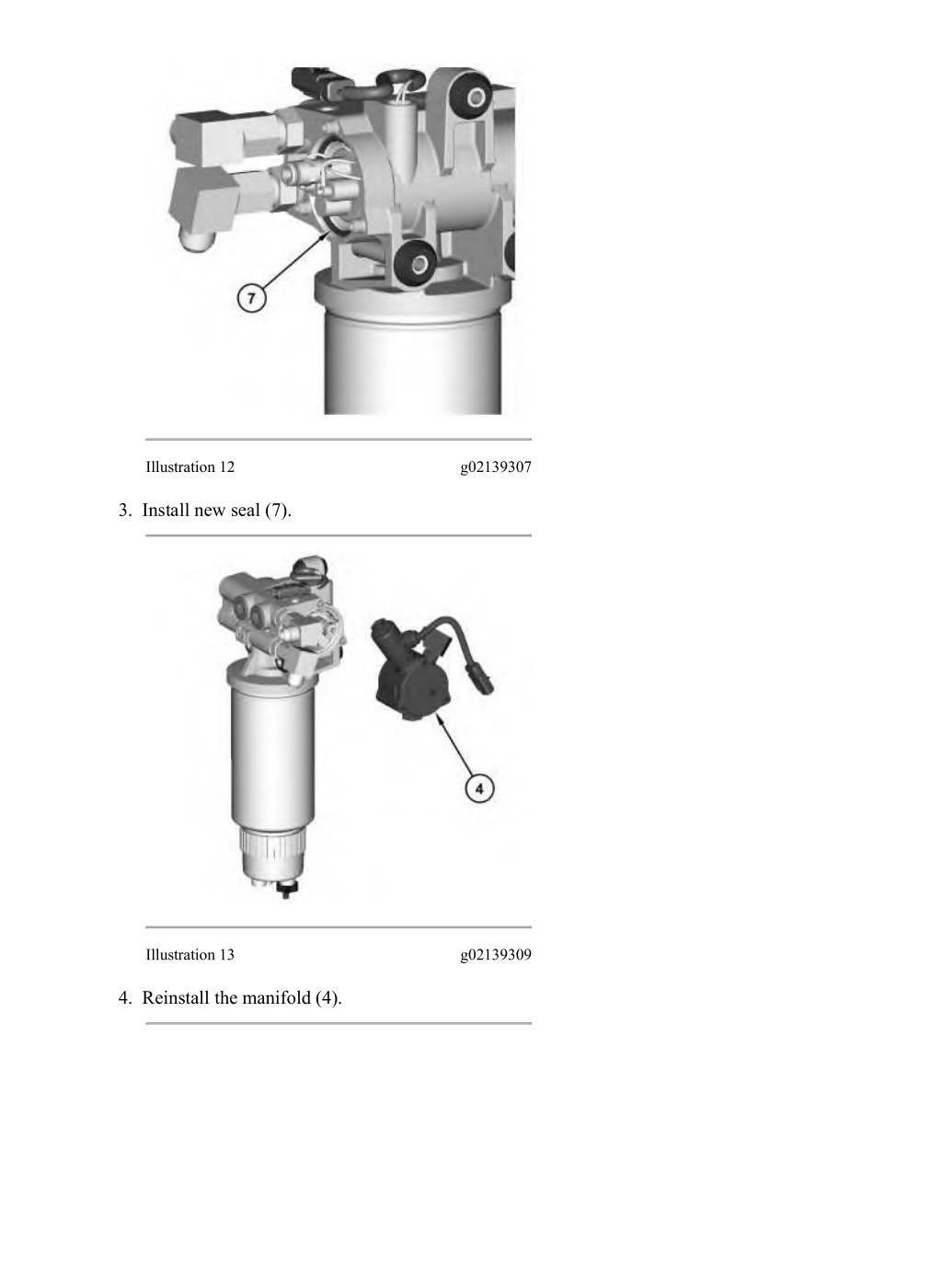

  14. w 7/9(W) Illustration 12 g02139307 3. Install new seal (7). Illustration 13 g02139309 4. Reinstall the manifold (4). https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

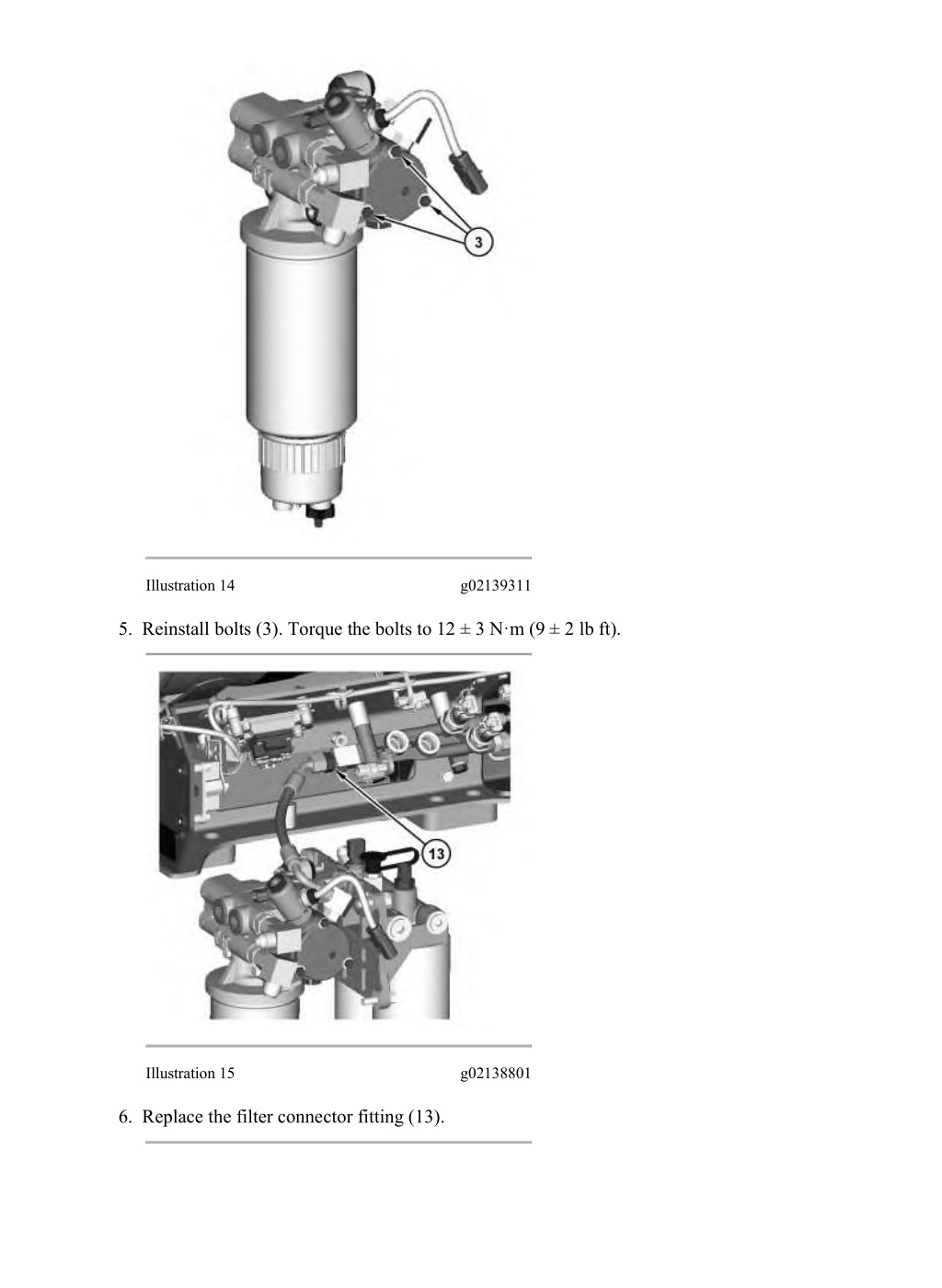

  15. w 8/9(W) Illustration 14 g02139311 5. Reinstall bolts (3). Torque the bolts to 12 ± 3 N·m (9 ± 2 lb ft). Illustration 15 g02138801 6. Replace the filter connector fitting (13). https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

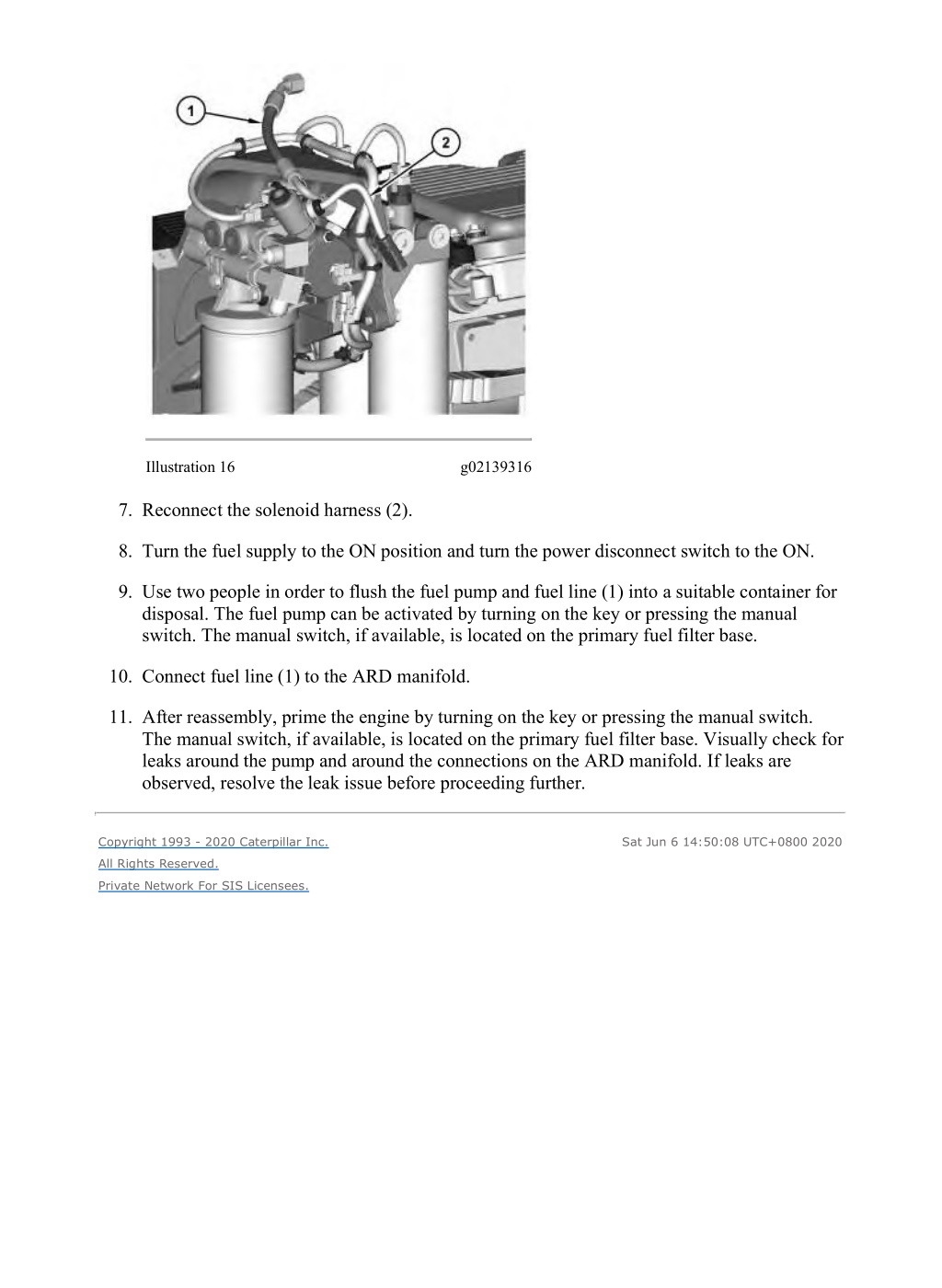

  16. w 9/9(W) Illustration 16 g02139316 7. Reconnect the solenoid harness (2). 8. Turn the fuel supply to the ON position and turn the power disconnect switch to the ON. 9. Use two people in order to flush the fuel pump and fuel line (1) into a suitable container for disposal. The fuel pump can be activated by turning on the key or pressing the manual switch. The manual switch, if available, is located on the primary fuel filter base. 10. Connect fuel line (1) to the ARD manifold. 11. After reassembly, prime the engine by turning on the key or pressing the manual switch. The manual switch, if available, is located on the primary fuel filter base. Visually check for leaks around the pump and around the connections on the ARD manifold. If leaks are observed, resolve the leak issue before proceeding further. Copyright 1993 - 2020 Caterpillar Inc. Sat Jun 6 14:50:08 UTC+0800 2020 All Rights Reserved. Private Network For SIS Licensees. https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

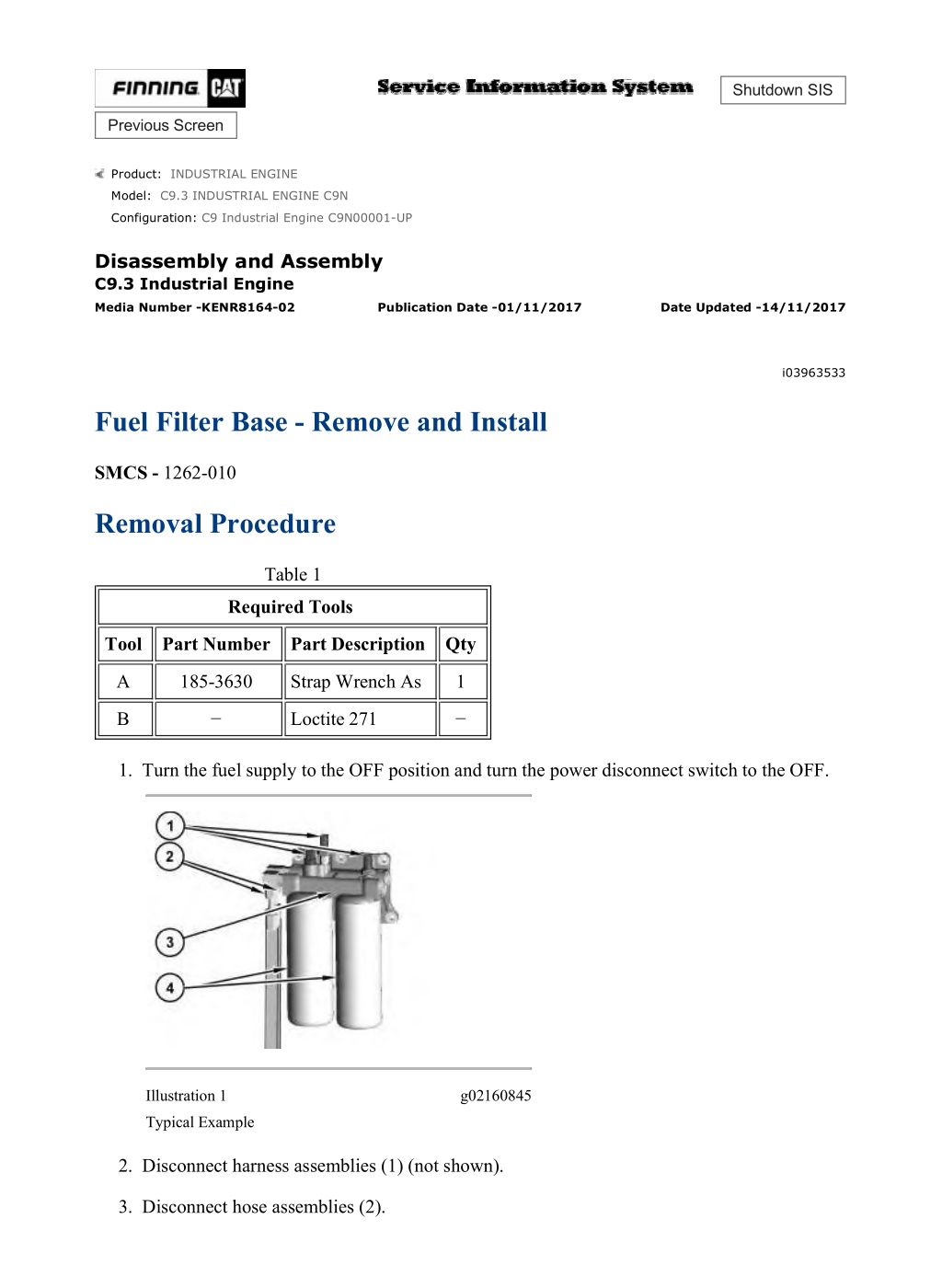

  17. w 1/3(W) Shutdown SIS Previous Screen Product: INDUSTRIAL ENGINE Model: C9.3 INDUSTRIAL ENGINE C9N Configuration: C9 Industrial Engine C9N00001-UP Disassembly and Assembly C9.3 Industrial Engine Media Number -KENR8164-02 Publication Date -01/11/2017 Date Updated -14/11/2017 i03963533 Fuel Filter Base - Remove and Install SMCS - 1262-010 Removal Procedure Table 1 Required Tools Tool Part Number Part Description Qty A 185-3630 Strap Wrench As 1 B − Loctite 271 − 1. Turn the fuel supply to the OFF position and turn the power disconnect switch to the OFF. Illustration 1 g02160845 Typical Example 2. Disconnect harness assemblies (1) (not shown). 3. Disconnect hose assemblies (2). https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

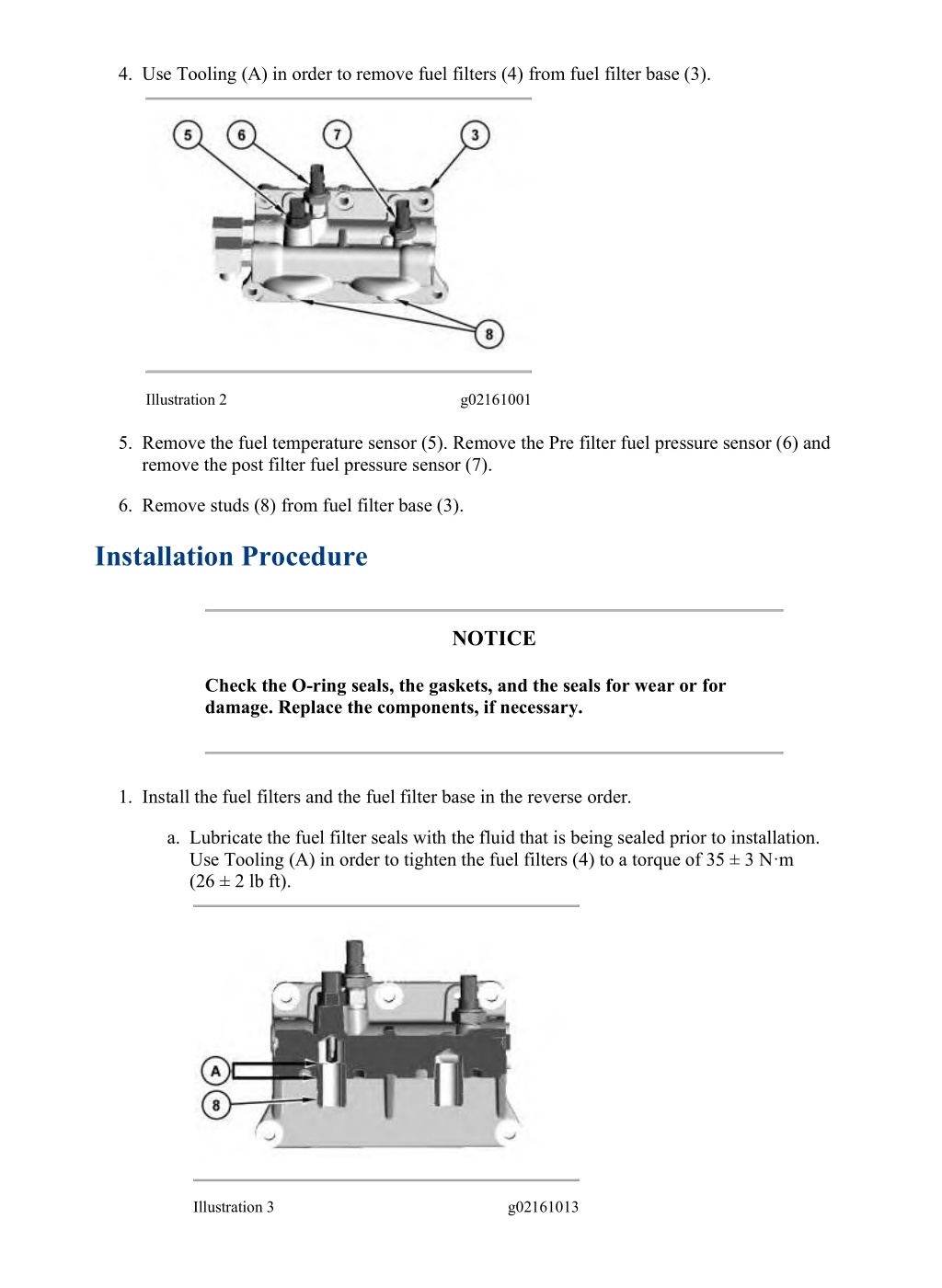

  18. w 2/3(W) 4. Use Tooling (A) in order to remove fuel filters (4) from fuel filter base (3). Illustration 2 g02161001 5. Remove the fuel temperature sensor (5). Remove the Pre filter fuel pressure sensor (6) and remove the post filter fuel pressure sensor (7). 6. Remove studs (8) from fuel filter base (3). Installation Procedure NOTICE Check the O-ring seals, the gaskets, and the seals for wear or for damage. Replace the components, if necessary. 1. Install the fuel filters and the fuel filter base in the reverse order. a. Lubricate the fuel filter seals with the fluid that is being sealed prior to installation. Use Tooling (A) in order to tighten the fuel filters (4) to a torque of 35 ± 3 N·m (26 ± 2 lb ft). Illustration 3 g02161013 https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

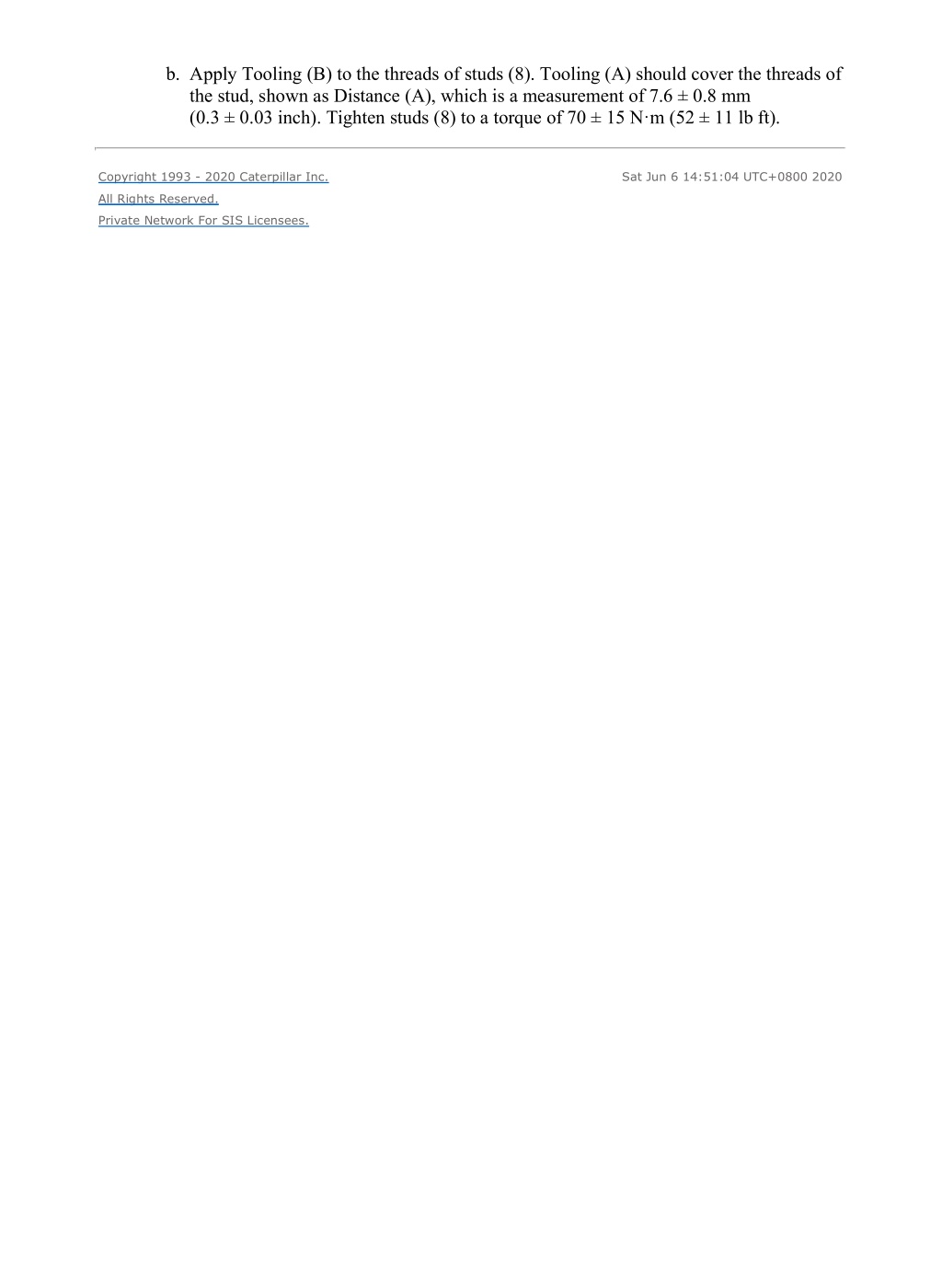

  19. w 3/3(W) b. Apply Tooling (B) to the threads of studs (8). Tooling (A) should cover the threads of the stud, shown as Distance (A), which is a measurement of 7.6 ± 0.8 mm (0.3 ± 0.03 inch). Tighten studs (8) to a torque of 70 ± 15 N·m (52 ± 11 lb ft). Copyright 1993 - 2020 Caterpillar Inc. Sat Jun 6 14:51:04 UTC+0800 2020 All Rights Reserved. Private Network For SIS Licensees. https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

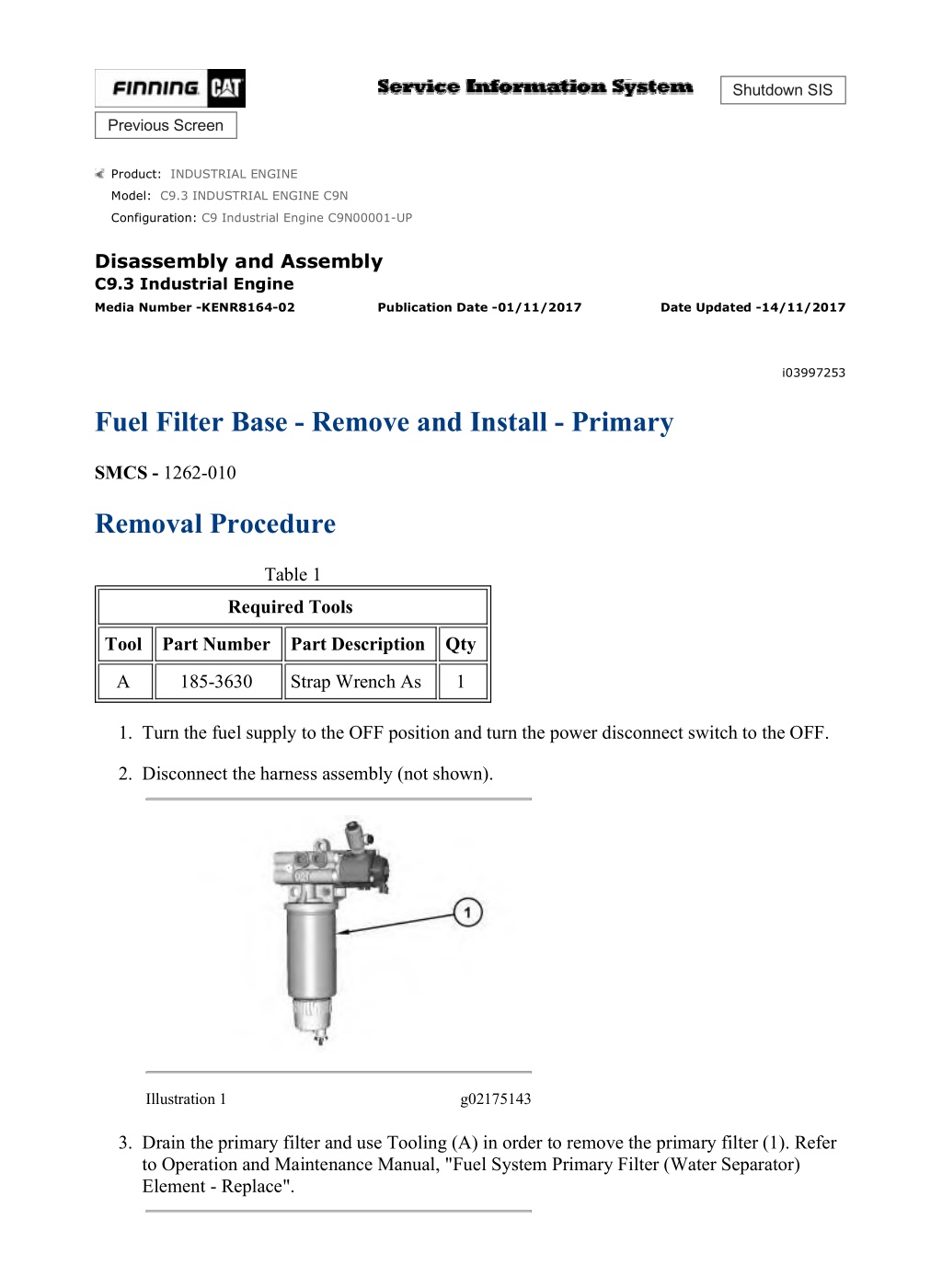

  20. w 1/3(W) Shutdown SIS Previous Screen Product: INDUSTRIAL ENGINE Model: C9.3 INDUSTRIAL ENGINE C9N Configuration: C9 Industrial Engine C9N00001-UP Disassembly and Assembly C9.3 Industrial Engine Media Number -KENR8164-02 Publication Date -01/11/2017 Date Updated -14/11/2017 i03997253 Fuel Filter Base - Remove and Install - Primary SMCS - 1262-010 Removal Procedure Table 1 Required Tools Tool Part Number Part Description Qty A 185-3630 Strap Wrench As 1 1. Turn the fuel supply to the OFF position and turn the power disconnect switch to the OFF. 2. Disconnect the harness assembly (not shown). Illustration 1 g02175143 3. Drain the primary filter and use Tooling (A) in order to remove the primary filter (1). Refer to Operation and Maintenance Manual, "Fuel System Primary Filter (Water Separator) Element - Replace". https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

  21. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.

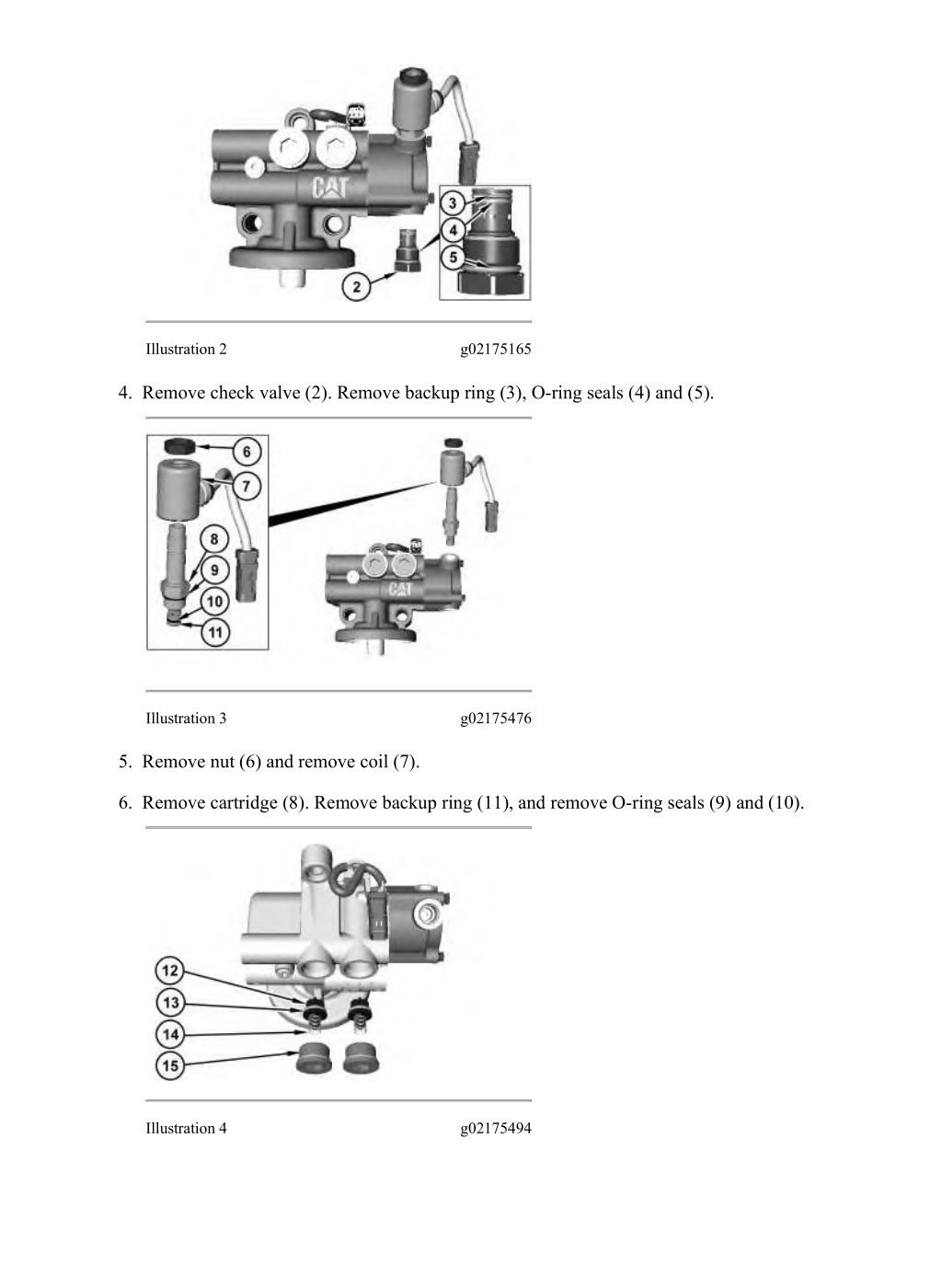

  22. w 2/3(W) Illustration 2 g02175165 4. Remove check valve (2). Remove backup ring (3), O-ring seals (4) and (5). Illustration 3 g02175476 5. Remove nut (6) and remove coil (7). 6. Remove cartridge (8). Remove backup ring (11), and remove O-ring seals (9) and (10). Illustration 4 g02175494 https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6

  23. w 3/3(W) Personal injury can result from being struck by parts propelled by a released spring force. Make sure to wear all necessary protective equipment. Follow the recommended procedure and use all recommended tooling to release the spring force. 7. Remove plug (15) and remove the O-ring seal. Remove spring (14), valve (12) and O-ring seal (13). Repeat this step for the other check valve assembly. 8. Remove the Fuel Priming Pump. Refer to Disassembly and Assembly Manual, "Fuel Priming Pump - Remove and Install". Installation Procedure NOTICE Check the O-ring seals, the gaskets, and the seals for wear or for damage. Replace the components, if necessary. 1. Install the fuel filter and the fuel filter base in the reverse order. a. Tighten plug (15) to a torque of 95 ± 10 N·m (70 ± 7 lb ft). b. Tighten check valve (2) to a torque of 28 ± 3 N·m (21 ± 2 lb ft). c. Tighten cartridge (8) to a torque of 28 ± 3 N·m (21 ± 2 lb ft). d. Tighten nut (6) to a torque of 6.5 ± 0.5 N·m (58 ± 4 lb in). Copyright 1993 - 2020 Caterpillar Inc. Sat Jun 6 14:52:00 UTC+0800 2020 All Rights Reserved. Private Network For SIS Licensees. https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/siswe... 2020/6/6
