11.2 Digital Control Systems Bilinear Transformation

Reg1_slide5 Chapter 13.10 JNy Rev.08.11.04. 11.2 Digital Control Systems Bilinear Transformation. Bilinear transformation. S’-plane to z-plane mapping. Cascade compensation via the s-plane. Example 13.12. Exercises. Skill assesment Exercise 13.9 (including Matlab solution)

Download Presentation

11.2 Digital Control Systems Bilinear Transformation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

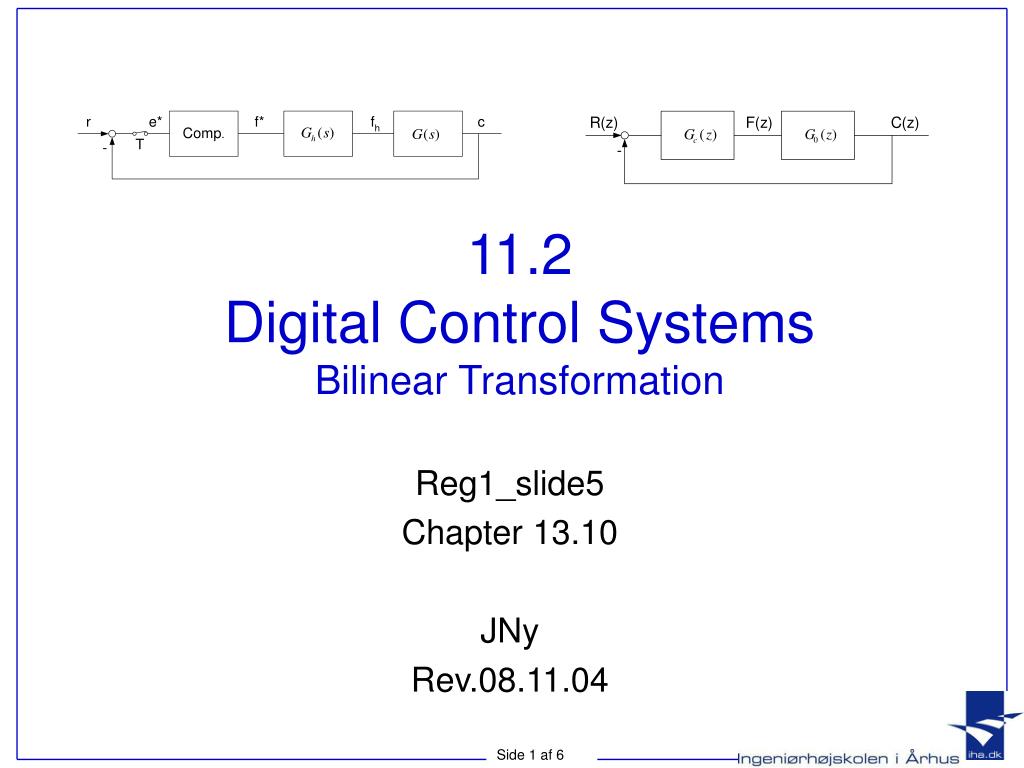

  1. Reg1_slide5 Chapter 13.10 JNy Rev.08.11.04 11.2Digital Control SystemsBilinear Transformation

  2. Bilinear transformation

  3. S’-plane to z-plane mapping

  4. Cascade compensation via the s-plane

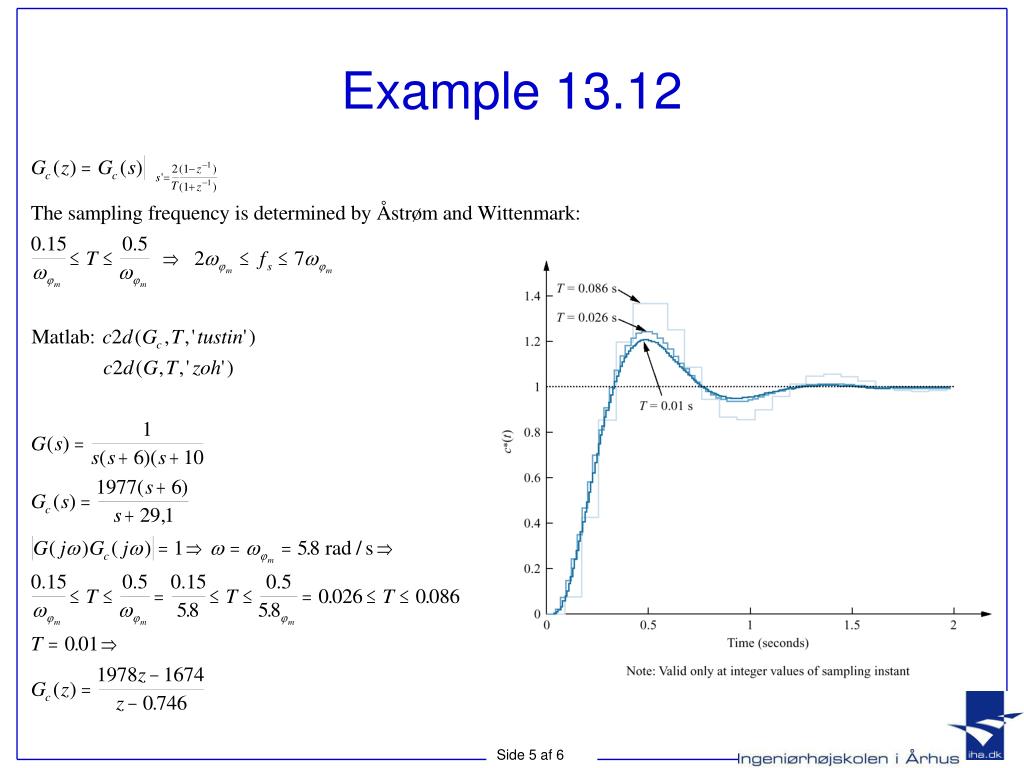

  5. Example 13.12

  6. Exercises • Skill assesment Exercise 13.9 (including Matlab solution) • X-tra: Problem 11.19 (lead/ lag)
