Presentation Transcript

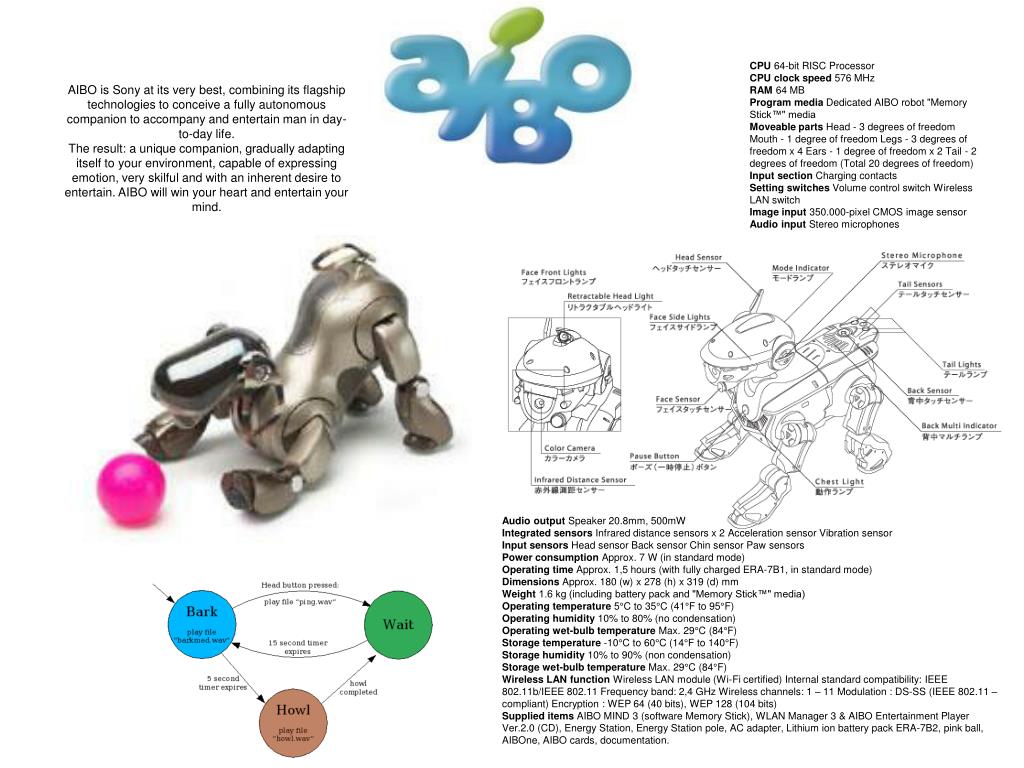

  1. CPU 64-bit RISC Processor CPU clock speed 576 MHz RAM 64 MB Program media Dedicated AIBO robot "Memory Stick™" media Moveable parts Head - 3 degrees of freedom Mouth - 1 degree of freedom Legs - 3 degrees of freedom x 4 Ears - 1 degree of freedom x 2 Tail - 2 degrees of freedom (Total 20 degrees of freedom) Input section Charging contacts Setting switches Volume control switch Wireless LAN switch Image input 350.000-pixel CMOS image sensor Audio input Stereo microphones AIBO is Sony at its very best, combining its flagship technologies to conceive a fully autonomous companion to accompany and entertain man in day-to-day life. The result: a unique companion, gradually adapting itself to your environment, capable of expressing emotion, very skilful and with an inherent desire to entertain. AIBO will win your heart and entertain your mind. Audio output Speaker 20.8mm, 500mW Integrated sensors Infrared distance sensors x 2 Acceleration sensor Vibration sensor Input sensors Head sensor Back sensor Chin sensor Paw sensors Power consumption Approx. 7 W (in standard mode) Operating time Approx. 1,5 hours (with fully charged ERA-7B1, in standard mode) Dimensions Approx. 180 (w) x 278 (h) x 319 (d) mm Weight 1.6 kg (including battery pack and "Memory Stick™" media) Operating temperature 5°C to 35°C (41°F to 95°F) Operating humidity 10% to 80% (no condensation) Operating wet-bulb temperature Max. 29°C (84°F) Storage temperature -10°C to 60°C (14°F to 140°F) Storage humidity 10% to 90% (non condensation) Storage wet-bulb temperature Max. 29°C (84°F) Wireless LAN function Wireless LAN module (Wi-Fi certified) Internal standard compatibility: IEEE 802.11b/IEEE 802.11 Frequency band: 2,4 GHz Wireless channels: 1 – 11 Modulation : DS-SS (IEEE 802.11 – compliant) Encryption : WEP 64 (40 bits), WEP 128 (104 bits) Supplied items AIBO MIND 3 (software Memory Stick), WLAN Manager 3 & AIBO Entertainment Player Ver.2.0 (CD), Energy Station, Energy Station pole, AC adapter, Lithium ion battery pack ERA-7B2, pink ball, AIBOne, AIBO cards, documentation.
