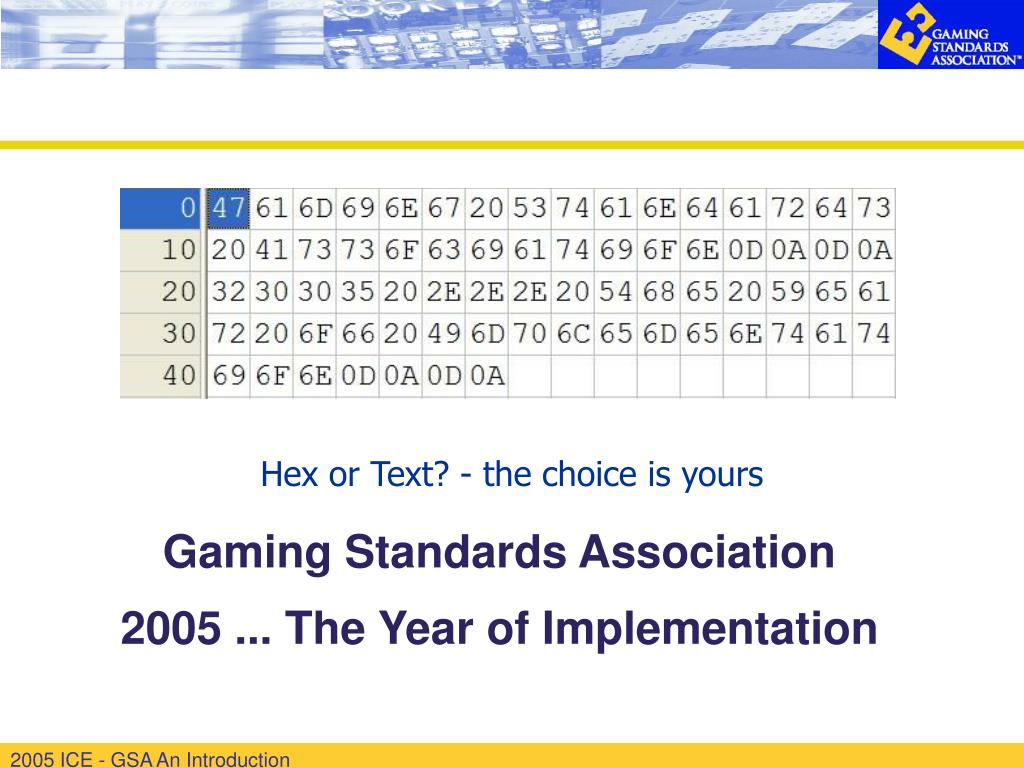

slide2

Hex or Text? - the choice is yours

Gaming Standards Association

2005 ... The Year of Implementation

agenda
Agenda
  • What is GSA?
  • What are Gaming Standards?
  • GSA’s three standards: BOB, S2S & GDS
  • GSA Certification
  • Moving from the drawing board to the gaming floor
  • Q & A
our mission
Our Mission

GSA is an international trade association representing gaming manufacturers, suppliers, operators and regulators.

We facilitate the identification, definition, development, promotion, and implementation of open standards

to enable innovation, education, and communication for the benefit of the entire industry.

2004 board of directors
2004 Board Of Directors

Chair Gregg Solomon Mandalay Resort Group

Vice Chair Mark Lipparelli Bally Gaming and Systems

Secretary John Boushy Harrah’s Entertainment

Treasurer Fred Lychock R. Franco USA

Kent Young Aristocrat Technologies

Joe Bailo Atronic Americas

Val Levitan CashCode Company

Derrik Khoo eGenting

Steve Sutherland Konami Gaming

Lyle Bell Seminole Tribe of Florida

Jon Berkley TransAct Technologies

Rob Siemasko WMS Gaming

association milestones
Association Milestones

1996 - Gaming Manufacturers Association (GAMMA) was incorporated; providing an open forum to create common solutions for the gaming industry

2000 - Operators invited to join the organization, to ensure that the solutions created were acceptable to all

2001 - GAMMA becomes the Gaming Standards Association, signifying a broadening of the organization’s scope

2002 - Regulatory Advisory Committee created to offer regulators a means of early review and comment

2004 - Formal standards are released for GDS, BOB, and S2S

2004 - BOB and GDS simulators are developed to help manufacturers implement the new protocols

what are gsa standards1
What are GSA Standards?
  • Open standards or protocols that enable communication between peripherals, gaming machines, and systems
  • Eliminate the need for incompatible, proprietary languages
  • Based on industry standard protocols: Ethernet, TCP/IP, XML, SOAP, USB
enable communication on three levels

Voucher Manager

Kiosks

CoinAcceptor

S2S

S2S

GDS

BOB

CoinHopper

Player Tracking

Point ofSale

GameControl

S2S

NoteAcceptor

Slot Accounting

Coin/BillCounters

Printer

S2S

TouchScreen

Class IIServers

Progressive

Game & Peripherals

Game to Systems

System to System

Enable Communication on Three Levels
why were they developed
Why Were They Developed?
  • To provide a standardized method for communication
  • To address the problem of having >30 different “languages” on the gaming floor
  • To enable operators to have valuable business information about patron activity
how were they developed
How Were They Developed?
  • Developed by members of Gaming Standards Association (GSA):
    • Operators
    • Manufacturers
    • Regulators
    • Suppliers
  • Cross-pollination of ideas
  • Much richer protocols than can be developed by one company alone
why are standards important
Why Are Standards Important?
  • Unlinked systems do not provide “big picture” view of operations
  • Proprietary interfaces are costly & inefficient
    • Changing one part requires changing another
    • Cost of switching vendors can be prohibitive
  • Need to access multiple systems to gain accurate customer intelligence
investment protection
Investment Protection
  • Open standards are typically more robust
    • Developed by many different companies, not just one
  • Continuous improvement of standards
    • Workgroups have a continuing agenda
  • Smooth migration path to new functionality while protecting existing equipment investment
    • Bank by bank migration strategy for BOB
    • A new GDS device can be introduced in a single EGM
    • S2S protocols can be initially used for new systems
gaming device standard gds protocol
Gaming Device Standard (GDS) Protocol

CoinAcceptor

GDS

CoinHopper

GameControl

NoteAcceptor

Printer

TouchScreen

EGM to Peripherals protocol

benefits of gds
Benefits of GDS
  • Standardized communications between EGM and its peripheral devices
  • Can easily change between peripherals from different vendors
  • Plug and Play USB communication
  • Peripheral device provides detailed information to EGM
  • Coupled with BOB, peripheral device info is sent to the host systems
  • Device commands (and code) can be sent from host systems through the EGM to the peripheral device
gds workgroup update
GDS Workgroup Update
  • First device protocols are complete
    • Note Acceptor
    • Coin Acceptor
    • Coin Hopper
  • Development suite is complete
  • Next projects:
    • Touch Screen device
    • Note Acceptor code download
    • Printer interface and template download
best of breed bob protocol
Best of Breed (BOB) Protocol

Vouchers

BOB

CoinAcceptor

Player Tracking

CoinHopper

GameControl

Slot Accounting

NoteAcceptor

Printer

Progressives

TouchScreen

Wagering

Accounts

EGM

BOB Host Systems

what is bob
What Is BOB?
  • The industry’s protocol for the networked casino floor environment
  • Communications between EGMs and back-end servers
  • Based on current, proven technology standards; XML, SOAP, Web Services, etc.
  • Expandable from low-speed (BOB messages between an EGM and SMIB over a serial link) to very high-speed communications (EGM to multiple back-end servers over Ethernet)
  • Consists of three independent components:
    • BOB Message Standards
    • BOB Transport Standards
    • BOB Configuration Standards
benefits of bob
Benefits of BOB
  • Single method of communication between an EGM and one or more Hosts
  • Yield management for multi-game cabinets
  • Rich information about EGM and its peripherals
  • Easy to add new applications to the casino
  • Standardized transport methods allow use of “off the shelf” development tools
  • Manufacturers can now focus on content
the bob classes
Core Classes

1) Device ownership & subscriptions

2) Communications

3) Meters & subscriptions

4) Cabinet Class

5) Processor Class

Additional Classes

1) Coin Acceptor

2) Note Acceptor & Dispenser

3) Coin Hopper

4) Printer

5) Handpay

6) Progressive

7) Bonus

8) Player

9) Voucher

10) Wagering Account Transfer

11) Game Authentication Terminal

The BOB Classes
a bob meter request

Host Request

<getMeters>

<getPerfMeters

meterName="coinIn"

themeId = “sum”

paytableId=”sum”

denomId=“all”

/>

</getMeters>

EGM Response

<meterInfo metertype =“onDemand”>

<perfMeter

Metername="coinIn"

denomid=”5”

meterValue=“50015”/>

<perfMeter

Metername="coinIn"

denomid=”25”

meterValue=“1003525”/>

<perfMeter

Metername="coinIn"

denomid=”100”

meterValue=“2504100” />

</meterinfo>

A BOB Meter Request

[A little easier to understand]

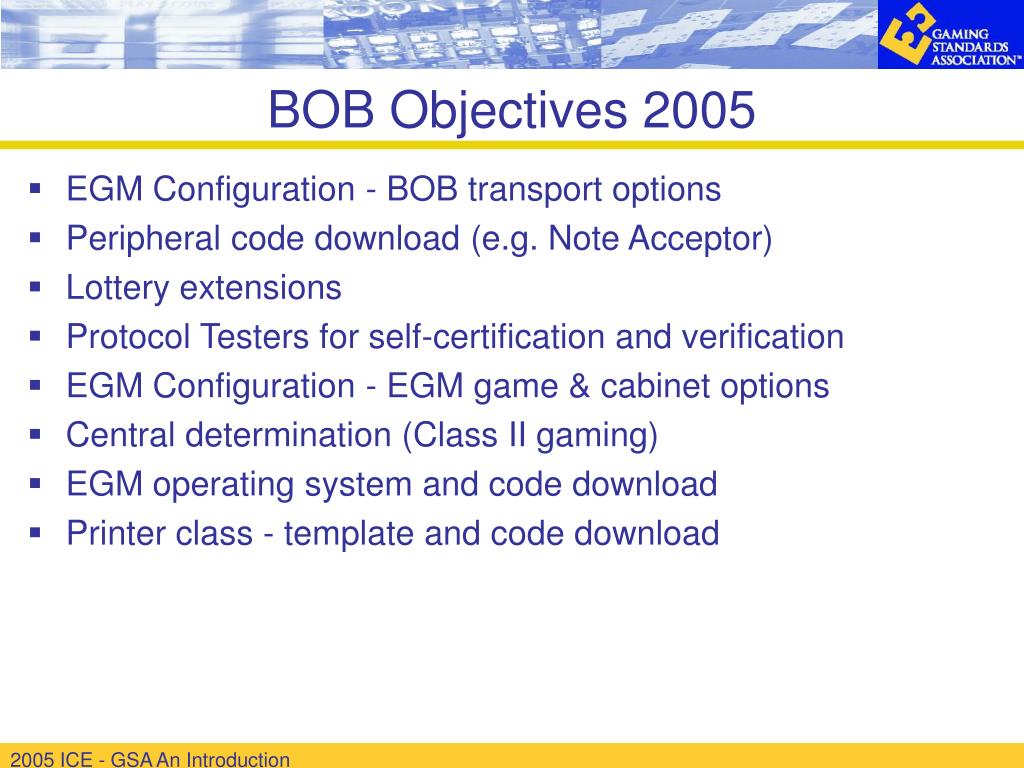

bob objectives 2005
BOB Objectives 2005
  • EGM Configuration - BOB transport options
  • Peripheral code download (e.g. Note Acceptor)
  • Lottery extensions
  • Protocol Testers for self-certification and verification
  • EGM Configuration - EGM game & cabinet options
  • Central determination (Class II gaming)
  • EGM operating system and code download
  • Printer class - template and code download

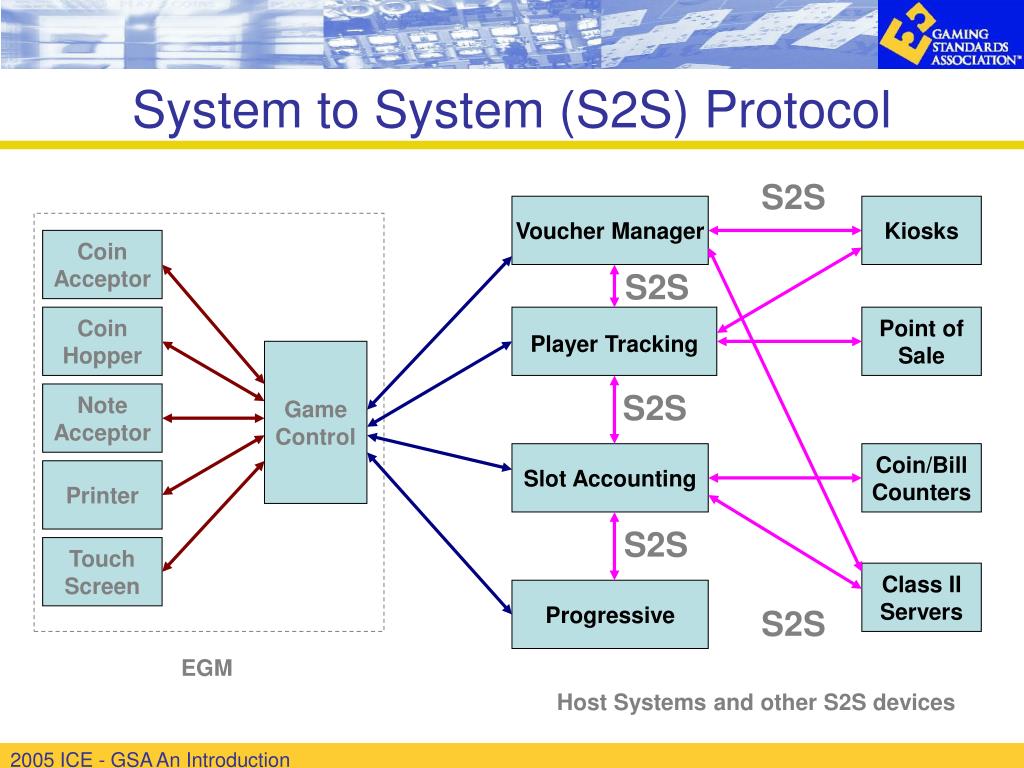

system to system s2s protocol
System to System (S2S) Protocol

S2S

Voucher Manager

Kiosks

CoinAcceptor

S2S

CoinHopper

Player Tracking

Point ofSale

GameControl

S2S

NoteAcceptor

Slot Accounting

Coin/BillCounters

Printer

S2S

TouchScreen

Class IIServers

Progressive

S2S

EGM

Host Systems and other S2S devices

benefits of s2s
Benefits of S2S
  • Standardizes communication between servers and devices
  • S2S is developed with GDS and BOB, so communication with a note acceptor is available to a back end server
  • Standard server protocols opens up new solutions (Class II)
  • Supports “plug and play” for systems and peripheral devices
    • Interfacing - all components speak the same language
    • Integrating - Custom solutions are developed for each new conversation
  • Standardization promotes portability, interoperability and reusability
s2s and class ii
S2S and Class II

In a Class II environment, each manufacturer has their own server for central determination and other game functions

The Problem: Three game manufacturers means

  • Three separate accounting reports,
  • Three player tracking feeds, and
  • Three voucher systems
    • vouchers are only redeemable on same manufacturer’s games
    • What about the cashier booth? (three redemption terminals…)

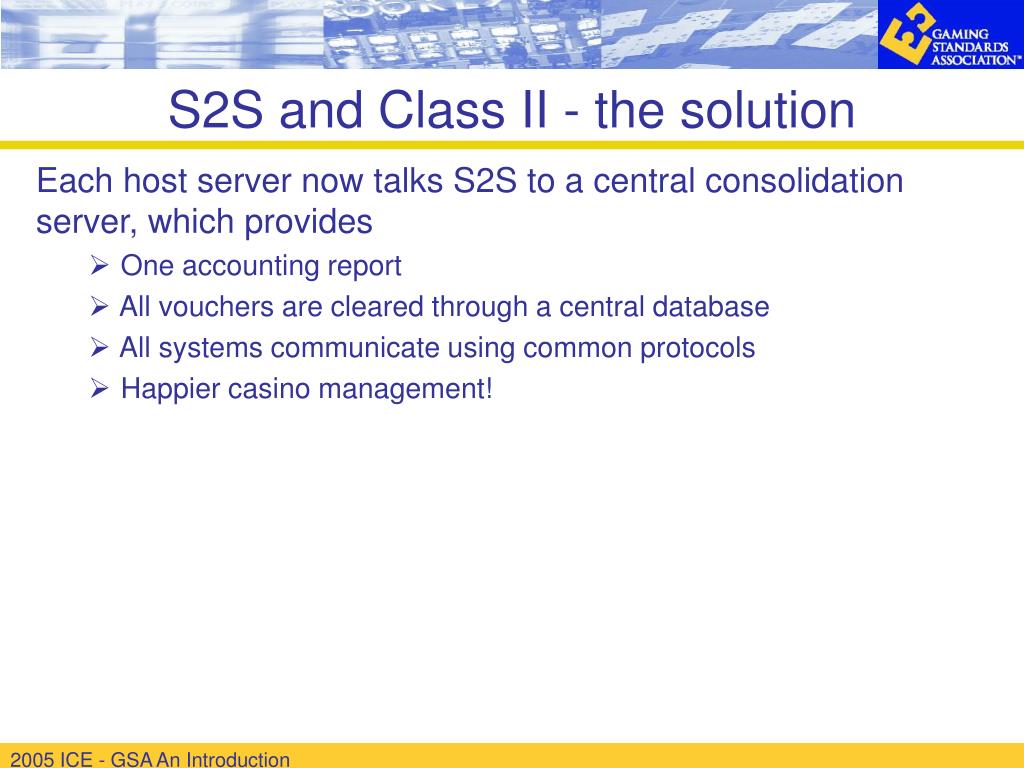

s2s and class ii the solution
S2S and Class II - the solution

Each host server now talks S2S to a central consolidation server, which provides

  • One accounting report
  • All vouchers are cleared through a central database
  • All systems communicate using common protocols
  • Happier casino management!
s2s objectives 2005
S2S Objectives 2005
  • EGM Player Rating Configuration
  • Lottery & Central Determination
  • Point-of-Sale Integration
companies supporting gsa standards
Aristocrat

Asahi Seiko

Bally Gaming & Systems

CashCode

Coin Mechanisms, Inc.

Cirsa

IGT

JCM

Konami

Companies supporting GSA Standards
  • Mars
  • Mandalay Resort Group
  • MoneyControls
  • NRT
  • Revive Partners
  • Rocket Gaming
  • Seminole Tribe
  • WMS Gaming
interoperability compliance testing
Interoperability & Compliance Testing
  • The primary purpose:
    • Impartial testing facility - integrated testing of GSA standards
    • GSA compliance – independent testing by 3rd party against GSA pre-defined test scripts
    • Compliance testing NOT Regulatory Approval
  • Standards to be tested:
    • Best of Breed (BOB)
    • Gaming Device Standards (GDS)
    • System to System (S2S)
    • Future GSA technology standards
benefits of gsa compliance
Benefits of GSA Compliance
  • For GSA Members and the Gaming Industry
    • Decreased time to market due to improved regulatory process
    • Plug and Play
      • More efficient casino floor installations
      • Reduced follow up service calls
  • For Regulators
    • Standardized protocols reduce the quantity and variety of required testing
    • Enables better forensic analysis to resolve disputes
  • Who will make it work?
    • The operators by requesting GSA compliance when making purchasing decisions
gsa sas 6 01 compliance
GSA SAS 6.01 Compliance
  • Current SAS implementations are all different
  • Interoperability Requirements Specification (Operator’s Checklist)

Section 1: Minimum Required Accounting and Security

Section 2: Advanced Accounting

Section 3: Ticketing

Section 4: Real Time Events

Section 5: Progressives

Section 6: System Bonusing

Section 7: Cashless

Section 8: Tournament

Section 9: Authentication

Section 10: Miscellaneous and Legacy Support

bob protocol simulators
Why did we do this?

1) First implementation to validate the new protocols

2) To create a suite of tools usable by all to make it easier to build, test, and certify GSA Protocol implementations

3) To gain practical experience with the protocol

Where are we today?

1) Version 1.1 of the Simulators is complete

2) All classes of the BOB protocol implemented and tested

3) Developer notes and lessons learned from the Sims are in progress, and will be distributed with the Suite

BOB Protocol Simulators
status of bob
Status of BOB
  • Data model and schemas are completed, documented, and a reference implementation has been written against the documentation
  • One transport profile is fully documented (SOAP and TCP/IP), a second is in progress (wbxml and PPP). Profile model is being adopted for flexibility.
  • Host and EGM Sims - complete for all BOB classes by end of year
  • BOB Sim intro session - December 16th
  • BOB technical working session - January 19 & 20
  • BOB Interoperability event - mid July 2005
gsa industry support
GSA Industry Support
  • All GSA standards are supported by tools
  • GSA tools available to date
    • BOB Host and EGM Simulators v1.1
    • GDS (Host Simulator, Client Drivers, Sample Code)
    • SAS 6.01 Toolkit
  • GSA tools planned 2005
    • BOB Sims updated
    • S2S Simulator
    • GDS Support for additional peripherals
    • SAS toolkit update
  • Change Management through GSA’s JIRA server
  • General Support through GSA Message Board
reducing these ideas to practice
Reducing these ideas to practice
  • GSA protocols are complete
  • Created by industry experts for the gaming industry
  • Open vs. Proprietary solutions
  • Simulators are available
  • Experts are available
  • Mid-July Interoperability event
  • What are the next steps?
