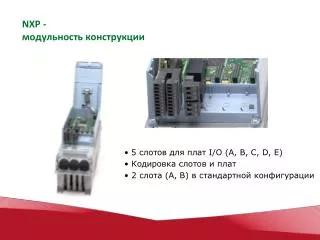

  1. NXP - модульность конструкции • 5 слотов для плат I/O (A, B, C, D, E) • Кодировка слотов и плат • 2 слота (А, В) в стандартной конфигурации 2010 г. г. Москва 1

  2. Платы ввода/вывода OPT-D2 Связь между ПЧ (NXP) OPT-Bx Платы расширения I/О OPT-Cx Платы Fieldbus OPT-Ax Базовые платы I/O NXР: 5 слотов

  3. Платы расширения 2010 г. г. Москва 3
